PILZ PNOZ mc1p 773700

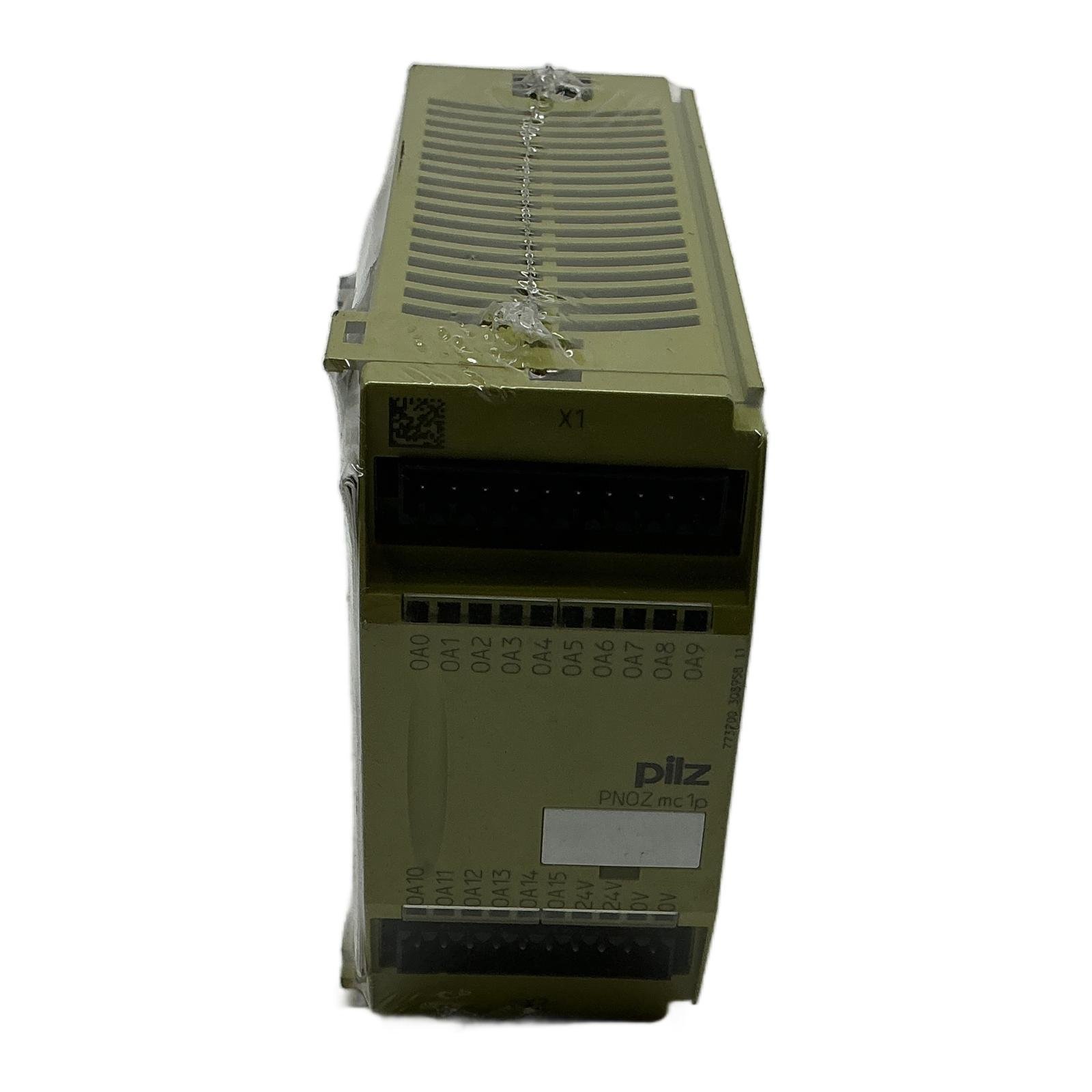

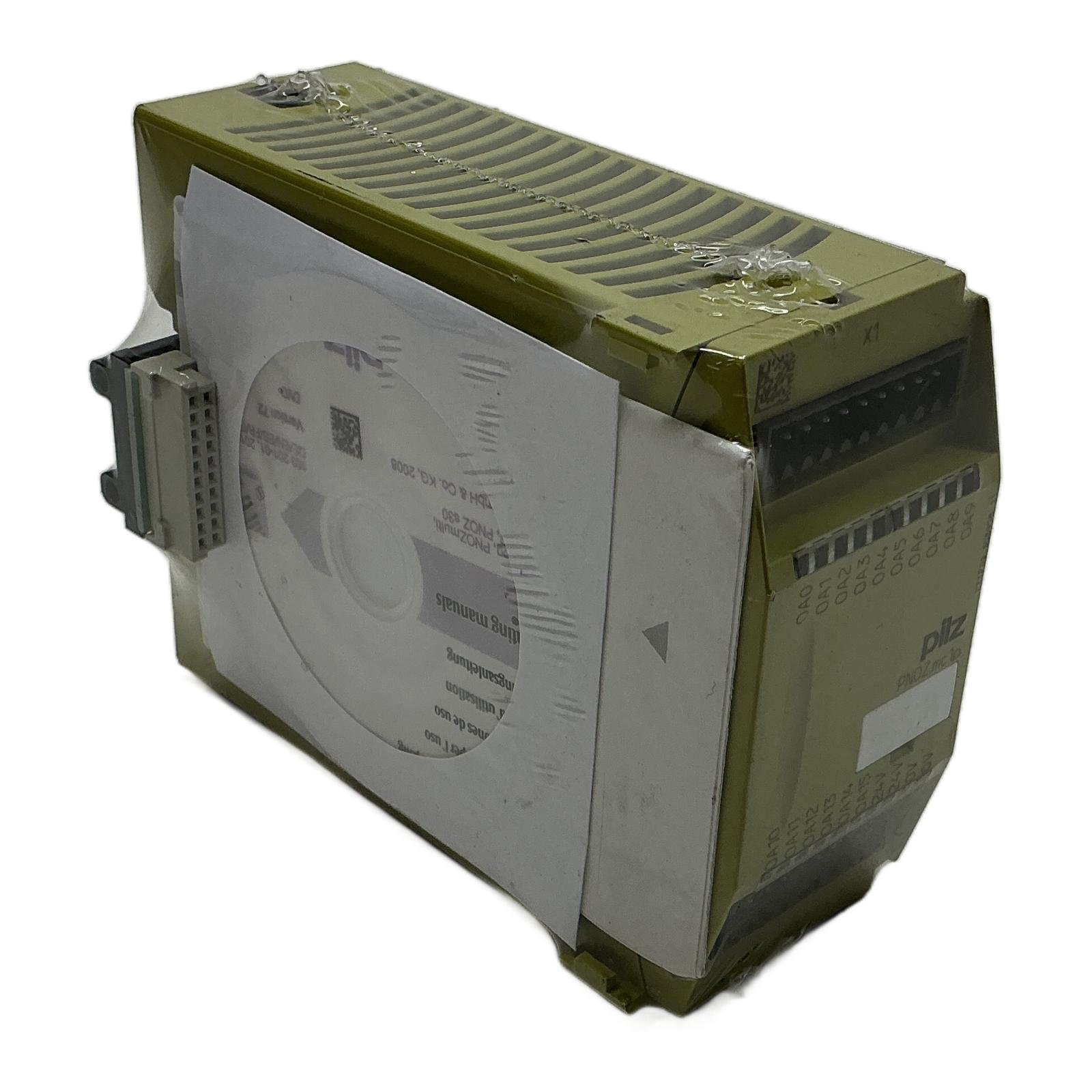

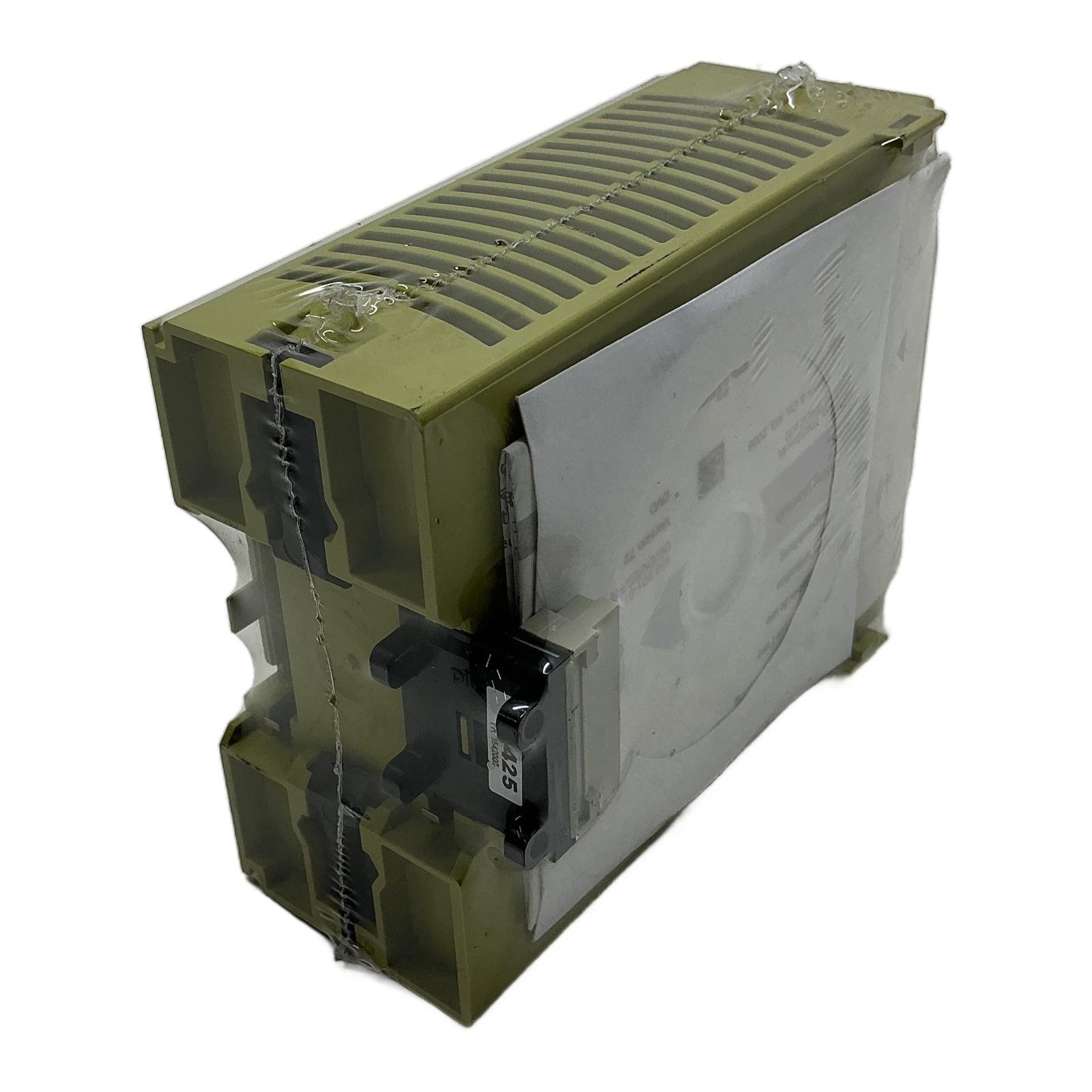

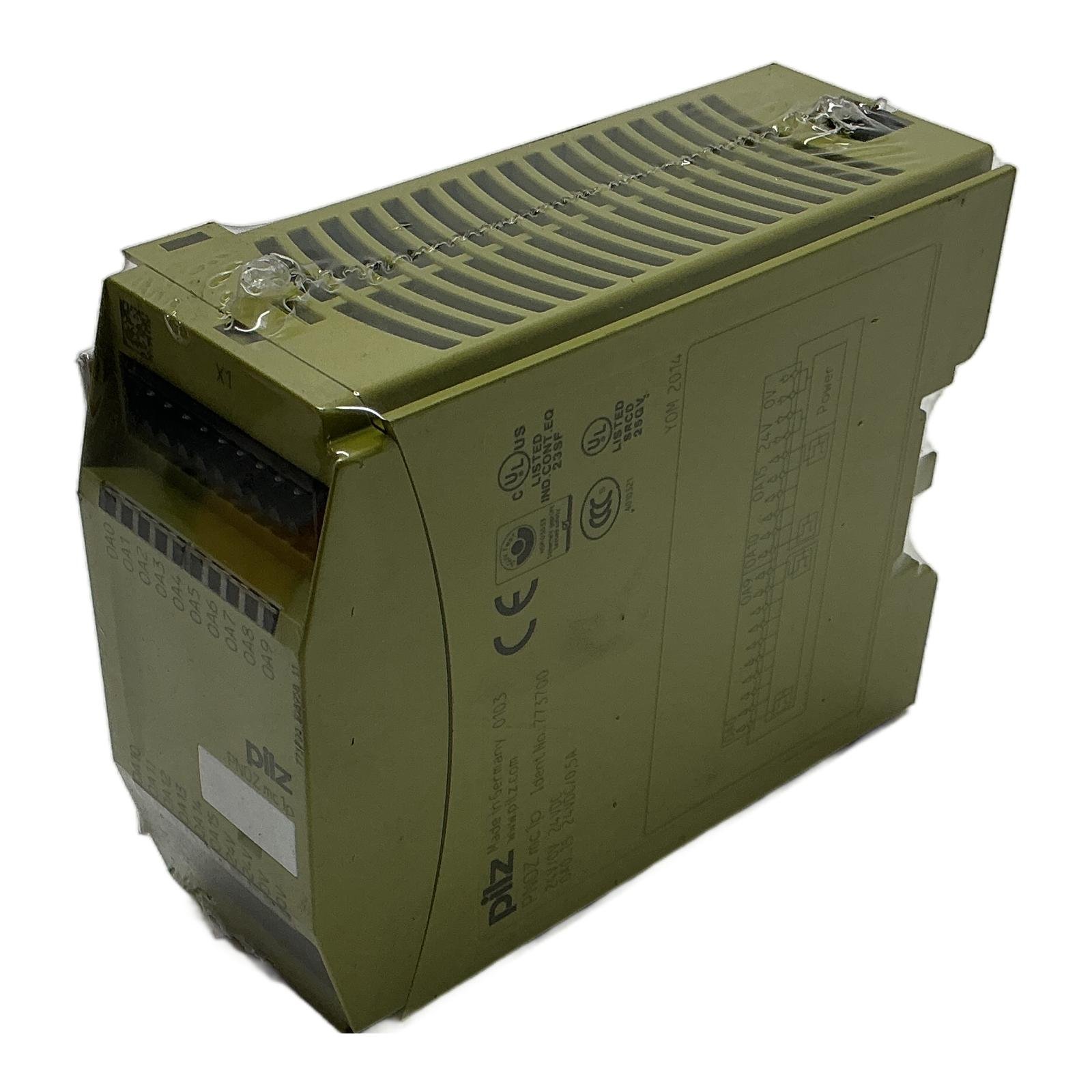

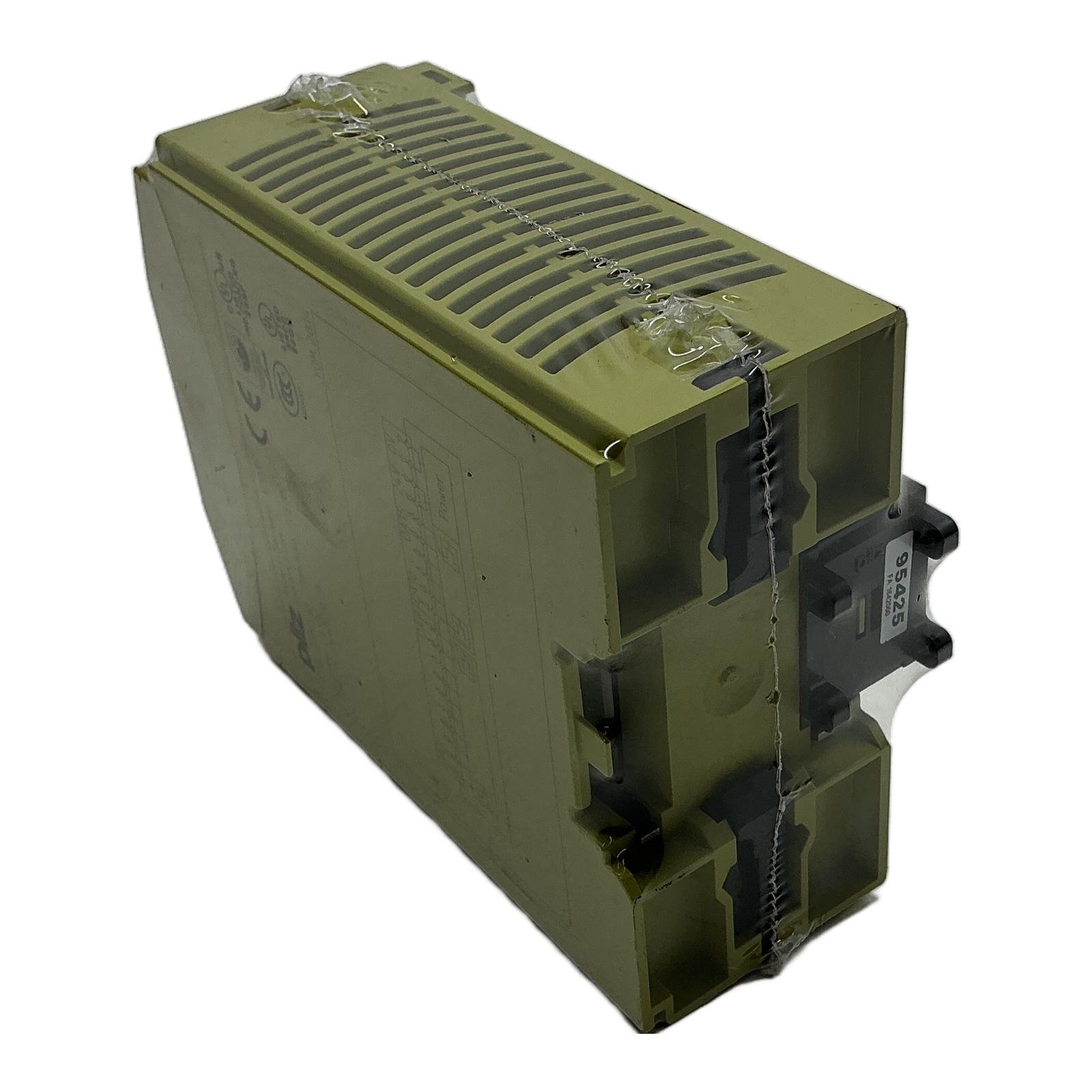

Pilz PNOZ mc1p Safe Relay Output Module Description The PNOZ mc1p with Ident No. 773700 is a safe relay output module from Pilz, designed for the PNOZmulti classic configurable safety system. This expansion module provides 16 safe semiconductor outputs to reliably control actuators within a safety-related application. It is an essential component for extending the functionality of existing PNOZmulti systems in industrial automation and machine safety environments. Specifications Manufacturer: Pilz Type: PNOZ mc1p Ident No.: 773700 System Family: PNOZmulti Classic Module Type: Safe Relay Output Module Number of Outputs: 16 (OA0…15) Output Voltage: 24VDC Output Current: 0.5A per output Supply Voltage: 24VDC Lifecycle Status: Obsolete Label Info Made in Germany YOM: 2014 Application This module is specifically used to expand the number of safe outputs on a PNOZmulti classic base unit. It is ideal for applications requiring the control of multiple safety functions, such as controlling contactors, valves, and other actuators in accordance with safety standards. Country of Origin Germany CO2 Impact By purchasing this pre-owned module, you are contributing to the circular economy and have helped avoid approximately 10.0 kg of CO2 emissions that would have been generated from manufacturing a new one. Availability This is an obsolete item, available from our stock. Order now from profideals for expert support and fast delivery. FAQ Is this PNOZ mc1p module compatible with the PNOZmulti 2 system? No, the PNOZ mc1p (773700) is part of the obsolete PNOZmulti classic series and is not compatible with the newer PNOZmulti 2 base units. For PNOZmulti 2, you need to use corresponding PNOZ m2 expansion modules. What diagnostic capabilities does this module have? The PNOZ mc1p provides diagnostics via LEDs on the PNOZmulti base unit and through the PNOZmulti Configurator software. It can indicate status for power, output states, and fault conditions like short-circuits on the outputs. What is the maximum total current for this module? While each of the 16 outputs is rated for 0.5A, the total current for the module should not be exceeded. Please consult the official Pilz technical documentation for the specific total current limit and derating curves based on ambient temperature to ensure safe operation. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
