EATON PKN6-16/1N/C/003-A-BL 153435

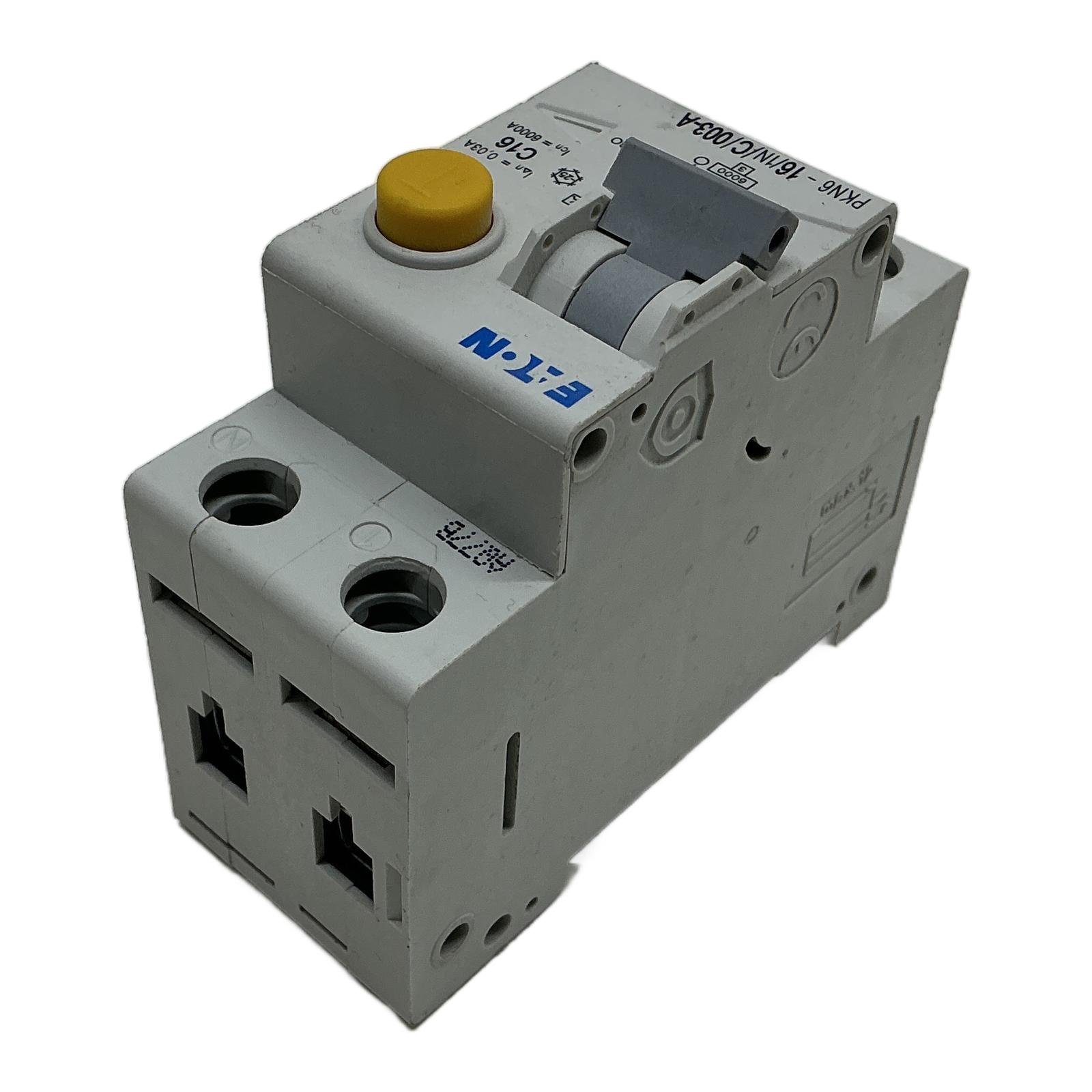

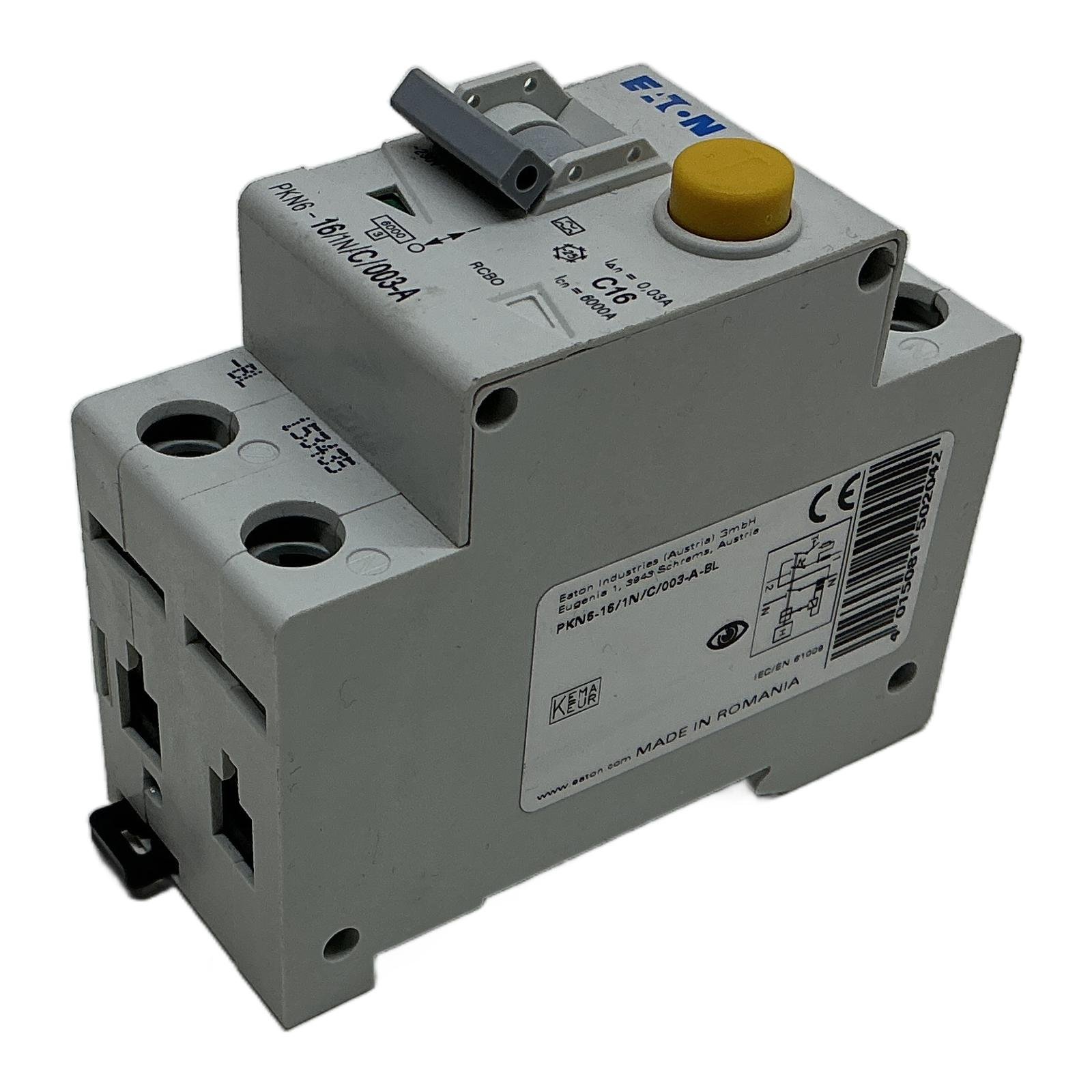

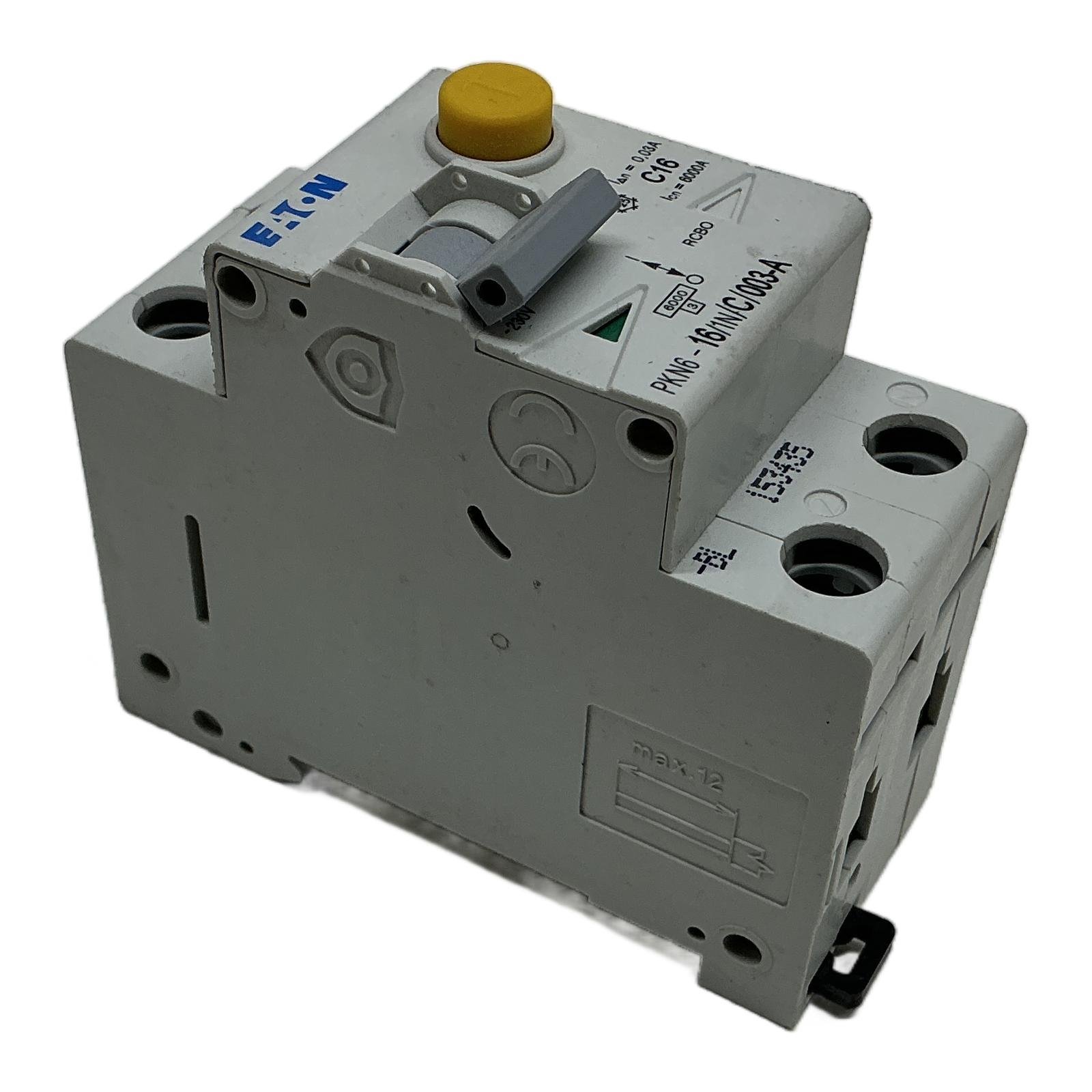

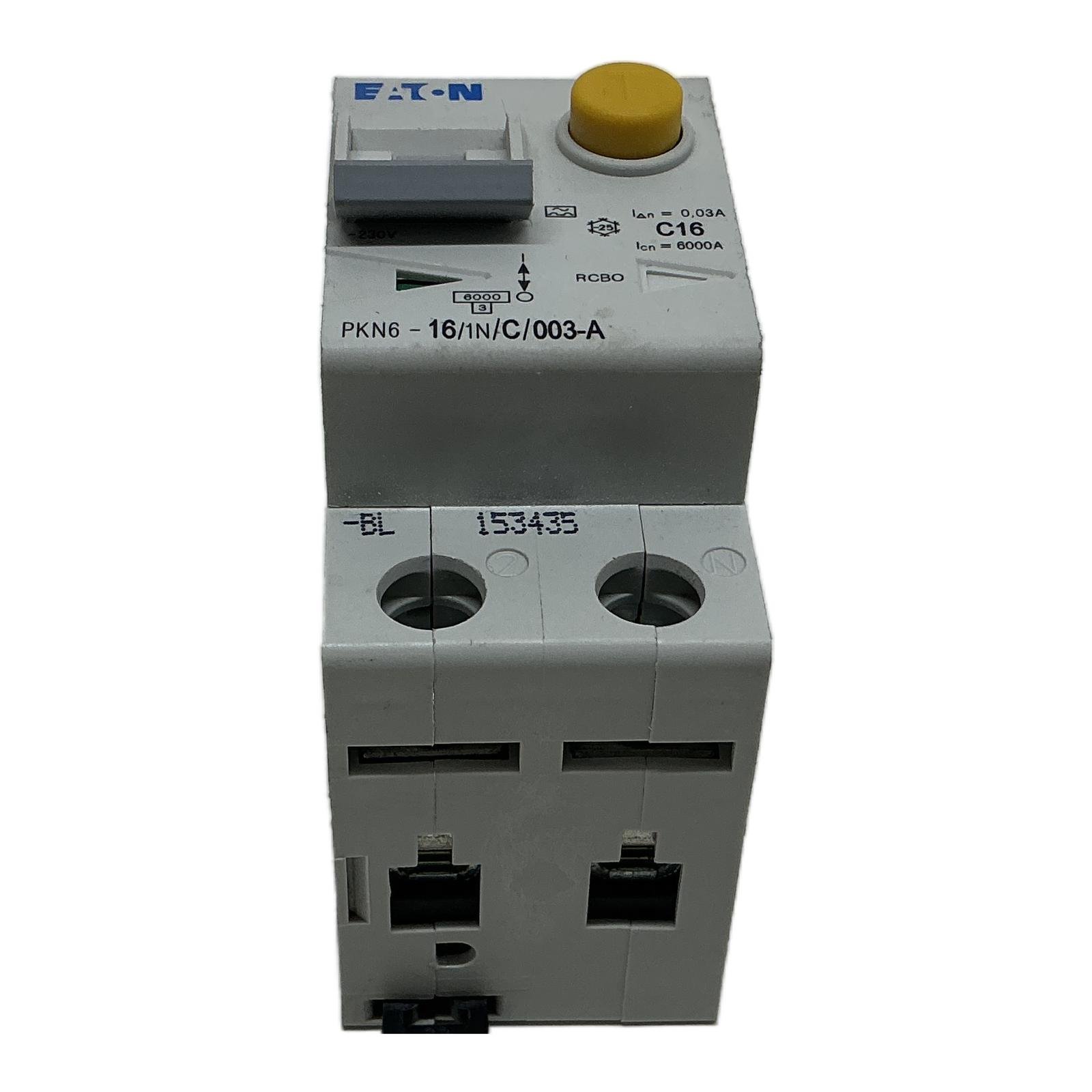

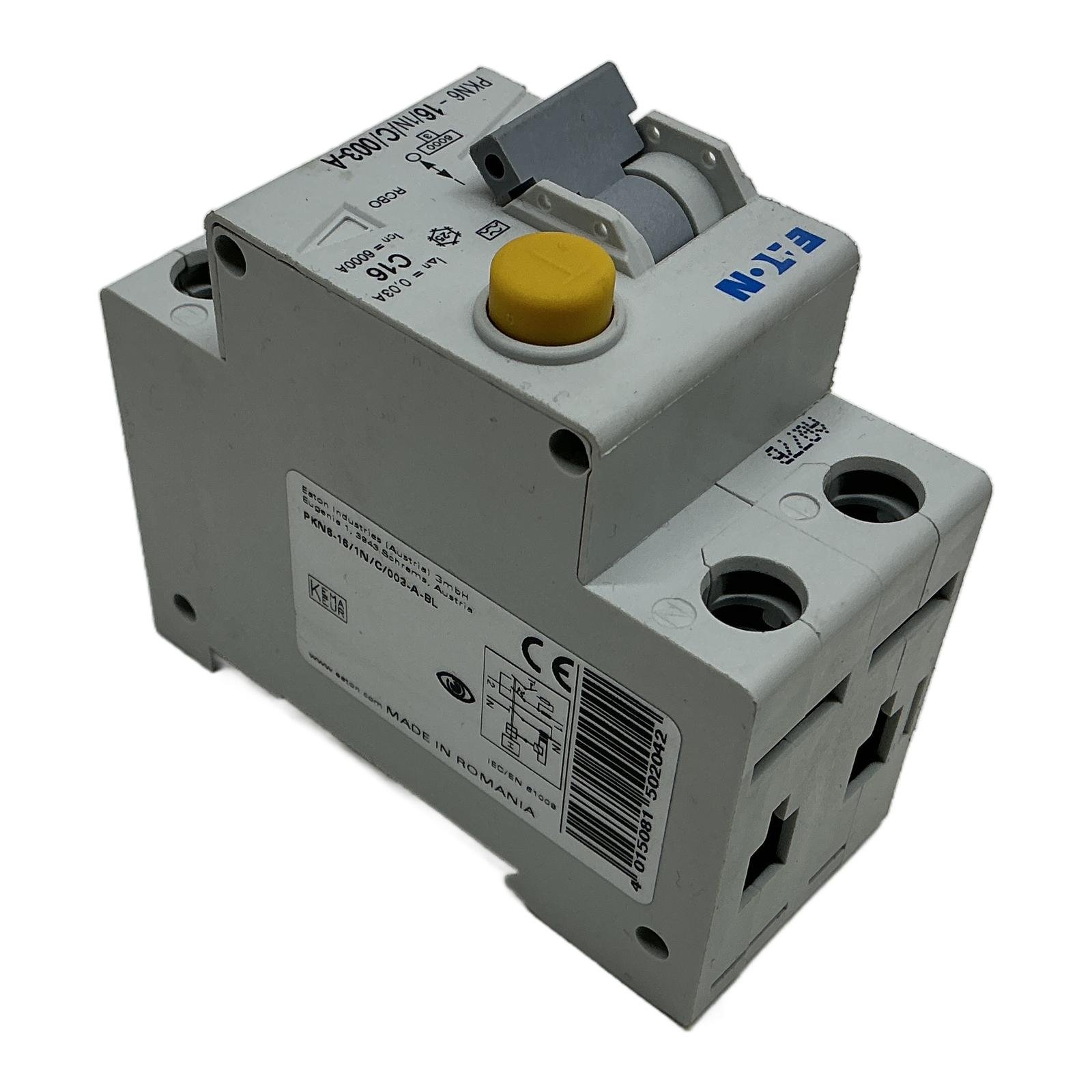

Eaton PKN6 Series RCBO Circuit Breaker Description The Eaton PKN6-16/1N/C/003-A-BL is a high-quality Residual Current Circuit Breaker with Overcurrent protection (RCBO). This device combines the functionality of a residual current device (RCD) and a miniature circuit breaker (MCB) in a single compact unit. It provides comprehensive protection for electrical circuits against short-circuits, overloads, and earth fault currents, ensuring the safety of both personnel and equipment. Specifications Manufacturer: Eaton Model: PKN6-16/1N/C/003-A-BL Article Number: 153435 Rated Current: 16 A Rated Residual Current: 30 mA Tripping Characteristic: C-Curve Number of Poles: 1P+N Rated Breaking Capacity: 6 kA Residual Current Type: A Standard: IEC/EN 61009 Label Info PKN6-16/1N/C/003-A-BL C16 / Ian=0.03A Icn=6000A EAN: 4015081502042 Application This RCBO is ideal for use in final distribution boards for residential, commercial, and industrial applications. It is particularly suited for protecting circuits with equipment that may produce pulsating DC fault currents, such as those with electronic components. Country of Origin Made in Romania. CO2 Impact Opting for this pre-owned component saves an estimated 8.0 kg of CO2 compared to manufacturing a new one. This choice supports a sustainable circular economy in the industrial sector. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a Type A and a Type AC RCBO?A Type AC RCBO is designed to trip on sinusoidal AC fault currents only. This Type A RCBO, however, trips on both sinusoidal AC and pulsating DC fault currents, offering broader protection for modern electronic equipment. What does the ‘C’ in C16 signify for this breaker?The ‘C’ refers to the tripping characteristic. C-curve breakers are designed to trip between 5 and 10 times the rated current. They are suitable for general applications with moderate inrush currents, such as lighting, sockets, and small motors. Can this 1P+N RCBO be used in a three-phase system?This is a single-phase (1 Pole + Neutral) device and is designed to protect a single-phase circuit. For a three-phase system, you would typically use a 4-pole (3P+N) RCBO or individual RCBOs for each phase if required. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
