HAWK NHD1015R 1.099-015.0 / MP 100 L4 150bar Pump

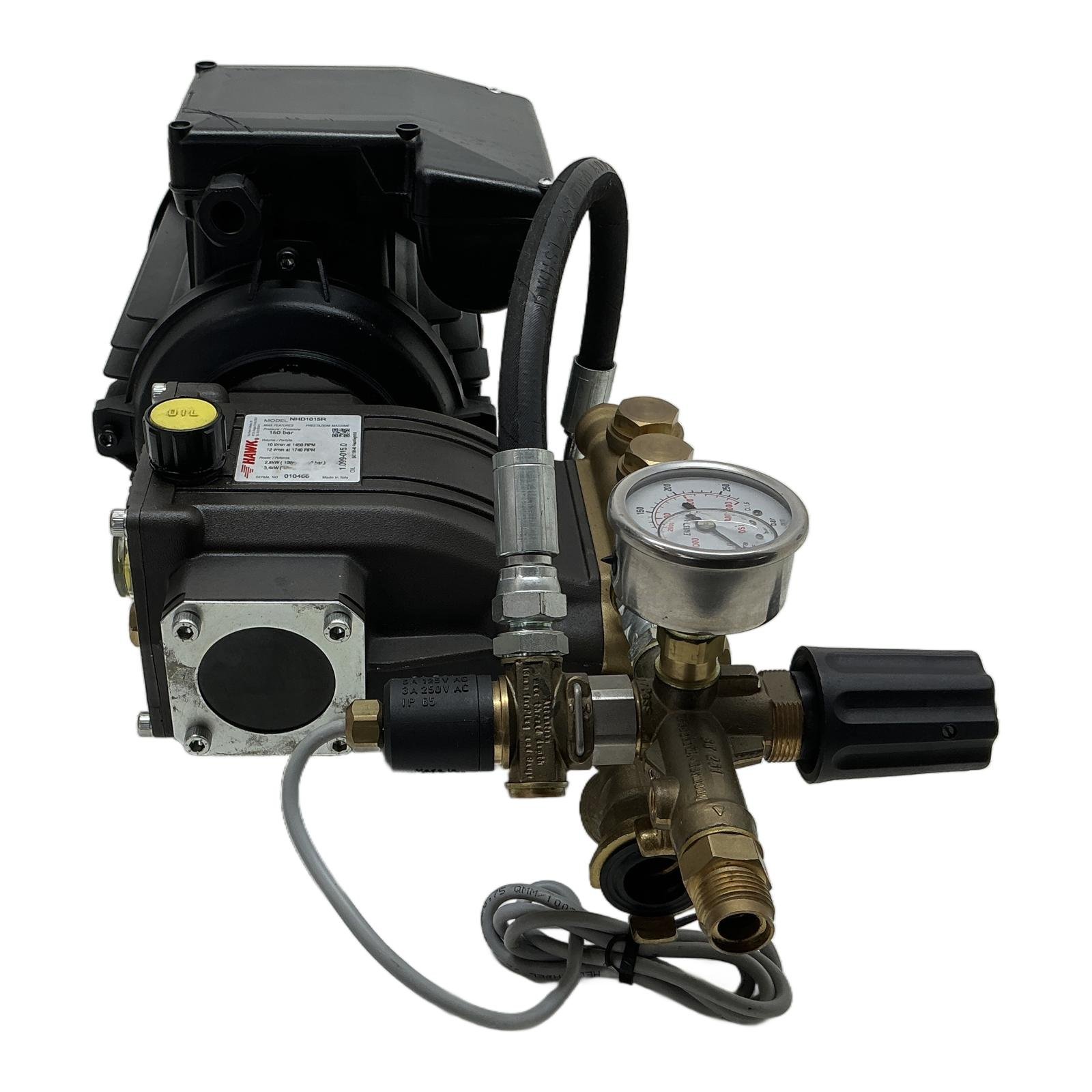

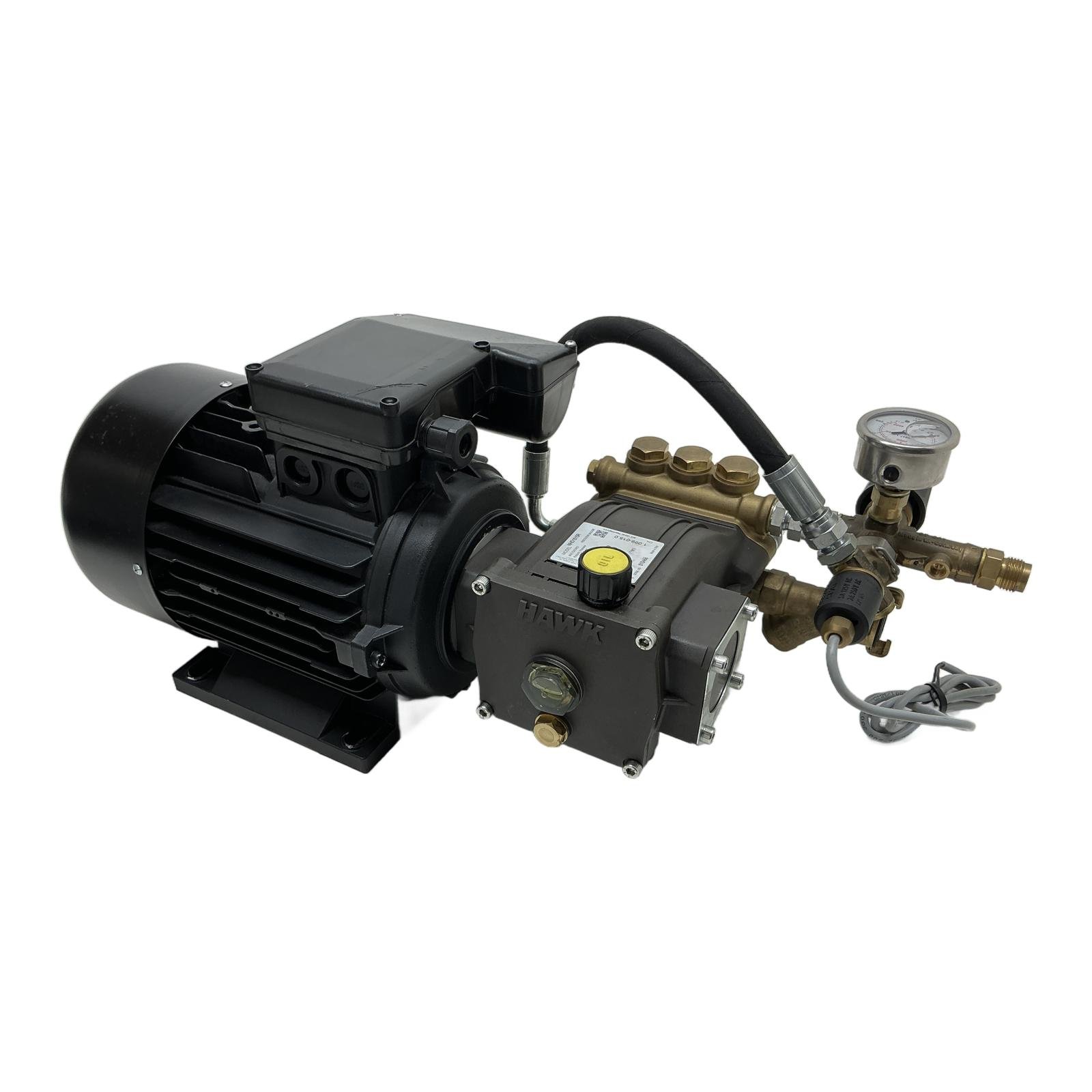

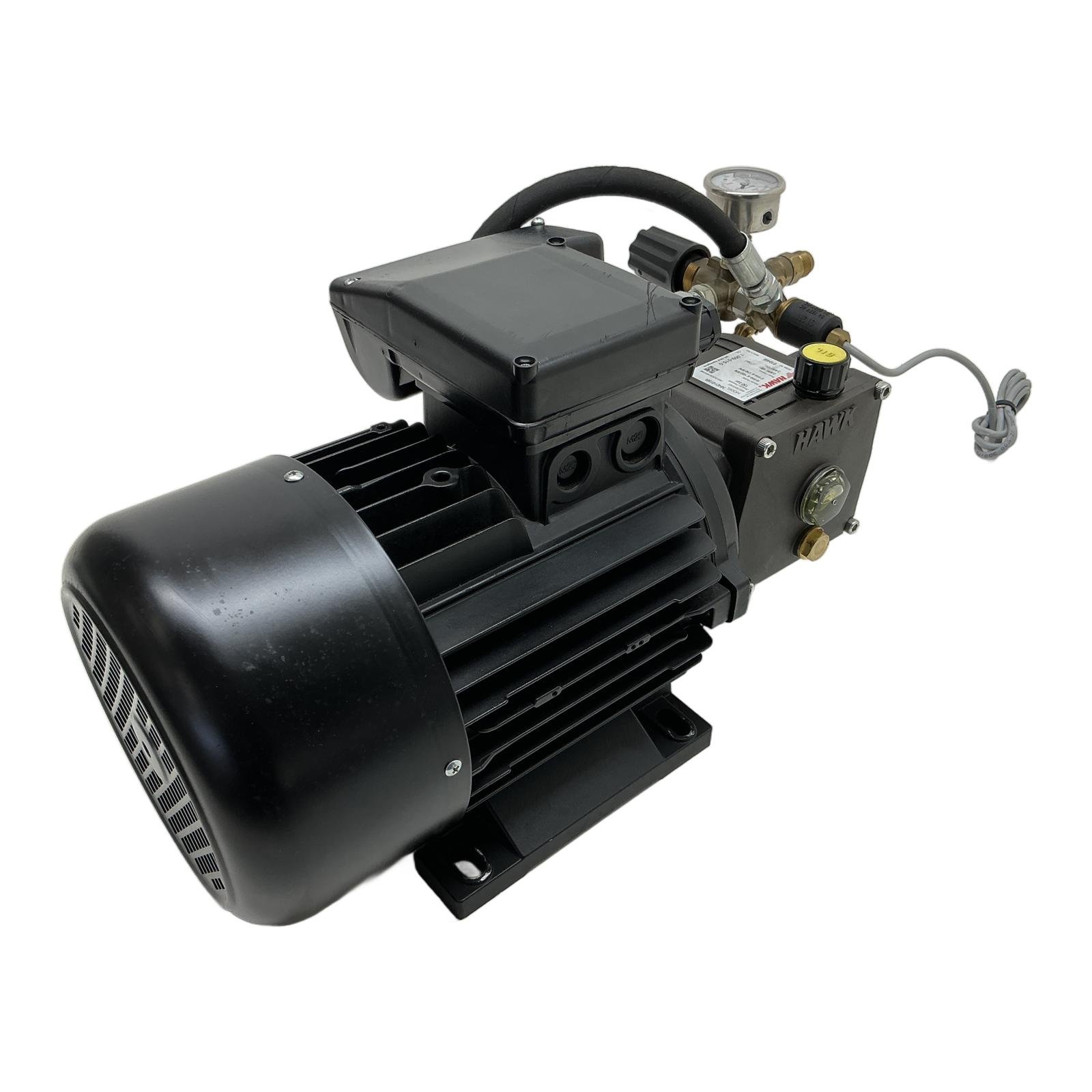

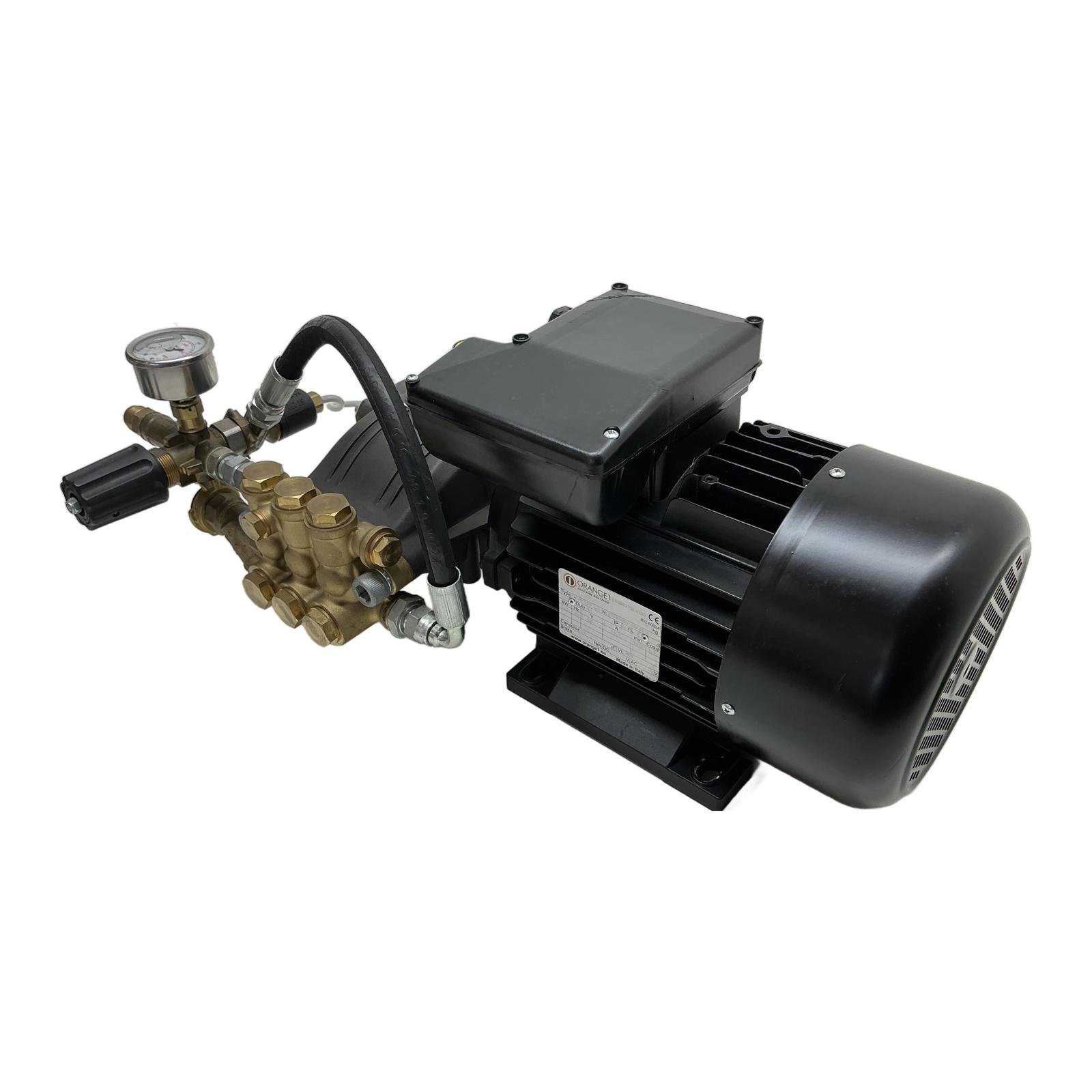

Hawk High-Pressure Pump and Motor Assembly 2.2kW 150bar Description This is a complete and ready-to-use high-pressure pump unit, expertly assembled with high-quality components. It features a robust Hawk NHD1015R plunger pump directly coupled to a powerful 2.2 kW Orange1 single-phase electric motor. The unit includes a pressure regulator, pressure gauge, and a dedicated control box with an ON/OFF switch for direct-on-line starting. Ideal for stationary pressure washers, misting systems, and various industrial cleaning applications. Specifications Pump Manufacturer: Hawk Pump Model: NHD1015R Motor Manufacturer: Orange1 Motor Model: MP 100 L4 Power Rating: 2.2 kW (3.0 HP) Voltage: 230V AC Frequency: 50 Hz Phase: 1-Phase Maximum Pressure: 150 bar (2175 PSI) Flow Rate: 10 l/min at 1410 RPM Motor Speed: 1410 RPM Ingress Protection (Motor): IP54 Label Info Pump Part Number: 1.099-015.0 Pump Serial Number: 010466 Motor Serial Number: 27030851 Year of Production (Motor): 2019 Application Designed for professional and industrial use in high-pressure cleaning systems, car washes, agricultural sanitation, mist cooling systems, and other applications requiring a reliable high-pressure water source. Country of Origin The core components (pump and motor) are manufactured in Italy. The unit was assembled in the Netherlands. CO2 Impact Opting for this pre-owned unit instead of a new one prevents the emission of approximately 77 kg of CO2. This saving is comparable to the emissions from driving a standard car for 385 kilometers. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What type of oil is required for the Hawk NHD1015R pump and how often should it be changed?The pump requires SAE 10W-40 oil. The first oil change should be done after the initial 50 hours of operation, and subsequent changes every 500 hours or annually, whichever comes first.Question?Is the pressure regulator adjustable, and what is its function?Yes, the black knob on the brass valve is for adjusting the pressure. This unloader/regulator valve sets the system’s operating pressure and bypasses water flow when the spray gun trigger is released, protecting the pump from over-pressurization.Question?Can this unit be operated on a 60 Hz power supply?This unit is configured for 50 Hz, resulting in a motor speed of 1410 RPM. Operating on 60 Hz would increase the motor speed to approximately 1700 RPM, which would increase the pump’s flow rate and power requirement. While the pump is rated for this speed, the motor’s electrical characteristics are specified for 50 Hz and it should not be used on a 60 Hz supply without consulting the manufacturer. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
