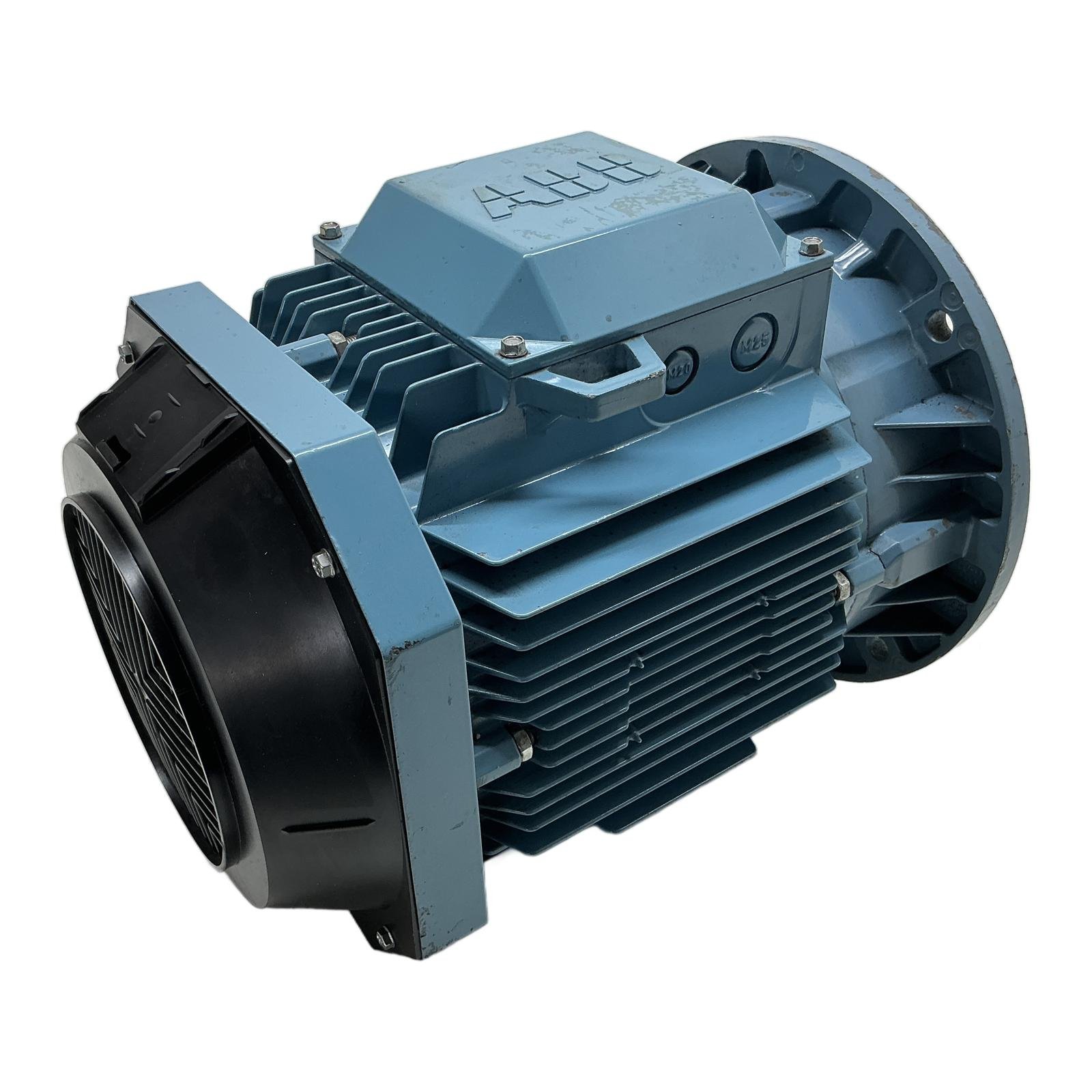

ABB M3AA 132S 8 3GAA134001-BSL

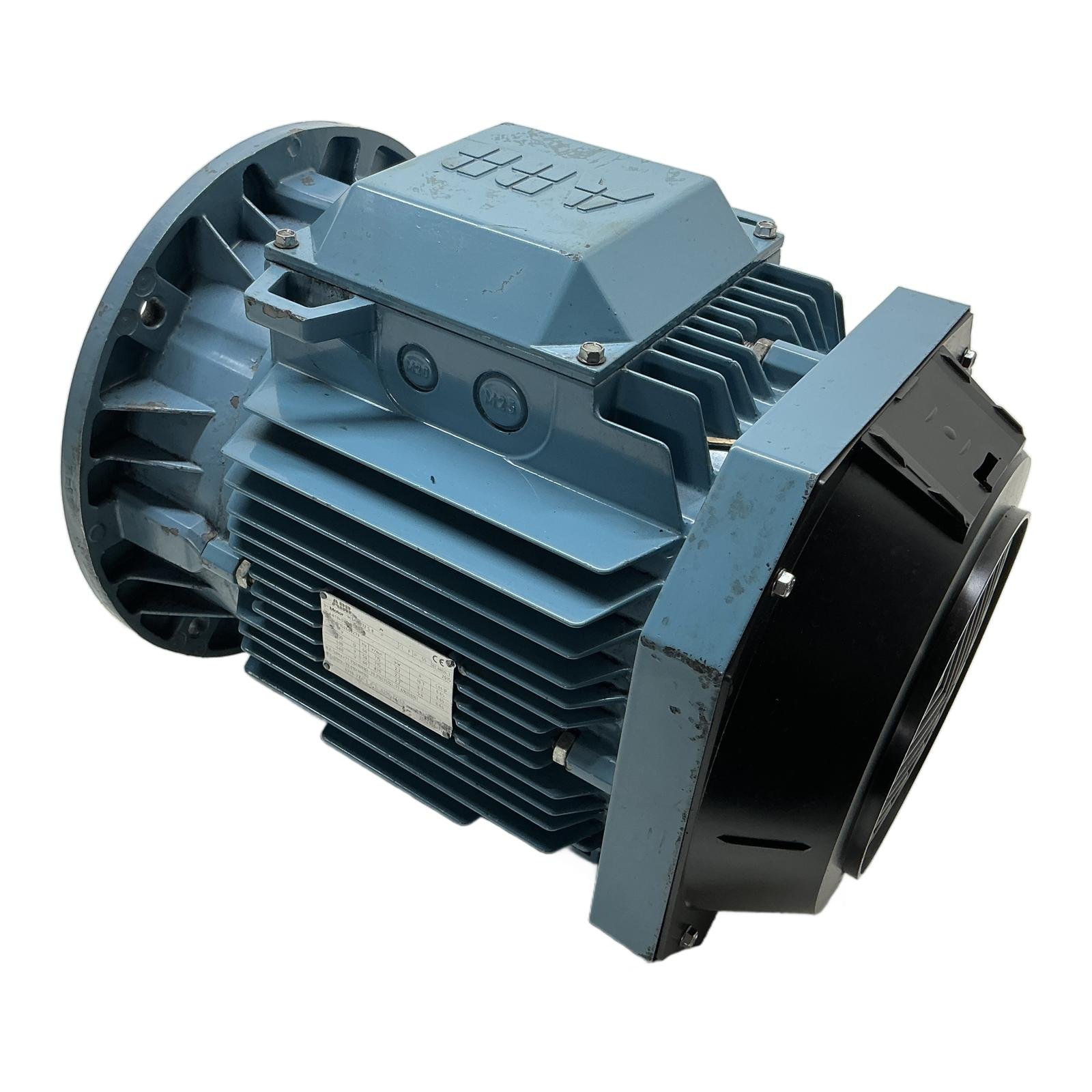

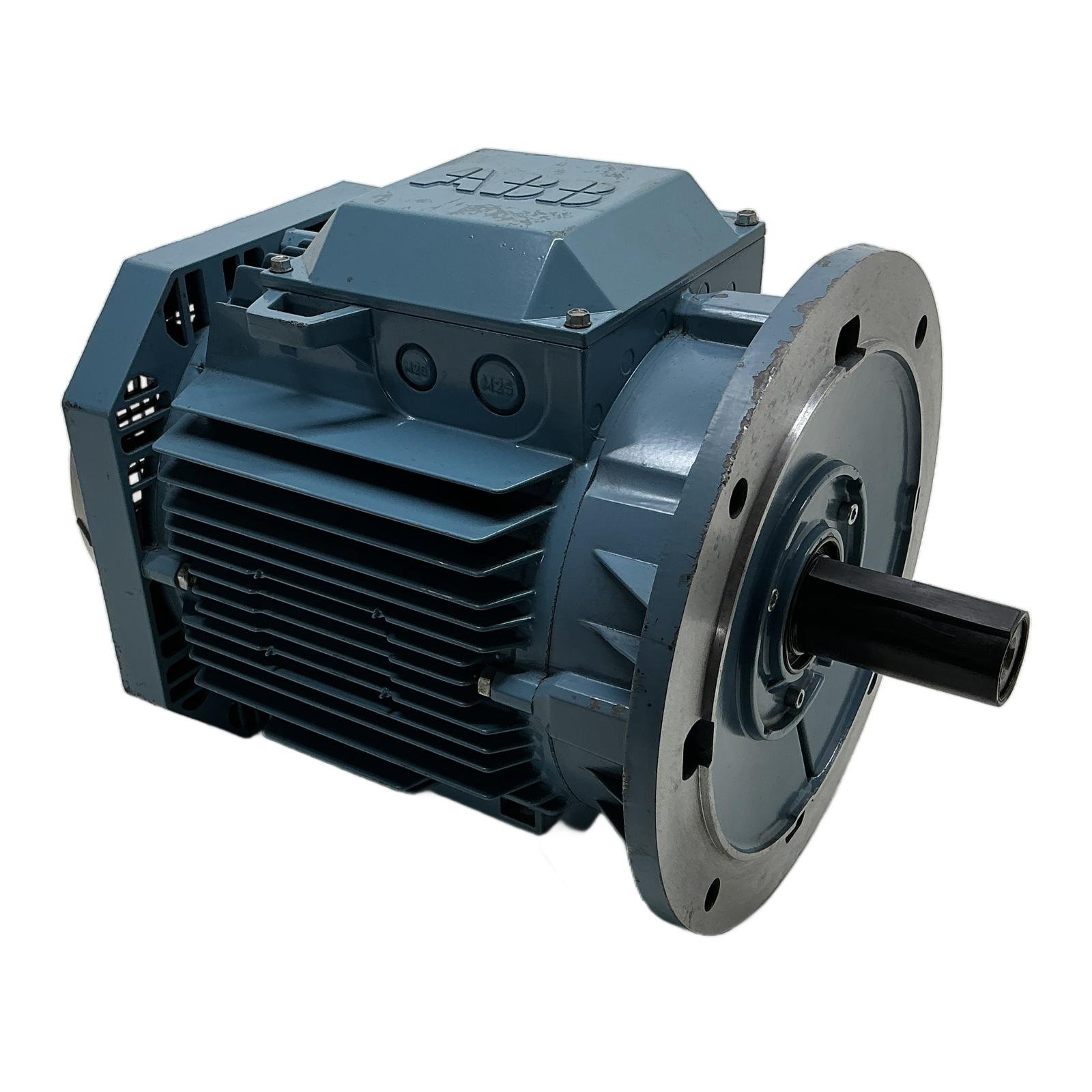

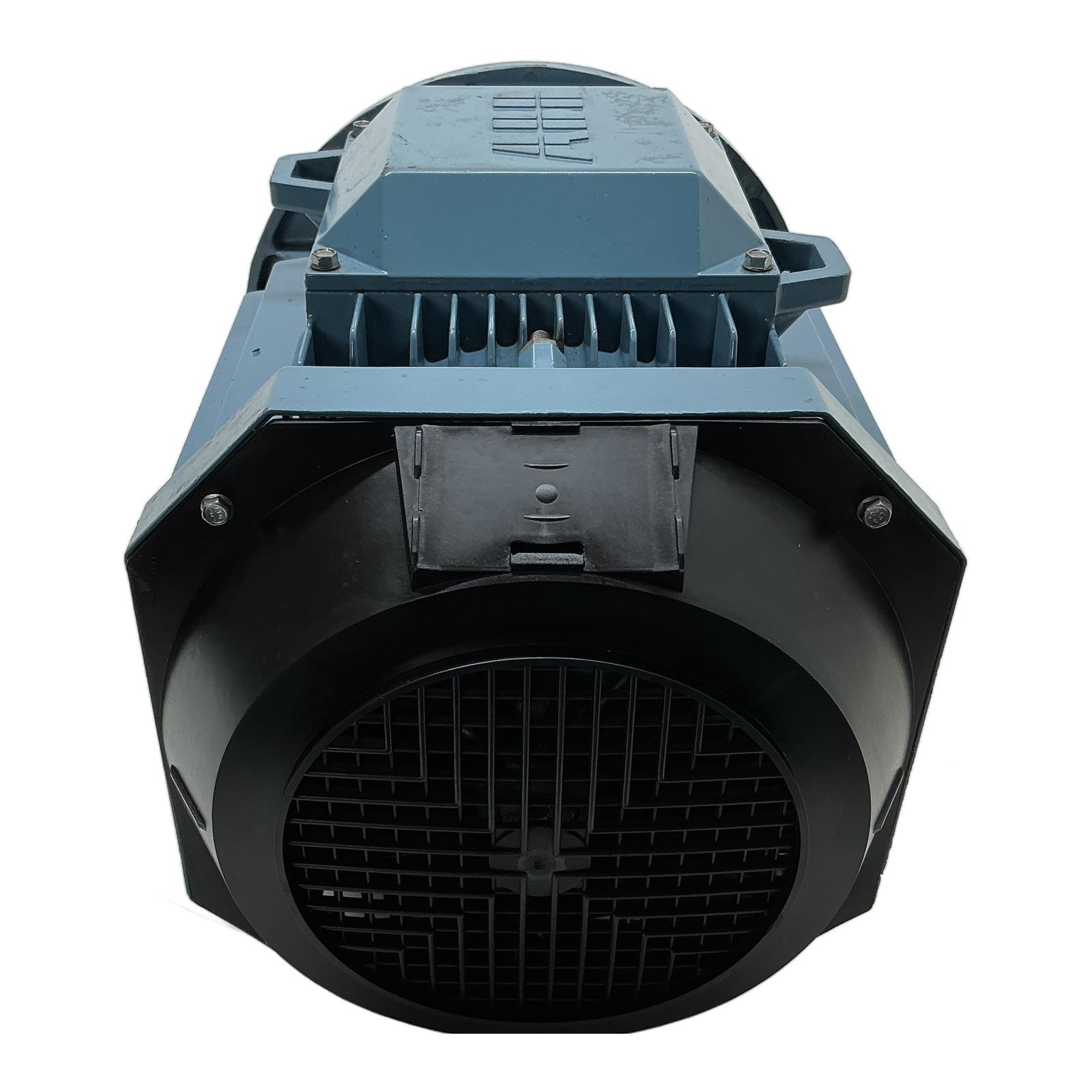

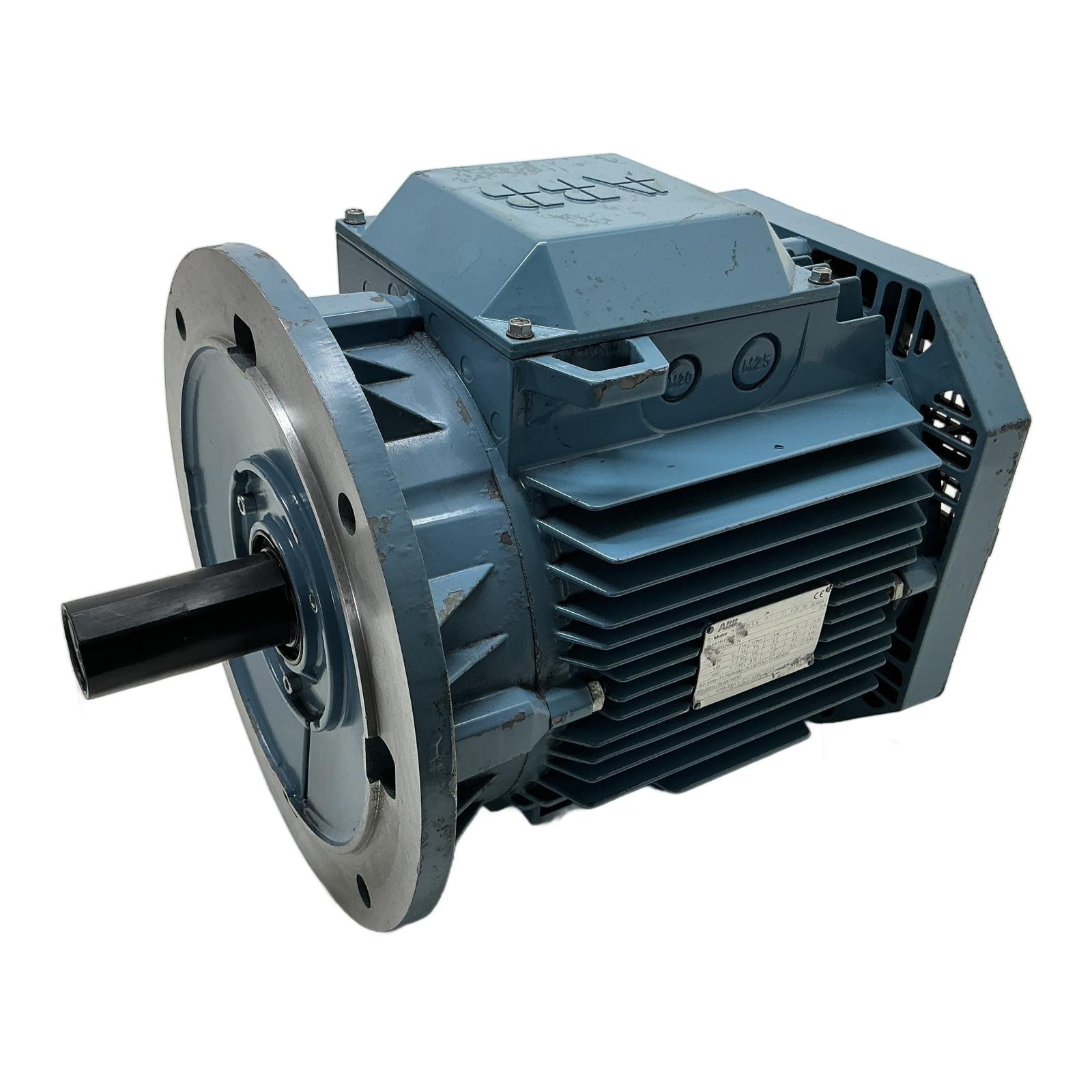

ABB 3-Phase Electric Motor 2.2 kW M3AA 132S 8 Description This ABB M3AA 132S 8 is a general-purpose, 3-phase asynchronous motor designed for reliability and efficiency in various industrial applications. With a power rating of 2.2 kW and a low-speed, high-torque 8-pole design, it is well-suited for tasks like driving conveyors, pumps, and fans. The motor features a robust aluminum frame, an IP55 protection rating against dust and water jets, and Class F insulation, ensuring a long service life even in demanding environments. This model is flange-mounted (B5) for secure and direct integration with machinery. Specifications Manufacturer: ABB Power Output: 2.2 kW Speed (50Hz): 715 r/min Speed (60Hz): 870 r/min Voltage (50Hz): 230V (Delta) / 400V (Star) Voltage (60Hz): 460V (Star) Frame Size: 132S Number of Poles: 8 Mounting: B5 Flange IP Rating: IP55 Insulation Class: F Efficiency Class: IE2 Bearings DE/NDE: 6208-2Z/C3 / 6206-2Z/C3 Label Info Type: M3AA 132S 8 Product Code: 3GAA134001-BSL Serial Number: 3G1P15260279 Year of Manufacture: 2015 Application Ideal for general industrial applications including pumps, fans, conveyors, mixers, and other machinery requiring a reliable low-speed motor. CO2 Impact Opting for this pre-owned motor prevents the emission of approximately 96 kg of CO2 compared to manufacturing a new one. This saving is comparable to the emissions from driving a car for 480 kilometers. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What are the bearing sizes for this motor?The motor uses a 6208-2Z/C3 bearing on the drive end (DE) and a 6206-2Z/C3 bearing on the non-drive end (NDE) as specified on the nameplate. Is this motor suitable for inverter (VFD) duty?Yes, the M3AA series with its Class F insulation is generally suitable for use with a Variable Frequency Drive. However, it is recommended to check the drive’s specifications for compatibility, especially regarding dv/dt filtering for long cable runs to protect the motor windings. What does the ‘8’ in M3AA 132S 8 signify?The ‘8’ indicates the number of magnetic poles in the motor. An 8-pole motor has a nominal synchronous speed of 750 rpm at 50 Hz, resulting in a low-speed, high-torque output compared to more common 2, 4, or 6-pole versions. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
