ABB M2AA 112MB-2 3GAA111002-ASB

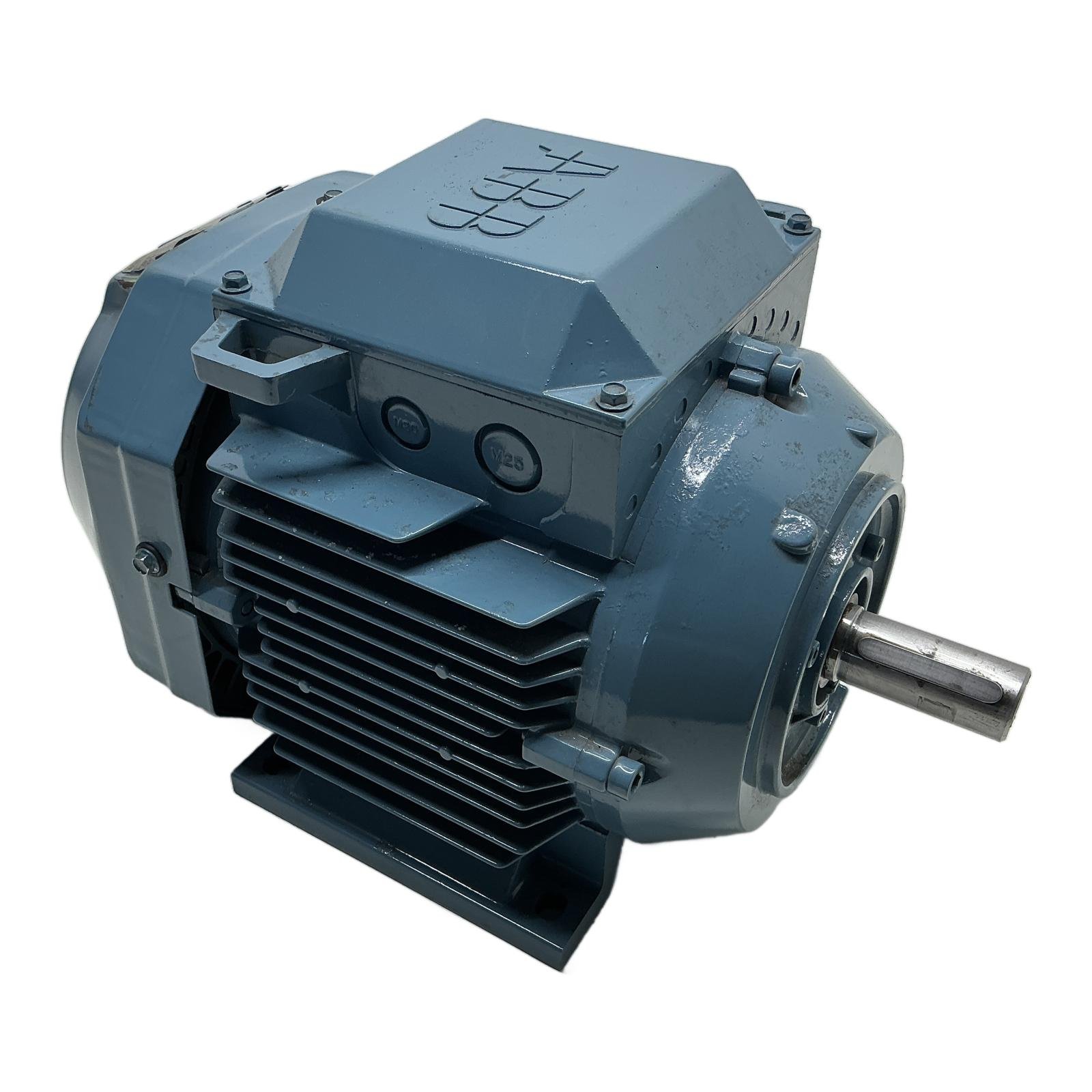

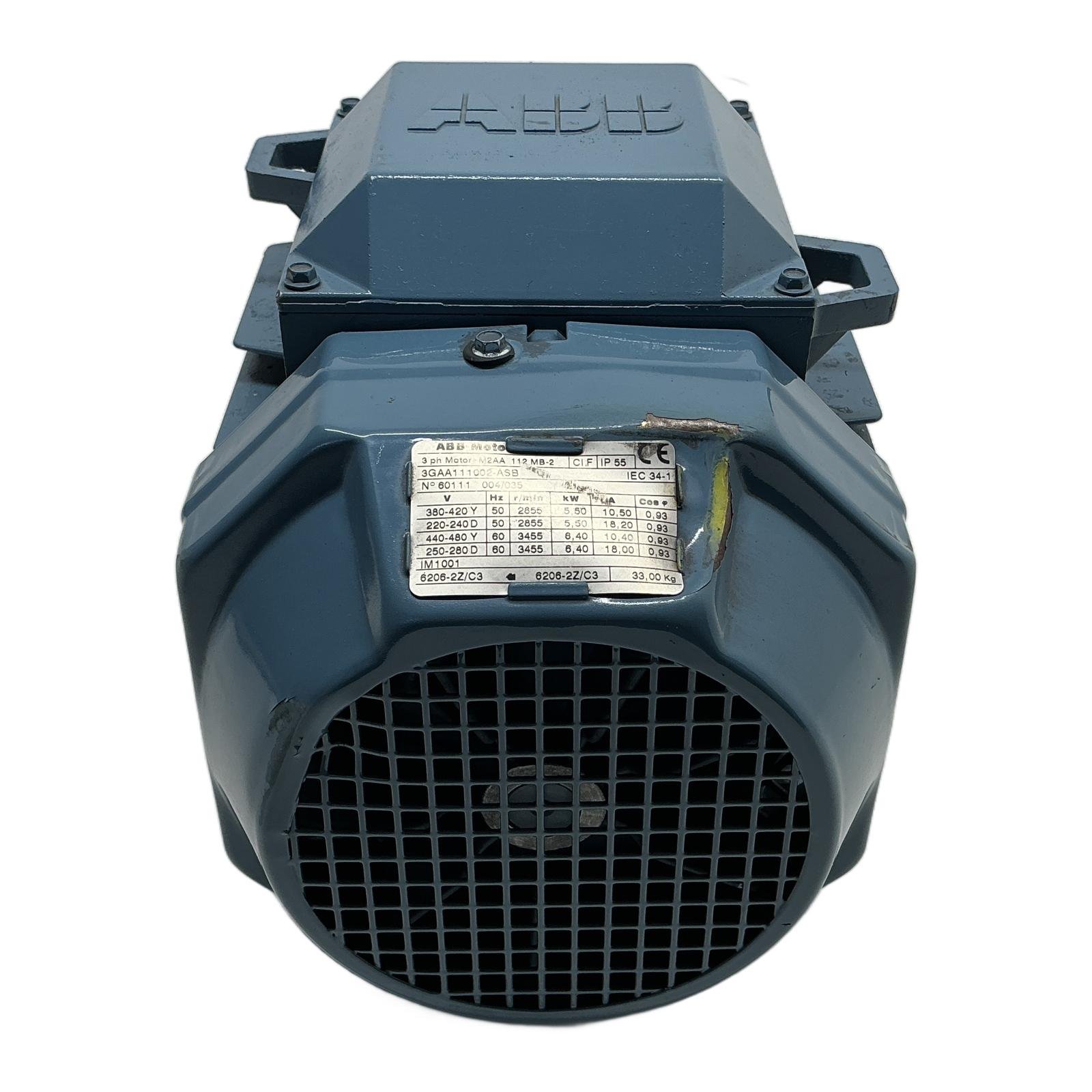

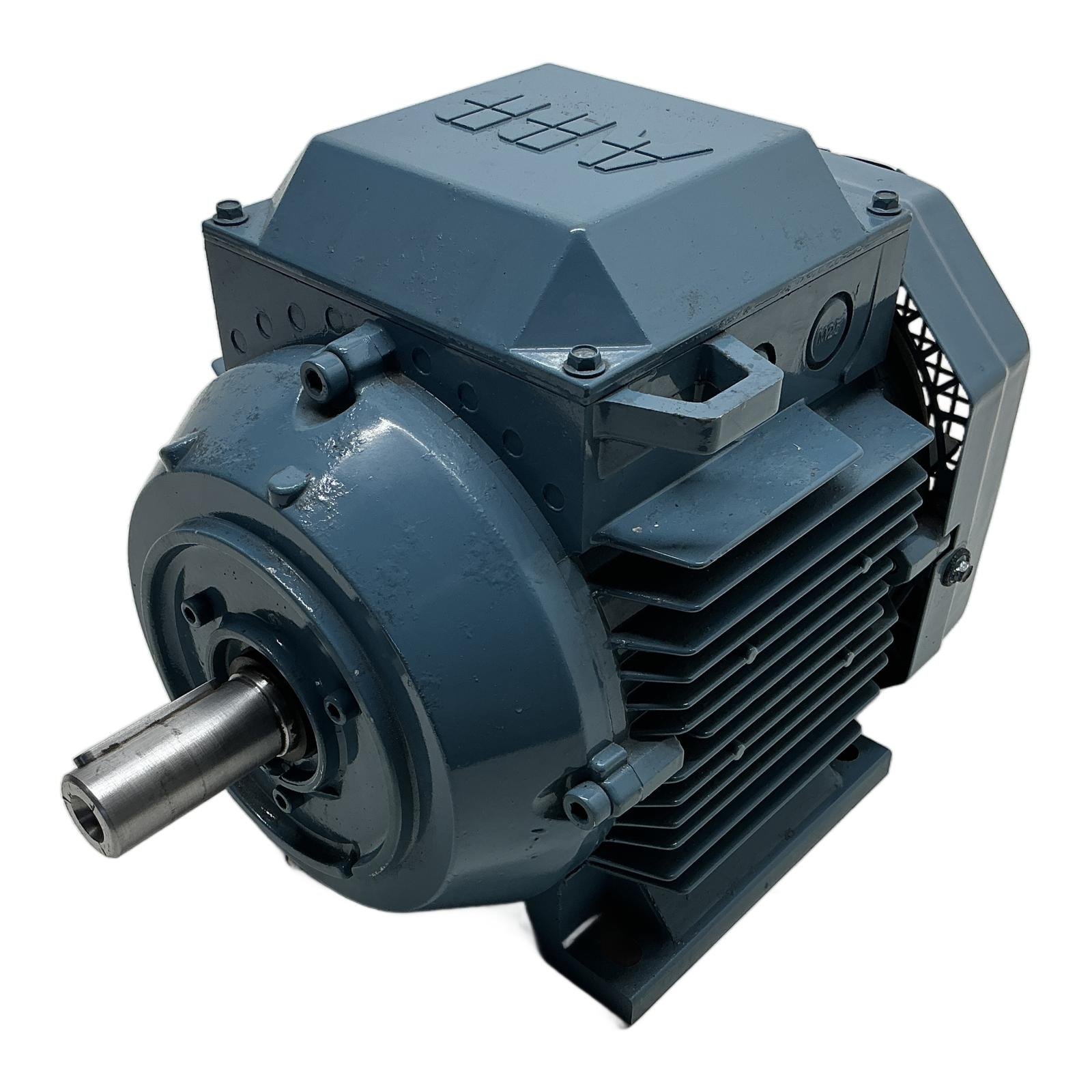

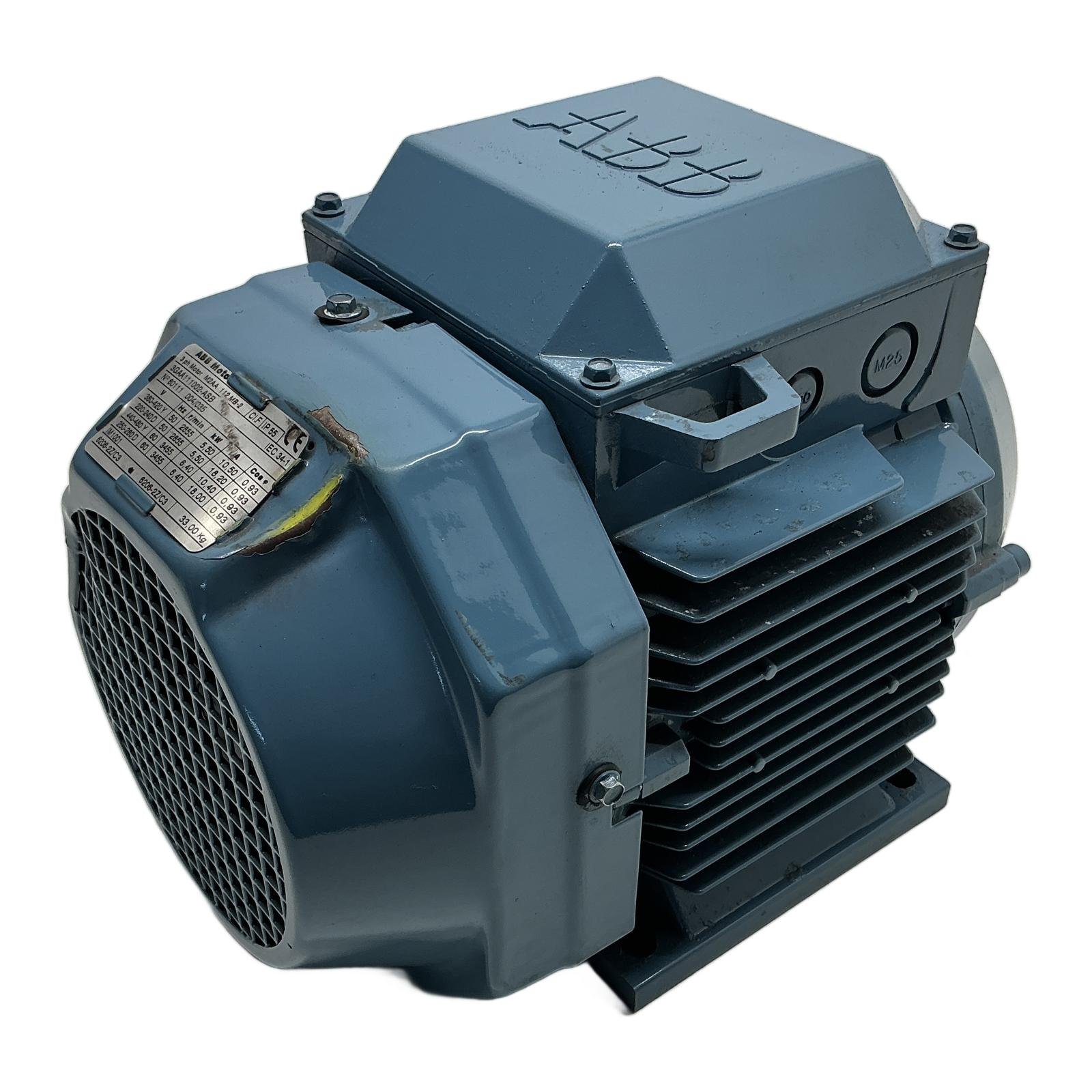

ABB 5.5 kW 2-Pole 3-Phase Motor Description This is a robust and efficient three-phase asynchronous motor from ABB, model M2AA 112 MB-2. With a power rating of 5.5 kW and a speed of 2855 rpm at 50 Hz, it is designed for general-purpose industrial applications requiring reliable performance. The motor features a durable cast iron frame, IP55 protection against dust and water, and is foot-mounted (IMB3/IM1001) for easy installation. Specifications Manufacturer: ABB Model: M2AA 112 MB-2 Part Number: 3GAA111002-ASB Power: 5.50 kW (at 50 Hz) / 6.40 kW (at 60 Hz) Speed: 2855 rpm (at 50 Hz) / 3455 rpm (at 60 Hz) Voltage (50 Hz): 380-420V Y / 220-240V D Current (50 Hz): 10.50A (Y) / 18.20A (D) Frequency: 50/60 Hz Protection Class: IP 55 Insulation Class: F Mounting: IM1001 (IMB3 Foot Mount) Weight: 33.00 kg Label Info Bearings: 6206-2Z/C3 (Drive End and Non-Drive End) Serial Number: 60111 004/035 Application Suitable for a wide variety of applications including pumps, fans, compressors, conveyors, and general machinery drive systems in various industries. CO2 Impact Choosing this pre-owned motor saves an estimated 66 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions of a car driving approximately 330 kilometers. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the mounting configuration of this M2AA 112 MB-2 motor?This motor has an IM1001 mounting code, which corresponds to the standard IMB3 foot-mounted configuration. Can this motor be operated with a variable frequency drive (VFD)?Yes, motors of this type are generally suitable for VFD operation. However, for continuous operation at low speeds, independent cooling might be required to prevent overheating. It is also important to ensure the VFD settings are compatible with the motor’s specifications. What are the bearing numbers for maintenance or replacement?The nameplate specifies the same bearing for both the drive end and non-drive end: 6206-2Z/C3. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
