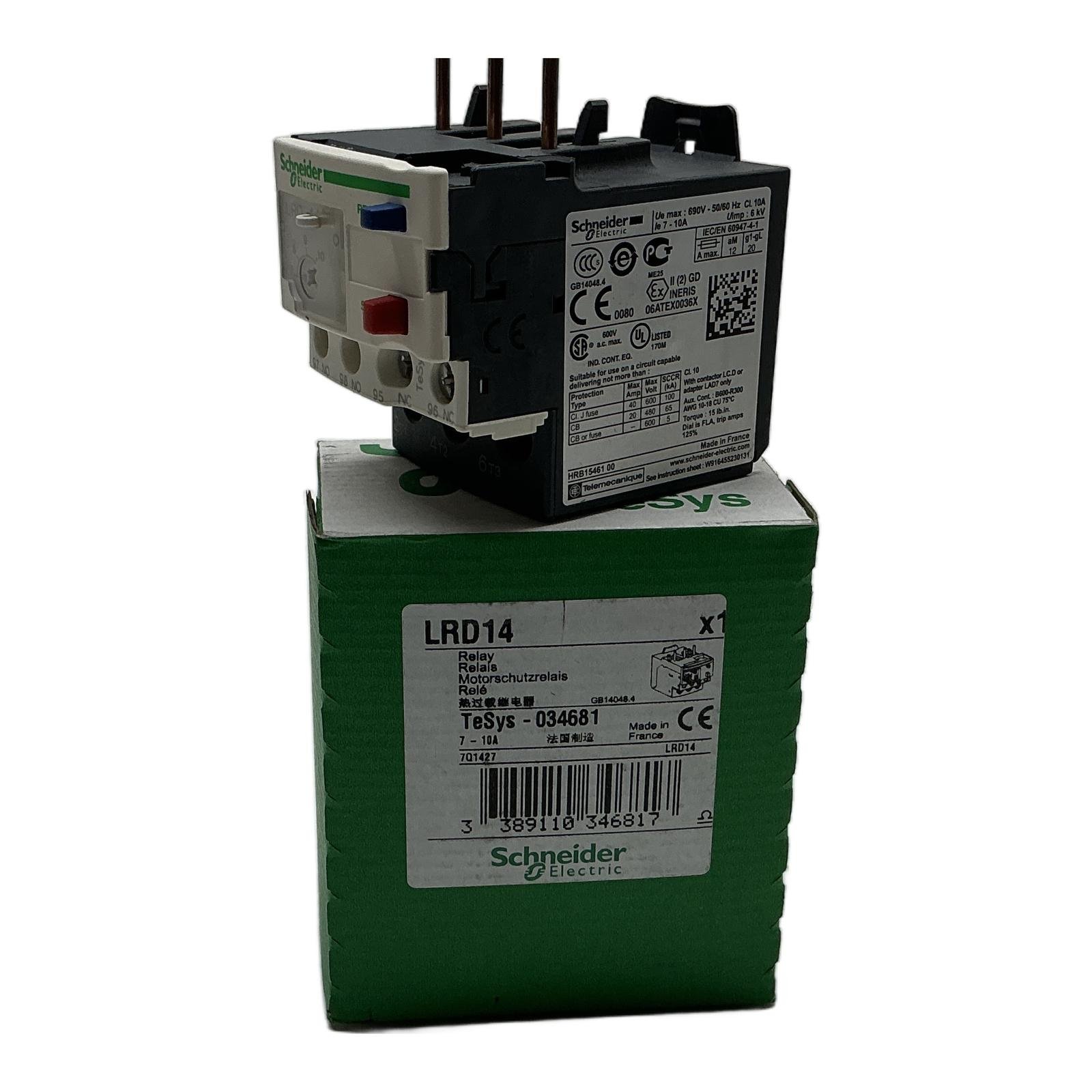

SCHNEIDER ELECTRIC LRD14 034681

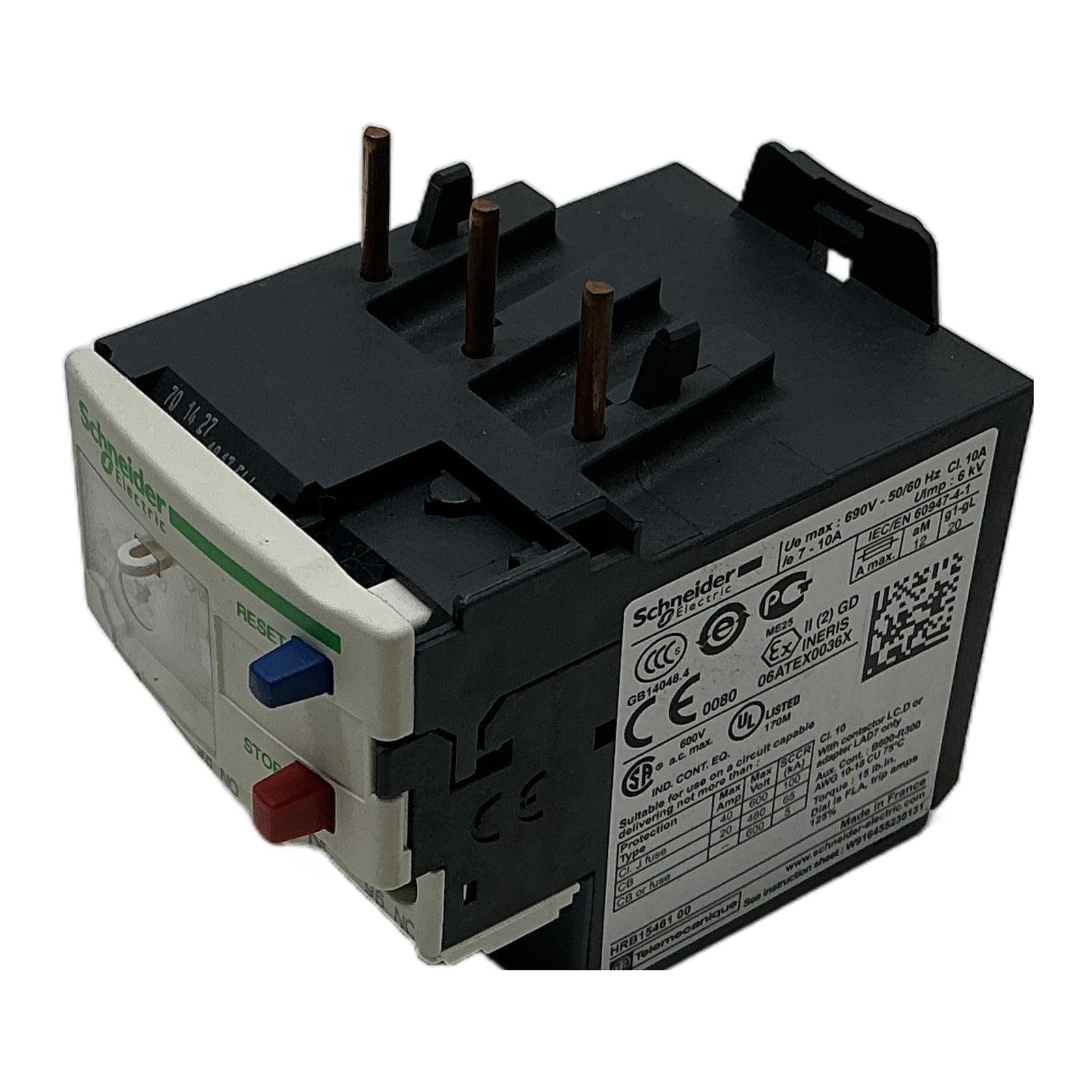

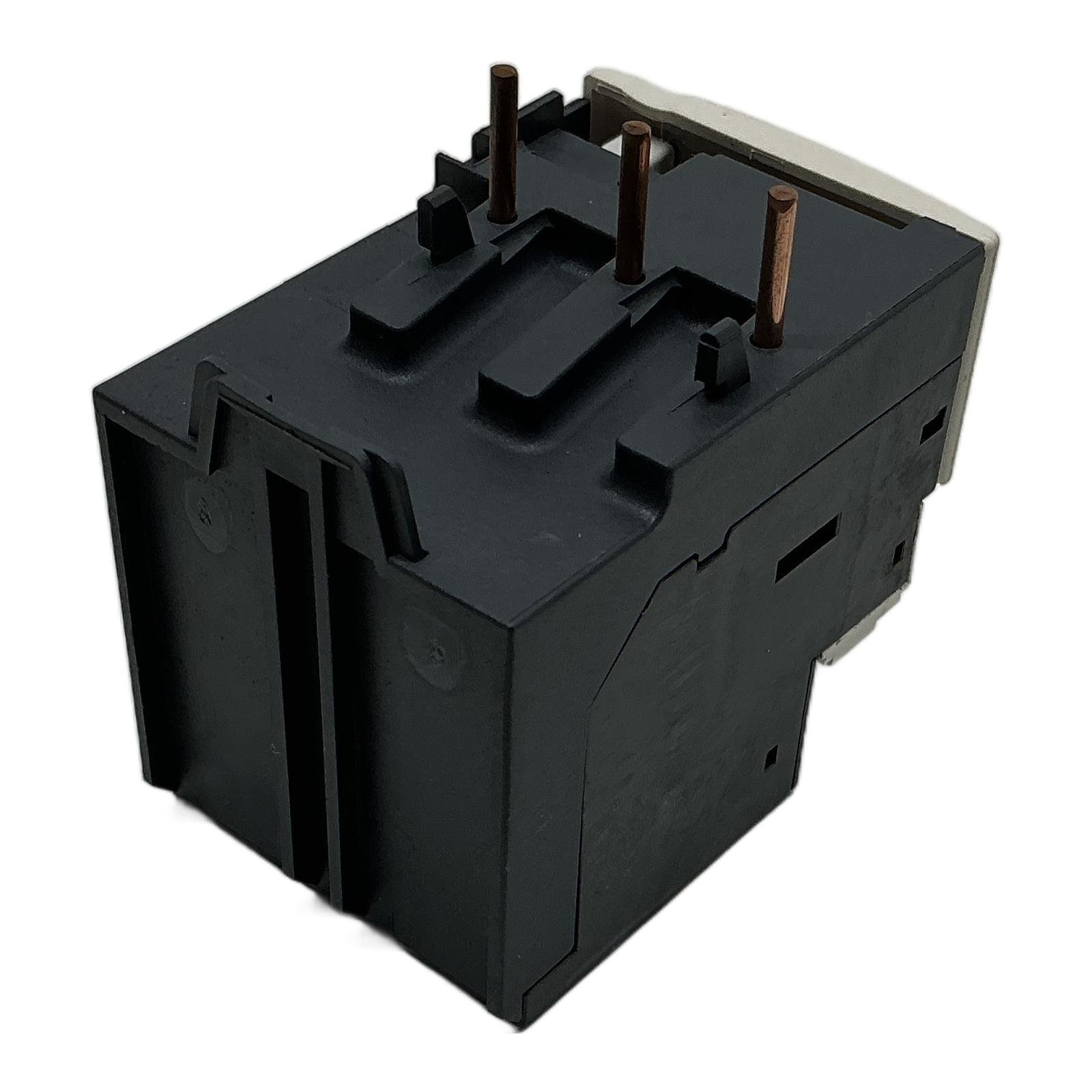

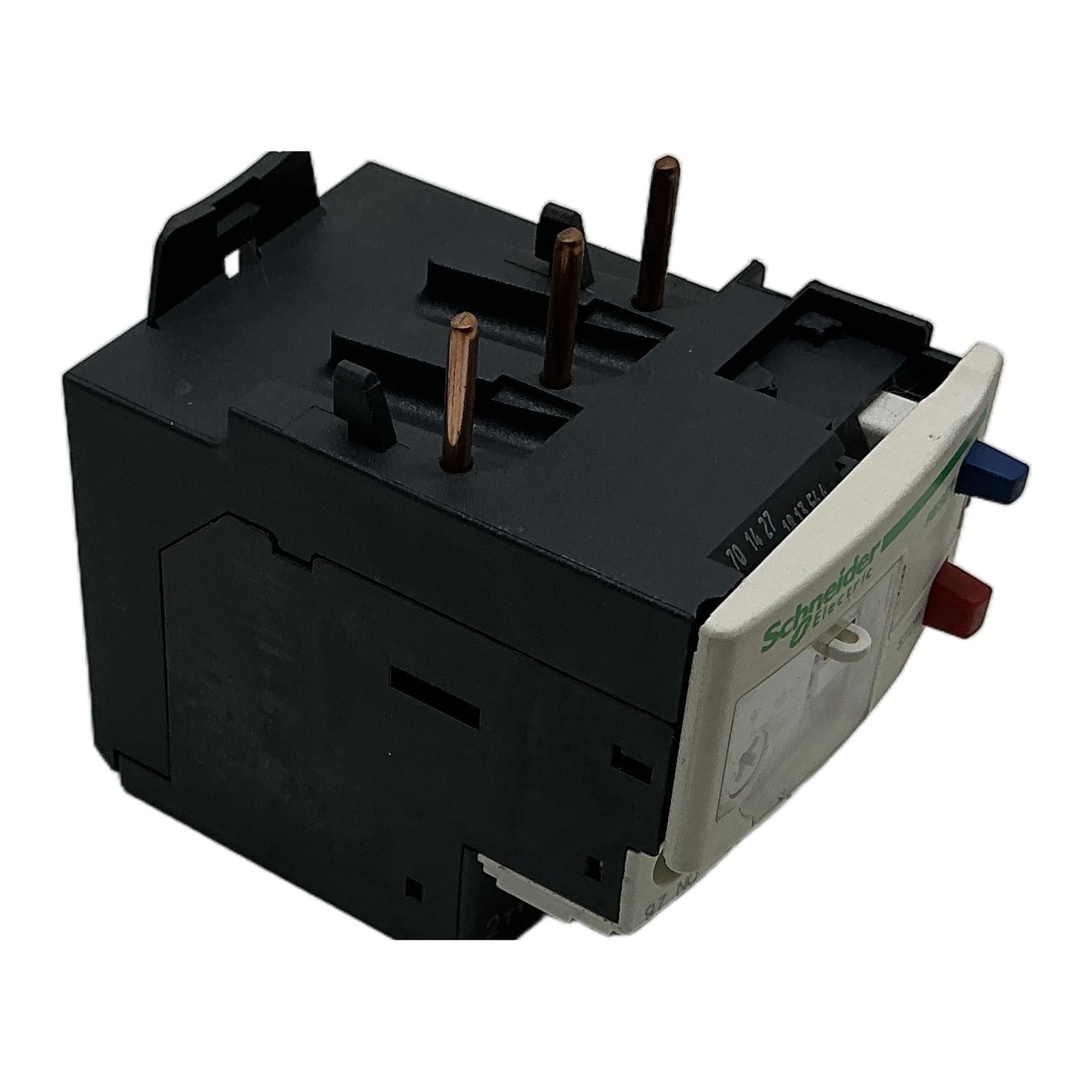

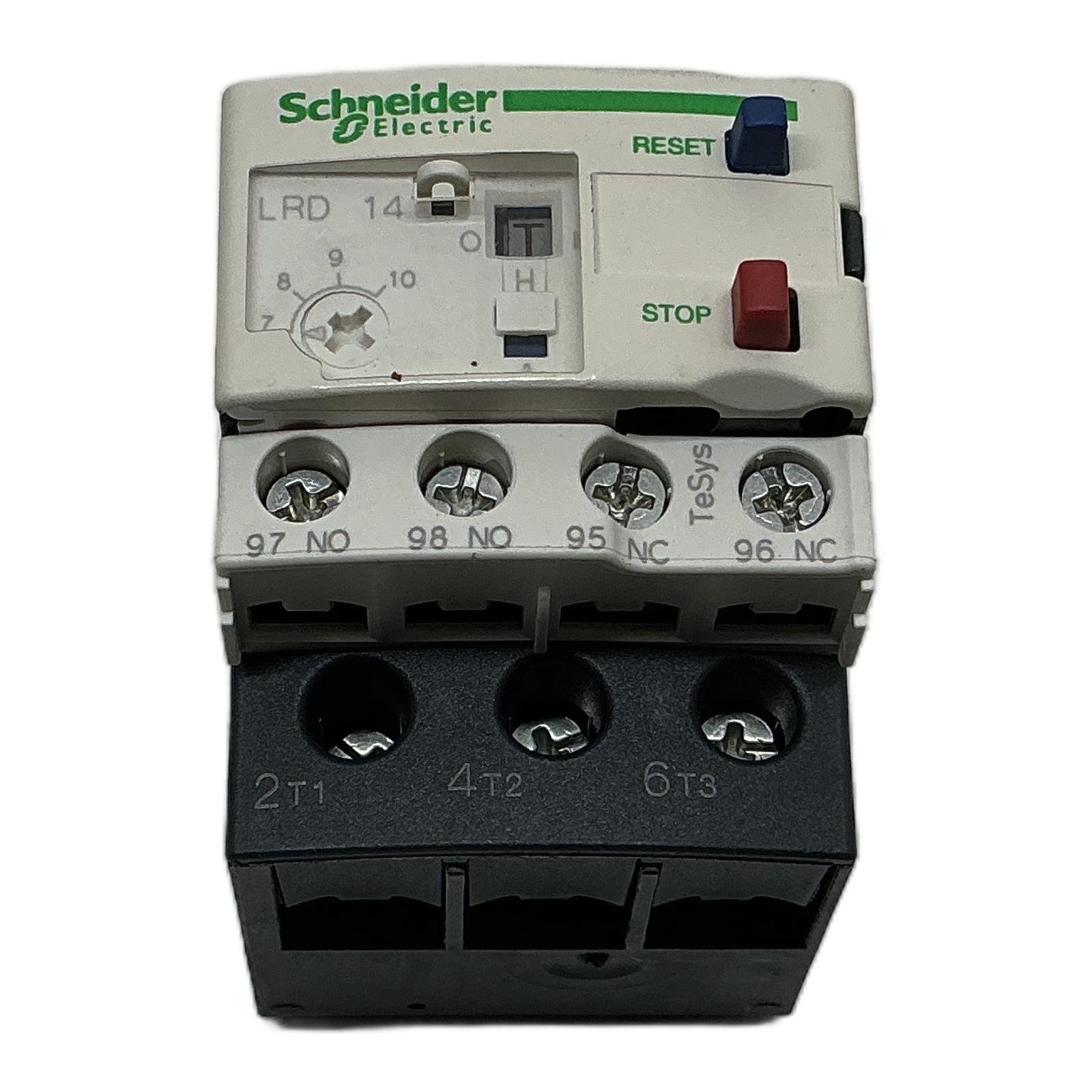

Schneider Electric LRD14 TeSys Thermal Overload Relay Description The Schneider Electric LRD14 is a high-performance thermal overload relay from the TeSys D range. It is engineered to provide essential protection for motors against overloads, phase failure, and extended starting times. With a thermal setting range of 7 to 10 A, this relay offers precise and reliable operation. It is designed for direct mounting onto TeSys D contactors (LC1D09 to LC1D32), ensuring a compact and efficient motor starter assembly. Specifications Manufacturer: Schneider Electric Product Range: TeSys LRD Model: LRD14 Part Number: 034681 Thermal Setting Range: 7 to 10 A Trip Class: Class 10A according to IEC 60947-4-1 Control Type: Red push-button for stop, Blue push-button for reset Mounting Support: Direct on contactor or on rail with separate terminal block Rated Insulation Voltage: 690 V AC Label Info Brand: Schneider Electric Model: LRD14 Order Code: 034681 EAN: 3389110346817 Application The LRD14 is ideal for standard motor protection applications in various industries, including manufacturing, HVAC, material handling, and water treatment. It ensures the longevity and safe operation of three-phase AC motors. Country of Origin This product is Made in France. CO2 Impact By choosing this pre-owned component, you are helping to prevent the emission of approximately 5.0 kg of CO2. This is equivalent to the emissions from driving a car for 25 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What contactors is the LRD14 compatible with? Answer?The LRD14 is designed for direct mounting on TeSys D contactors, specifically models LC1D09, LC1D12, LC1D18, LC1D25, and LC1D32. It can also be mounted separately using a dedicated terminal block. Question?How do you reset the LRD14 after a trip? Answer?The LRD14 can be reset manually by pressing the blue ‘RESET’ button. It also has an option for automatic reset, which can be selected via a switch on the device face for applications where remote reset is preferred. Question?What is the trip class of the LRD14? Answer?The Schneider Electric LRD14 is a Trip Class 10A relay. This means it is designed to trip within 10 seconds when subjected to a current of 7.2 times its set value, providing standard protection suitable for most motor applications. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
