SCHNEIDER ELECTRIC LC1D5011 04449190111

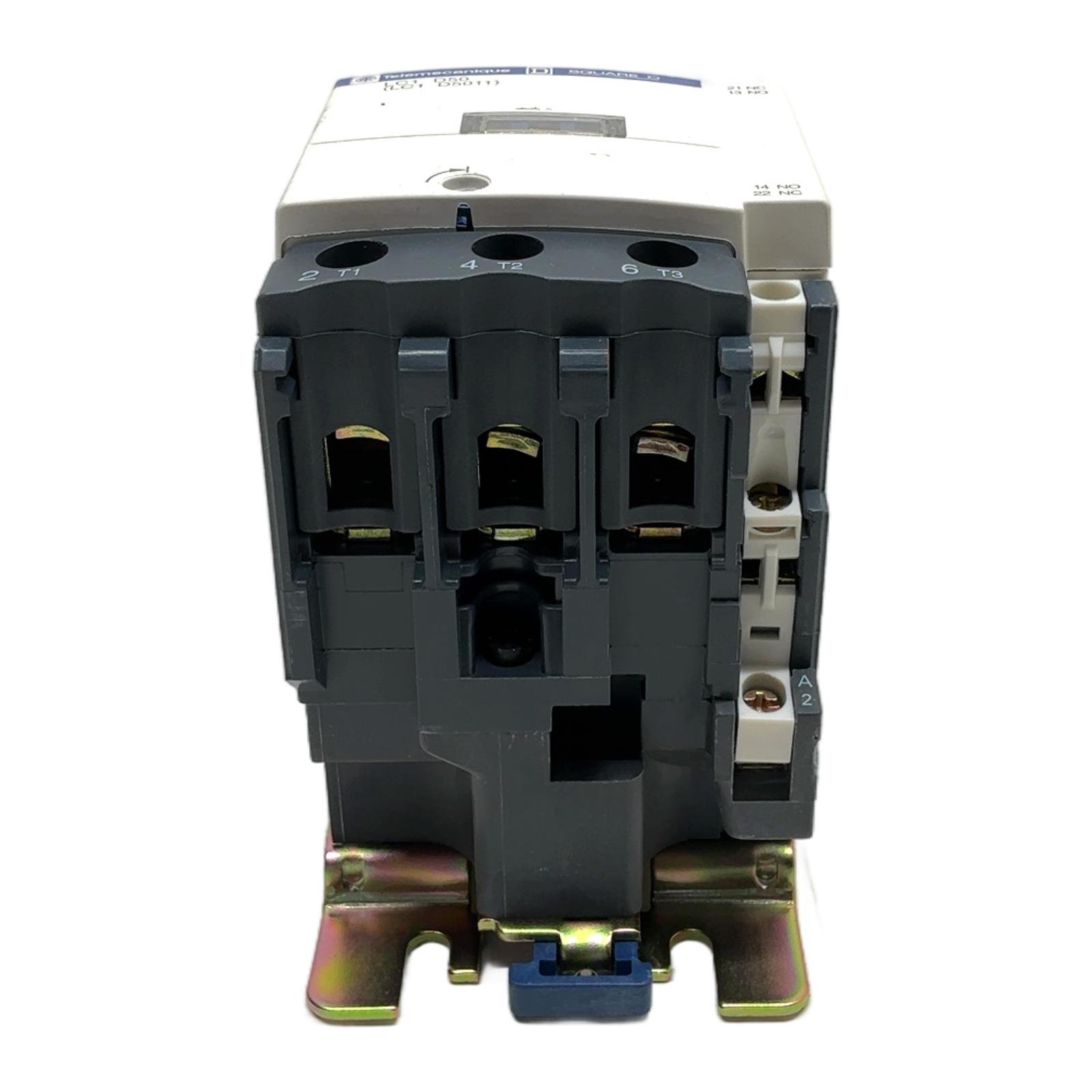

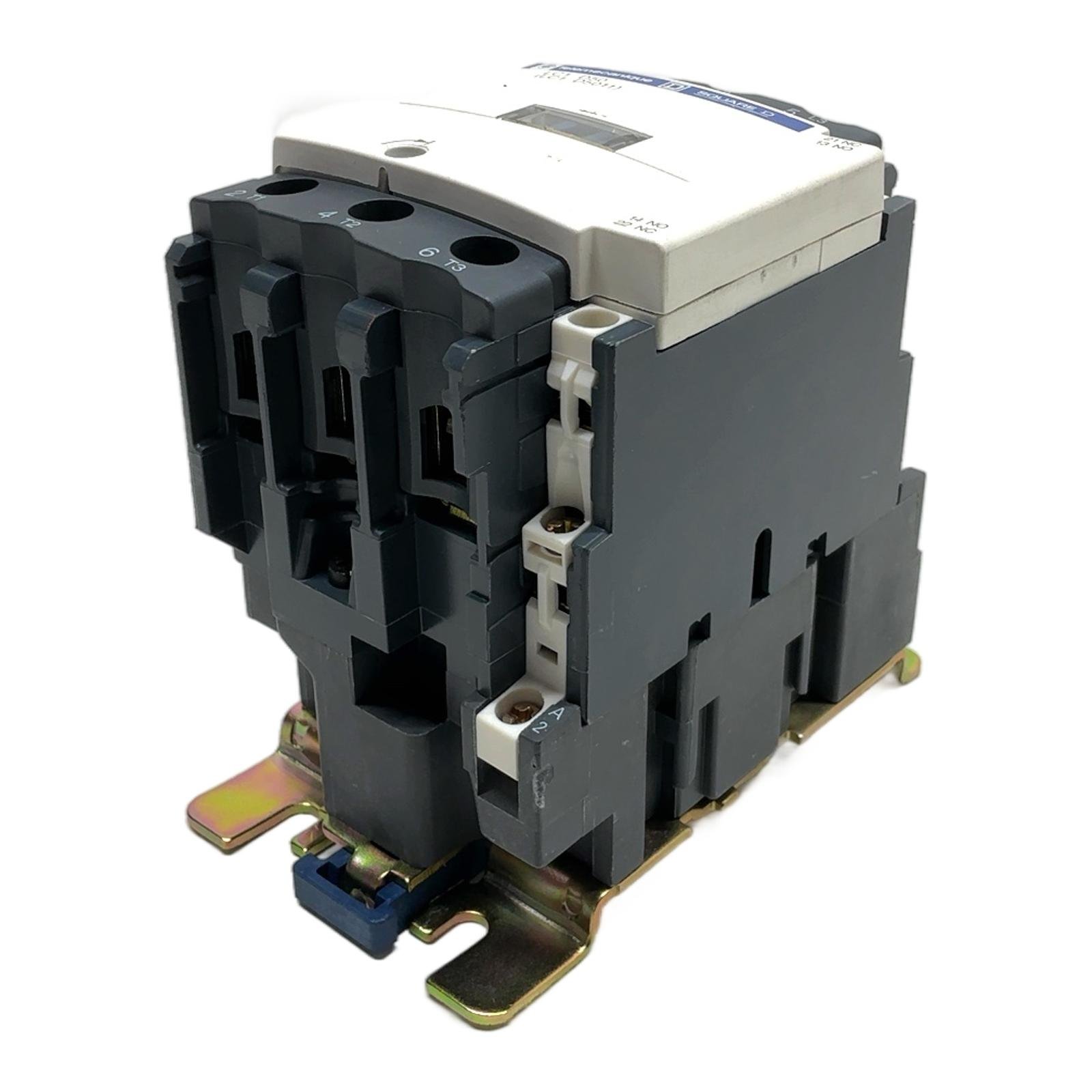

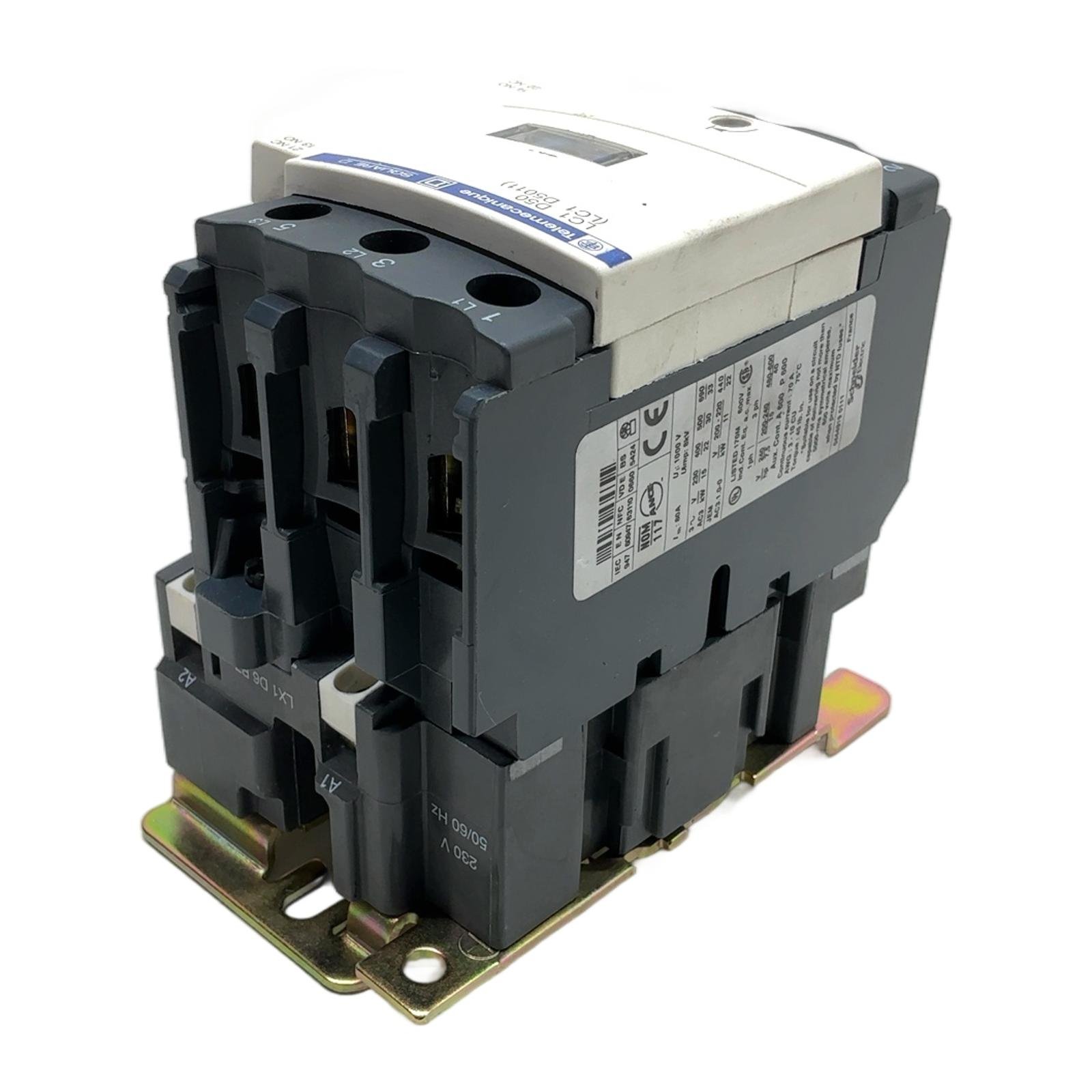

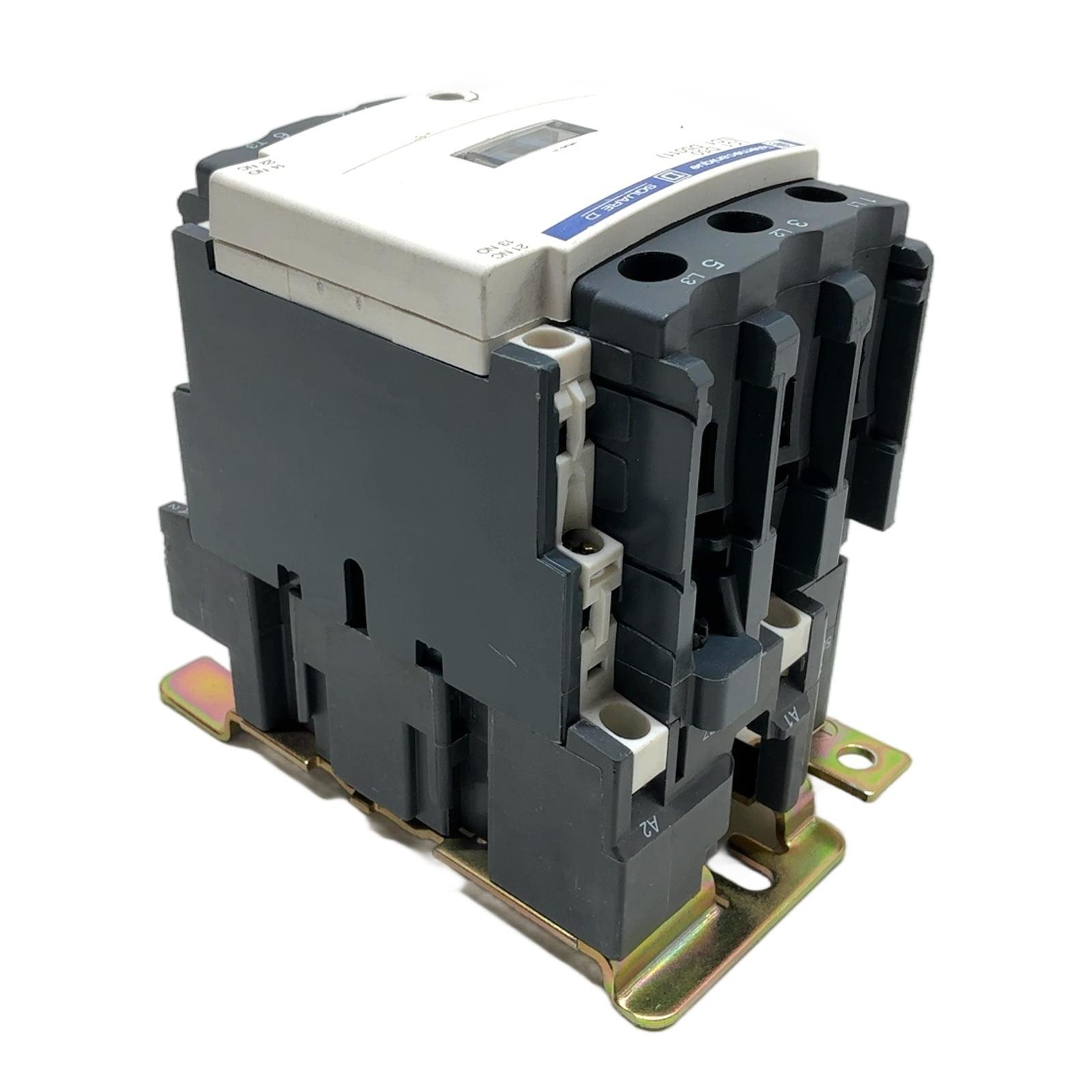

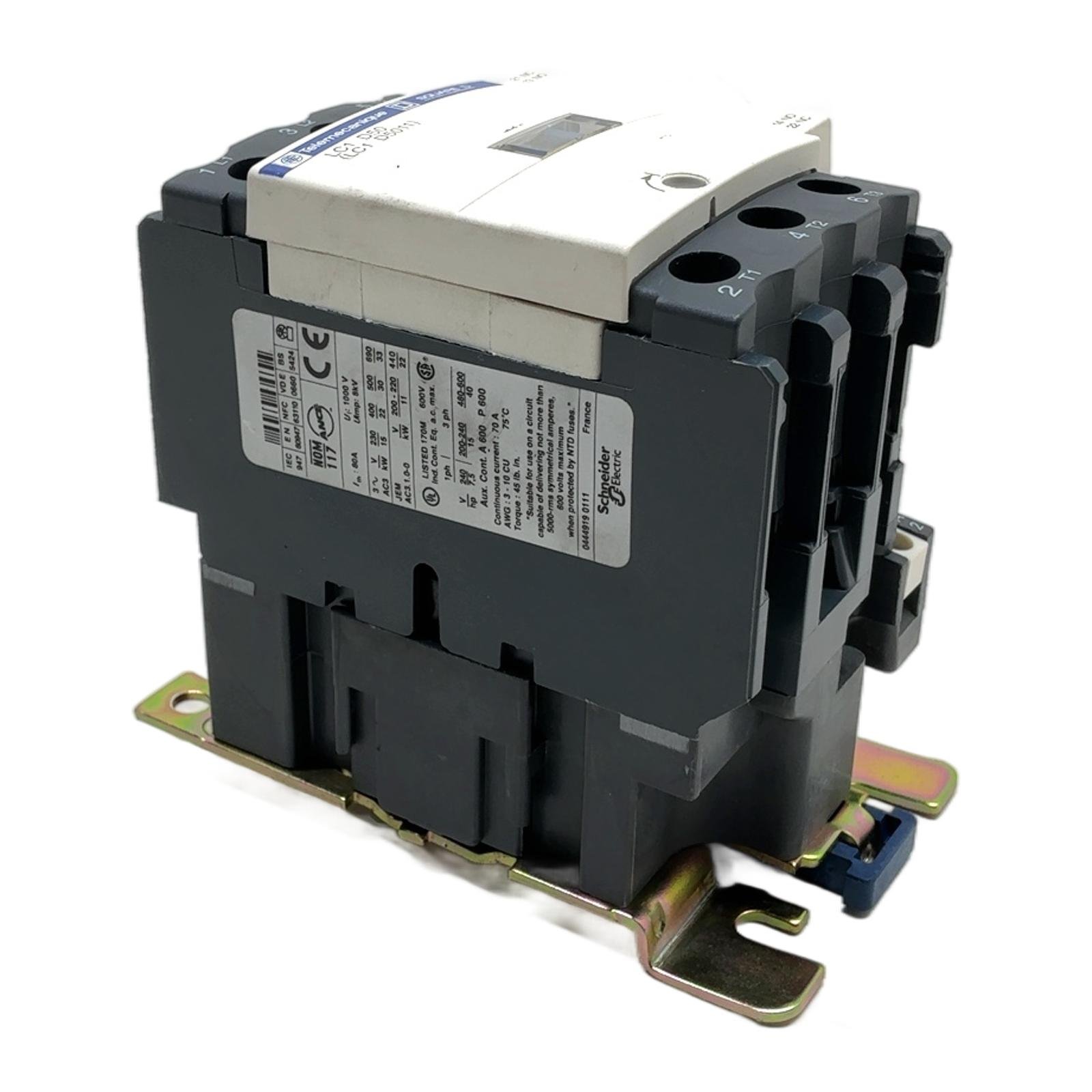

Schneider Electric TeSys D 3-Pole Contactor Description The Schneider Electric LC1D5011 is a high-performance 3-pole contactor from the renowned TeSys D series. It is engineered for controlling motors and other electrical loads in industrial environments. With an AC-3 rating of 50A and 22kW at 400V, this contactor provides reliable switching for demanding applications. It includes one normally open (NO) and one normally closed (NC) auxiliary contact. Please note that the coil voltage for this specific unit is not specified on the label. Specifications Manufacturer: Schneider Electric Brand: Telemecanique Series: TeSys D Model: LC1D5011 Poles: 3-Pole Conventional Free Air Thermal Current (Ith): 80A Rated Insulation Voltage (Ui): 1000V Rated Impulse Withstand Voltage (Uimp): 8kV AC-3 Motor Rating at 400V: 22 kW AC-3 Motor Rating at 230V: 15 kW Auxiliary Contacts: 1 NO + 1 NC Label Info UL Listed 170M, 600V Ind. Cont. Eq. a.c. max. Continuous Current: 70A AWG: 3-10 CU Torque: 45 lb.in. Application This contactor is ideal for motor control applications, including conveyors, pumps, fans, and HVAC systems. Its robust design makes it suitable for use in automation and industrial control panels. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned contactor, you are helping to avoid the emission of approximately 36 kg of CO2 associated with the production of a new one. This saving is comparable to the emissions from driving a standard car for 180 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the coil voltage for this specific LC1D5011 contactor?The coil voltage is not indicated on the external labels of this particular unit. TeSys D contactors are available with a wide range of AC and DC coil voltages. It is essential to verify the coil voltage before installation, which may require a multimeter test or identification of the coil module part number. Can I add additional auxiliary contact blocks to this TeSys D contactor?Yes, the TeSys D series is modular. You can easily add front-mount or side-mount auxiliary contact blocks (such as the LADN series) to increase the number of available NO or NC contacts for your control circuit. What is the recommended protective device for this 50A contactor?For motor protection, this contactor should be paired with an appropriate thermal overload relay (like the LRD series) and protected by a motor protection circuit breaker (MPCB) or fuses rated according to the motor’s full load current and local electrical codes. The label suggests protection by NTD fuses for a 5000A SCCR rating. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
