SCHNEIDER ELECTRIC LC1D12BD LAD4TBDL

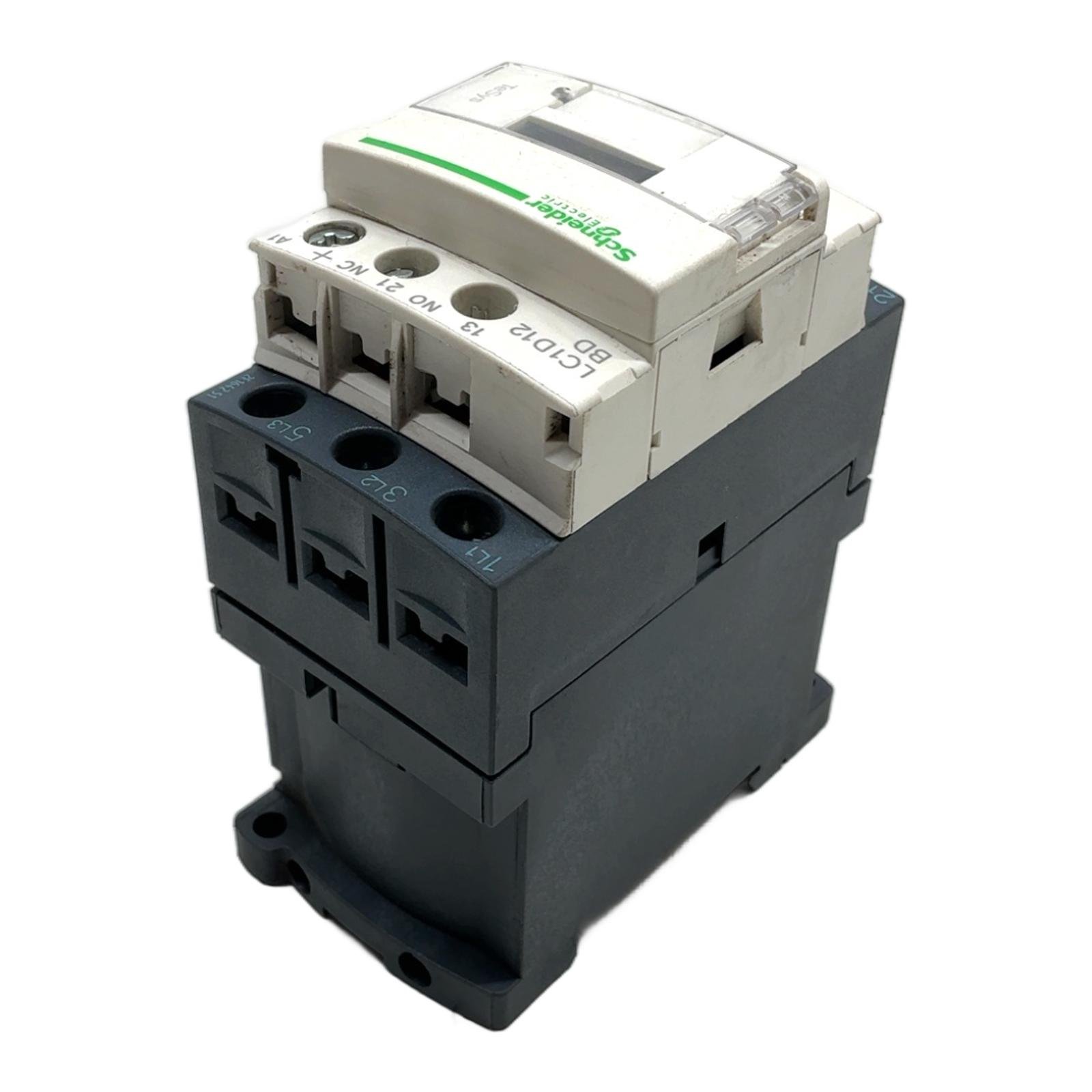

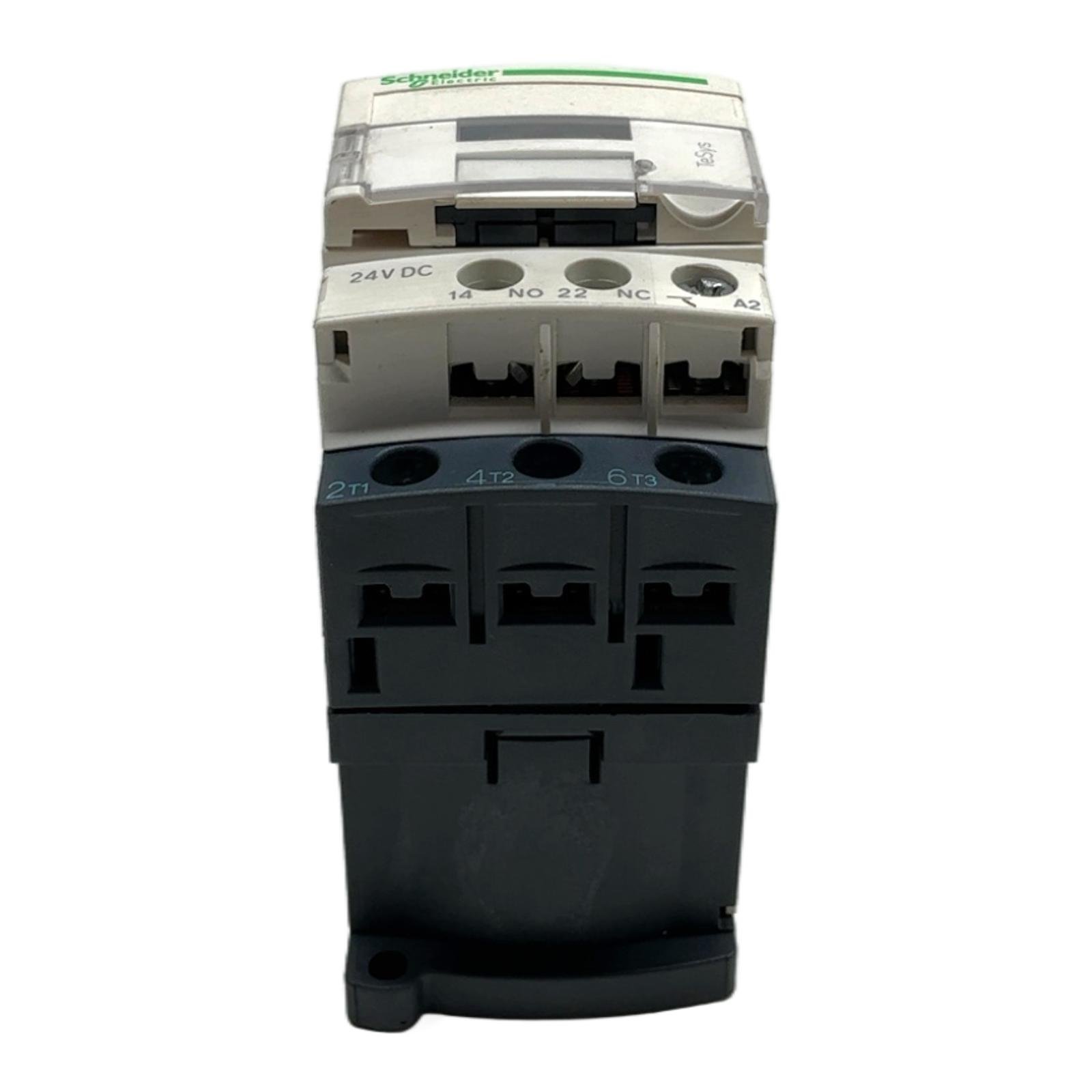

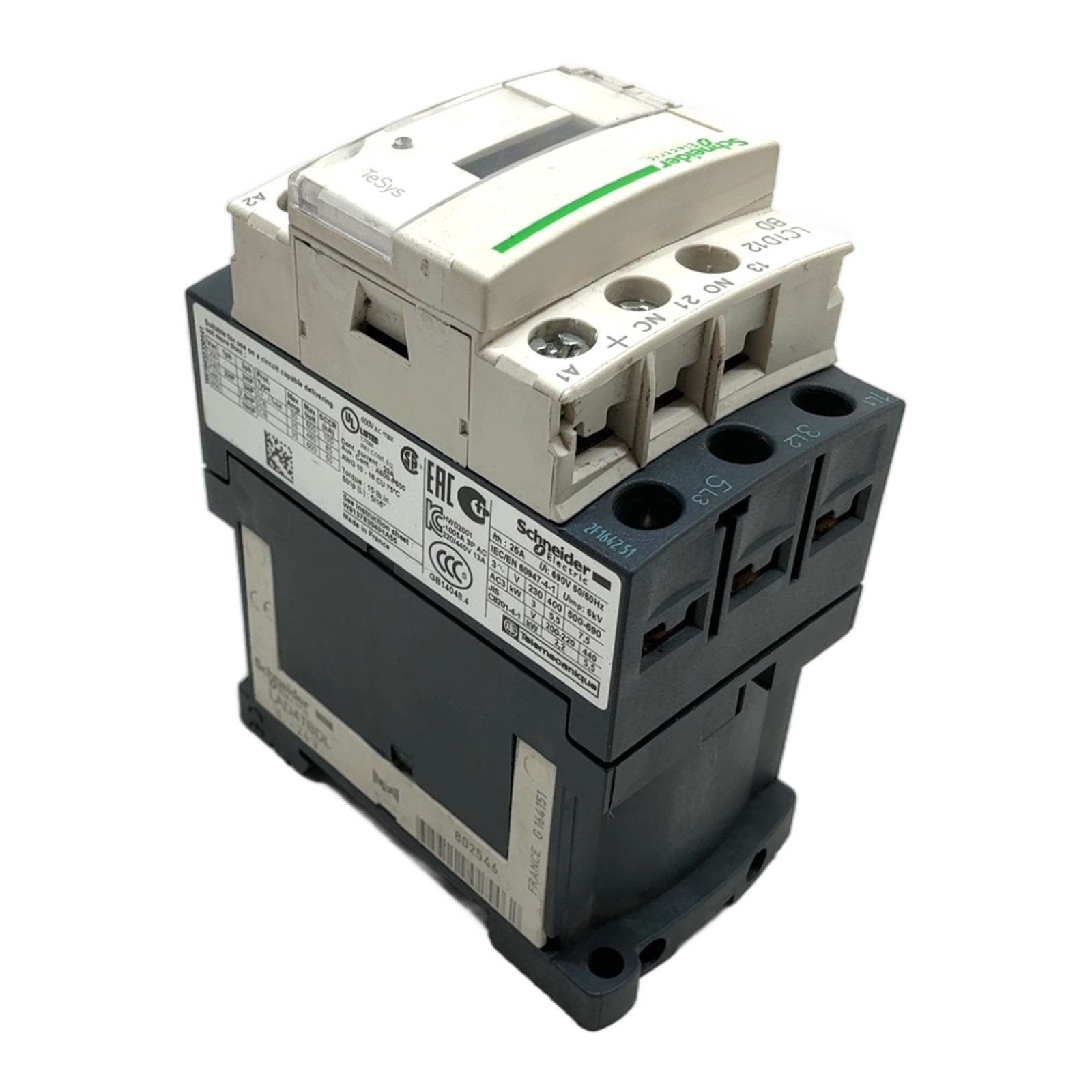

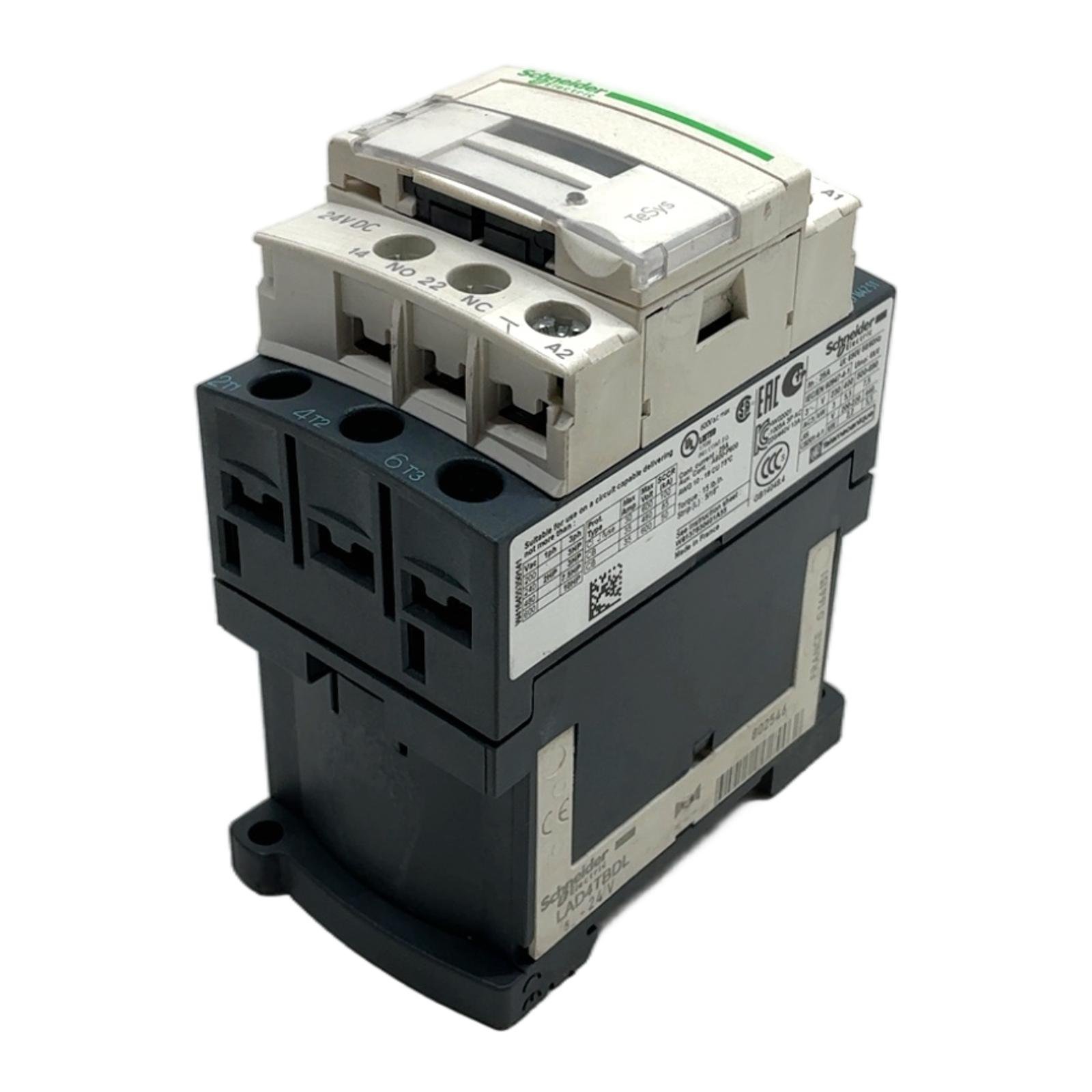

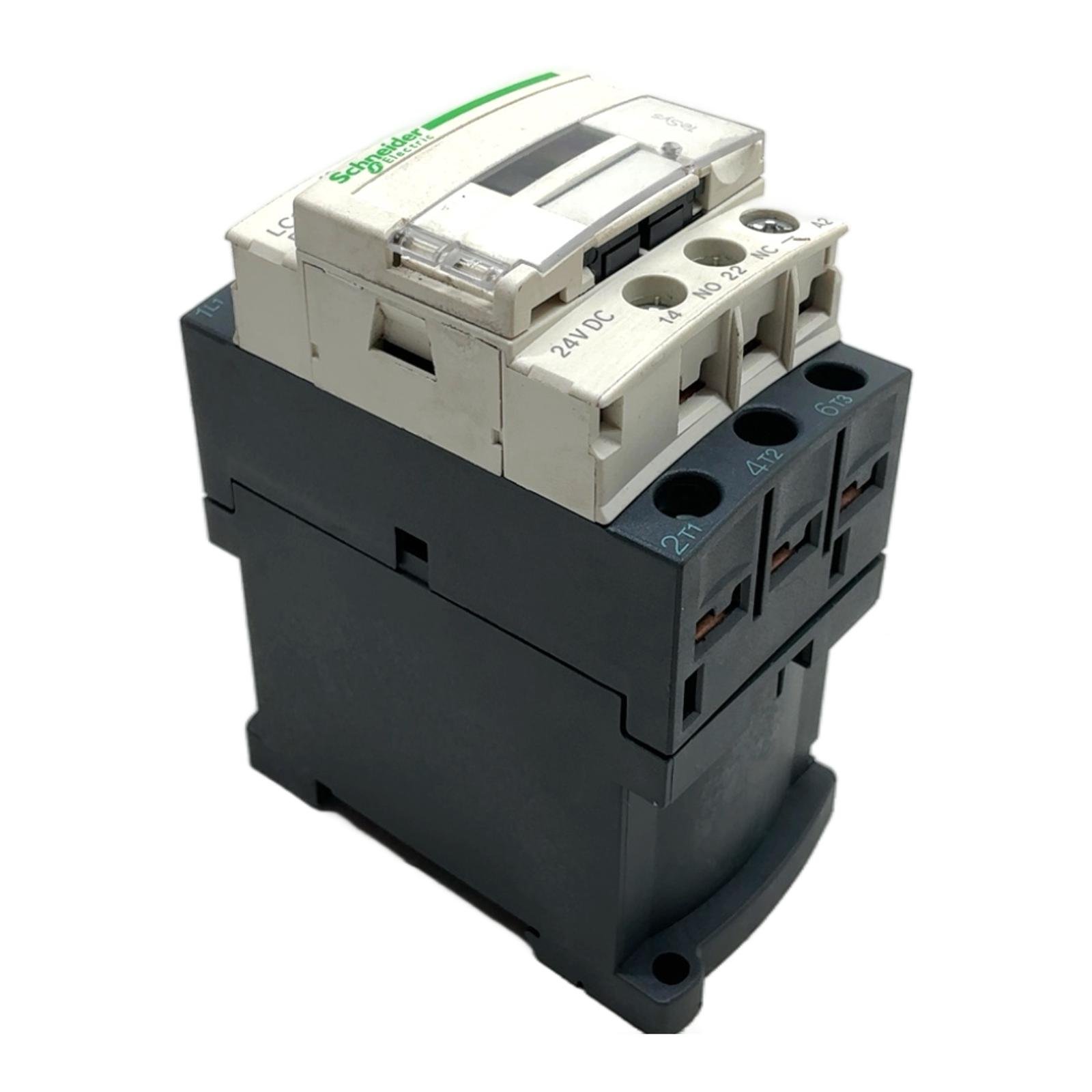

Schneider Electric TeSys D Contactor with Timer Description This is a Schneider Electric TeSys D contactor, model LC1D12BD, combined with a LAD4TBDL electronic timer. This 3-pole contactor is engineered for high-performance motor control and resistive load applications. It operates with a 24V DC coil and has a built-in 1 Normally Open and 1 Normally Closed auxiliary contact. The attached timer module provides on-delay functionality, adjustable from 0.1 to 30 seconds, allowing for precise control in automation sequences. It is a robust and reliable component for industrial control systems. Specifications Manufacturer: Schneider Electric Series: TeSys D Contactor Model: LC1D12BD Timer Model: LAD4TBDL Coil Voltage: 24V DC Rated Current (AC-3): 12A Rated Power (AC-3, 400V): 5.5 kW Poles: 3 Auxiliary Contacts: 1 NO, 1 NC Timer Function: On-Delay Timer Range: 0.1s to 30s Label Info Ui: 690V 50/60Hz Ith: 25A Standard: IEC/EN 60947-4-1 Application Ideal for direct-on-line motor starting, reversing applications, star-delta starters, and any control circuit requiring a timed switching operation. Suitable for use in manufacturing, HVAC, and material handling systems. Country of Origin Made in France. CO2 Impact Reusing this industrial part saves an estimated 14 kg of CO2, which is comparable to the emissions from driving a car for 70 kilometers. By choosing used components, you contribute to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the coil voltage for this contactor?The coil voltage is 24V DC, as indicated by the ‘BD’ in the model number and the markings on the coil block. What are the specifications of the included LAD4TBDL timer module?The LAD4TBDL is an electronic on-delay timer with an adjustable time range of 0.1 to 30 seconds. It is designed to operate on a control voltage of 5 to 24V DC. Can this contactor be used for motor switching applications?Yes, absolutely. It is specifically designed for motor control, with an AC-3 rating of 5.5 kW at 400V, making it suitable for a wide range of industrial motors. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
