TELEMECANIQUE LB1-LC03M10

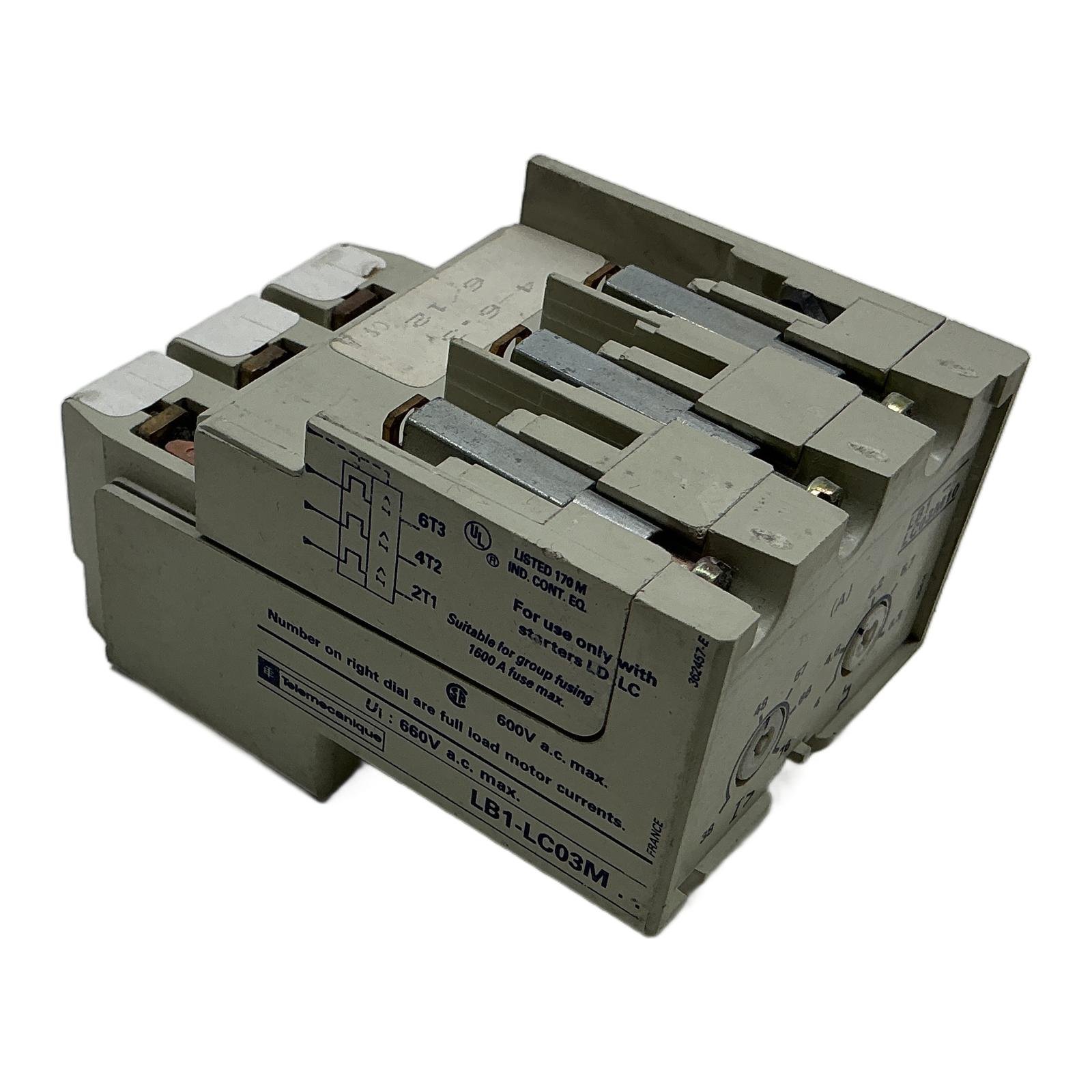

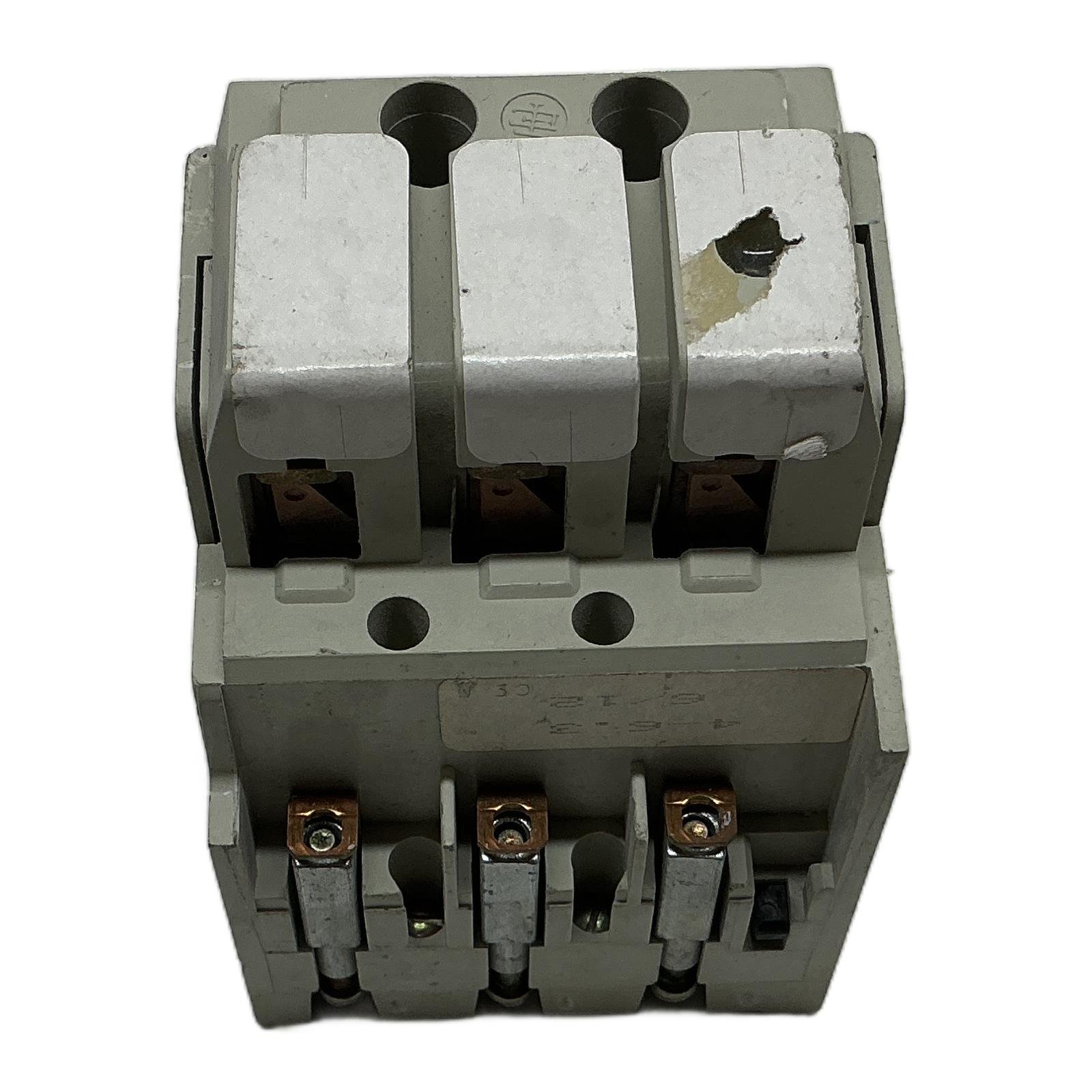

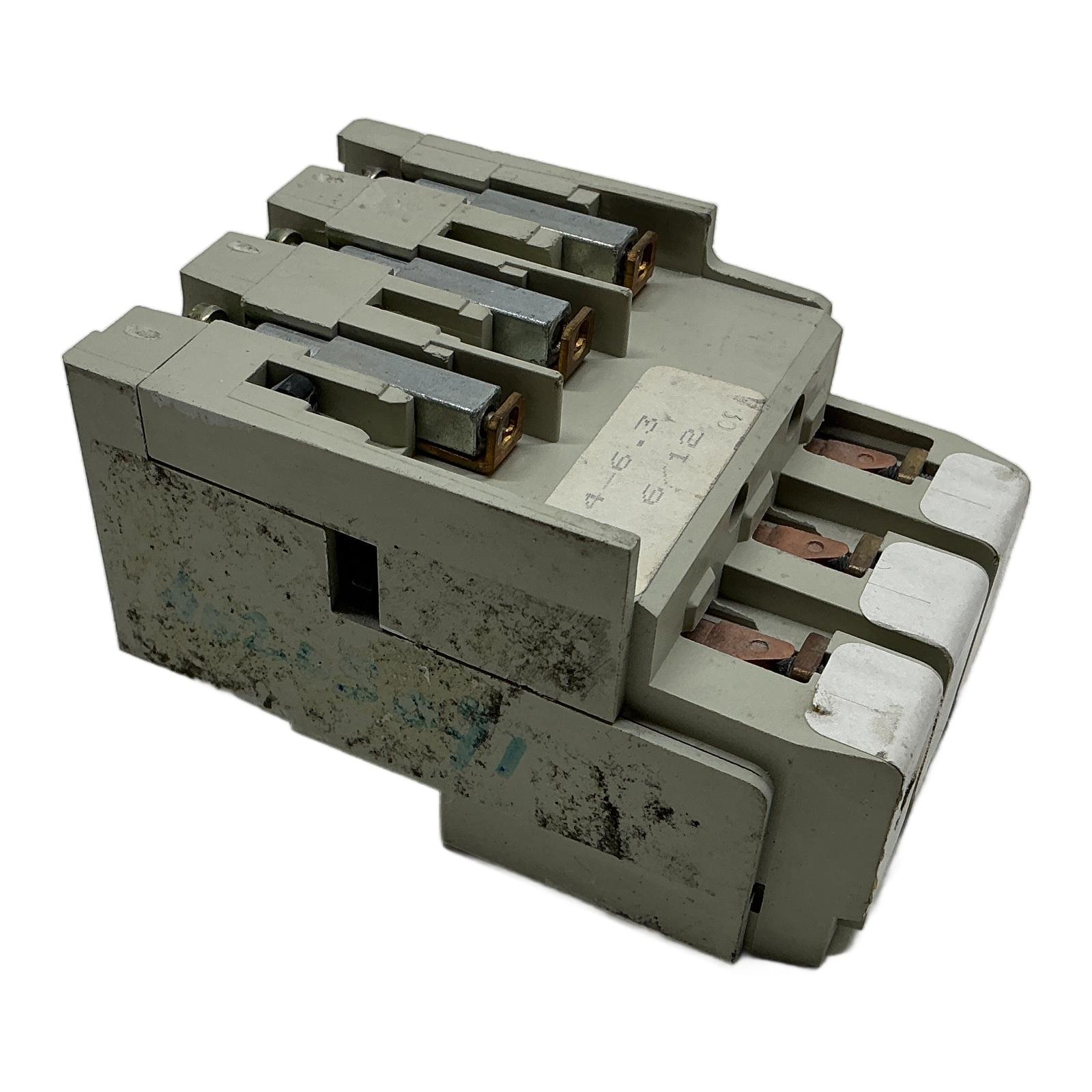

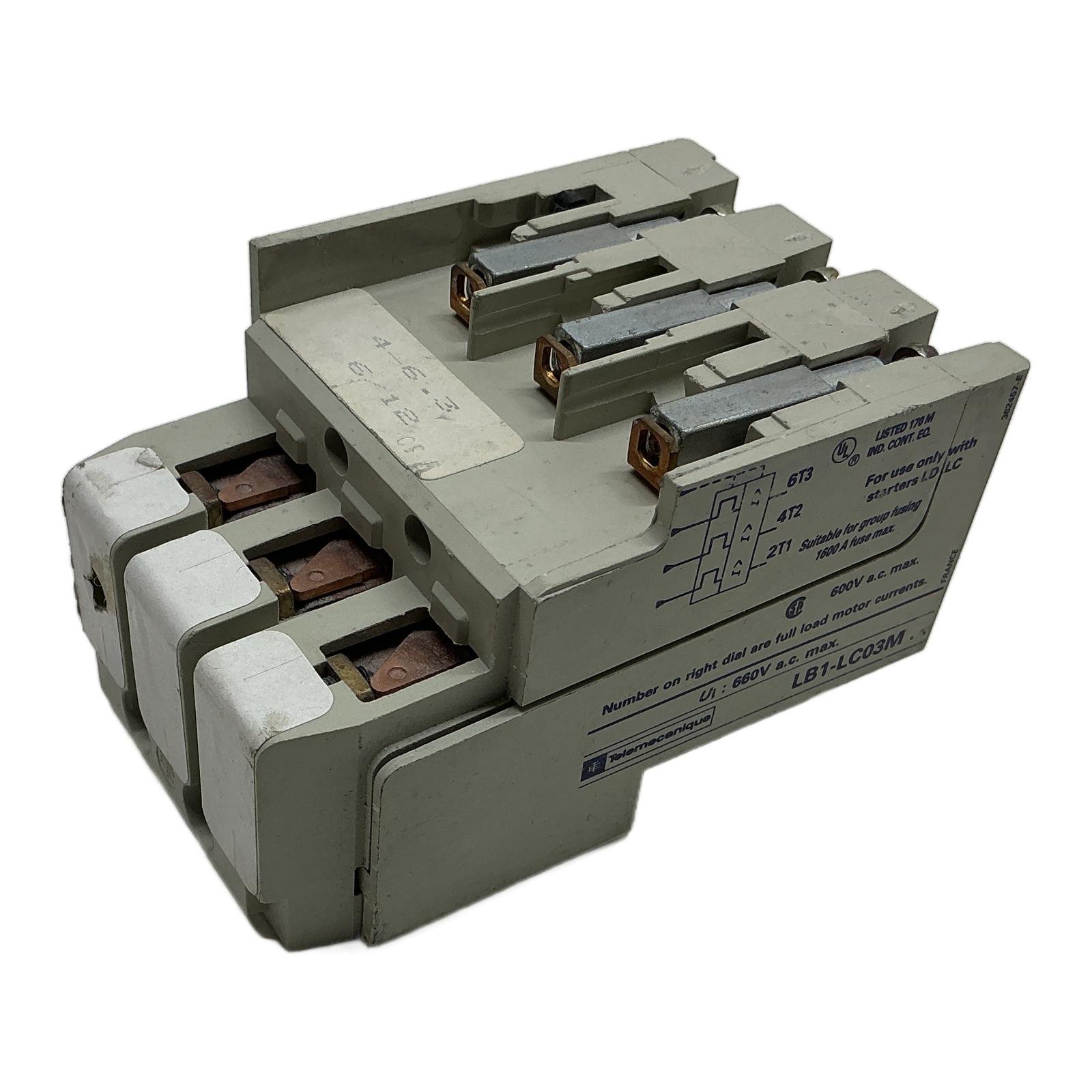

Telemecanique 3-Pole Thermal Overload Relay Description The Telemecanique LB1-LC03M10 is a high-quality thermal overload relay designed to provide reliable protection for three-phase AC motors. It guards against overloads, phase failures, and extended starting times. Featuring a differential mechanism, it is sensitive to phase loss, ensuring comprehensive motor safety. This relay is engineered for direct mounting on Telemecanique LC1-D series contactors, forming a seamless and compact motor starter assembly. Its proven design ensures long-term operational reliability in demanding industrial environments. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Telemecanique (Schneider Electric) Type: LB1-LC03M10 Product Type: Thermal Overload Relay Adjustable Current Range: 4.0 to 6.3 Amps Rated Insulation Voltage (Ui): 660V AC max. Poles: 3 Trip Class: Class 10 Mounting Style: Direct to Contactor Label Info Ui: 660V a.c. max SP: 600V a.c. max Suitable for group fusing 1600 A fuse max. Application Ideal for motor protection in applications such as conveyors, pumps, fans, and other industrial machinery where reliable overload protection is critical. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned item, you are contributing to a circular economy and helping to avoid approximately 6.0 kg of CO2 emissions that would be generated by the production of a new unit. Availability This item is a used, tested product in good working condition. Availability is limited. Please contact us for current stock levels. FAQ What contactors is the LB1-LC03M10 compatible with?This thermal overload relay is designed for direct mounting on Telemecanique (now Schneider Electric) LC1-D series contactors, specifically models like LC1-D09, LC1-D12, and LC1-D18. What is the trip class of this relay?The ‘M10′ suffix in the model number typically indicates a Trip Class 10 rating. This means it will trip within 10 seconds at 7.2 times the set current, which is suitable for standard motor starting conditions. How do I correctly set the current on the LB1-LC03M10?The current is set using the blue dial on the front. You should set the dial to match the Full Load Amperage (FLA) listed on the motor’s nameplate. The adjustable range for this model is from 4 to 6.3 Amps. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
