SCHNEIDER ELECTRIC LADN22

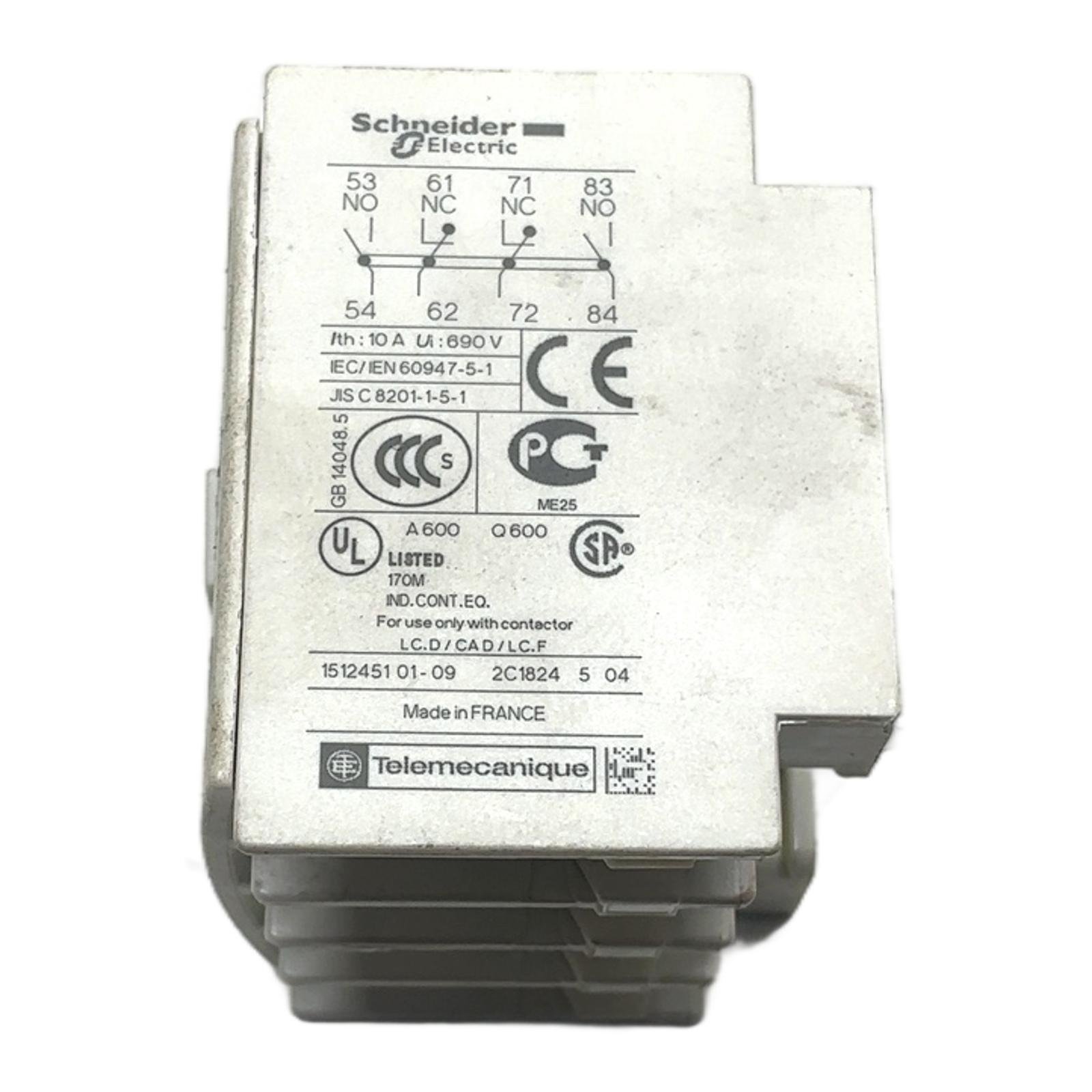

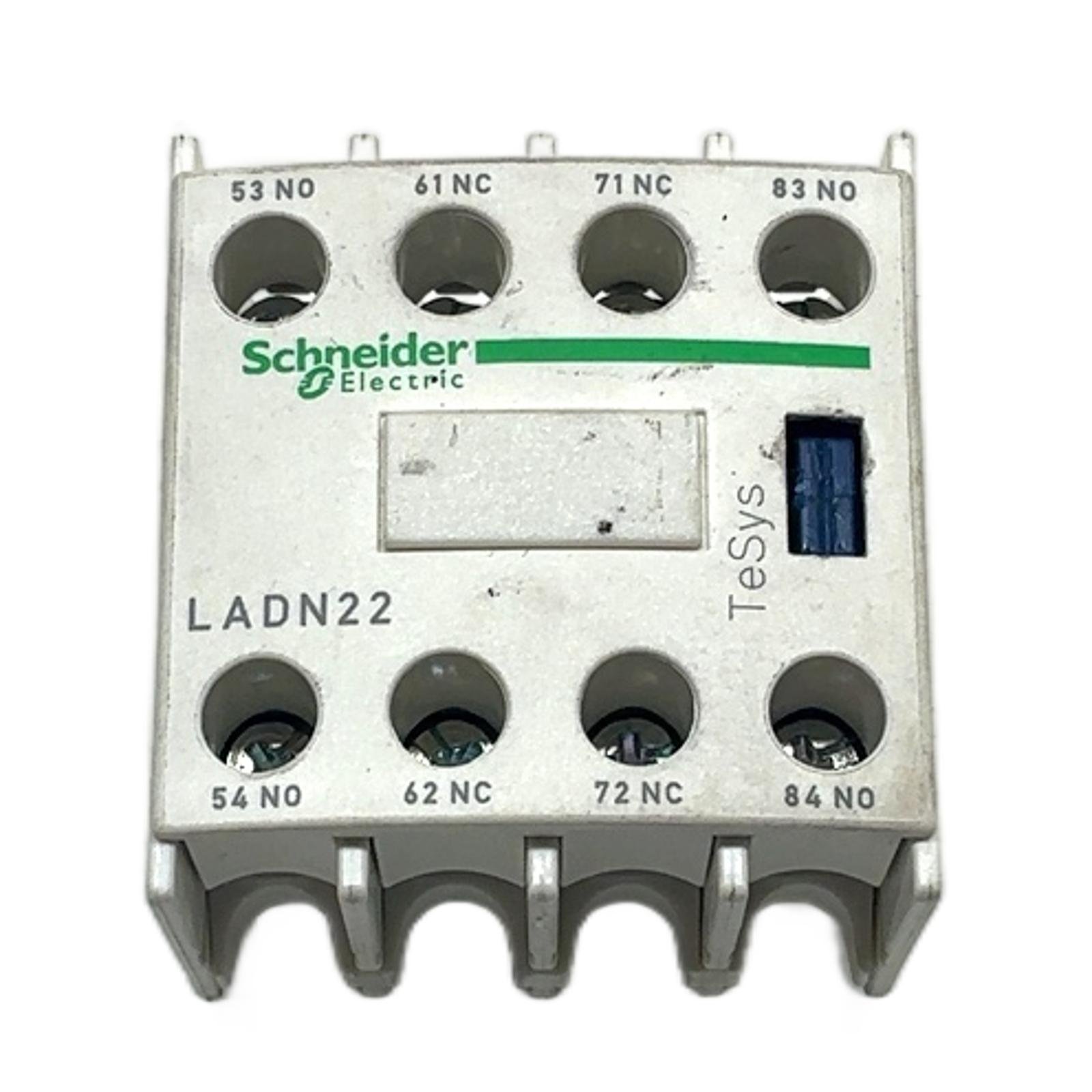

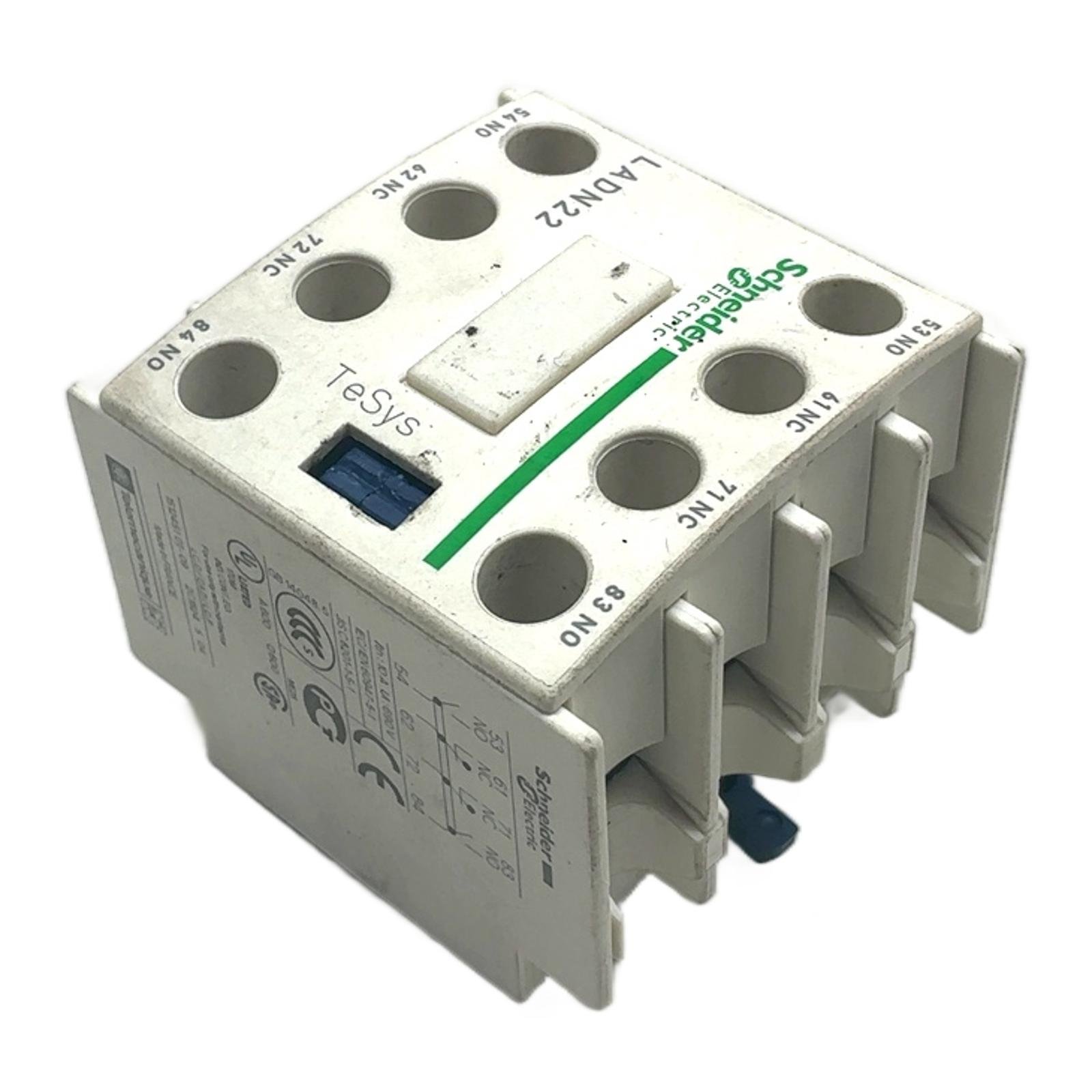

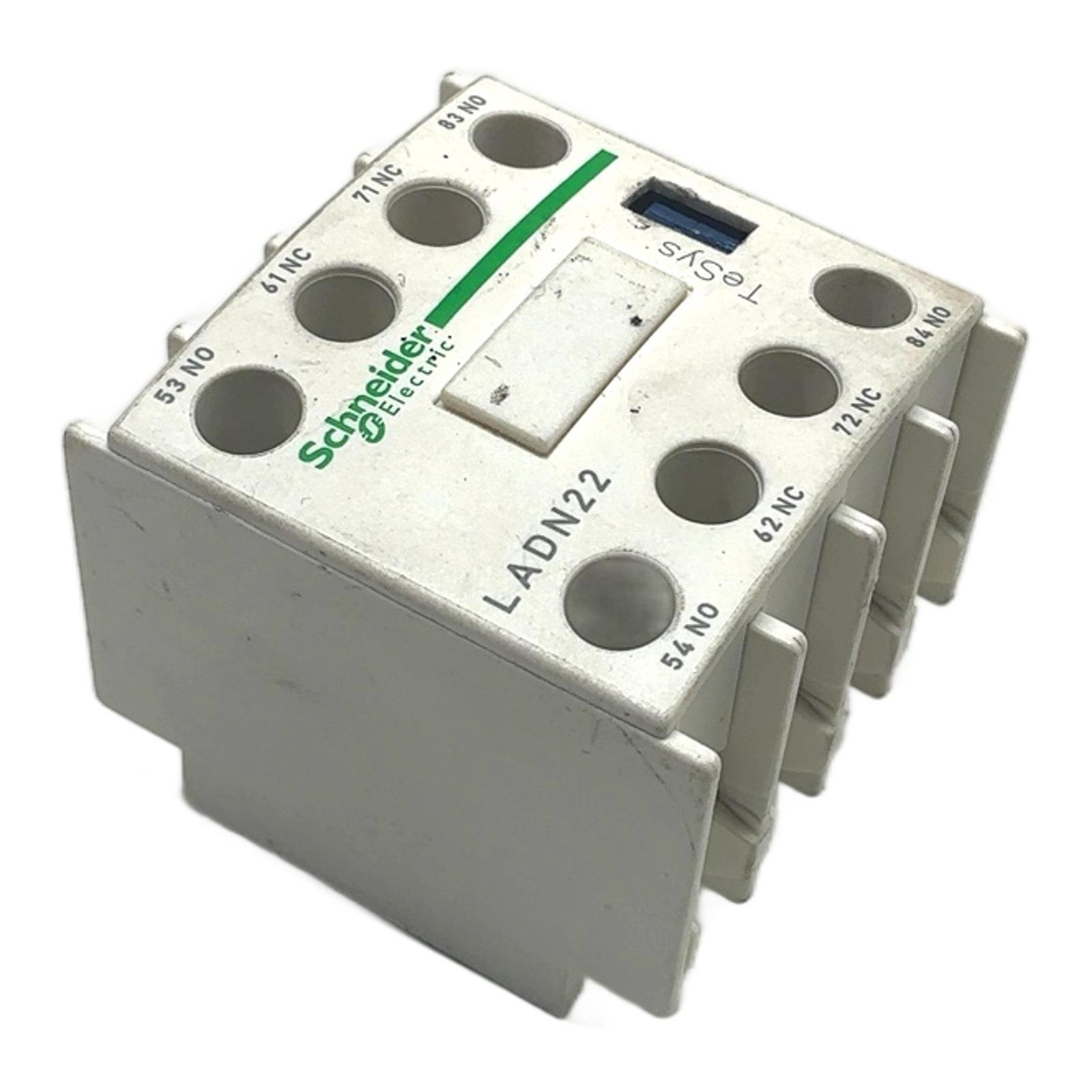

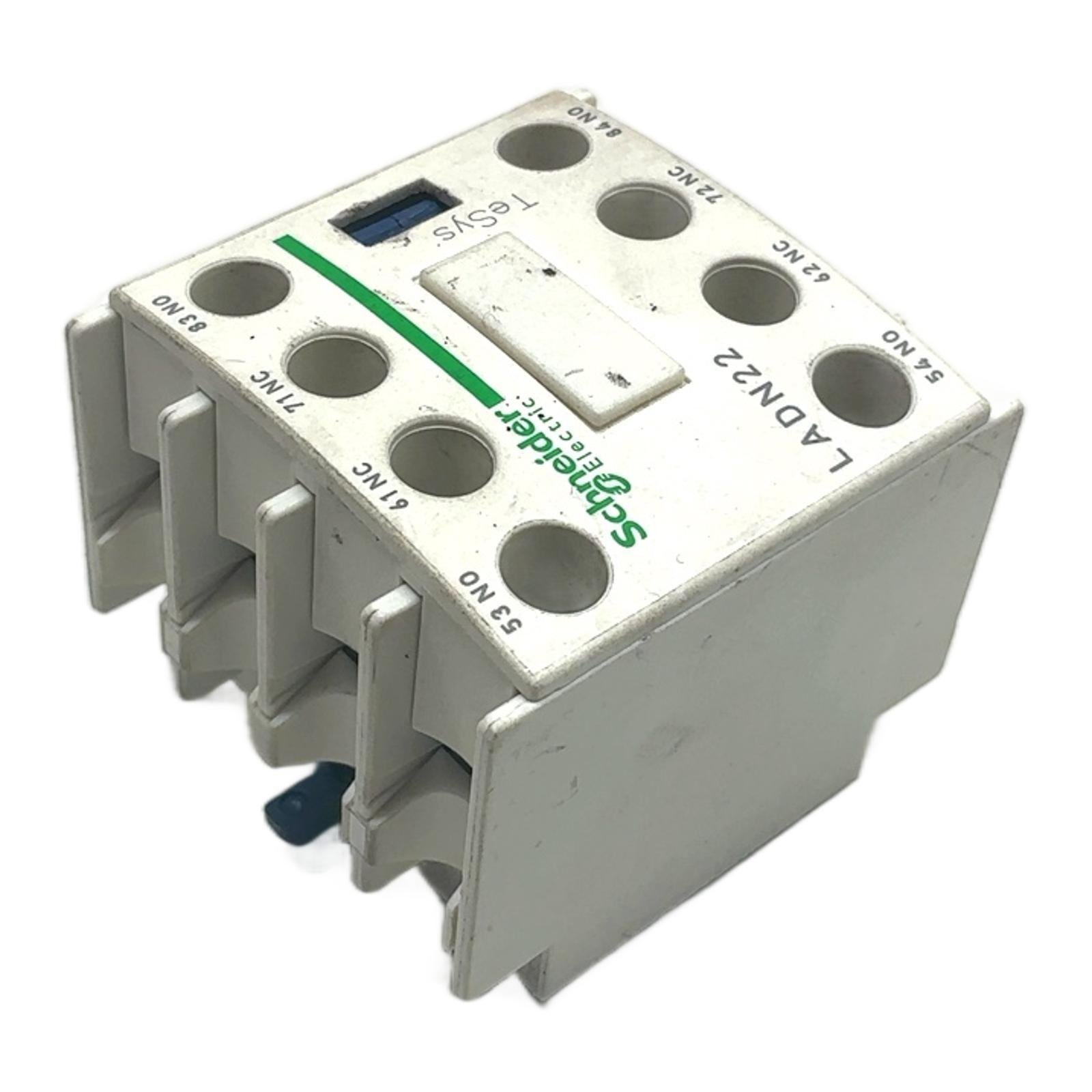

Schneider Electric LADN22 Auxiliary Contact Block for TeSys D Description The LADN22 is a high-quality auxiliary contact block by Schneider Electric, designed for the TeSys D and TeSys F range of contactors. This front-mounting block adds two normally open (NO) and two normally closed (NC) contacts to your control setup, allowing for greater flexibility in signaling and interlocking circuits. Its robust design ensures reliable performance in demanding industrial environments. Specifications Manufacturer: Schneider Electric Part Number: LADN22 Product Range: TeSys D Contact Configuration: 2 NO + 2 NC Conventional Free Air Thermal Current (Ith): 10 A Rated Insulation Voltage (Ui): 690 V Mounting Location: Front Terminals: Screw Clamp Label Info Standards: IEC/EN 60947-5-1, JIS C 8201-1-5-1 Certifications: UL, CSA, CE Compatibility: For use with contactors LC.D / CAD / LC.F Application Ideal for use in motor control centers, automation panels, and industrial machinery where additional feedback or interlocking contacts are required for contactors. Country of Origin Made in France. CO2 Impact Opting for this pre-owned component saves an estimated 2.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to driving a car for approximately 10 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What contactors is the LADN22 compatible with?The LADN22 is designed for front mounting on Schneider Electric TeSys D and TeSys F series contactors, including popular models like LC1D, CAD, and LC1F. What type of terminals does the LADN22 use and what is the tightening torque?This block features screw clamp terminals. For a reliable connection, the manufacturer recommends a tightening torque of 1.7 Nm. Is the LADN22 compliant with modern environmental standards like RoHS?Yes, the Schneider Electric LADN22 auxiliary contact block is compliant with the RoHS (Restriction of Hazardous Substances) directive, ensuring it is free from specified hazardous materials. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
