IFM ELECTRONIC IIS224

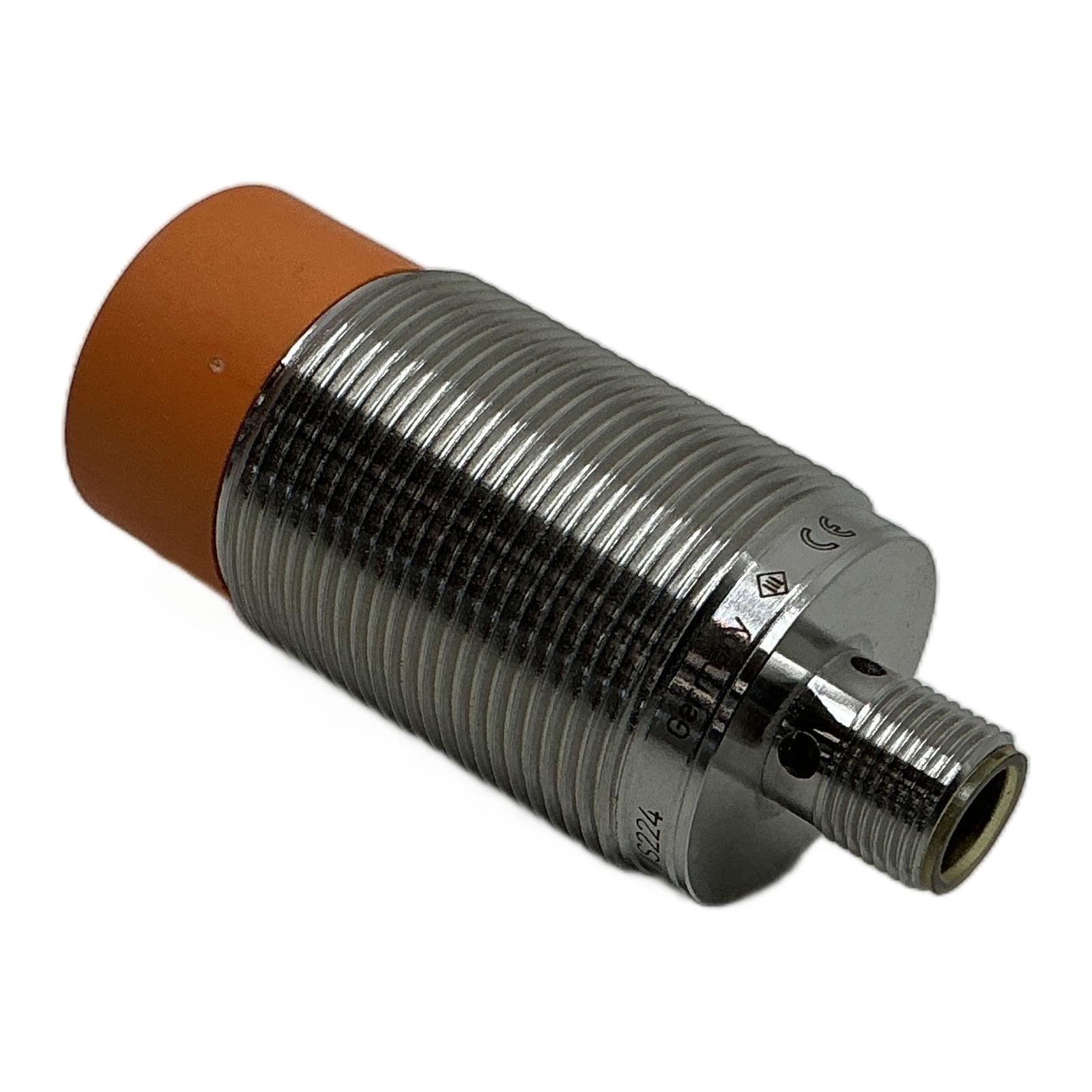

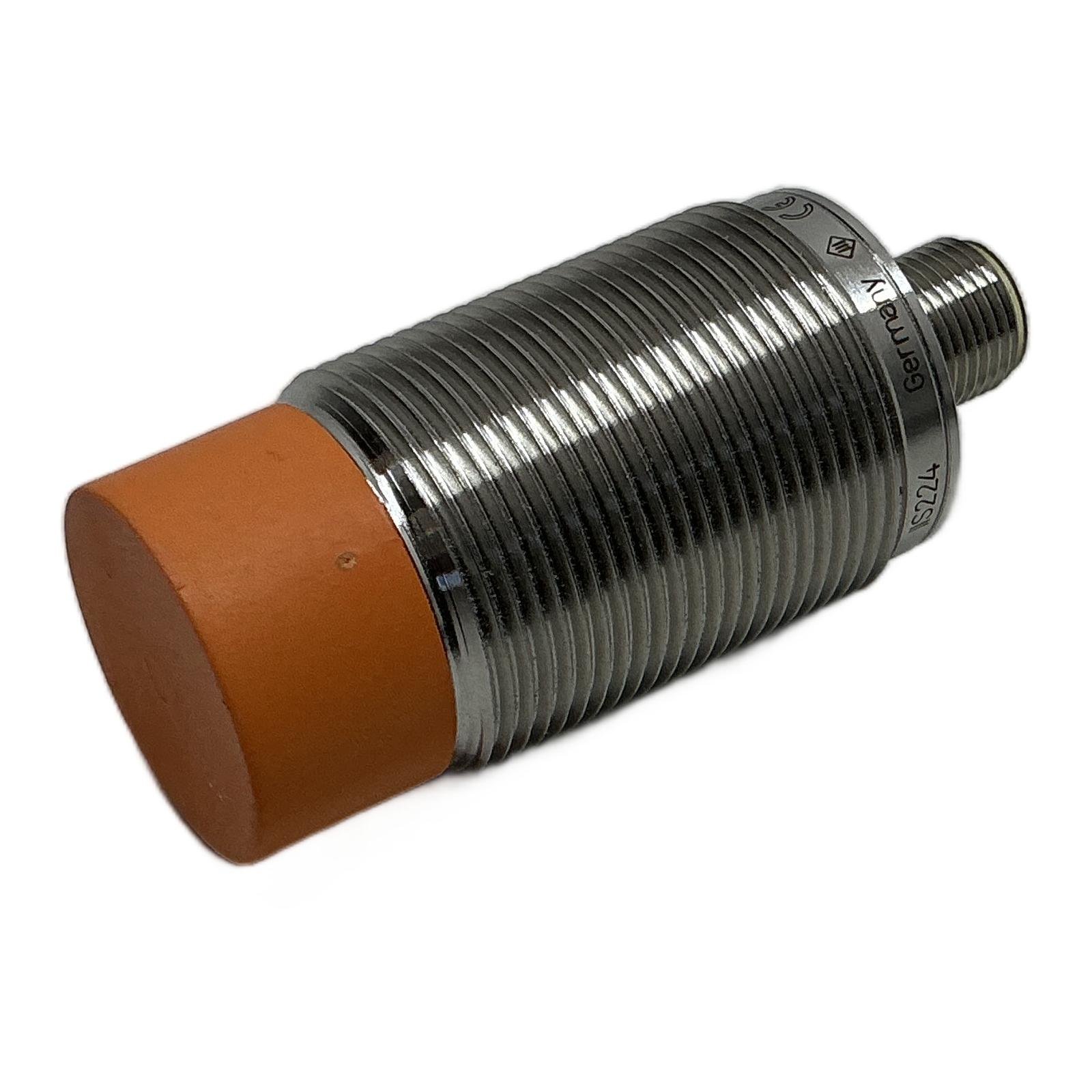

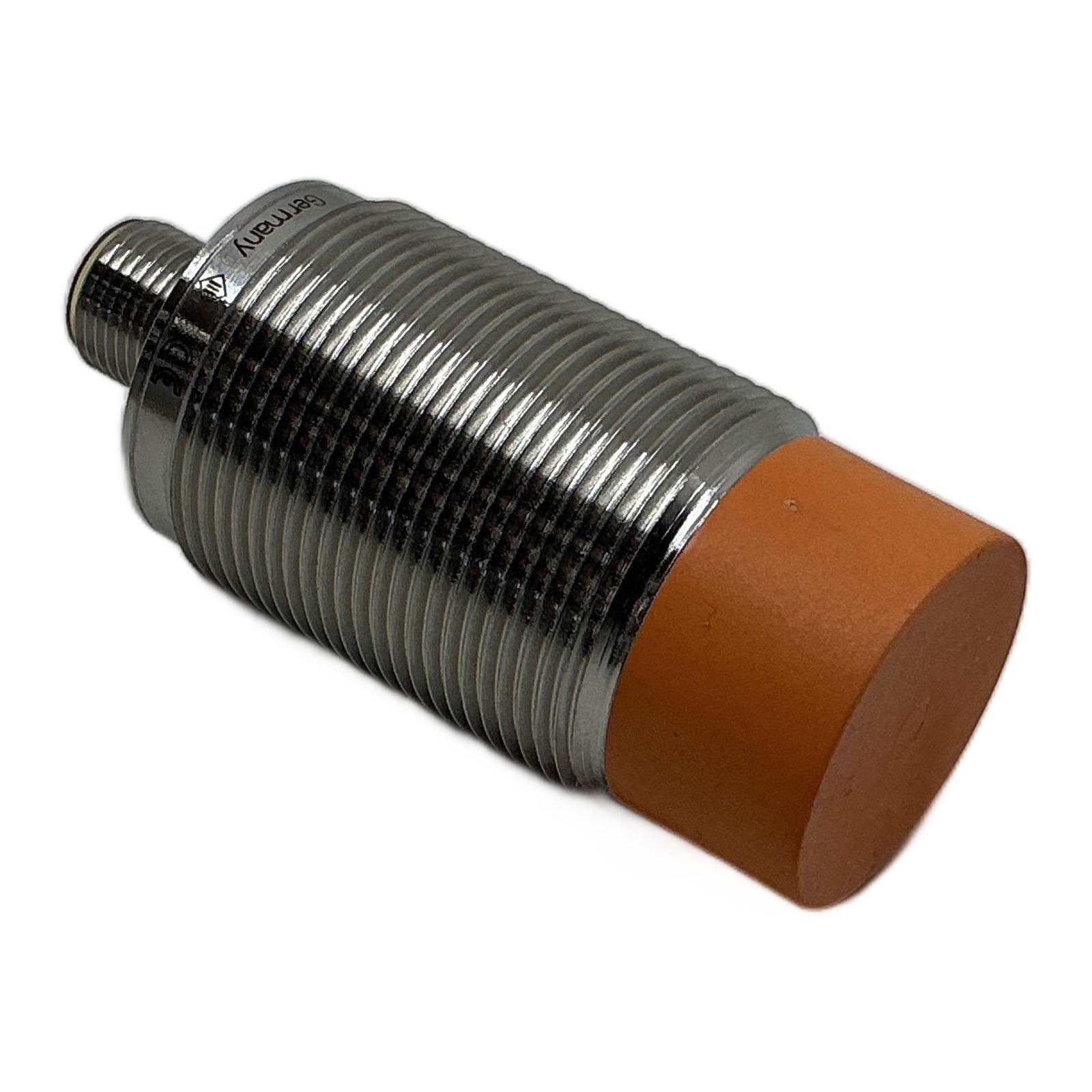

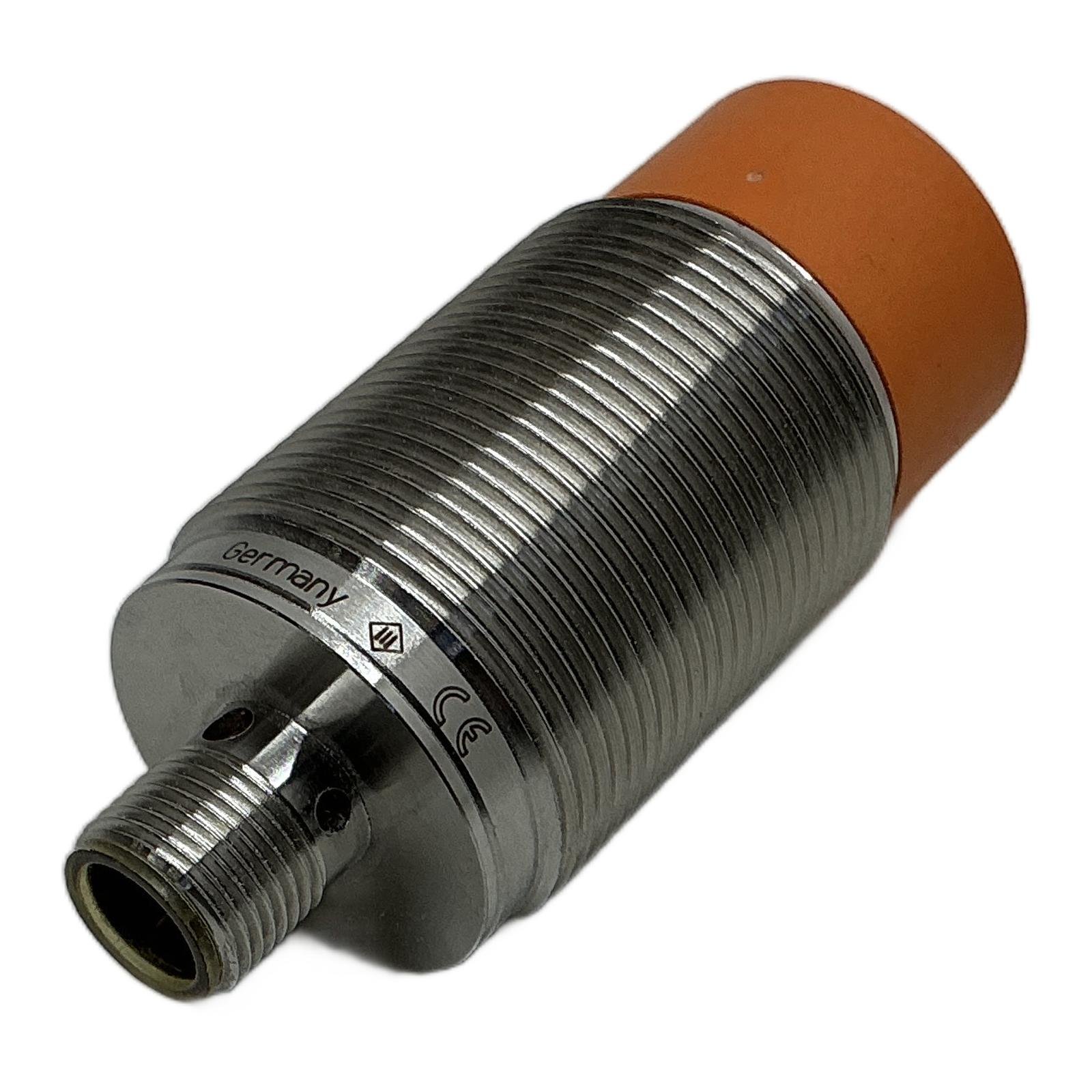

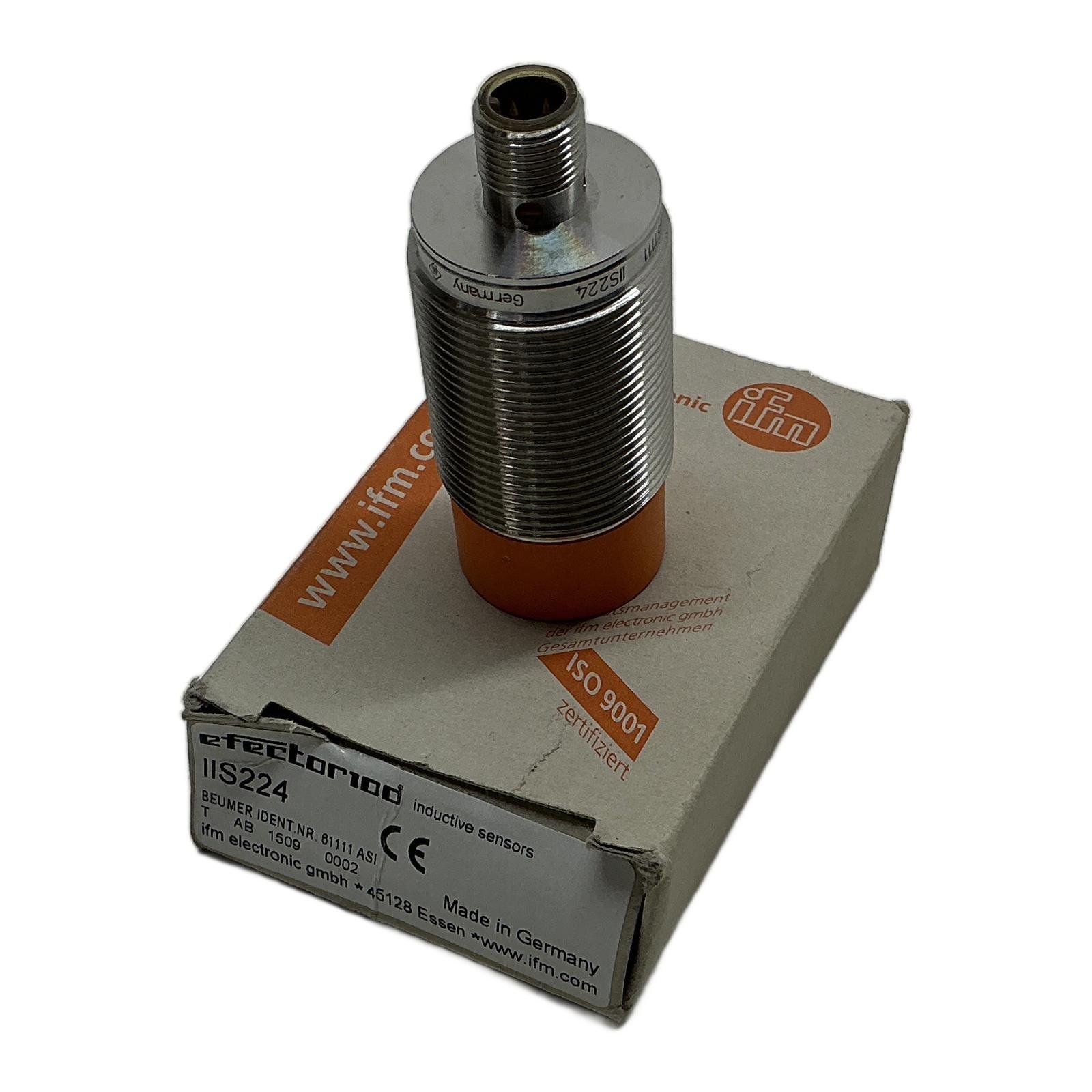

IFM IIS224 AS-i Inductive Sensor Description The IFM Electronic IIS224 is a robust inductive sensor designed for reliable detection of metallic objects in industrial environments. It operates on the AS-Interface (AS-i) network, allowing for simplified wiring, reduced installation costs, and enhanced diagnostic capabilities. With its M30 threaded housing and a 15 mm non-flush sensing range, it is suitable for a wide variety of positioning and presence-sensing applications. Specifications Manufacturer: IFM Electronic Model: IIS224 Sensing Range: 15 mm Mounting: Non-flush mountable Output Function: Normally open (NO) Interface: AS-Interface (AS-i) Housing: Threaded type, M30 x 1.5 Materials: Brass, white bronze coated; sensing face: PBT, orange Connection: M12 Connector Operating Voltage: 26.5…31.6 V DC (via AS-i) Protection Class: IP67 Label Info Brand: efector100 (by ifm) Type: IIS224 Customer ID (BEUMER): 61111 ASI Application Ideal for use in conveyor systems, material handling, packaging machinery, and general factory automation where integration into an AS-i network is required for efficient data communication and power distribution. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned sensor, you help avoid 4.8 kg of CO2 emissions. This is equivalent to the energy needed to charge a standard smartphone more than 570 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is AS-Interface (AS-i) and why is it used with this IIS224 sensor?AS-Interface is a simple industrial networking solution used to connect binary sensors and actuators. The IIS224 uses AS-i to transmit both its signal and receive power over a single two-conductor cable, drastically simplifying wiring compared to traditional parallel wiring. Question?What does ‘non-flush mountable’ mean for this M30 sensor?’Non-flush mountable’ means the sensing face of the sensor must protrude from the surrounding metal mounting surface. This design allows for a longer sensing range (15mm in this case) because the electromagnetic field is not dampened by adjacent metal. Question?Can this sensor be used in a standard digital input PLC system without an AS-i master?No, this sensor is specifically designed for AS-i networks. It communicates using the AS-i protocol and cannot be connected directly to a standard 24V DC digital input card on a PLC. It requires an AS-i Master or Gateway to interpret its signal. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Current Date: Friday, March 13, 2026
