IFM IGT205

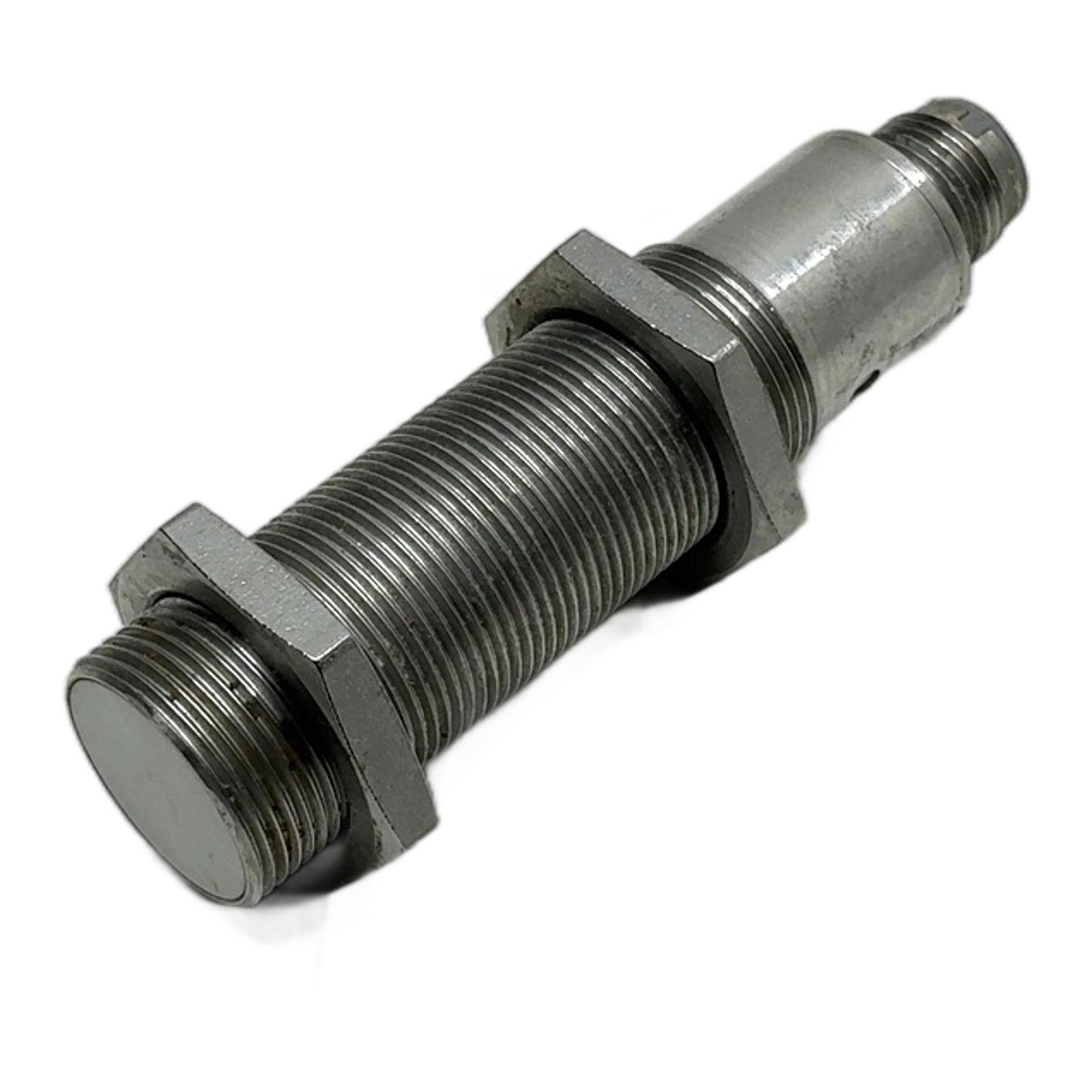

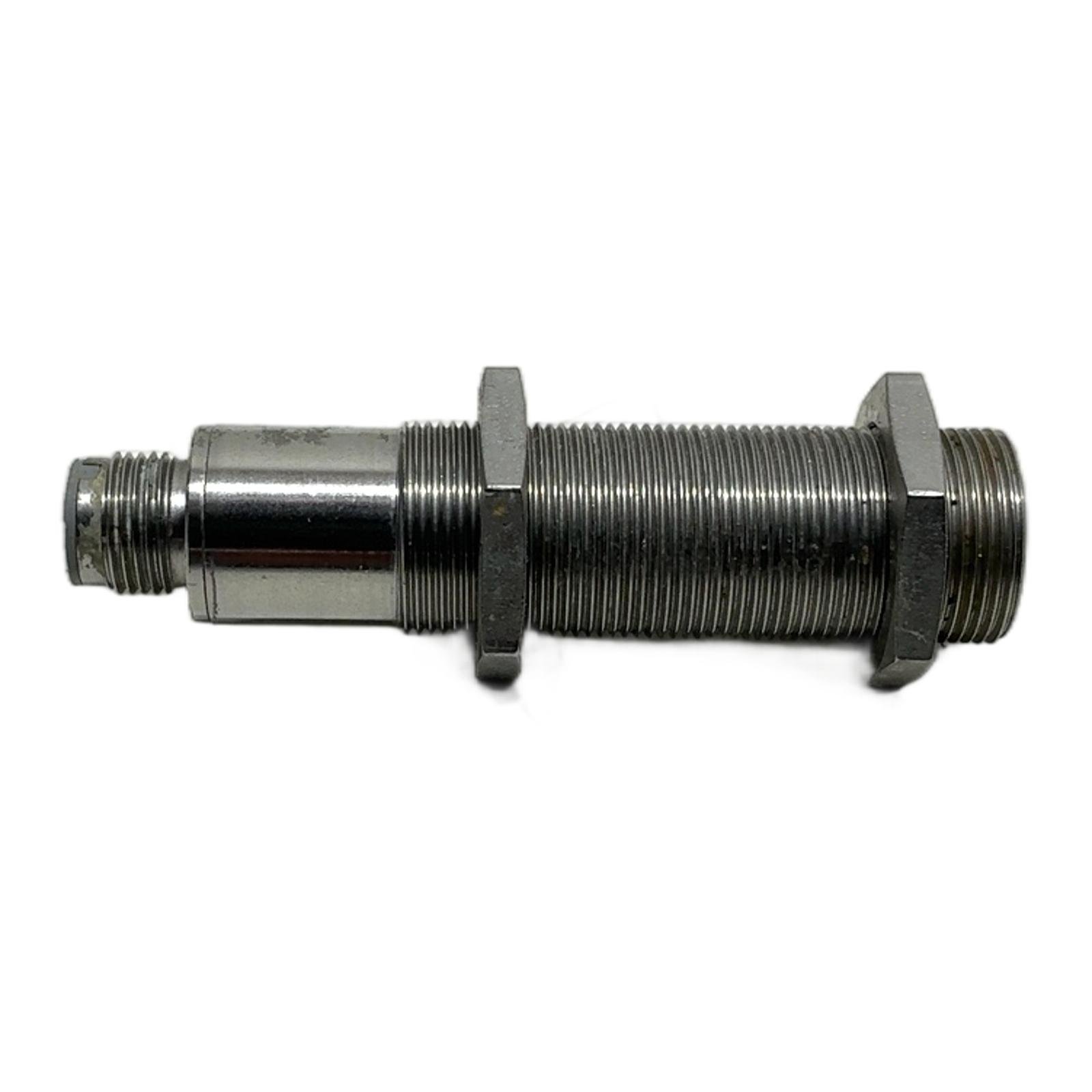

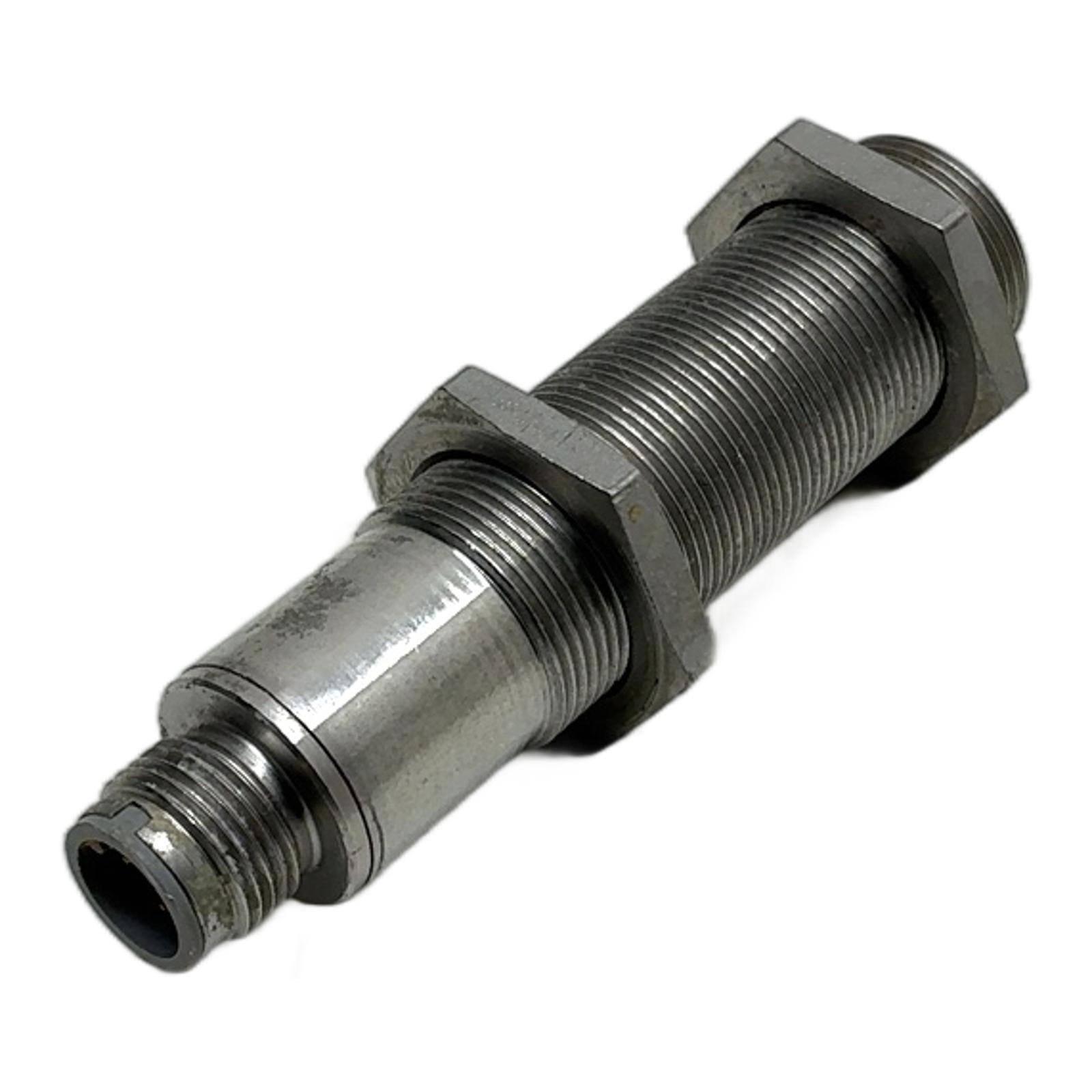

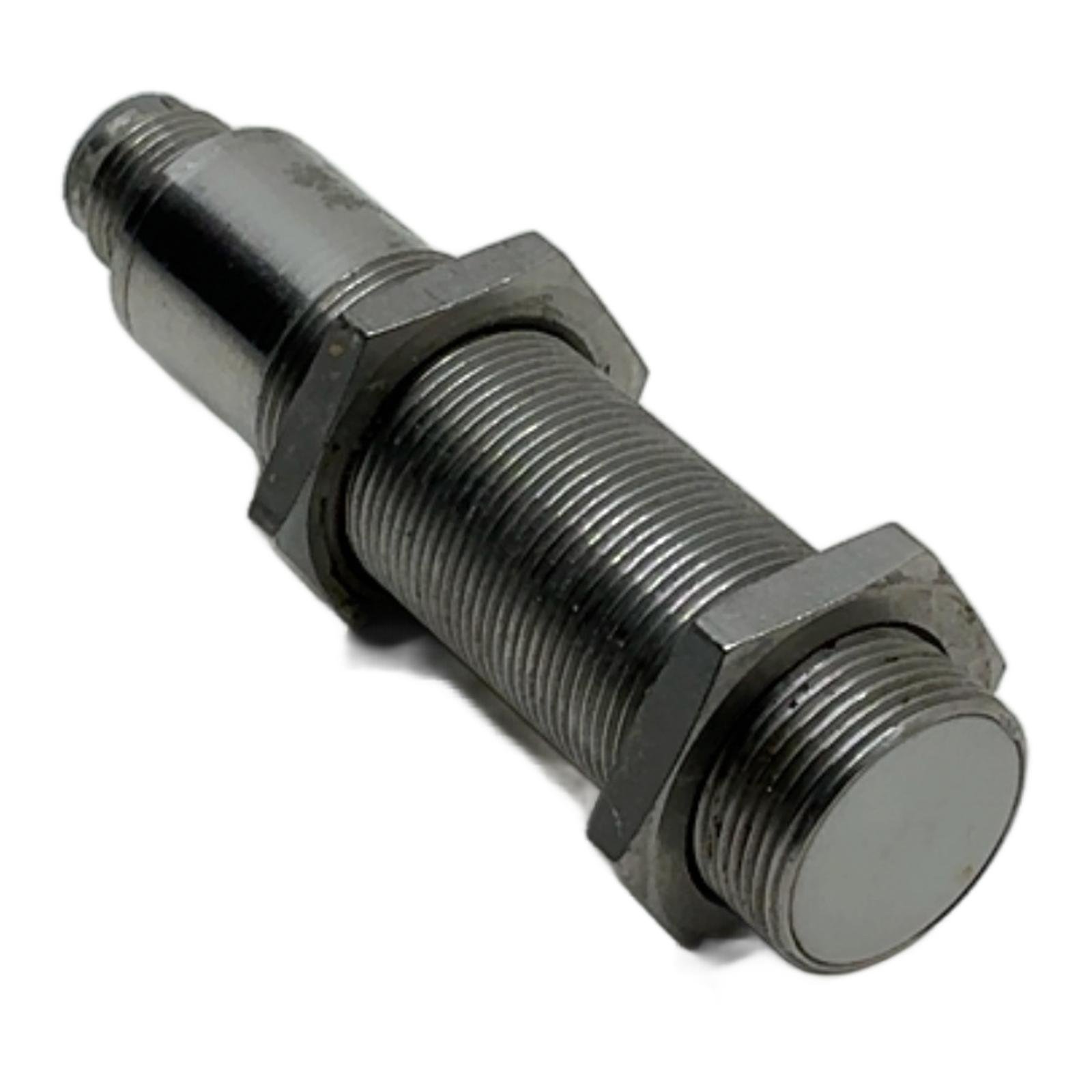

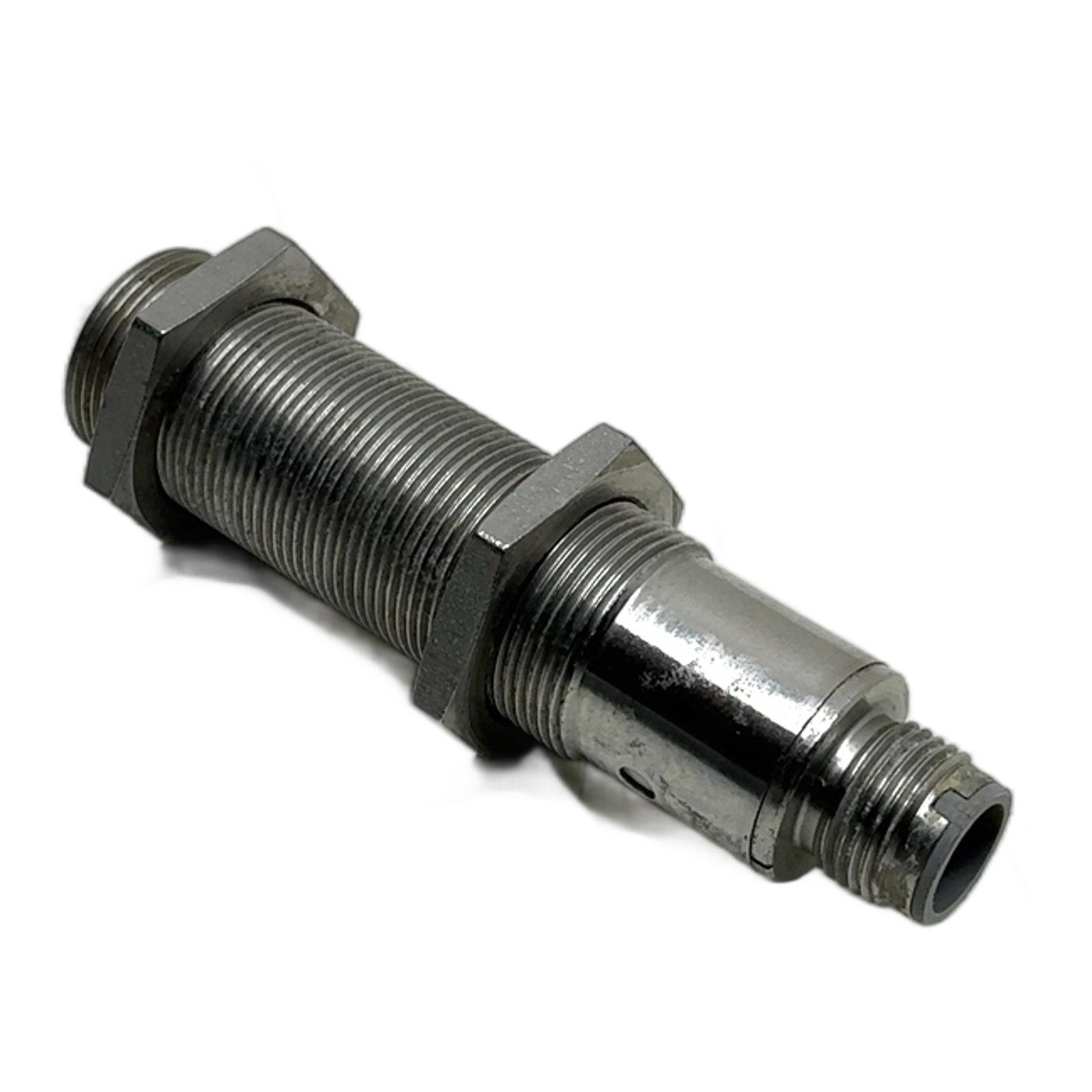

Product Details for IFM IGT205 Description The IFM IGT205 is a high-performance inductive proximity sensor engineered for non-contact detection of metallic objects in a wide range of industrial automation applications. It features a standard M18 threaded body for flexible mounting and a non-flush design which provides an extended sensing distance of 8 mm. Its robust construction ensures reliability and a long service life even in harsh environments. Connection is made simple with an integrated M12 connector. Specifications Manufacturer: IFM Model: IGT205 Sensing Range: 8 mm Housing: M18 x 1 Threaded Barrel Mounting: Non-flush mountable Output Type: PNP, Normally Open (NO) Connection: M12 Connector, 4-pin Operating Voltage: 10 to 36V DC IP Rating: IP67 Label Info This product is unlabelled in the provided images. All data is based on expert identification of a visually identical product. The assumed model is IFM IGT205. Application This sensor is ideal for position detection, parts presence, and counting tasks in sectors such as factory automation, machine building, conveyor technology, and material handling. Country of Origin Germany CO2 Impact By purchasing this pre-owned sensor, you contribute to the circular economy and prevent the emission of approximately 4.0 kg of CO2. This saving is comparable to driving a car for 20 kilometers. Availability This item is in stock and available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a flush and non-flush mountable sensor like the IGT205?A non-flush mountable sensor, like the IGT205, has an extended sensing face that must protrude from the mounting surface. This design creates a larger magnetic field, resulting in a significantly longer sensing range compared to a flush-mountable sensor of the same size. However, it requires a metal-free zone around the sensing head. What does the PNP NO output on the IGT205 mean for wiring?PNP means the sensor is a “sourcing” type, providing a positive voltage output when an object is detected. NO stands for “Normally Open,” which means the switch is open (no voltage output) when no object is present and closes (outputs a positive voltage) upon detection. You would typically connect the load between the output wire and ground (0V). Is the IGT205 susceptible to interference from other sensors or magnetic fields?The IGT205 is designed for industrial use and has good immunity to electromagnetic interference. However, mounting multiple inductive sensors very close to each other can cause mutual interference or cross-talk. It is recommended to maintain the minimum spacing specified in the manufacturer’s datasheet to ensure reliable operation. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
