BEUMER IG316W24SB 61614

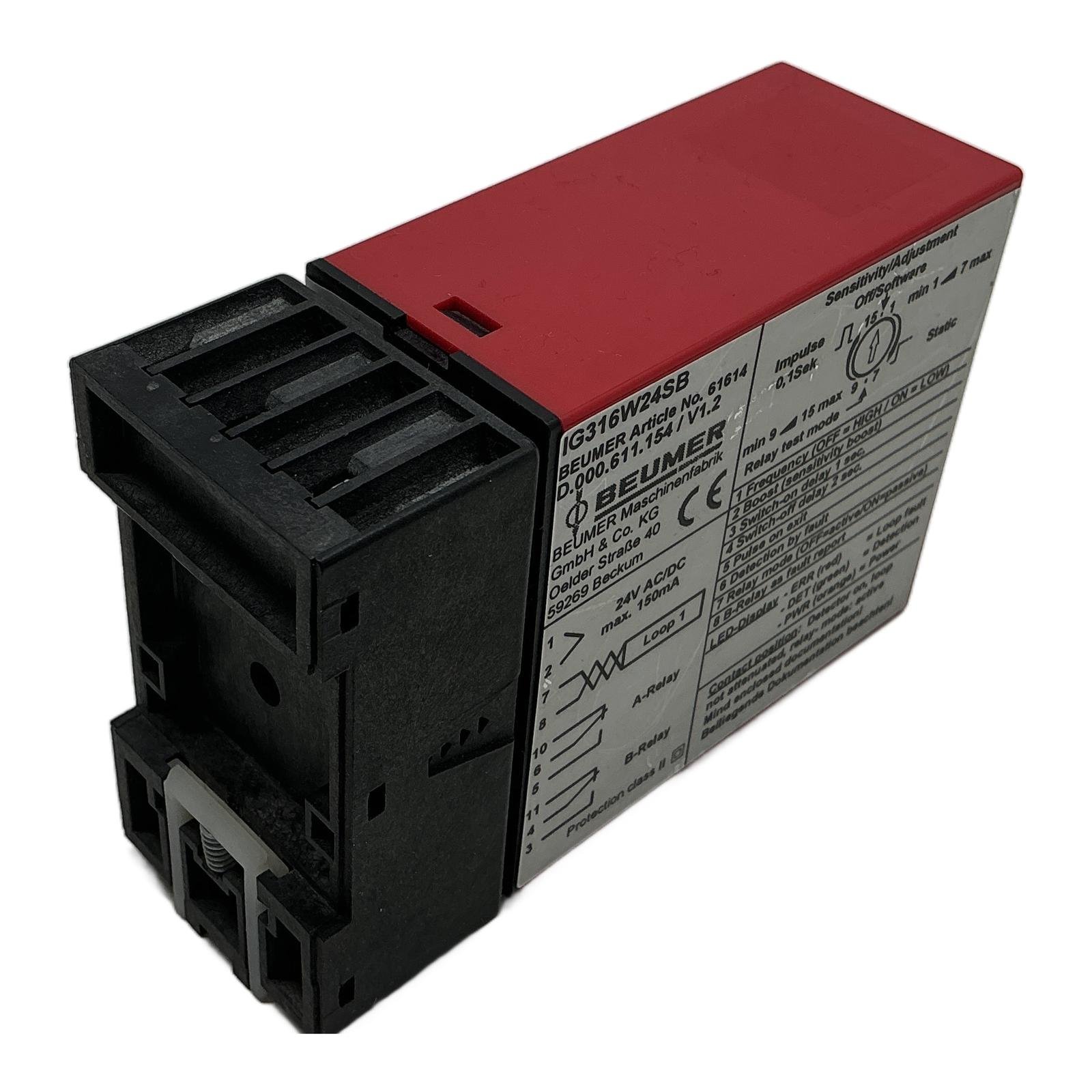

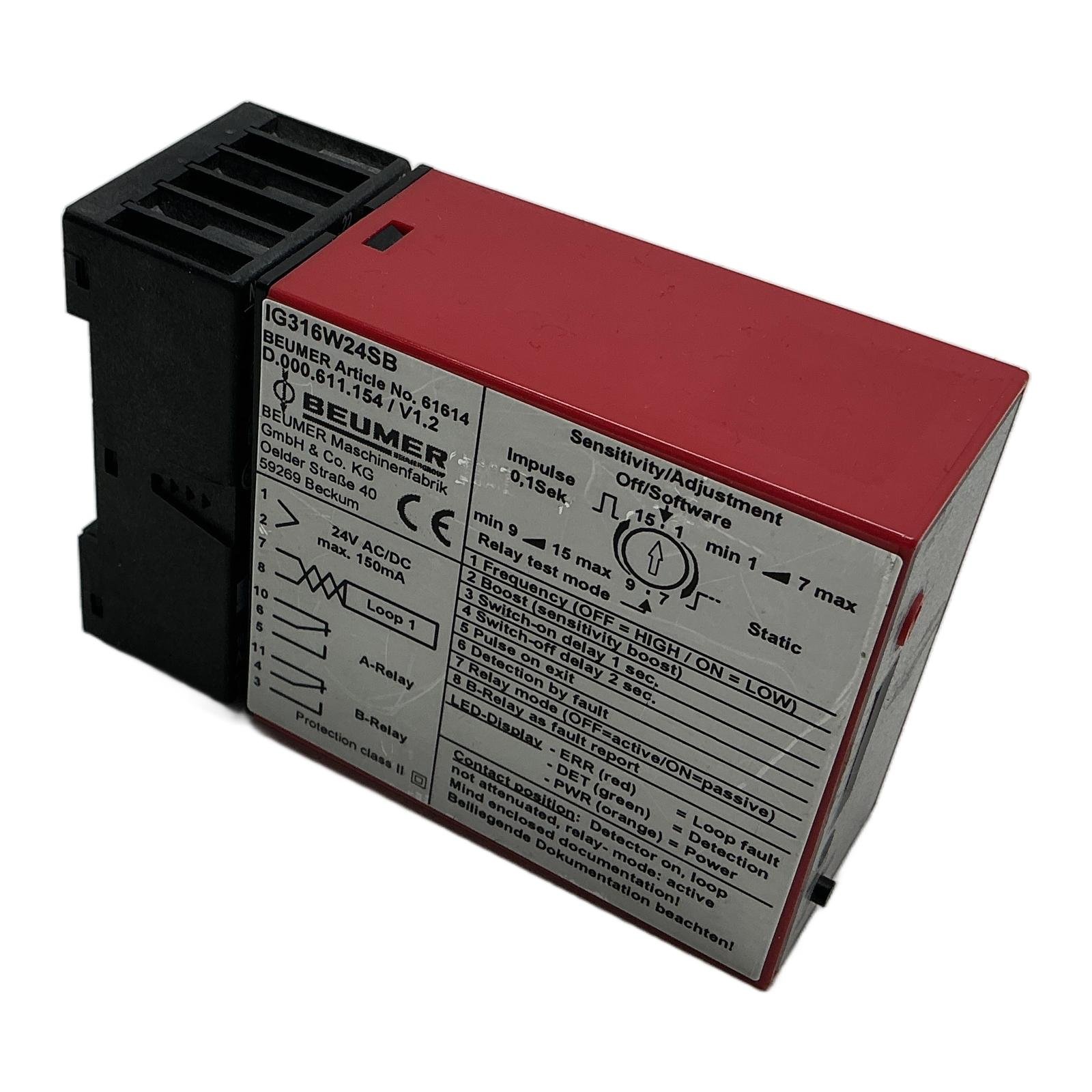

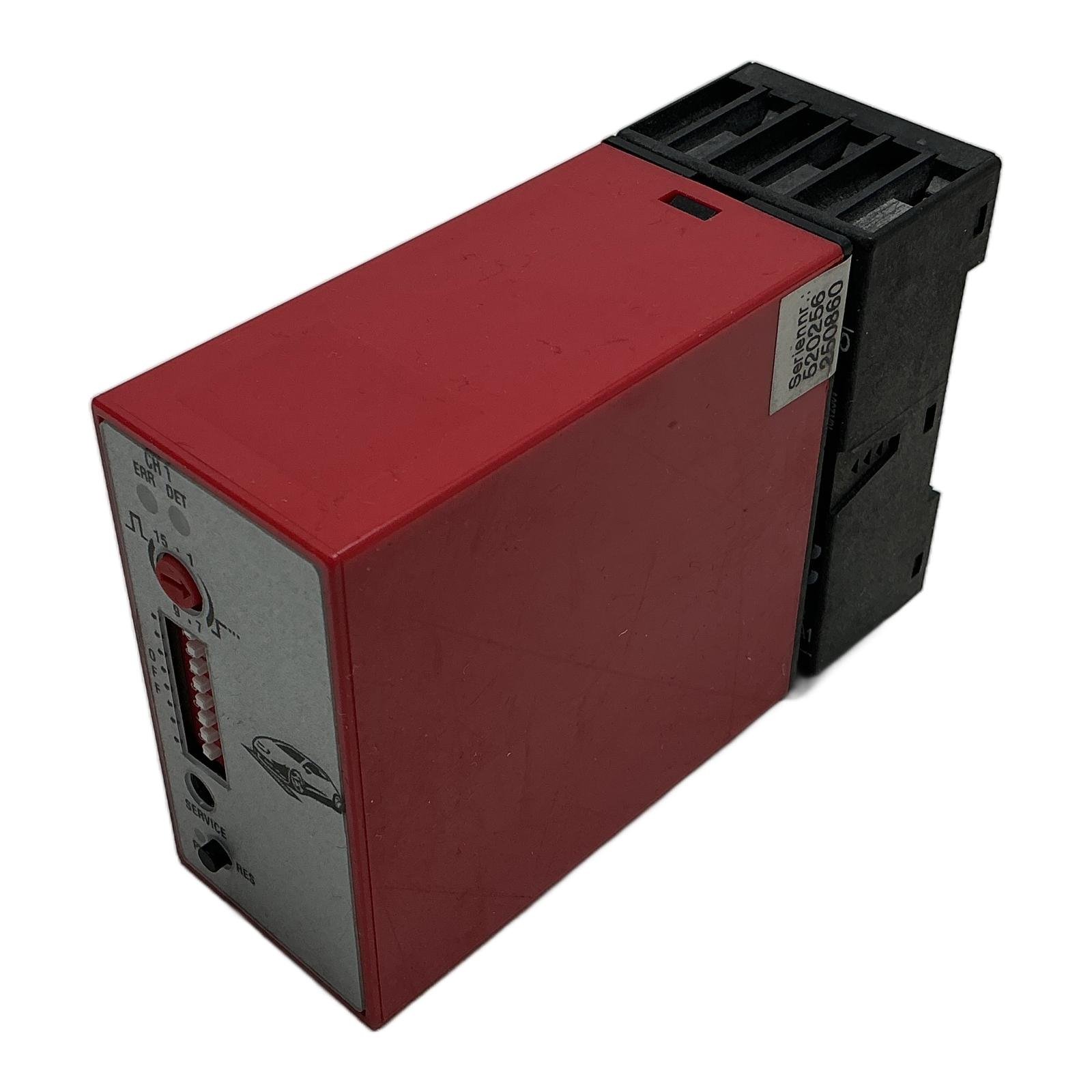

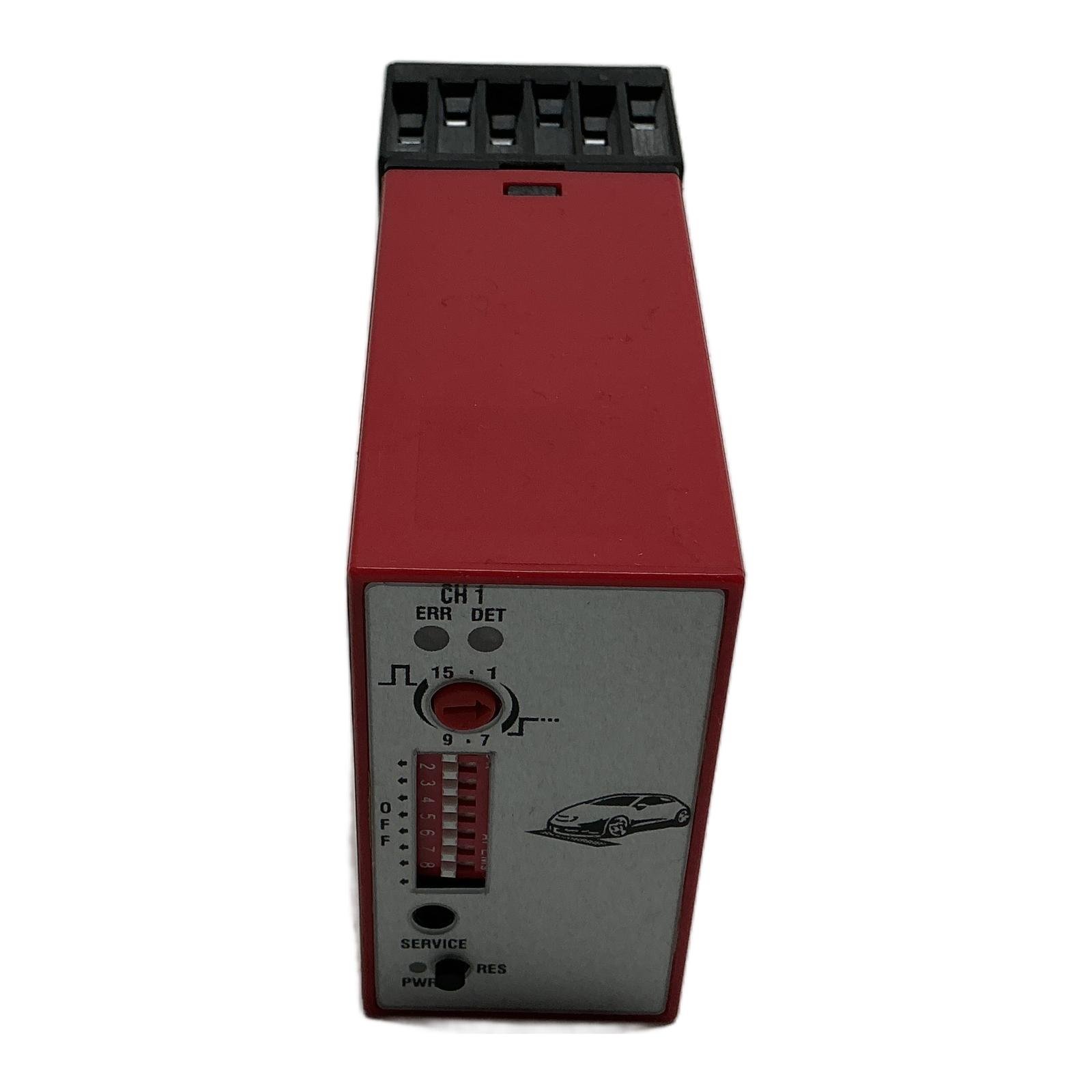

BEUMER IG316W24SB Inductive Loop Detector Description The IG316W24SB is a robust single-channel inductive loop detector manufactured by BEUMER for integration into their automated material handling and logistics systems. This module is engineered to detect the presence of vehicles or metallic objects passing over a wire loop. It operates on a 24V AC/DC supply and features two relay outputs for versatile control and signaling. Configuration is made simple through an 8-position DIP switch, allowing for fine-tuning of sensitivity, frequency, delay times, and relay operating modes to match specific application requirements. Specifications Manufacturer: BEUMER Type: IG316W24SB Article Number: 61614 Alternative Part Number: D.000.611.154/V1.2 Supply Voltage: 24V AC/DC Maximum Current: 150mA Number of Channels: 1 (Loop 1) Outputs: 2x Relay (A-Relay, B-Relay) Protection Class: II Label Info DIP Switch Settings: 1: Frequency (OFF=HIGH / ON=LOW) 2: Boost (sensitivity boost) 3: Switch-on delay 1 sec. 4: Switch-off delay 2 sec. 5: Pulse on exit 6: Detection by fault 7: Relay mode (OFF=active / ON=passive) 8: B-Relay as fault report Application This detector is ideal for use in conveyor systems, automated sorting facilities, vehicle access control, and any industrial application where reliable detection of metallic objects is critical. Country of Origin This product is manufactured in Germany. CO2 Impact Opting for this pre-owned component avoids the emission of approximately 6 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable operation. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the ‘Boost’ setting (DIP switch 2)?The boost function increases the detector’s sensitivity, which is useful for detecting vehicles with a high ground clearance or smaller metal objects that might otherwise be missed. How do I configure the B-Relay for fault reporting?By setting DIP switch 8 to the ON position, the B-Relay will change state specifically to indicate a loop fault, such as an open or short circuit. This allows for dedicated fault monitoring separate from the primary detection signals on the A-Relay. Is an external induction loop included with this module?No, the IG316W24SB is the detector module only. The induction loop wire must be sourced and installed separately according to your specific application’s requirements for size and shape. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Laatst bijgewerkt: Friday, March 13, 2026
