GISS H315 C600*H315

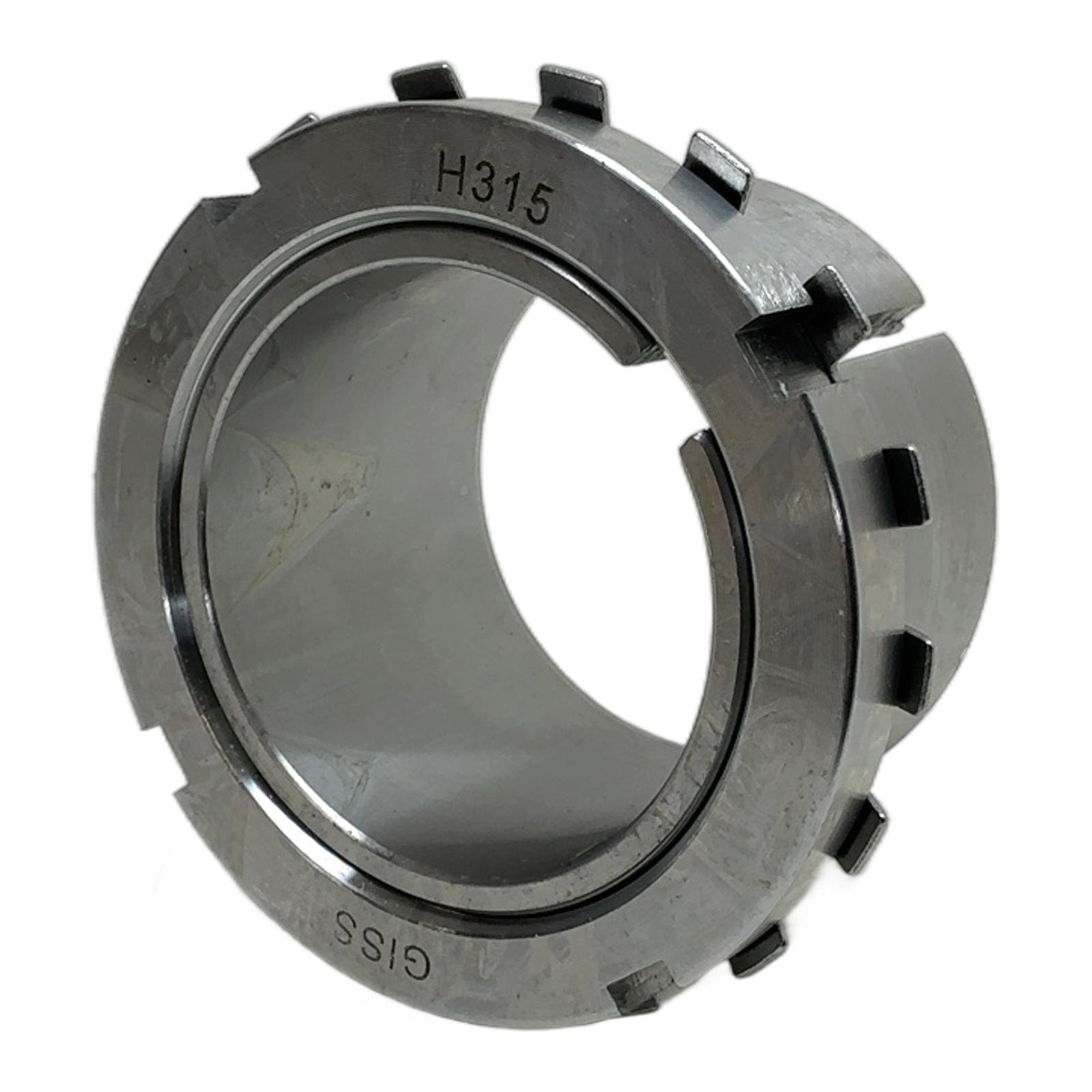

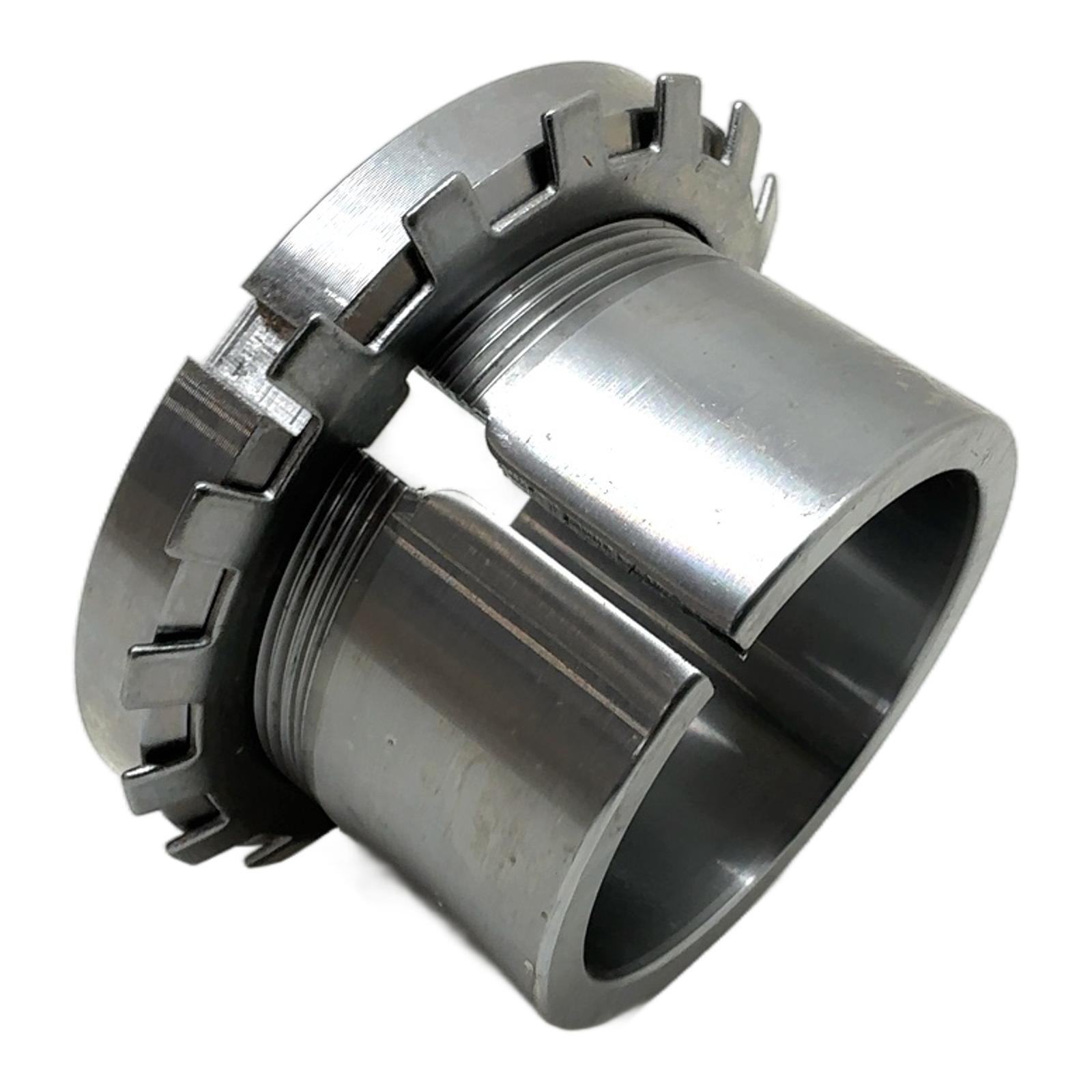

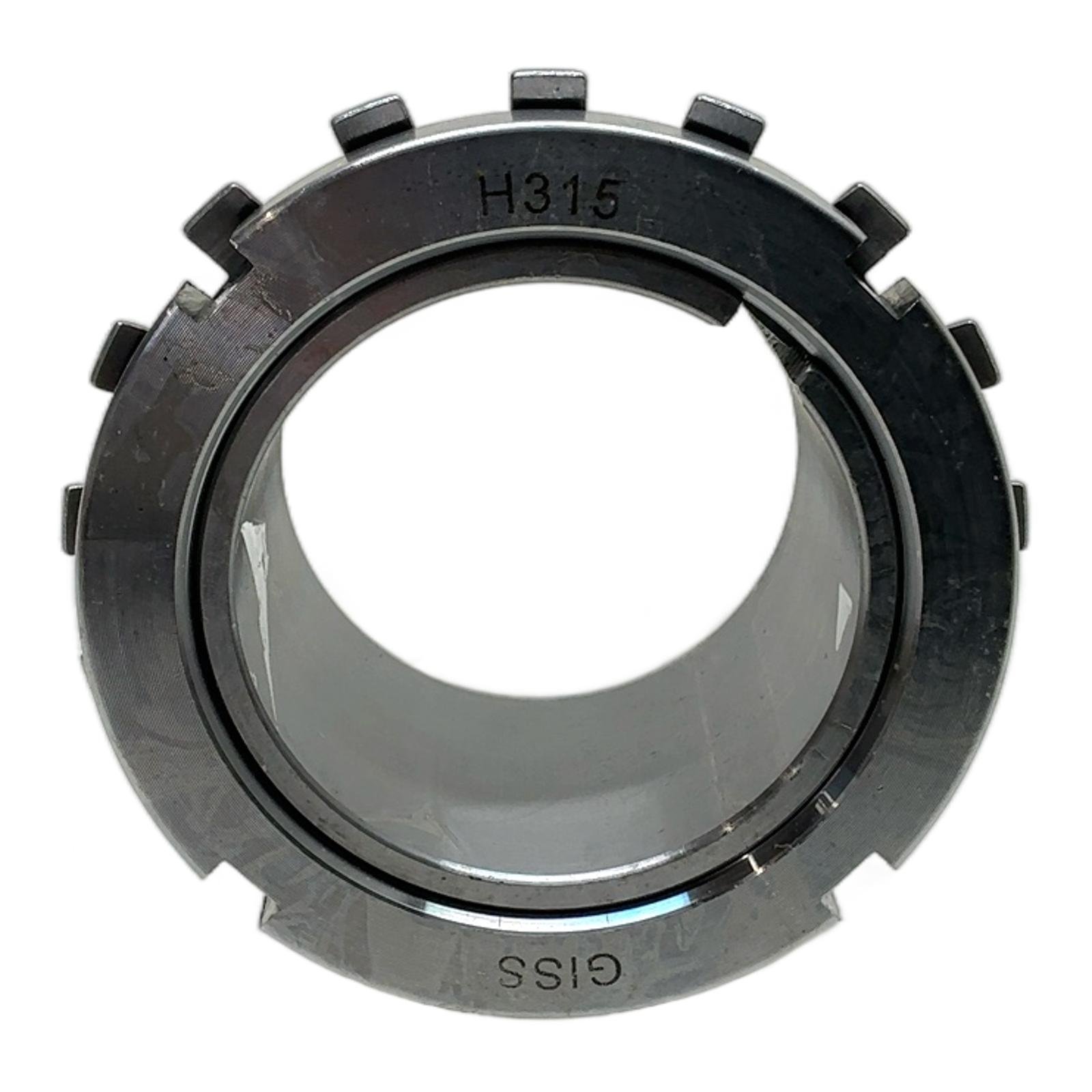

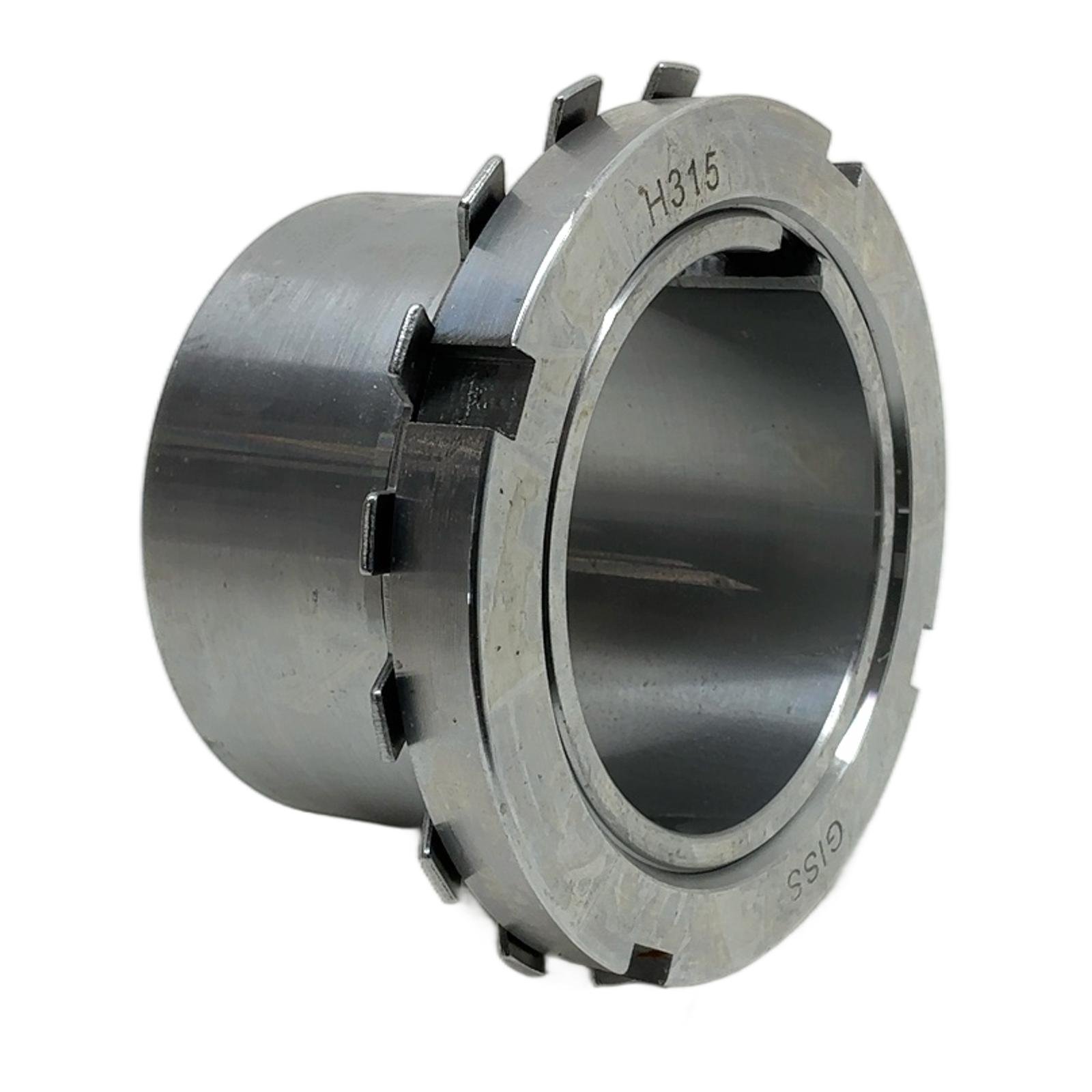

GISS H315 Adapter Sleeve for 70mm Shaft Description This GISS H315 is a high-quality adapter sleeve used for mounting bearings with a tapered bore onto a cylindrical shaft seating. It allows for easy installation on both plain and stepped shafts, providing a secure and reliable fit for a wide range of industrial applications. This sleeve is a standard component, ensuring interchangeability with other brands. Specifications Manufacturer: GISS Type: H315 Shaft Diameter (d1): 70 mm Thread Size: M75x2 Material: Steel Taper: 1:12 For use with bearings: 1315, 2315, 22315, 23215, etc. Label Info Ref: C600*H315 GISS Part No: 857530 EAN: 3660338127830 Application Adapter sleeves are widely used in various industrial sectors, including manufacturing, agriculture, and mining. They are ideal for applications where bearings need to be precisely located on a shaft without requiring a special shoulder or tight fit. Country of Origin This product is from the French brand GISS. The specific country of manufacture may vary. CO2 Impact By purchasing this reused component, you are contributing to a circular economy and helping to avoid approximately 1.8 kg of CO2 emissions associated with the production of a new steel part. This saving is comparable to driving a car for 9 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What components are needed to properly install an H315 adapter sleeve?For a complete and secure installation, you will need the H315 adapter sleeve, a corresponding lock nut (KM15), and a lock washer (MB15). These items are typically sold separately. What is the correct procedure for tightening the lock nut on this sleeve?The lock nut should be tightened to achieve the correct radial internal clearance reduction in the bearing. This is often done using the drive-up method with a hook spanner or C-spanner, carefully monitoring the clearance reduction to prevent overloading the bearing. Refer to the bearing manufacturer’s handbook for specific values. Can this GISS H315 sleeve be used with a bearing from another brand like SKF or FAG?Yes, absolutely. The H315 designation follows international ISO standards (ISO 2982-1). This means a GISS H315 sleeve is dimensionally interchangeable with an H315 from any other manufacturer that adheres to these standards. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
