FAG H313

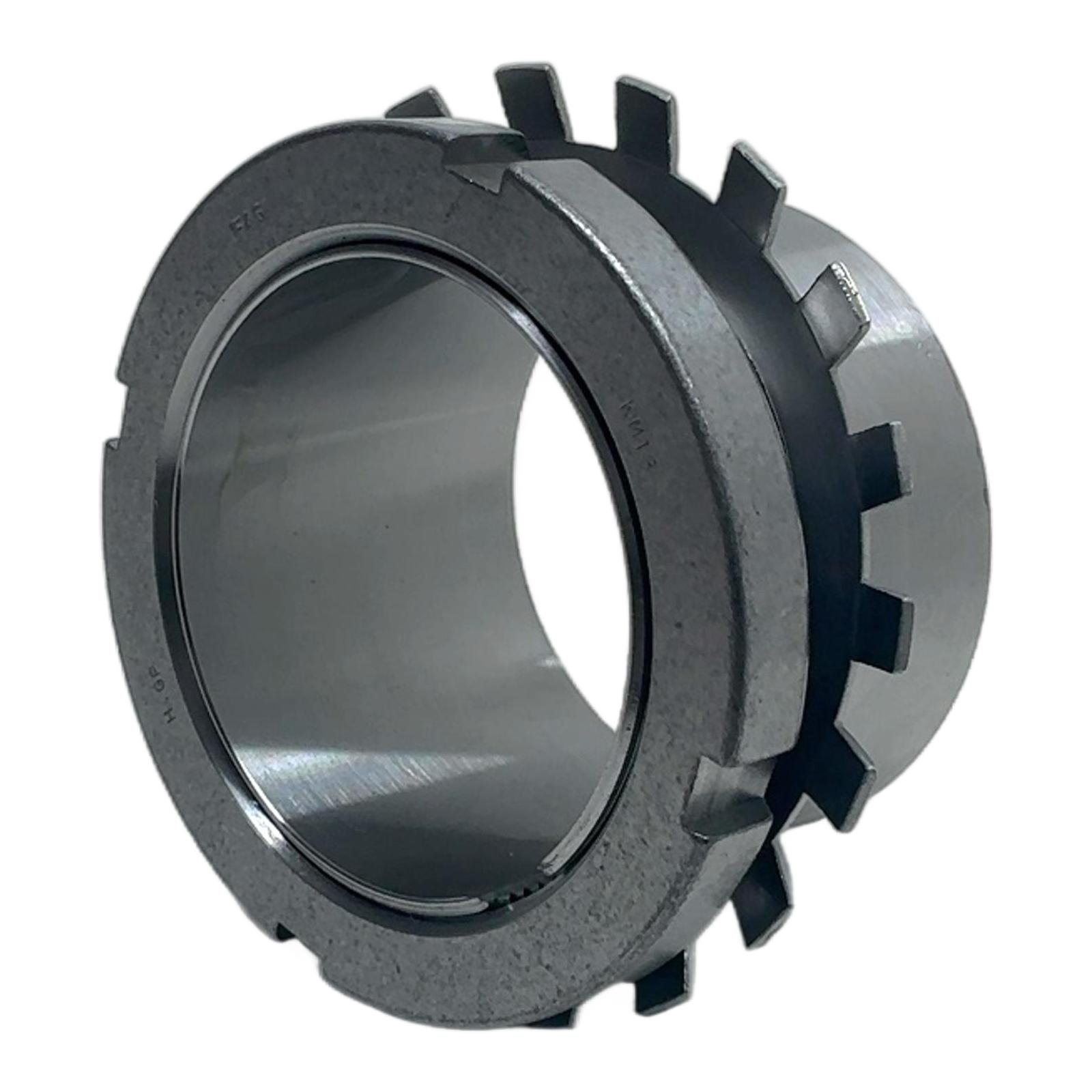

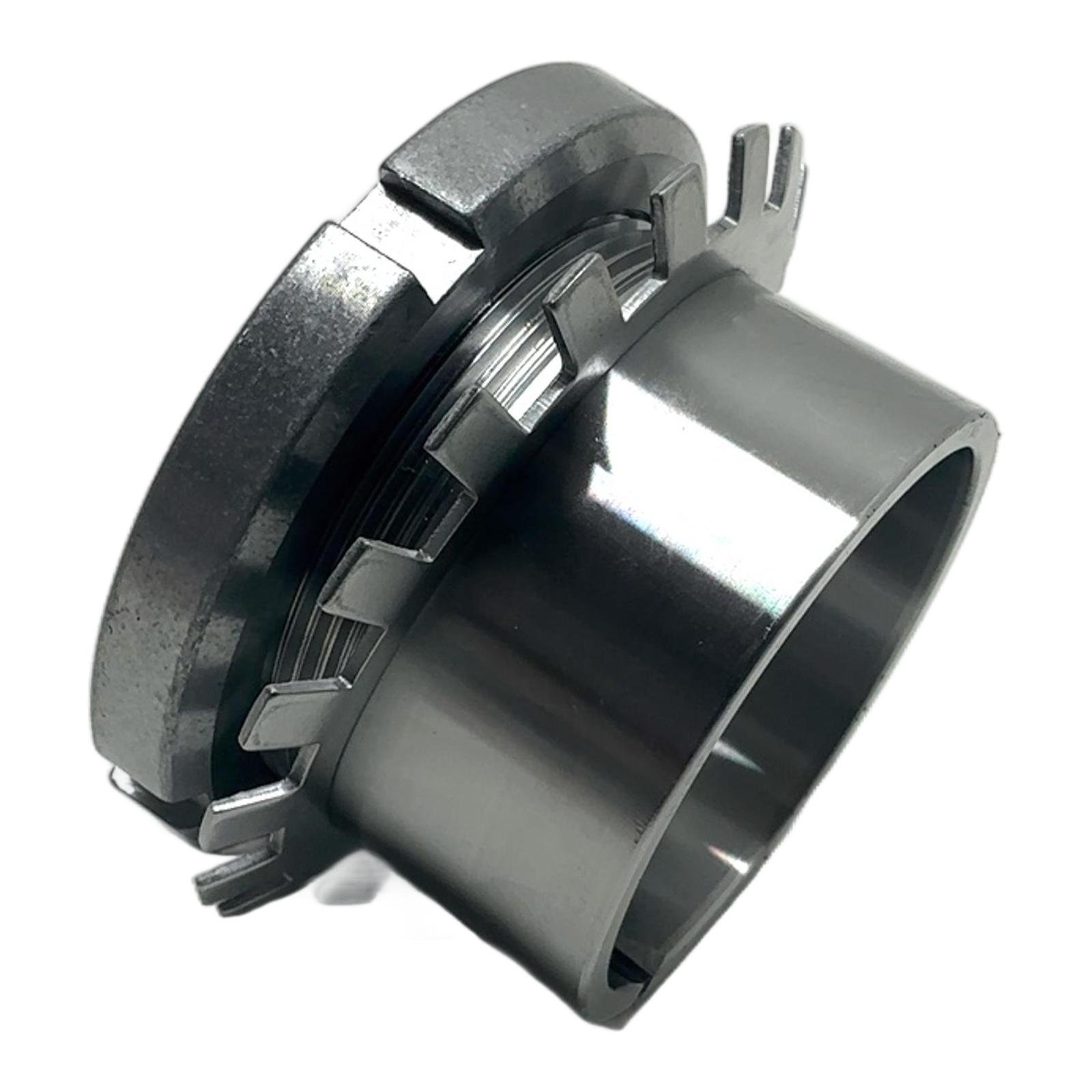

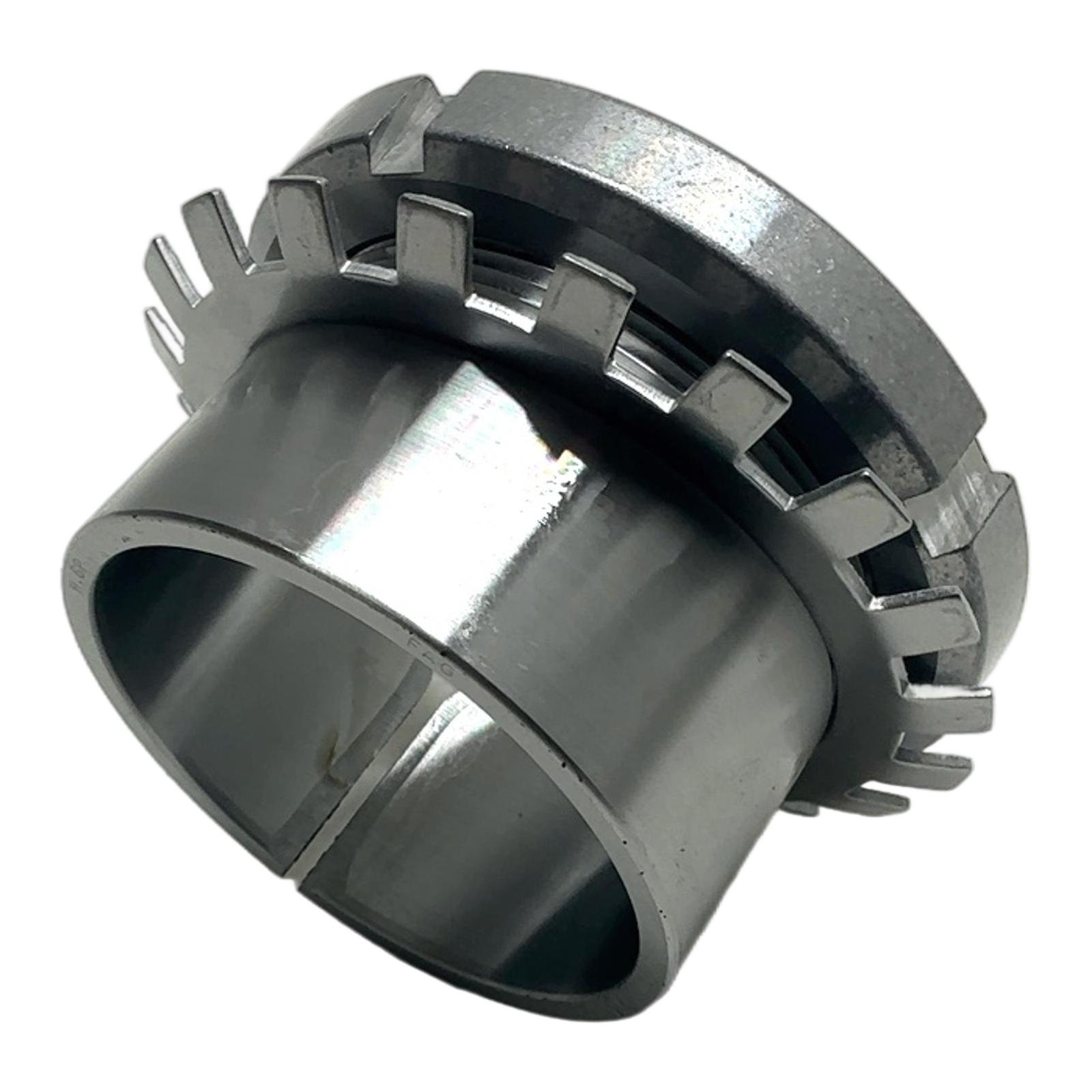

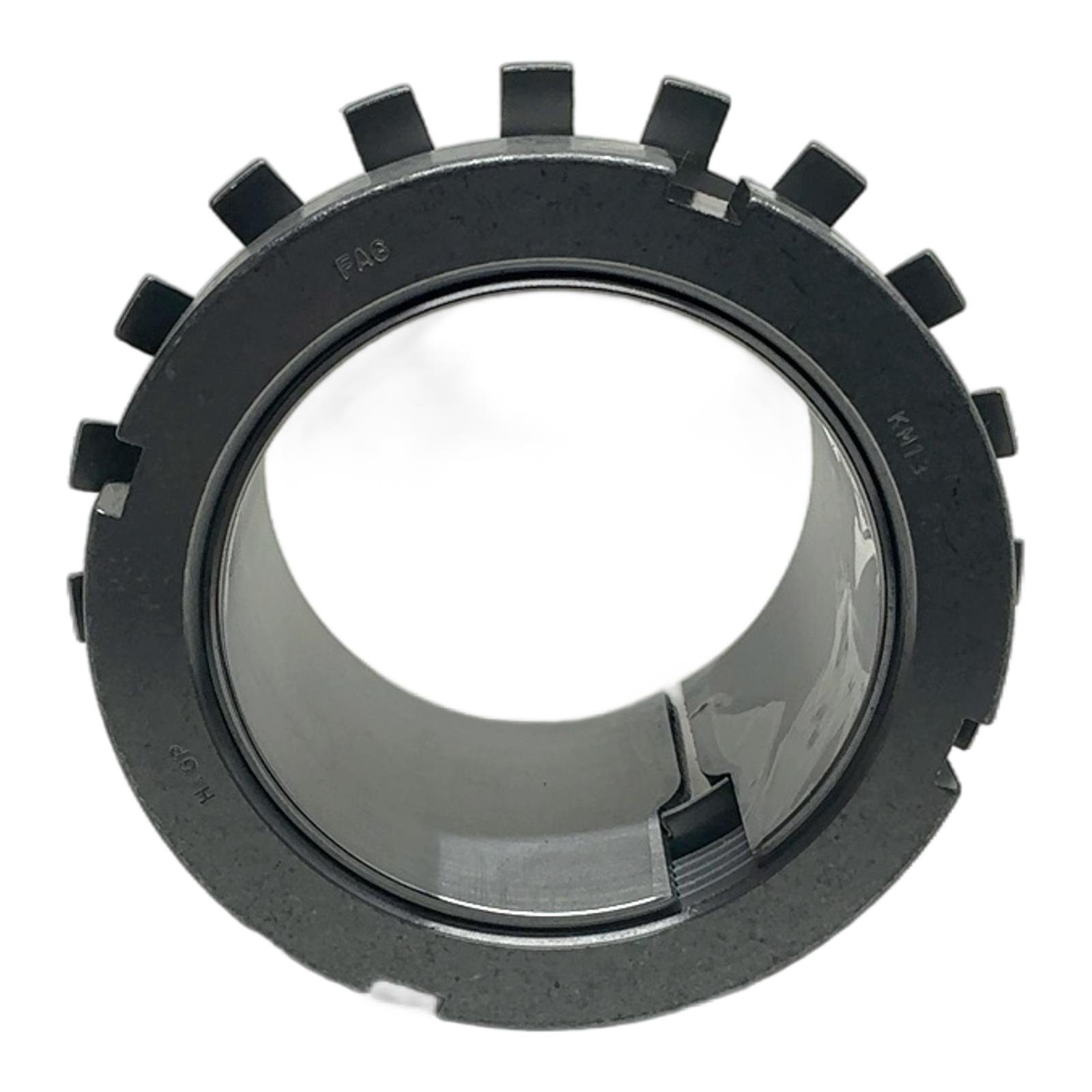

FAG H313 Adapter Sleeve for 60mm Shafts Description The FAG H313 is a precision-engineered adapter sleeve designed for the secure mounting of rolling bearings with a tapered bore onto cylindrical shafts. As a standard component according to DIN 5415, it simplifies installation and removal, providing a reliable and cost-effective solution for various industrial applications. This sleeve ensures a tight fit and correct positioning of the bearing, which is critical for optimal performance and longevity. Specifications Shaft Diameter (d1): 60 mm Outside Diameter at large end of taper (d3): 85 mm Overall Width (B1): 50 mm Material: High-grade steel Compatibility: Suitable for bearings such as 1313, 2313, 22313 Required accessories (not included): Lock nut KM13, Lock washer MB13 Label Info Brand: FAG Model: H313 Part Number: 07031200 EAN: 4012801217088 Application This adapter sleeve is widely used in industrial gearboxes, conveyor systems, agricultural machinery, and general mechanical engineering where bearings need to be mounted on shafts without a pre-machined shoulder. Country of Origin Germany CO2 Impact By purchasing this reused FAG adapter sleeve, you contribute to a significant environmental saving, avoiding the emission of approximately 1.02 kg of CO2 associated with the production of a new unit. This is a smart choice for both your machinery and the planet. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What are the compatible lock nut and washer for the H313 sleeve?The FAG H313 adapter sleeve requires a KM13 lock nut and an MB13 lock washer for proper installation and security. These items are typically sold separately. What is the required shaft diameter for this adapter sleeve?The H313 is specifically designed for mounting on a cylindrical shaft with a diameter of 60 mm. What is the main advantage of using an adapter sleeve for bearing mounting?Adapter sleeves allow bearings with a tapered bore to be mounted on smooth or stepped cylindrical shafts without the need for shoulders or special machining. This simplifies the overall design, reduces manufacturing costs, and makes installation and dismounting much easier. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
