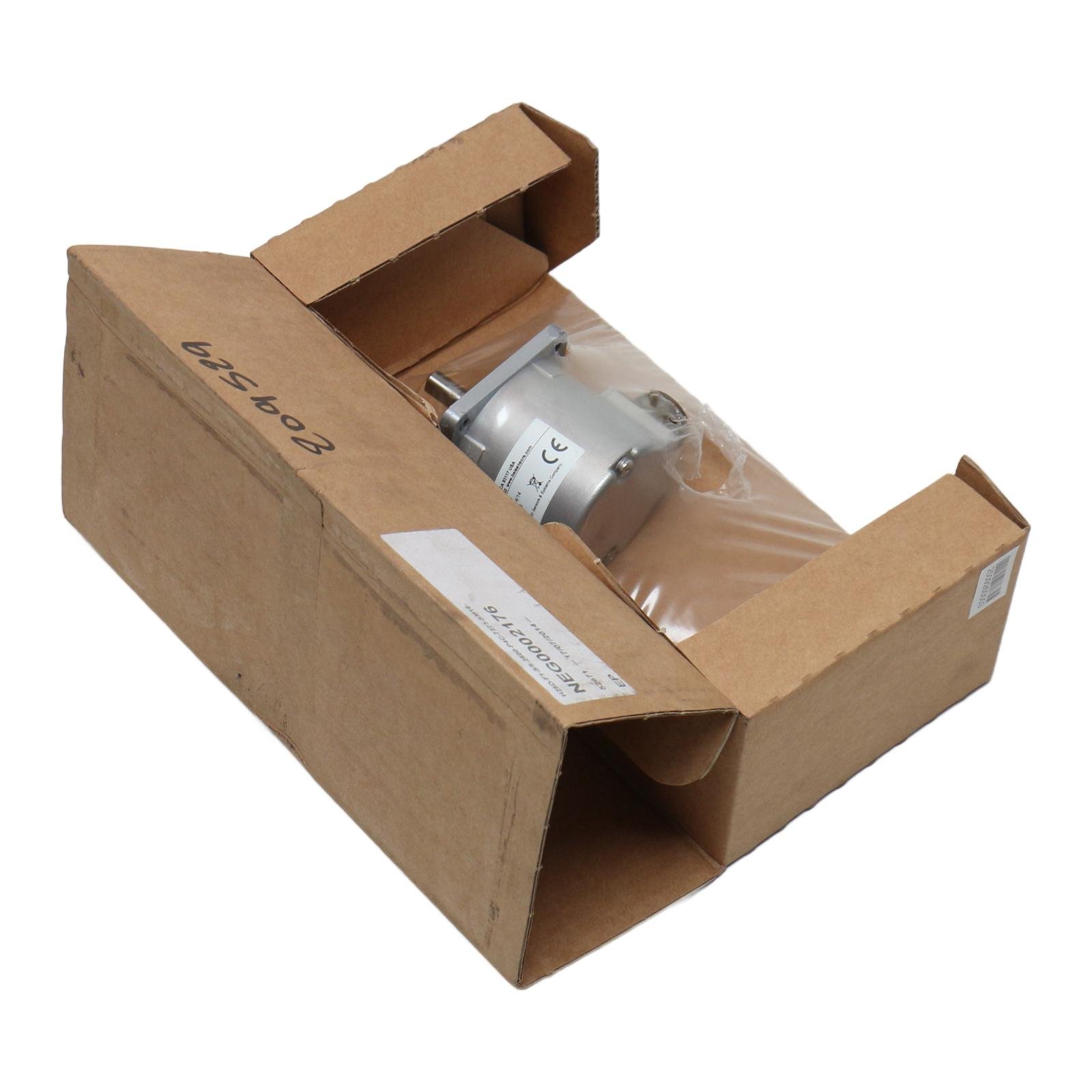

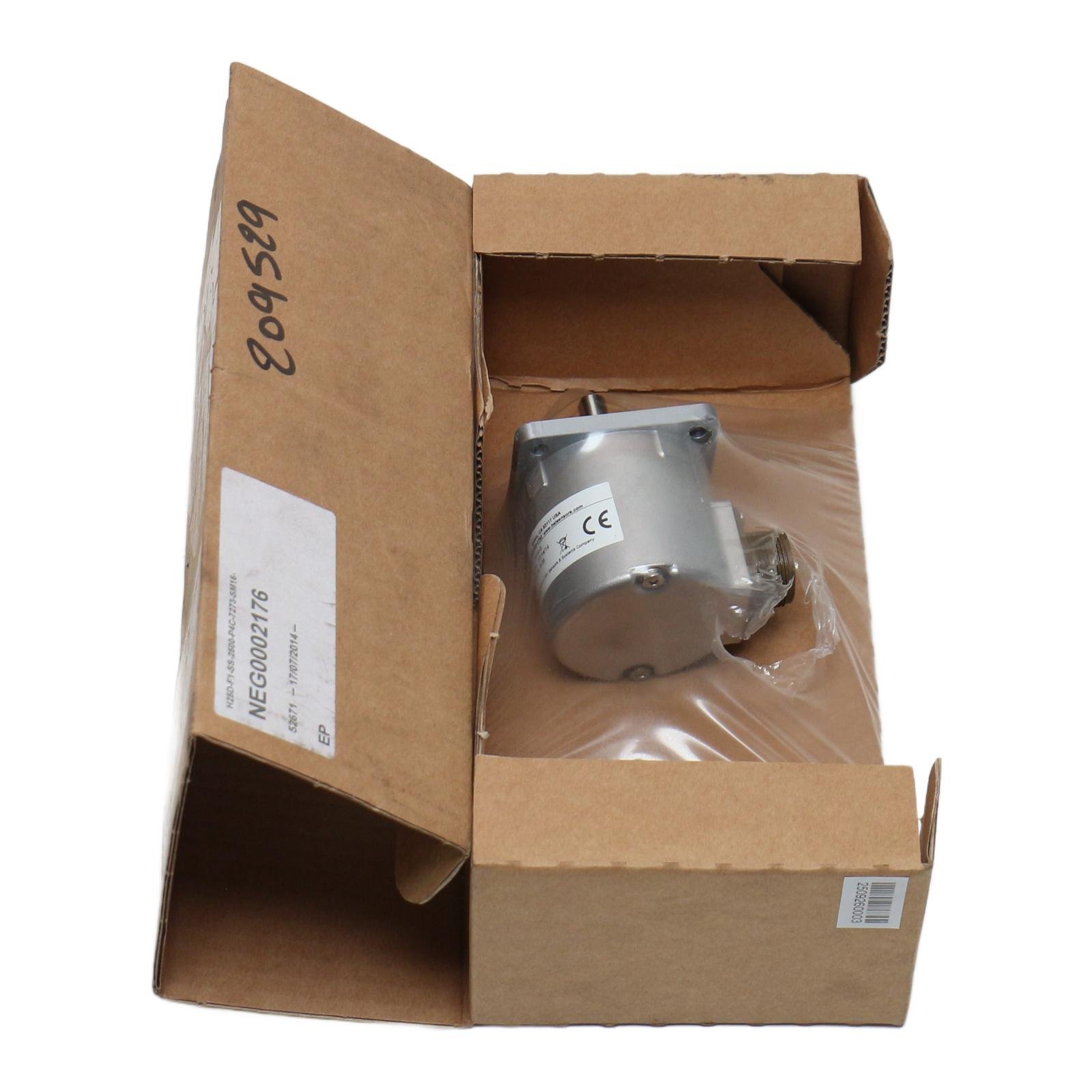

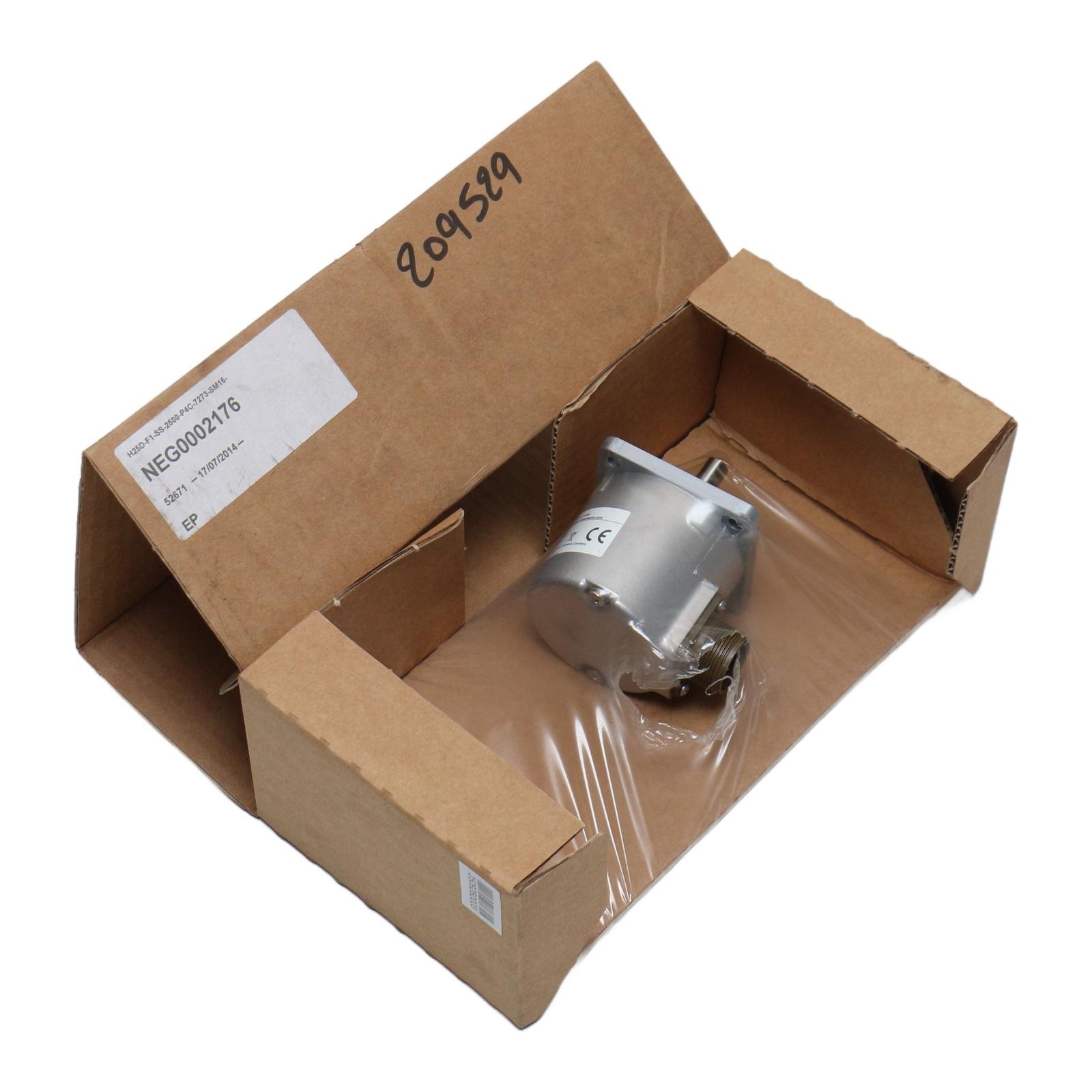

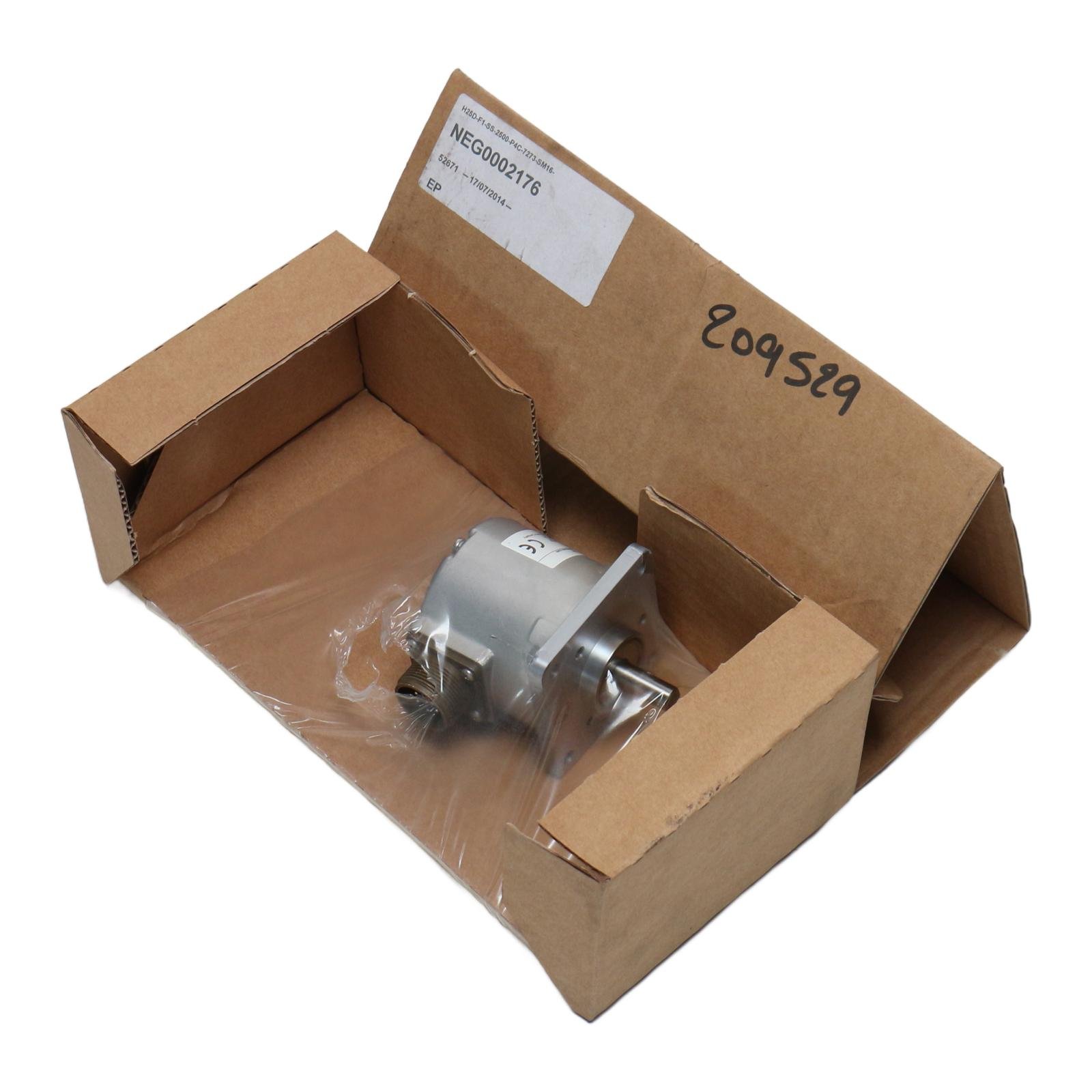

BEI SENSORS H25D-F1-SS-2500-P4C-7273-SM16- (NEG0002176)

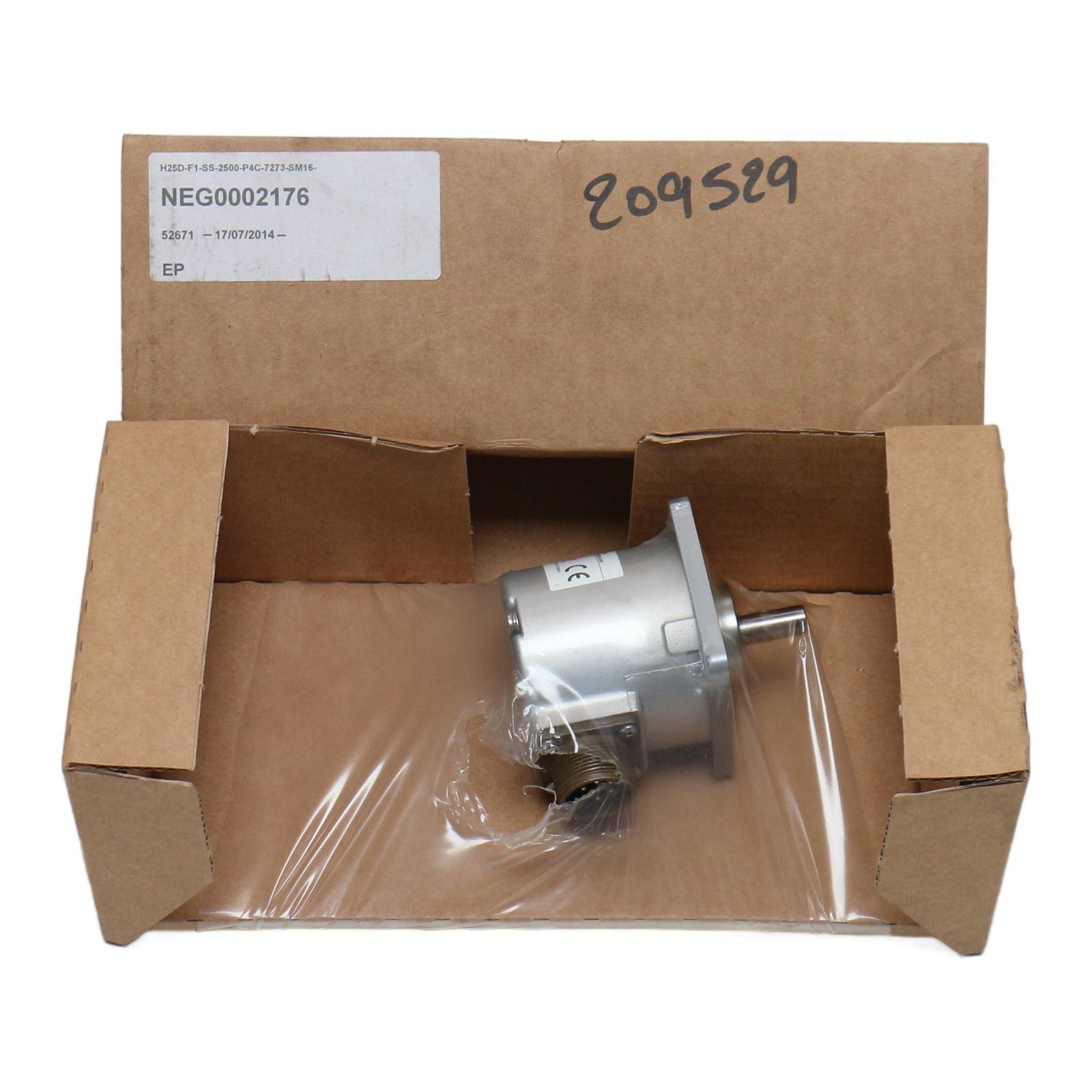

Incremental Encoder: H25D-F1-SS-2500-P4C-7273-SM16- (NEG0002176) Product Description Incremental Encoder with wide operating temperature range and ruggedized design for various industrial applications. Product Specifications Shaft Diameter: 3/8” standard (1/4” as special feature) Shaft Loading: Up to 40 pounds axial and 35 pounds radial Maximum RPM: 10,000 RPM nominal Output Format: 2 outputs in quadrature, A leads B CCW, 1/2 cycle index, Z, gated with negative B Supply Voltage: 5 to 28 VDC +/- 5% Cycles per Shaft Turn: 2 to 80,000 Frequency Response: 300 kHz Product Label Info Model Code / Product Markings: H25D-F1-SS-2500-P4C-7273-SM16- (NEG0002176) 52671 – 17/07/2014 Application From wood harvesting to food processing, this encoder is suitable for various industries such as oil well logging, agricultural equipment, and web process control. Country of Origin This product is manufactured in the USA. Method of Application Easy to install with industry standard interfaces, suitable for machine control applications. Safety Instructions Handle with care to avoid damage, follow proper wiring instructions for optimal performance. Availability Order now from profideals, items in stock and ready for fast worldwide delivery. Need urgent and express delivery, sourcing, or repairs? Contact us now. Documentation Official datasheet or product page BEI Sensors Resources Additional resources and manuals are available upon request. Contact us for details. Internal & External Links All products from BEI Sensors Explore similar products in Electrical Power Transmission Frequently Asked Questions What is the Incremental Encoder used for? This part is typically used in various industries for speed and position control applications. What are the key advantages of Incremental Encoder? High noise immunity, wide operating temperature range, and easy installation. Is H25D-F1-SS-2500-P4C-7273-SM16- (NEG0002176) compatible with my system? If you’re using BEI Sensors control systems, this model will likely be compatible. Contact us to verify. Alternatives to H25D-F1-SS-2500-P4C-7273-SM16- (NEG0002176) Consider other incremental encoders with similar specifications for your application needs. Can I sell my surplus stock to profideals? Yes, profideals accepts surplus stock for recovery or resale. Contact us for more information. Need Help? Call us at +31(0)165 20 11 80 or get in touch online. Last Update: 17/10/2025 profideals is not an authorized distributor of the products listed. Product names, trademarks, and logos belong to their respective owners. Our listings are for identification purposes only and do not imply affiliation or authorization.
