SCHNEIDER ELECTRIC GV2ME04

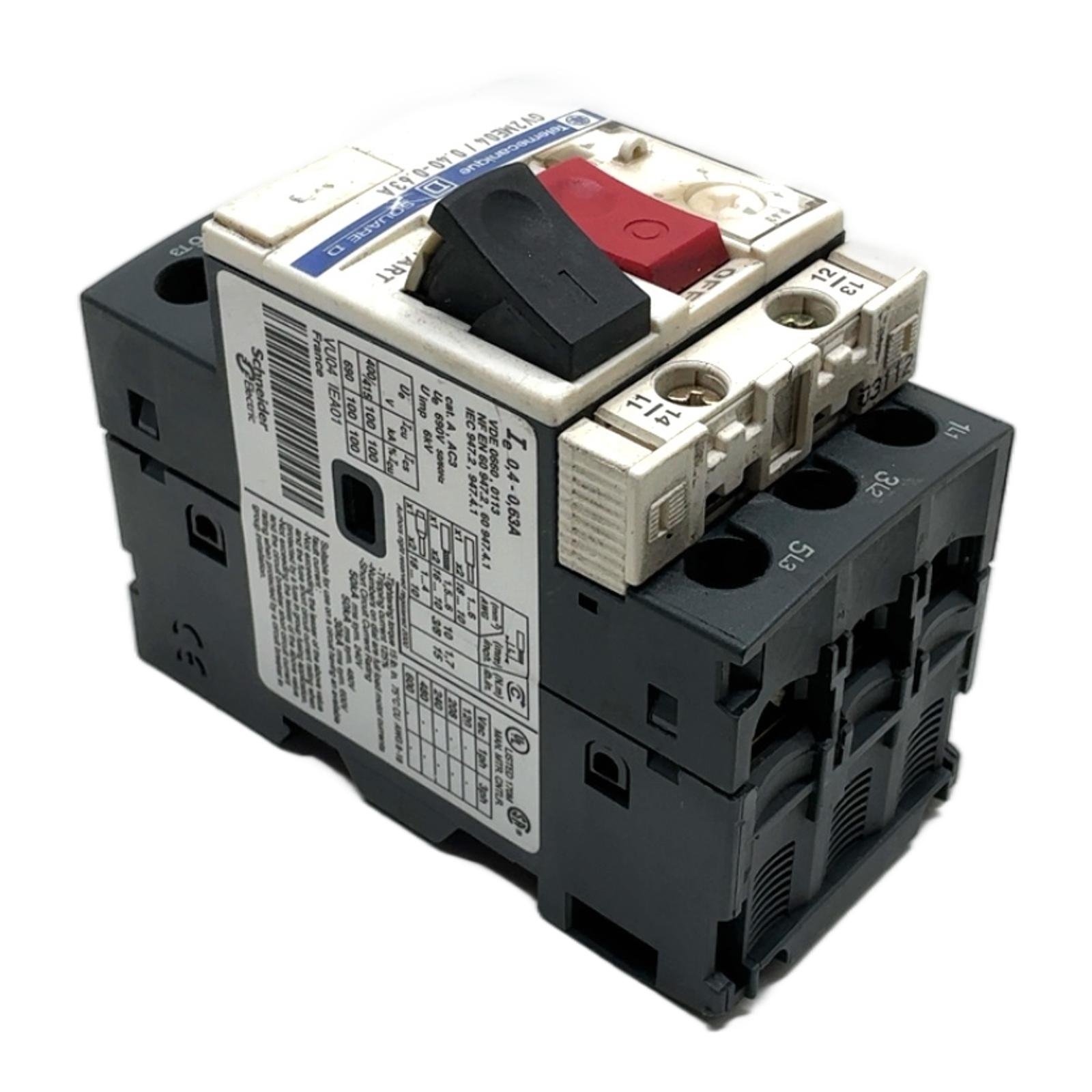

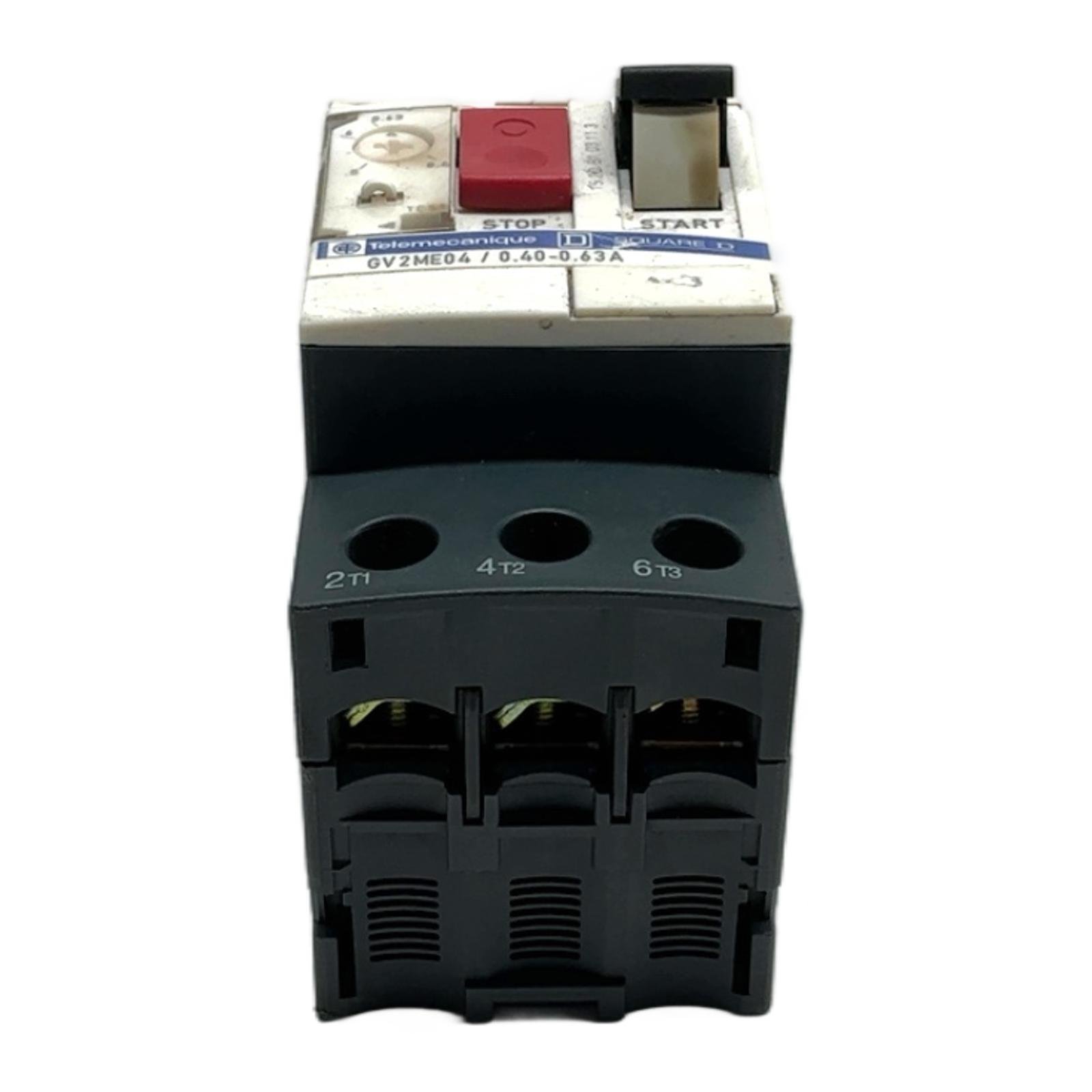

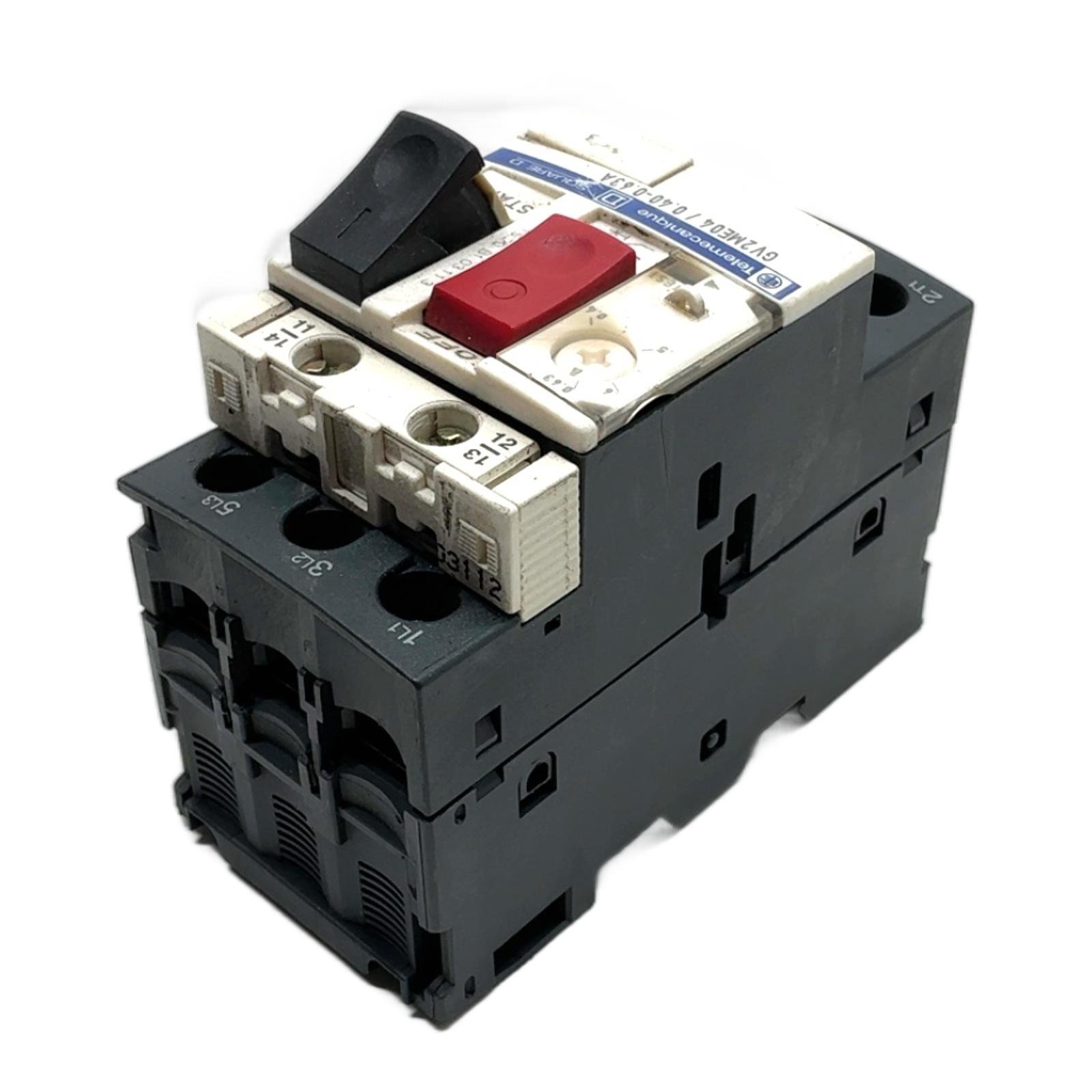

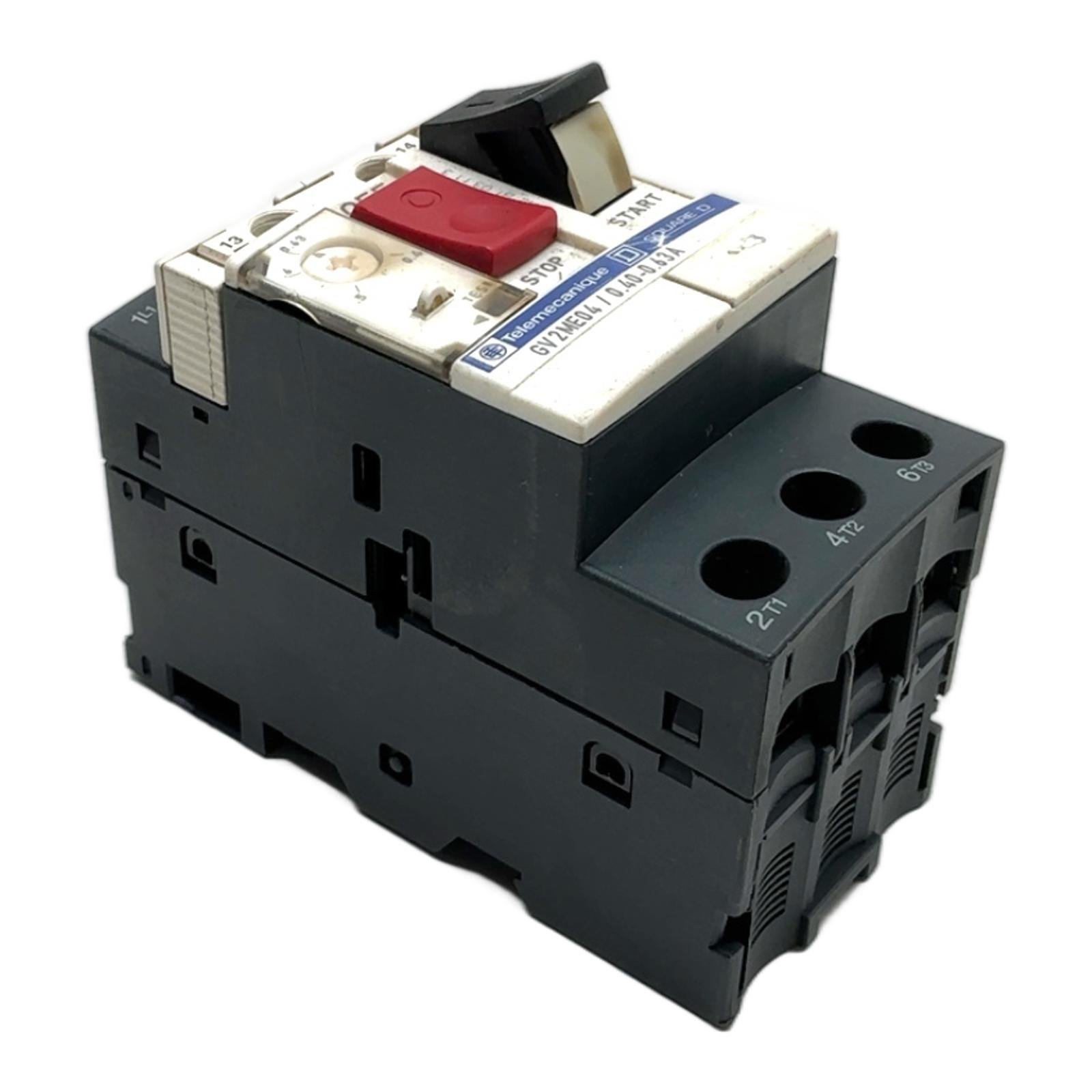

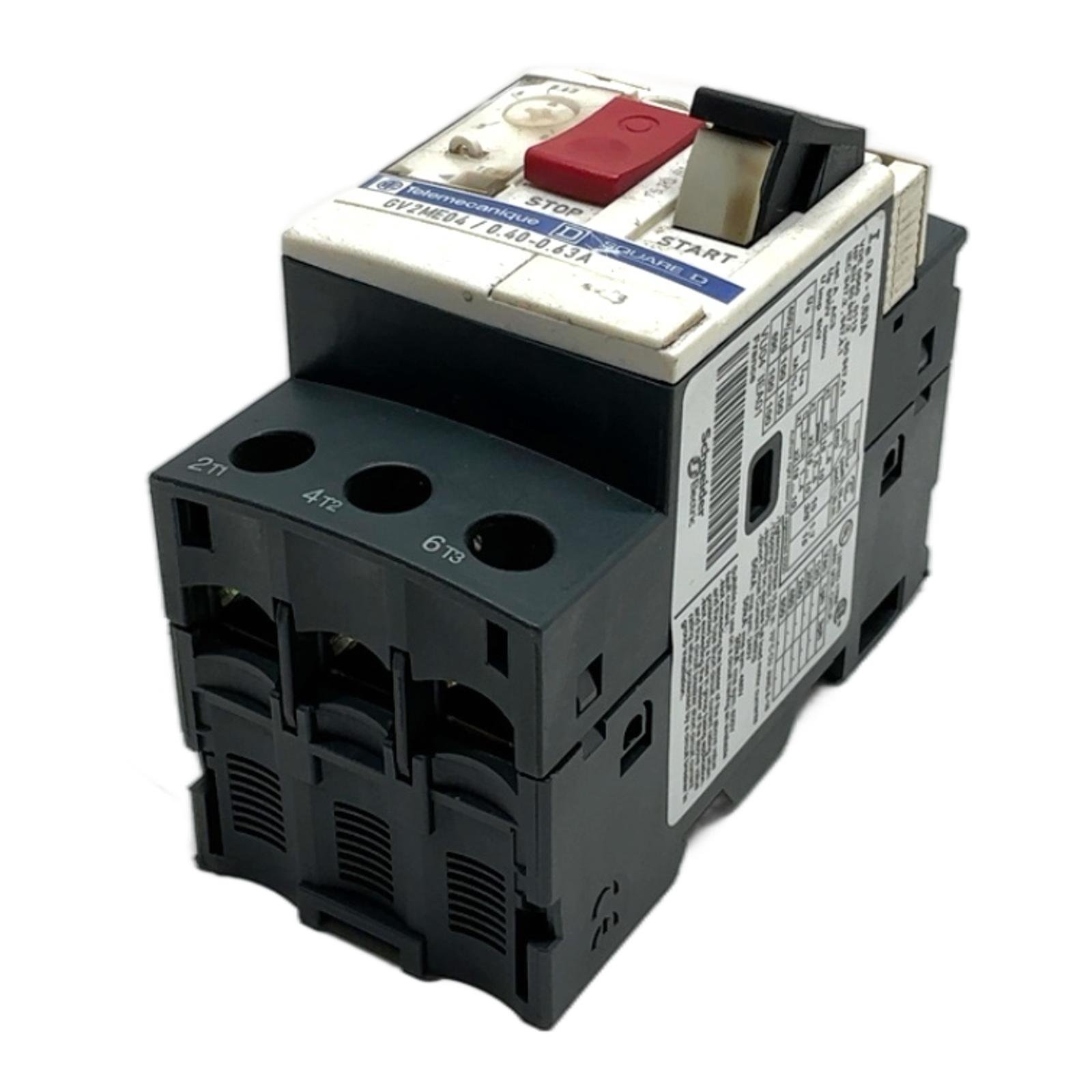

Schneider Electric GV2ME04 Motor Circuit Breaker Description The Schneider Electric GV2ME04 is a thermal-magnetic motor protection circuit breaker from the proven TeSys GV2 series. It provides reliable and adjustable protection for 3-phase motors against thermal overloads, short-circuits, and phase loss. This compact unit is designed for direct manual motor control with integrated START/STOP push buttons. Specifications Manufacturer: Schneider Electric Model: GV2ME04 Product Line: TeSys GV2 Current Range: 0.40 – 0.63 A Rated Operational Voltage (Ue): up to 690V AC, 50/60 Hz Rated Impulse Withstand Voltage (Uimp): 6 kV Breaking Capacity (Icu): 100 kA at 400/415V AC Number of Poles: 3 Control Type: Push-button Mounting: DIN Rail Label Info Telemecanique / Square D / Schneider Electric Type: GV2ME04 / 0.40-0.63A Standards: IEC/EN 60947-2, IEC/EN 60947-4-1 Application Ideal for protecting small motors in various industrial applications, including conveyor systems, pumps, fans, and other machinery requiring dependable motor protection. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned item, you help avoid the emission of approximately 10 kg of CO2 associated with the production of a new unit. This saving is equivalent to charging over 1200 smartphones. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What is the function of the thermal and magnetic protection in the GV2ME04?AnswerThe thermal protection (adjustable from 0.40 to 0.63A) guards the motor against overloads by simulating the motor’s heating curve. The magnetic protection is fixed and trips instantaneously during a short circuit to prevent severe damage. Question? Can I add auxiliary contacts or other accessories to this motor circuit breaker?AnswerYes, the TeSys GV2 series is modular. You can add front-mounted or side-mounted auxiliary contact blocks (GVAE, GVAN), undervoltage trips (GVU), or shunt trips (GVS) to enhance its functionality. Question? What does the ‘cat. A, AC3’ rating mean for this device?AnswerThis rating refers to IEC standards. ‘Category A’ means it provides no delay for short-circuit tripping, ensuring fast protection. ‘Utilization Category AC-3’ specifies that it is suitable for starting and stopping squirrel-cage motors during normal operation. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
