BAR GTD-076/090-V17-F 62002951

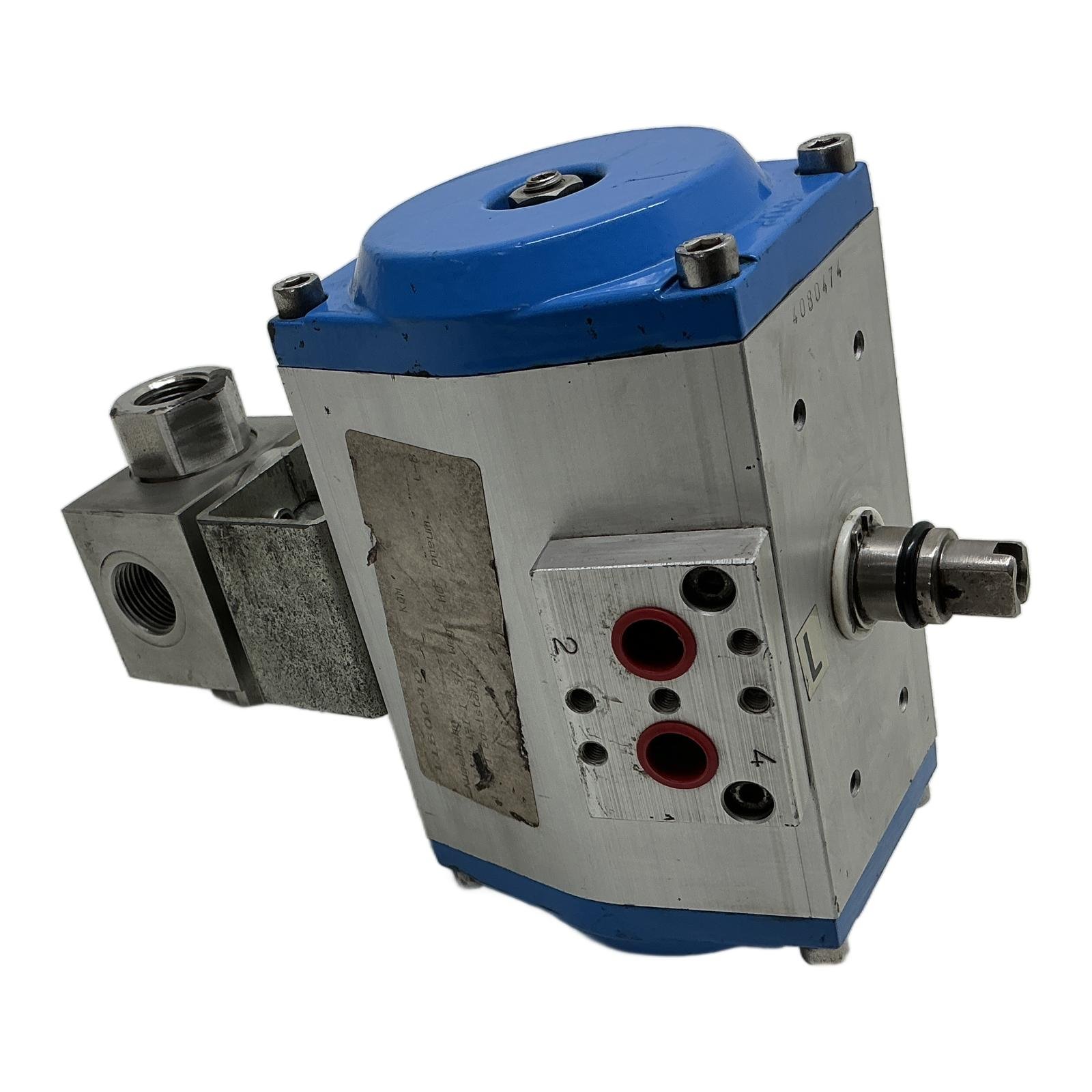

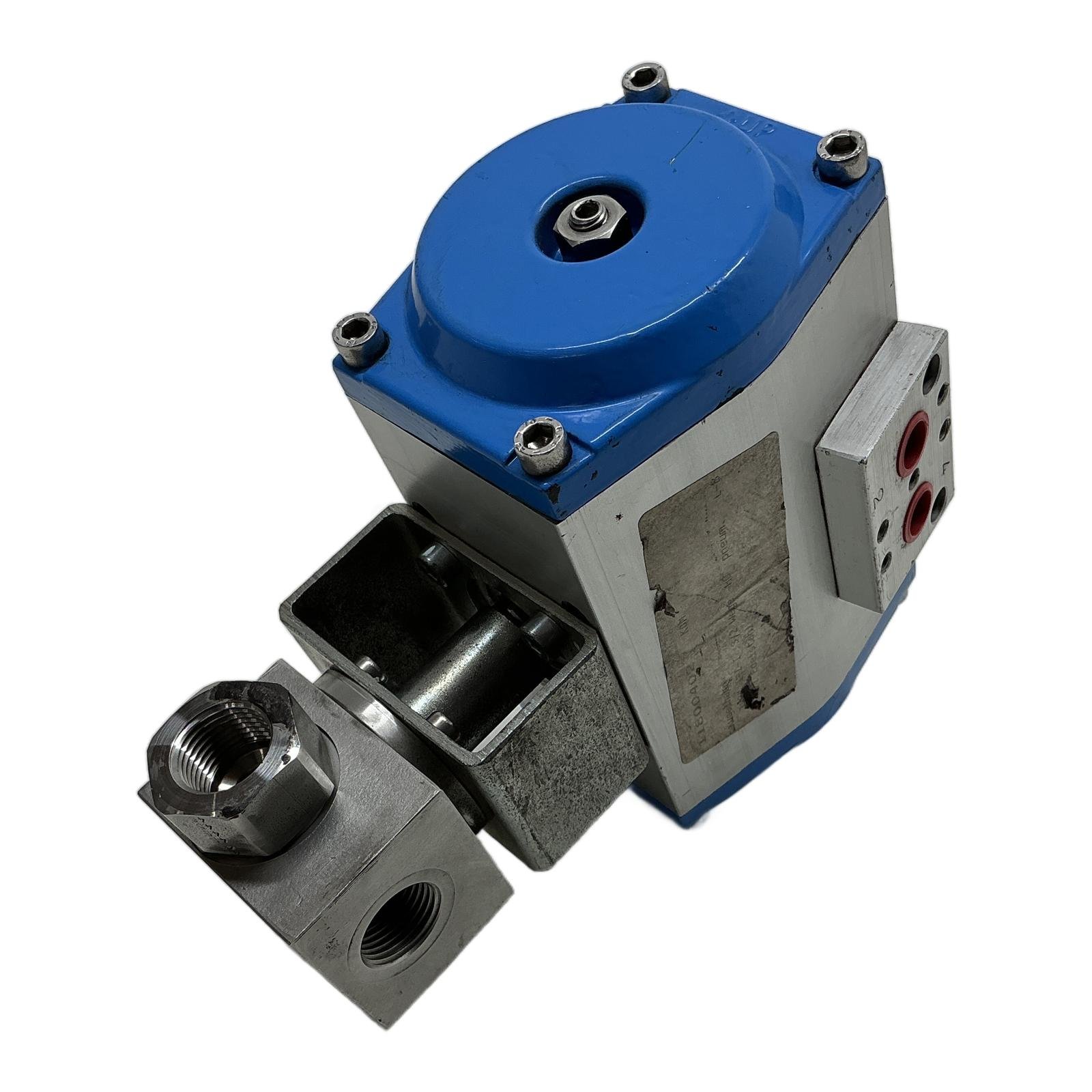

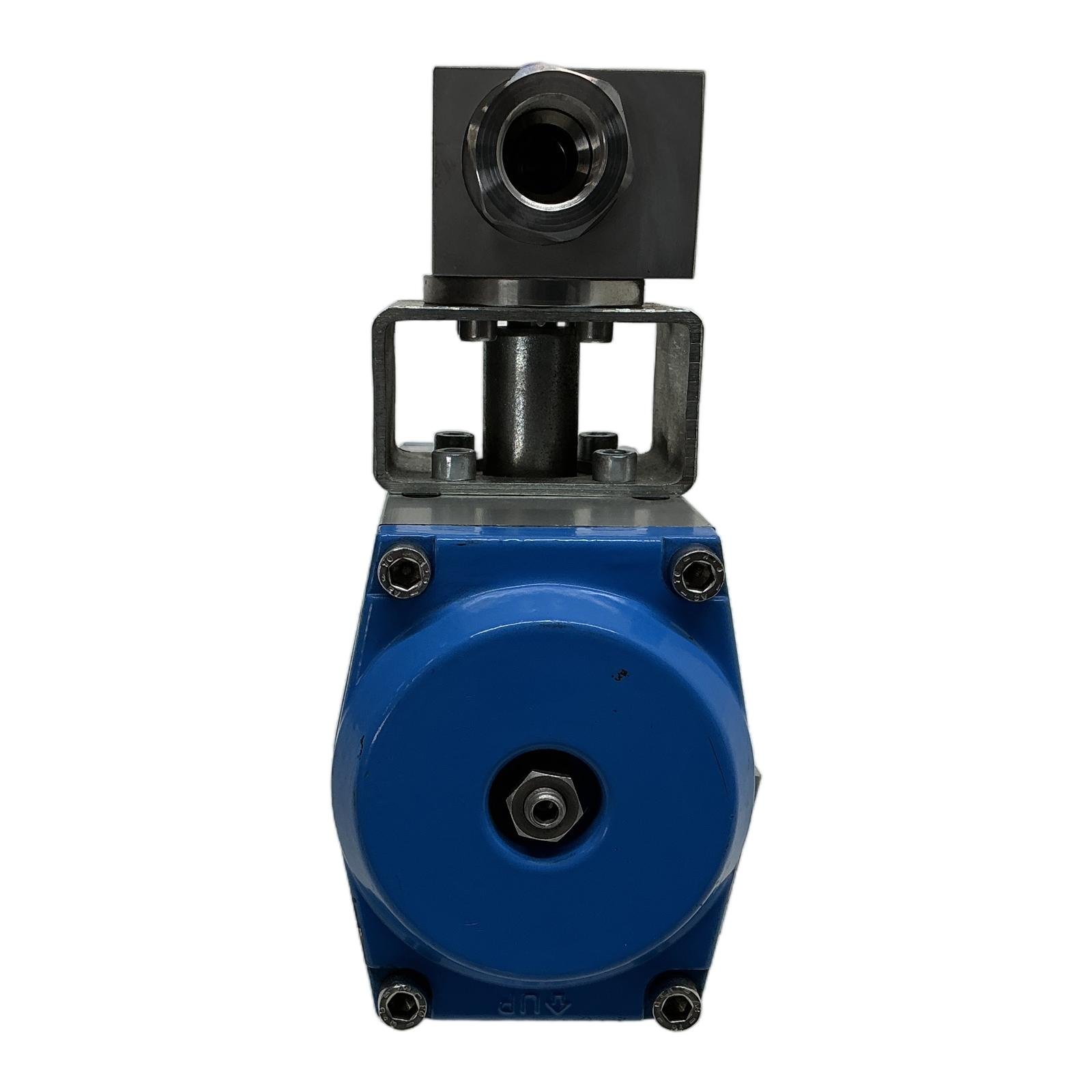

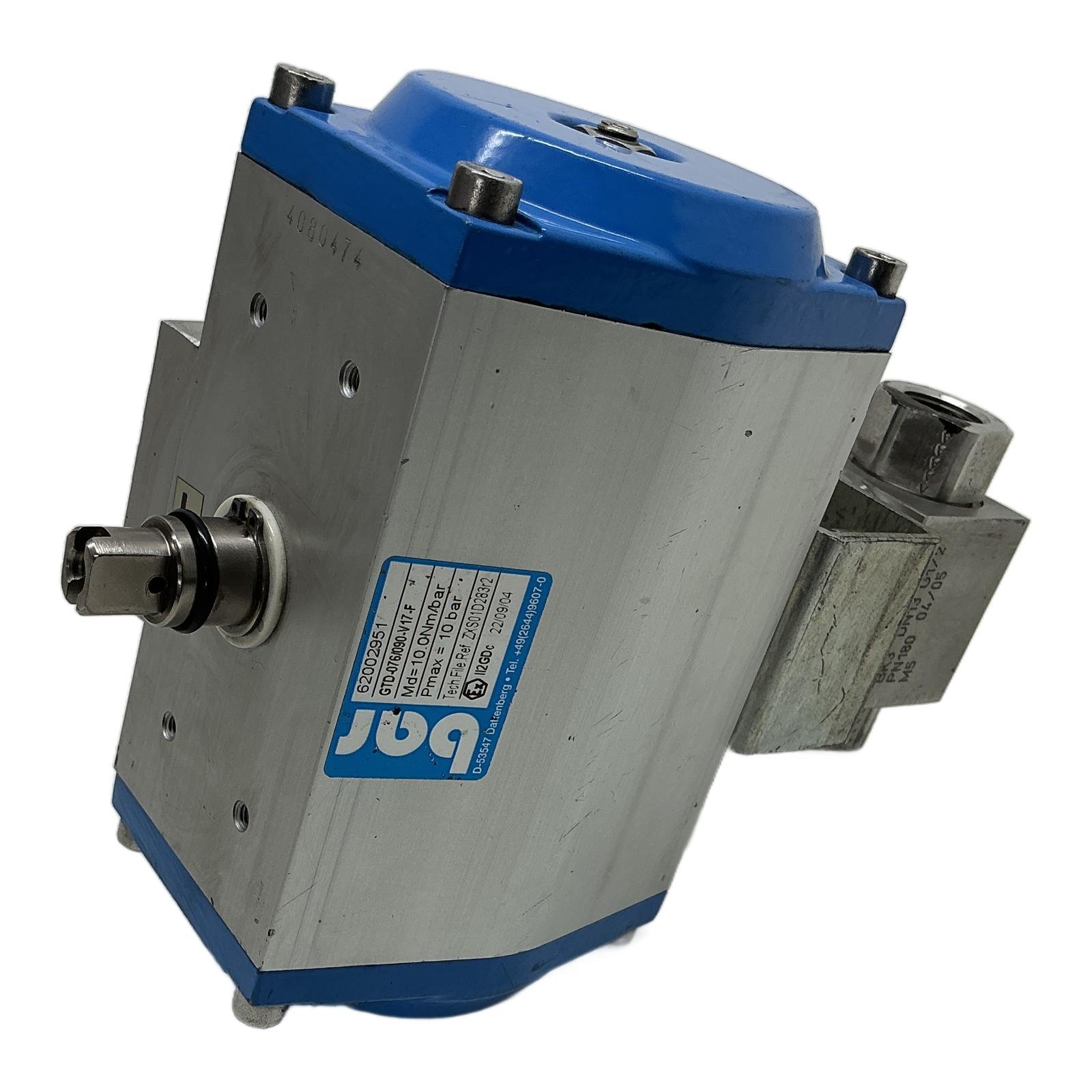

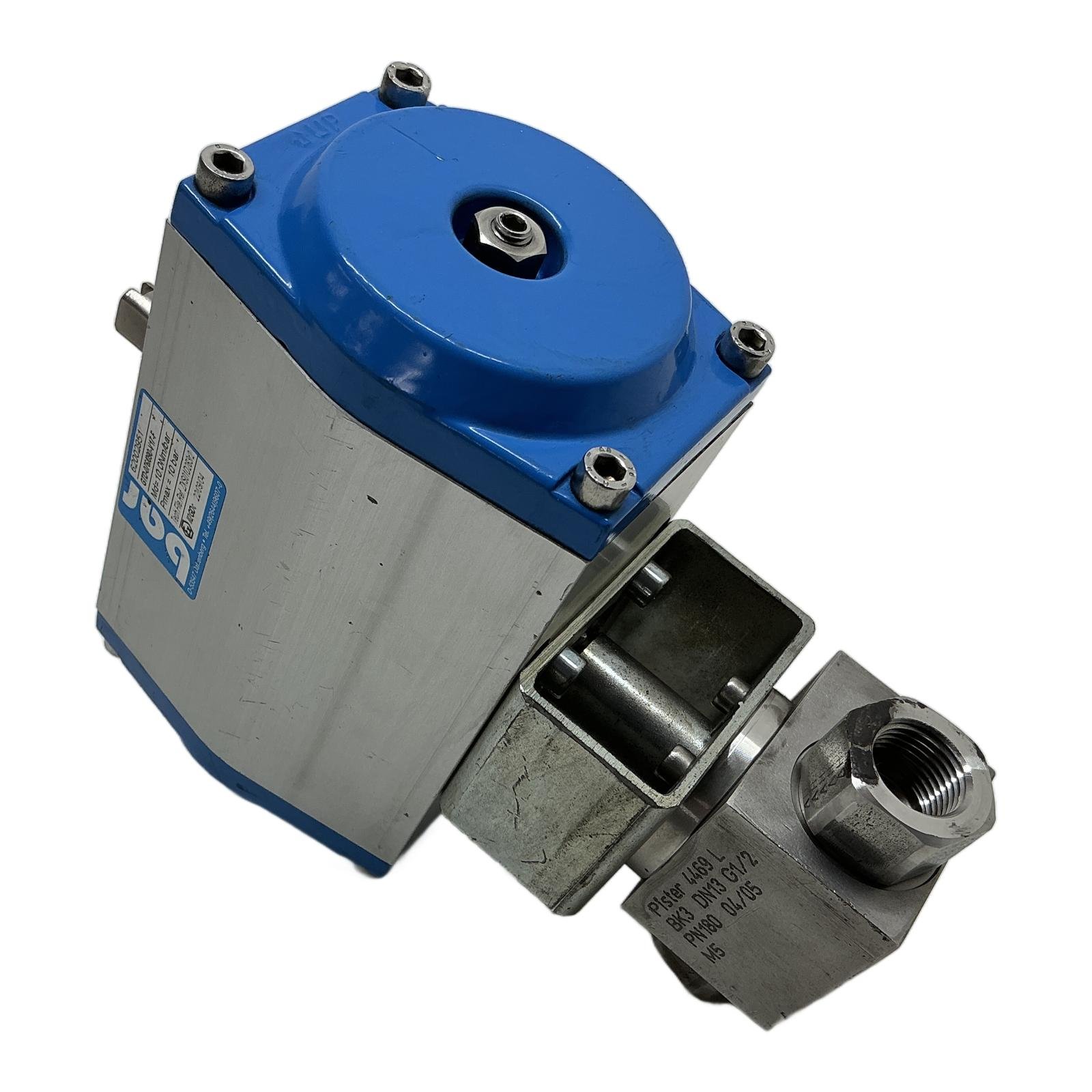

bar Pneumatic Actuator with Pister Ball Valve Description This is a complete pneumatic valve assembly, combining a bar GTD-076/090-V17-F double-acting pneumatic actuator with a Pister 4469 L (BK3) high-pressure stainless steel ball valve. This robust unit is designed for reliable automation of quarter-turn valves in industrial process applications. The actuator is ATEX certified (Ex II2GDc), making it suitable for use in potentially explosive environments. Specifications Actuator Manufacturer: bar Actuator Model: GTD-076/090-V17-F Actuator Part Number: 62002951 Actuation Type: Pneumatic, Double-Acting Max. Operating Pressure: 10 bar Torque: 10.0 Nm/bar Temperature Range: -20 to +80 deg C Valve Manufacturer: Pister Valve Model: 4469 L / BK3 Valve Type: 3-way L-port Ball Valve Valve Size: DN13, G1/2 inch ports Valve Pressure Rating: PN180 Valve Material: Stainless Steel (Edelstahl) Label Info Tech File Ref: ZXS01D283r2 ATEX Marking: Ex II2GDc Application This assembly is ideal for automating fluid control in various industries, including chemical processing, oil and gas, water treatment, and general manufacturing. Its high-pressure rating and durable stainless steel construction make it suitable for demanding media and environments. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned assembly, you help avoid the emission of approximately 28 kg of CO2, which is equivalent to the savings from driving a car for 140 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the ‘V17’ designation in the model number?The ‘V17’ in the type number typically refers to the seal material used within the actuator. In this case, it indicates FKM (Viton) seals, which are known for their excellent resistance to high temperatures and a wide range of chemicals. Is this actuator suitable for outdoor use or in corrosive environments?Yes, the actuator has an aluminum body which offers good corrosion resistance. The attached Pister valve is made of stainless steel, making it highly resistant to corrosion. This combination is well-suited for many outdoor and challenging industrial environments. What kind of solenoid valve interface does this actuator use?This actuator features a standard NAMUR interface on the side for mounting a solenoid pilot valve. This allows for easy integration with standard pneumatic control systems and solenoid valves from various manufacturers. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
