SOCOMEC FUSERBLOC 16920

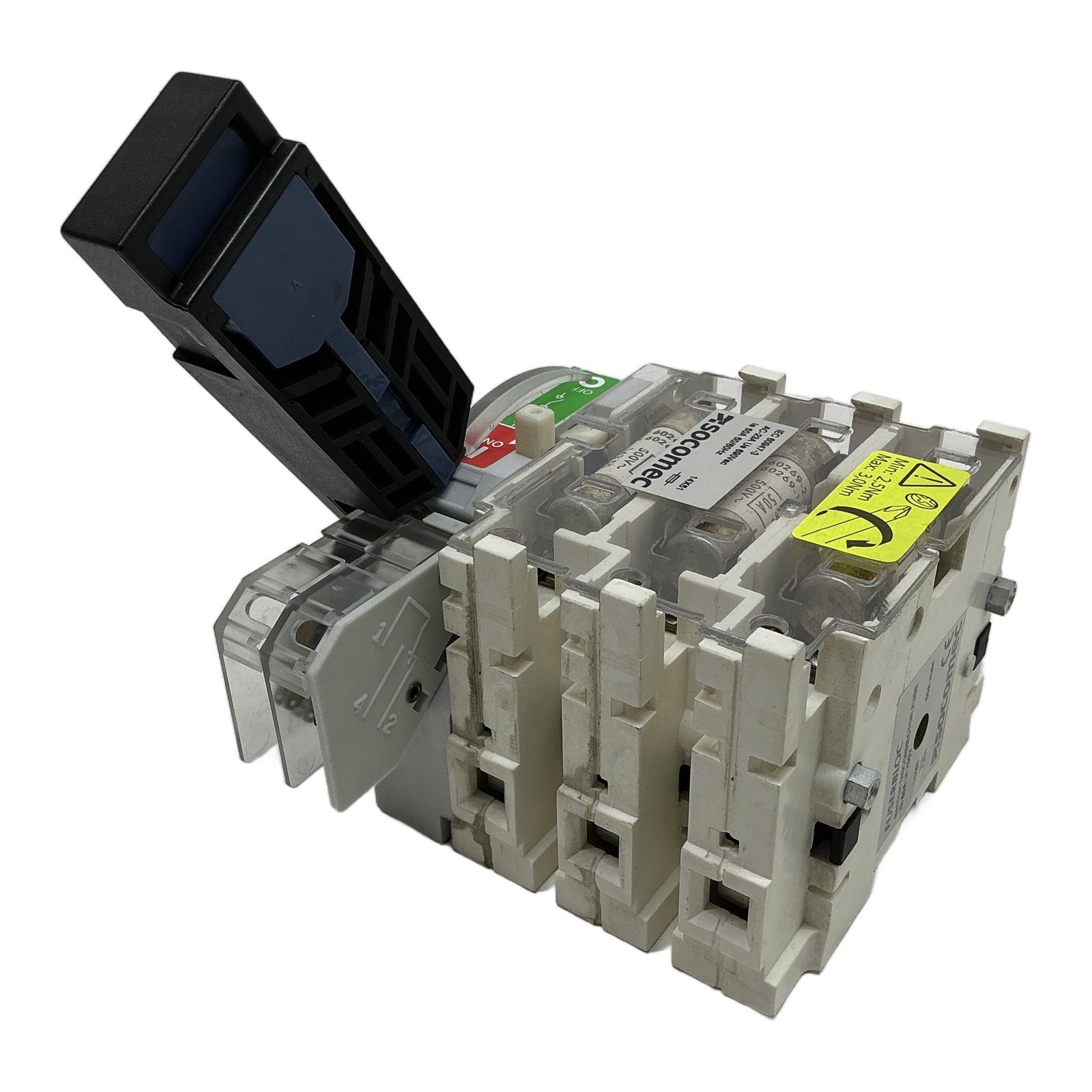

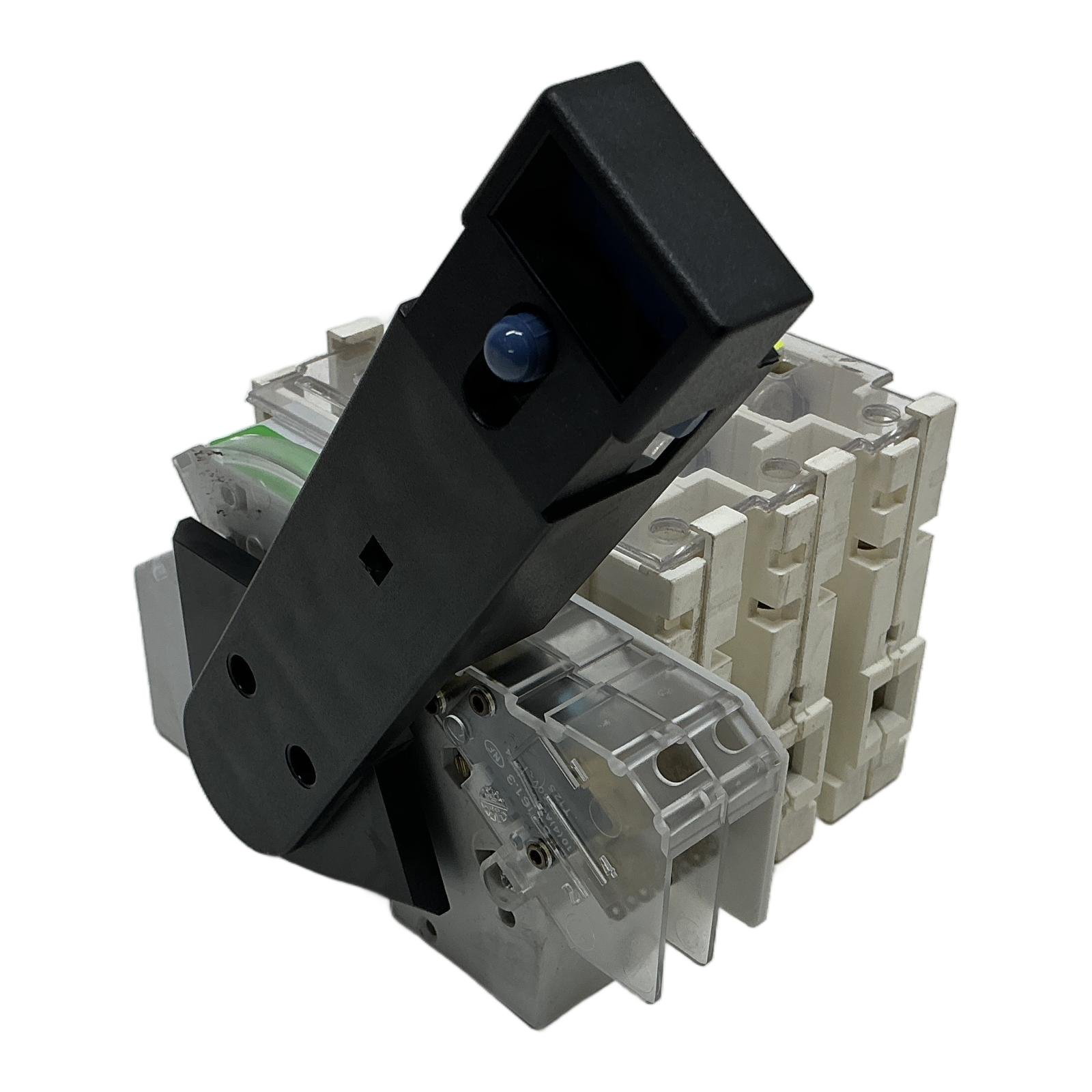

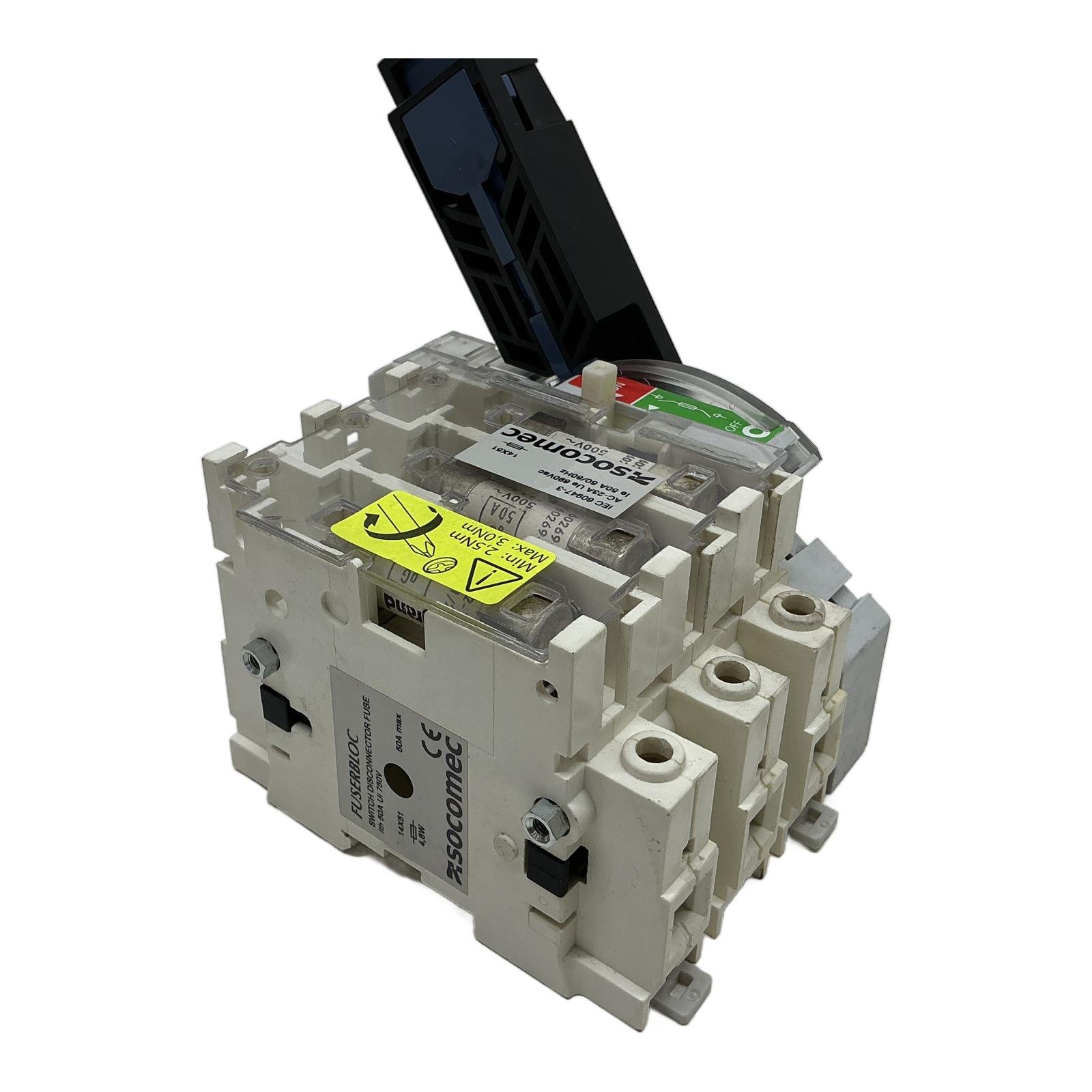

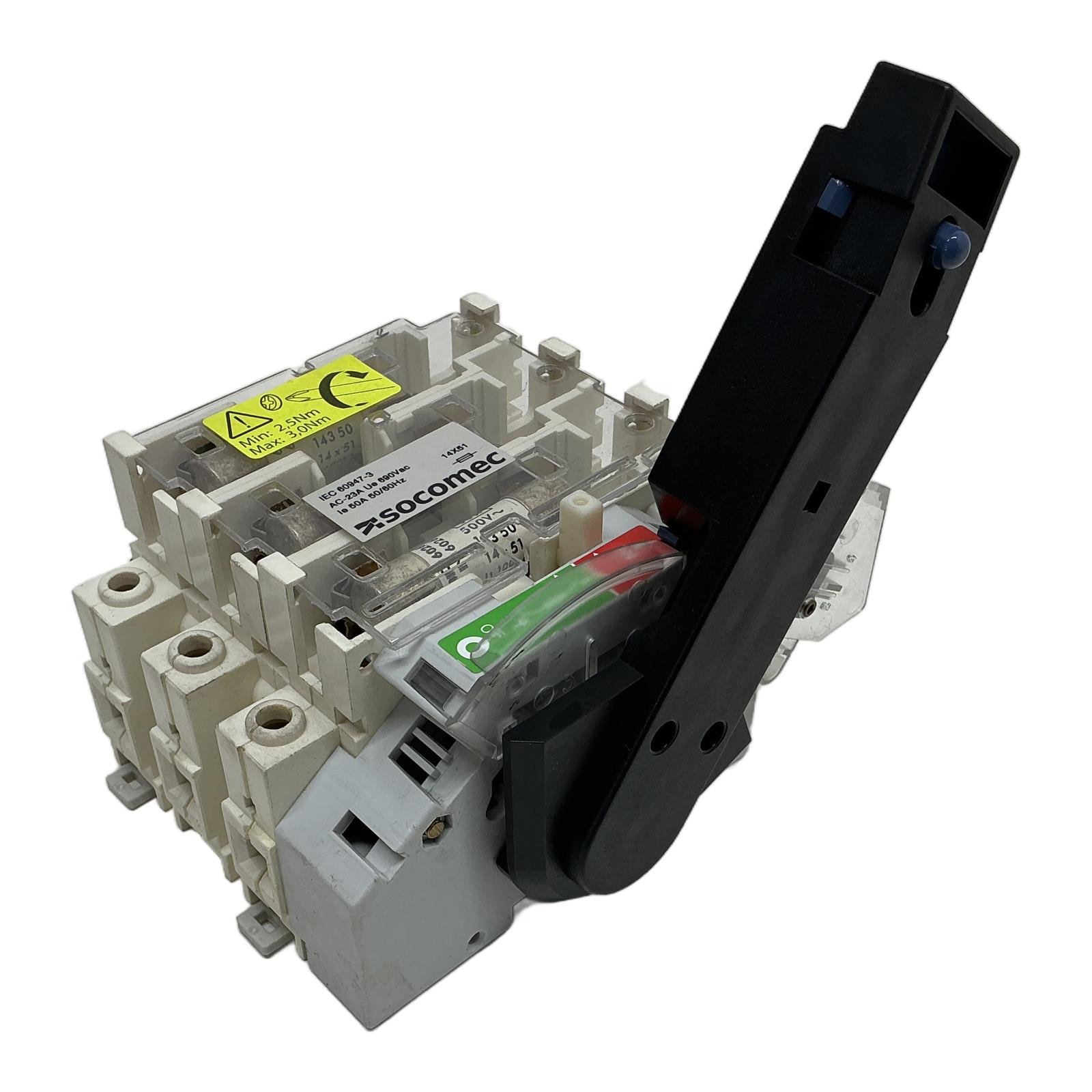

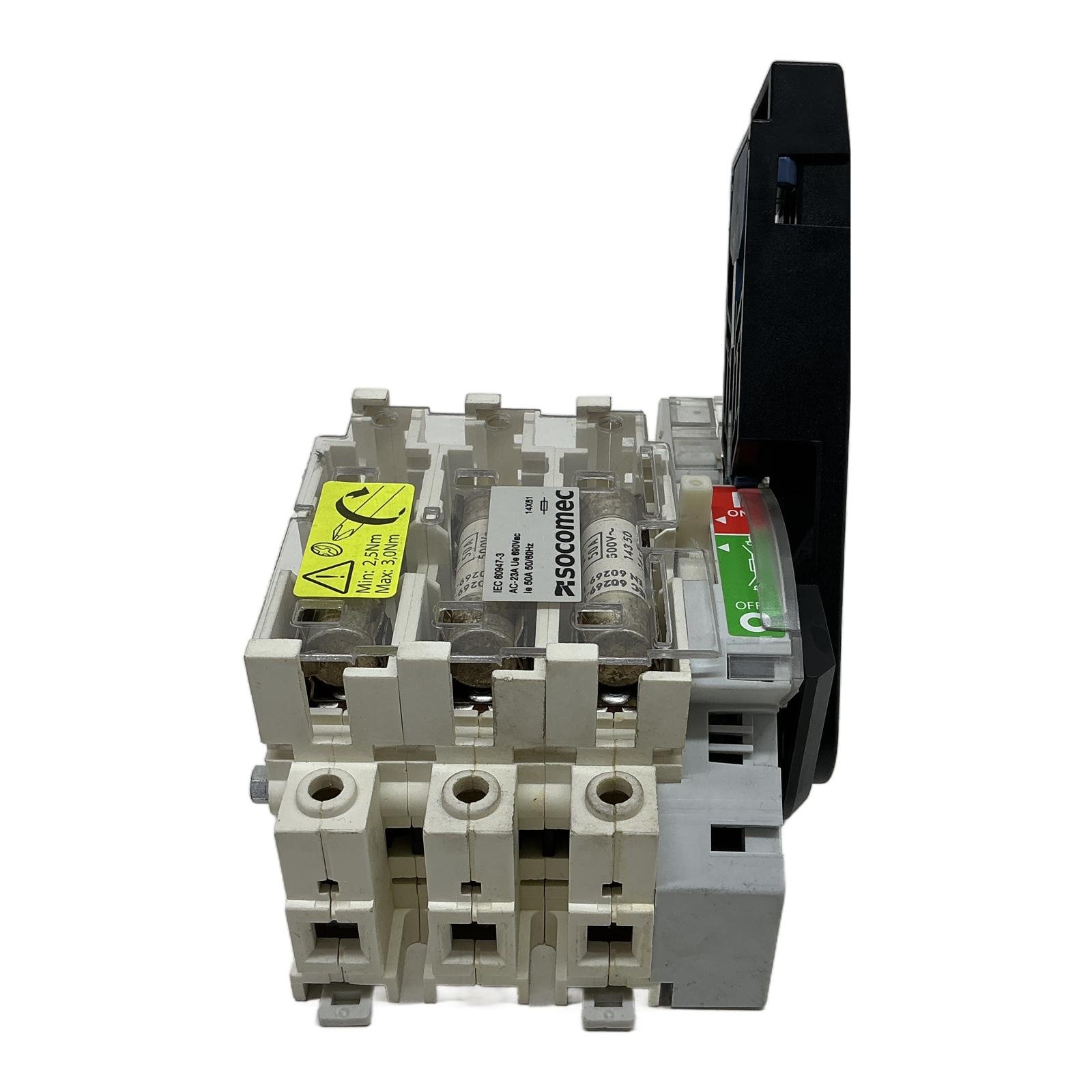

Socomec Fused Switch Disconnector 50A FUSERBLOC 16920 Description The Socomec FUSERBLOC 16920 is a manually operated, multi-polar fuse switch disconnector. It is designed to make and break on load and provide safety isolation and protection against overcurrent for any low voltage electrical circuit. This 3-pole unit is suitable for 14×51 mm fuses and is rated for a thermal current of 50A. Specifications Manufacturer: Socomec Series: FUSERBLOC Model: 16920 Poles: 3 Rated Thermal Current (Ith): 50 A Rated Insulation Voltage (Ui): 750 V Rated Operational Voltage (Ue): up to 690 Vac Fuse Size: 14 x 51 mm Mounting: DIN Rail or Panel Mount Label Info Ith: 50A, Ui: 750V IEC 60947-3, AC-23A, Ue 690Vac, Ie 50A 50/60Hz Fuse Standard: IEC 60269 Application This switch disconnector is ideal for use in industrial control panels, motor control centers (MCCs), main switchboards, and distribution panels where reliable circuit protection and safe isolation are critical. Country of Origin Made in France. CO2 Impact By purchasing this reused component, you help avoid the emission of approximately 24 kg of CO2. This saving is comparable to the emissions of driving an average car for 120 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the breaking capacity of the included fuses?The included Socomec 50A fuses typically have a breaking capacity of 100kA or 120kA at 500V, ensuring robust protection against high short-circuit currents. Always verify with the specific fuse datasheet for exact values. Can the operating handle be mounted in a different position?Yes, Socomec provides various handles and shafts for the FUSERBLOC series, allowing for direct, front, or side operation to fit different panel layouts and safety requirements. What is the IP rating of the terminals?The terminals on this model are typically IP20 when correctly wired with appropriate cable lugs and terminal shrouds are in place, meaning they are protected against finger-touch to prevent accidental contact. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
