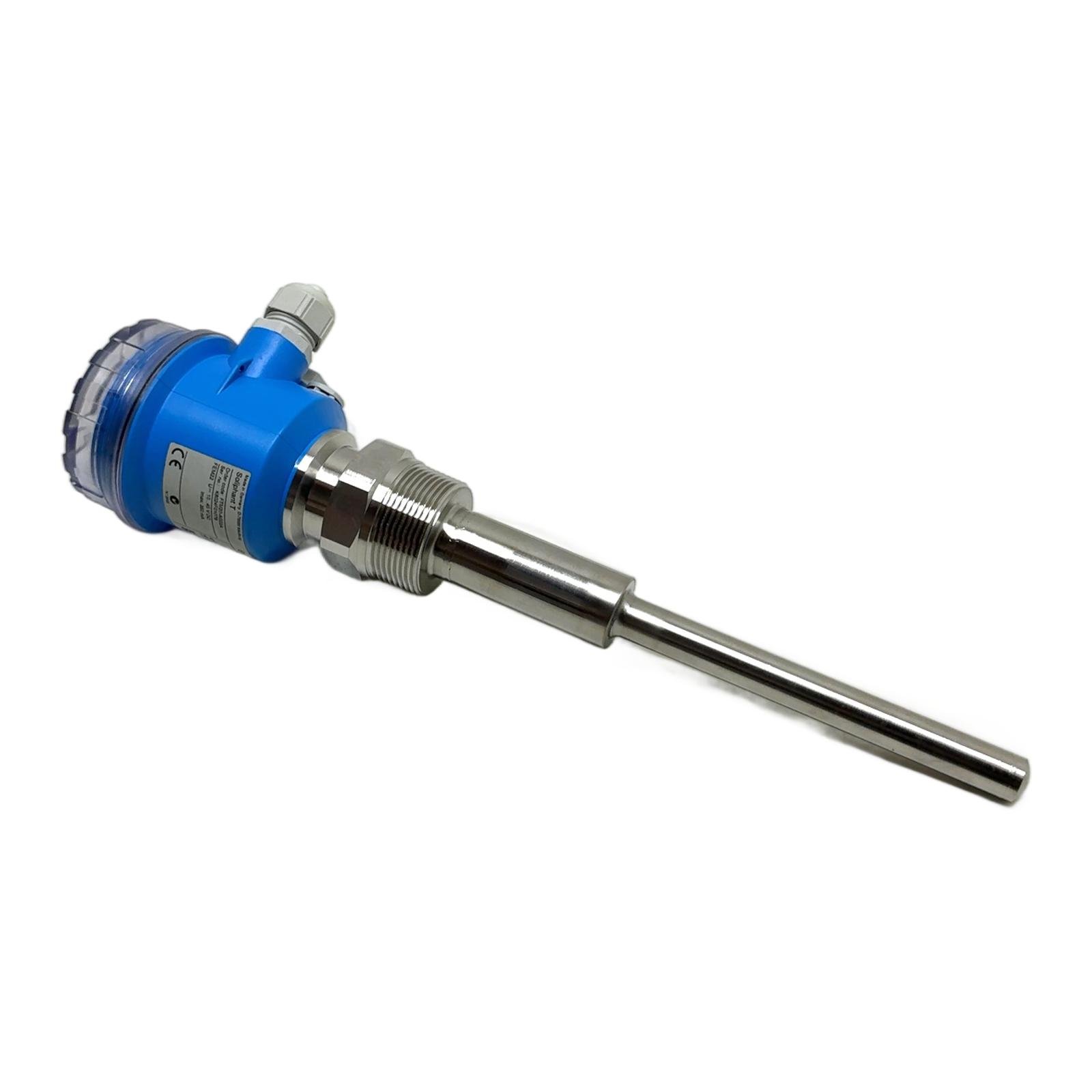

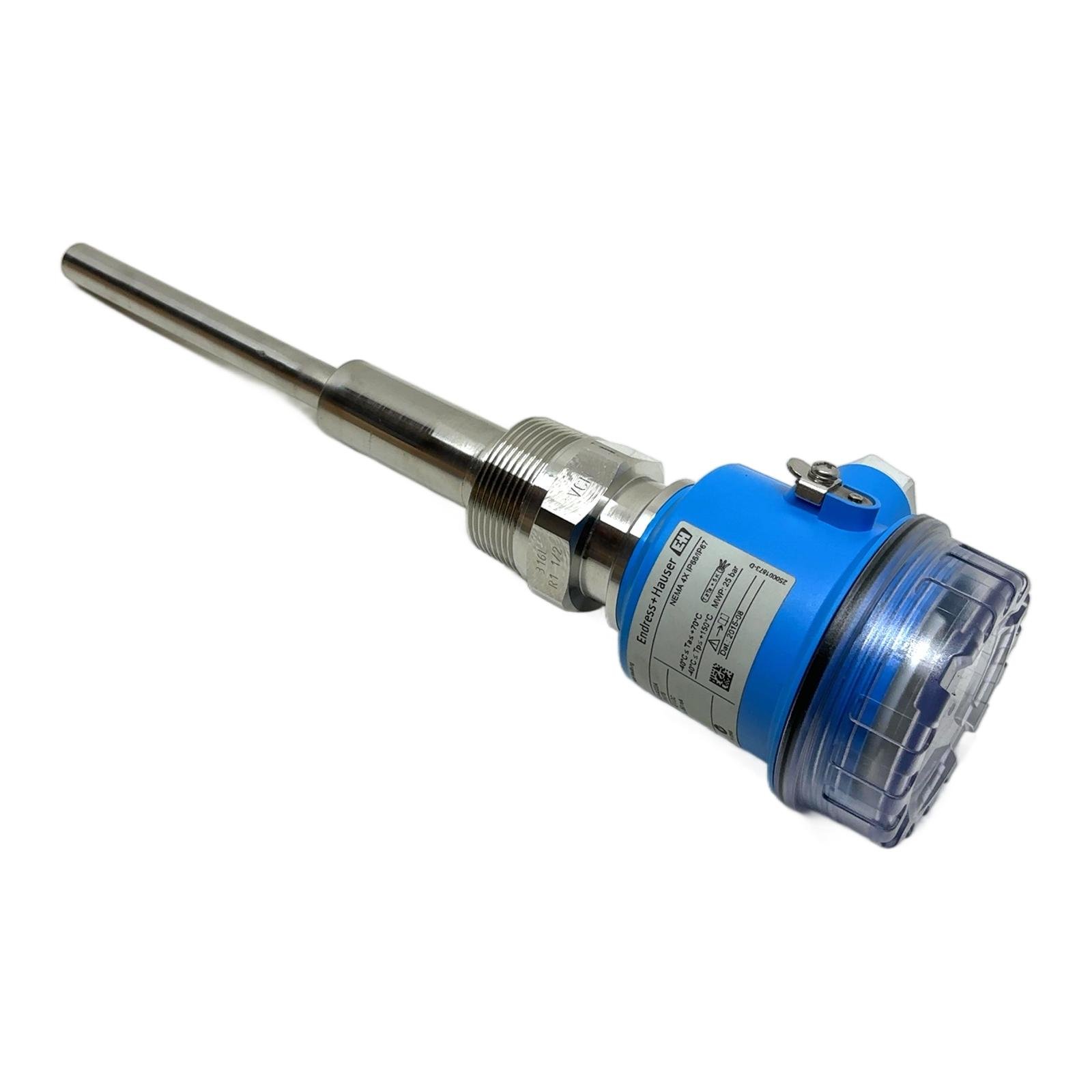

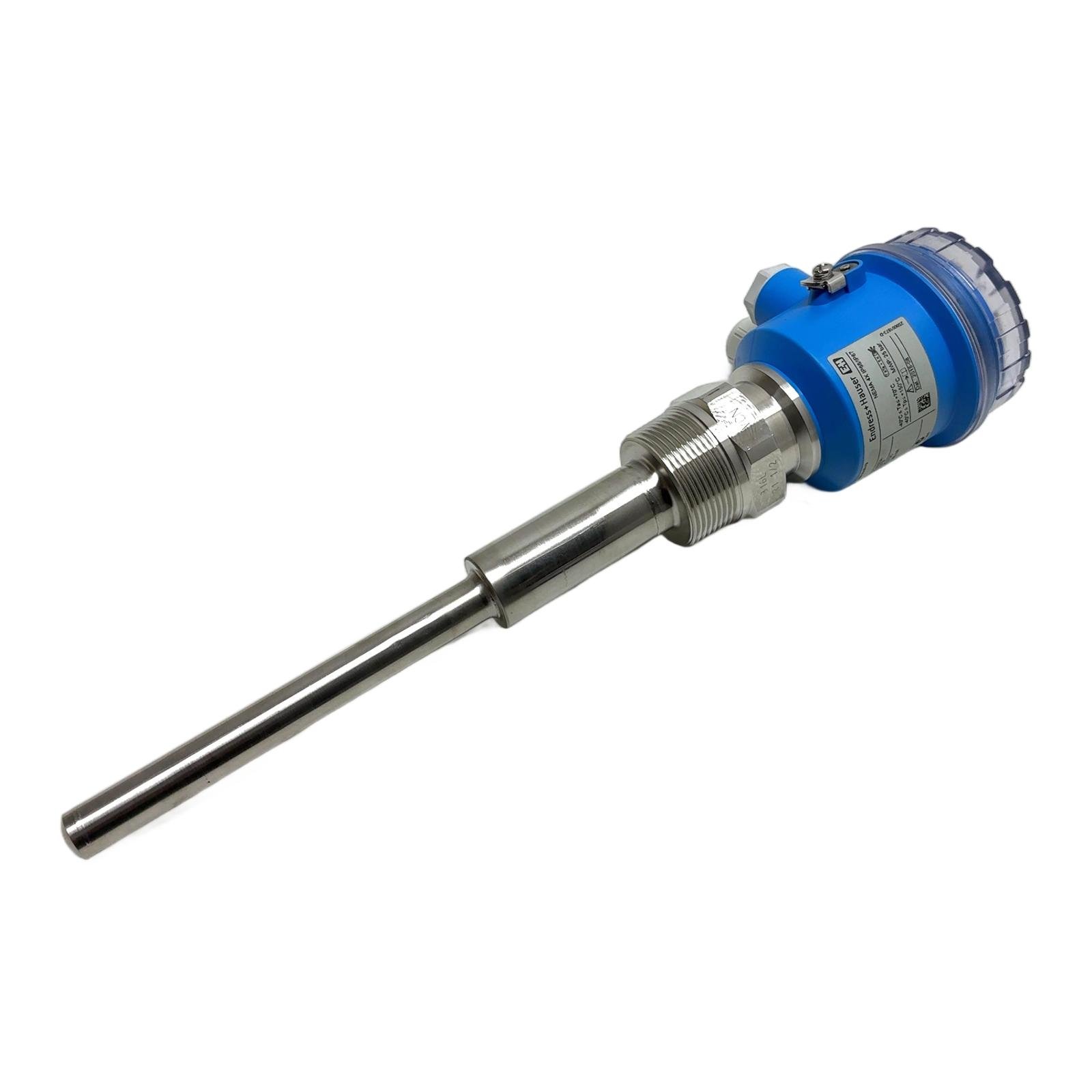

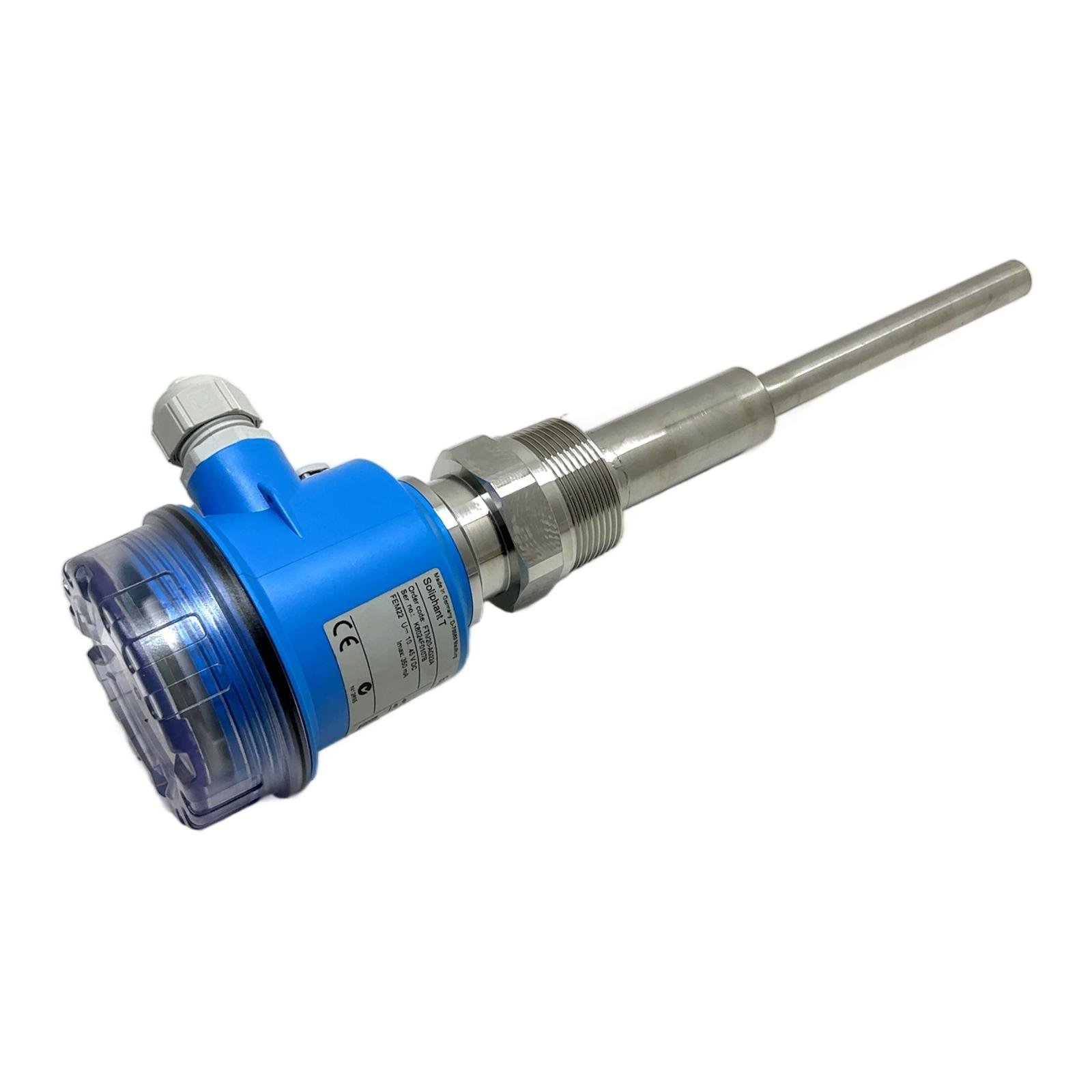

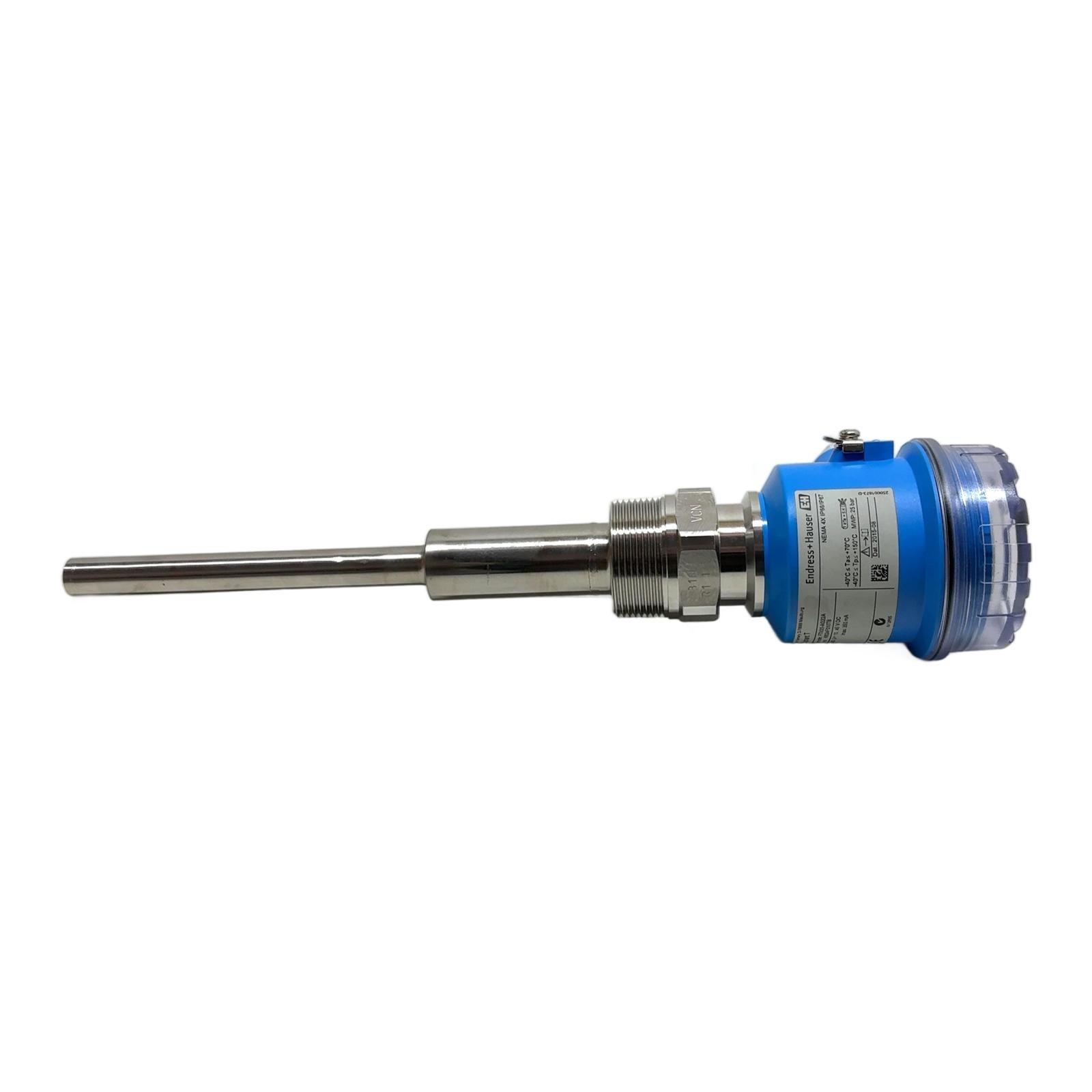

ENDRESS+HAUSER FTM20-AG22A

Endress+Hauser Soliphant T FTM20 Level Switch Description The Endress+Hauser Soliphant T FTM20 is a compact and reliable point level switch designed for fine-grained bulk solids. It operates on the principle of a vibrating fork, ensuring safe and maintenance-free measurement. This model is ideal for applications requiring simple and robust level detection in silos and containers. Specifications Manufacturer: Endress+Hauser Model: Soliphant T FTM20 Order Code: FTM20-AG22A Supply Voltage: 10 to 45V DC Output Type: 3-wire PNP Process Connection: Thread G1 ISO228 Probe Length: 165 mm Housing Material: Aluminium Protection Class: IP66/67, NEMA 4X Maximum Pressure: 25 bar Maximum Temperature: 150 deg C Label Info Ser. No.: K8024F0107B Spec: FEM22; 3-Leiter PNP 10-45VDC Application This sensor is perfectly suited for level monitoring in industries such as food processing, animal feed production, building materials, and plastics. It is designed for fine-grained solids like flour, cement, sand, or plastic granulate. Country of Origin Made in Germany. CO2 Impact By purchasing this reconditioned item, you are helping to avoid the emission of approximately 40.0 kg of CO2, which would have been generated during the production of a new unit. This is comparable to the CO2 savings from driving a car for 200 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Can the FTM20 be used for liquid level detection? No, the Soliphant T FTM20 is specifically designed for point level detection in fine-grained or powdered bulk solids. For liquids, Endress+Hauser offers the Liquiphant series. What does the 3-wire PNP output mean for my control system? A 3-wire PNP output is a “sourcing” output. When the switch is activated, it provides a positive DC voltage to the input of your PLC or control system. This is a very common standard in industrial automation and is compatible with most modern PLC digital input cards. Is any calibration required before using this sensor? No, one of the key features of the Soliphant series is that it is calibration-free. The sensor works reliably with most bulk solids out of the box, without needing any adjustments for different material densities. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Friday, March 13, 2026
