MITSUBISHI ELECTRIC FR-ABR-H3.7K

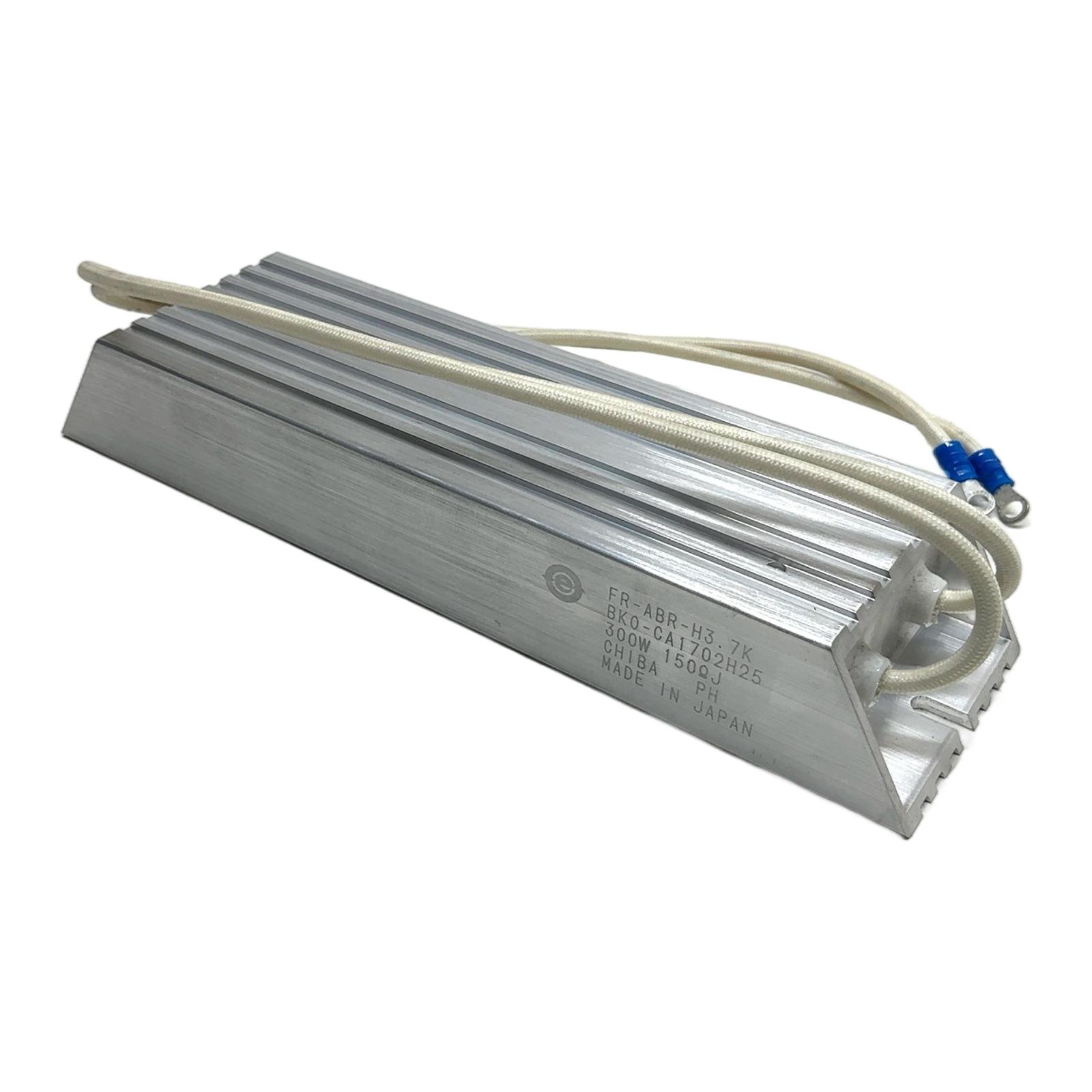

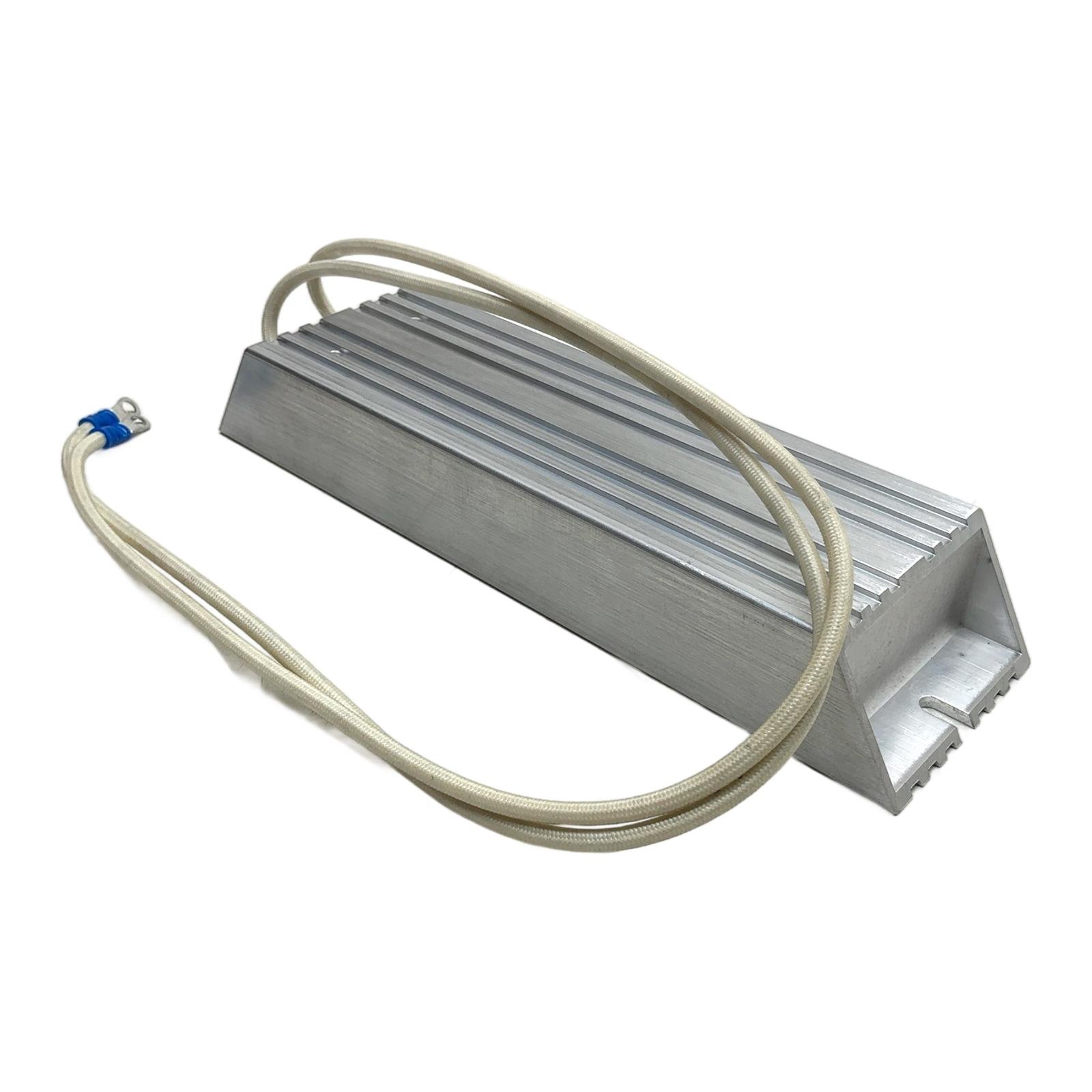

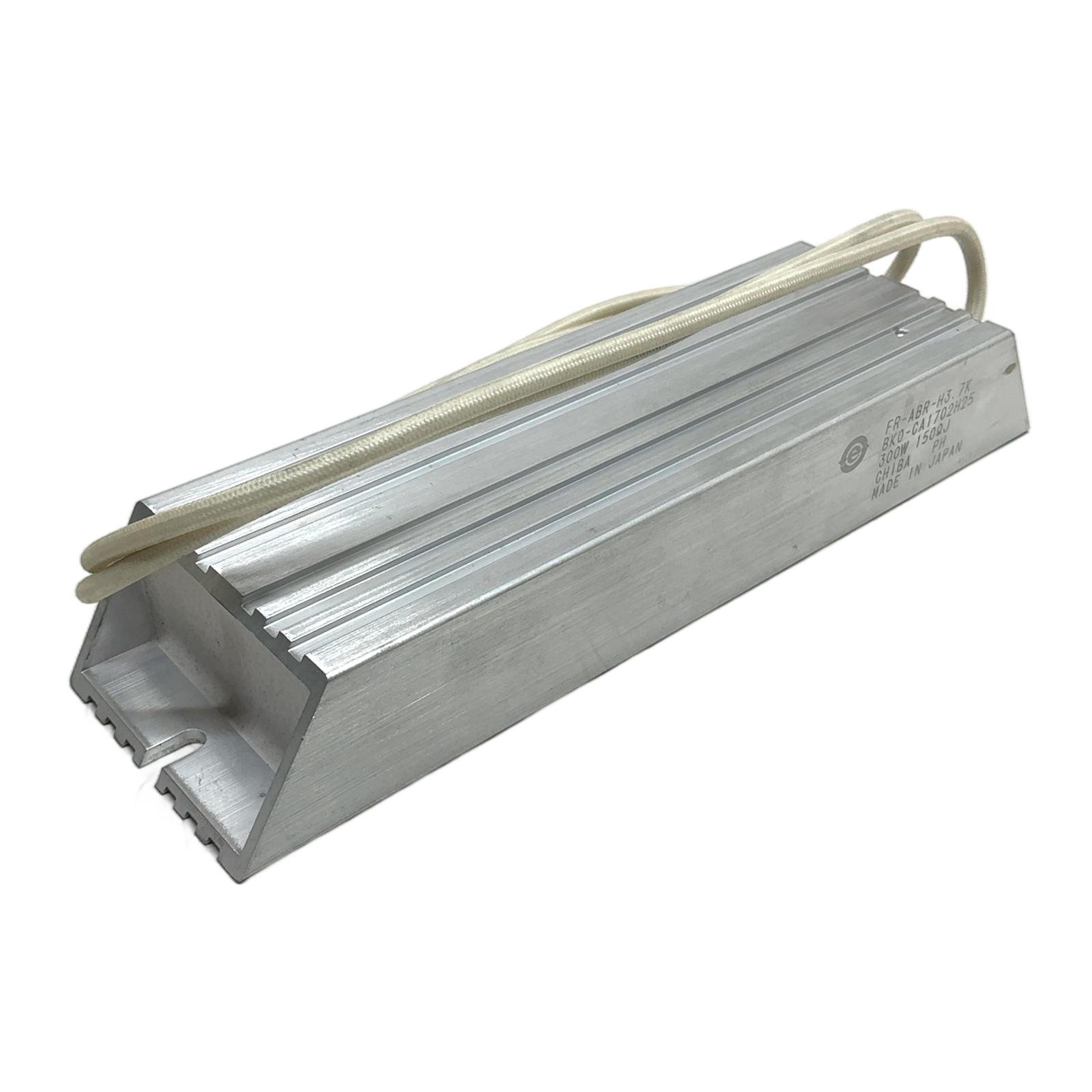

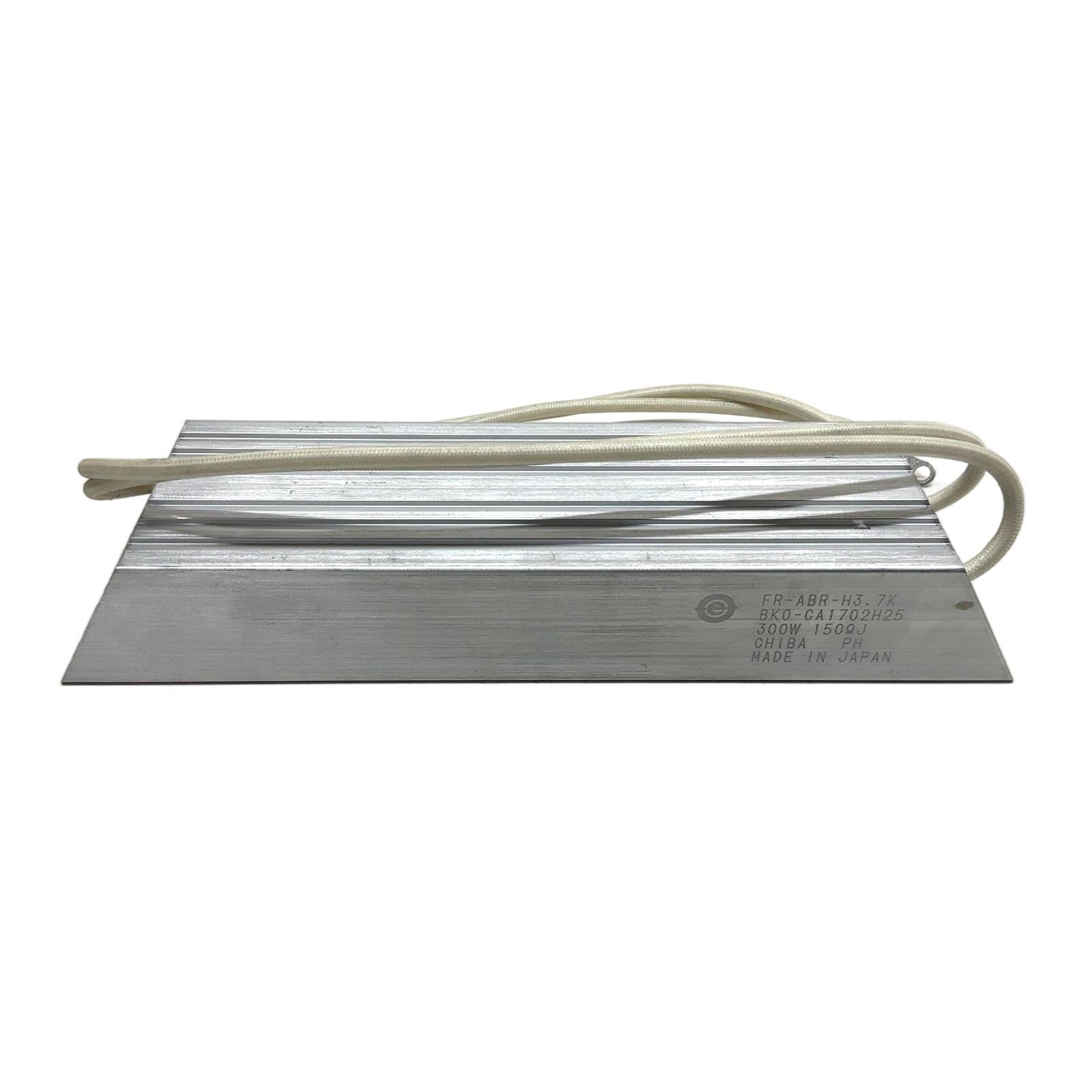

<h2>Mitsubishi Electric Braking Resistor 3.7kW FR-ABR-H3.7K</h2> <h3>Description</h3> <p>The FR-ABR-H3.7K is a high-duty braking resistor from Mitsubishi Electric, designed for use with their FREQROL series of frequency inverters (VFDs). It is specifically matched for drives with a capacity of 3.7kW. This component is crucial for applications requiring rapid deceleration, as it safely dissipates the regenerative energy from the motor, preventing overvoltage alarms and potential damage to the drive. Its robust aluminum housing with integrated cooling fins ensures reliable thermal performance.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Mitsubishi Electric</li> <li>Model: FR-ABR-H3.7K</li> <li>Product Type: Braking Resistor</li> <li>Applicable Motor Capacity: 3.7 kW</li> <li>Resistance: 150 Ohm</li> <li>Power Rating: 300 W</li> <li>Housing Material: Aluminum</li> </ul> <h3>Label Info</h3> <ul> <li>Type: FR-ABR-H3.7K</li> <li>OEM Part No.: BK0-CA1702H25</li> <li>Date Code: 2016/9/28</li> </ul> <h3>Application</h3> <p>This resistor is used in various industrial automation applications involving motors controlled by VFDs, such as elevators, cranes, conveyors, and machine tools, where controlled and fast braking is required.</p> <h3>Country of Origin</h3> <p>Made in Japan.</p> <h3>CO2 Impact</h3> <p>By reusing this component, you contribute to a more sustainable circular economy, saving approximately 18.0 kg of CO2 compared to the production of a new one. This saving is equivalent to the energy needed to charge a smartphone 2160 times.</p> <h3>Availability</h3> <p>This item is available from stock. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <p> <strong>With which Mitsubishi drive series is the FR-ABR-H3.7K compatible?</strong><br><p>This resistor is designed for Mitsubishi FREQROL VFDs, typically for 3.7kW models. It is commonly used with series like the FR-A700, FR-E700, and FR-D700. Always check your drive’s manual for the correct braking resistor specifications.</p> <strong>What are the physical mounting requirements for this resistor?</strong><br><p>The FR-ABR-H3.7K must be mounted on a non-flammable surface, typically vertically, to allow for natural convection cooling. Ensure adequate clearance around the unit as it can reach high temperatures during operation.</p> <strong>Can I use this resistor for a drive with a power rating lower than 3.7kW?</strong><br><p>Yes, you can generally use a braking resistor rated for a higher power capacity with a smaller drive. The key is that the resistance value (150 Ohm) must match the drive’s specification. Using a higher power rated resistor provides a greater safety margin for heat dissipation.</p> </p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p> <p>Last Update: Friday, March 13, 2026</p>
