ECONOSTO Fig 330 EC003305G1A4130

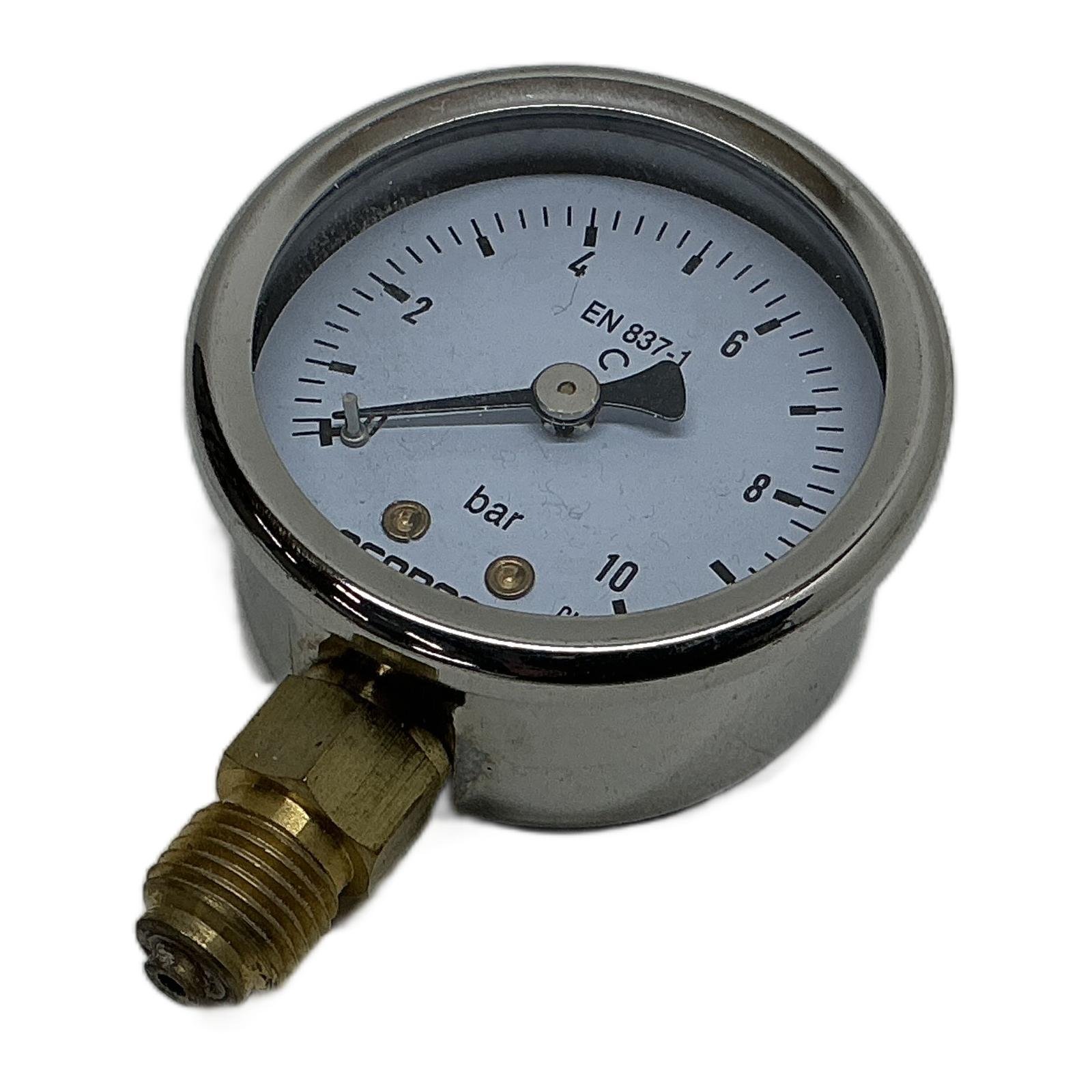

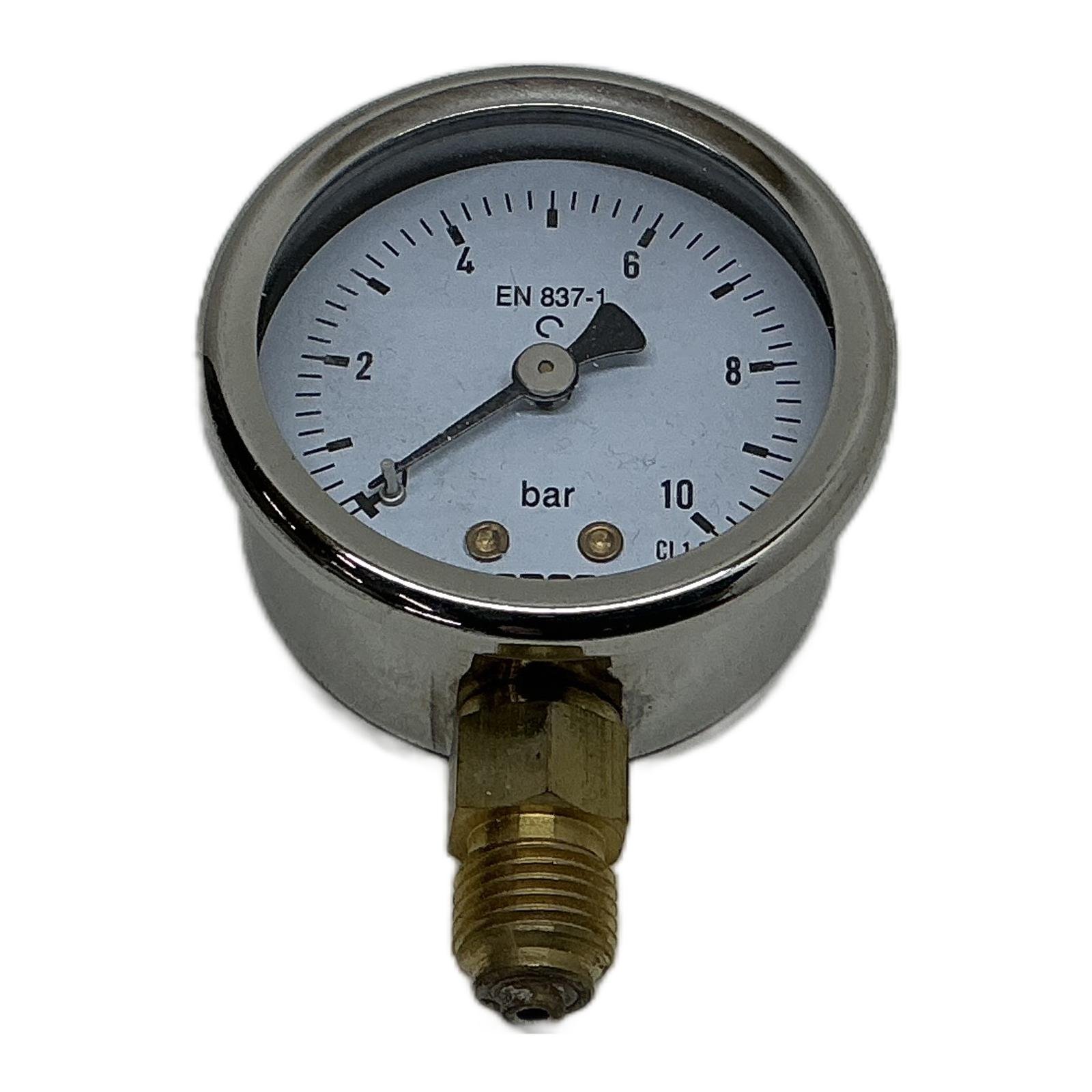

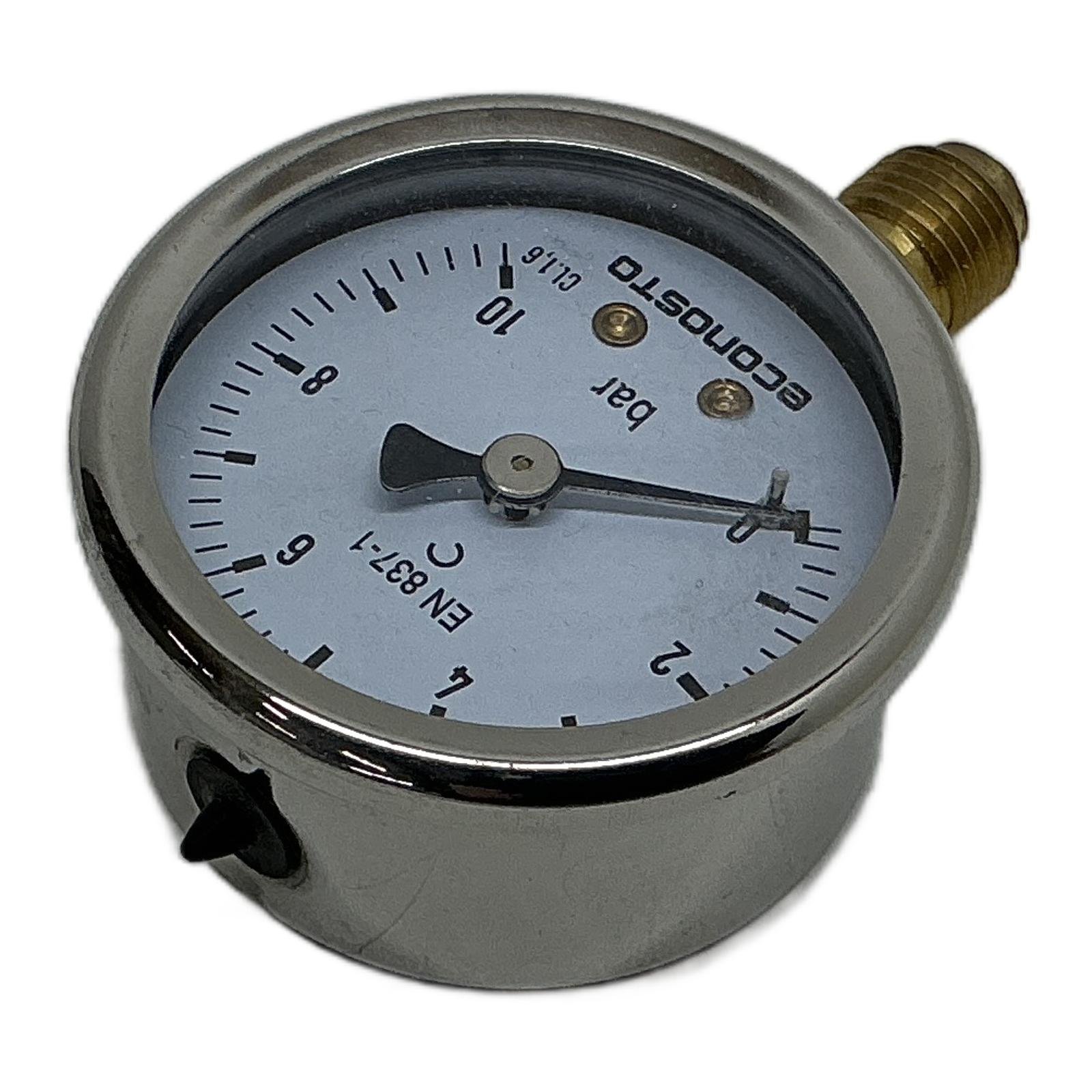

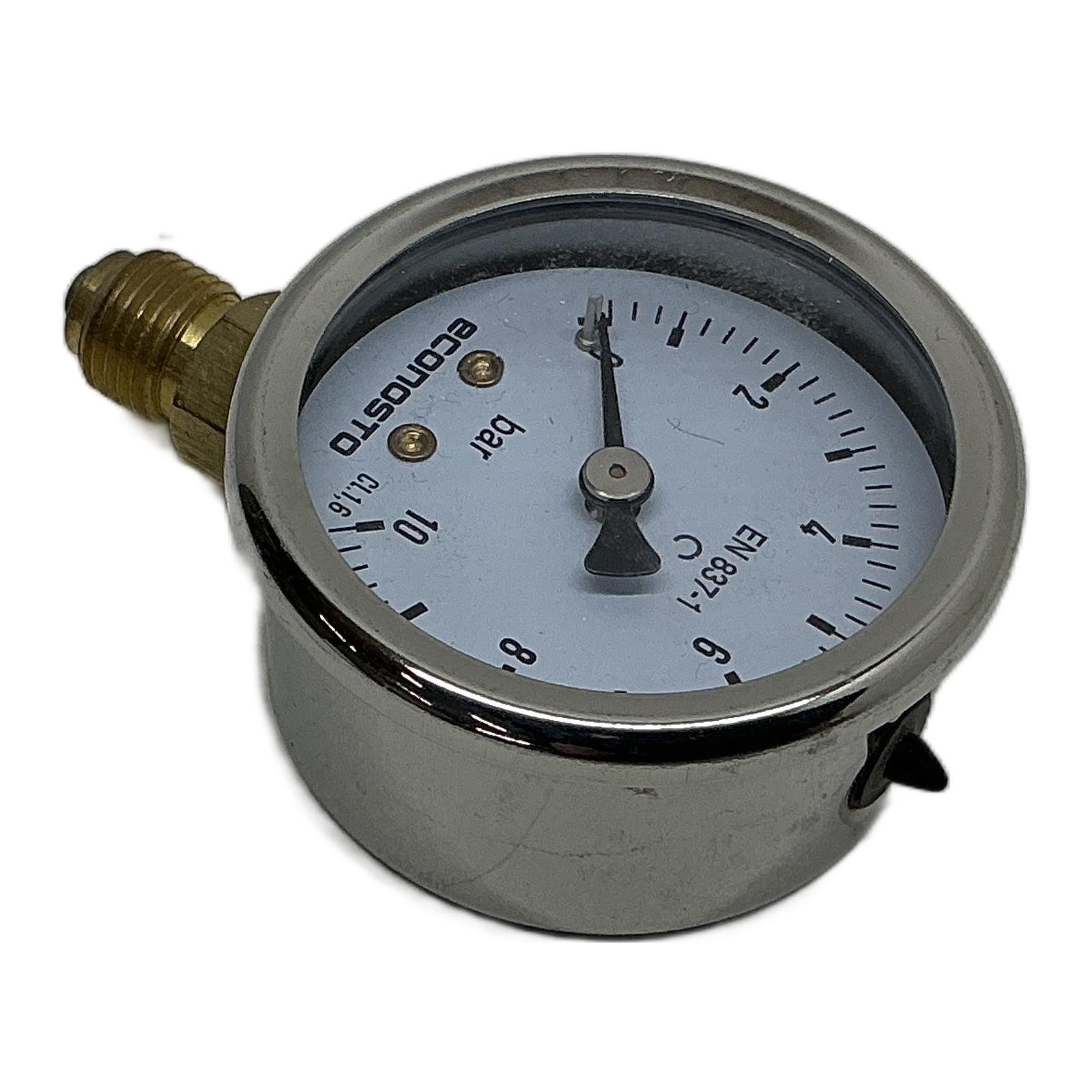

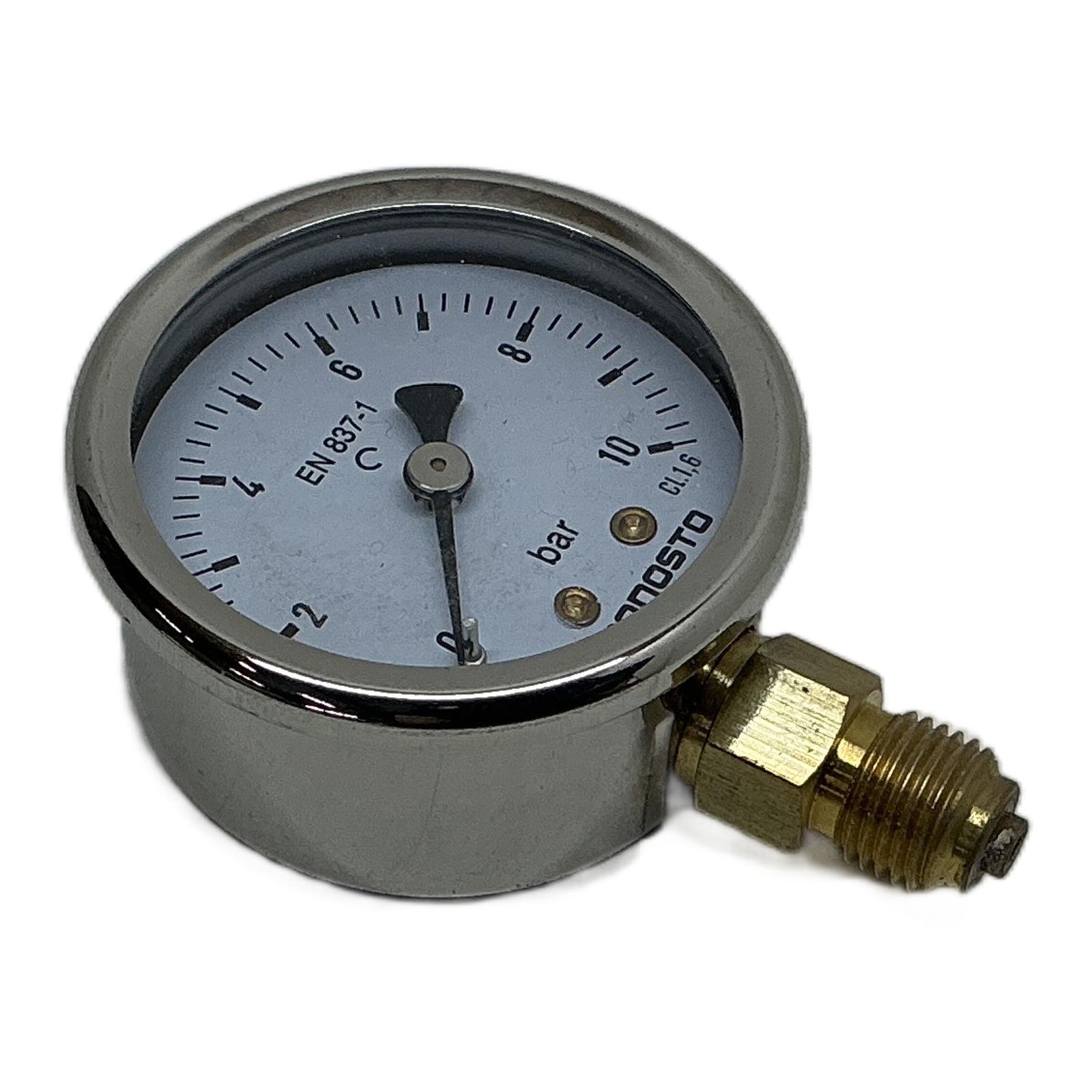

Econosto Fig 330 Pressure Gauge Description This is a high-quality Econosto pressure gauge, model Fig 330, designed for accurate and reliable pressure measurement in industrial applications. It features a clear dial with a range of 0 to 10 bar, housed in a durable 50mm stainless steel case. The bottom-mount connection with a 1/4 inch BSP thread allows for straightforward installation. Specifications Manufacturer: Econosto (an ERIKS brand) Model: Fig 330 Part Code: EC003305G1A4130 Pressure Range: 0 – 10 bar Dial Diameter: 50 mm Connection Type: Bottom Entry Thread Size: G 1/4 inch BSP Case Material: Stainless Steel Window Material: Plastic Standard Compliance: EN 837-1 Accuracy Class: 1.6 Application Ideal for use in pneumatic systems, hydraulic systems, compressors, and general machinery where visual pressure monitoring is required. Country of Origin Manufactured in Germany. CO2 Impact Opting for this pre-owned component avoids the production of a new one, saving an estimated 0.4 kg of CO2 emissions. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the accuracy class of this Econosto Fig 330 gauge?This pressure gauge conforms to accuracy class 1.6 according to the EN 837-1 standard. This means the maximum permissible error is +/- 1.6% of the full scale value (FSV), which is 10 bar. What materials are the wetted parts made of?The wetted parts, which are the parts that come into contact with the medium, are made of a copper alloy (brass). The casing is made of stainless steel. It is suitable for non-corrosive gases and liquids. Can this gauge be filled with glycerine for vibration dampening?No, this specific model (Fig 330) is a dry gauge and is not designed to be filled with glycerine. For applications with heavy vibration or pressure pulsations, a glycerine-fillable model would be required. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
