EL-O-MATIC F0350M FIG 560

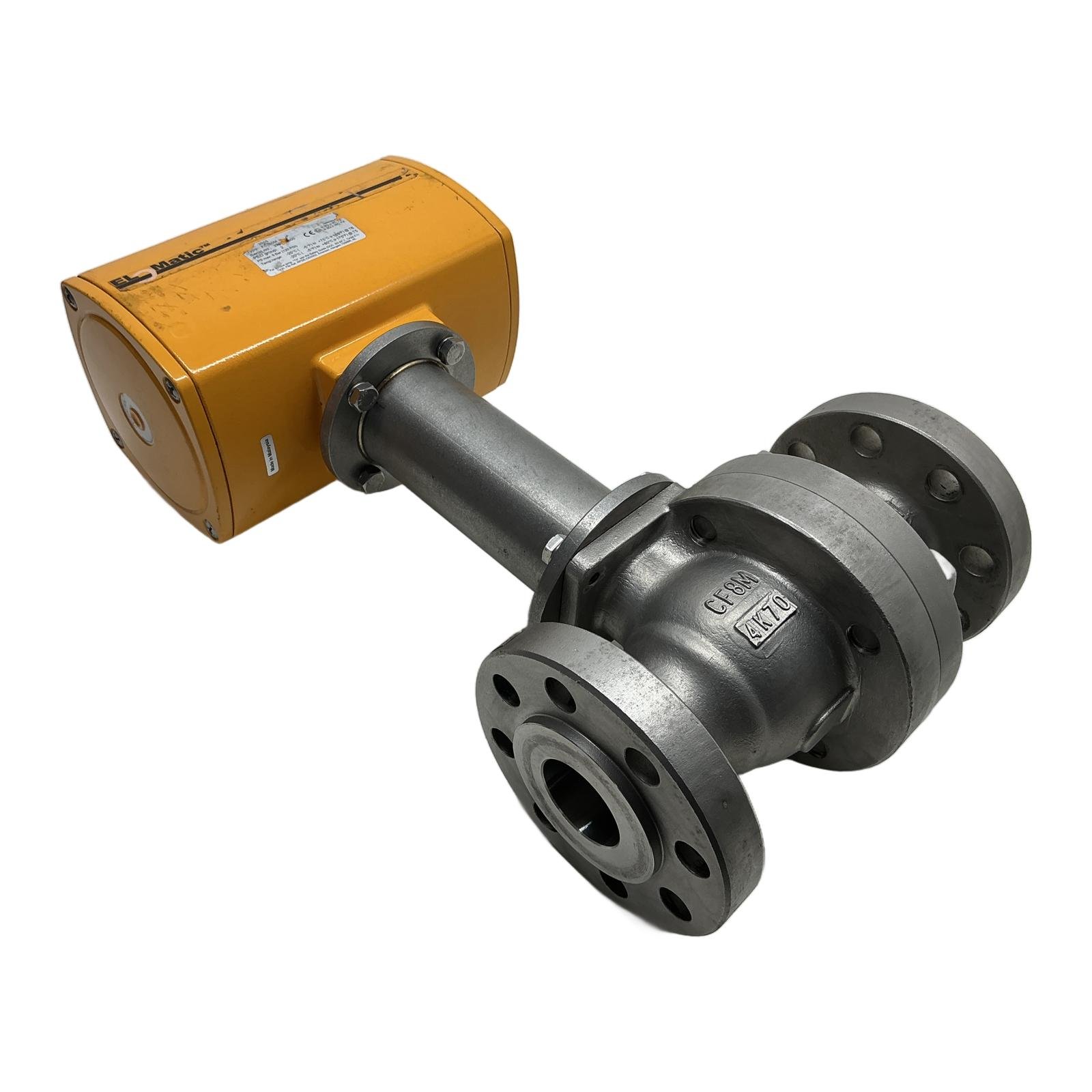

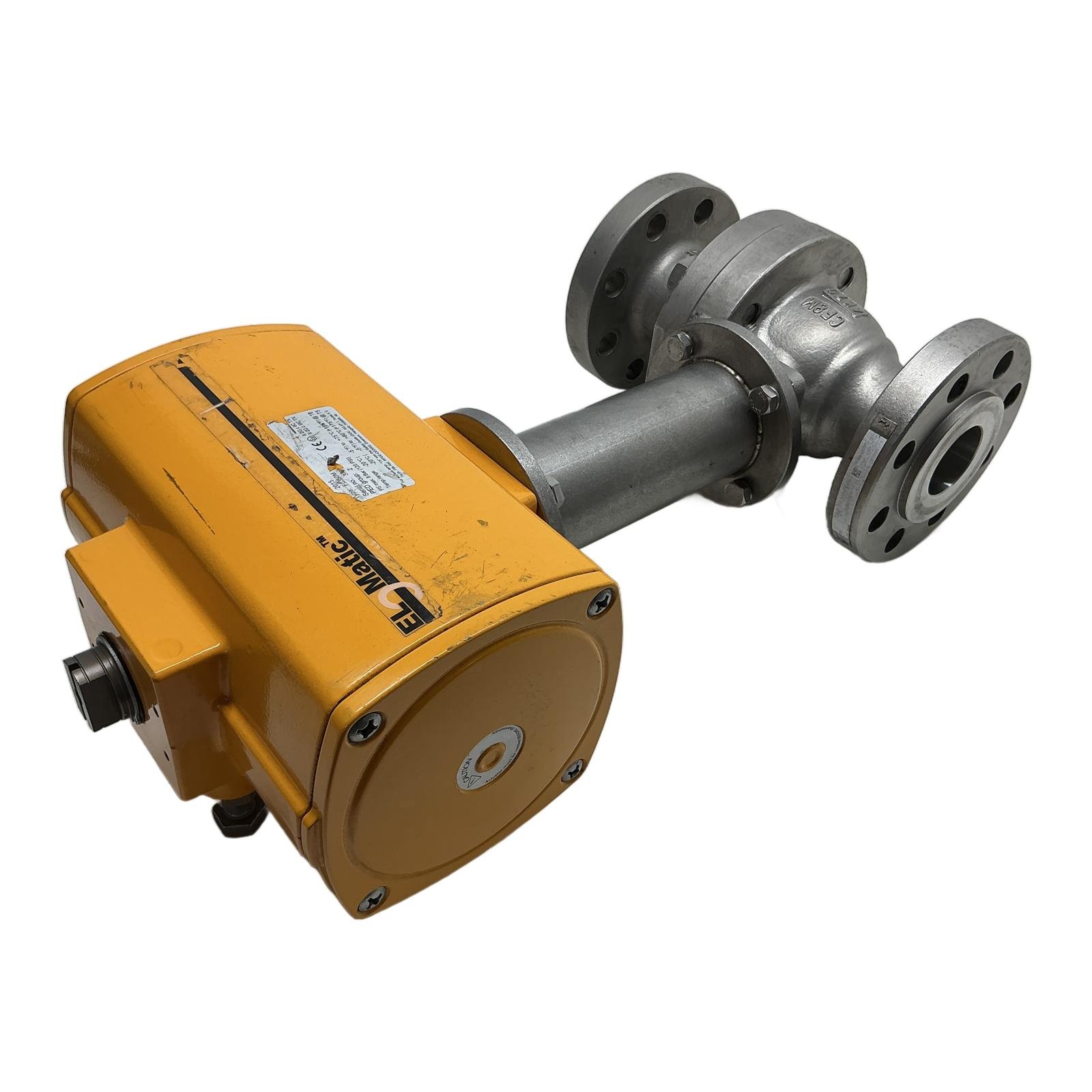

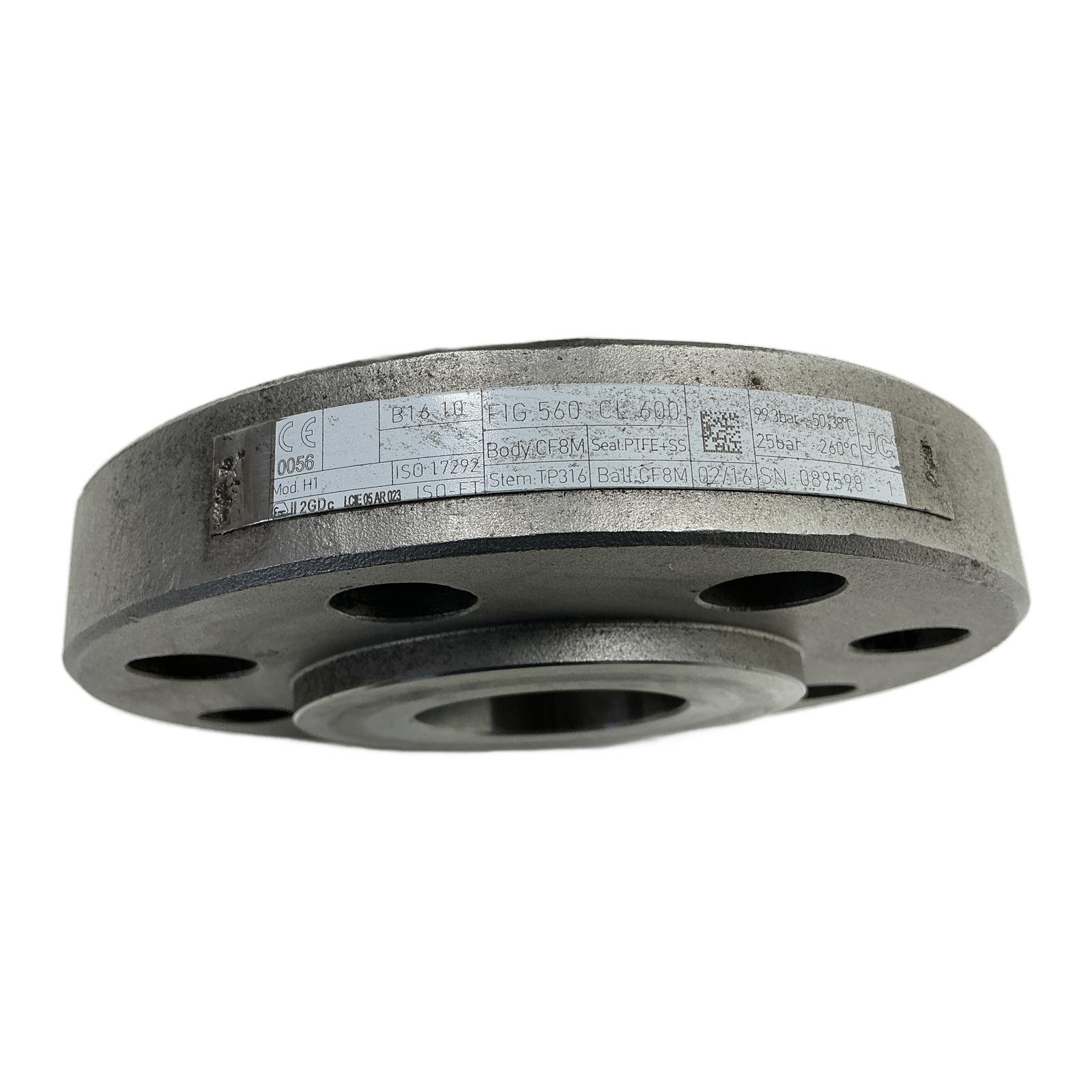

Product Details Description This is a complete, pre-owned actuated valve assembly, featuring a high-quality Emerson El-O-Matic F0350M pneumatic actuator mounted on a JC Valves FIG 560 stainless steel ball valve. The 2-inch (DN50) valve with a Class 600 rating is designed for high-pressure applications. The robust stainless steel (CF8M/316) construction of the valve body, ball, and stem ensures excellent durability and resistance to corrosion, making it suitable for a wide range of industrial process control applications. Specifications Actuator Manufacturer: Emerson El-O-Matic Actuator Type: F0350M Valve Manufacturer: JC Valves Valve Figure: FIG 560 Size: 2 Inch / DN50 Pressure Class: ANSI Class 600 Connection: Flanged (ASME B16.5) Maximum Actuator Pressure: 8 Bar (120 PSI) Label Info Valve Body Material: CF8M Stainless Steel Ball Material: CF8M Stainless Steel Stem Material: TP316 Stainless Steel Seat Material: PTFE+SS Actuator Serial Number: 378005 Valve Serial Number: 089598 Application Ideal for automated flow control in industries such as oil and gas, chemical processing, power generation, and water treatment where high pressure and corrosive media are present. Country of Origin This assembly consists of components made in the Netherlands (Actuator) and Spain (Valve). CO2 Impact Reusing this heavy-duty industrial valve assembly saves approximately 90 kg of CO2 compared to producing a new one. This environmental saving is equivalent to the emissions from driving a car for 450 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of actuator is the El-O-Matic F0350M?The F0350M is a pneumatic rack and pinion actuator. Based on the model number without an ‘S’ prefix/suffix, this is likely a double-acting model, meaning it requires compressed air to both open and close the valve. What are the flange specifications for the JC FIG 560 valve?The valve is marked with ‘CL 600’ and ‘B16.10’. This indicates it has ANSI Class 600 Raised Face (RF) flanges, conforming to ASME B16.5 dimensions, with a face-to-face length as per ASME B16.10. Is the CF8M body material suitable for my application?CF8M is the cast equivalent of 316 stainless steel. It offers excellent corrosion resistance in a wide range of chemical and industrial environments, particularly against chlorides. However, you should always verify material compatibility with your specific process fluid and operating conditions. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
