PHOENIX CONTACT EMD-SL-PTC 2866093

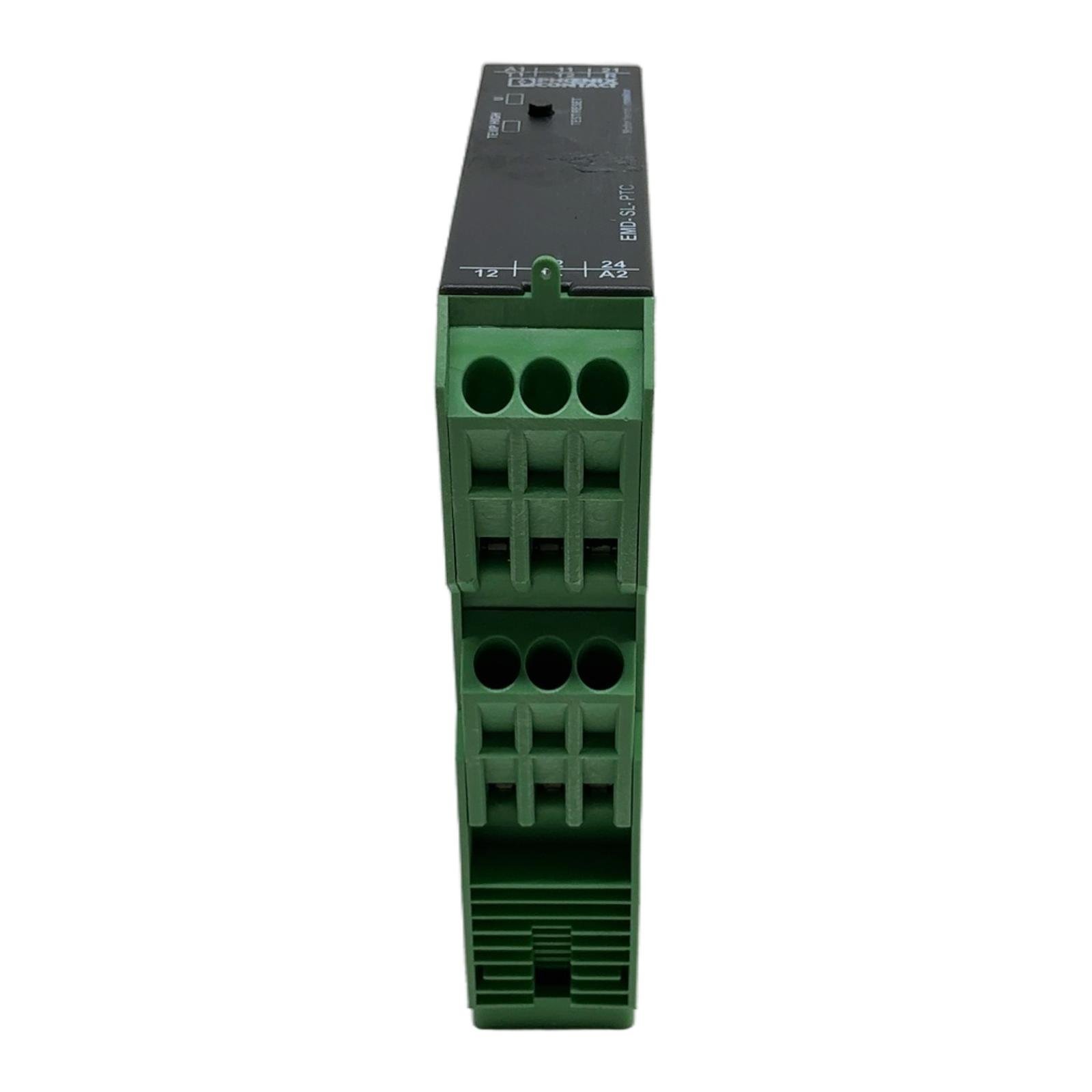

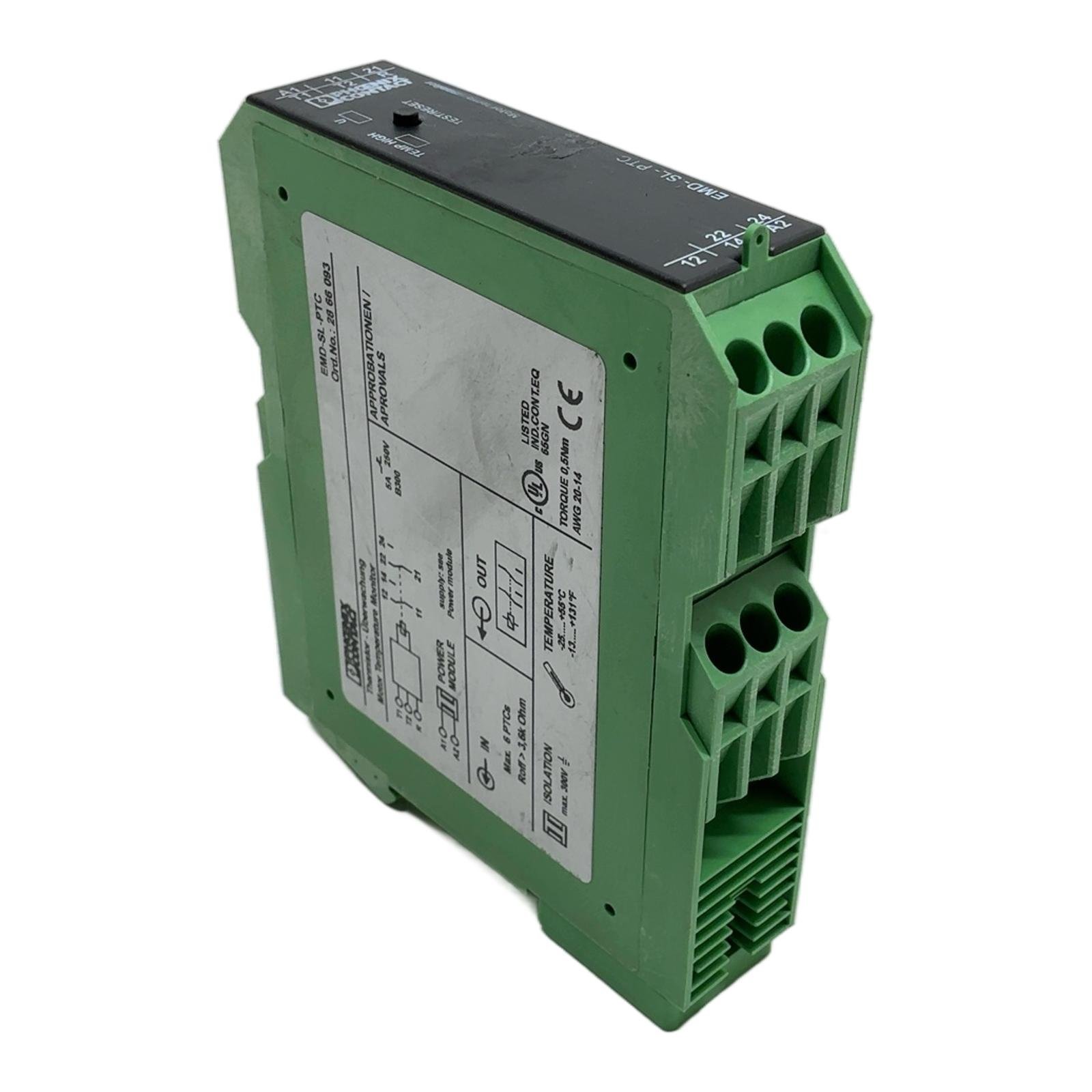

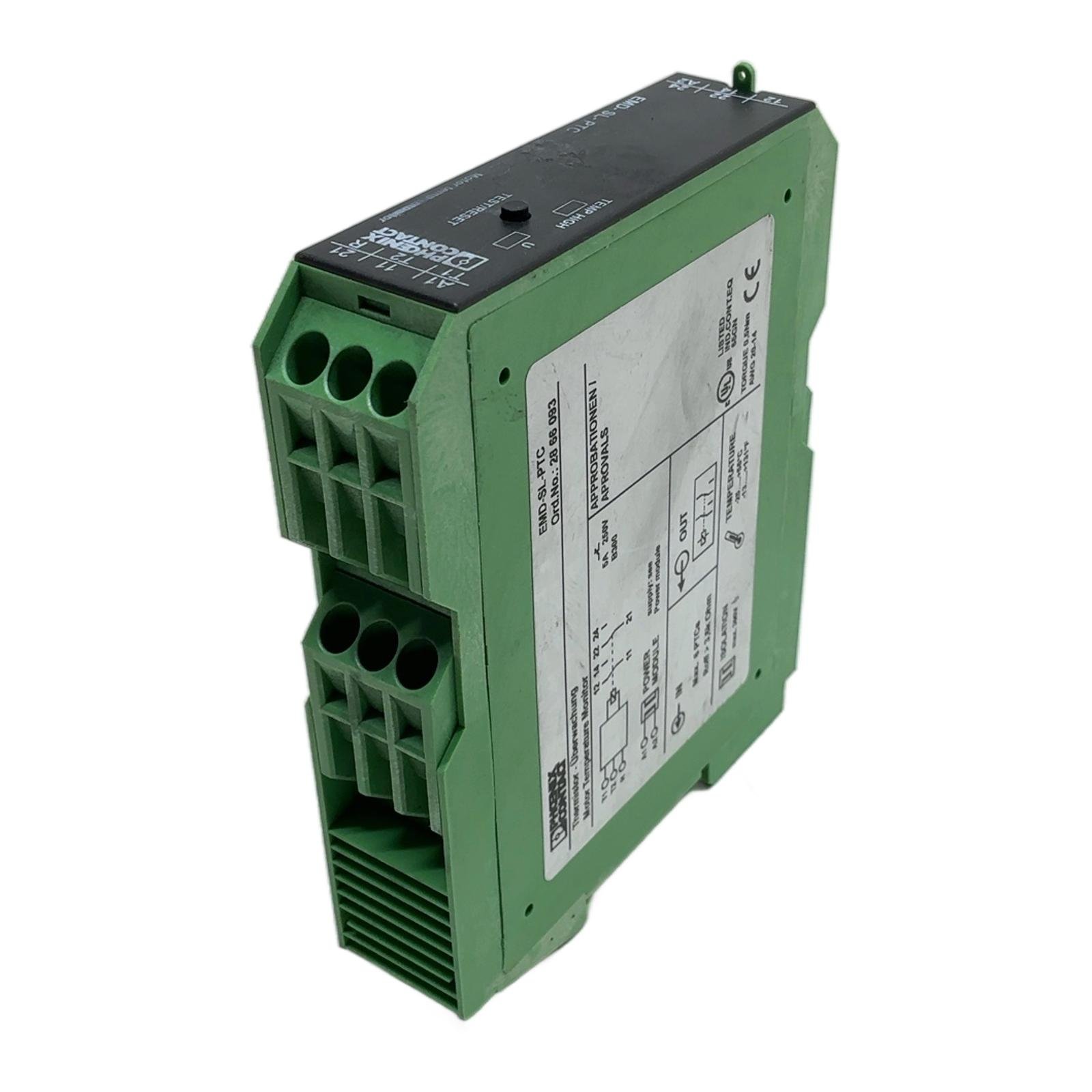

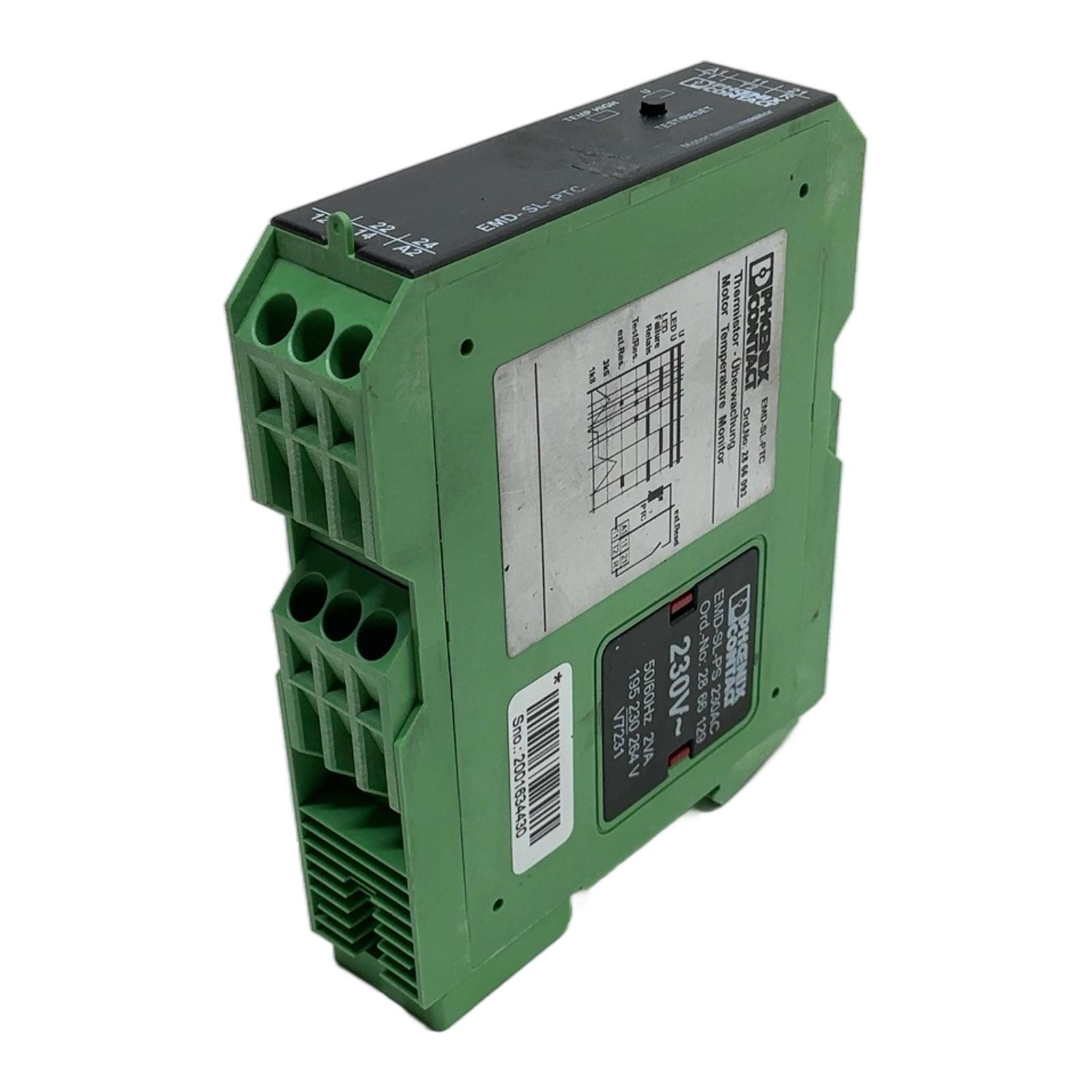

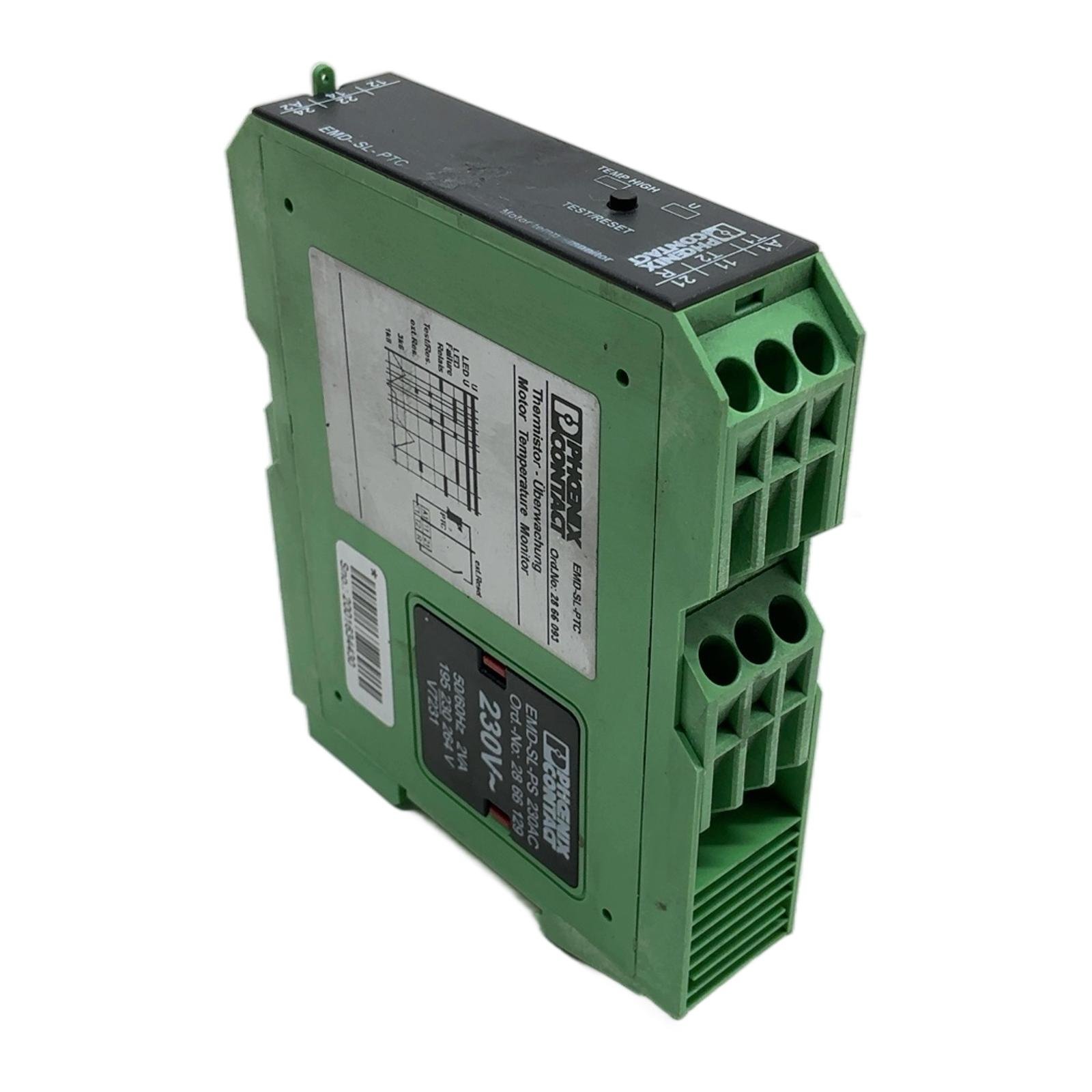

Phoenix Contact EMD-SL-PTC Motor Temperature Monitoring Relay Description This is the EMD-SL-PTC thermistor monitoring relay from Phoenix Contact, a crucial component for motor protection. It accurately monitors the temperature of motor windings using PTC sensors. This unit comes complete with the EMD-SL-PS-230AC plug-in power module, making it ready for integration into 230V AC control systems. Designed for DIN rail mounting, it offers a reliable and compact solution to prevent motor damage due to overheating. Specifications Manufacturer: Phoenix Contact Type: EMD-SL-PTC Order Number: 28 66 093 Power Module: EMD-SL-PS-230AC (Order No. 28 66 129) Supply Voltage: 230V AC, 50/60Hz Input: For up to 6 PTC sensors in series (Roff > 3.6k Ohm) Output: 1 changeover contact Switching Capacity: 5A / 250V Operating Temperature: -25 deg C to +55 deg C Label Info Serial Number: 2001634430 UL Listed: NO.CONTEQ 65GN Application Ideal for use in industrial automation, manufacturing, and process control to monitor the temperature of electric motors, transformers, and other equipment susceptible to overheating. It plays a vital role in preventative maintenance and machine safety protocols. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned component, you are helping to avoid the emission of approximately 4.0 kg of CO2, which is associated with the production of a new unit. This is comparable to the CO2 savings from driving a car for 20 km. Availability This product is an obsolete item but is available from our stock. It is a reliable spare part for existing installations. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the EMD-SL-PTC and its successor, the EMD-FL-PTC-280?The EMD-FL-PTC-280 is a more modern design, featuring a narrower housing (only 17.5 mm wide), enhanced diagnostics via LEDs, and a wider temperature range. However, the core function of monitoring PTC thermistors is identical. Can I use a different power supply module with the EMD-SL-PTC base unit?Yes, the EMD-SL-PTC base is compatible with various plug-in power modules from the Phoenix Contact EMD-SL-PS… series. This allows you to adapt the unit for different supply voltages, such as 24V DC or 120V AC, simply by swapping the module. How do I correctly connect PTC thermistors to this relay and what does ‘Max. 6 PTCs’ mean?The PTC sensors must be connected in series across terminals T1 and T2. The ‘Max. 6 PTCs’ specification means that the total cold resistance of all series-connected thermistors should not exceed the standard limit, which is typically under 1.5 kOhm. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
