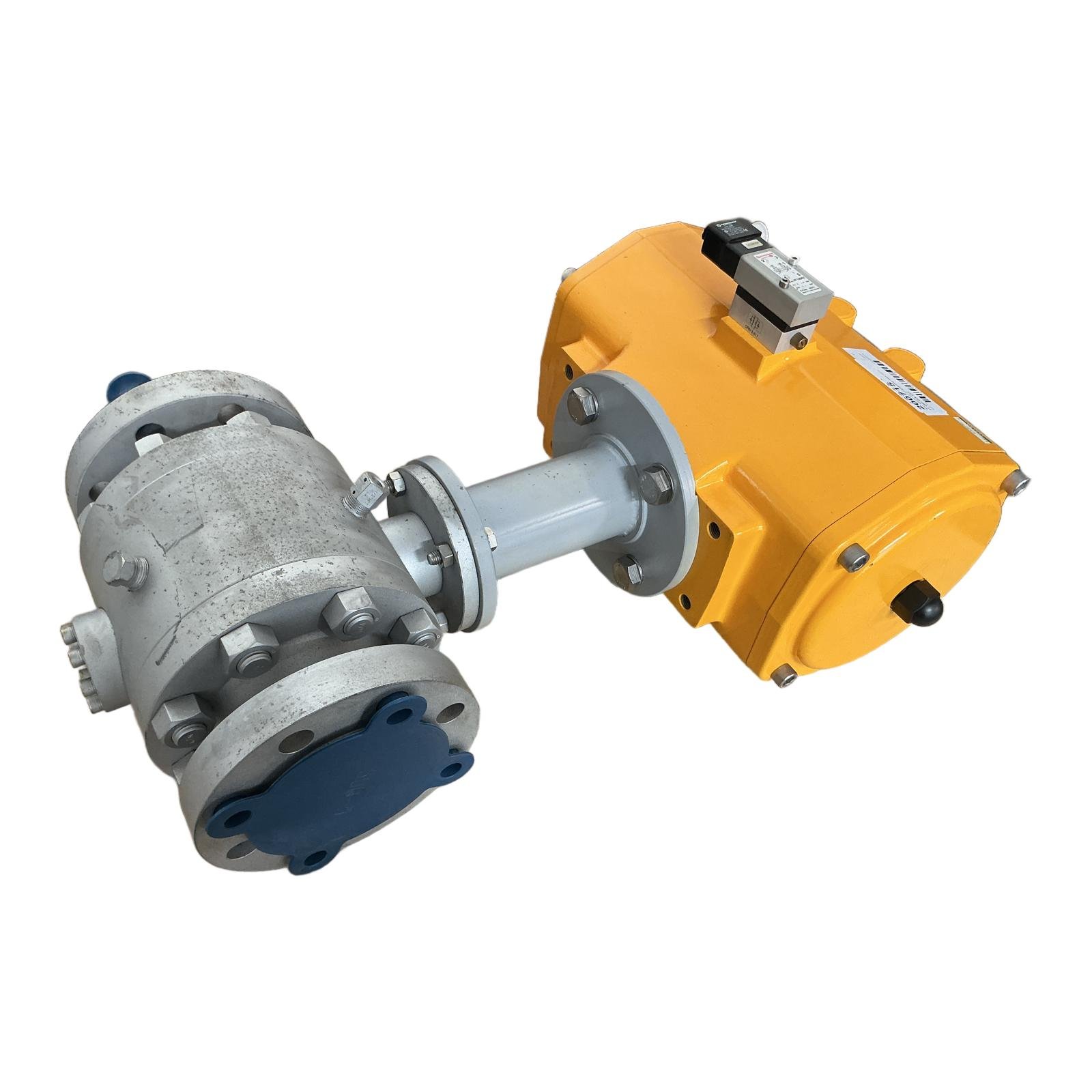

EL-O-MATIC ED1600.H1A00A.00N0 Actuator with Ball Valve 3″ Class 600 – 6060LIM80L

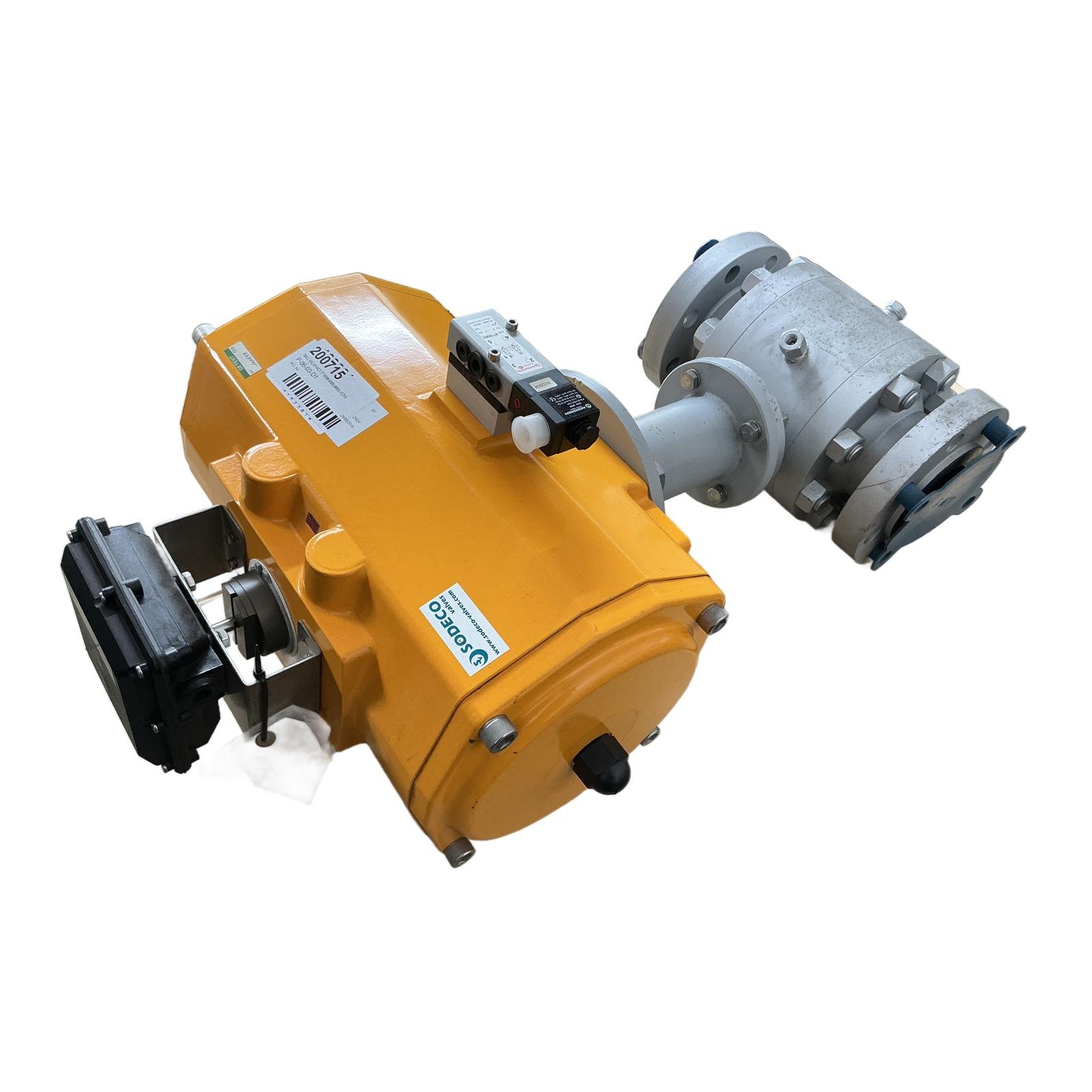

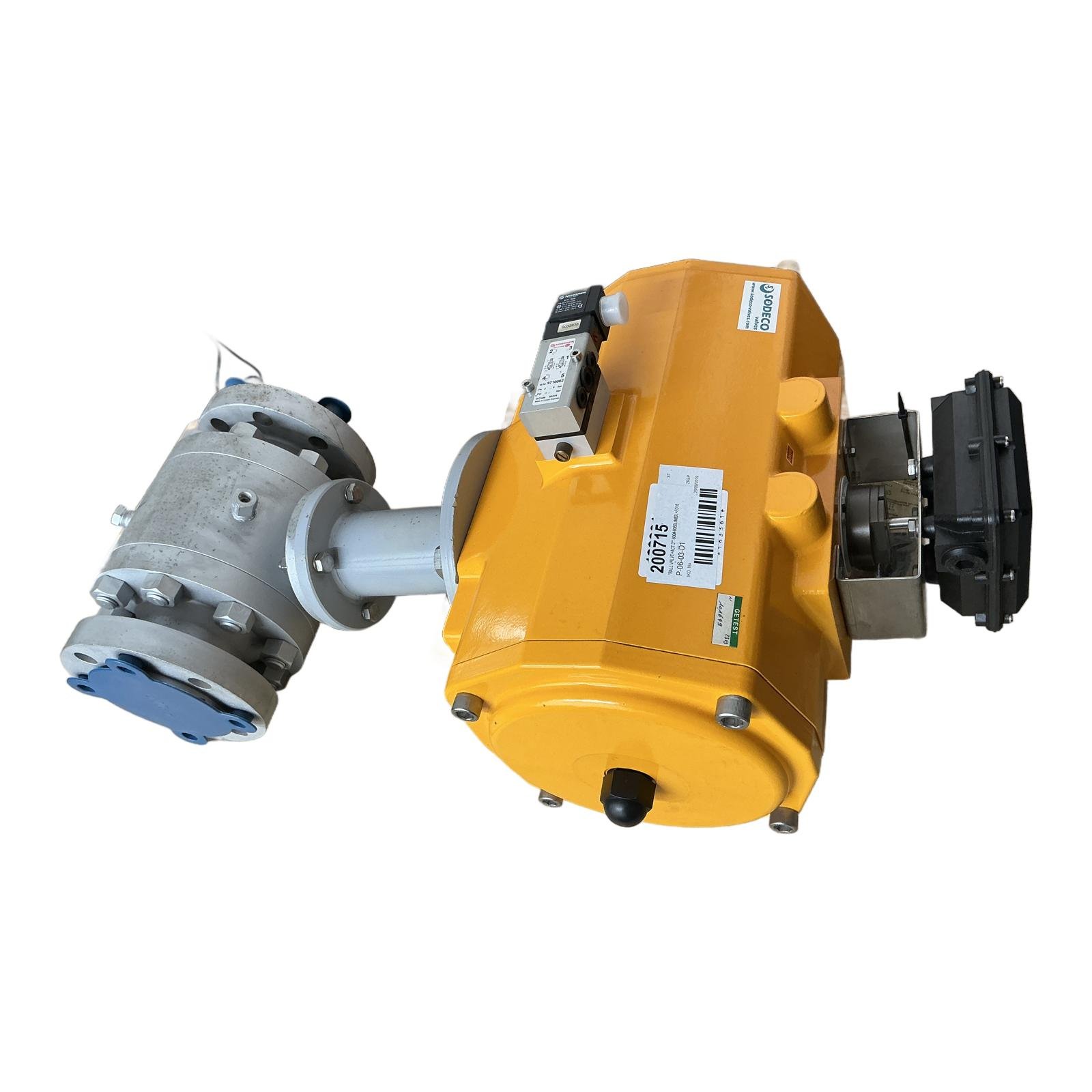

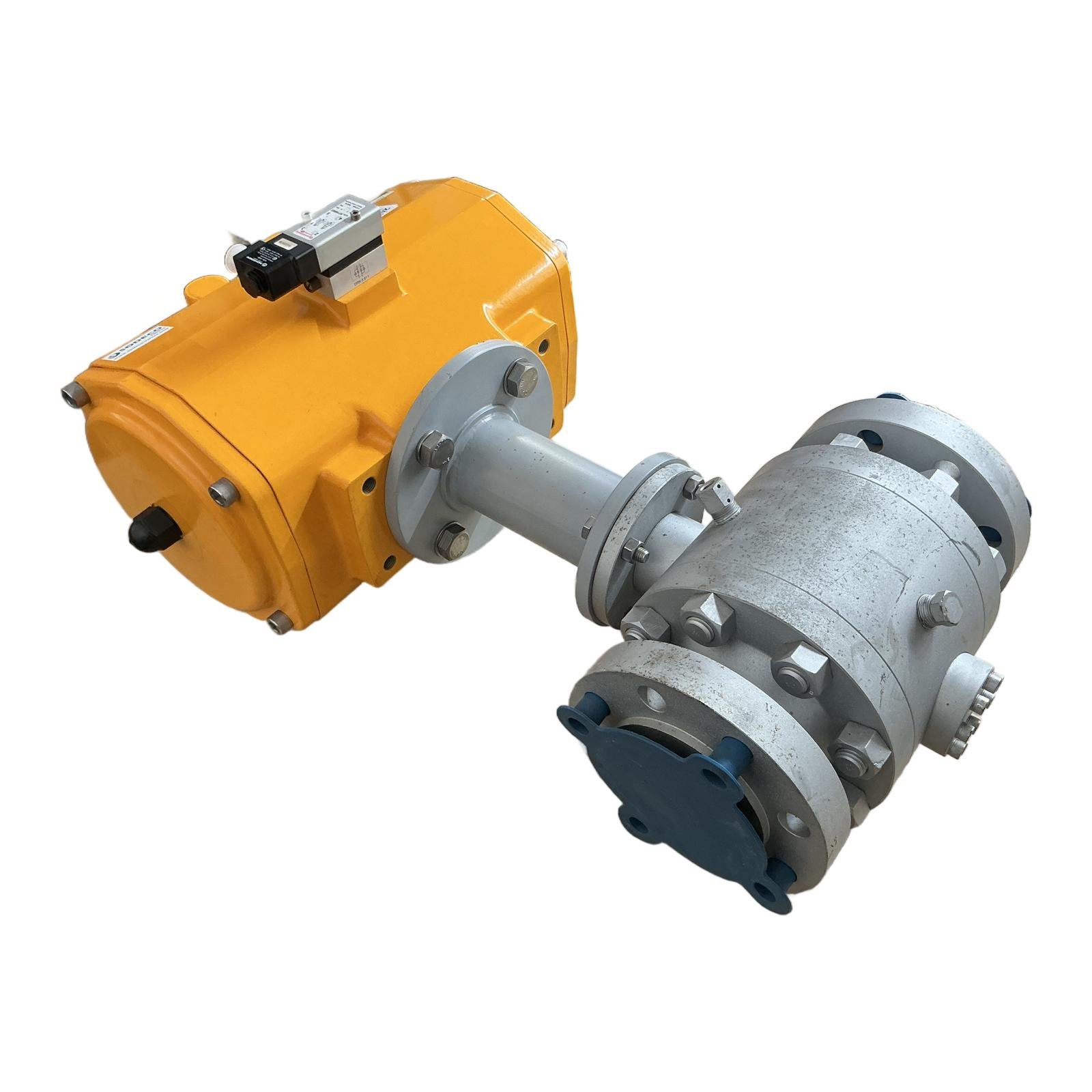

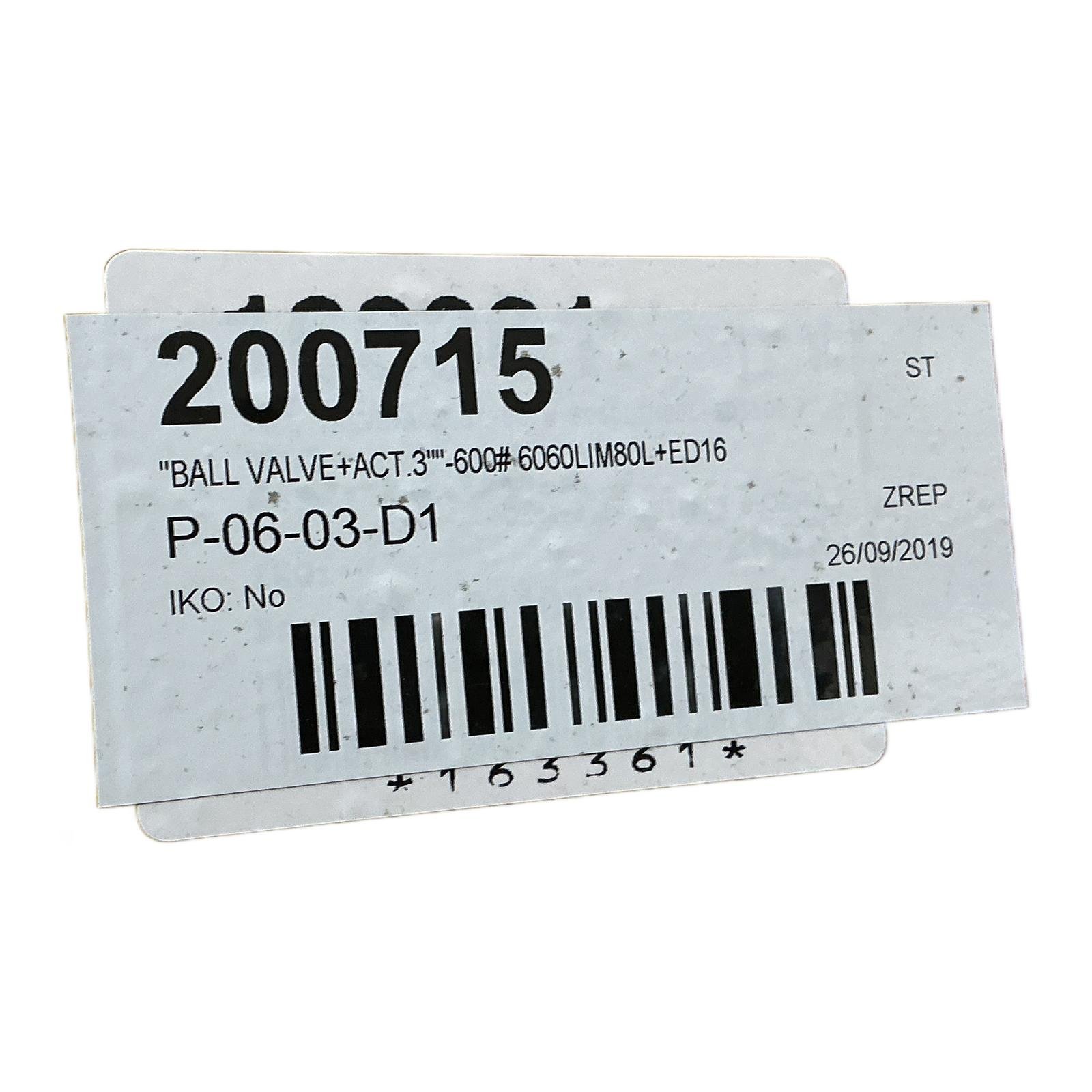

El-O-Matic ED1600 Pneumatic Actuator with 3″ 600# Ball Valve Description This is a complete, pre-assembled pneumatic valve unit featuring a powerful El-O-Matic ED1600 actuator and a 3-inch, high-pressure ball valve. As a leading brand within Emerson, El-O-Matic is known for its durable and reliable scotch-yoke actuators. This double-acting model provides precise control for opening and closing the valve. The unit is ATEX certified, making it safe for use in hazardous environments. It is an ideal solution for process control in oil and gas, chemical, and power generation industries. Specifications Manufacturer: El-O-Matic (Emerson) Actuator Model: ED1600.H1A00A.00N0 Actuation Type: Pneumatic, Double-Acting Valve Size: 3 Inch Valve Pressure Class: ANSI 600# Maximum Actuator Pressure: 8 bar (113 PSI) ATEX Certification: II 2 GD c IIC TX Ambient Temperature Range: -20 deg C to +80 deg C Label Info Actuator Type: ED1600.H1A00A.00N0 Serial Number: 356604002 /14 Assembly ID: P-06-03-D1 Assembly Description: “BALL VALVE+ACT.3″”-600# 6060LIM80L+ED16″ Application Designed for heavy-duty automated flow control in high-pressure pipelines. Suitable for applications requiring robust and reliable quarter-turn valve operation in industries such as chemical processing, oil & gas production, and power plants. Country of Origin The actuator is made in Malaysia by Emerson. CO2 Impact Choosing this refurbished assembly over a new one saves approximately 850 kg of CO2 emissions, a significant contribution to sustainable industrial practices. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the function of the small ASCO solenoid valve on top of the actuator? The ASCO solenoid valve is a pilot valve. It directs the compressed air into the correct ports of the El-O-Matic actuator to either open or close the main ball valve, allowing for electrical control of the pneumatic system. Question?What does the ‘600#’ or ‘ANSI Class 600’ rating on the ball valve mean? This is a pressure-temperature rating defined by the American National Standards Institute (ANSI). It indicates the valve is designed for high-pressure applications, with the maximum allowable pressure depending on the operating temperature. A Class 600 valve is significantly more robust than a lower class like 150# or 300#. Question?Is this a spring-return or double-acting actuator? The El-O-Matic model number ED1600 indicates it is a Double-Acting (‘D’) actuator. This means it requires compressed air to both open and close the valve, offering precise control in both directions. It does not have a spring to automatically return it to a fail-safe position. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
