FESTO DSNU-16-20-PPV-A 14320

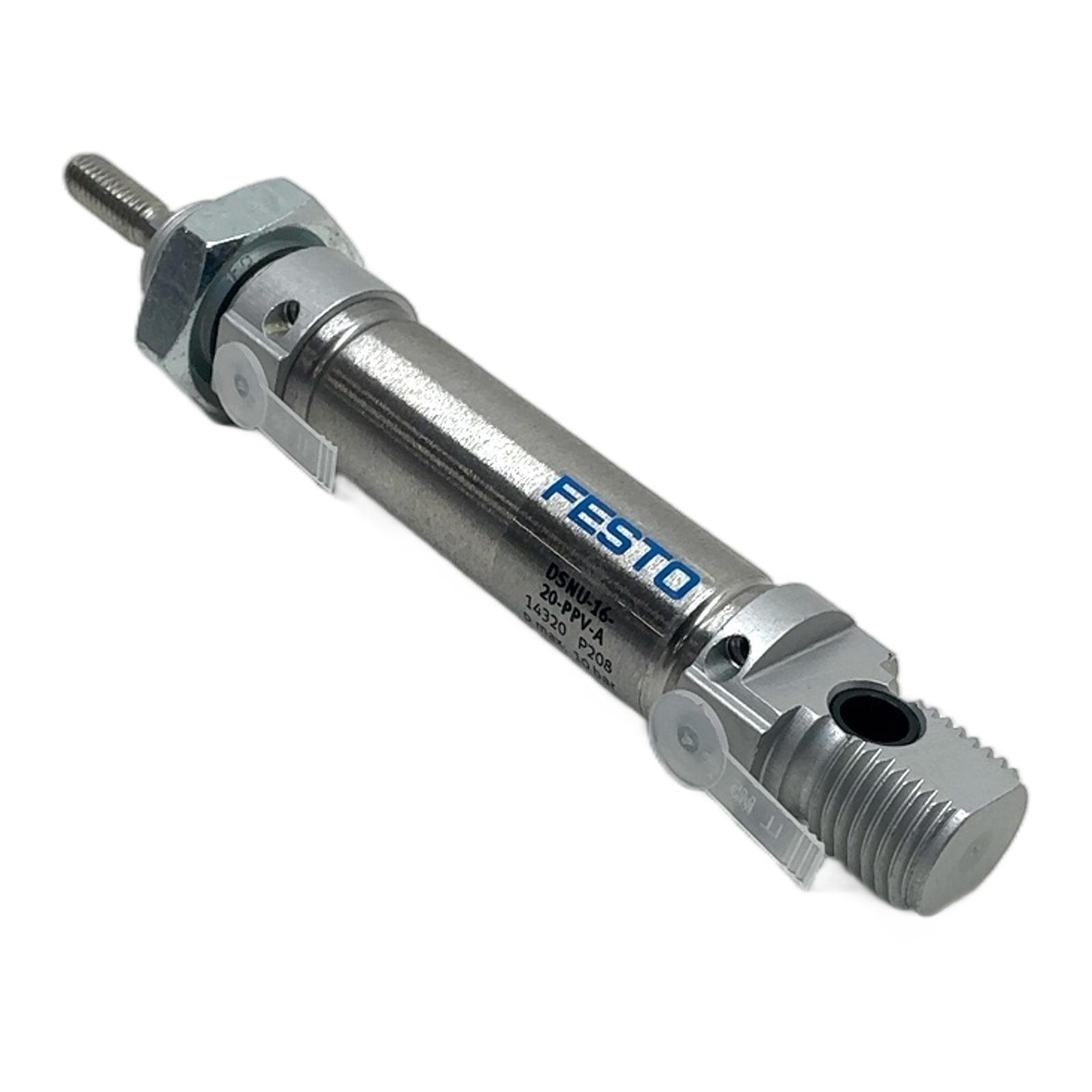

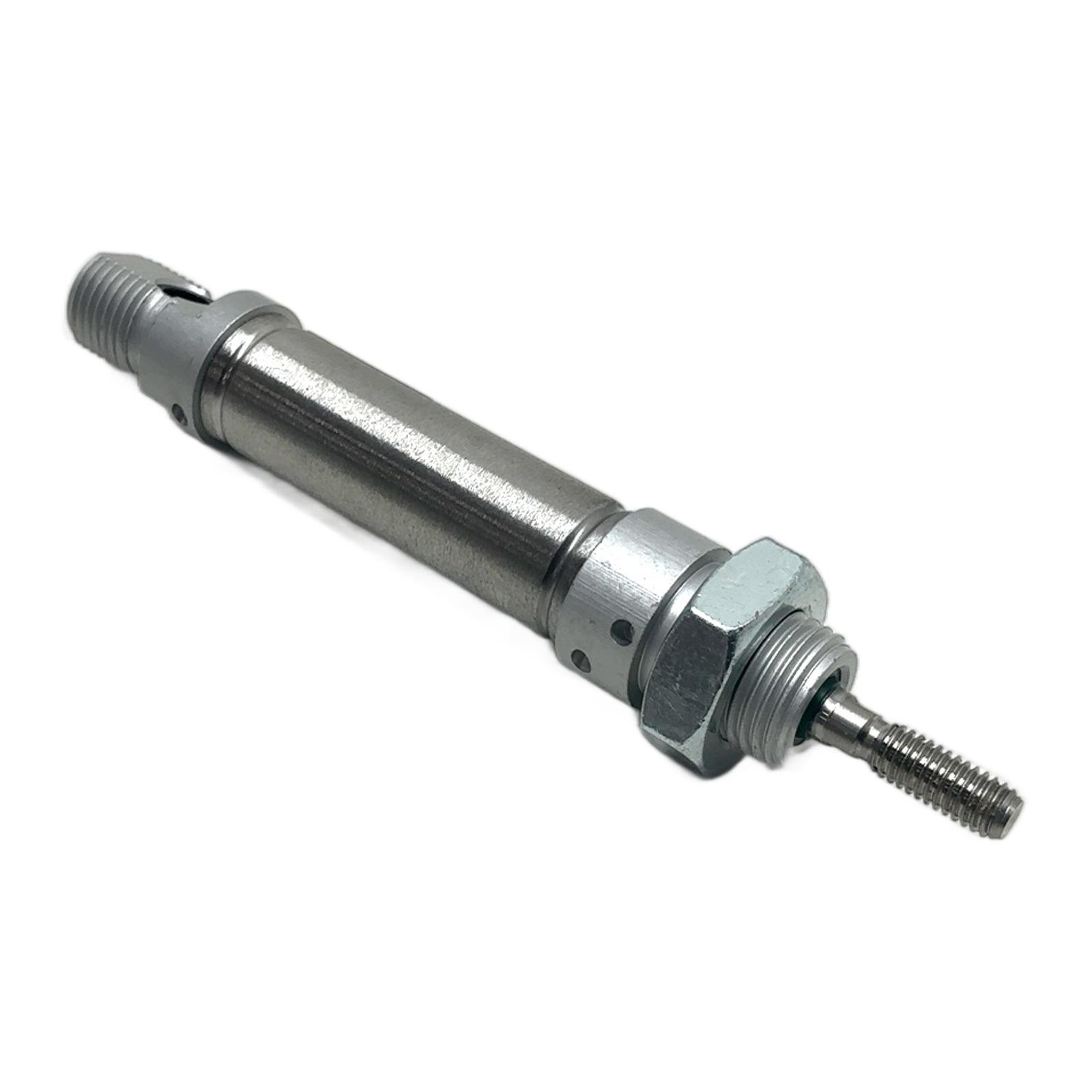

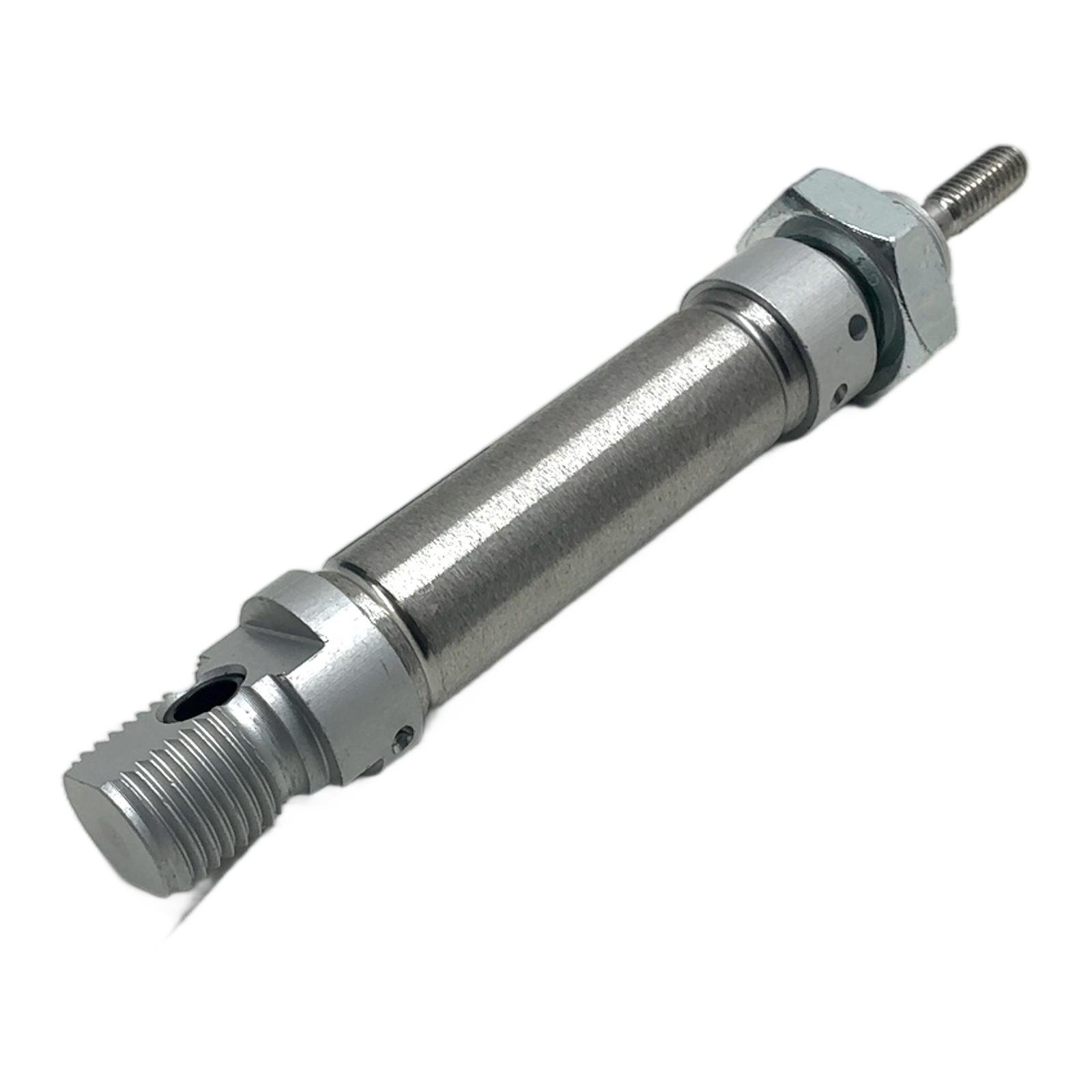

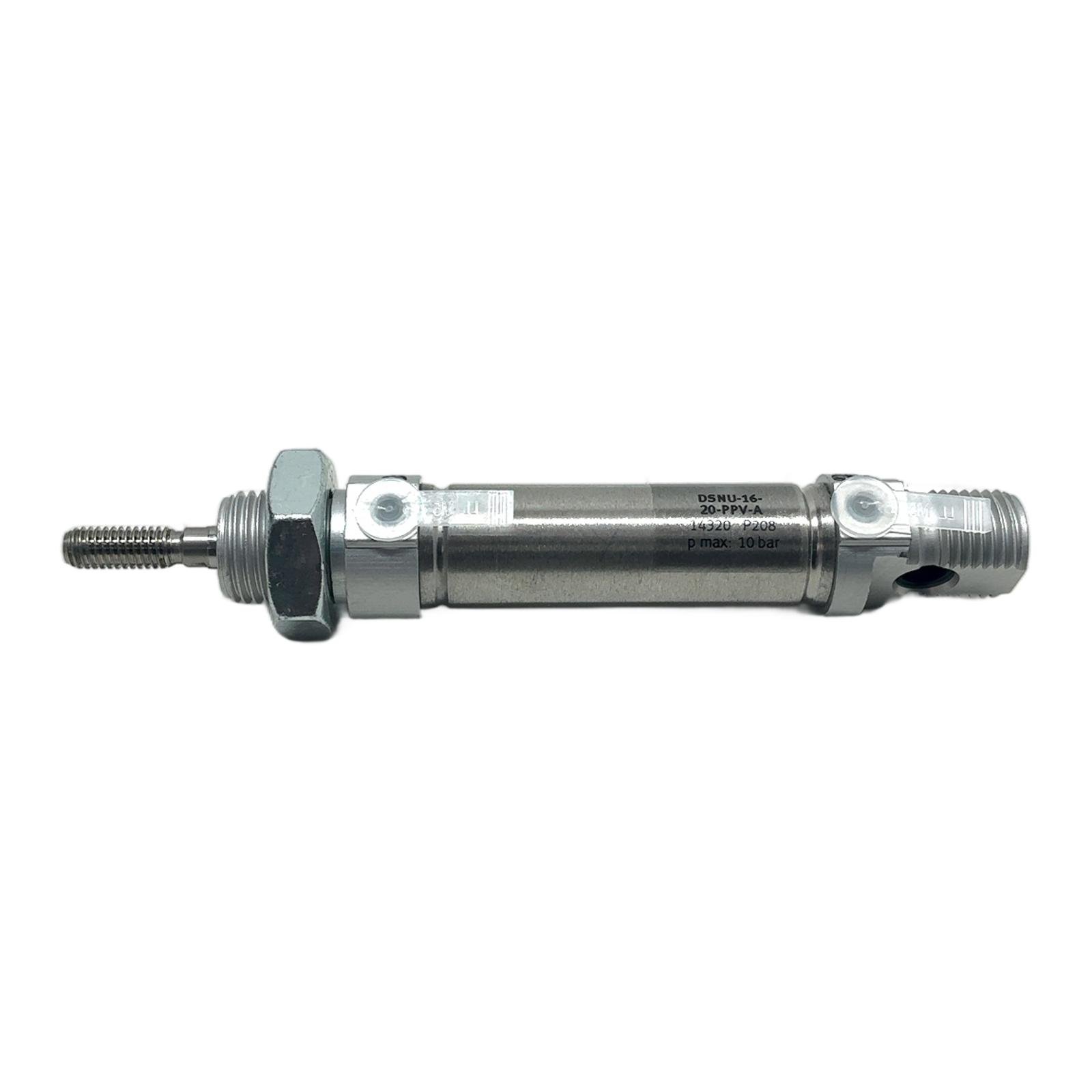

Festo DSNU Series Pneumatic Cylinder Description This is a DSNU-16-20-PPV-A round cylinder from Festo, a leading manufacturer in automation technology. It is a double-acting cylinder designed according to the ISO 6432 standard, ensuring interchangeability and high performance. With a 16 mm piston diameter and a 20 mm stroke, it is suitable for a variety of industrial applications requiring precise linear motion. Specifications Manufacturer: Festo Type: DSNU-16-20-PPV-A Part Number: 14320 Action: Double-acting Piston Diameter: 16 mm Stroke: 20 mm Cushioning: Adjustable pneumatic cushioning at both ends (PPV) Position Sensing: With magnet for proximity sensors (-A) Maximum Operating Pressure: 10 bar Standard: Conforms to ISO 6432 Piston Rod Thread: M6 Label Info Brand: FESTO Model: DSNU-16-20-PPV-A Part Nr: 14320 Series Code: P208 Max Pressure: p max: 10 bar Application Ideal for use in sorting, clamping, feeding, and general handling tasks within factory automation, packaging machinery, and material handling systems where space is limited but reliable actuation is critical. Country of Origin This product is manufactured by Festo in Germany. CO2 Impact By purchasing this reconditioned cylinder, you avoid the production of a new one, saving an estimated 0.7 kg of CO2. This saving is comparable to the emissions from driving a standard car for 3.5 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the purpose of the ‘PPV’ designation in the model number?PPV stands for adjustable pneumatic cushioning at both ends. This feature allows you to control the deceleration of the piston at the end of its stroke by adjusting small screws on the end caps. It prevents hard impacts, reduces noise and vibration, and allows for higher operating speeds. What kind of sensor is compatible with the ‘-A’ feature of this cylinder?The ‘-A’ signifies that the cylinder’s piston contains a permanent magnet. This allows for contactless position sensing using magnetic proximity sensors, such as Festo’s SME or SMT series sensors, which can be mounted on the cylinder body. What is the piston rod thread size for this DSNU-16 cylinder?According to the ISO 6432 standard for this bore size, the male piston rod thread is M6. This is important for connecting attachments, clevises, or other mechanical linkages to the cylinder. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
