FESTO DNU-63-160-PPV-A 14160

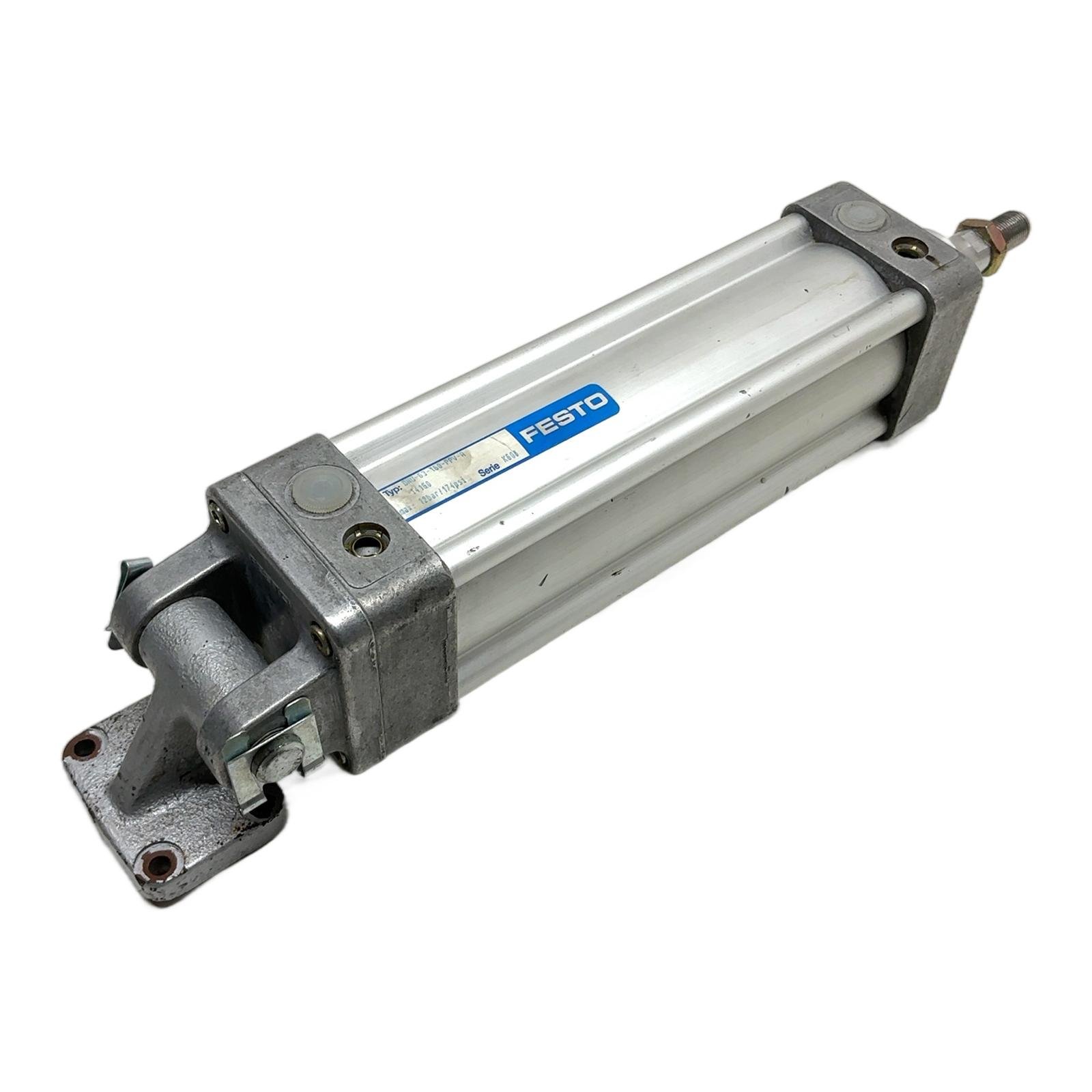

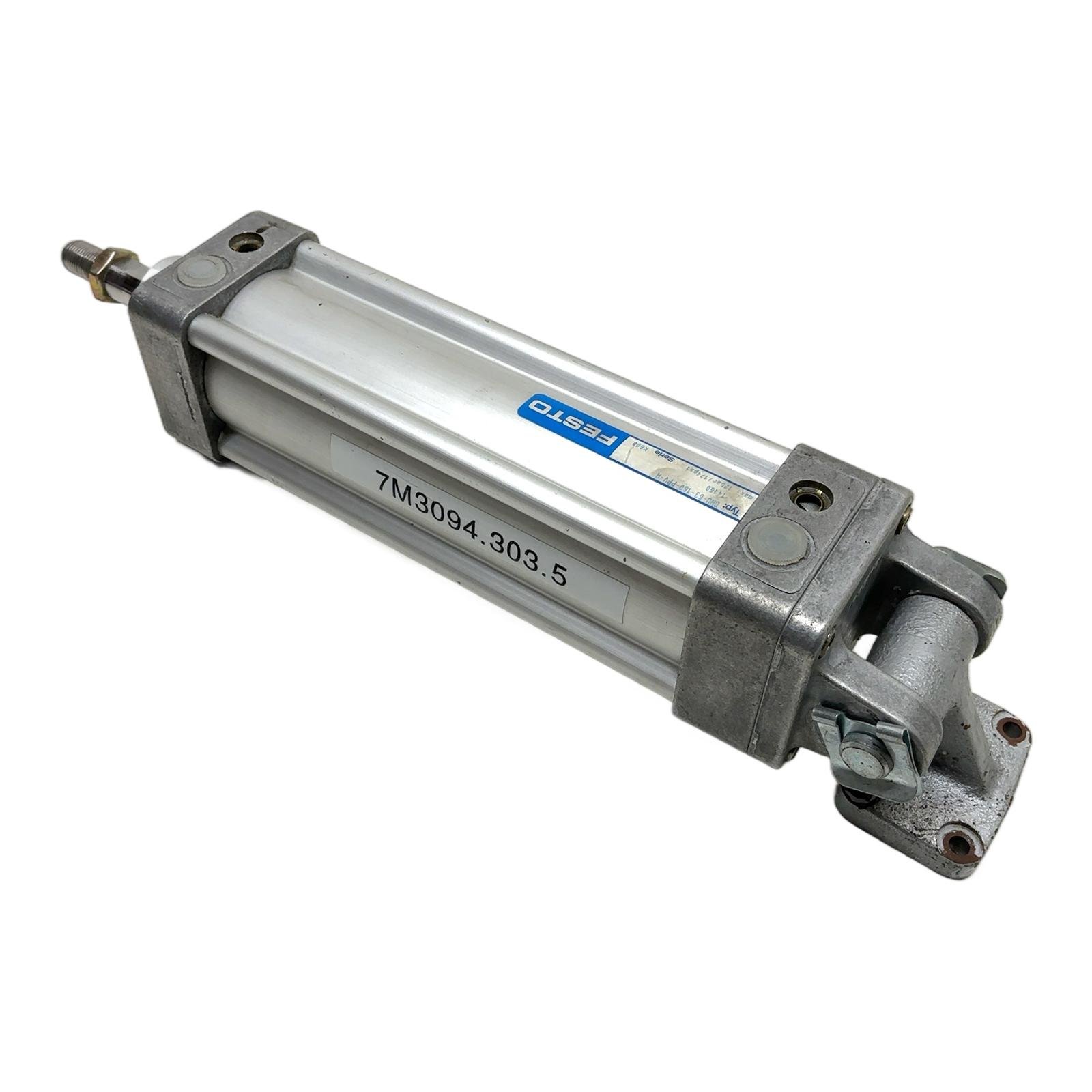

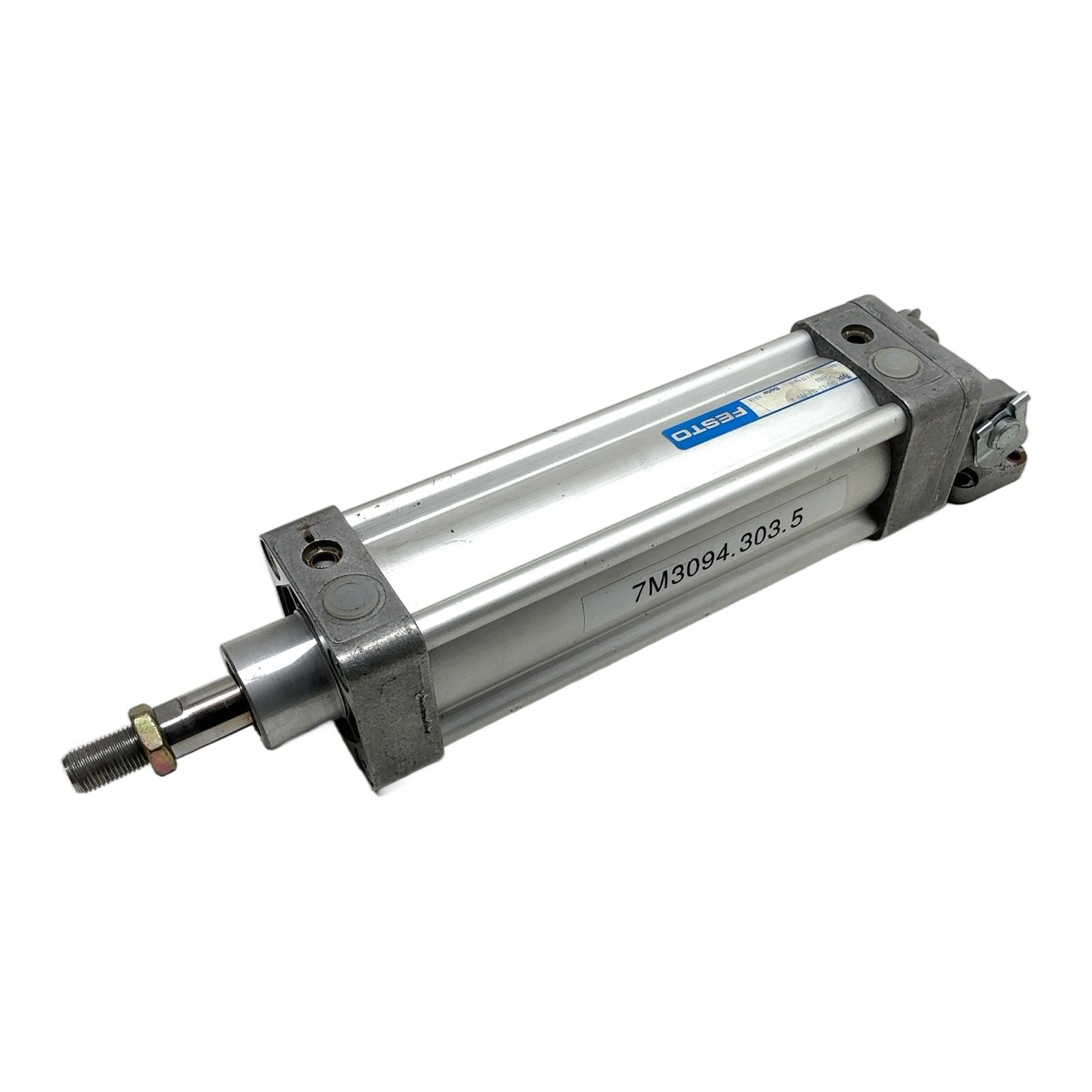

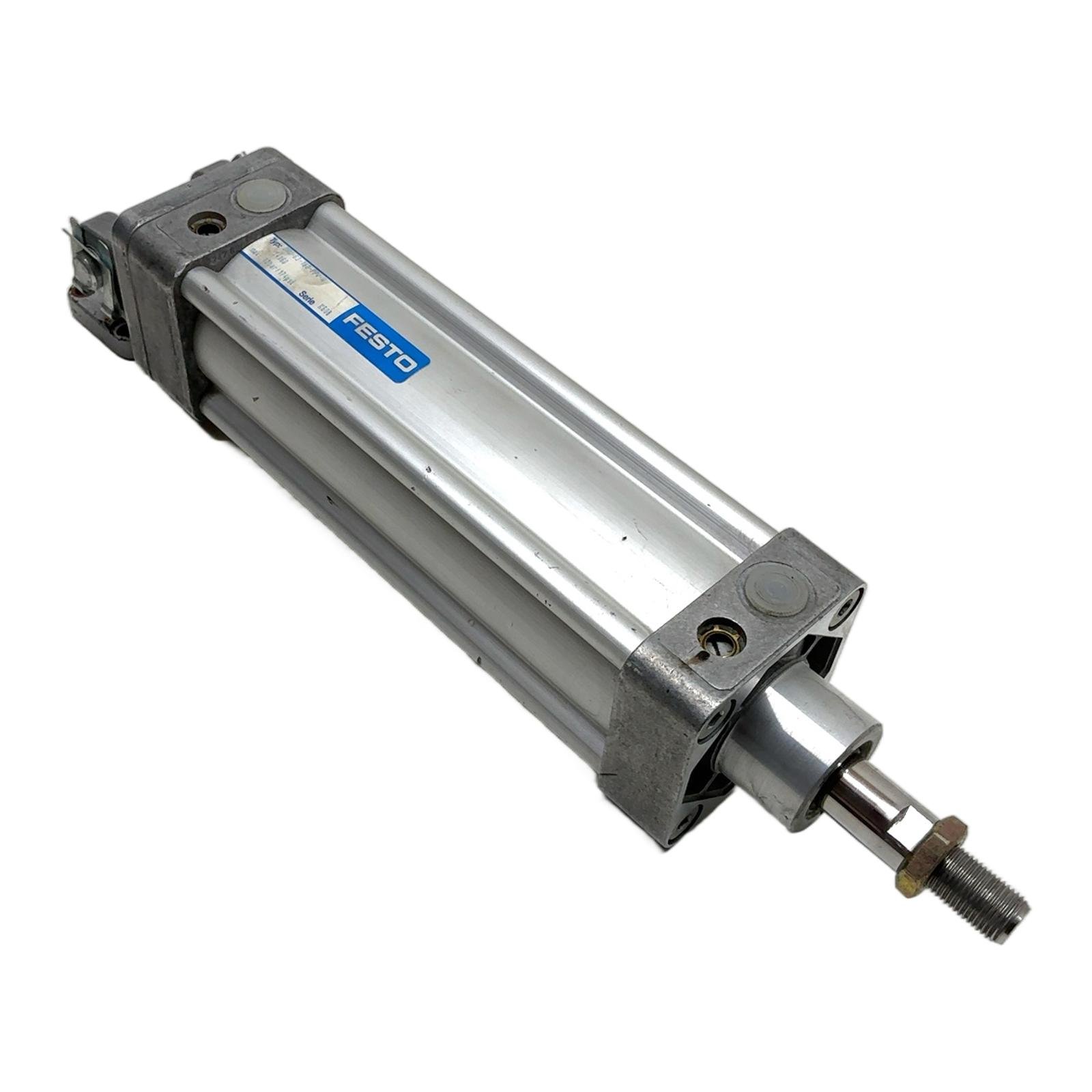

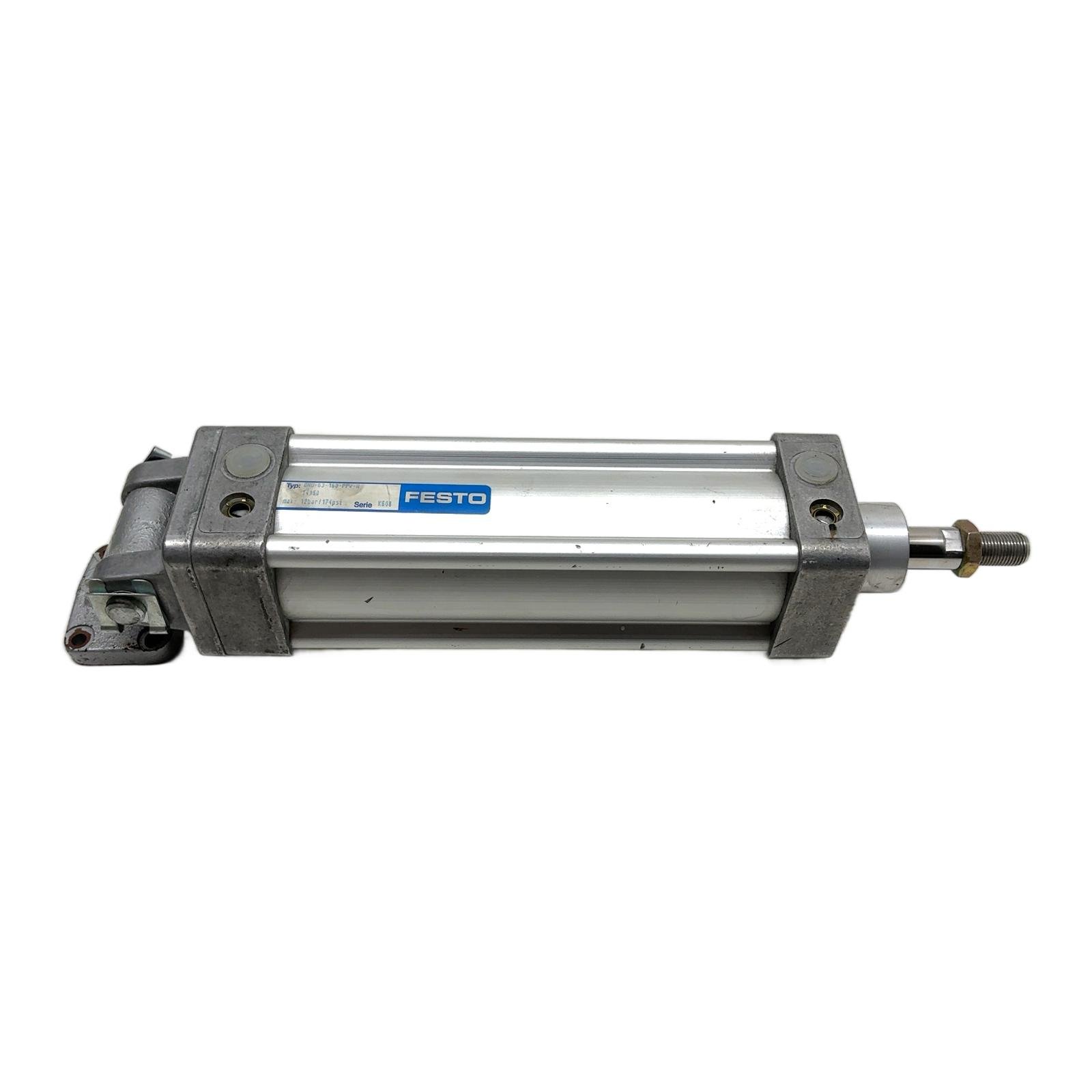

Festo DNU-63-160-PPV-A Pneumatic Standard Cylinder Description The Festo DNU-63-160-PPV-A is a high-quality, double-acting pneumatic standard cylinder designed for a wide array of industrial automation applications. Built to ISO 6431 and VDMA 24562 standards, it ensures compatibility and interchangeability. This cylinder features adjustable pneumatic cushioning at both ends, which allows for precise control over deceleration, reducing mechanical shock and noise. Its robust construction guarantees a long service life even in demanding environments. Specifications Manufacturer: Festo Type: Pneumatic Standard Cylinder Model: DNU-63-160-PPV-A Part Number: 14160 Piston Diameter (Bore): 63 mm Stroke Length: 160 mm Operating Principle: Double-acting Cushioning: PPV (Adjustable pneumatic cushioning at both ends) Maximum Operating Pressure: 12 bar / 174 psi Standard Conformity: ISO 6431, VDMA 24562 Label Info Typ: DNU-63-160-PPV-A Part No: 14160 max: 12bar/174psi Serie: K608 Application This cylinder is ideal for linear motion tasks such as positioning, clamping, pressing, and material handling in automated systems, machine building, and process industries. Country of Origin Made in Germany. CO2 Impact Choosing this used component saves an estimated 25.0 kg of CO2 compared to a new one, contributing to a more sustainable industrial operation. Availability This is an obsolete item but is available from our stock. The modern equivalent from Festo is the DSBC series. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ‘PPV’ designation in the model number DNU-63-160-PPV-A?The ‘PPV’ in Festo’s nomenclature stands for adjustable pneumatic cushioning at both ends of the cylinder. This feature allows you to fine-tune the speed of the piston at the end of its stroke, reducing impact and noise, which extends the life of the cylinder and the machine. Is this DNU cylinder compatible with modern Festo proximity sensors?Yes, the DNU series features T-slots on its profile barrel designed for mounting Festo proximity sensors. It is compatible with modern Festo sensor series like the SMT-8M, which can be easily inserted into the slots to detect the piston’s position. What are the standard mounting options for an ISO 6431 cylinder like this one?As an ISO 6431 standard cylinder, the DNU-63-160-PPV-A supports a wide range of standard mountings. These include foot mounts, flange mounts, and clevis brackets for the rear end, as well as various piston rod attachments like rod eyes and clevises. The cylinder in the image is shown with a rear clevis foot mount attached. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
