KIESELMANN DN26 304/1.4301 DIN 11864-1 DN25 25.4″1.65

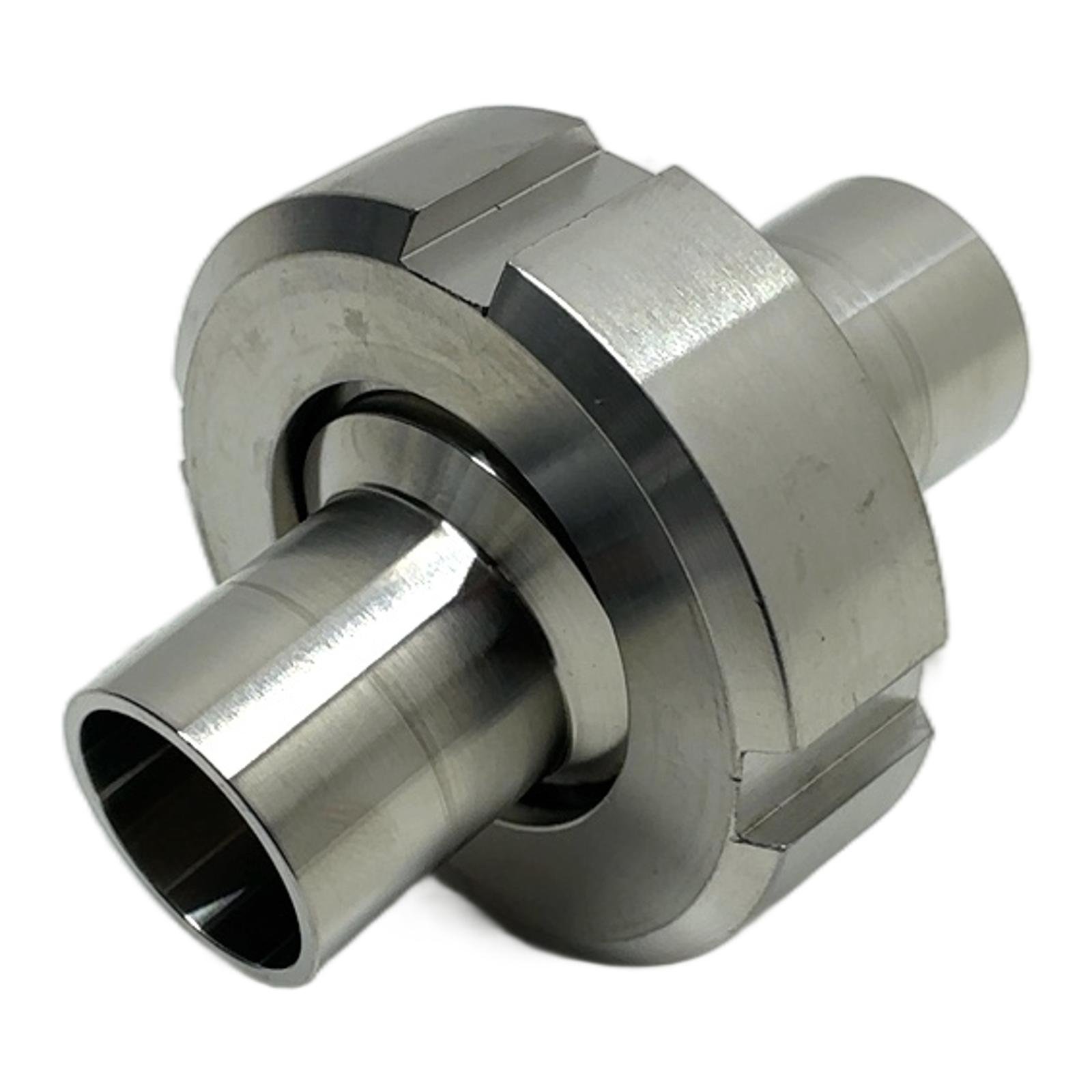

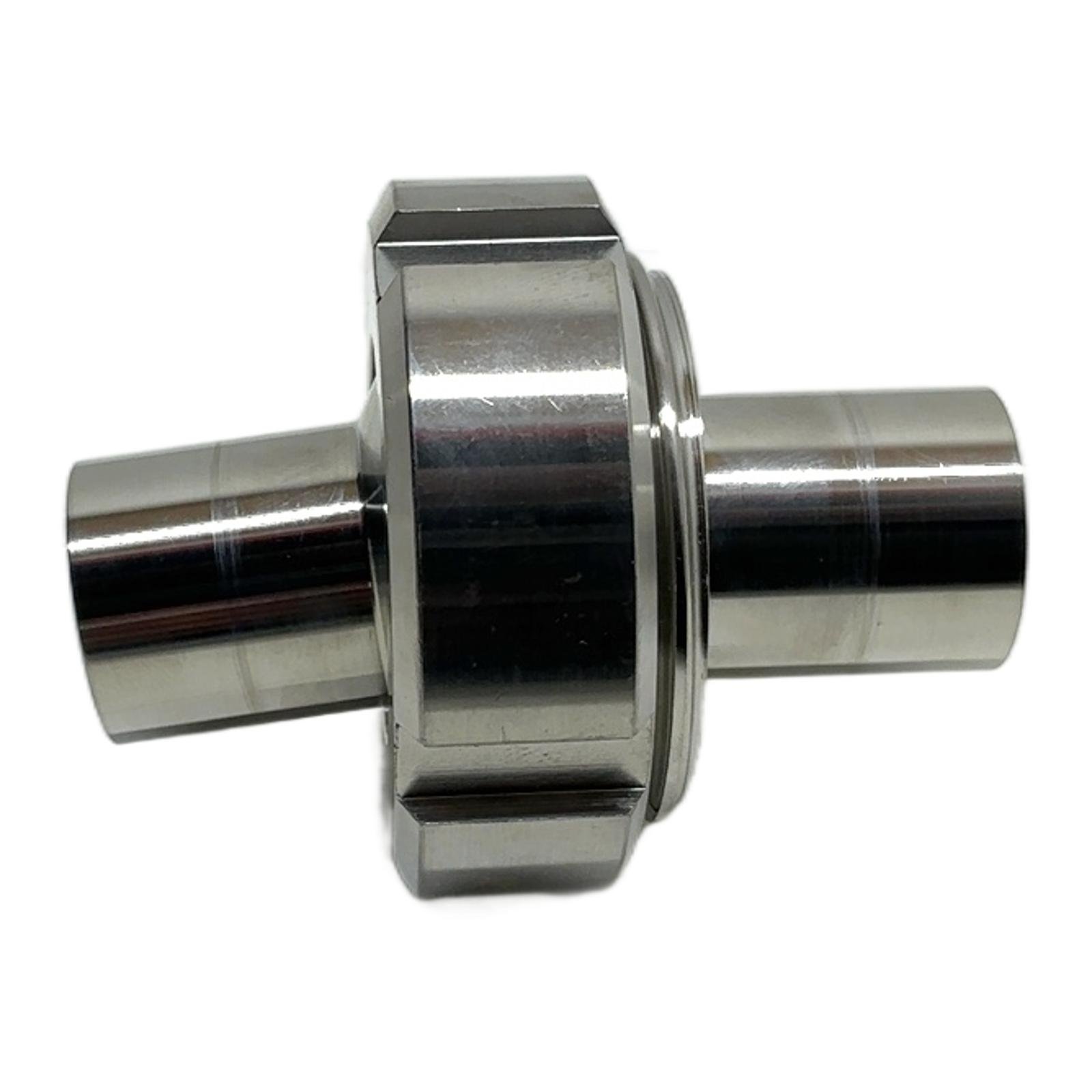

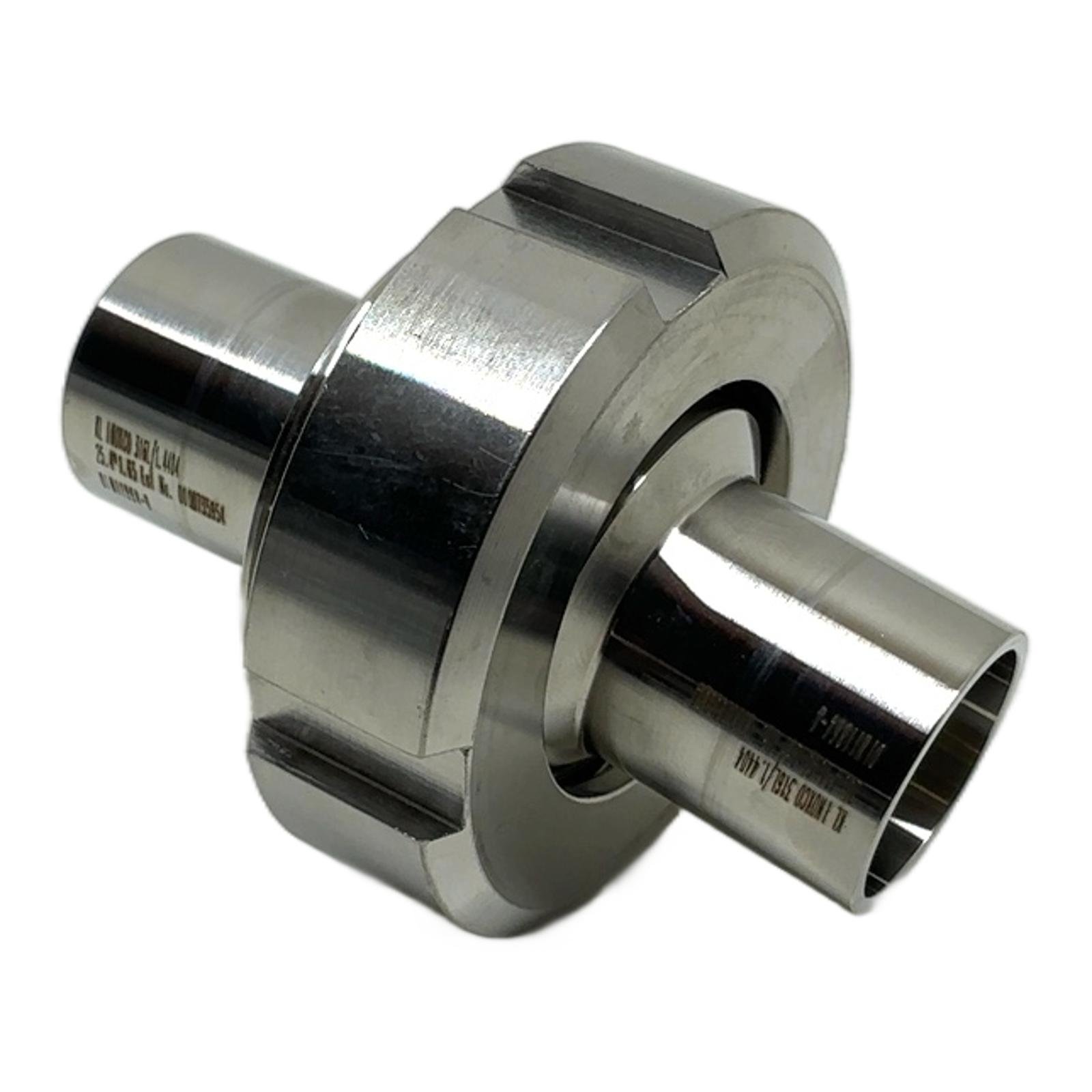

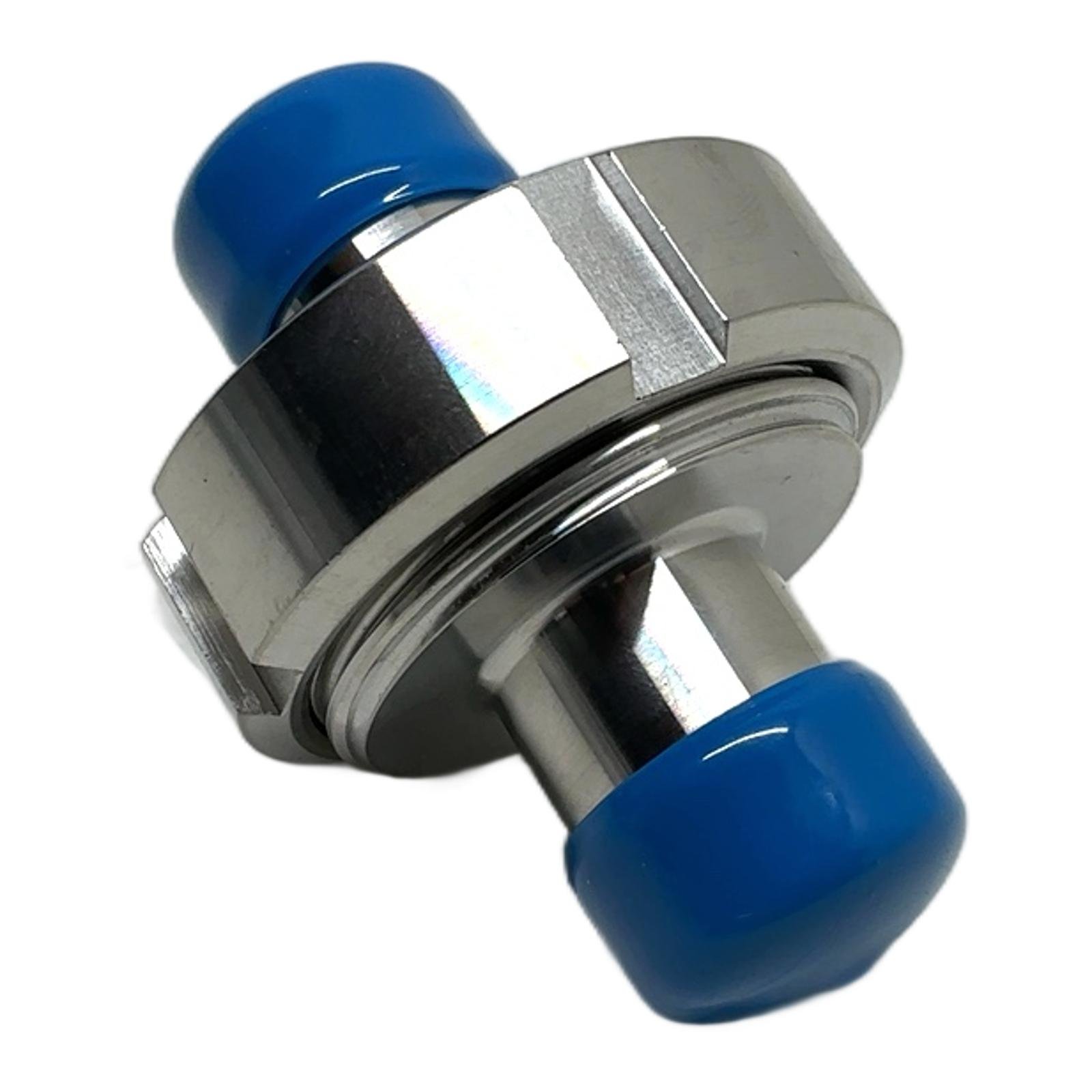

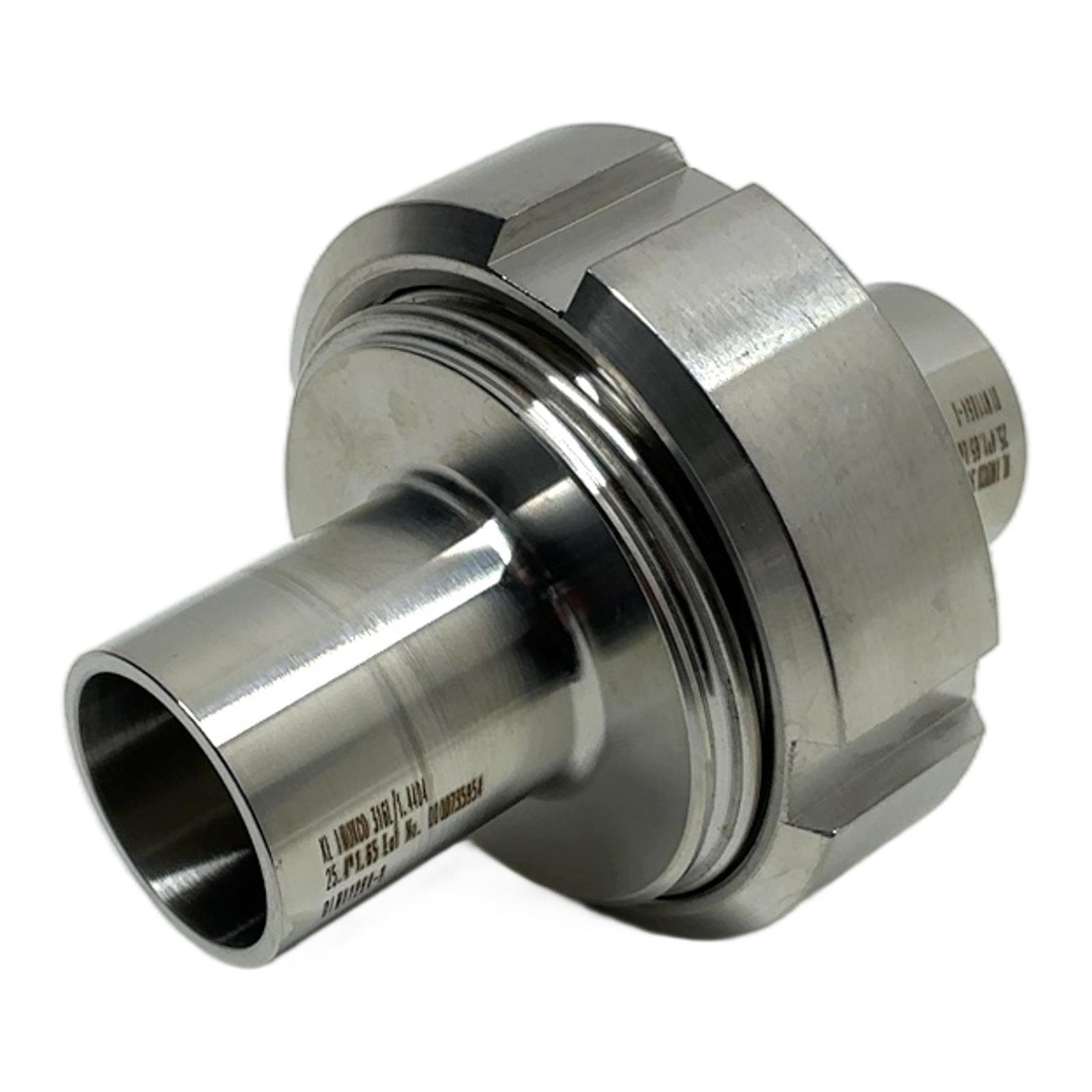

Kieselmann DIN 11864-1 Aseptic Pipe Union Description This is a high-quality aseptic screwed pipe union from Kieselmann, designed for sterile applications in the food, pharmaceutical, and biotechnology industries. It complies with the DIN 11864-1 standard, ensuring a crevice-free and hygienic connection point. The union consists of two weld-on liners and a union nut, manufactured for durability and process integrity. Specifications Standard: DIN 11864-1, Form A (Screwed Pipe Connection) Nominal Size: DN25 / 1 inch Tube Dimensions: 25.4 mm OD x 1.65 mm wall thickness Material (Wetted Parts): Stainless Steel 316L (1.4404) Material (Nut): Stainless Steel 304 (1.4301) Connection Type: Butt-weld ends Label Info Brand: KL INOXCO (Kieselmann) Lot No: 0000735954 Heat No: HT:140519011 Application Ideal for use in aseptic and hygienic process piping systems where easy disconnection for cleaning or maintenance is required, without compromising the sterility of the line. Country of Origin Germany CO2 Impact Choosing this pre-owned component saves an estimated 0.8 kg of CO2 compared to a new production. This is equivalent to the energy needed to charge a modern smartphone 96 times. Availability In stock. Order now from profideals for expert support and fast delivery. FAQ What is the surface roughness (Ra) of the wetted surfaces? Standard aseptic fittings like this typically have an internal surface roughness of Ra
