DOEPKE DLS6 i C16 09916005

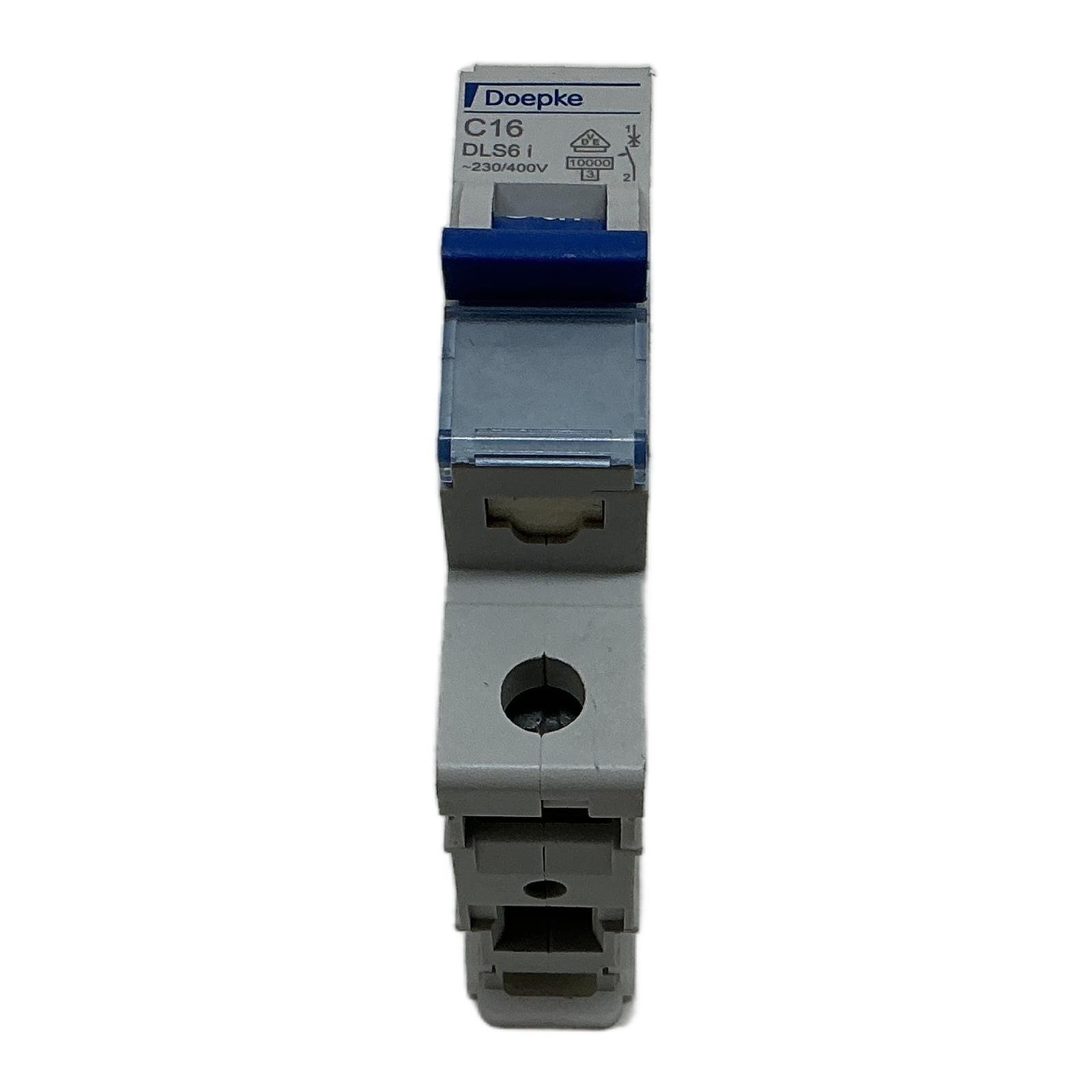

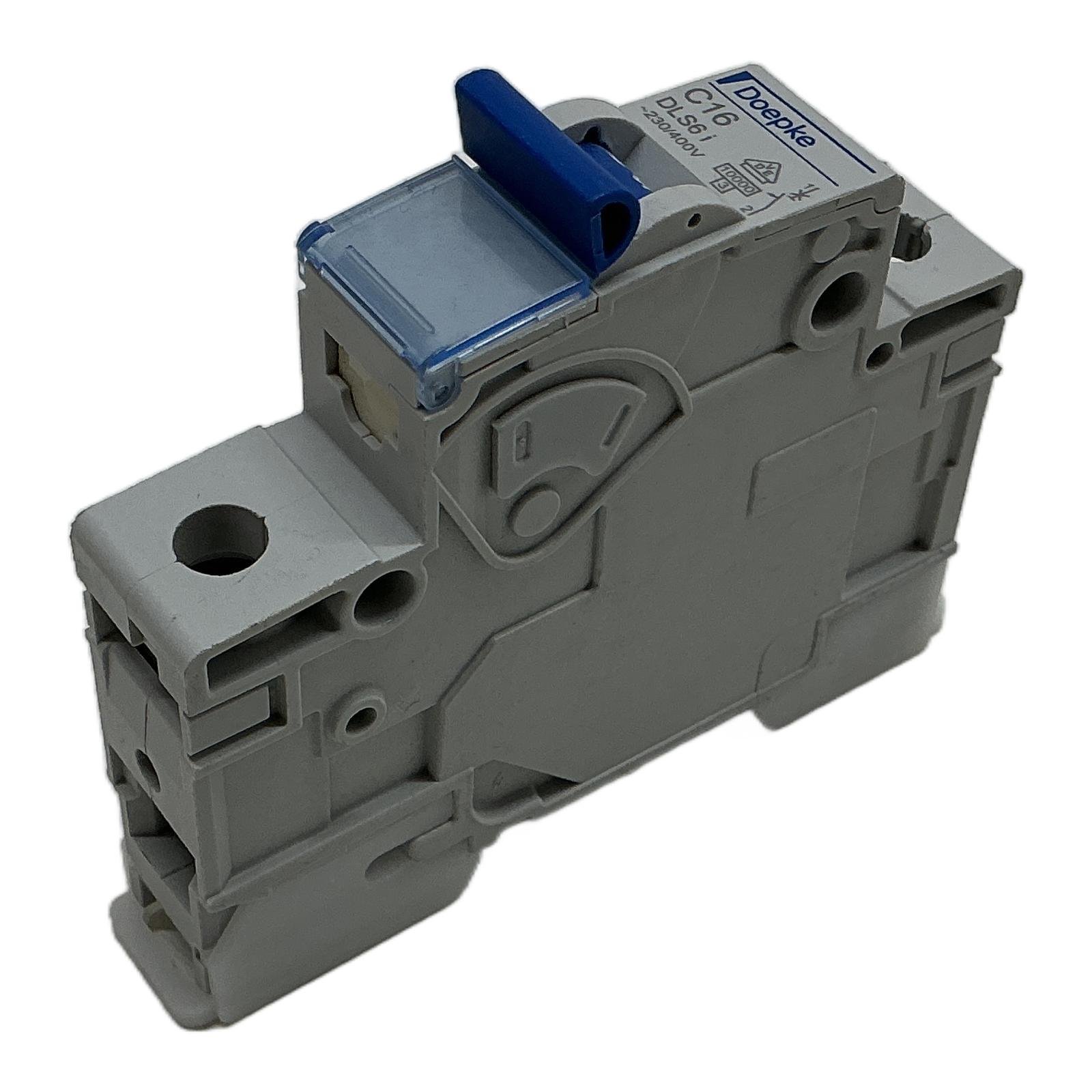

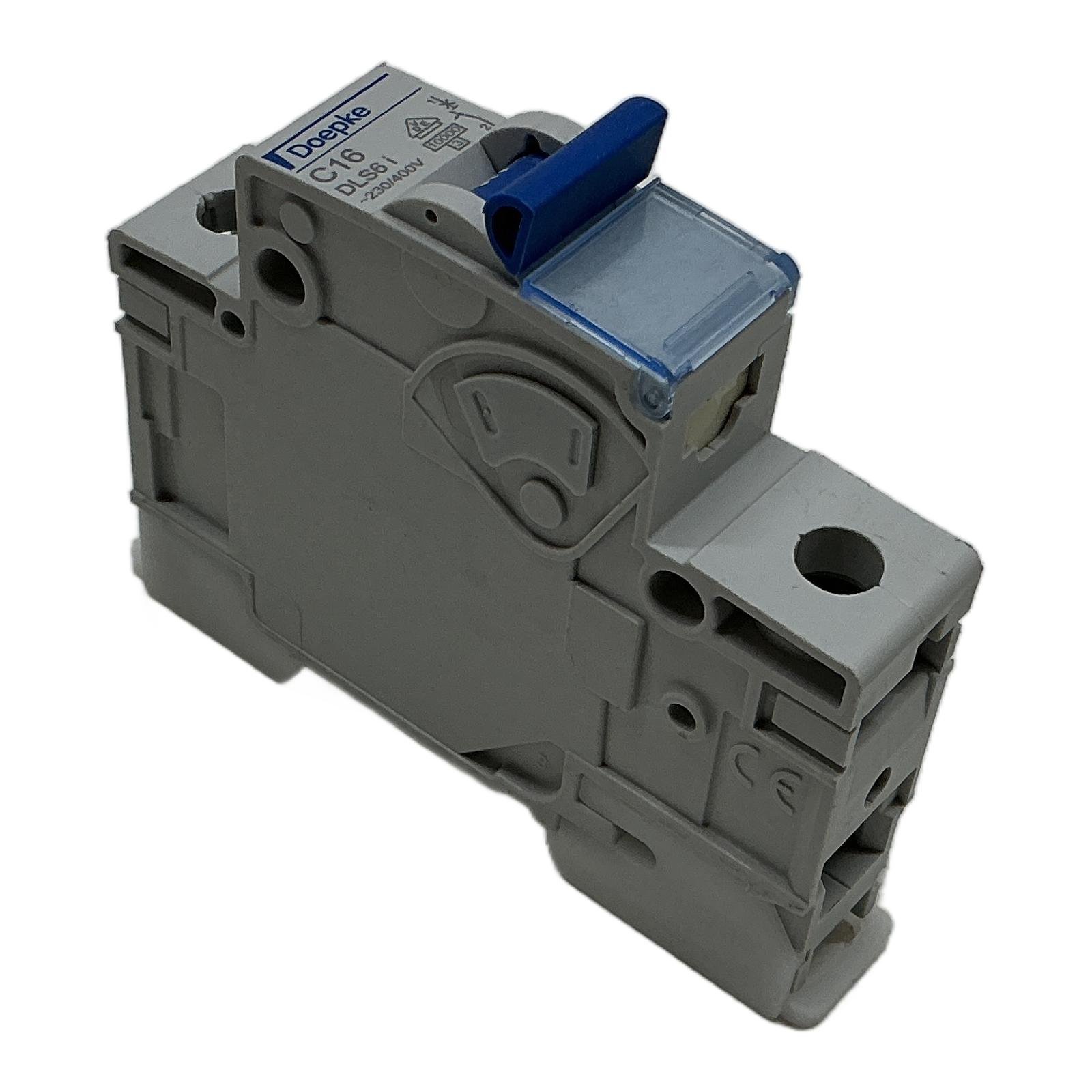

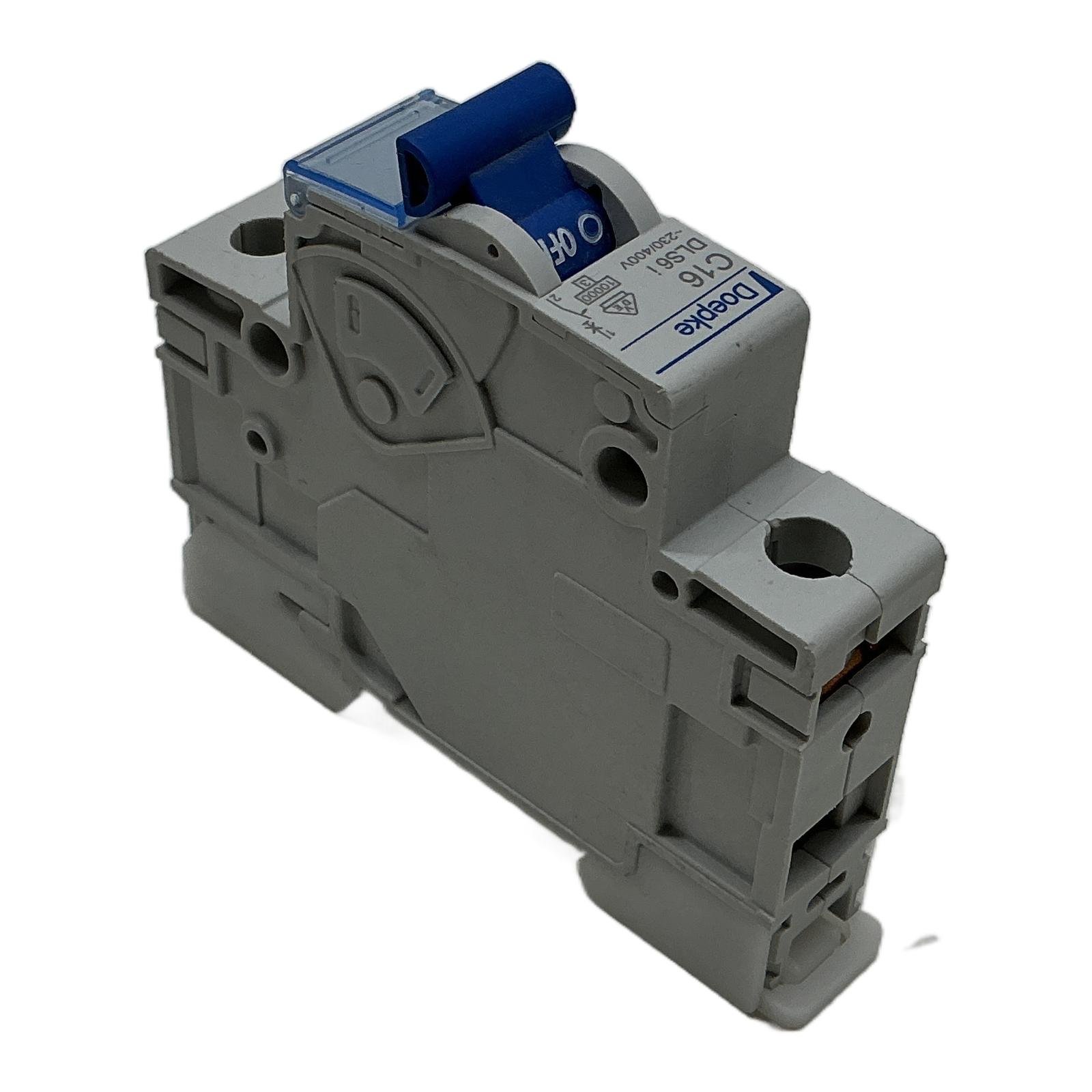

Doepke DLS6 i C16 Miniature Circuit Breaker Description The Doepke DLS6 i C16 is a single-pole miniature circuit breaker (MCB) engineered for reliable performance in industrial and commercial applications. It provides essential protection against both overload and short-circuit currents, ensuring the safety and integrity of your electrical installations. With its C-type tripping characteristic, it is suitable for general purpose loads with moderate inrush currents. Specifications Manufacturer: Doepke Model: DLS6 i C16 Part Number: 09916005 Number of Poles: 1 Rated Current: 16 A Tripping Characteristic: C-Curve Rated Voltage (AC): 230/400 V Rated Breaking Capacity: 10 kA according to IEC/EN 60898-1 Energy Limiting Class: 3 Mounting: DIN Rail Label Info Brand: Doepke Model Code: DLS6 i Rating: C16 (~230/400V) Breaking Capacity: 10000 Application This MCB is ideal for protecting lighting circuits, socket outlets, and control circuits in industrial facilities, commercial buildings, and switchgear assemblies where high breaking capacity is required. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned component, you are helping to avoid the emission of approximately 4.8 kg of CO2. This saving is comparable to the energy needed to drive a standard passenger car for 24 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘C’ in C16 signify?The ‘C’ refers to the tripping characteristic of the circuit breaker. A C-curve MCB is designed to trip at 5 to 10 times its rated current (16A). This makes it suitable for applications with moderate inrush currents, such as lighting, standard socket outlets, and small motors. What is the breaking capacity of the DLS6 i, and why is it important?The breaking capacity is 10,000 Amperes (10 kA). This is the maximum fault current the breaker can safely interrupt without being damaged. A 10 kA rating is high and indicates suitability for industrial and commercial environments where potential short-circuit currents can be substantial. Can this MCB be used in residential applications?While technically possible, a 10 kA rated MCB is typically specified for industrial or commercial use. Residential installations often use MCBs with a 6 kA rating. It is crucial to use a breaker that matches the requirements of the specific electrical installation and local regulations. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
