MOELLER DIL M32-01 277258

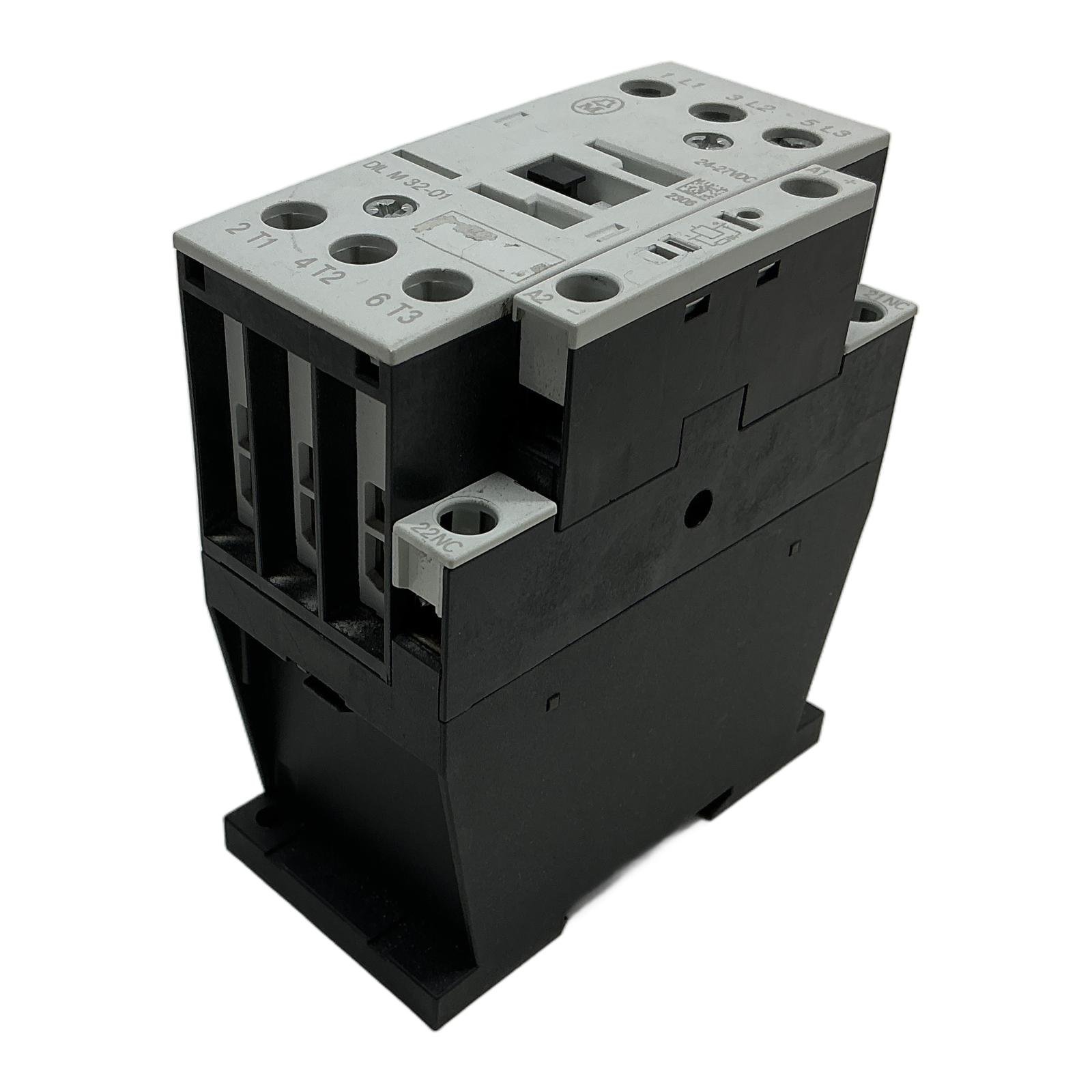

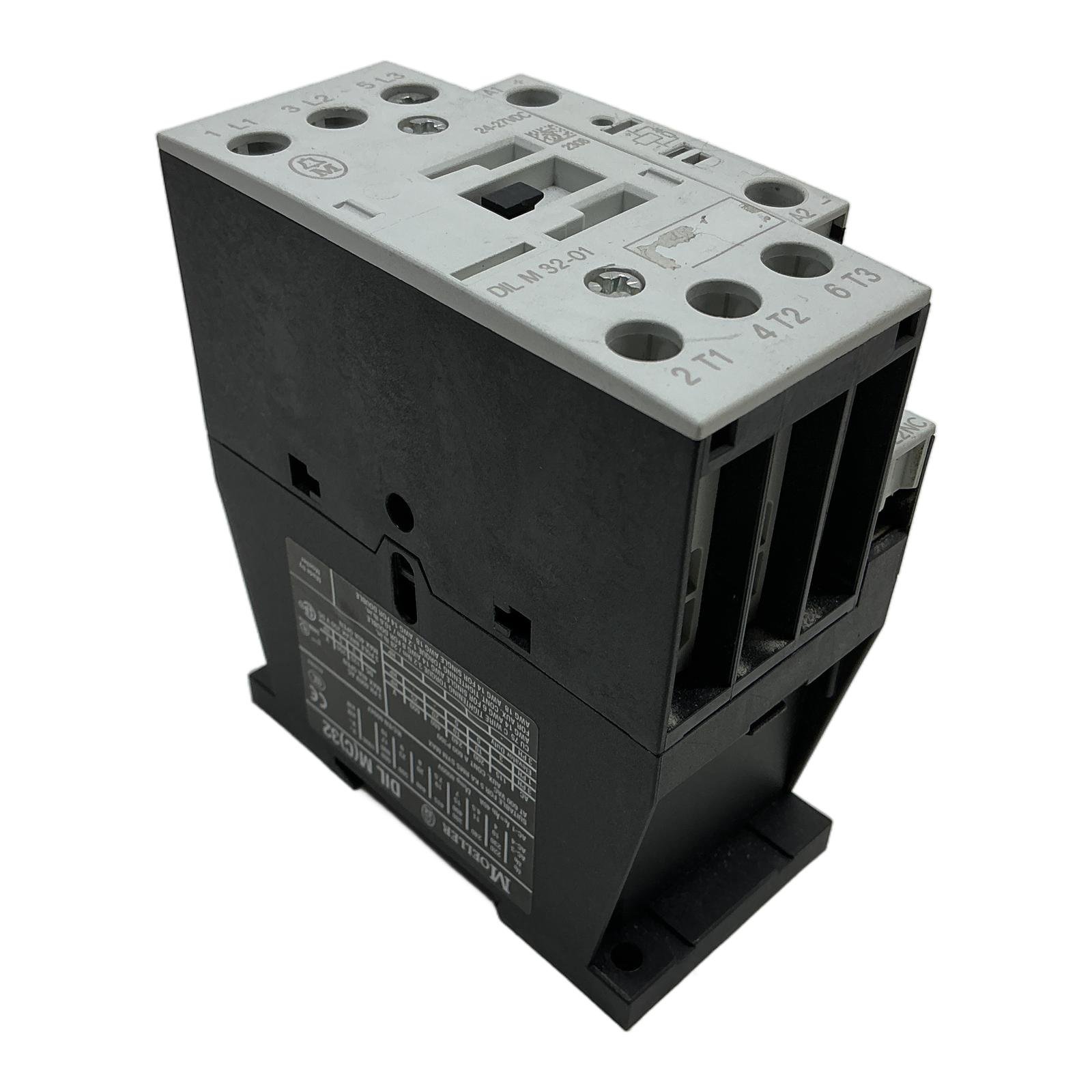

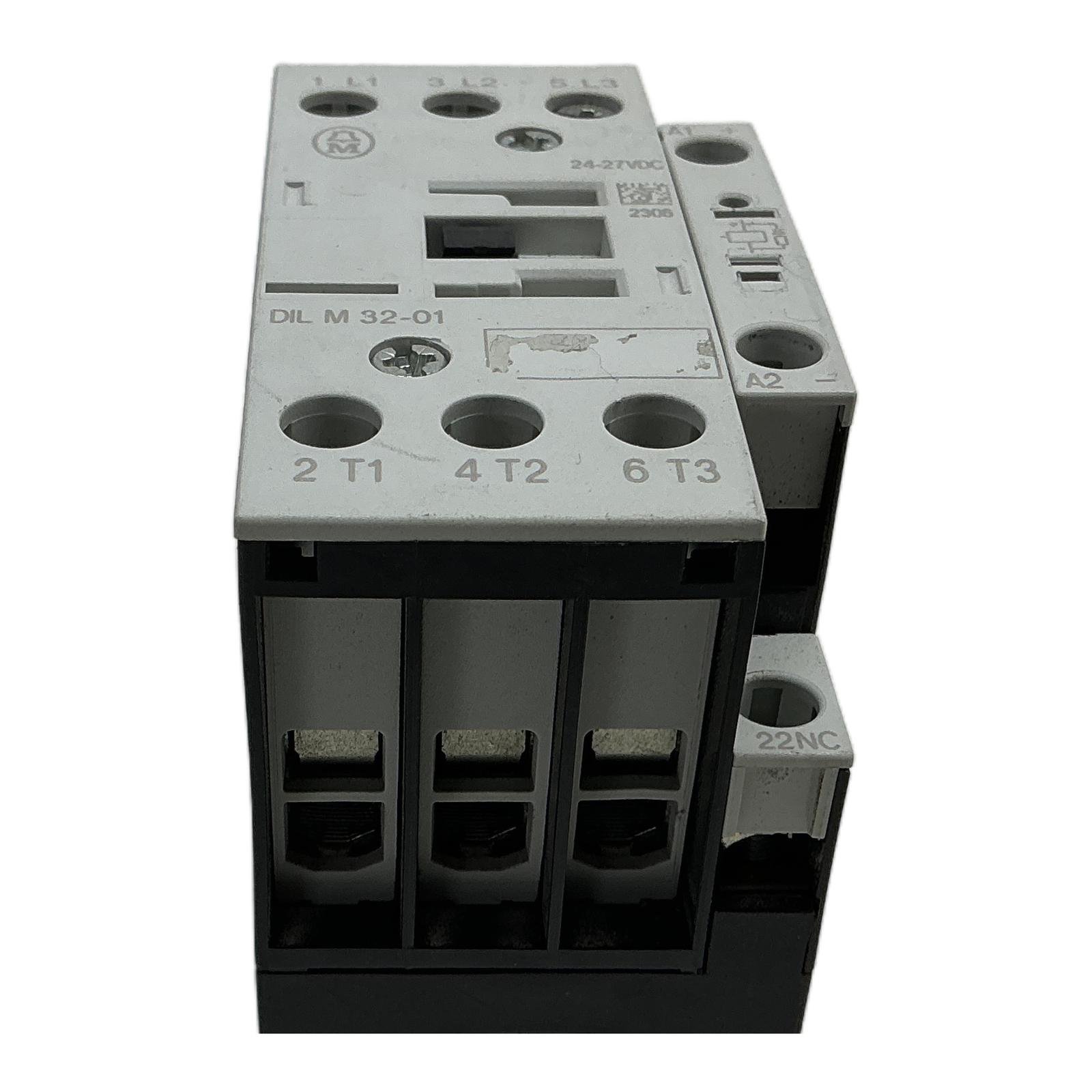

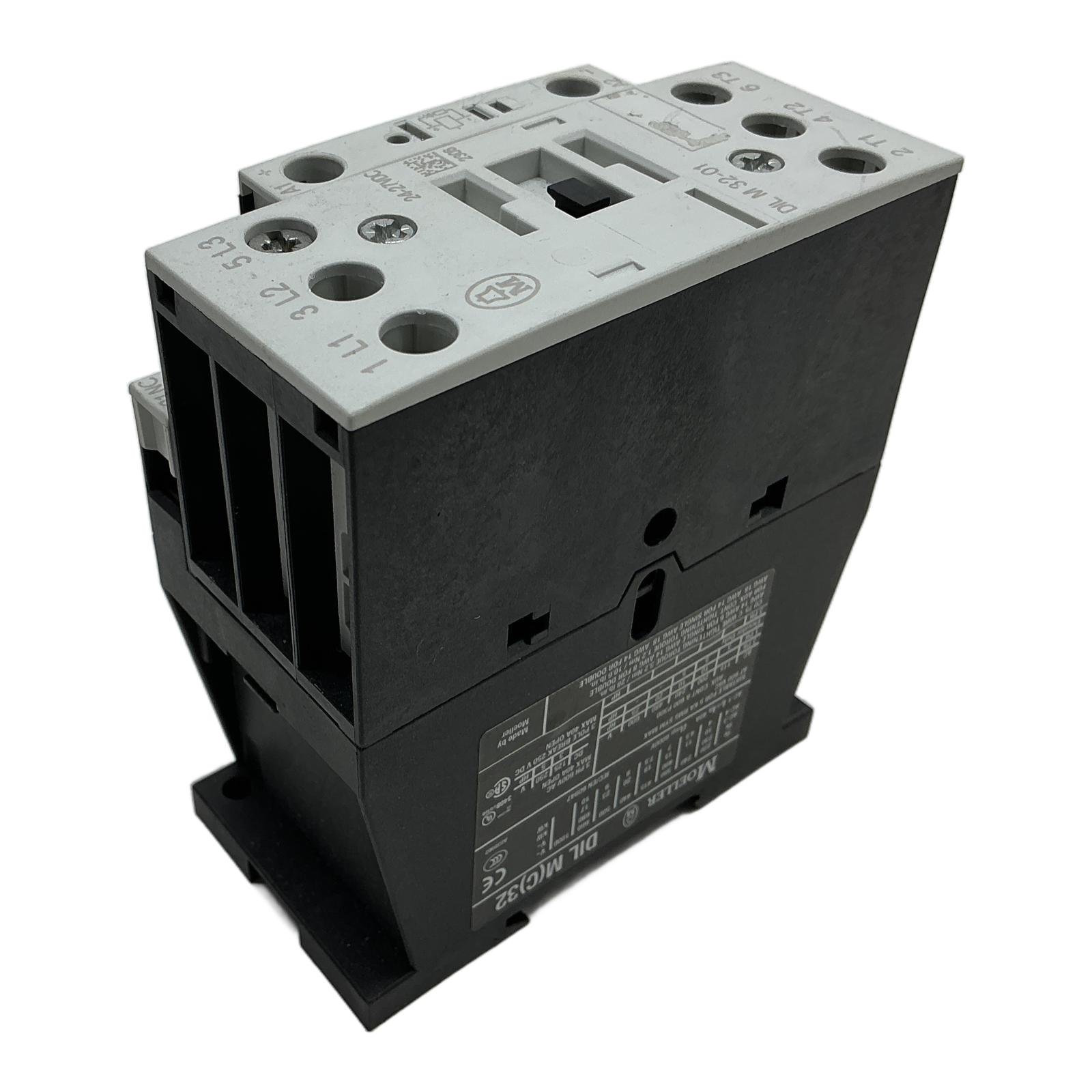

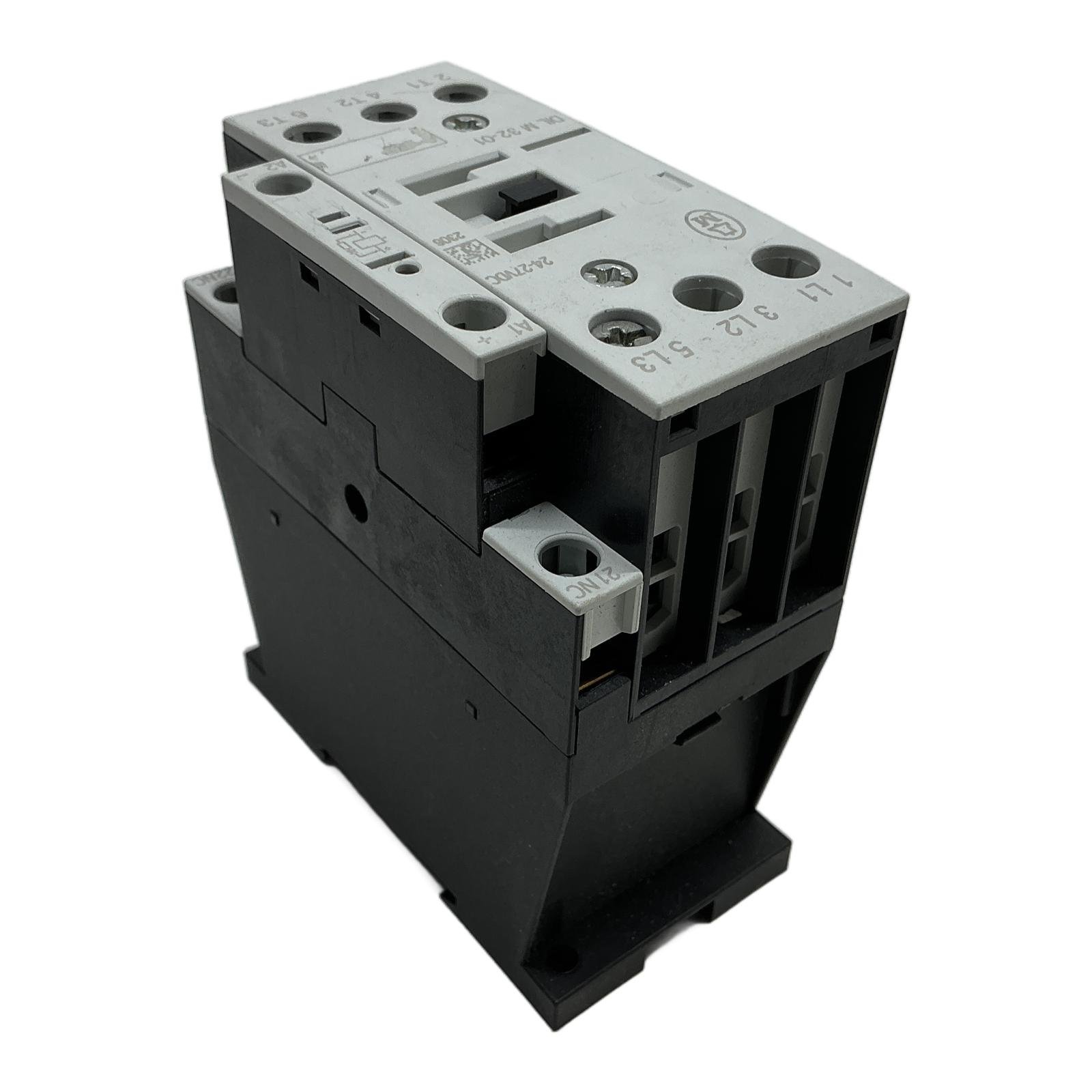

Moeller DIL M32-01 3-Pole Contactor Description The Moeller DIL M32-01 is a high-performance 3-pole contactor designed for switching electrical motors and resistive loads in industrial environments. Now part of the Eaton family, this contactor is known for its reliability and long service life. It operates with a 24-27V DC coil and includes one built-in normally closed auxiliary contact for control circuit interlocking and signaling. This unit is ideal for integration into automated systems controlled by PLCs. Specifications Manufacturer: Moeller (Eaton) Model: DIL M32-01 Part Number: 277258 Coil Voltage: 24-27V DC Number of Poles: 3 AC-3 Rating at 400V: 15 kW AC-1 Thermal Current (Ith): 40 A Auxiliary Contacts: 1 NC (Normally Closed) Rated Impulse Withstand Voltage (Uimp): 8000V Application This contactor is primarily used for motor control applications, including conveyors, pumps, fans, and other machinery. Its AC-1 rating also makes it suitable for switching heating elements and lighting systems. Country of Origin This product is manufactured in Germany. CO2 Impact Opting for a refurbished component like this one prevents the emission of approximately 19.0 kg of CO2, which is equivalent to the emissions from driving a car for 95 kilometers. Your choice supports a more sustainable industrial sector. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the difference between the Moeller DIL M32-01 and the Eaton DILM32-01? Question?There is no functional difference. Eaton acquired Moeller, and the DILM series is the continuation of the DIL M series. This Moeller-branded contactor is fully compatible with its modern Eaton-branded equivalent. Question?Can I use this 24-27VDC coil with a standard 24VDC PLC output? Question?Yes, the coil is designed to operate reliably within a voltage range of 24 to 27V DC, making it perfectly suitable for standard 24VDC control circuits from PLCs or other control devices. Question?What do the ‘AC-1’ and ‘AC-3’ ratings signify on the label? Question?These are utilization categories defined by IEC standards. ‘AC-1’ (40A) applies to non-inductive or slightly inductive loads, like resistance furnaces. ‘AC-3′ (15kW at 400V) is for starting and stopping squirrel-cage motors, which is a more demanding application. Always match the contactor’s rating to your specific load type. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
