MOELLER DIL M17-01 DIL M(C)17

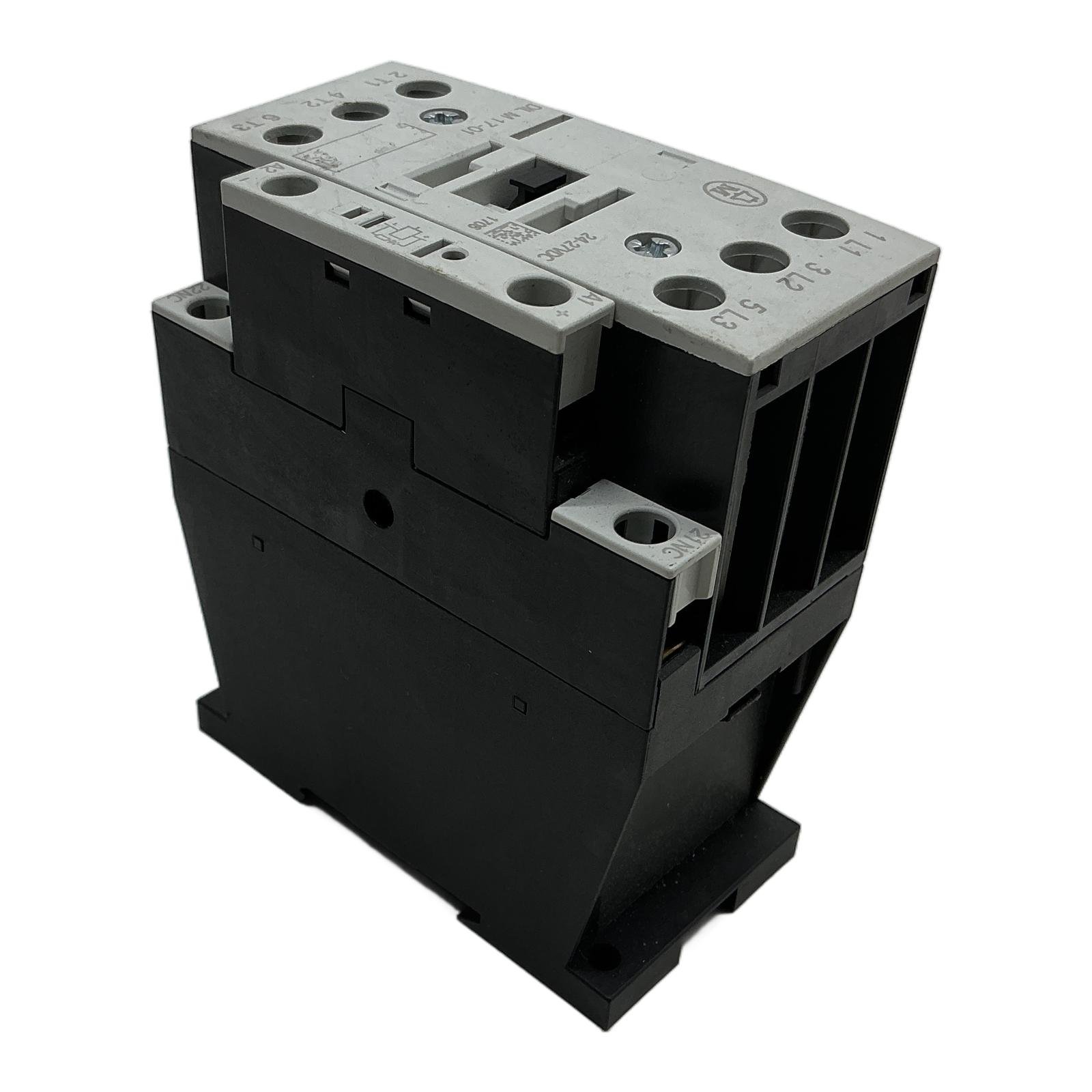

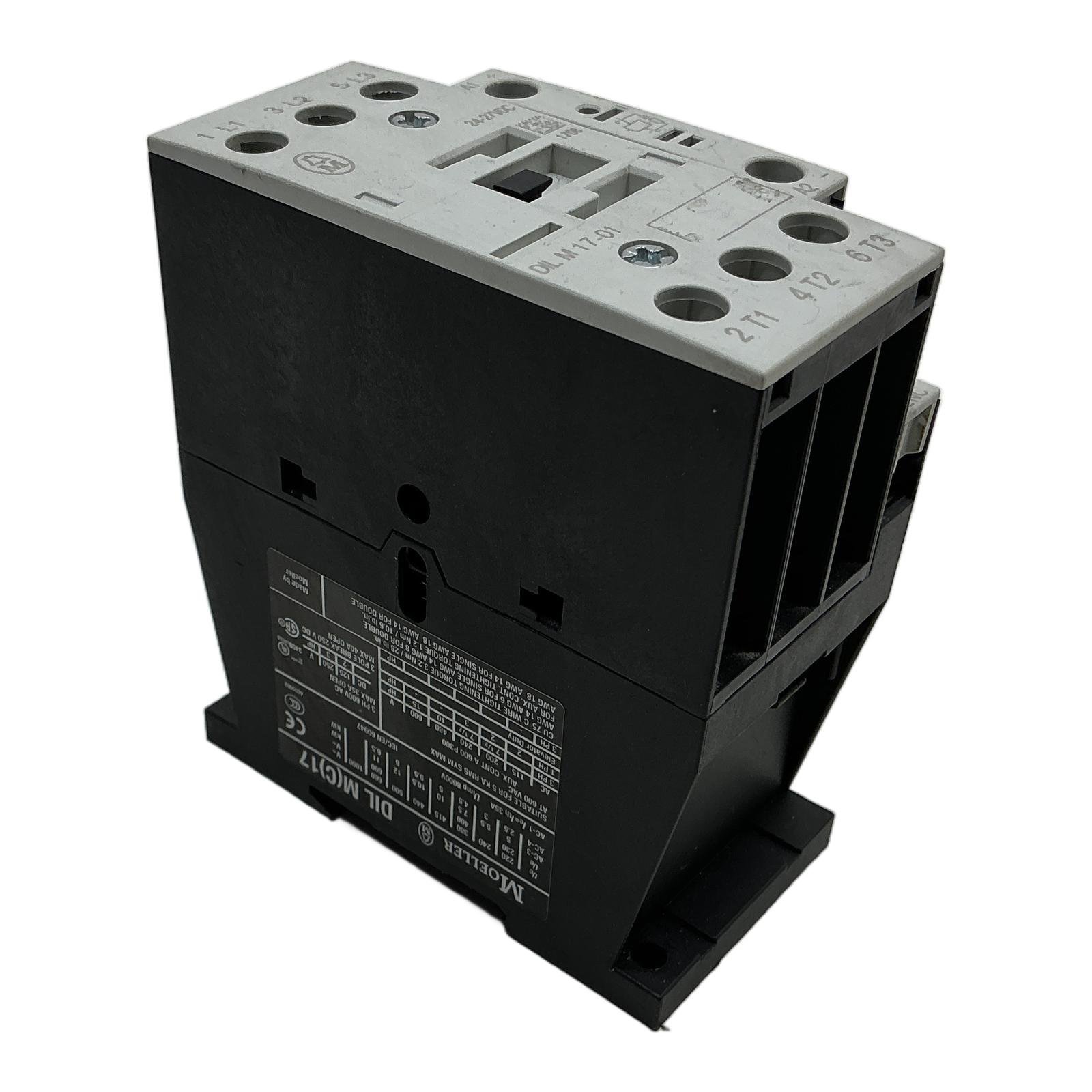

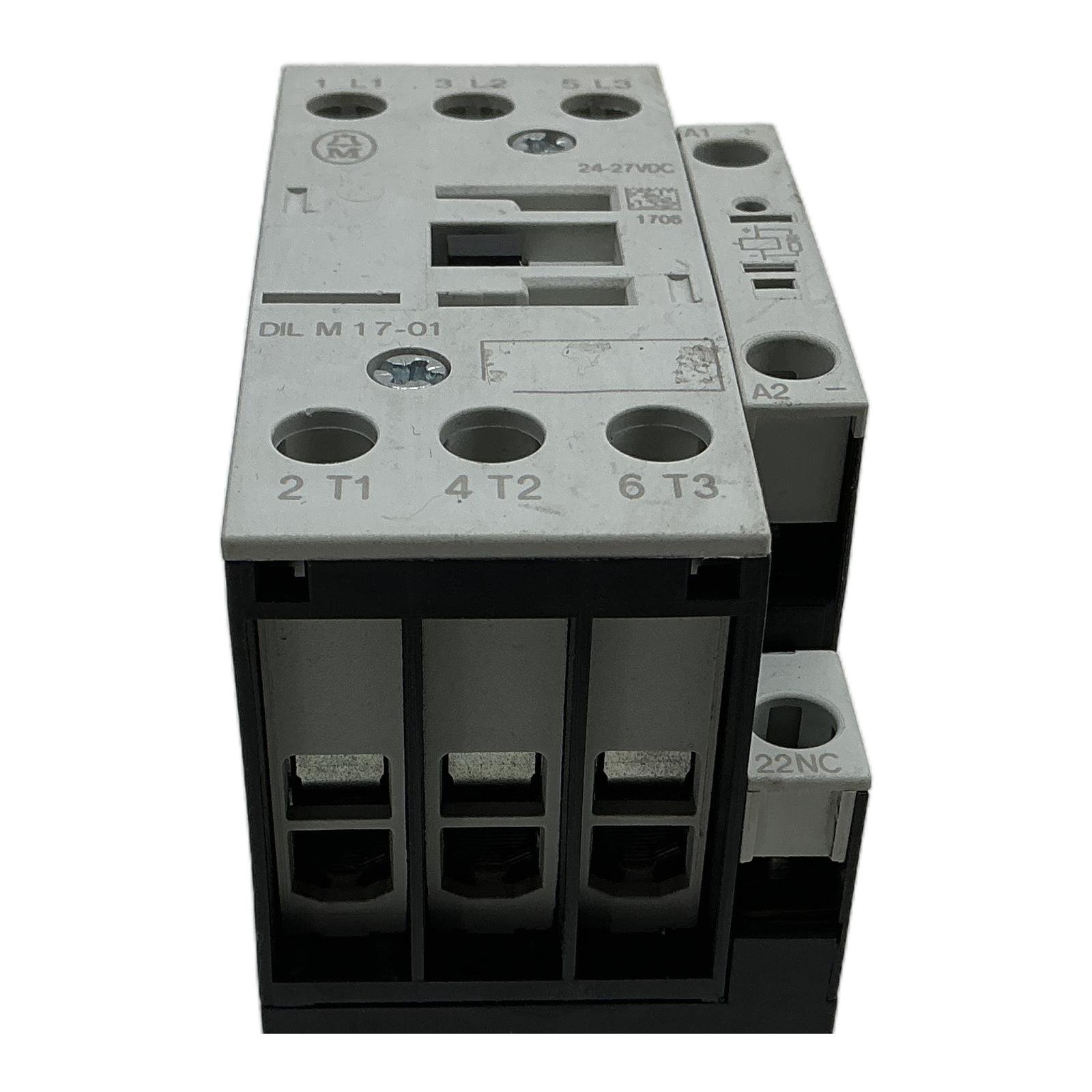

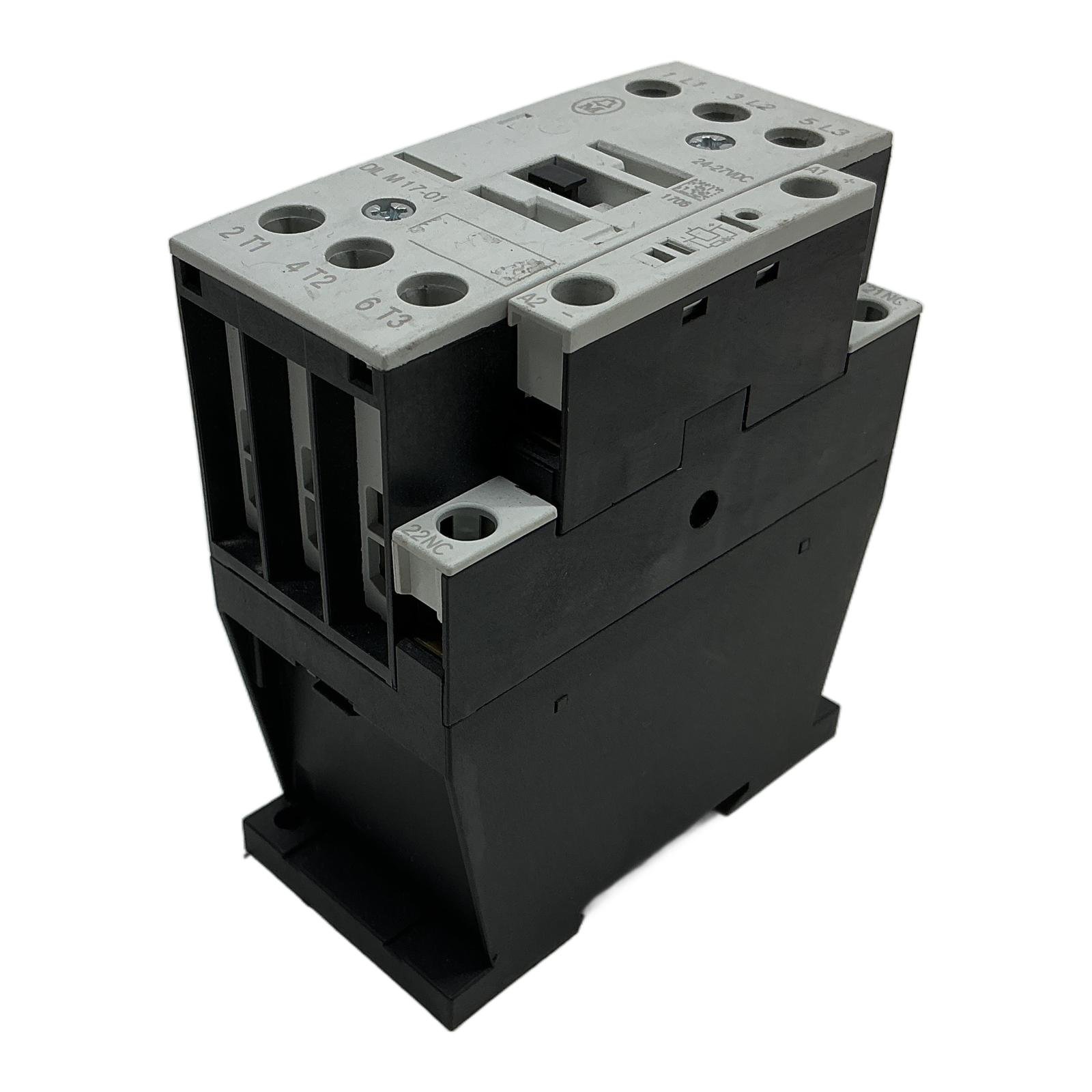

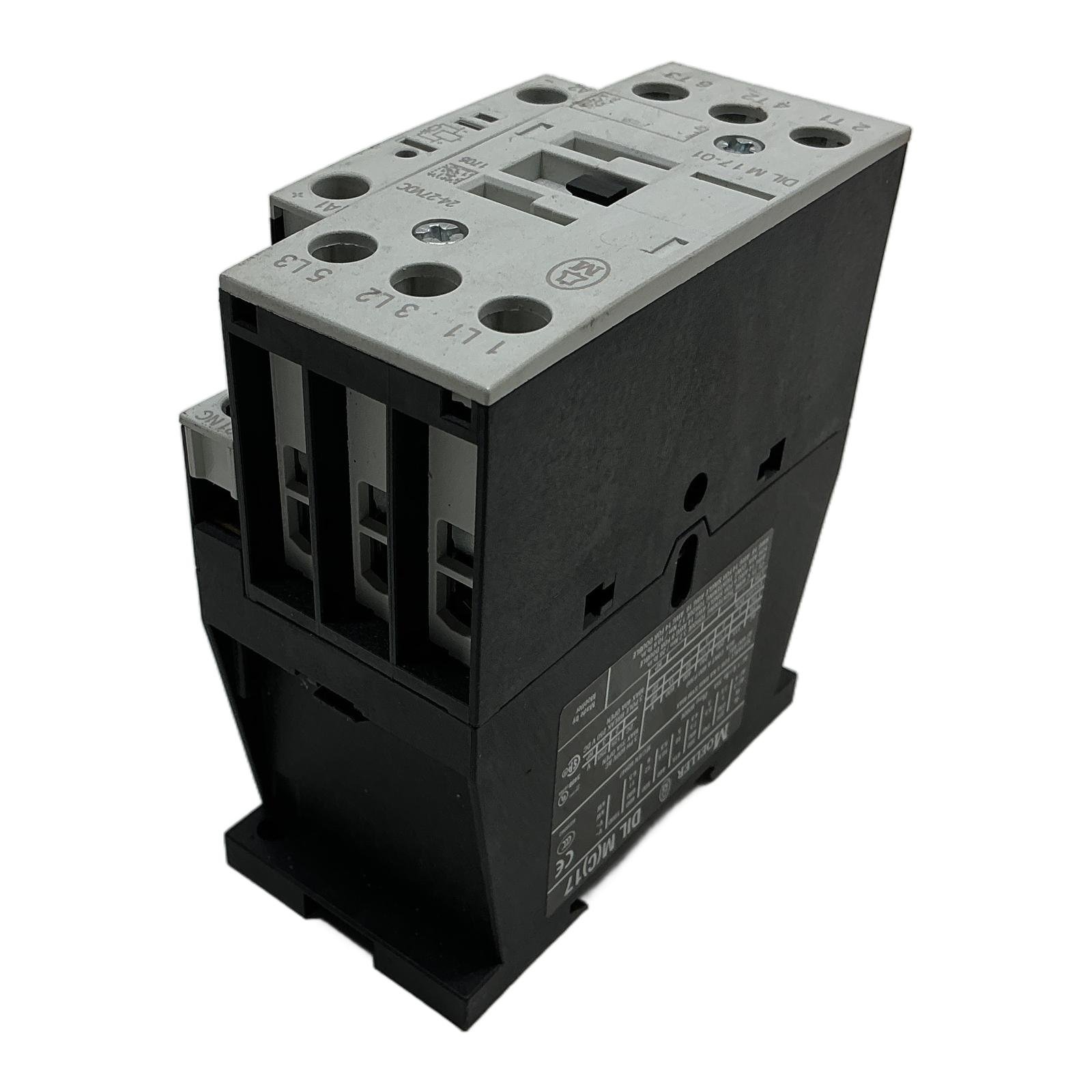

Moeller DIL M17-01 ContactorDescriptionThe Moeller DIL M17-01 is a high-performance 3-pole contactor designed for reliable switching of motors and other industrial loads. It operates with a 24-27VDC control coil and is rated for motor applications up to 7.5 kW at 400V (AC-3). As a component from the proven DIL M series, it offers durability and a compact design, making it suitable for a wide range of automation and control panel applications. This is an obsolete but reliable component for maintaining existing systems. Order now from profideals for expert support and fast delivery.SpecificationsManufacturer: MoellerType: DIL M17-01Family: DIL M(C)17Coil Voltage: 24-27 VDCNumber of Poles: 3Auxiliary Contacts: 1x Normally Closed (NC)Rated Power (AC-3, 400V): 7.5 kWRated Thermal Current (AC-1, Ith): 30 ACondition: Used, tested and functionalLabel InfoMoeller DIL M(C)17IEC/EN 60947Ui: 1000VUimp: 8000VAC-1 / Ith: 30AApplicationThis contactor is ideal for direct-on-line starting of electric motors, as well as for controlling heating elements, lighting, and other non-inductive or slightly inductive loads in industrial environments.Country of OriginGermanyCO2 ImpactBy purchasing this refurbished Moeller contactor, you are helping to prevent the emission of approximately 14 kg of CO2. This saving is equivalent to the CO2 absorbed by a mature tree in a full year or driving a standard passenger car for 70 kilometers.AvailabilityThis product is an obsolete item from Moeller, now part of Eaton. Availability is limited to existing stock. The direct modern replacement is the Eaton DILM17-01 series.FAQWhat is the modern equivalent for this Moeller DIL M17-01 contactor?The direct technical equivalent from the current manufacturer, Eaton, is the DILM17-01(24VDC), part number 101217. It offers the same performance characteristics and a similar form factor.Can I use this 24-27VDC coil with a standard 24VDC PLC output?Yes, absolutely. The 24-27VDC coil voltage range is specifically designed to ensure reliable operation with standard 24VDC power supplies and PLC transistor outputs, accommodating minor voltage fluctuations.What do the markings ’21NC’ and ’22NC’ on the auxiliary contact mean?These numbers identify the terminals for the built-in auxiliary contact. The ‘NC’ designation stands for ‘Normally Closed’, meaning the circuit between terminals 21 and 22 is closed when the contactor coil is de-energized and opens when the coil is energized.Last Update: Friday, March 13, 2026PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
