SICK DFS60B-S4AA05000 1037124

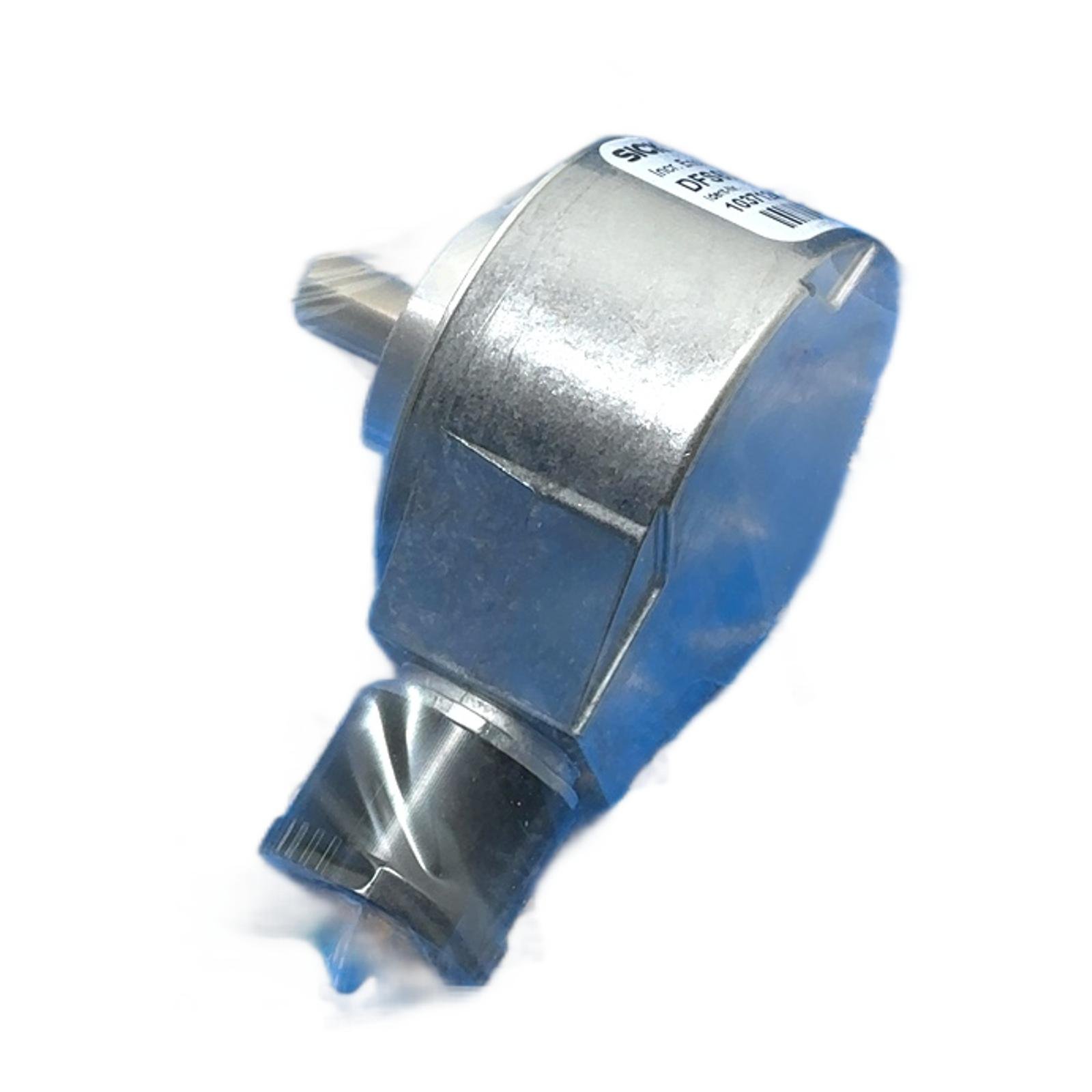

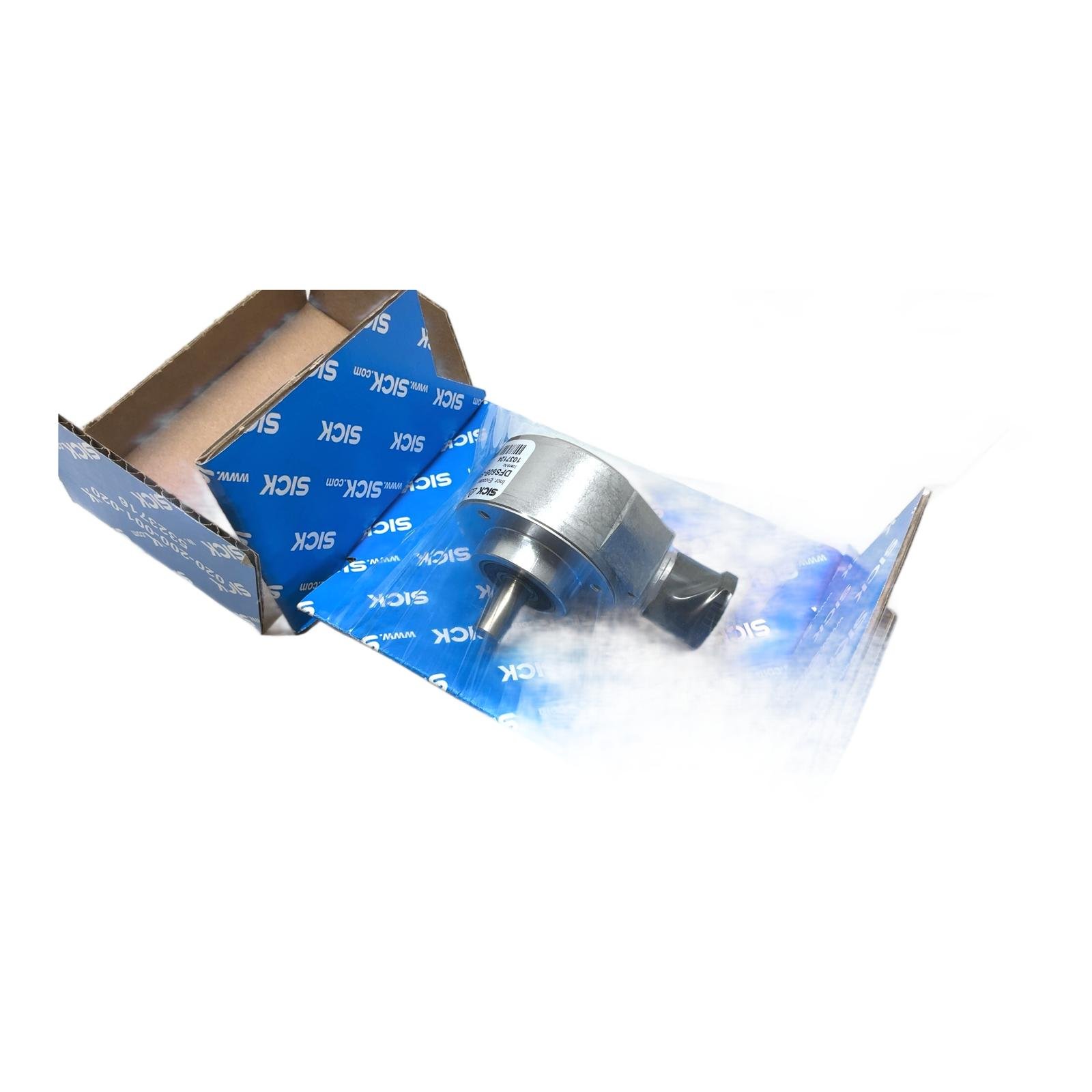

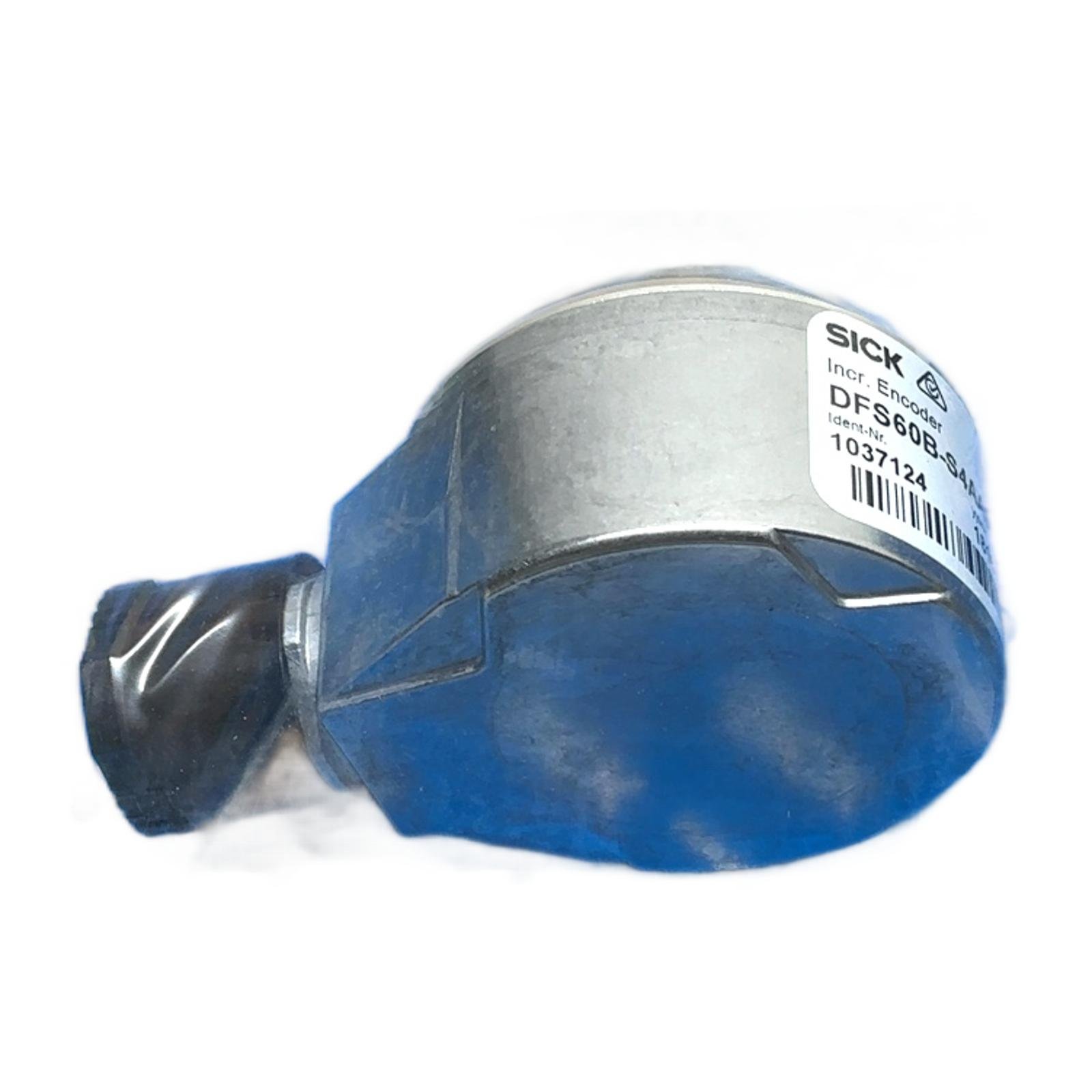

<h2>SICK Incremental Encoder 5000 PPR DFS60B-S4AA05000</h2> <h3>Description</h3> <p>The SICK DFS60B-S4AA05000 is a high-resolution incremental encoder designed for precise motion control in various industrial applications. It offers a resolution of 5000 pulses per revolution and a robust mechanical design, ensuring reliable performance even in harsh environments. This encoder is part of the versatile DFS60 family, known for its mechanical flexibility and excellent electronic properties.</p> <h3>Specifications</h3> <ul> <li>Product Family: DFS60</li> <li>Resolution: 5,000 pulses per revolution</li> <li>Operating Voltage: 4.5 VDC to 5.5 VDC</li> <li>Electrical Interface: TTL / RS-422</li> <li>Connection Type: Male connector, M12, 8-pin, radial</li> <li>Shaft Type: Solid shaft, 6 mm diameter</li> <li>Enclosure Rating: IP67 (housing), IP65 (shaft)</li> </ul> <h3>Label Info</h3> <ul> <li>Model: DFS60B-S4AA05000</li> <li>Ident-Nr.: 1037124</li> <li>Lines: 5000</li> <li>VDC: 4.5-5.5V</li> <li>Driver: TTL</li> </ul> <h3>Application</h3> <p>This encoder is ideal for applications requiring accurate position, angle, and speed measurement, such as in packaging machinery, logistics automation, machine tools, and textile machines.</p> <h3>Country of Origin</h3> <p>Made in Germany.</p> <h3>CO2 Impact</h3> <p>Opting for this pre-owned encoder saves approximately 12 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial sector.</p> <h3>Availability</h3> <p>This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <p> <strong>What is the difference between the TTL and HTL output signals for SICK encoders?</strong><br> <p>The TTL (Transistor-Transistor Logic) output on this DFS60B model operates at 5V, providing a signal compatible with most PLC inputs and motion controllers. HTL (High-Threshold Logic) encoders typically operate at a wider voltage range (e.g., 10-30V) and are more robust against electrical noise, making them suitable for longer cable runs or electrically noisy environments.</p> <strong>Can the resolution of this DFS60B-S4AA05000 encoder be changed?</strong><br> <p>No, this specific model has a fixed resolution of 5000 lines (pulses) per revolution. SICK offers programmable versions within the DFS60 family, but this particular part number, 1037124, is factory-set.</p> <strong>What is the IP rating of this encoder and what does it mean for my application?</strong><br> <p>This encoder has an IP67 rating for the housing and an IP65 rating for the shaft. This means the housing is fully protected against dust and can withstand temporary immersion in water, while the shaft is protected against dust and low-pressure water jets. It is suitable for most industrial environments but should not be subjected to continuous submersion or high-pressure cleaning.</p> </p> <p>Last Update: Friday, March 13, 2026</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p>
