TELE D6DM

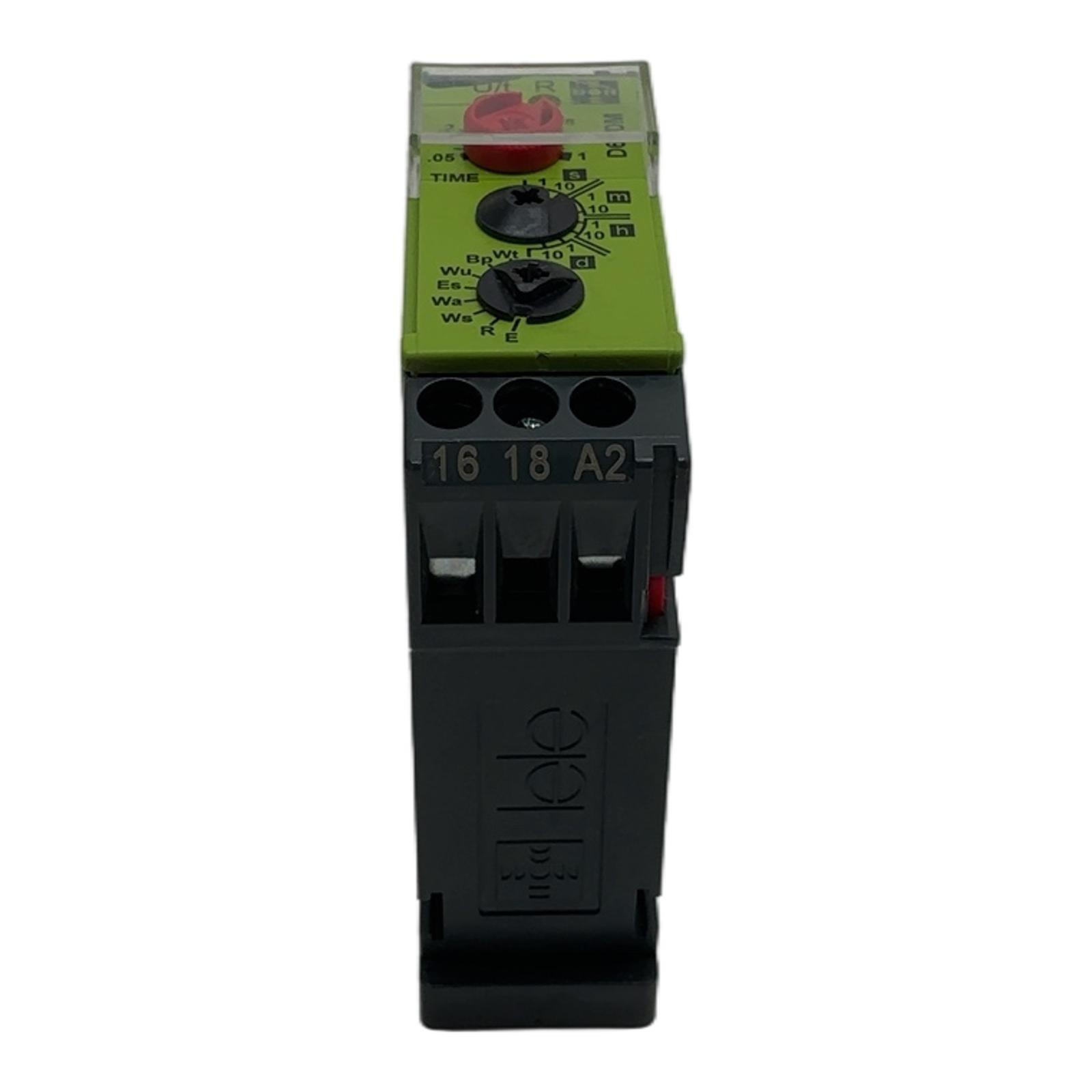

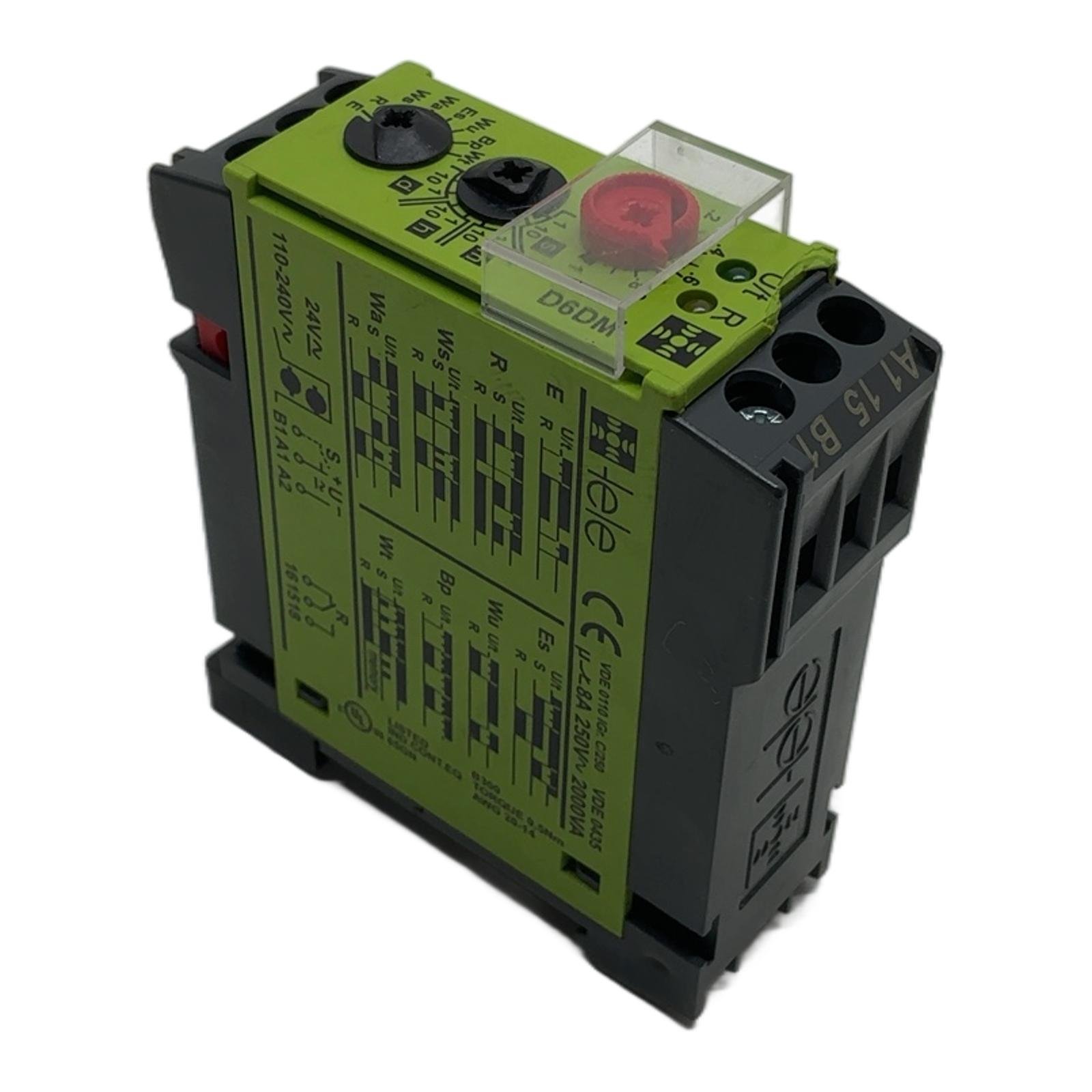

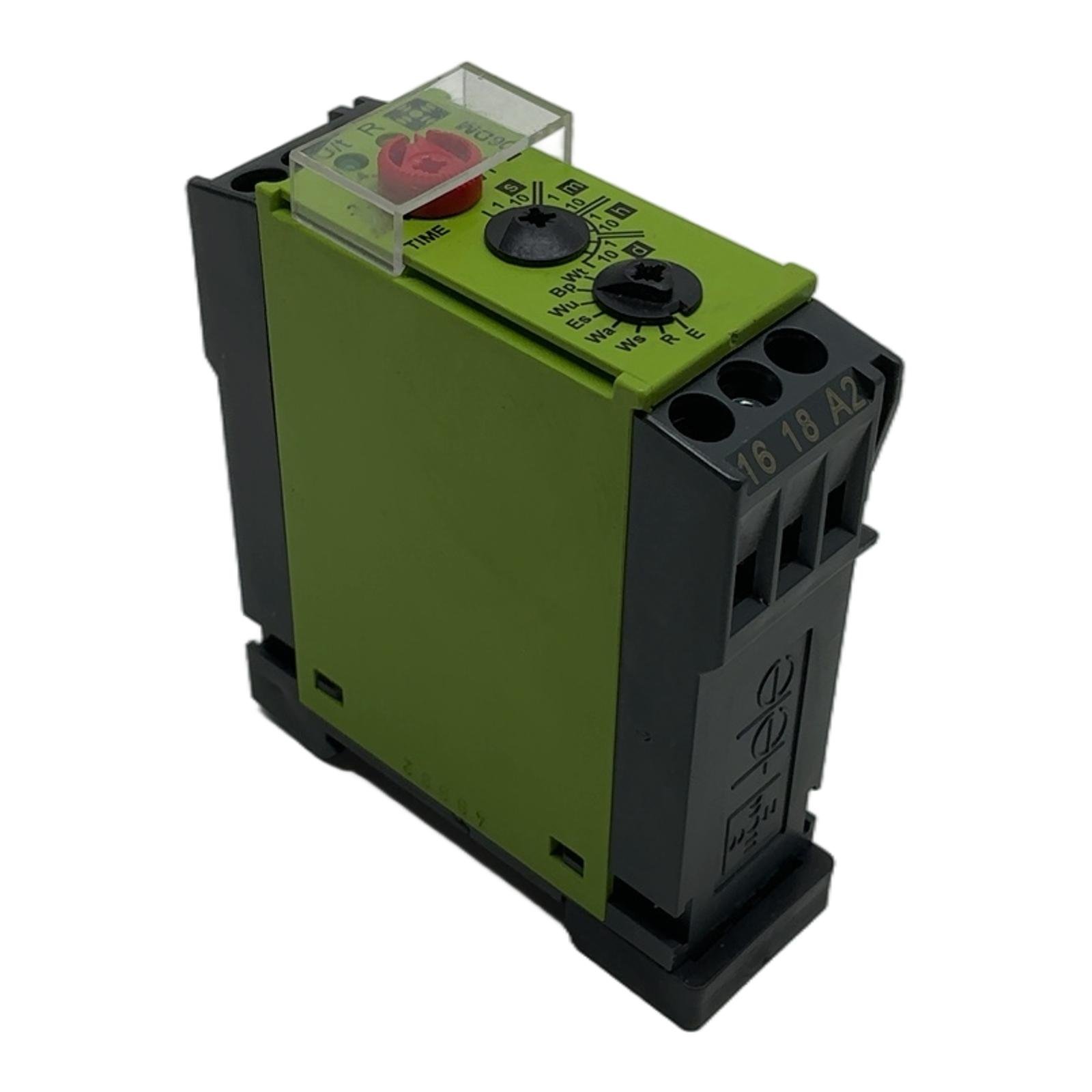

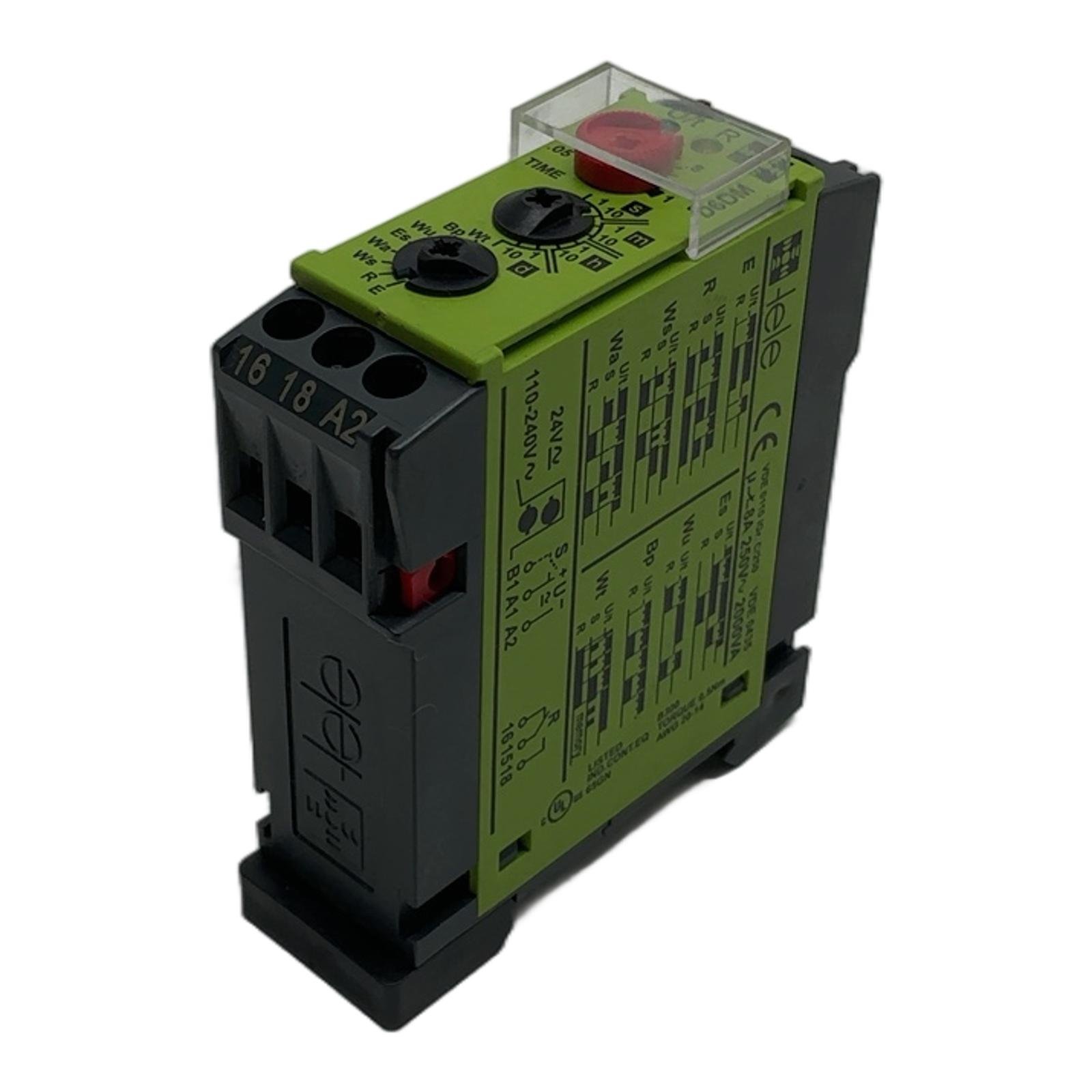

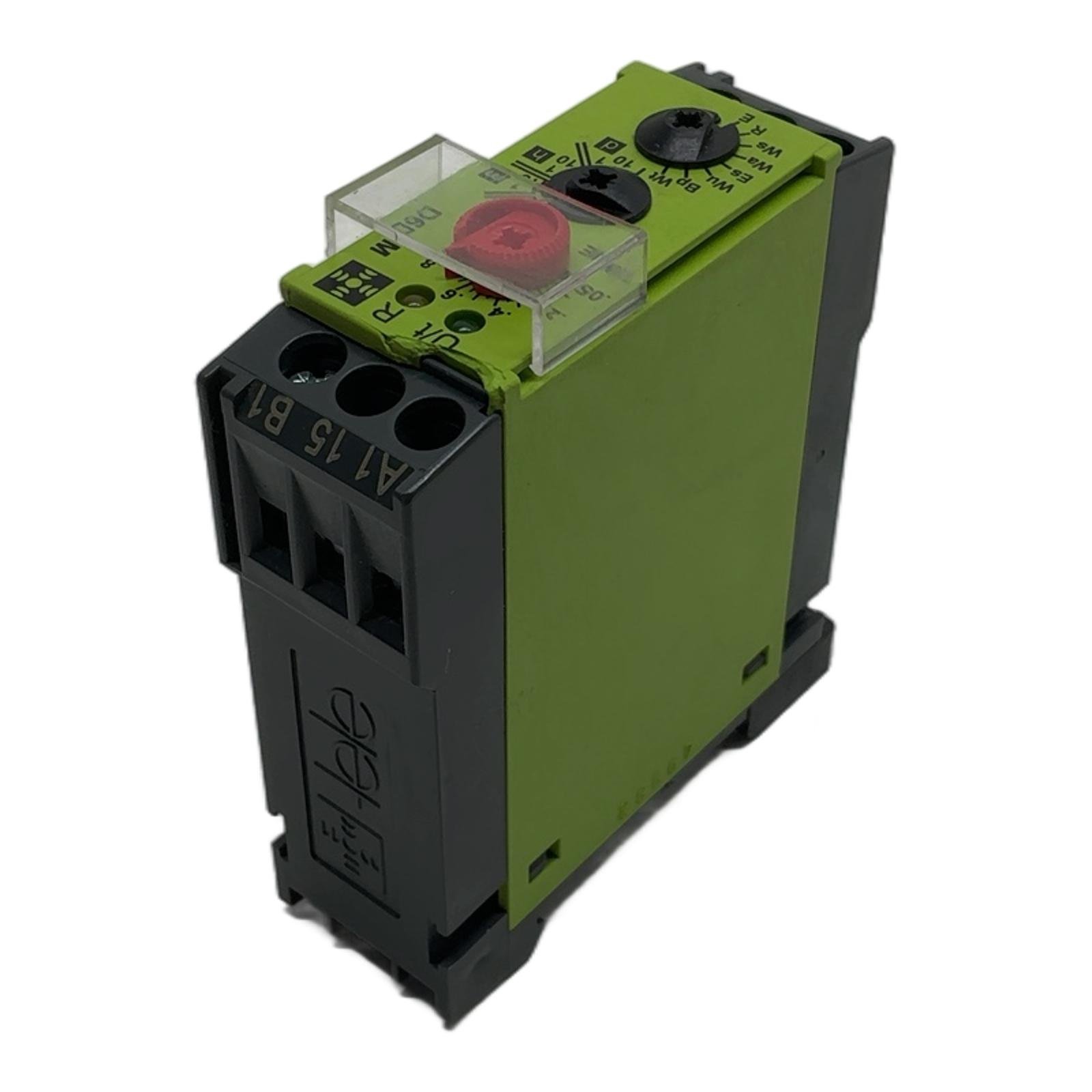

Tele D6DM Multifunction Time Relay Description The Tele D6DM is a compact and versatile multifunction time relay designed for DIN rail mounting in industrial control cabinets. It offers a wide range of timing functions, which are easily selectable via rotary switches on the front panel. With a broad supply voltage range of 24V AC and 110-240V AC, this relay is adaptable to various control systems. Its robust design ensures reliable performance in demanding industrial environments, making it an ideal choice for process control and automation tasks. Specifications Manufacturer: Tele Model: D6DM Type: Multifunction Time Relay Supply Voltage: 24V AC and 110-240V AC Output Contact: 1 Changeover Contact (SPDT) Contact Rating: 8A / 250V AC Time Range: Adjustable via front dial Mounting: DIN Rail Dimensions: Standard slim module for control panels Label Info VDE 0110 IGr. C/250 VDE 0435 u-8A 250V~ 2000VA B300, LISTED IND.CONT.EQ, US 65GN Application This time relay is suitable for a wide variety of industrial applications, including motor start-up delay, process timing, lighting control, and general sequencing tasks in automated machinery. Country of Origin Made in Austria. CO2 Impact By purchasing this pre-owned component, you are contributing to the circular economy and helping to prevent 2.8 kg of CO2 emissions that would be generated from the production of a new one. Availability This is an obsolete item, available from our stock. Ideal for repairs and maintaining existing installations without costly upgrades. Order now from profideals for expert support and fast delivery. FAQ What are the selectable timing functions on the D6DM?The D6DM offers several standard timing functions indicated by symbols like E (On-delay), R (Off-delay), Ws (Single shot leading edge), Wa (Single shot trailing edge), Es (On-delay with control input), and more, which can be selected using the front rotary switch. How do I wire the supply voltage for the 110-240V AC range?For the 110-240V AC supply voltage, you should connect the live and neutral wires to terminals A1 and A2 as indicated in the wiring diagram on the side of the unit. Is this relay suitable for switching DC loads?While the primary rating is for AC loads (250V AC), the relay contacts can typically switch DC loads at a reduced current and voltage. Always consult the original datasheet for specific DC load curves to prevent premature contact wear. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
