FESTO CPV-10-VI-P8-M7 18255

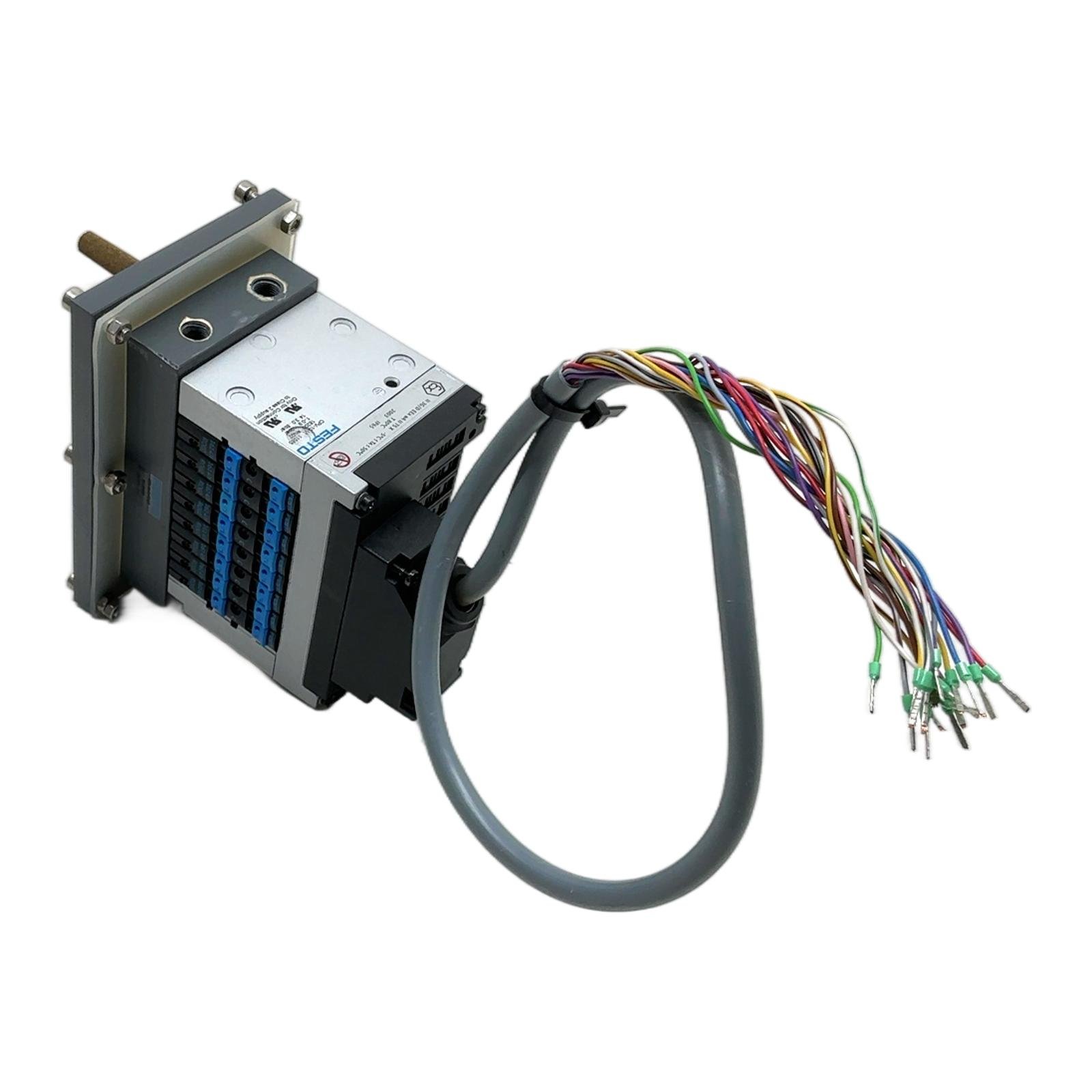

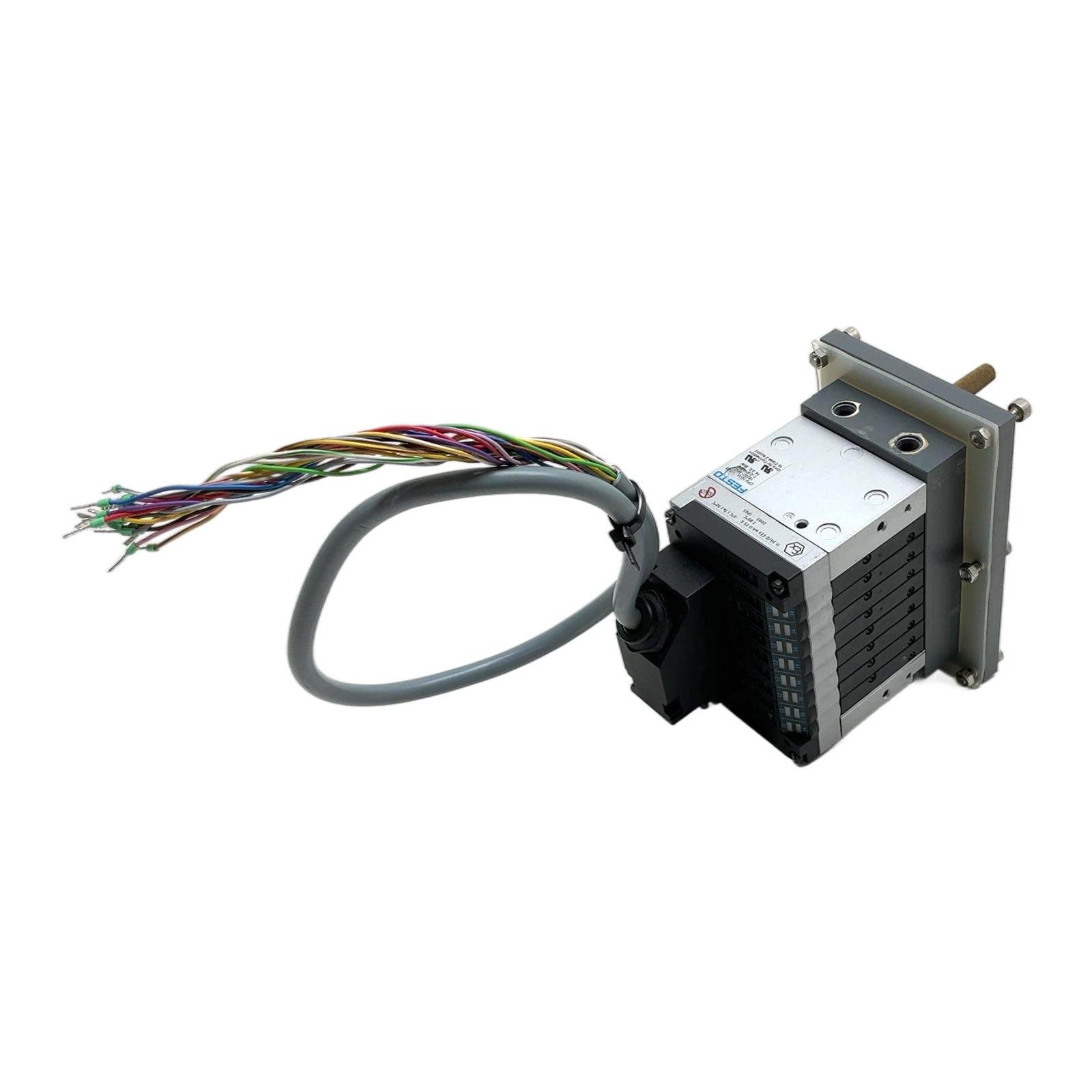

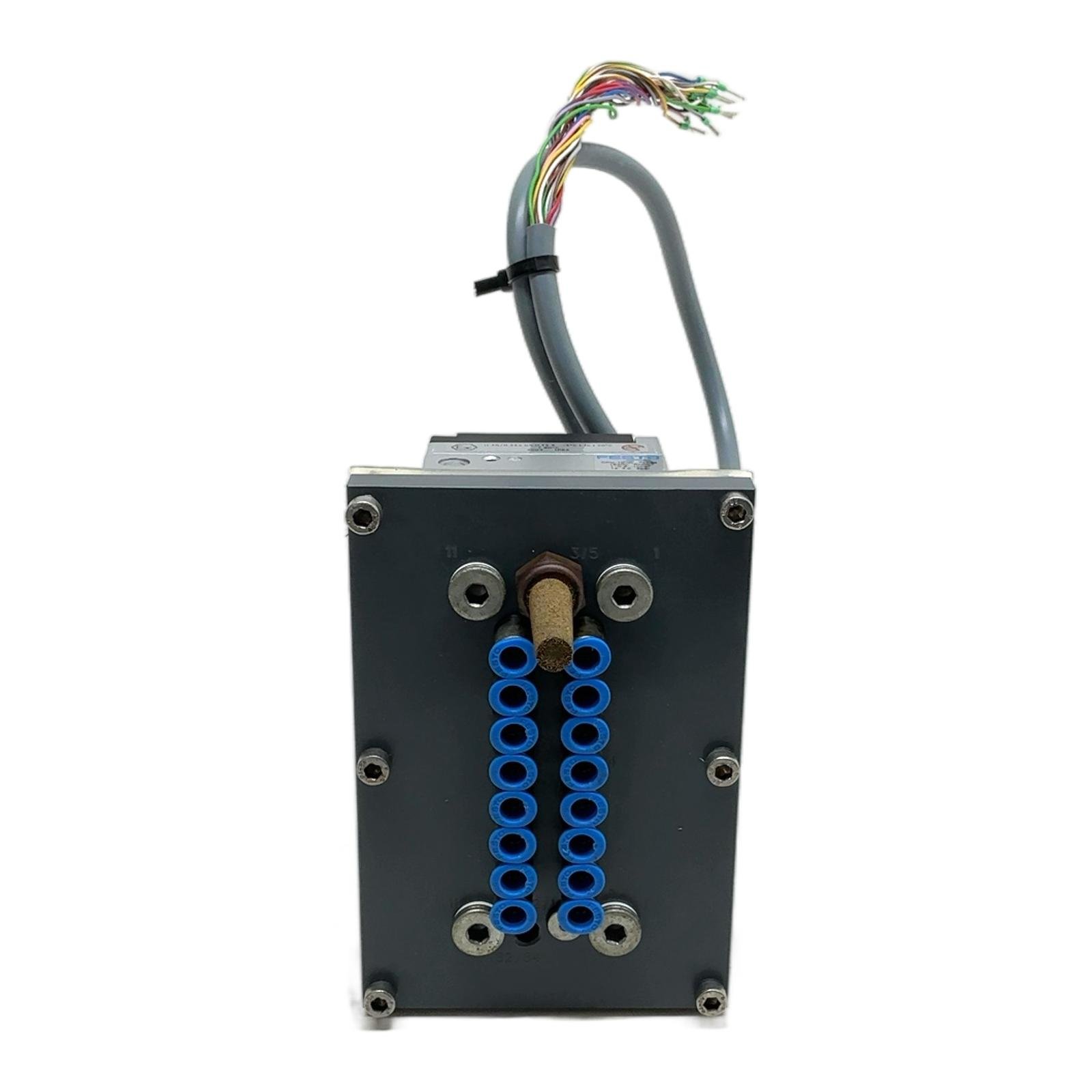

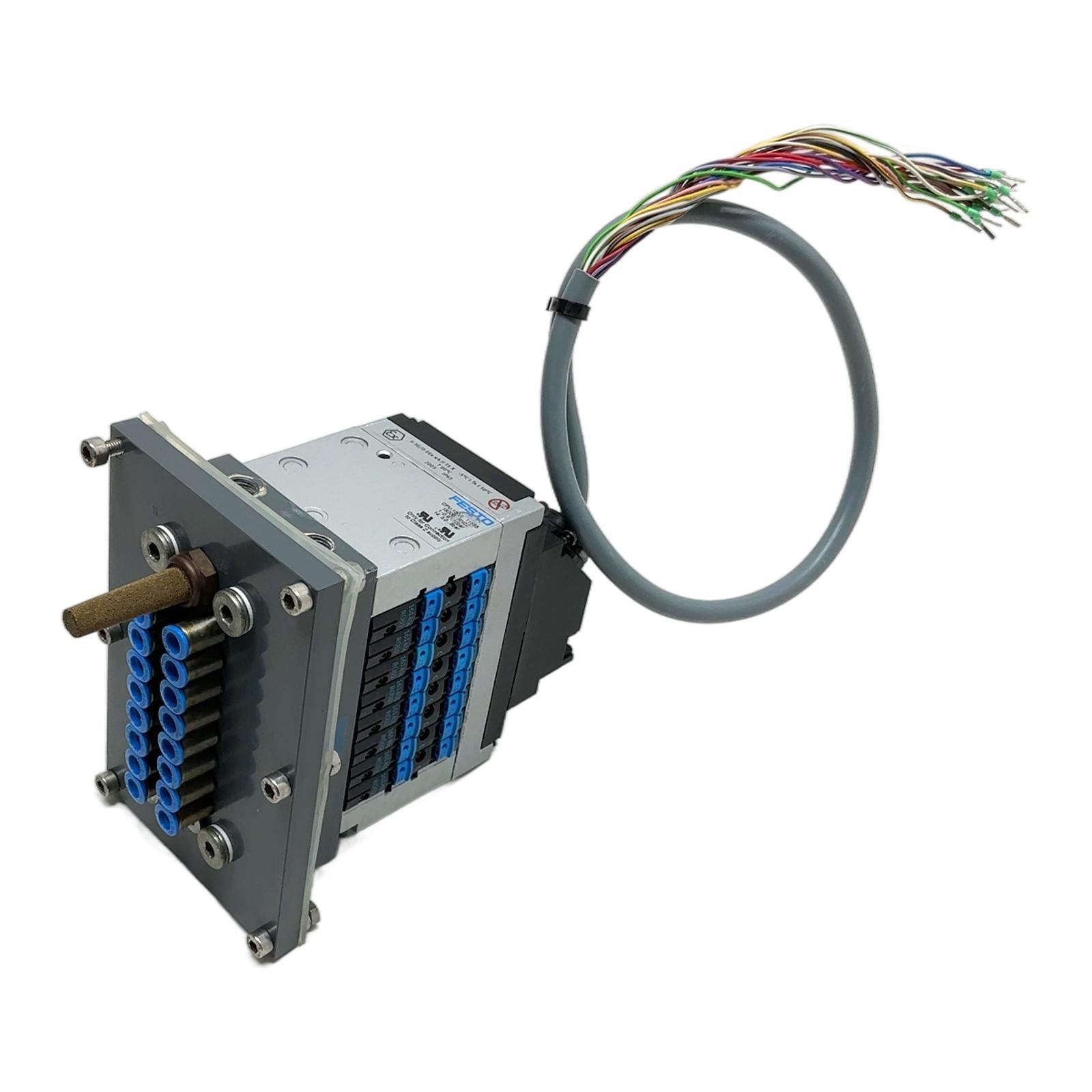

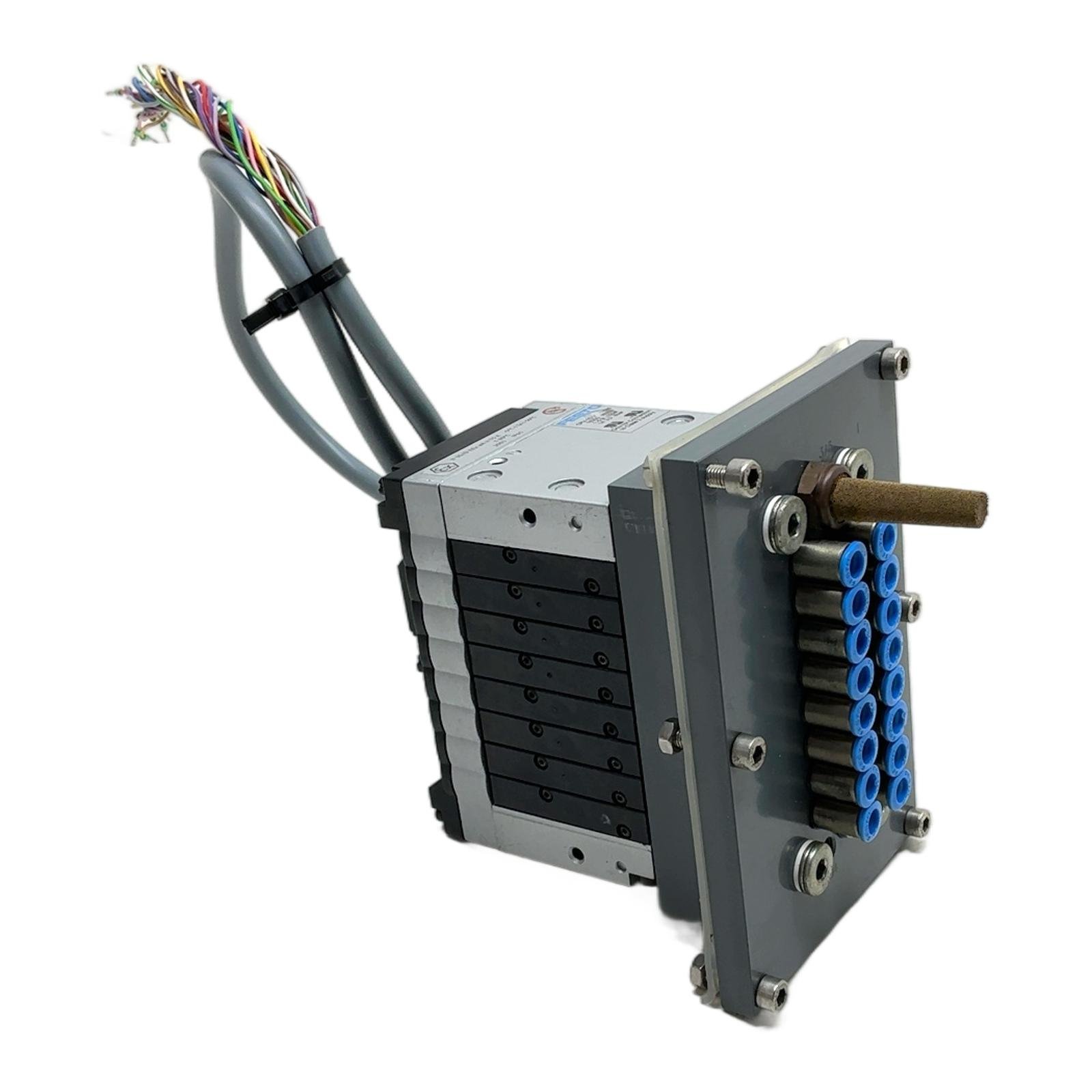

Festo CPV Series Pneumatic Valve Terminal Description This is a Festo CPV-10-VI-P8-M7, an 8-station pneumatic valve terminal designed for high-performance automation tasks. Part of the renowned Compact Performance Valve (CPV) series, this unit offers a high packing density and flow rate in a small footprint. It is equipped with a CPV10-GE-MP-8 multi-pin electrical interface (Part No. 18255) for straightforward, centralized electrical control of all 8 valve positions. This assembly is ideal for applications requiring reliable and precise control over multiple pneumatic lines. Specifications Manufacturer: Festo Series: CPV Type: Pneumatic Valve Terminal Assembly Model: CPV-10-VI-P8-M7 Electrical Interface: CPV10-GE-MP-8 (Part No. 18255) Number of Valve Stations: 8 Operating Pressure: -0.9 to 10 bar Electrical Connection: Multi-pin cable Ingress Protection: IP65 Label Info Main Assembly: CPV-10-VI-P8-M7, SA-205597 Electrical Interface: CPV10-GE-MP-8, 18255 RN07 Manifold Base: CPV-10-VI, 18200 RN02 Application Perfectly suited for machine building, packaging lines, material handling, and general automation systems where space is limited but a high number of pneumatic functions need to be controlled efficiently. Country of Origin Made in Germany. CO2 Impact Choosing this pre-owned component saves an estimated 48.0 kg of CO2 emissions compared to purchasing a new one, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of valves are compatible with this CPV-10-VI-P8-M7 terminal?This terminal is designed for Festo’s CPV10 series valves, which have a 10mm width. You can configure it with various valve functions like 5/2-way single solenoid, 5/2-way double solenoid, or 5/3-way valves, depending on your application needs. How do I wire the multi-pin connector on the CPV10-GE-MP-8 interface?The pinout for the connector is detailed in the Festo documentation for part number 18255. Each pin corresponds to a specific solenoid coil or a common power/ground connection. It is crucial to consult the official datasheet to ensure correct wiring and prevent damage to the coils or your control system. Can I expand this valve terminal beyond 8 stations?The CPV10 system is modular, but this specific assembly with the CPV10-GE-MP-8 electrical interface (18255) is configured for a maximum of 8 valve stations. Expanding it would require replacing the electrical interface and the manifold rail with a larger version. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
