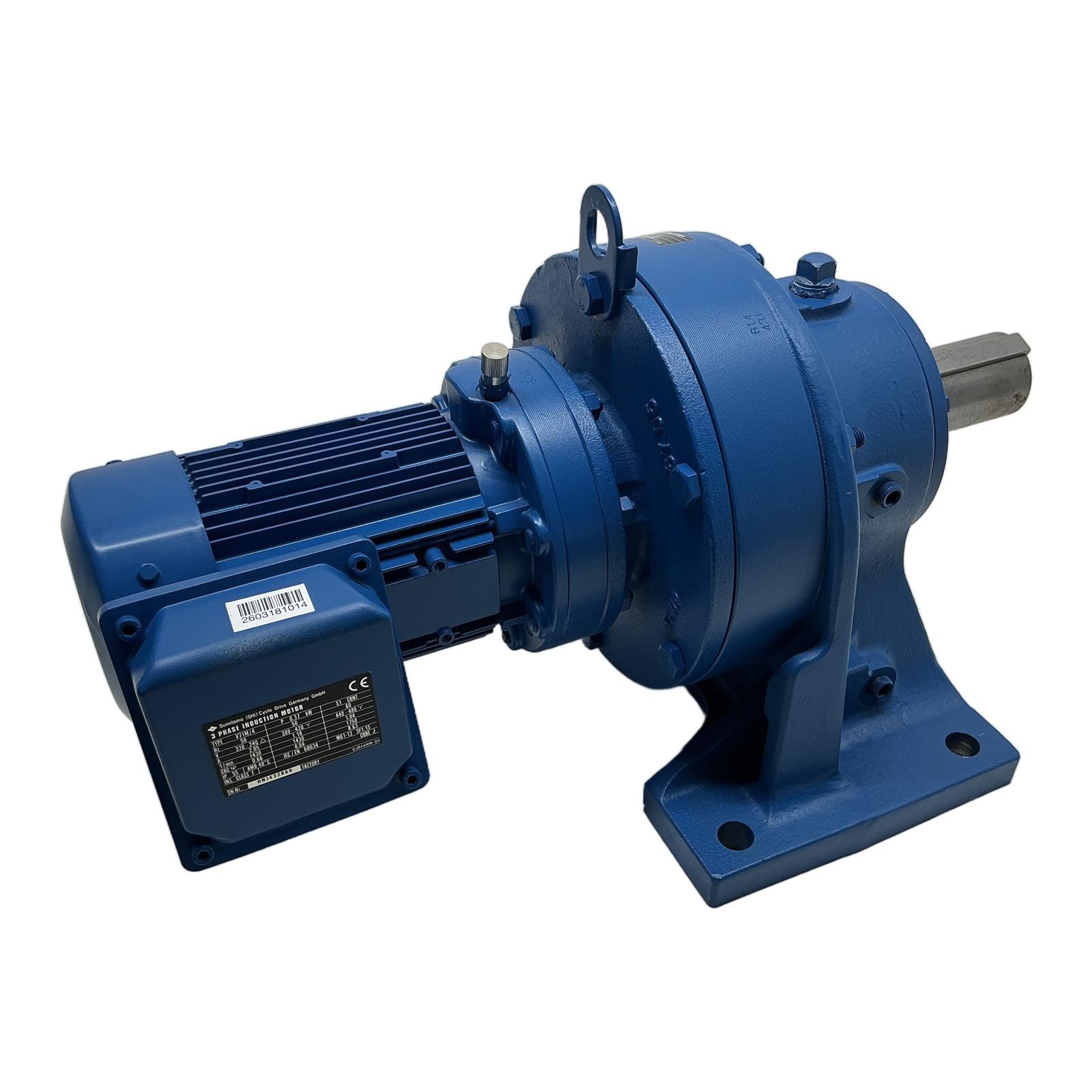

SUMITOMO CHHMS04-6145DBG-559/G V71M/4 Cyclo Drive 0.37KW Motor

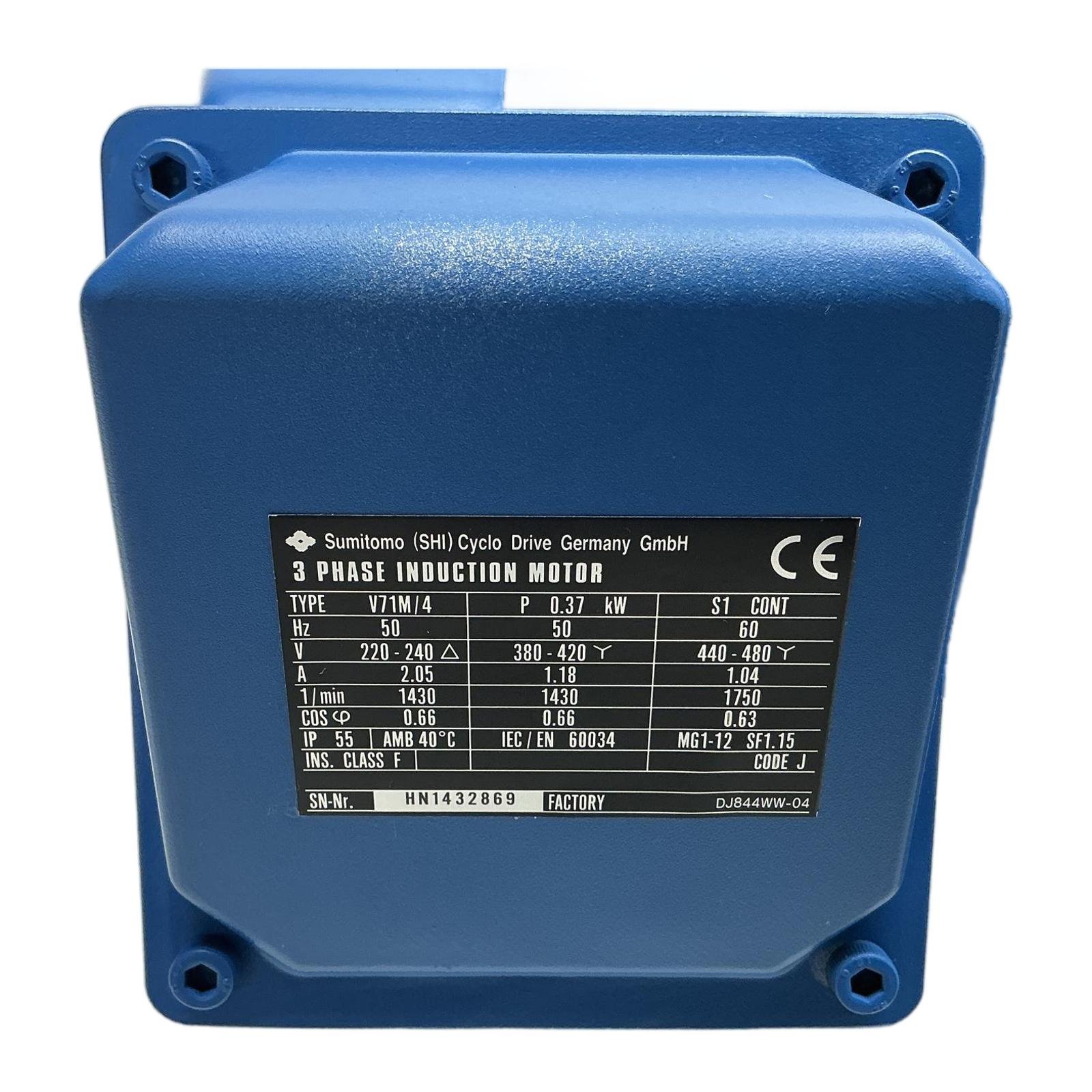

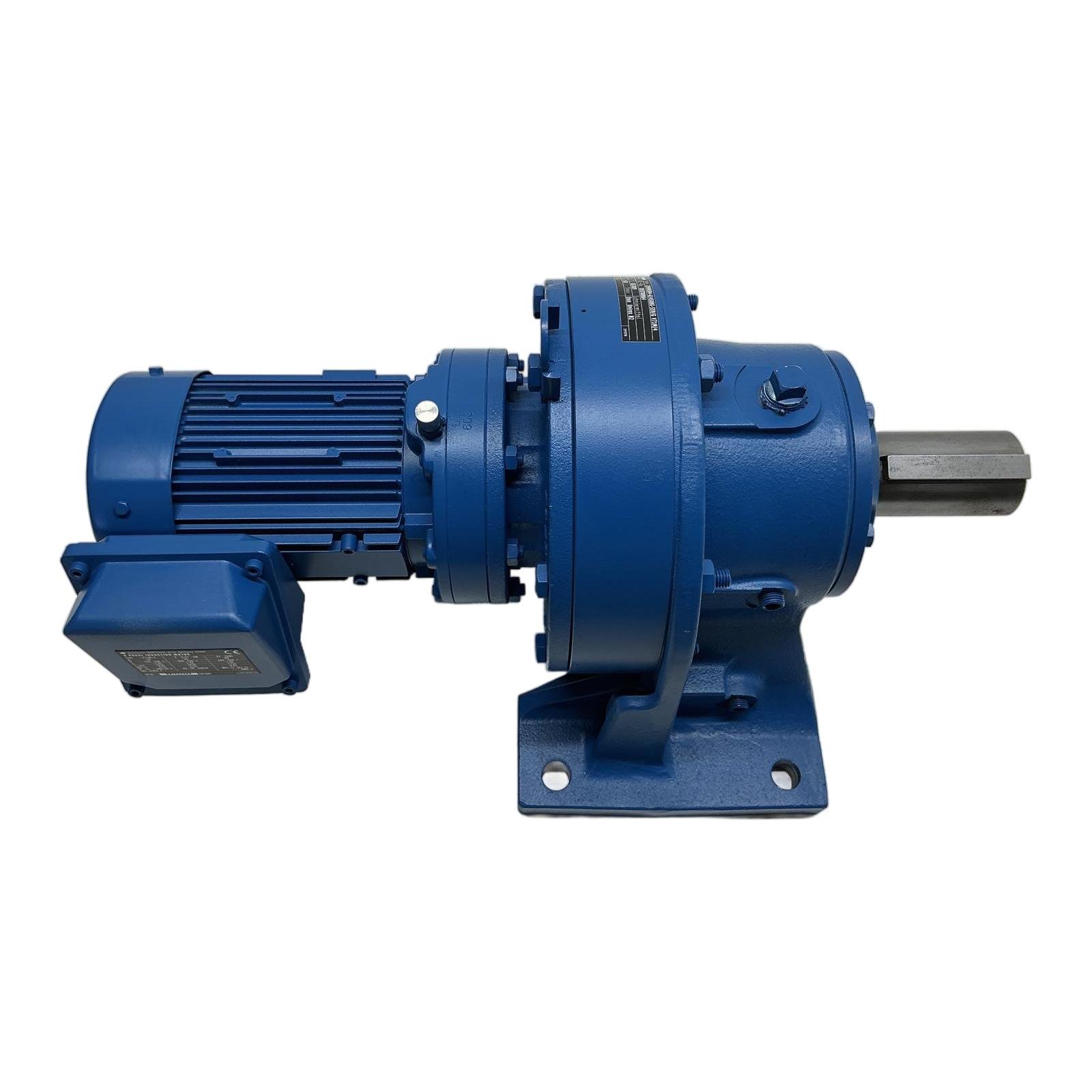

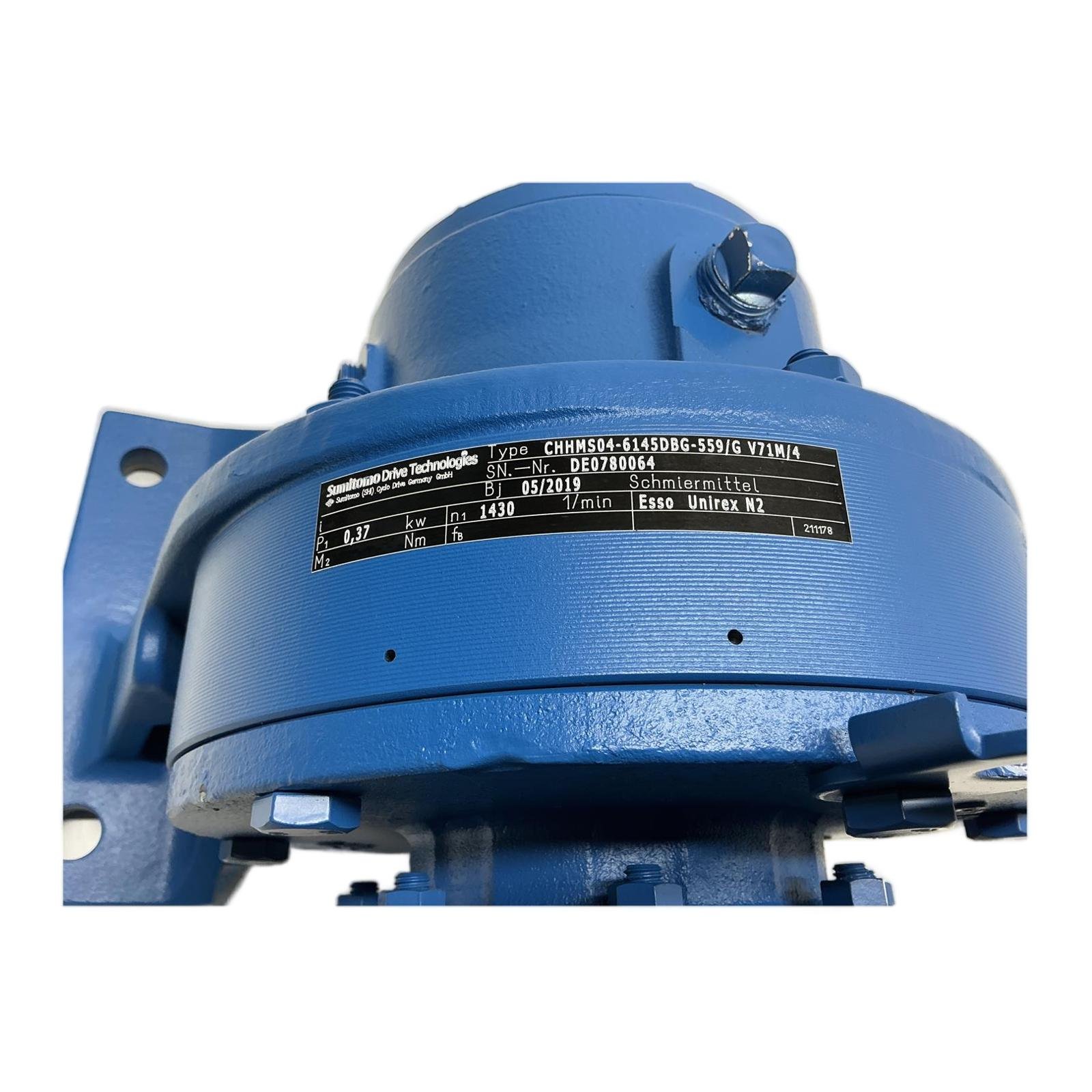

<h2>Sumitomo Geared Motor 0.37 kW CHHMS04-6145DBG-559/G V71M/4</h2> <h3>Description</h3> <p>This is a robust and highly reliable geared motor from Sumitomo Drive Technologies. The unit consists of a Cyclo 6000 series gearbox model CHHMS04-6145DBG-559/G coupled with a 0.37 kW 3-phase asynchronous motor model V71M/4. Known for its unique cycloidal gear technology, this geared motor offers high torque, excellent shock load resistance, and a long service life, making it a perfect choice for heavy-duty industrial environments.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Sumitomo Drive Technologies</li> <li>Full Type: CHHMS04-6145DBG-559/G V71M/4</li> <li>Power Rating: 0.37 kW (0.5 HP)</li> <li>Input Speed (50 Hz): 1430 RPM</li> <li>Gear Ratio: 559:1</li> <li>Output Speed (50 Hz): Approximately 2.56 RPM</li> <li>Voltage: 380-420V (Y) at 50Hz / 440-480V (Y) at 60Hz</li> <li>Protection Class: IP55</li> <li>Insulation Class: F</li> <li>Year of Manufacture: 2019</li> </ul> <h3>Label Info</h3> <ul> <li><strong>Gearbox:</strong> Type CHHMS04-6145DBG-559/G V71M/4, SN DE0780064, Bj 05/2019, Lubricant Esso Unirex N2</li> <li><strong>Motor:</strong> Type V71M/4, P 0.37kW, SN HN1432869</li> </ul> <h3>Application</h3> <p>Ideal for applications requiring low speed and high torque, such as conveyor systems, agitators, mixers, and other material handling or processing machinery.</p> <h3>Country of Origin</h3> <p>Germany</p> <h3>CO2 Impact</h3> <p>Choosing this pre-owned geared motor prevents the environmental impact of manufacturing a new one, saving an estimated 44 kg of CO2. This saving is comparable to the emissions of a 220 km car journey.</p> <h3>Availability</h3> <p>This unit is in excellent condition and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <p><strong>Question?</strong> What does the lubricant ‘Esso Unirex N2′ indicate about this gearbox’s maintenance?<br><p>Esso Unirex N2 is a high-quality, lithium-complex grease known for its long life and high-temperature performance. In many Sumitomo gearboxes, this indicates a ‘lubricated for life’ design under normal operating conditions, minimizing maintenance requirements.</p></p> <p><strong>Question?</strong> What is the significance of the ‘Cyclo Drive’ technology in this Sumitomo gearbox?<br><p>The Cyclo Drive technology uses a unique cycloidal disc mechanism instead of conventional involute gears. This design allows for a very high reduction ratio in a compact space, offers exceptional resistance to shock loads (up to 500% of rated torque), and provides smooth, low-vibration operation.</p></p> <p><strong>Question?</strong> Can the output orientation of this CHHMS model be changed?<br><p>The ‘H’ in CHHMS typically indicates a horizontal, foot-mounted configuration. While some Sumitomo models offer flexible mounting options, changing the fundamental orientation (e.g., to vertical) might require a different model or specific mounting adapters. It is best to verify compatibility with your specific setup based on the manufacturer’s documentation.</p></p> <p>Last Update: Friday, March 13, 2026</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p>
