FESTO CAS-1/4 5830

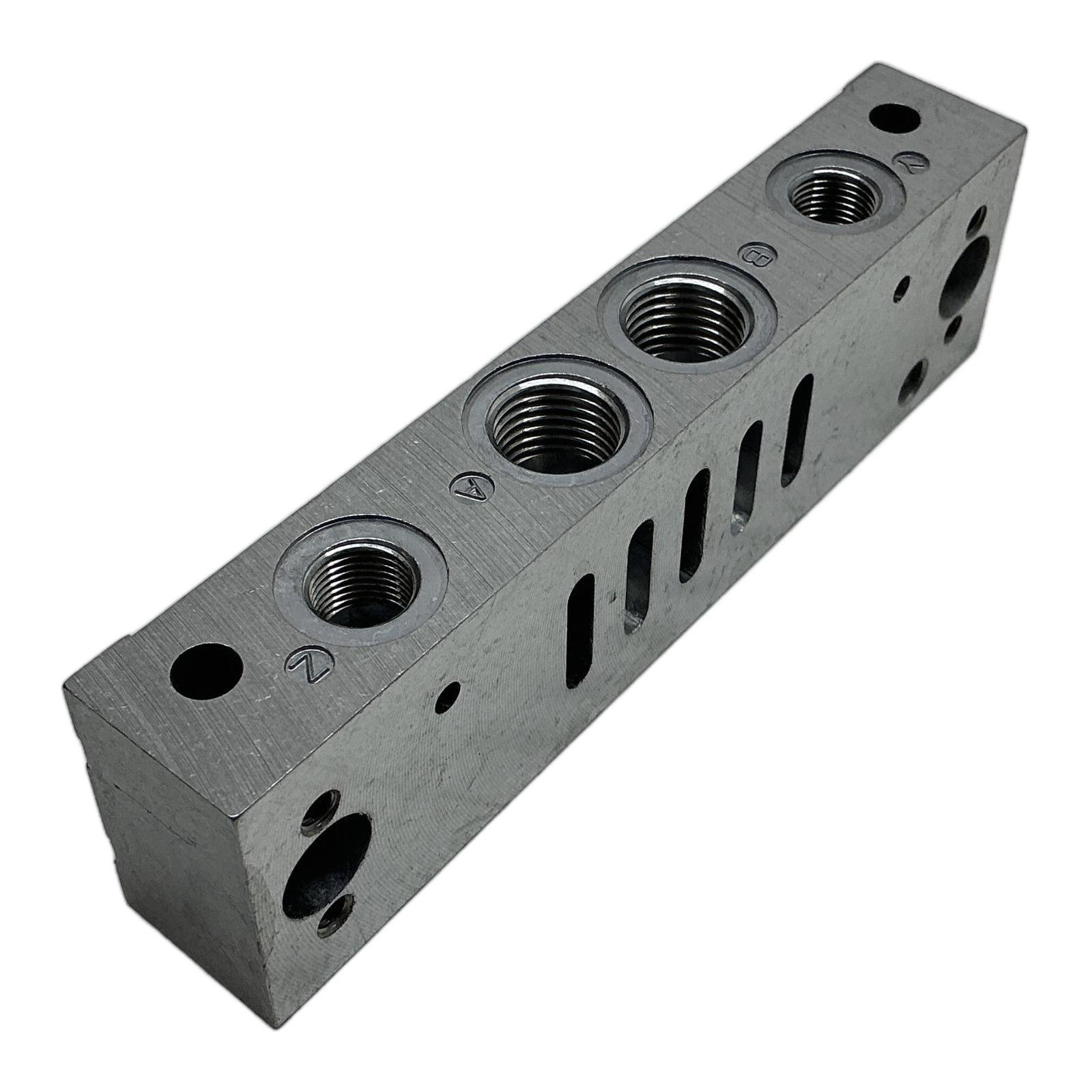

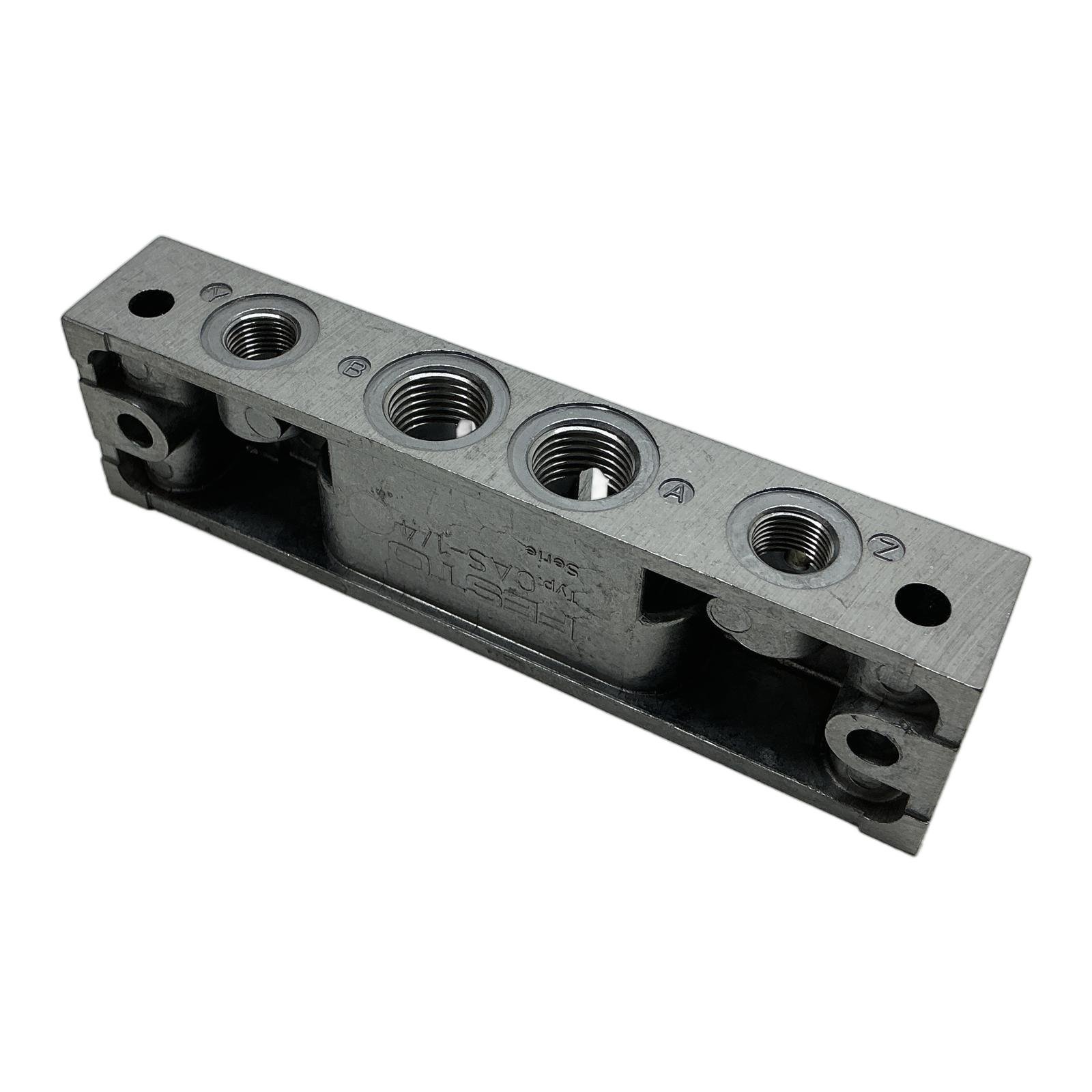

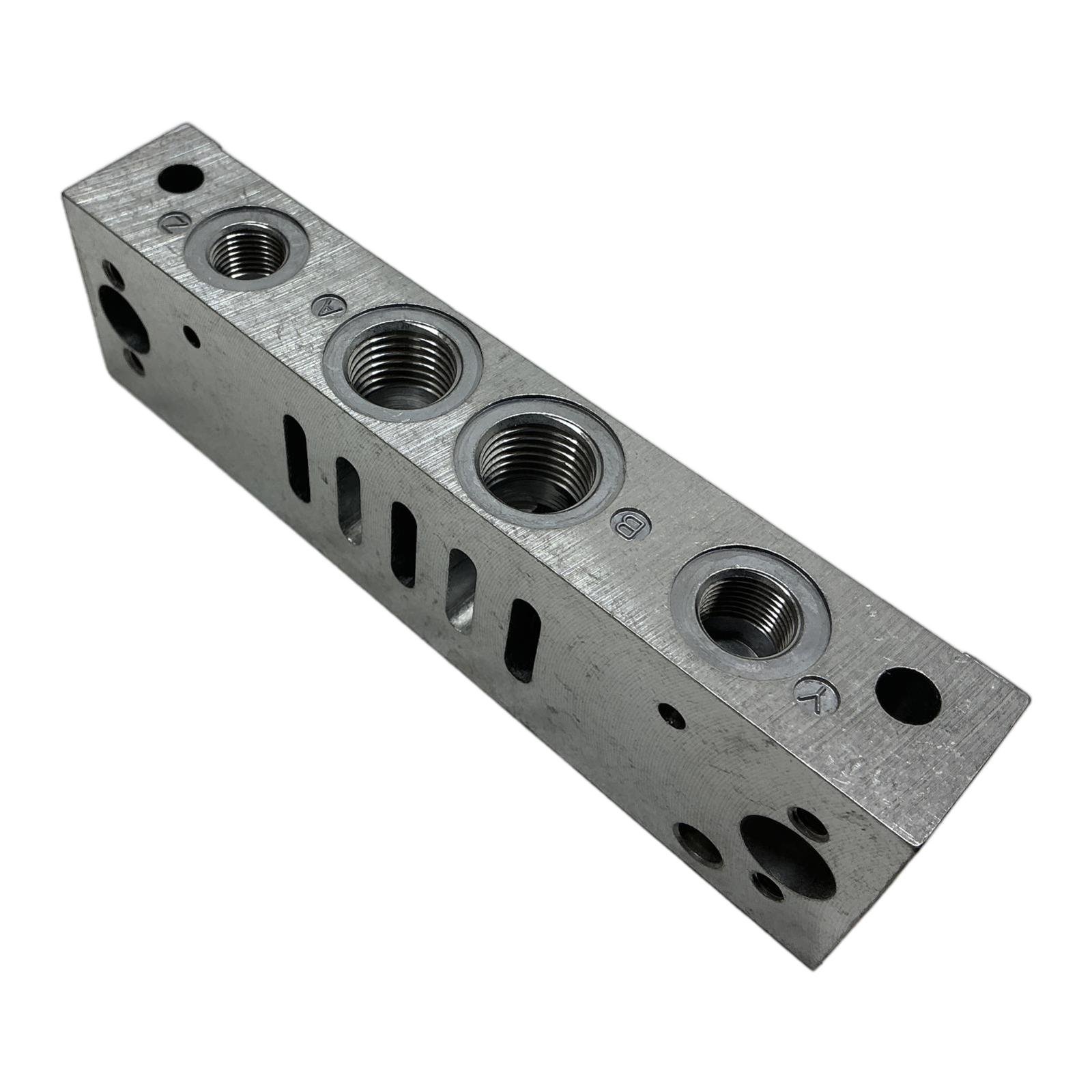

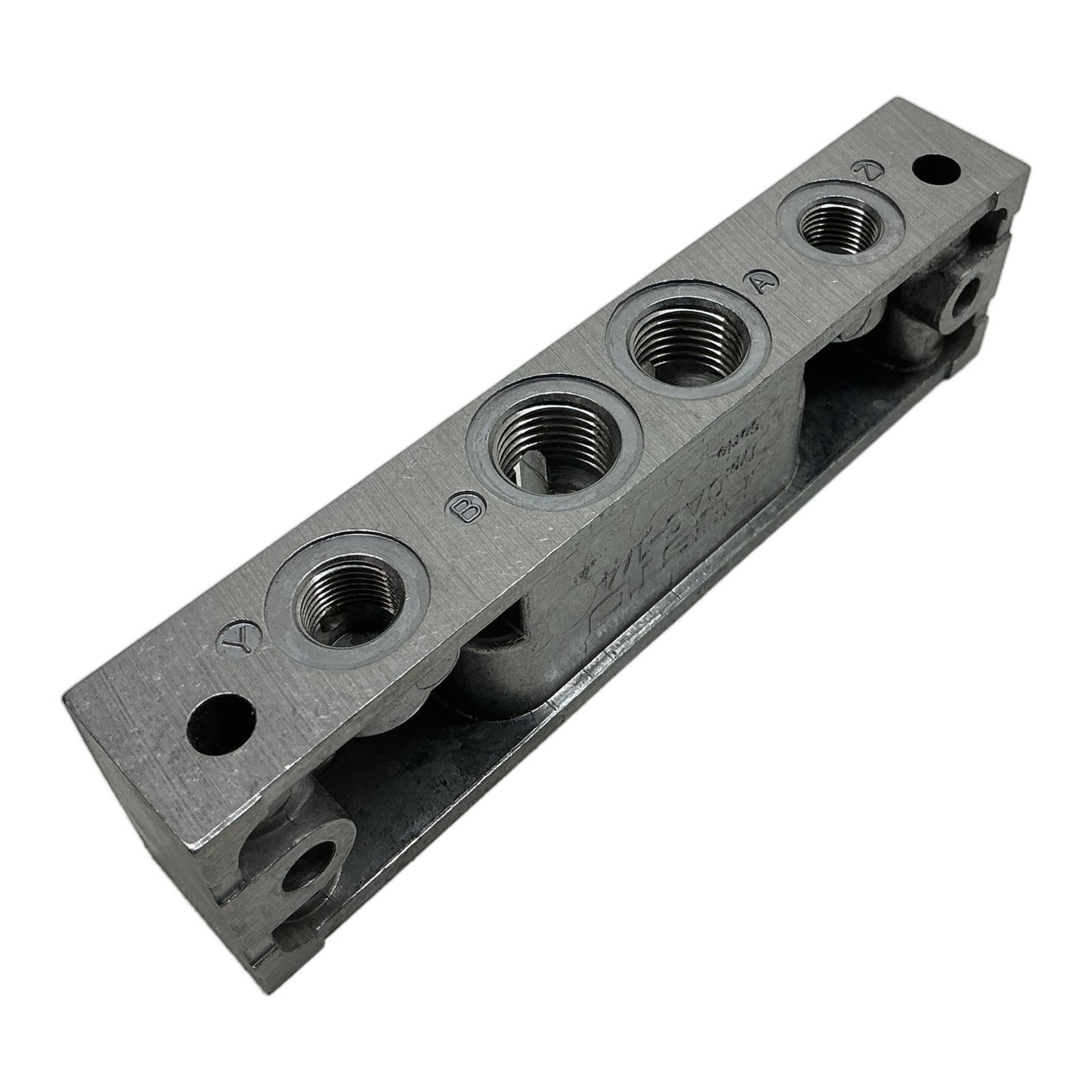

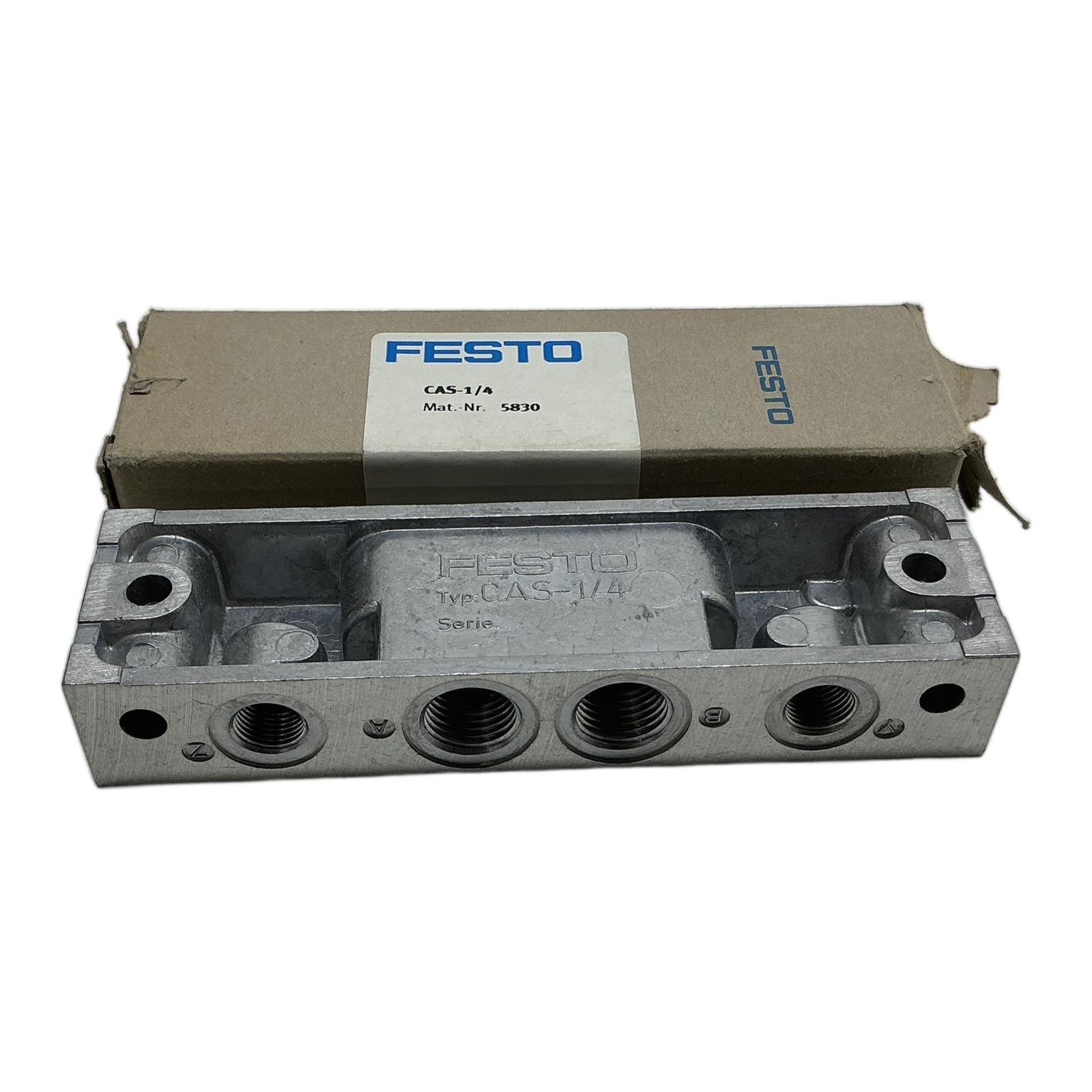

Festo CAS-1/4 4-Station Pneumatic Manifold Block Description The Festo CAS-1/4, part number 5830, is a high-quality 4-station manifold block designed for mounting pneumatic valves. Its compact design and robust anodized aluminum construction make it an ideal solution for organizing complex pneumatic circuits while saving space. All ports feature standard G1/4 threading for easy integration. Specifications Manufacturer: Festo Type: CAS-1/4 Part Number: 5830 Number of Valve Stations: 4 Pneumatic Connection (all ports): G1/4 Operating Pressure: -0.95 to 10 bar Material: Anodized Wrought Aluminium Alloy Ambient Temperature: -10 to 80 deg C Label Info Brand: FESTO Type: CAS-1/4 Material Number: 5830 Application This manifold block is suitable for a wide range of industrial automation applications, including packaging machinery, assembly lines, and material handling systems, where multiple pneumatic actuators need to be controlled from a central point. Country of Origin Germany CO2 Impact By purchasing this reused component, you are helping to avoid approximately 3.2 kg of CO2 emissions. This saving is comparable to the emissions from driving a car for 16 kilometers. Availability This is an obsolete item, but it is available from our stock. Order now from profideals for expert support and fast delivery. FAQ Question? What series of Festo valves are compatible with the CAS-1/4 manifold?The CAS-1/4 manifold block is specifically designed for use with the Festo J-series pneumatic solenoid valves. Question? What are the mounting options for this manifold block?This block can be mounted directly onto a machine frame or panel using the through-holes provided at each end. Question? Is it possible to block unused valve stations on this manifold?Yes, unused stations can be sealed off using appropriate blanking plates, such as the Festo part number J-BP (part no. 2785). Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
