SCHNEIDER ELECTRIC CAD50

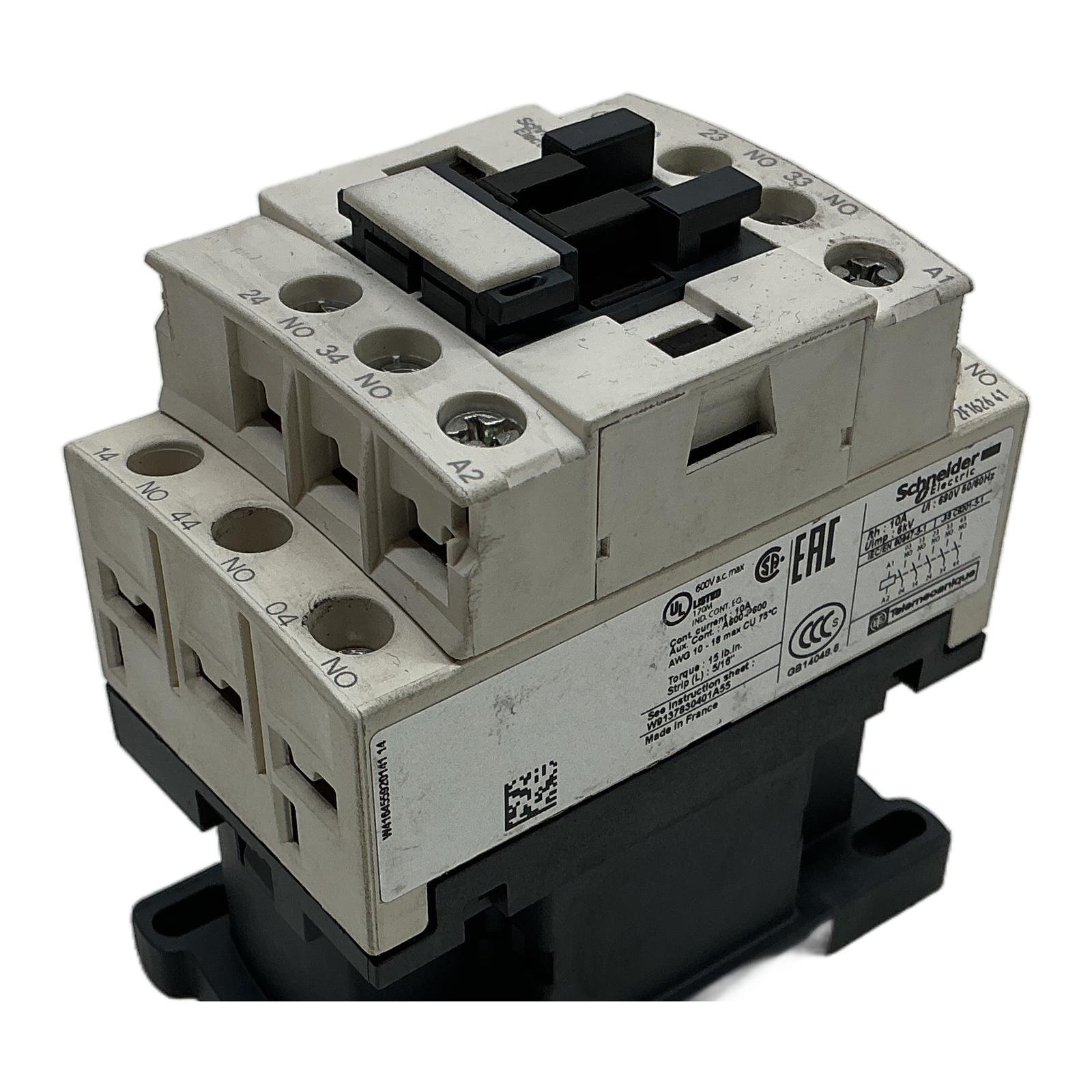

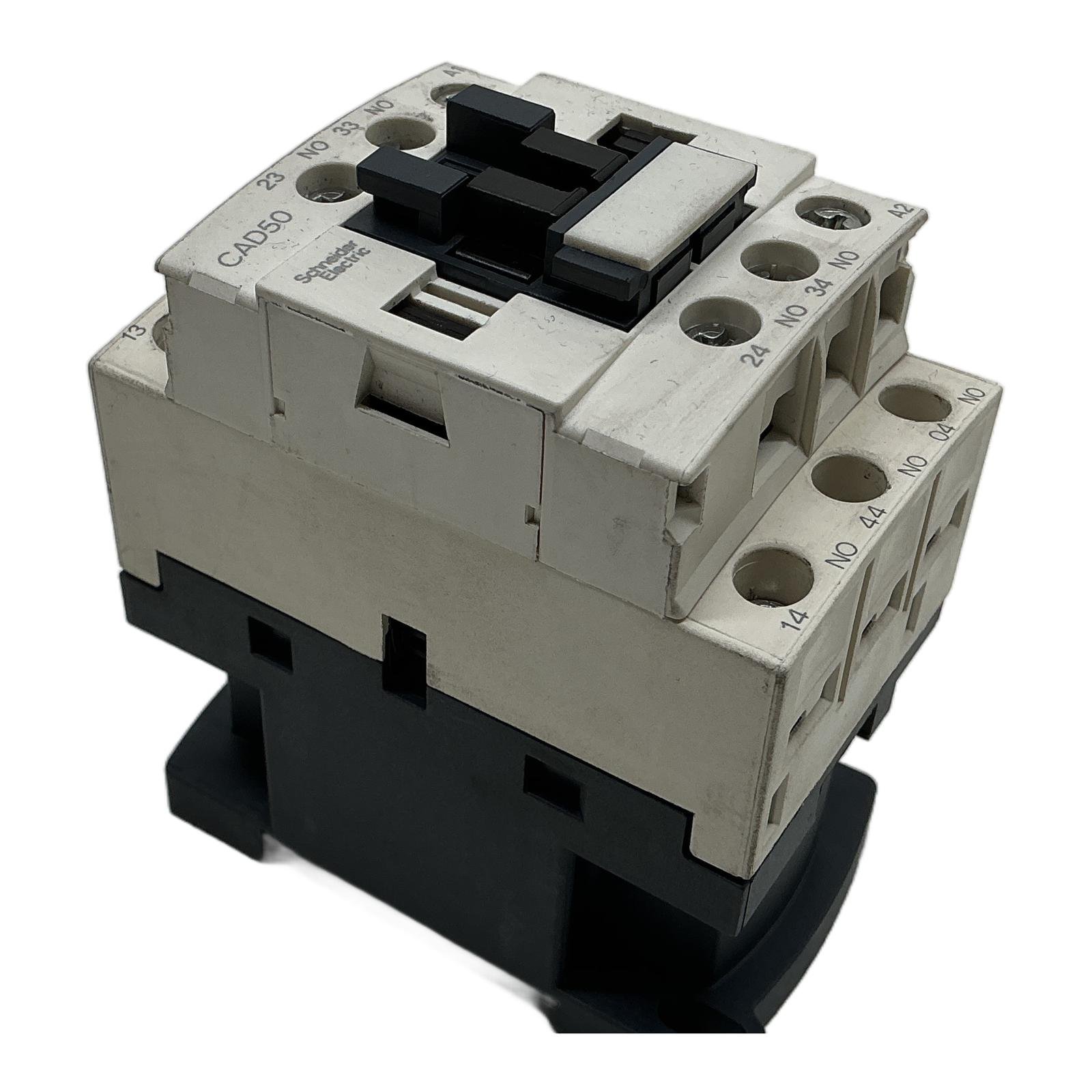

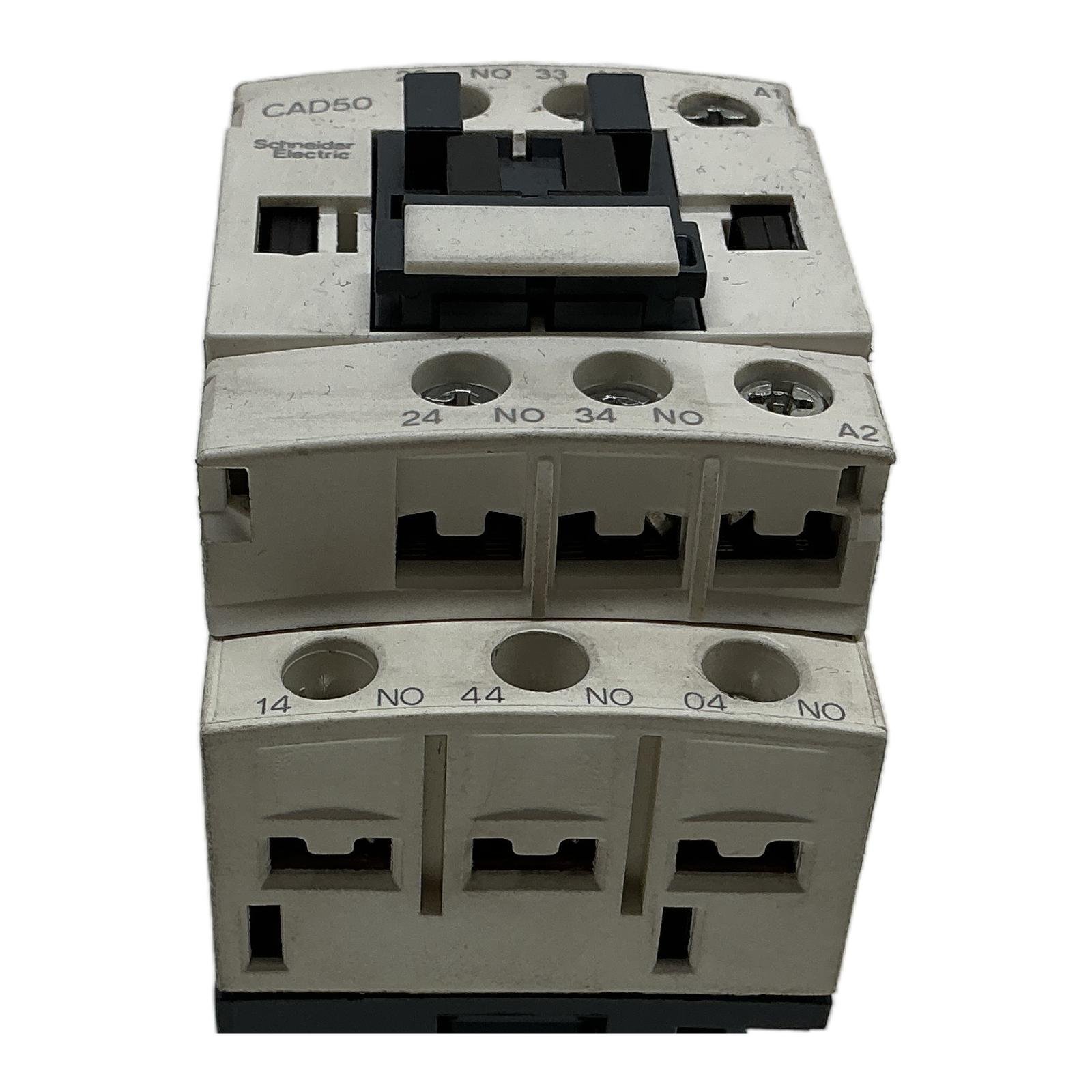

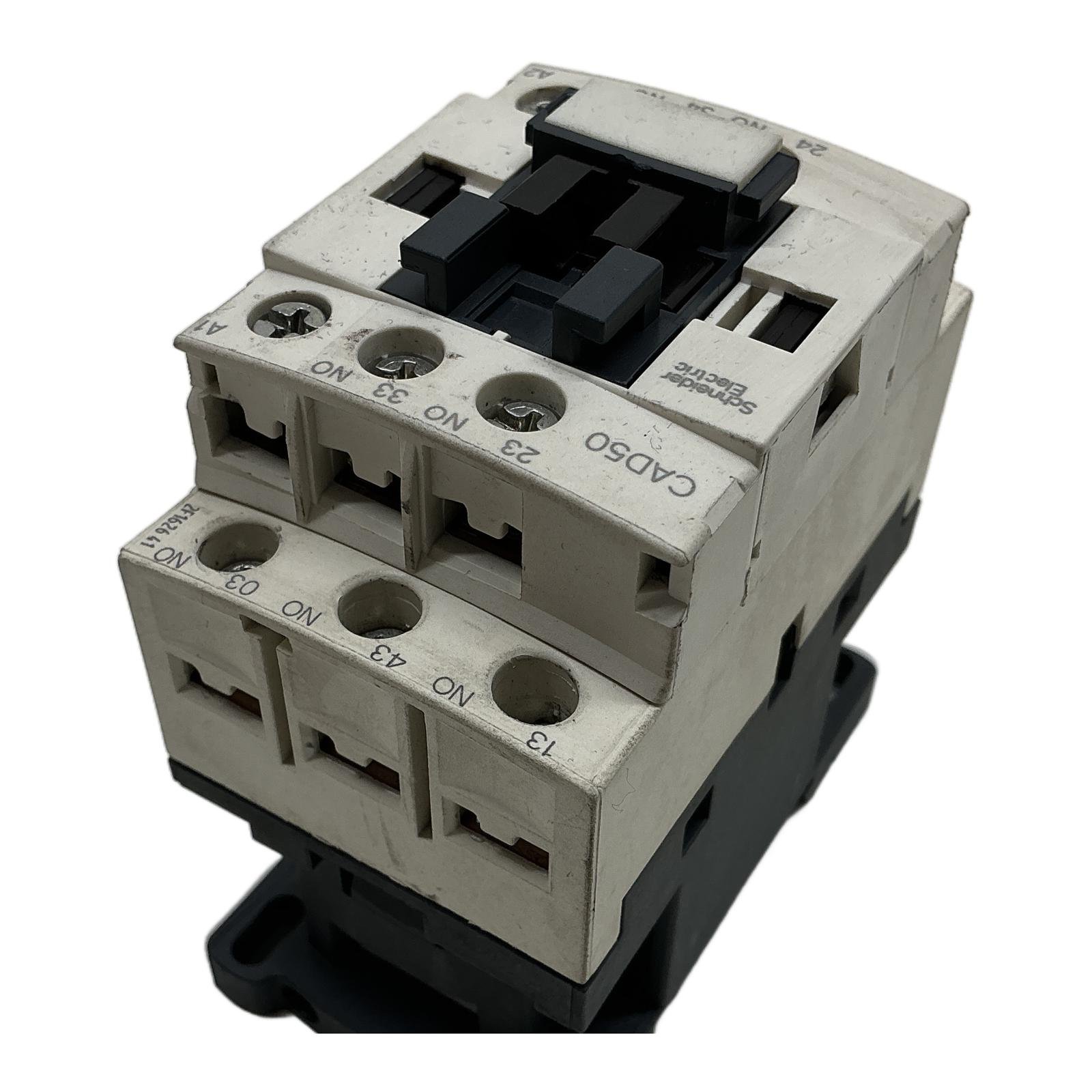

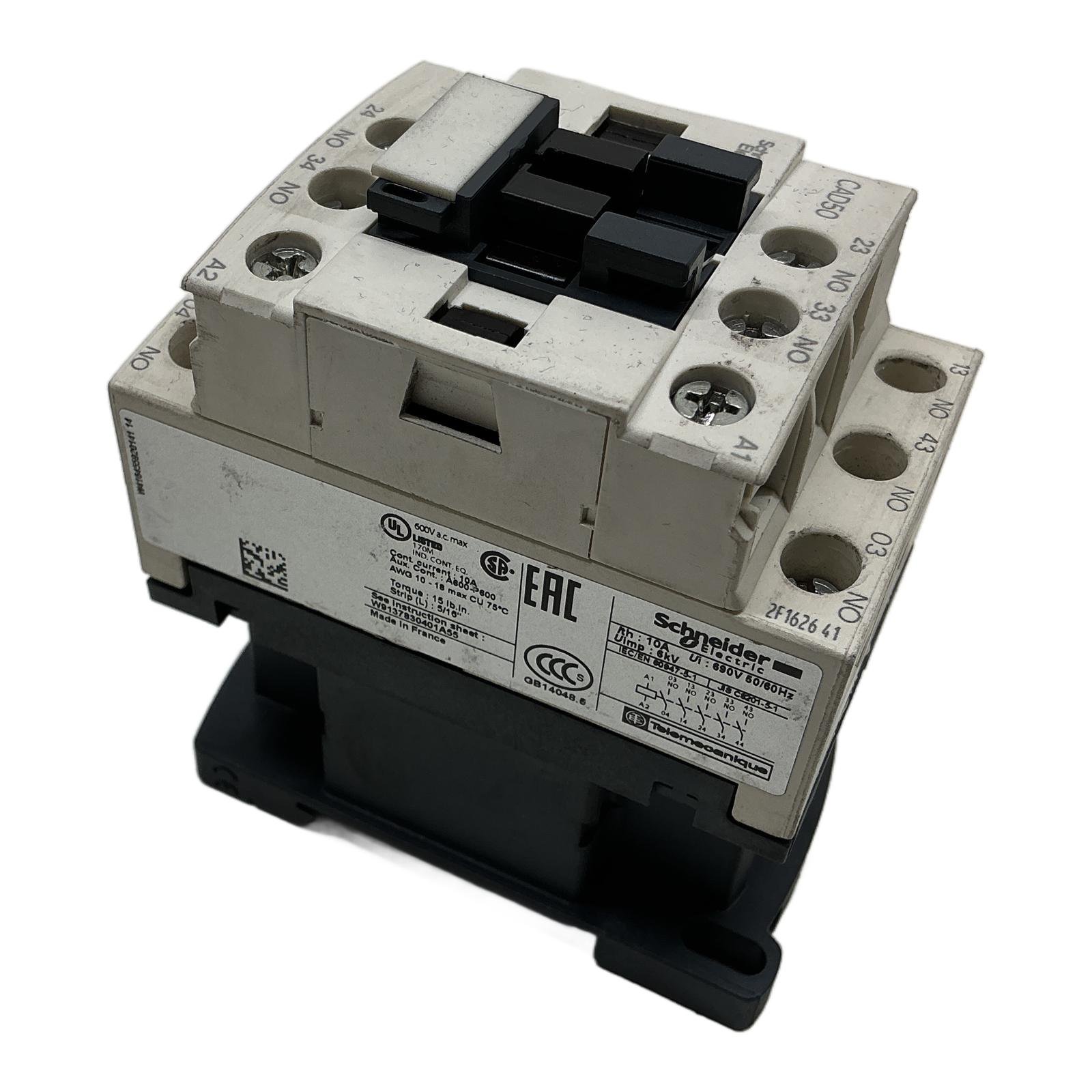

Schneider Electric TeSys D Control Relay Description The Schneider Electric CAD50 is a high-performance control relay from the globally recognized TeSys D series. It is engineered for switching control circuits in demanding industrial environments. This unit features five normally open contacts, making it suitable for a wide range of interlocking and control logic applications. Please note that the coil voltage for this specific unit must be verified from its full model number, as it is not marked on the main body. Specifications Manufacturer: Schneider Electric Series: TeSys D Type: CAD50 Contact Configuration: 5 NO (Normally Open) Conventional Free Air Thermal Current (Ith): 10 A Rated Insulation Voltage (Ui): 690V Rated Impulse Withstand Voltage (Uimp): 6 kV Standards: IEC/EN 60947-5-1, JIS C8201-5-1 Label Info Brand: Schneider Electric / Telemecanique Model: CAD50 UL Listed: 170M, IND. CONT. EQ. Application This control relay is ideal for use in automation panels for signaling, control logic, and as an interface between PLC outputs and higher-power contactors. Its reliability makes it a staple in manufacturing, material handling, and process control systems. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned item, you help avoid the emission of approximately 14 kg of CO2, which is equivalent to driving a car for 70 km. This promotes a circular economy and reduces industrial waste. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the coil voltage of this CAD50 relay?The specific coil voltage (e.g., 24V DC, 230V AC) is determined by a suffix in the full part number (e.g., CAD50BD for 24V DC). This information is not printed on the device shown. It is essential to verify the coil voltage required by your application and match it to the relay’s full part number. Can I add auxiliary contacts to this CAD50 relay?No, the CAD50 is an auxiliary contactor or control relay itself. It does not have the mechanism to add front or side-mounted auxiliary contact blocks like a main power contactor (e.g., LC1D series). This unit comes with a fixed configuration of 5 normally open contacts. Is this relay suitable for switching motor loads directly?No, this is a control relay with an AC-15/DC-13 rating, designed for switching control and signal loads, like PLC inputs or other contactor coils. It is not designed for directly switching motor loads, which requires a power contactor with an AC-3 rating (e.g., a Schneider Electric LC1D series contactor). profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
