SCHNEIDER ELECTRIC CA2KN223F7

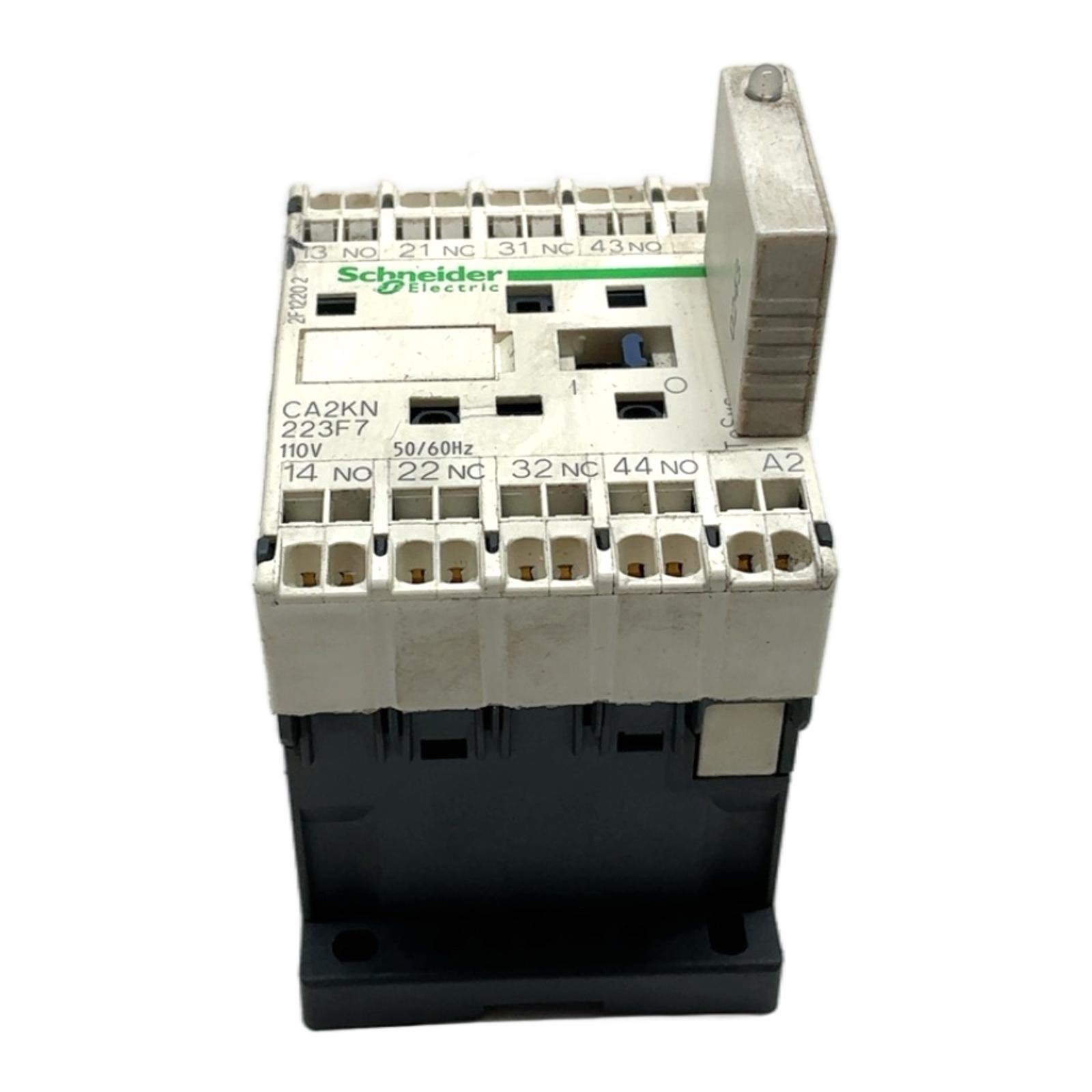

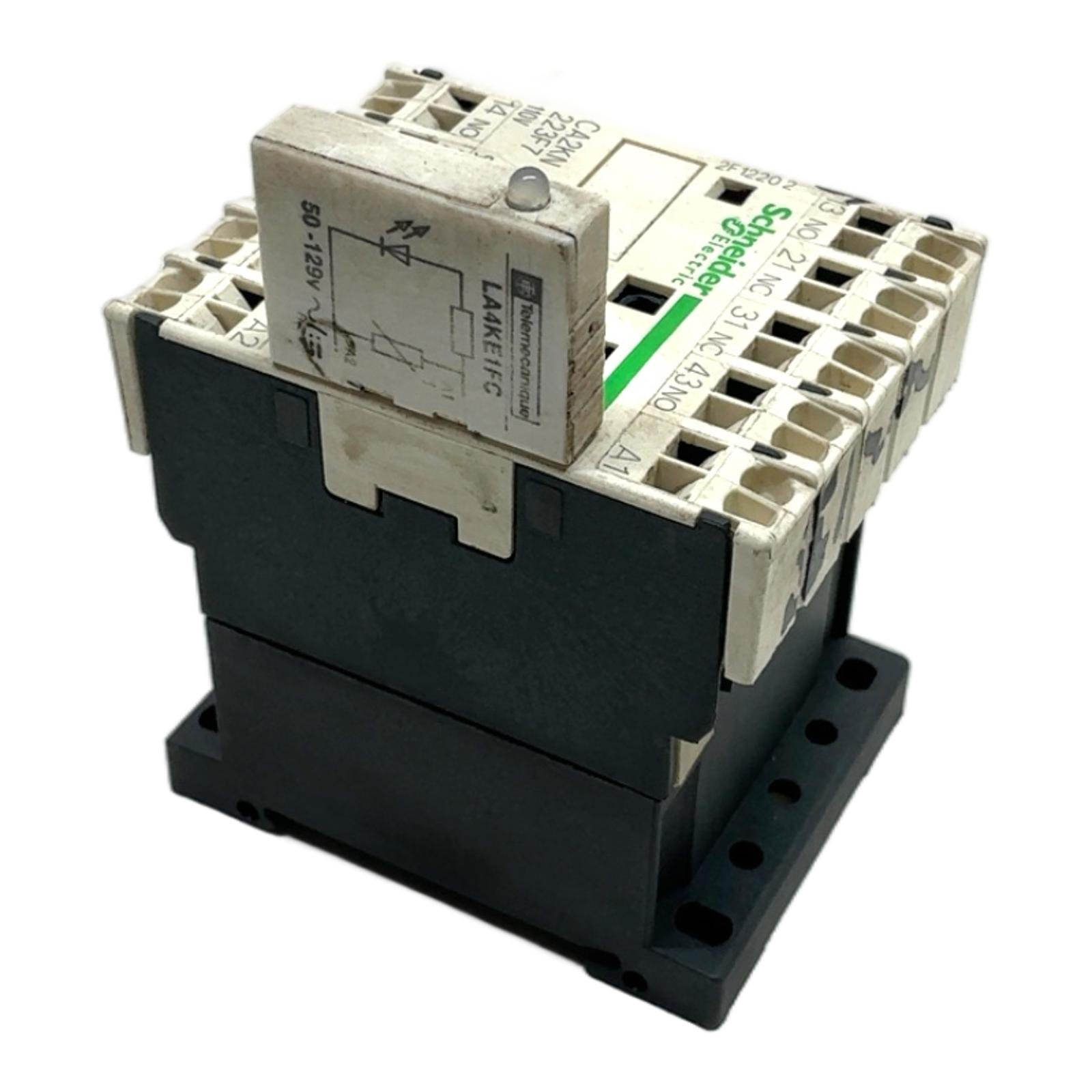

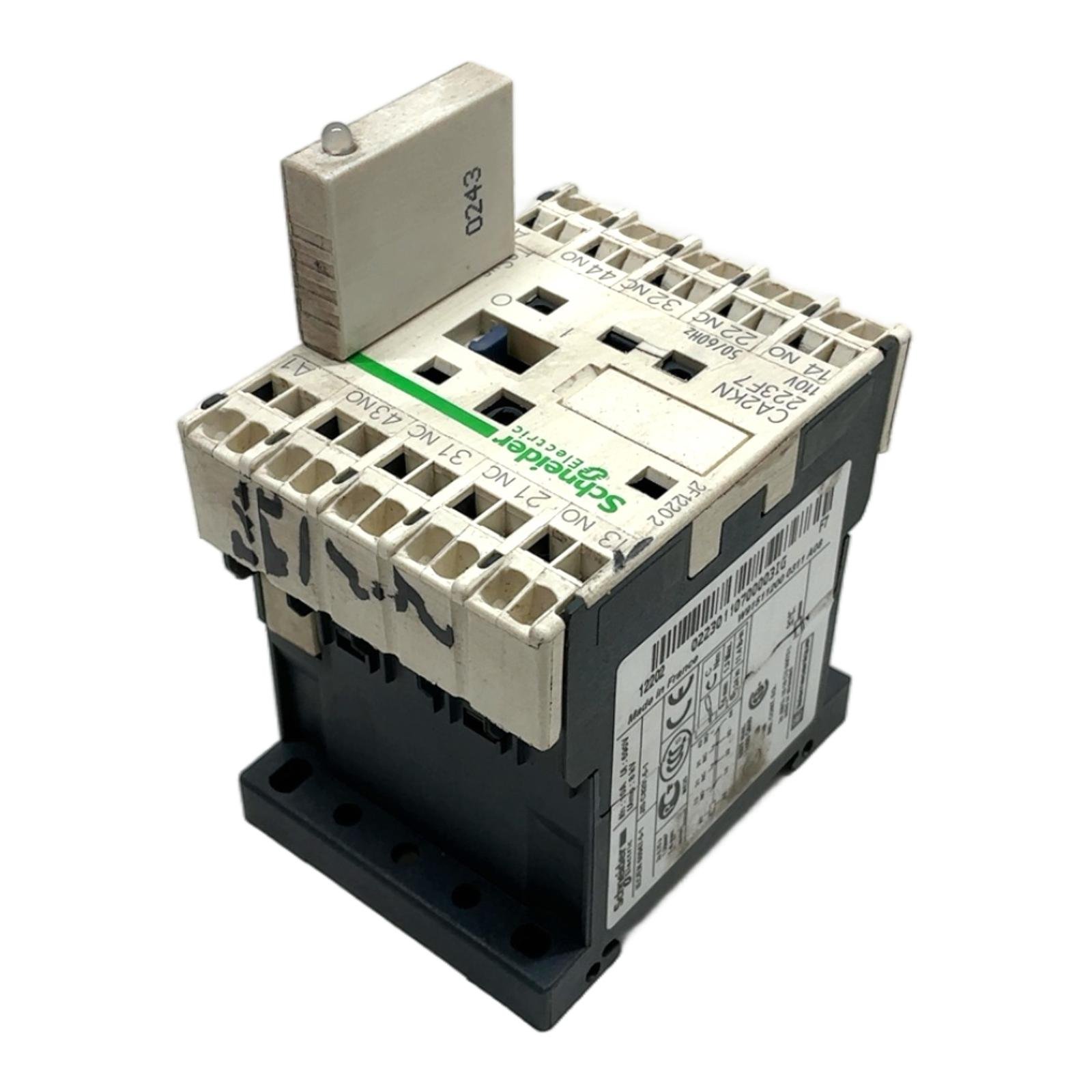

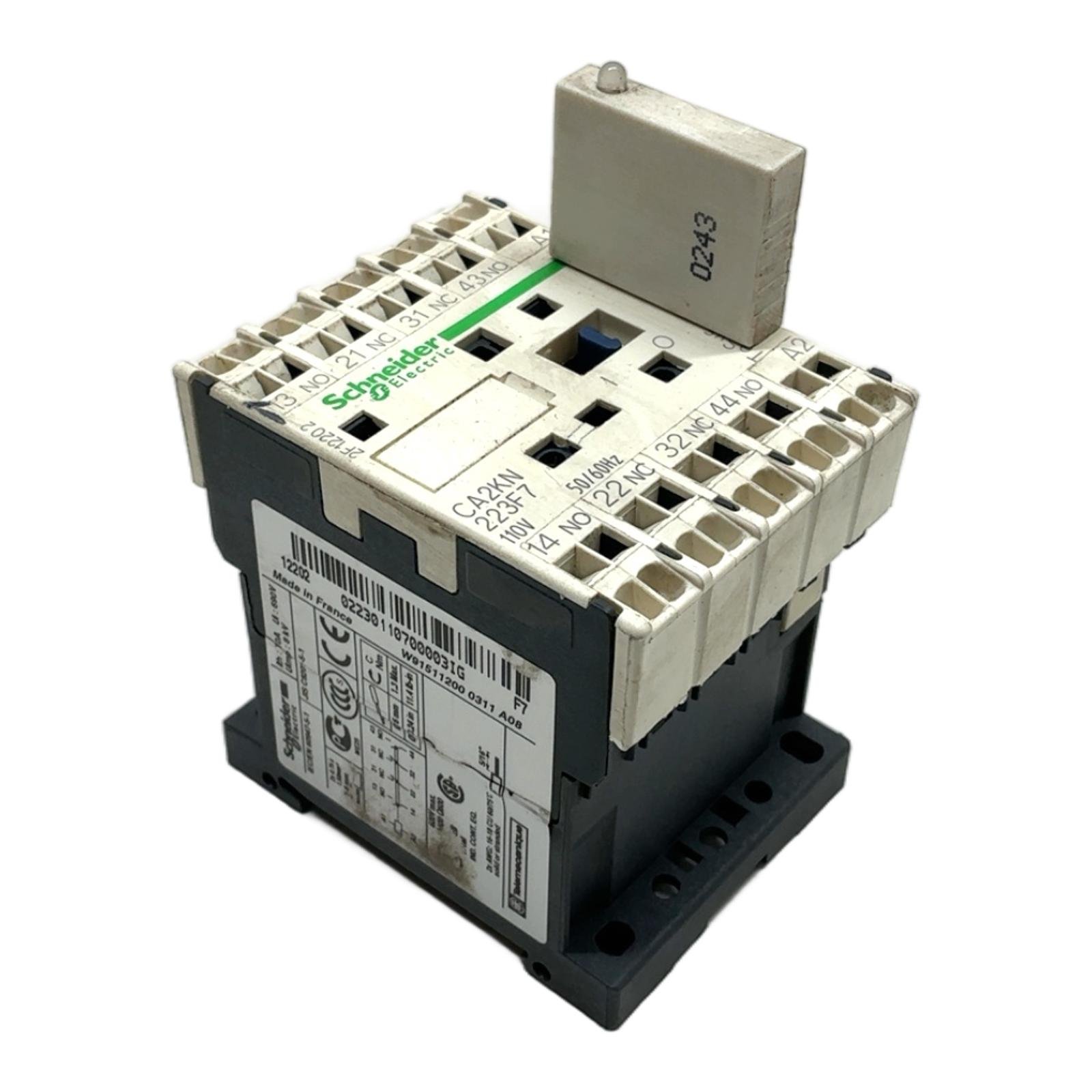

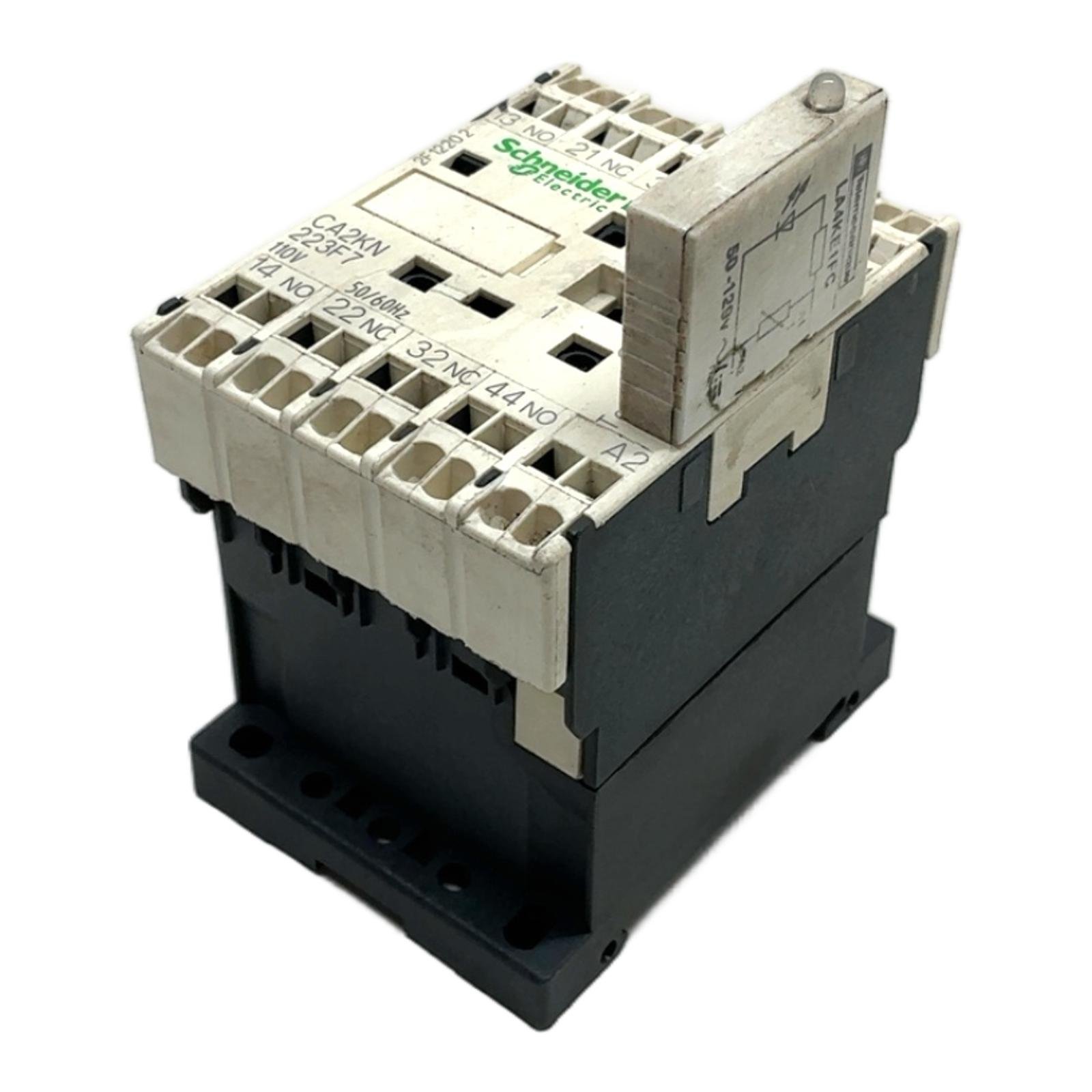

Schneider Electric TeSys K Control Relay Description The CA2KN223F7 is a high-quality control relay from the Schneider Electric TeSys K series. It is engineered for demanding industrial control applications, offering a compact design without compromising on performance. This relay features a 110V AC coil and a 2NO/2NC contact arrangement, making it versatile for various logic and control tasks. This unit comes with a pre-installed LA6KE1FC RC suppressor module. Specifications Manufacturer: Schneider Electric Series: TeSys K Model: CA2KN223F7 Coil Voltage: 110V AC at 50/60 Hz Contact Configuration: 2 Normally Open (NO), 2 Normally Closed (NC) Conventional Free Air Thermal Current (Ith): 10 A Rated Insulation Voltage (Ui): 690V Rated Impulse Withstand Voltage (Uimp): 8 kV Accessory: LA6KE1FC RC Suppressor Module Label Info Brand: Schneider Electric / Telemecanique Part Number: CA2KN223F7 Standard: IEC/EN 60947-5-1 Application Ideal for use in industrial automation panels, machine control circuits, and any application requiring reliable low-power switching. Its compact size is perfect for installations where space is limited. Country of Origin Made in France. CO2 Impact By purchasing this reused item, you are helping to avoid approximately 7.2 kg of CO2 emissions that would be generated from manufacturing a new one. Availability This is a used item in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main application for the CA2KN223F7?This relay is designed for switching control circuits in industrial automation systems, such as controlling larger contactors, indicator lamps, or small motors. Can I add auxiliary contacts to this relay?Yes, the TeSys K series is compatible with front or side-mounted auxiliary contact blocks, allowing for easy expansion of switching capabilities. What does the “F7” suffix signify in the model number?The “F7” suffix specifies the coil voltage of the relay. In this case, it indicates a 110V AC coil suitable for both 50 Hz and 60 Hz networks. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
