REXROTH INDRAMAT BTV04.2GN-FW R911282182

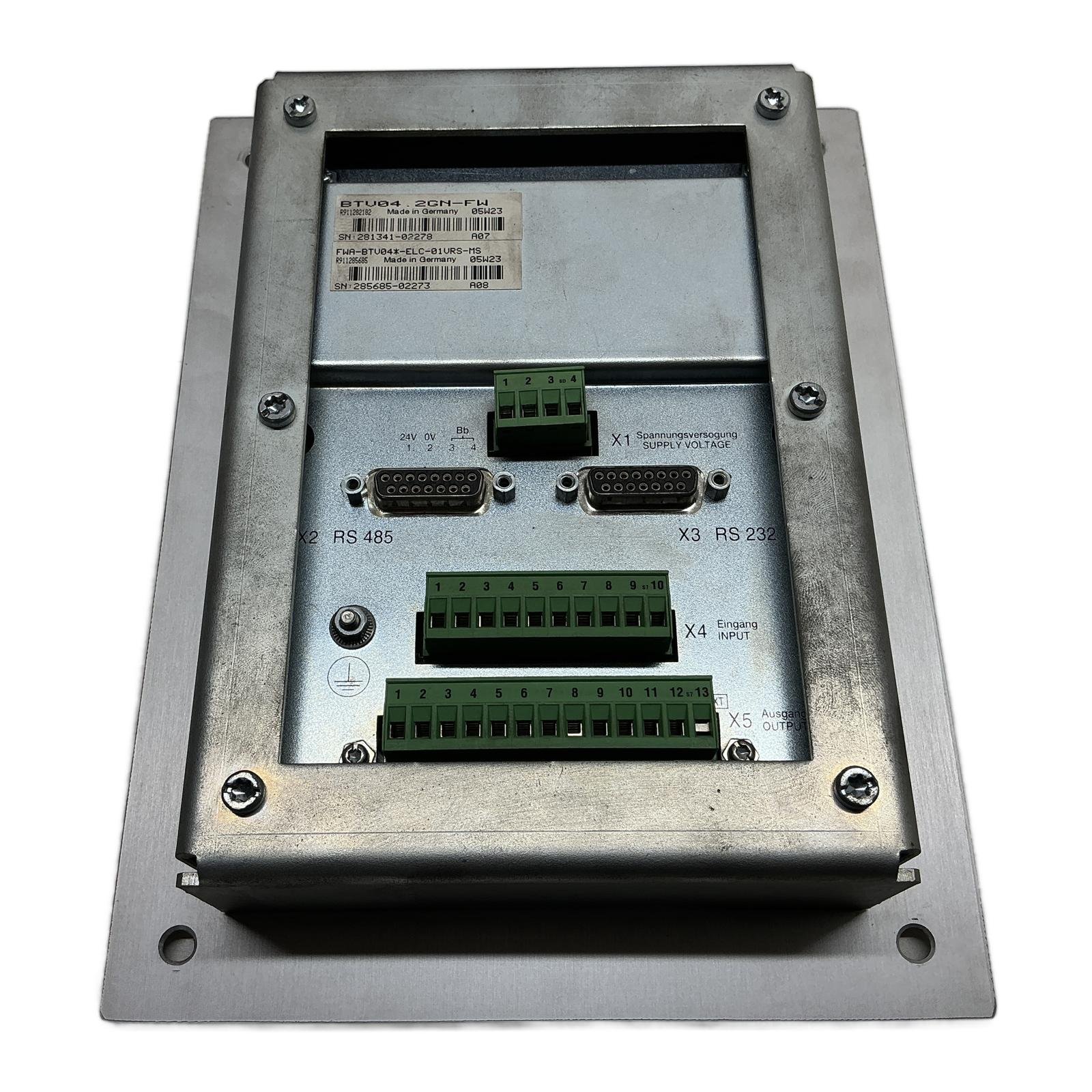

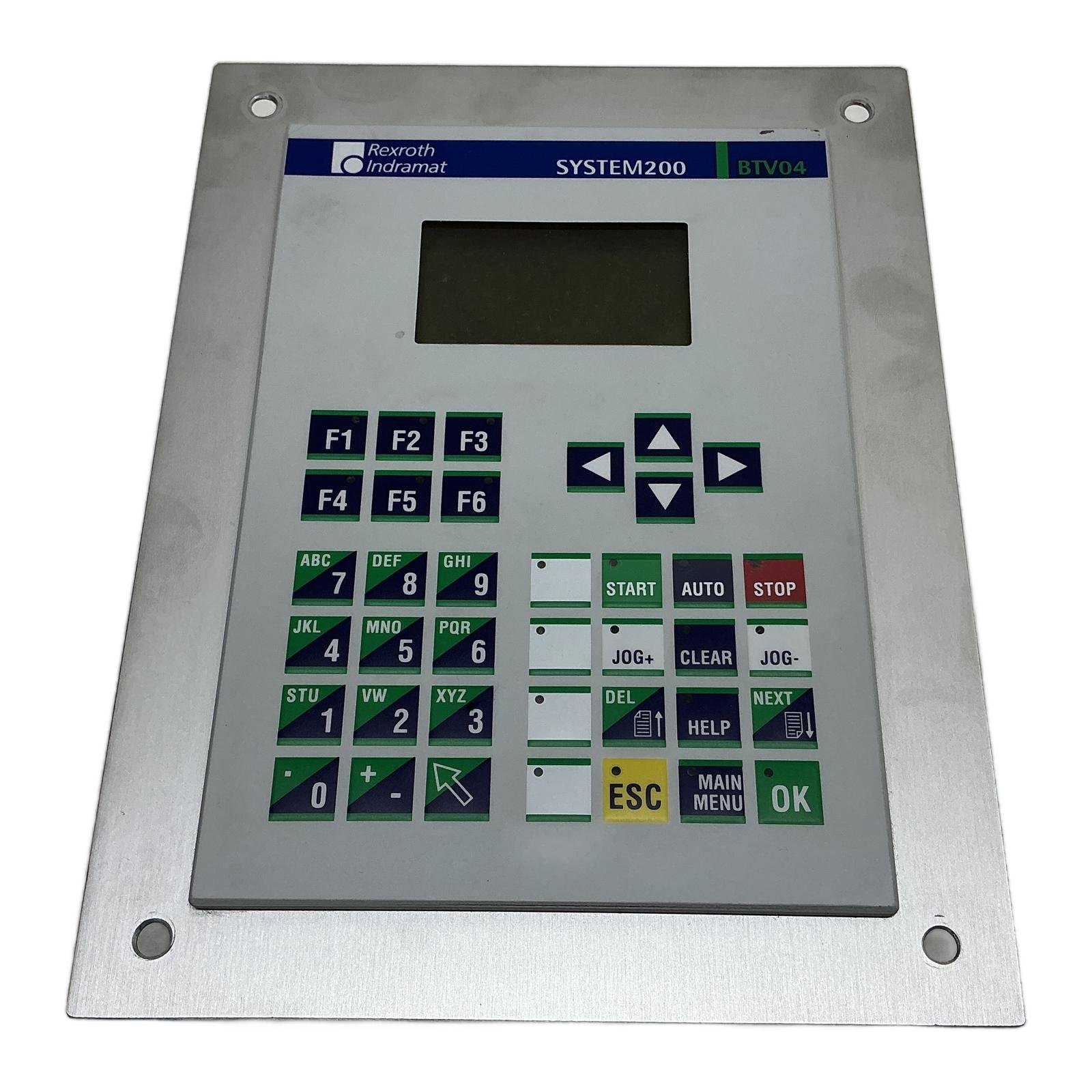

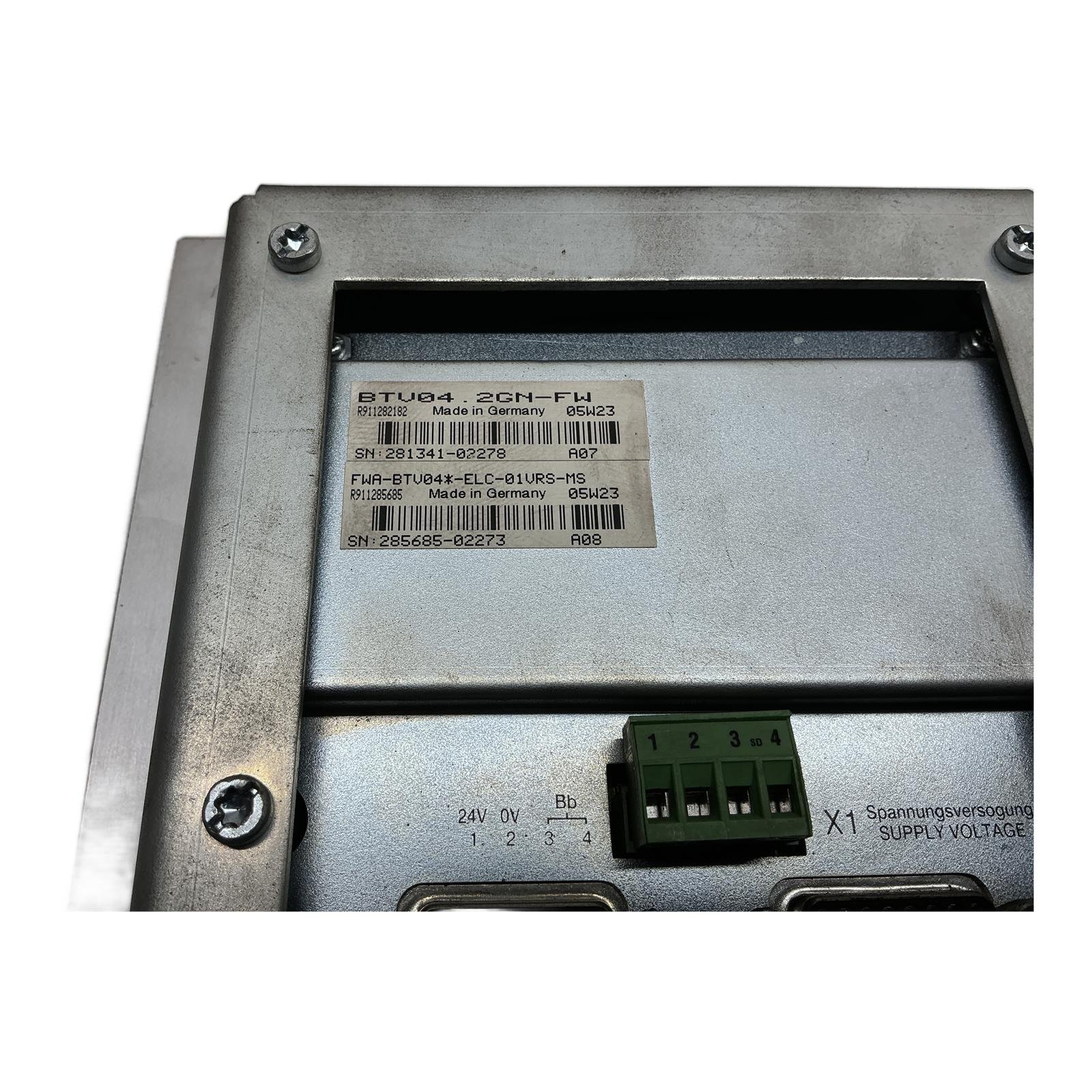

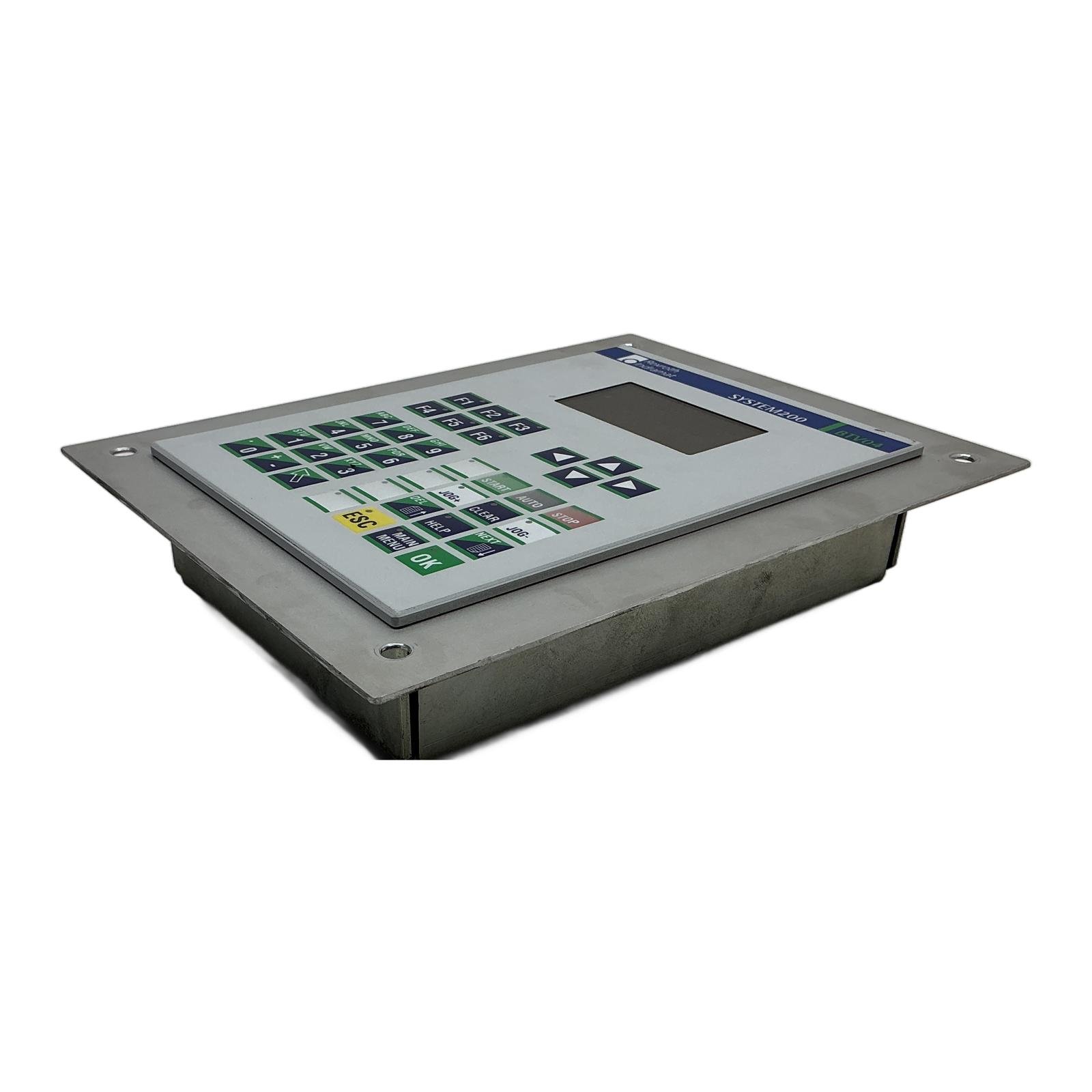

Rexroth Indramat BTV04 Operator Terminal Description The Rexroth Indramat BTV04.2GN-FW, with part number R911282182, is a durable HMI operator panel designed for the SYSTEM 200 automation platform. This terminal provides operators with a clear interface for machine control and process monitoring through its monochrome display and tactile keypad. It is a reliable and essential component for maintaining legacy systems that rely on the Indramat architecture. Specifications Manufacturer: Rexroth Indramat Model: BTV04.2GN-FW Part Number: R911282182 Power Supply: 24V DC Communication Ports: RS-232, RS-485 Display Type: Monochrome LCD Keypad: Numeric, Function, and Control Keys Label Info BTV04.2GN-FW, R911282182, SN: 281341-02278 Associated Firmware: FWA-BTV04*-ELC-01VRS-MS, R911285685, SN: 285685-02273 Application This operator terminal is specifically used in conjunction with Rexroth Indramat SYSTEM 200 controllers, commonly found in applications such as CNC machinery, printing presses, and packaging lines from its era. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned HMI panel saves an estimated 60 kg of CO2 compared to producing a new one. This is equivalent to charging a smartphone over 7,200 times. Availability This item is an obsolete part but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ Is this BTV04.2GN-FW compatible with any controller, or only specific Rexroth Indramat systems? This HMI is specifically designed for the Rexroth Indramat SYSTEM 200 and communicates with its associated controllers, like the PPC series. It is not a universal HMI and cannot be used with other brands or modern systems without significant custom integration, which is not recommended. Does this unit come with the system firmware (FWA-BTV04*-ELC-01VRS-MS) pre-installed? The label indicates the hardware is associated with firmware R911285685. However, as a used part, the currently installed firmware or its configuration might differ. It is assumed to have a functional firmware installation, but project-specific programming will be required by the end-user. What are the communication settings for the RS-232 and RS-485 ports? The default communication parameters (baud rate, parity, data bits) are set within the project configuration loaded from the main system controller (e.g., PPC). There are no physical DIP switches on the unit to set these. You must ensure your system’s configuration matches the expected settings for the HMI. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
