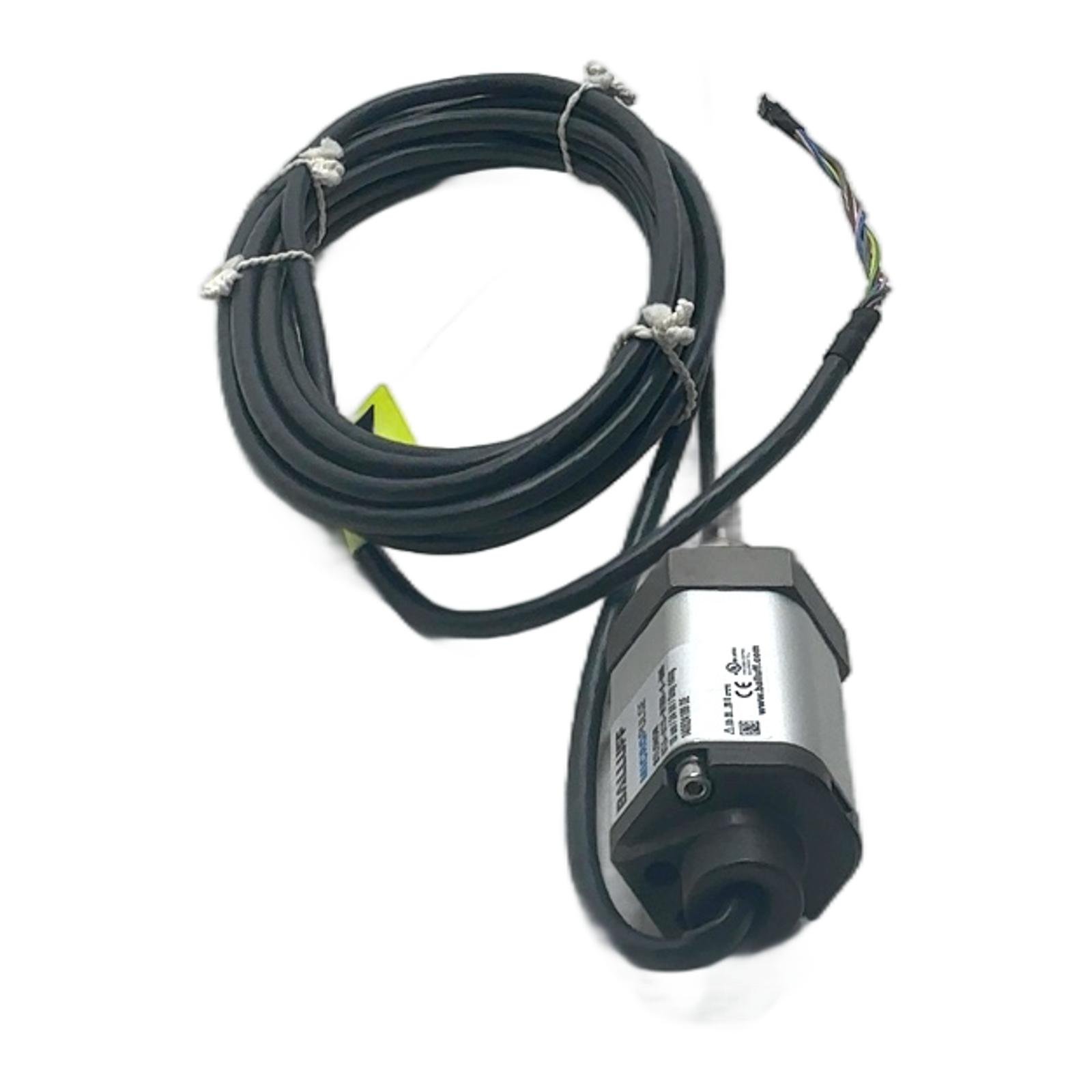

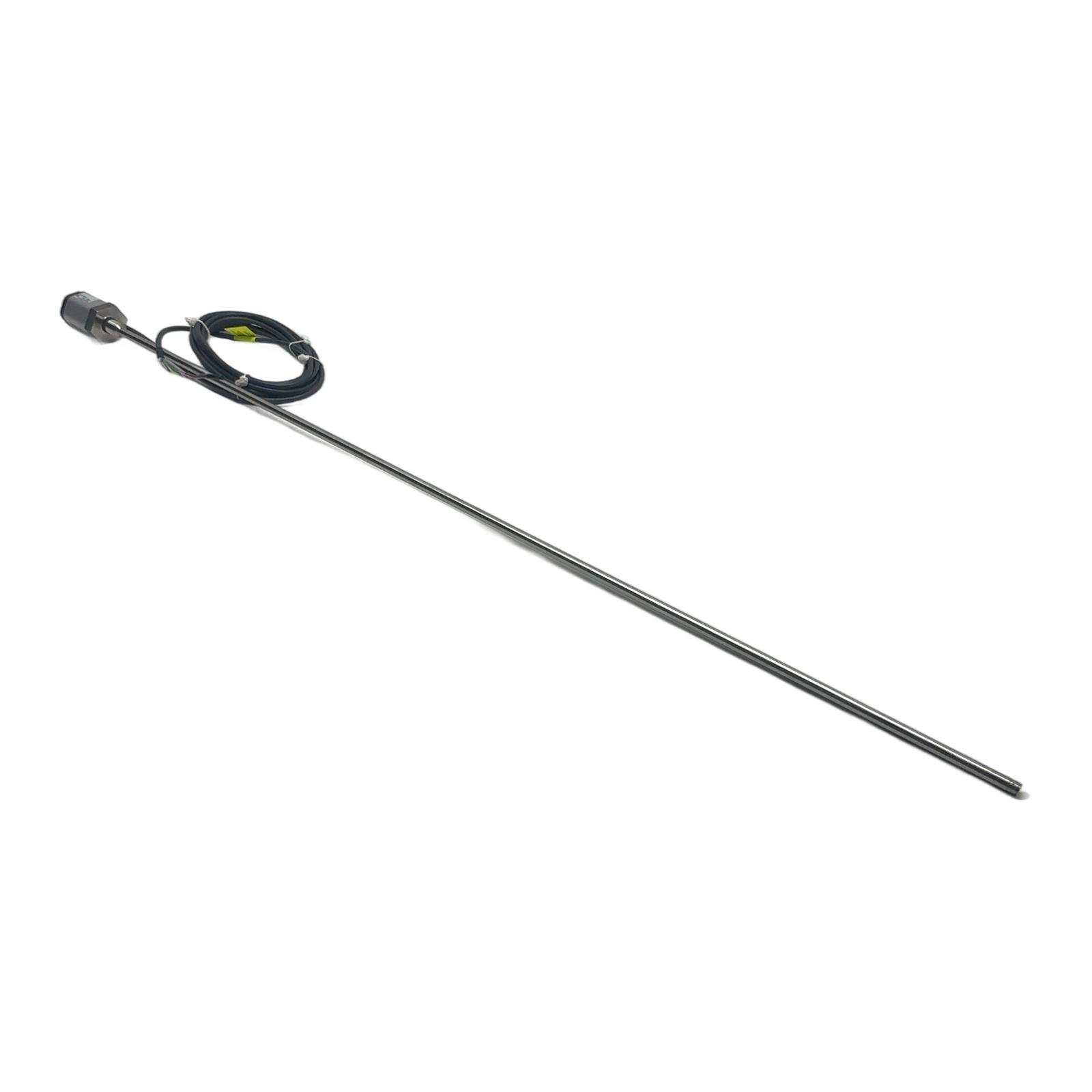

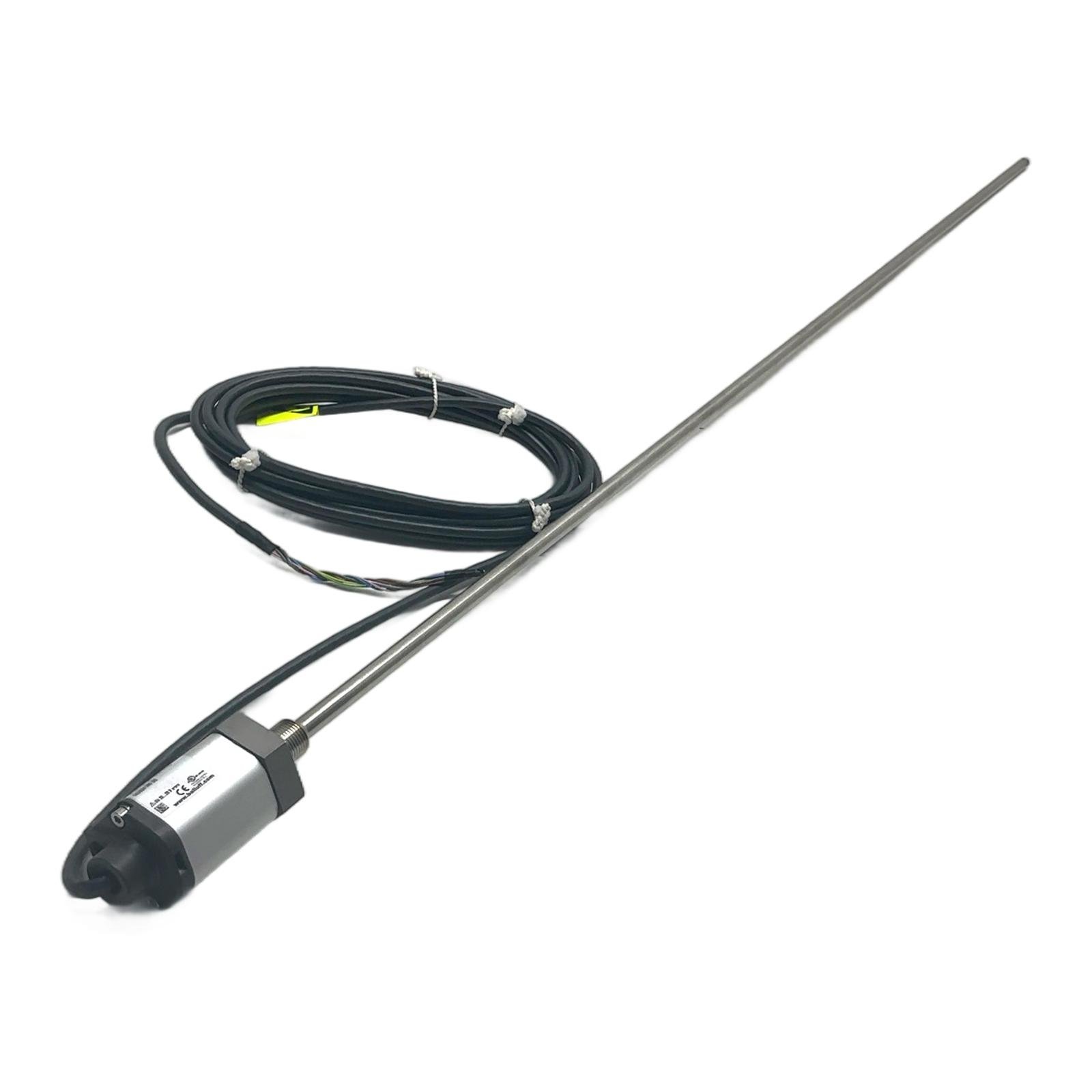

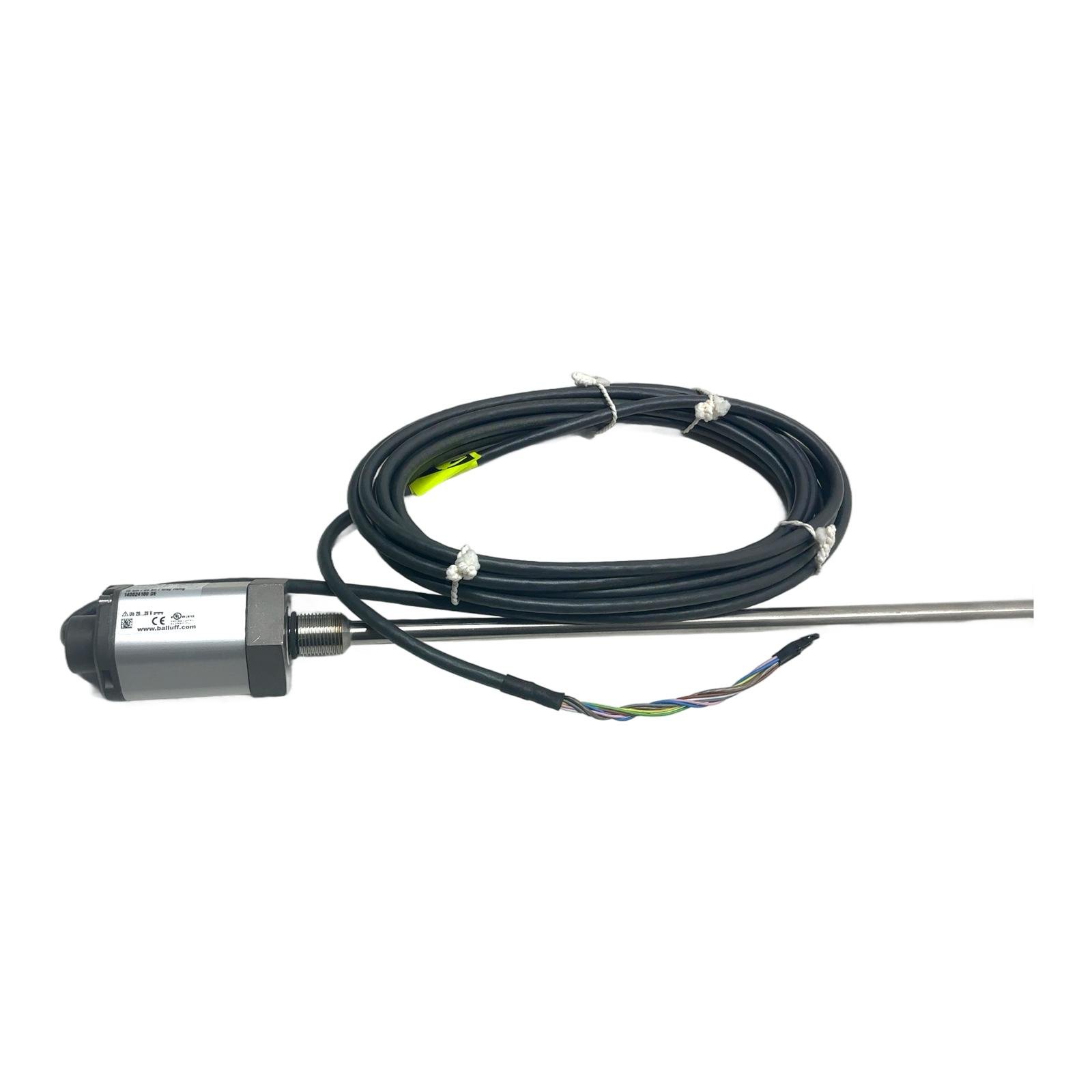

BALLUFF BTL0H0N BTL5-S113-M1050-B-KA05

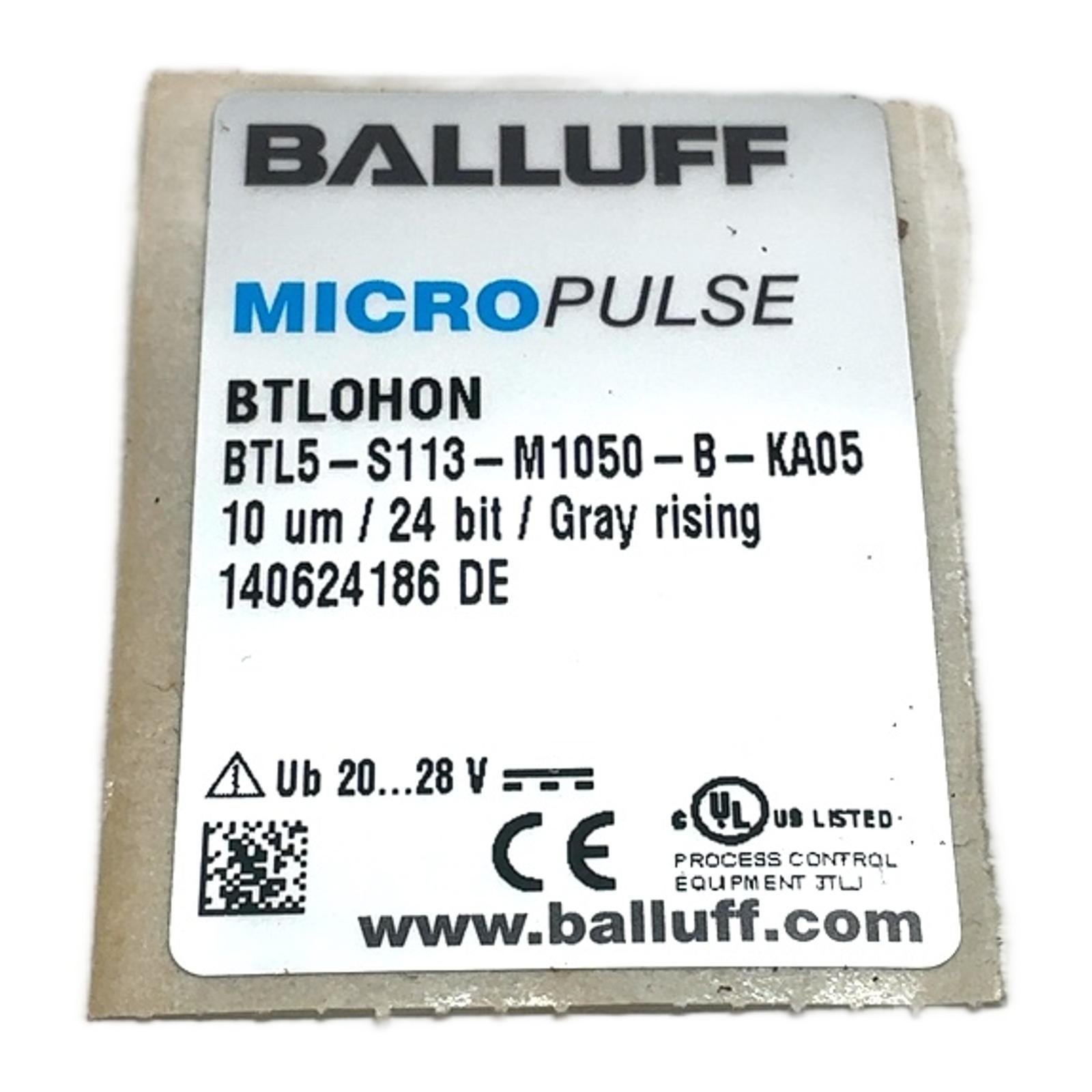

Balluff BTL5 Micropulse Linear Position Sensor Description The Balluff BTL5-S113-M1050-B-KA05 is a high-performance magnetostrictive linear position transducer designed for accurate and reliable measurement in industrial environments. Its non-contact working principle ensures a long service life with minimal wear. This model provides an absolute position output via a Synchronous Serial Interface (SSI), making it ideal for applications requiring precise feedback, such as in hydraulic cylinders, injection molding machines, and other automated equipment. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Balluff Series: Micropulse BTL5 Type Number: BTL5-S113-M1050-B-KA05 Measuring Length: 1050 mm Interface: SSI (Synchronous Serial Interface) Resolution: 10 um Output Format: 24-bit Gray code, rising Supply Voltage: 20 to 28 V DC Connection: 5-meter cable with unterminated ends Protection Class: IP67 (when installed with appropriate mating connector/gland) Label Info Model: BTL0H0N Full Part Number: BTL5-S113-M1050-B-KA05 Specs: 10 um / 24 bit / Gray rising Voltage: Ub 20…28 V Application This sensor is perfectly suited for continuous position monitoring in factory automation, fluid power, and process technology. Its robust rod-style construction allows for direct integration into hydraulic cylinders for precise piston position feedback. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned item, you are helping to avoid the emission of approximately 18 kg of CO2, which is equivalent to the savings from charging 2160 smartphones. Availability This item is in stock and ready for immediate dispatch. FAQ What is the required magnet for this BTL5 transducer? This transducer requires a separate position magnet, typically a floating or ring magnet, to be installed on the moving part of the machine. The specific magnet model (e.g., BTL-P-…) depends on the application and mounting requirements. What does the ‘Gray rising’ output mean? ‘Gray code’ is a binary numeral system where two successive values differ in only one bit, which prevents errors during signal transition. ‘Rising’ indicates that the position value increases as the magnet moves away from the transducer’s electronics head. Can the 5-meter cable be extended? While extending the cable is physically possible, it is generally not recommended for SSI interfaces as it can degrade signal integrity, especially at high transmission speeds. If an extension is necessary, use high-quality shielded cable and consult Balluff’s technical documentation to avoid data corruption. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
