SCHNEIDER ELECTRIC BMXFCC203

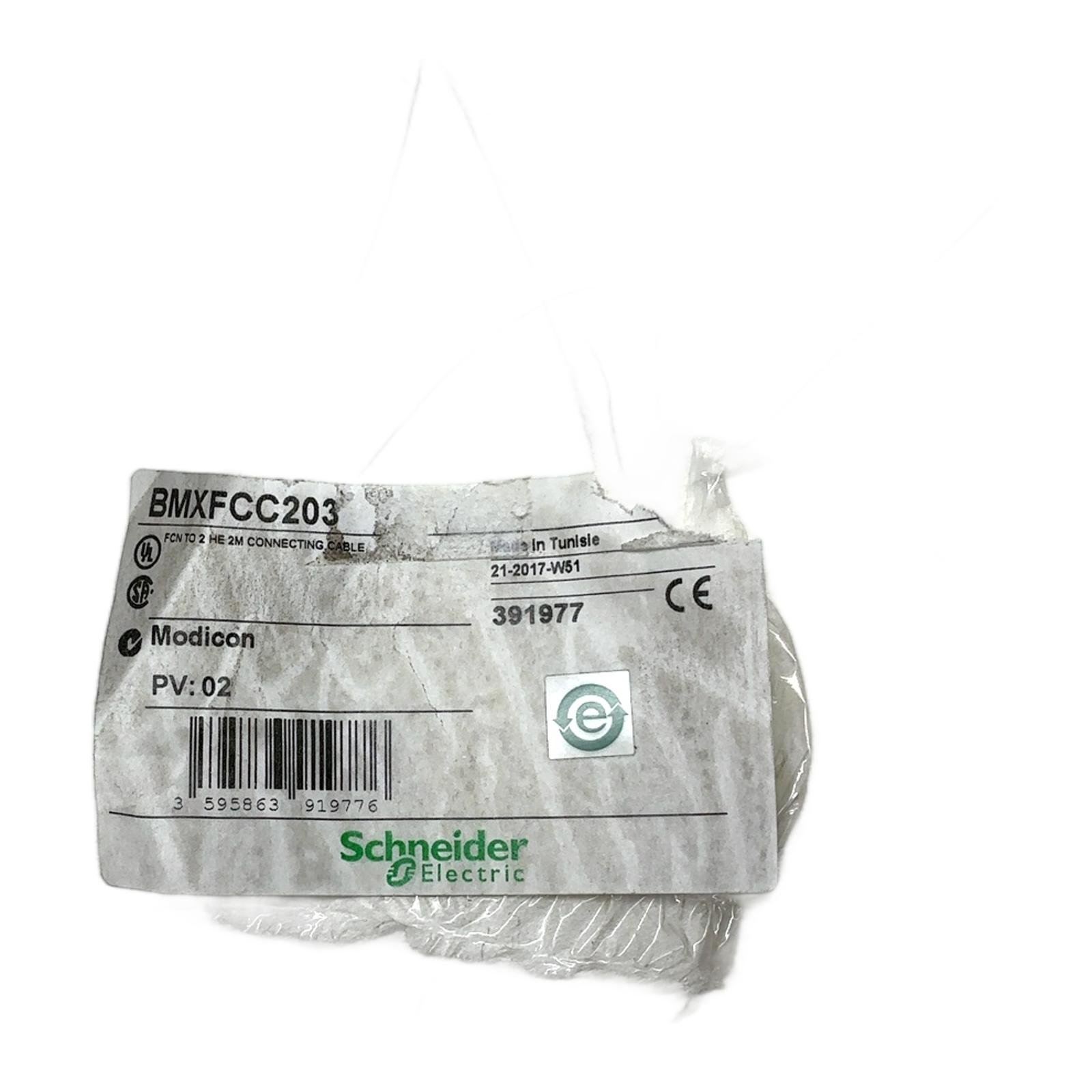

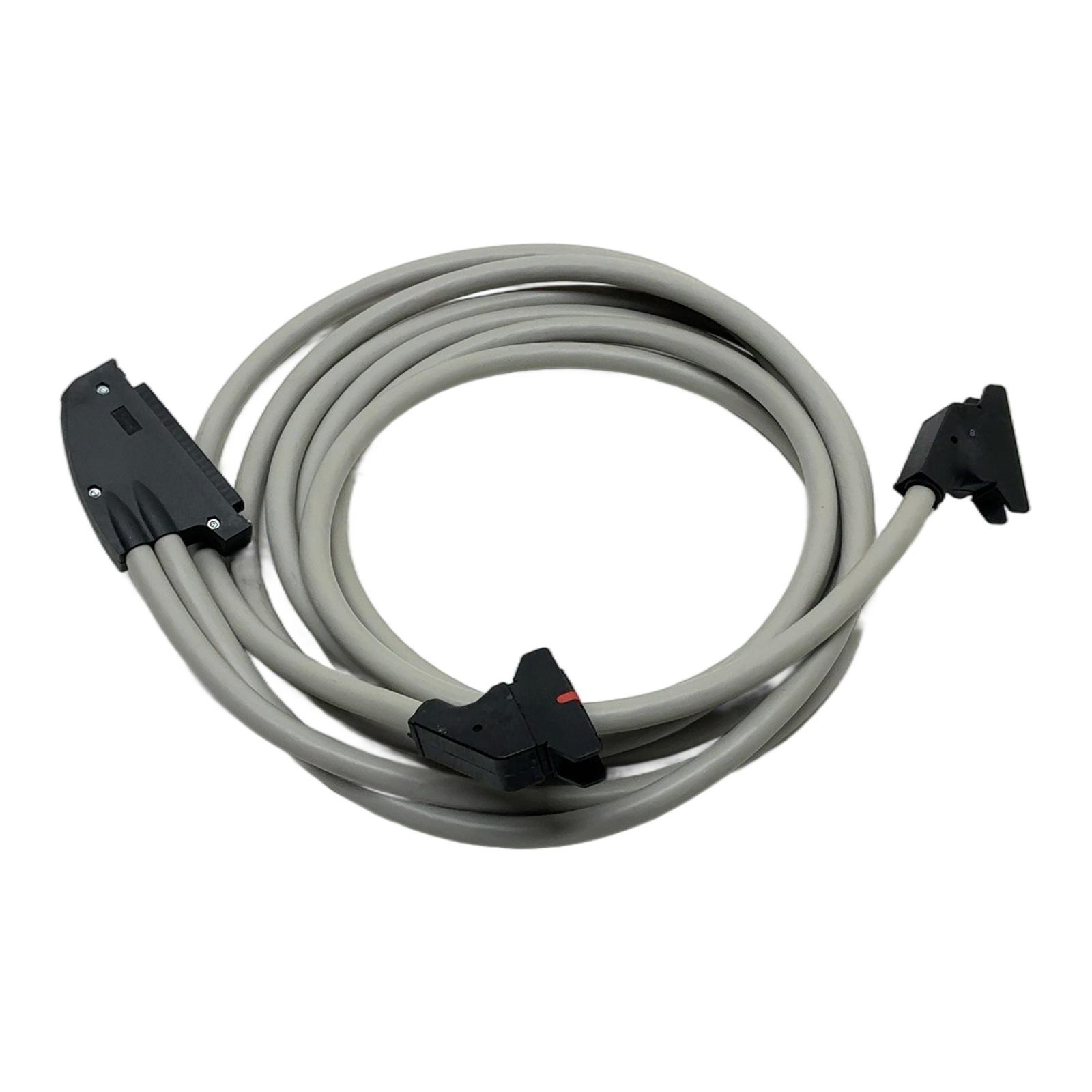

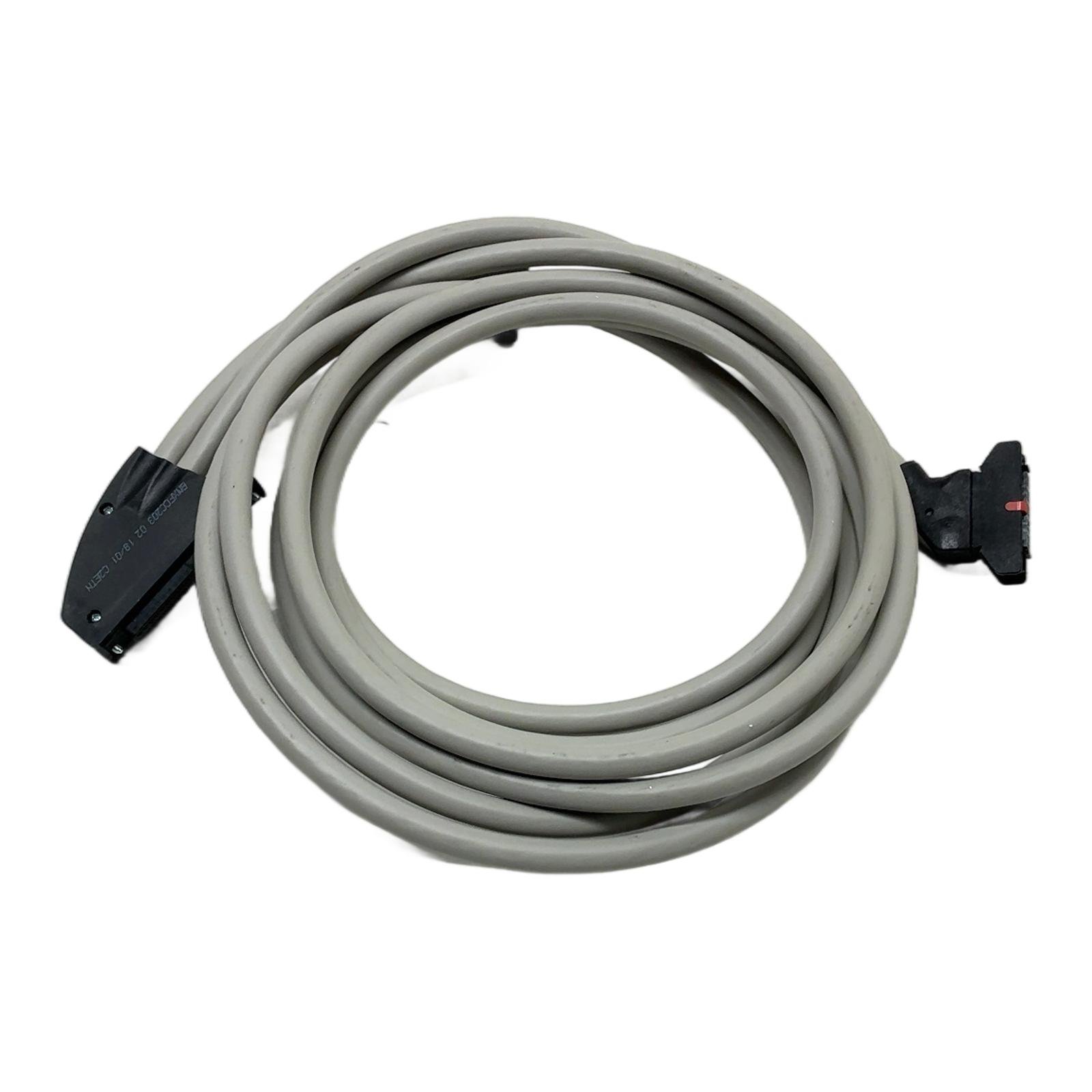

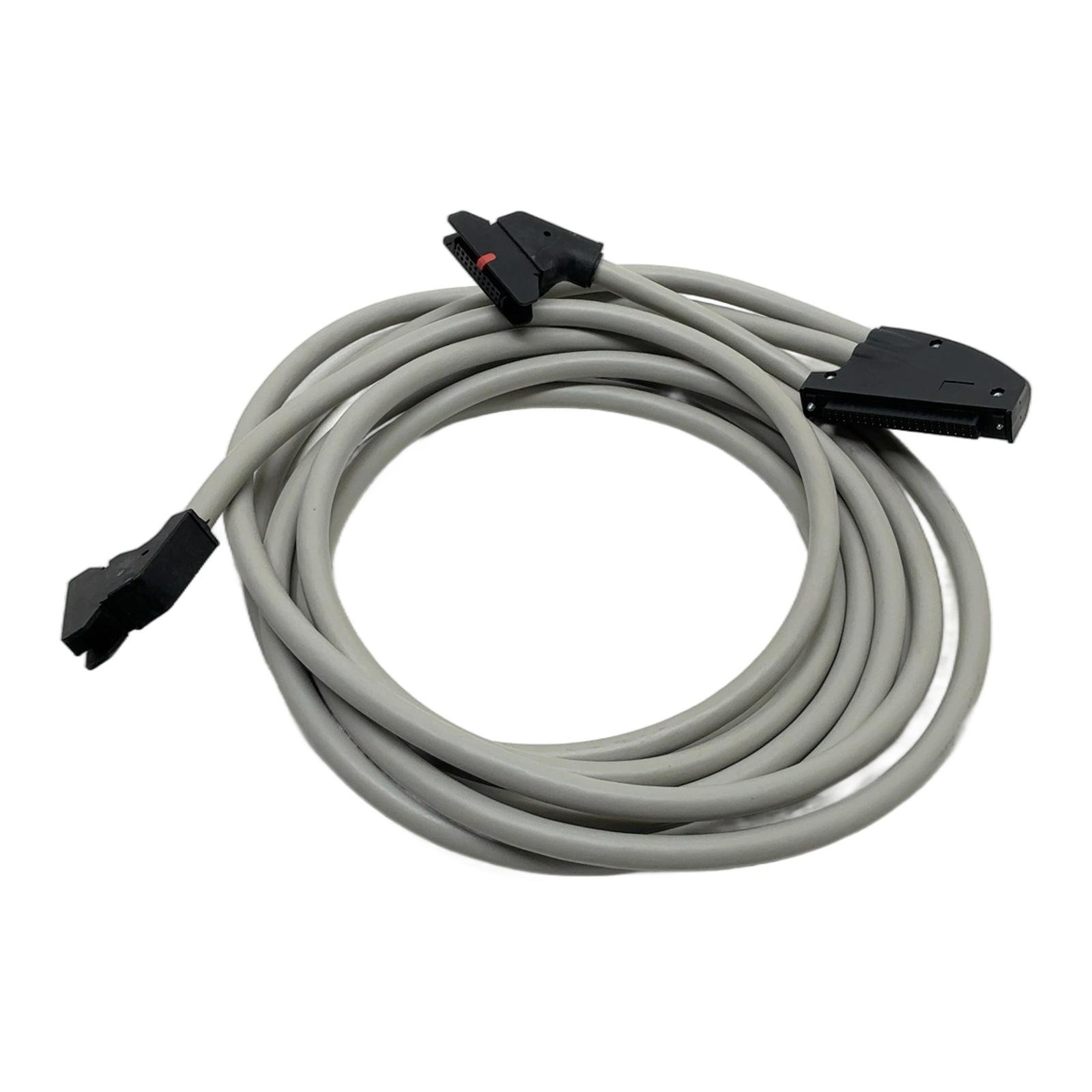

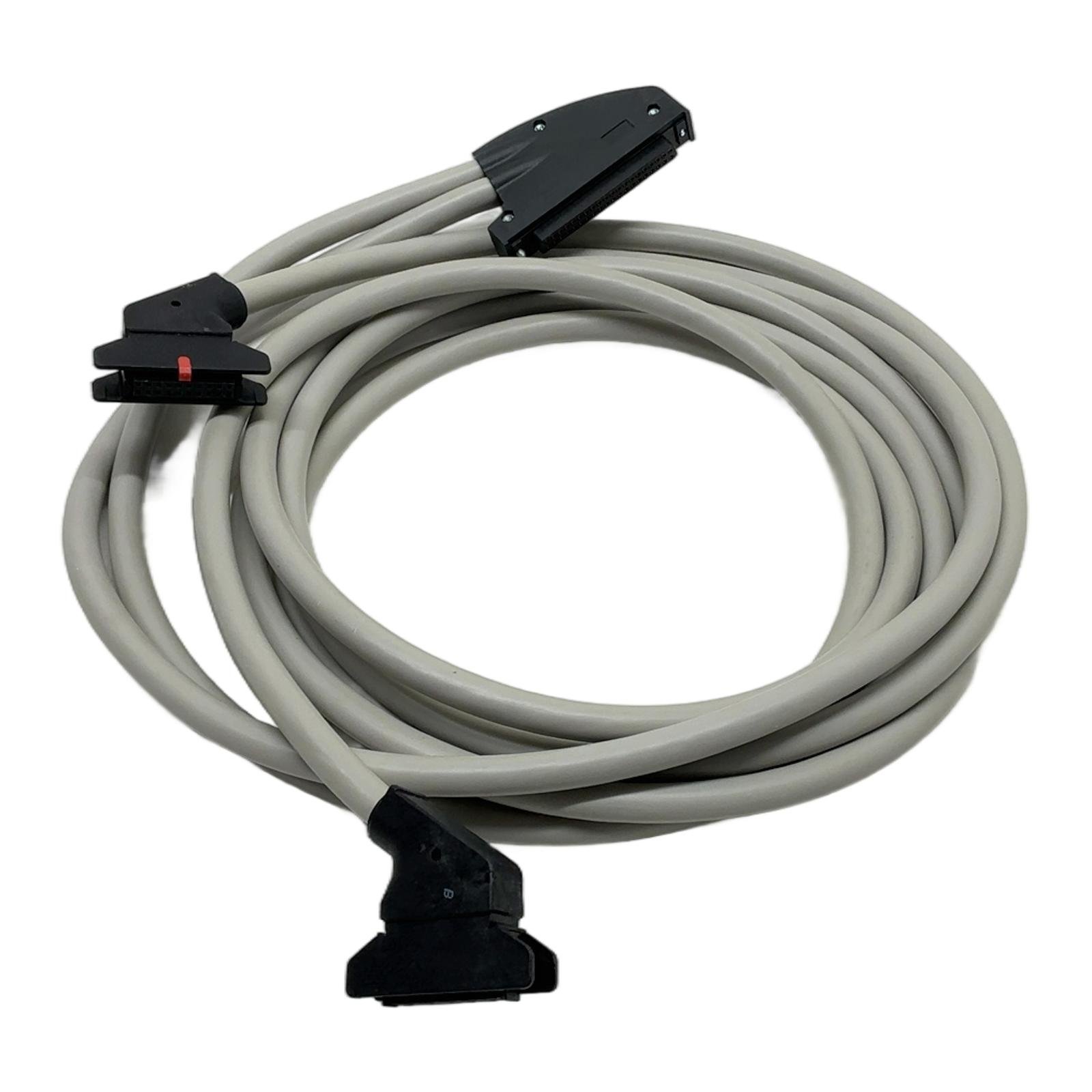

Schneider Electric Modicon Connecting Cable 2m BMXFCC203 Description The BMXFCC203 is a high-quality, pre-formed connecting cable from Schneider Electric, designed for the Modicon M340 and X80 automation platforms. This 2-meter cable provides a seamless and secure connection between a 40-pin I/O module and Telefast 2 connection bases, splitting the 40-pin FCN connector into two separate 20-pin HE10 connectors. It is an essential component for efficient and error-proof panel wiring. Specifications Manufacturer: Schneider Electric Part Number: BMXFCC203 Product Type: Pre-formed connecting cable Series: Modicon X80 / M340 Cable Length: 2 meters Connector (Module Side): 1 x 40-pin FCN (female) Connector (Terminal Side): 2 x 20-pin HE10 (female) Electrical connection: Straight Label Info Model: BMXFCC203 Description: FCN TO 2 HE 2M CONNECTING CABLE Product Version: PV:02 EAN: 3595863919776 Application This cable is specifically designed for connecting 40-point Modicon M340/X80 digital or analog I/O modules to ABE7 series Telefast 2 pre-wired bases, significantly reducing wiring time and potential for errors in industrial control cabinets. Country of Origin Made in Tunisia. CO2 Impact Opting for this reused component prevents the emission of approximately 20 kg of CO2, which is equivalent to driving a car for 100 km. Your choice supports a more sustainable industrial sector. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Which specific Modicon I/O modules is the BMXFCC203 compatible with?It is compatible with any Modicon M340 or X80 I/O module that utilizes a 40-pin FCN connector, such as the BMXDDI3202K, BMXDRA1605, or BMXAMO0210. What is the pinout configuration for the FCN-40 to dual HE10 connectors?The cable follows the standard Schneider Electric Telefast 2 wiring scheme. It maps pins 1-20 of the FCN connector to the first HE10 connector and pins 21-40 to the second HE10 connector, ensuring correct signal distribution. Can this cable be used in high-vibration environments?Yes, the FCN connector is equipped with locking clips that provide a secure, vibration-resistant connection to the PLC module, making it suitable for standard industrial environments. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
