ABB AF26Z-30-00-21 1SBL236001R2100

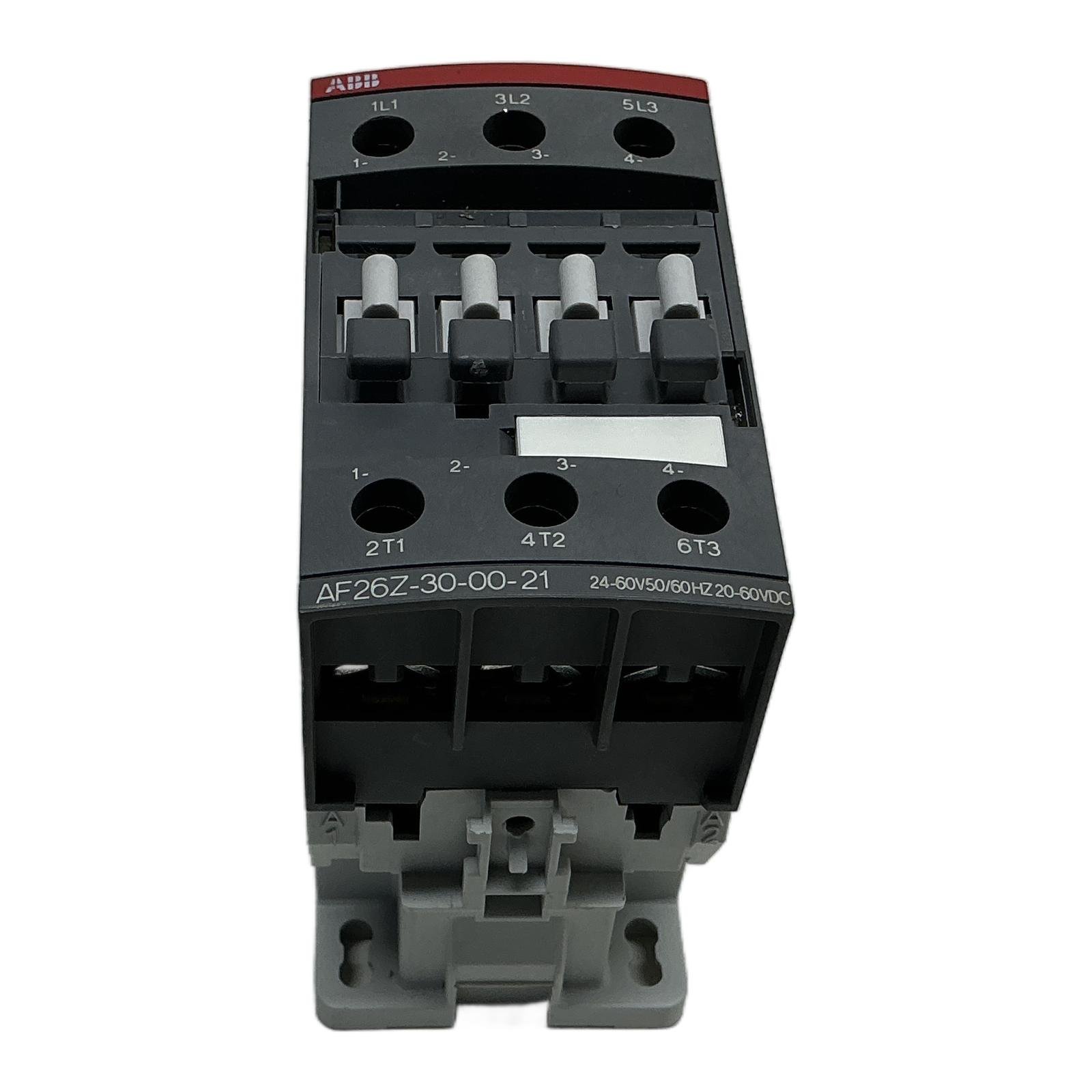

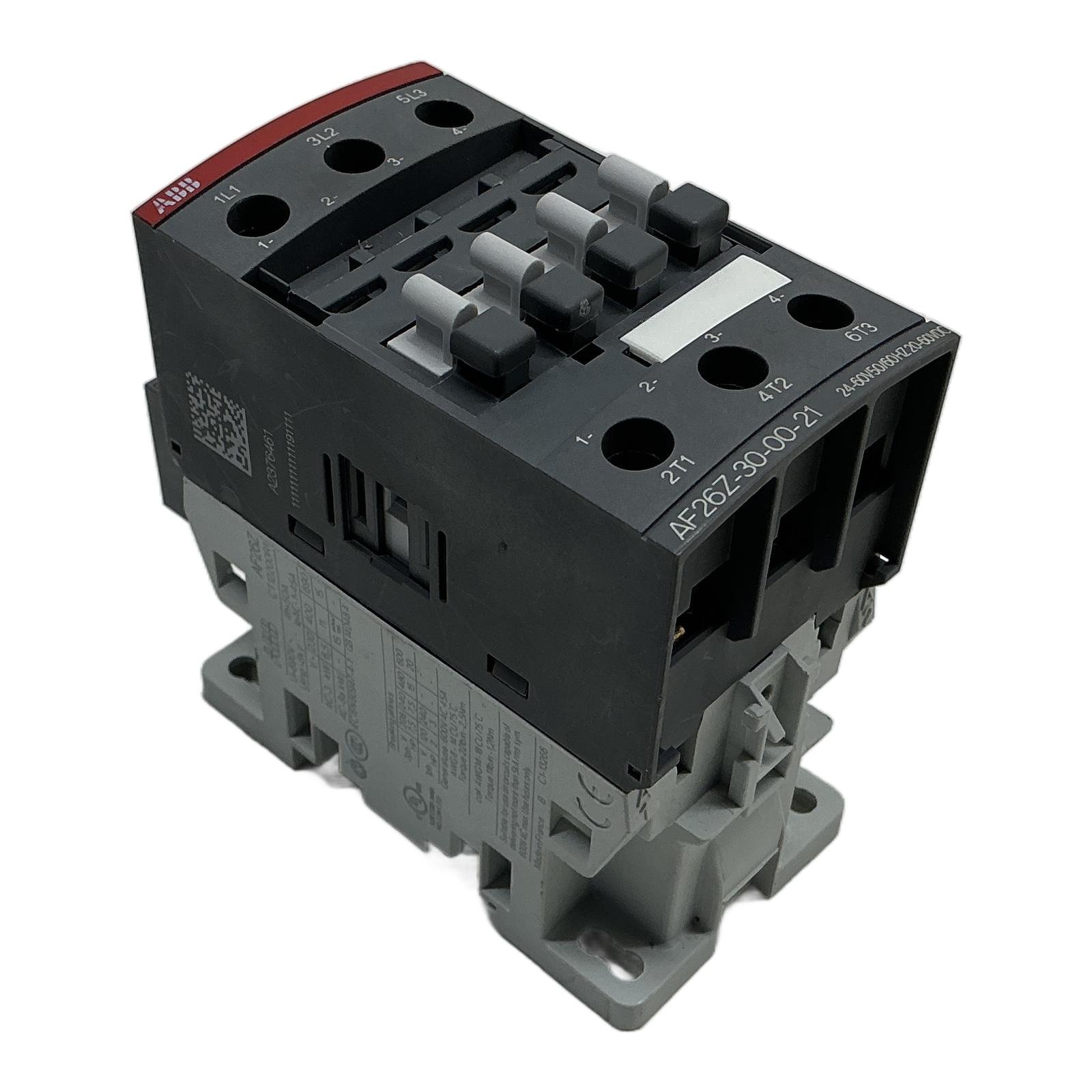

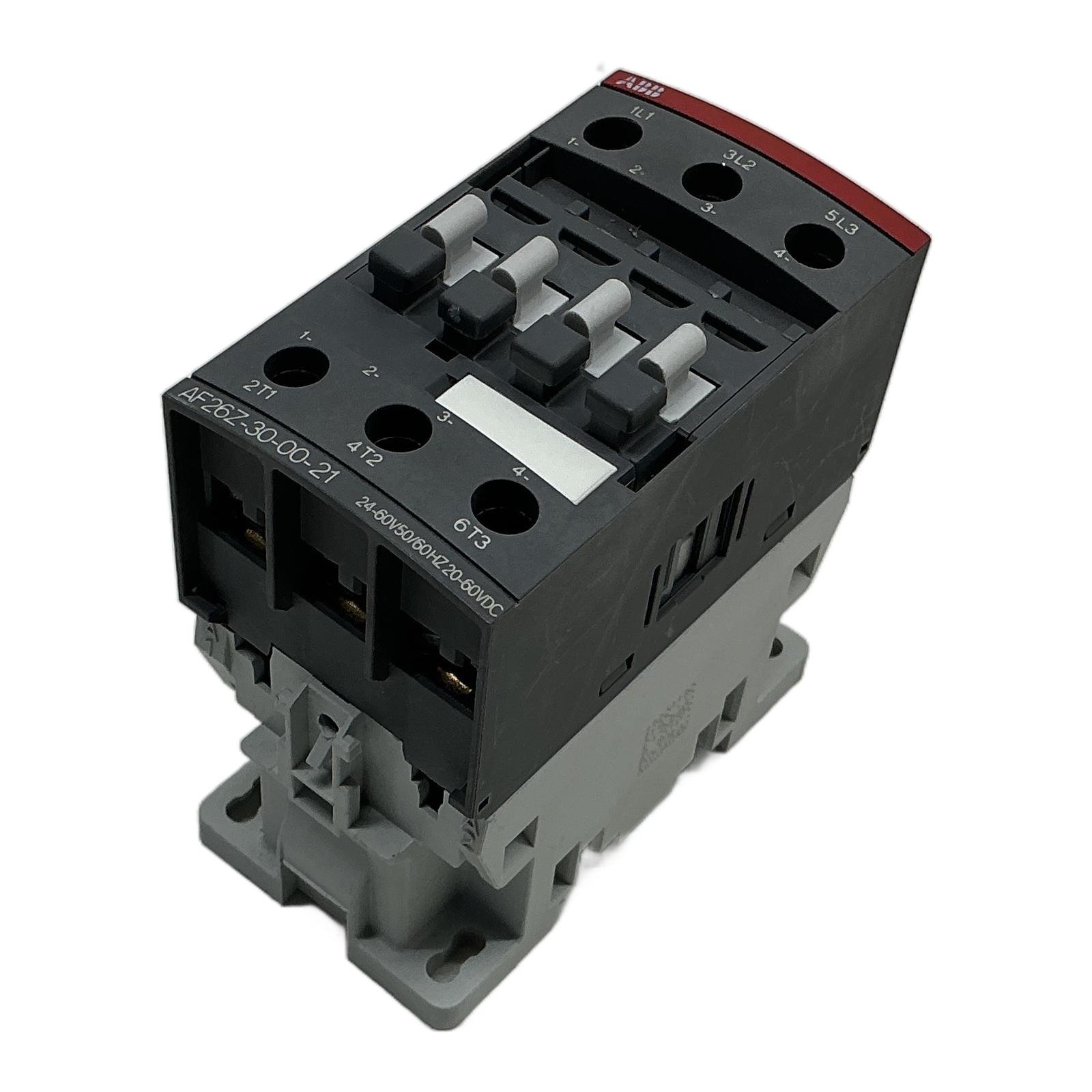

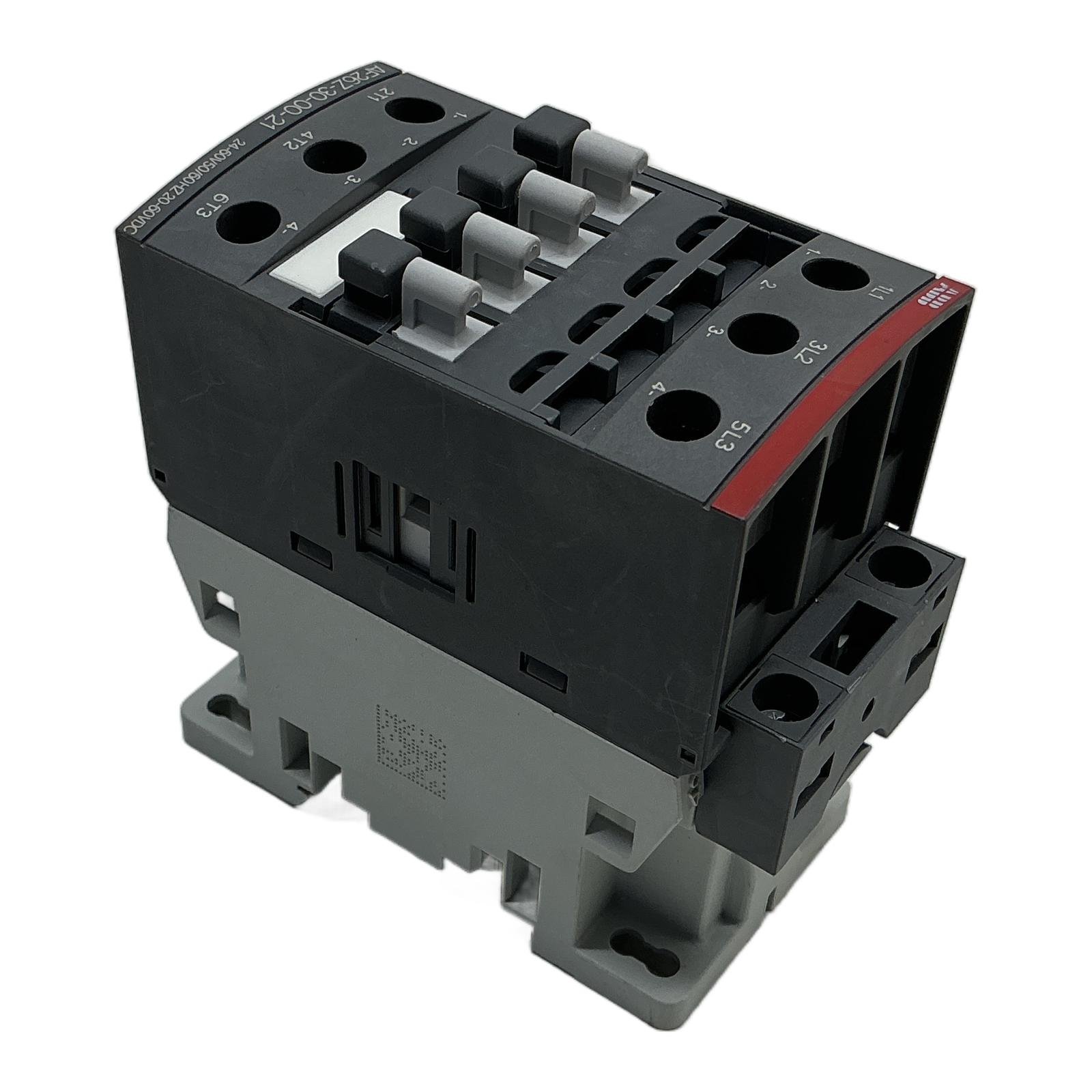

ABB AF26Z-30-00-21 3-Pole Contactor Description The ABB AF26Z-30-00-21 is a high-performance 3-pole contactor from the AF series, designed for industrial motor control and power switching. It features an innovative electronic coil that handles a wide voltage range (24-60V AC, 20-60V DC), reducing inventory needs and increasing operational reliability. This contactor is rated for 11 kW motor loads at 400V (AC-3) and is suitable for a wide range of applications. Specifications Manufacturer: ABB Model: AF26Z-30-00-21 Part Number: 1SBL236001R2100 Number of Poles: 3 Main Contacts: 3 Normally Open (NO) Coil Voltage: 24-60V 50/60Hz, 20-60V DC Rated Operational Power (AC-3, 400V): 11 kW Rated Operational Current (AC-1): 45 A Rated Insulation Voltage (Ui): 690V Rated Impulse Withstand Voltage (Uimp): 6 kV Mounting: DIN Rail or Screw Mount Label Info Ith: 50A IEC/EN 60947-4-1 UL/cUL Listed Application Ideal for controlling three-phase motors, heating loads, and other electrical circuits in industrial environments. Its wide-range coil makes it particularly suitable for applications with unstable voltage supplies or for use in global machinery requiring compatibility with different network voltages. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned contactor, you contribute to a circular economy and help avoid approximately 12.4 kg of CO2 emissions associated with the production of a new unit. This is equivalent to the energy needed for over 1480 smartphone charges. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the advantage of the ‘Z’ electronic coil in the AF26Z series?The ‘Z’ coil is electronically controlled, allowing it to accept a very wide range of both AC and DC control voltages. This reduces energy consumption by up to 80%, allows for direct control by PLC outputs, and ensures distinct operation in unstable network conditions. Can I add auxiliary contacts to this AF26Z-30-00-21 contactor?Yes, the AF26Z series is designed for modularity. You can easily add front-mounted or side-mounted auxiliary contact blocks. The ‘-30-00′ in the model number indicates it comes with 3 main poles, 0 normally open, and 0 normally closed auxiliary contacts from the factory. What is the maximum switching frequency for this contactor under an AC-3 load?According to ABB’s technical data, the maximum electrical switching frequency for an AF26 contactor at its rated AC-3 load is typically 1200 cycles per hour. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
