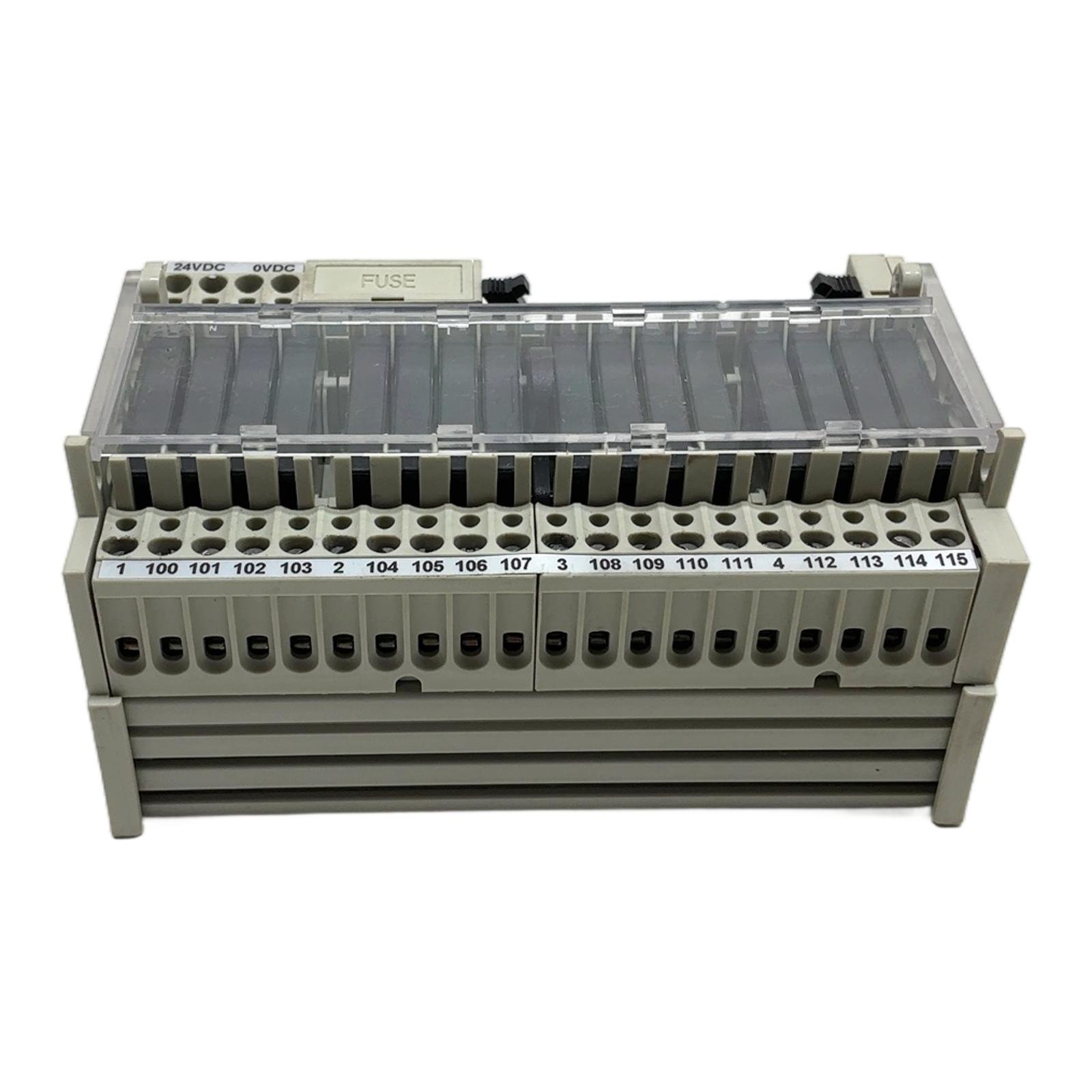

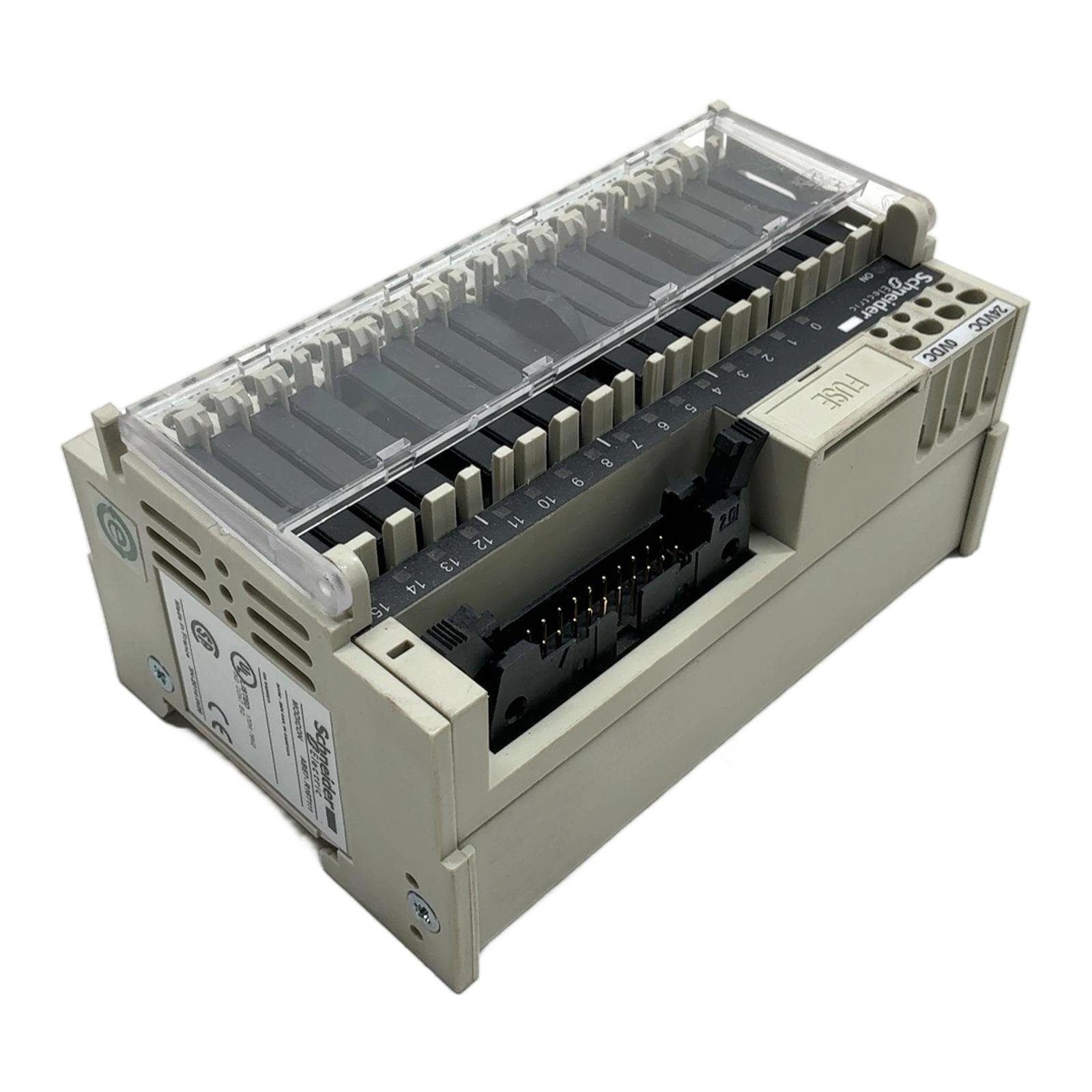

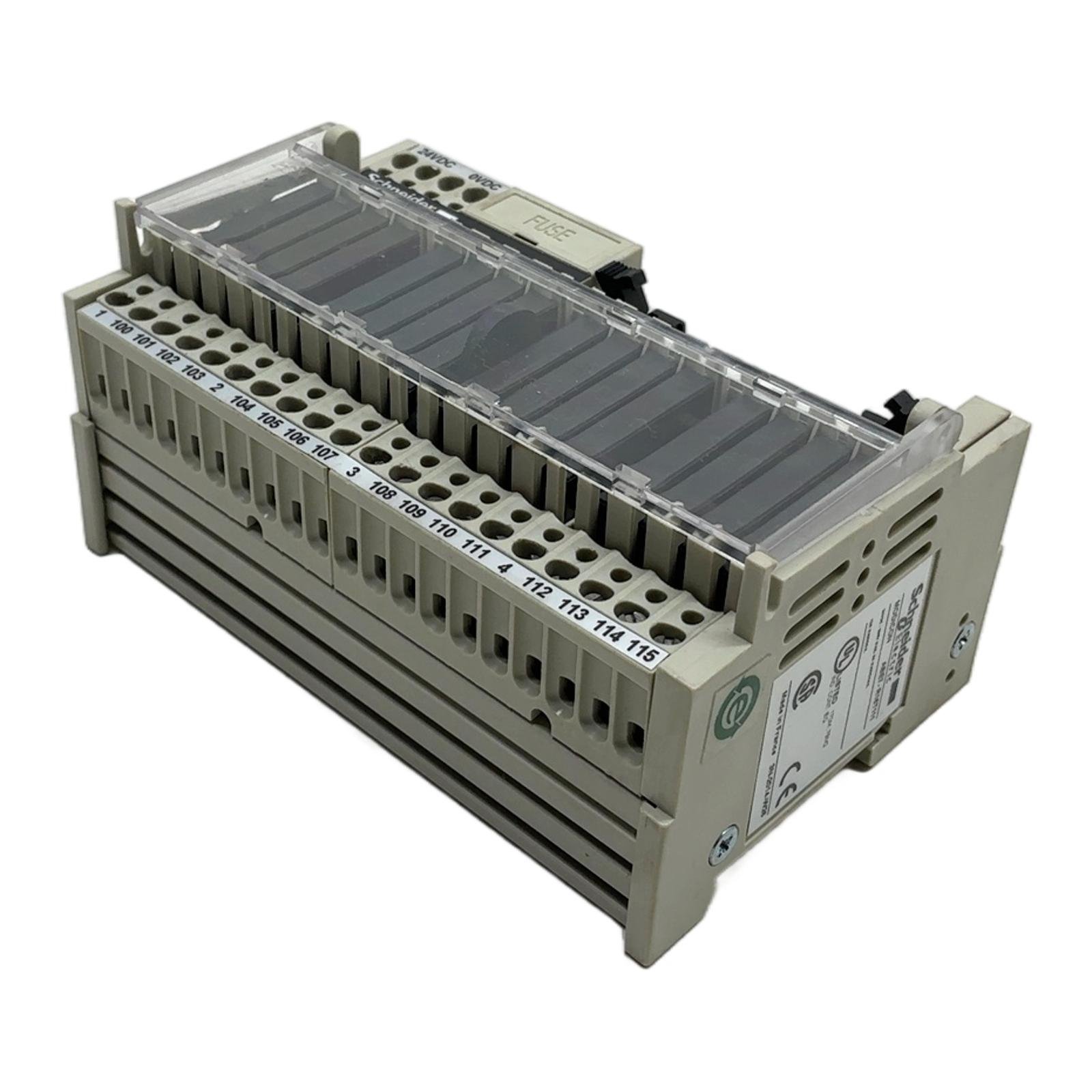

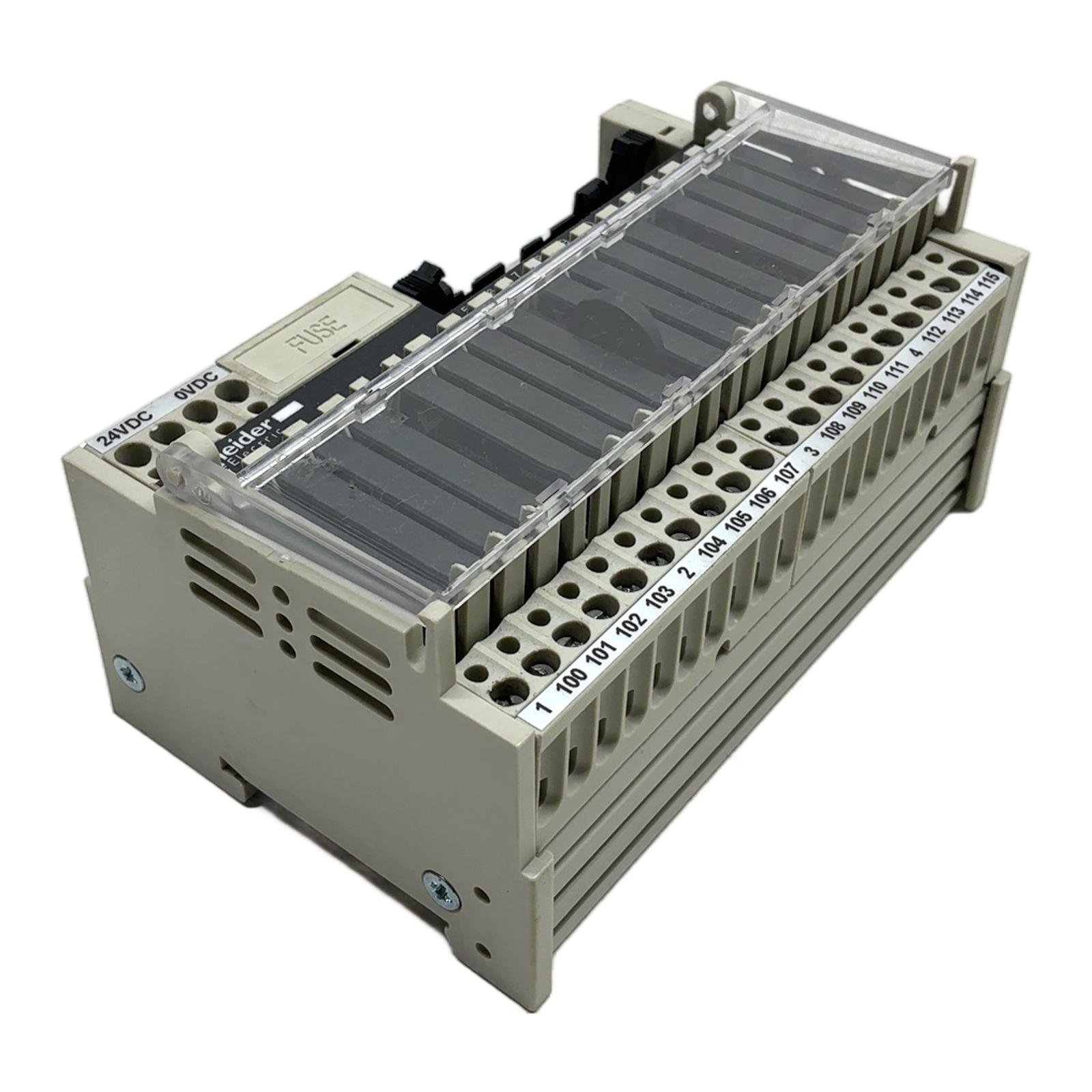

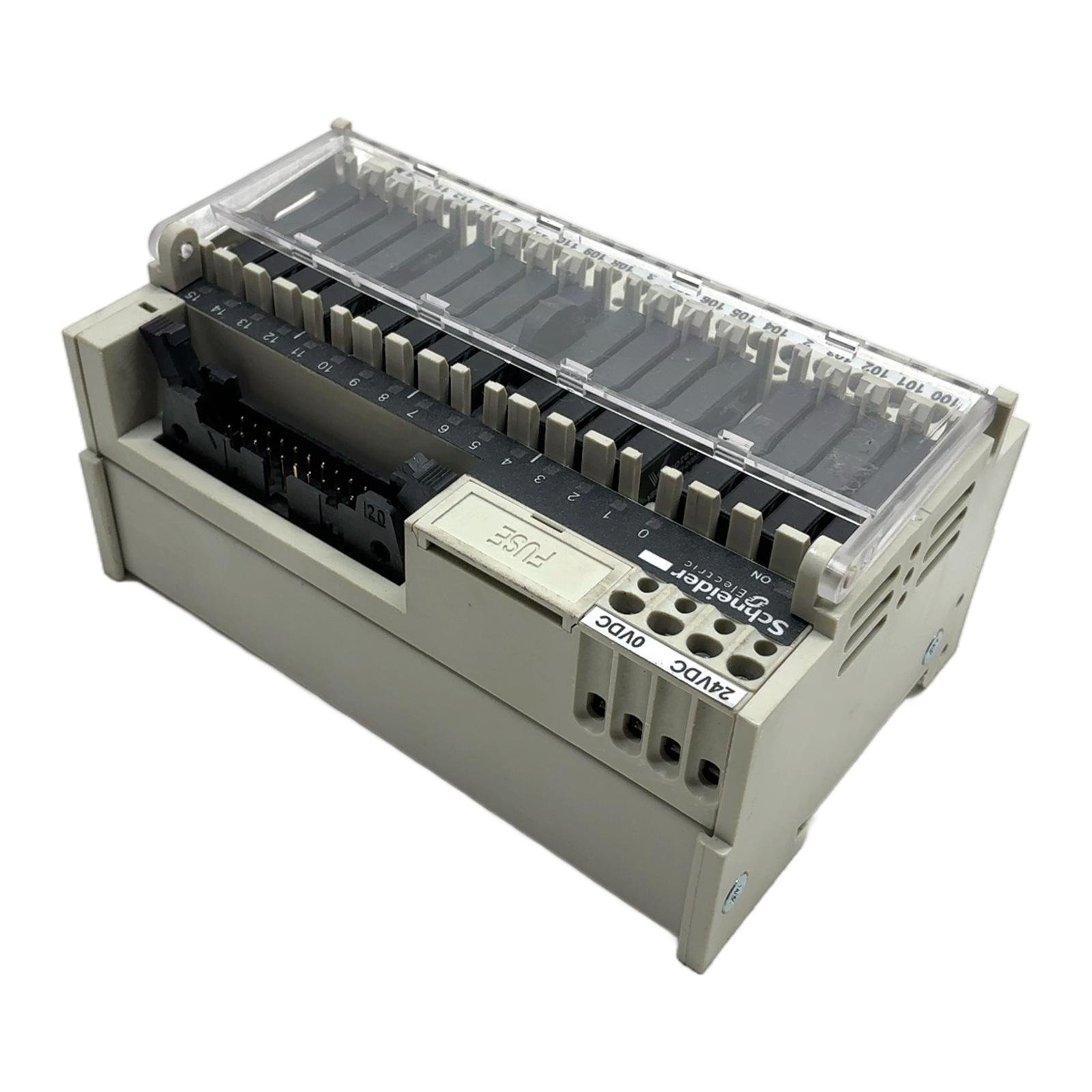

SCHNEIDER ELECTRIC ABE7-R16T111
SCHNEIDER ELECTRIC ABE7-R16T111
€ 16,95
1 op voorraad
1 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | SCHNEIDER ELECTRIC |
| Category | PLC Systems |
| Description | Relay Module For PLC |
| MPN | ABE7-R16T111 |
| Other Notations | ABE7-R16T111, ABE7R16T111 |
| Fabr. Art. Nr. | ABE7R16T111 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving
Schneider Electric Modicon ABE7 Relay Sub-Base Description The Schneider Electric ABE7-R16T111 is a Telefast 2 connection sub-base for Modicon PLC systems. It is designed to provide a simplified and reliable interface between a PLC’s digital output module and field actuators. This module features 16 pluggable relays, allowing for easy maintenance and robust switching of various loads. It’s an ideal solution for reducing wiring time and errors in complex automation panels. Specifications Manufacturer: Schneider Electric Product Range: Modicon ABE7 Model: ABE7-R16T111 Product Type: Pluggable relay sub-base Number of Channels: 16 Control Circuit Voltage: 24V DC Output Voltage: Up to 230V AC/DC Max Current per Channel: 5A PLC Connection: HE-10 connector Field Connection: Screw type terminals Label Info Brand: Schneider Electric Model: MODICON ABE7-R16T111 Input: 24VDC Output: 230V MAX, 5A MAX/CHAN. Common: 12A MAX/COM. Certifications: UL Listed, CSA, CE Application This relay module is commonly used in industrial automation systems for controlling motors, contactors, solenoids, and indicator lights. It is particularly suited for legacy Modicon systems requiring a compact and efficient I/O wiring solution. Country of Origin Made in France. CO2 Impact By purchasing this reused component, you are helping to prevent the emission of approximately 18 kg of CO2. This saving is equivalent to the CO2 absorbed by a mature tree over a full year. Availability This is a pre-owned, tested item in excellent working condition. Ideal for spare parts or replacing a faulty unit in an existing installation. Order now from profideals for expert support and fast delivery. FAQ What type of connector is used to link this ABE7-R16T111 to the PLC module?This sub-base uses a standard HE-10 (20-pin) connector for connection to the PLC’s digital output card. A pre-wired cable is required for this connection. Are the relays on this module replaceable?Yes, the ABE7-R16T111 features pluggable relays. This allows for easy replacement of a faulty relay without needing to replace the entire sub-base, minimizing downtime. Is this module suitable for switching inductive loads like contactors or solenoids?Absolutely. Each relay output is designed to handle both resistive and inductive loads up to its specified rating (5A max). For highly inductive loads, it is recommended to use appropriate protection, such as a freewheeling diode or RC snubber, across the load to protect the relay contacts. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
HOLMATRO HSC 30 S 5 Hydraulic Cylinder – 30 Ton Capacity – Art. 100.112.302
Op voorraad
| Gewicht | 8,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | HOLMATRO |
| Category | Other |
| Description | Single-acting hydraulic cylinder |
| MPN | HSC 30 S 5 Hydraulic Cylinder – 30 Ton Capacity – Art. 100.112.302 |
| Other Notations | HSC 30 S 5 Hydraulic Cylinder – 30 Ton Capacity – Art. 100.112.302, HSC-30-S-5-Hydraulic-Cylinder—30-Ton-Capacity—Ar, HSC30S5HydraulicCylinder-30TonCapacity-Art.100.112.302, HSC30S5HydraulicCylinder30TonCapacityArt.100.112.302 |
| Fabr. Art. Nr. | HSC 30 S 5 Hydraulic Cylinder 30 Ton Capacity Art 100112302 |
FESTO VABV-S2-2S-G12-T1 560842 Manifold sub-base
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | FESTO |
| Category | Valves |
| Description | Pneumatic Valve Sub-Base |
| MPN | VABV-S2-2S-G12-T1 560842 Manifold sub-base |
| Other Notations | VABV-S2-2S-G12-T1 560842 Manifold sub-base, VABV-S2-2S-G12-T1560842Manifoldsub-base, VABVS22SG12T1 56084, VABVS22SG12T1560842Manifoldsubbase |
| Fabr. Art. Nr. | VABVS22SG12T1 560842 Manifold subbase |
ABB M3AA 132SC-2 3GAA131313-ASE
Op voorraad
| Gewicht | 76,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | ABB |
| Category | Motors |
| Description | Three-phase AC Motor |
| MPN | M3AA 132SC-2 3GAA131313-ASE |
| Other Notations | M3AA 132SC-2 3GAA131313-ASE, M3AA 132SC2 3GAA131313ASE, M3AA132SC-23GAA131313-ASE, M3AA132SC23GAA131313ASE |
| Fabr. Art. Nr. | M3AA 132SC2 3GAA131313ASE |
STAHLWILLE 50-27 03010027 12-kant dop
Op voorraad
| Gewicht | 1,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | STAHLWILLE |
| Category | Hand Tools |
| Description | 03010027 Stahlwille 12-kant dop 1/2”, 27 mm, HPQ-high performance staal |
| MPN | 50-27 03010027 12-kant dop |
| Other Notations | 50-27 03010027 12-kant dop, 50-270301002712-kantdop, 5027 03010027 12kant dop, 50270301002712kantdop |
| Fabr. Art. Nr. | 5027 03010027 12kant dop |
