ASCO JOUCOMATIC 881 22 602

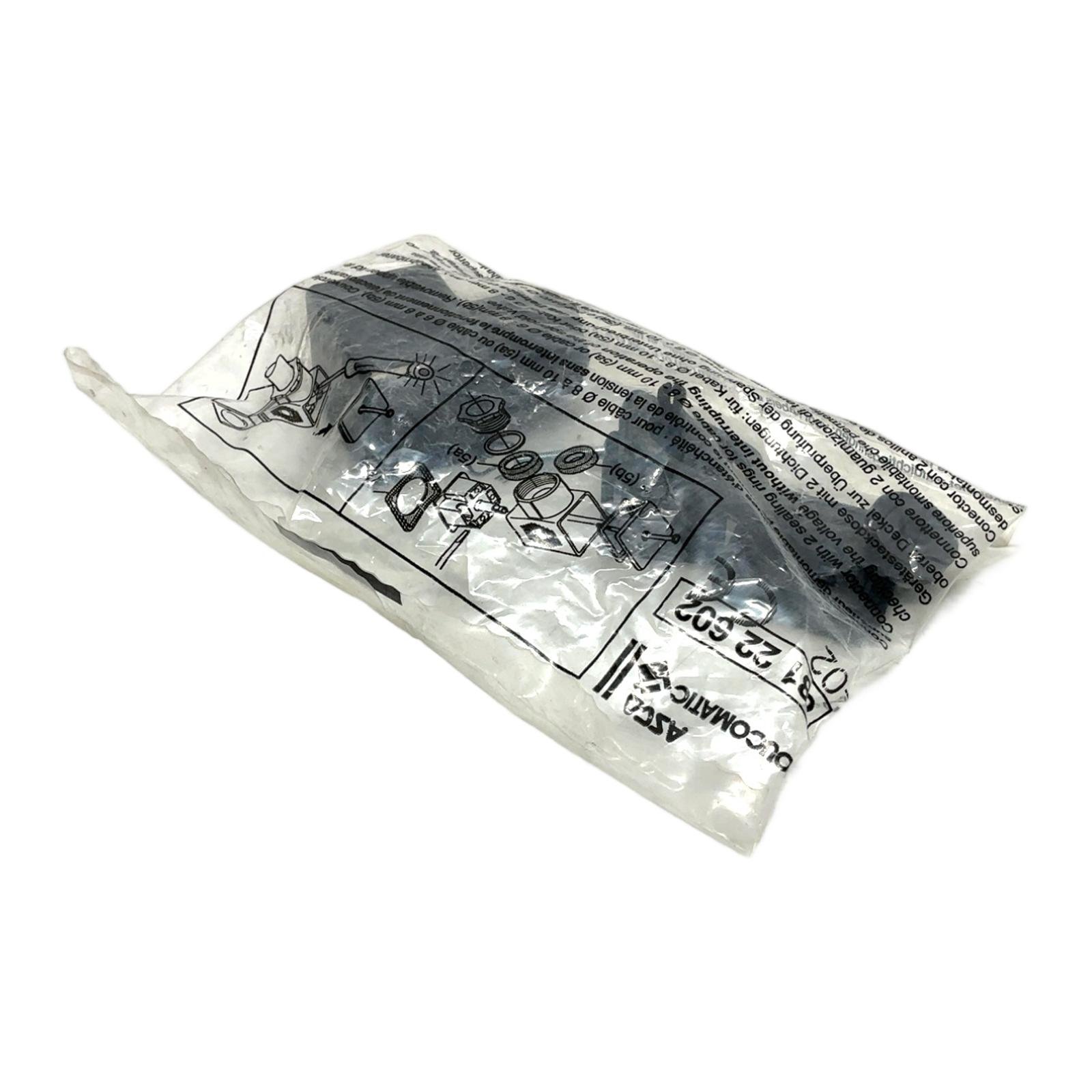

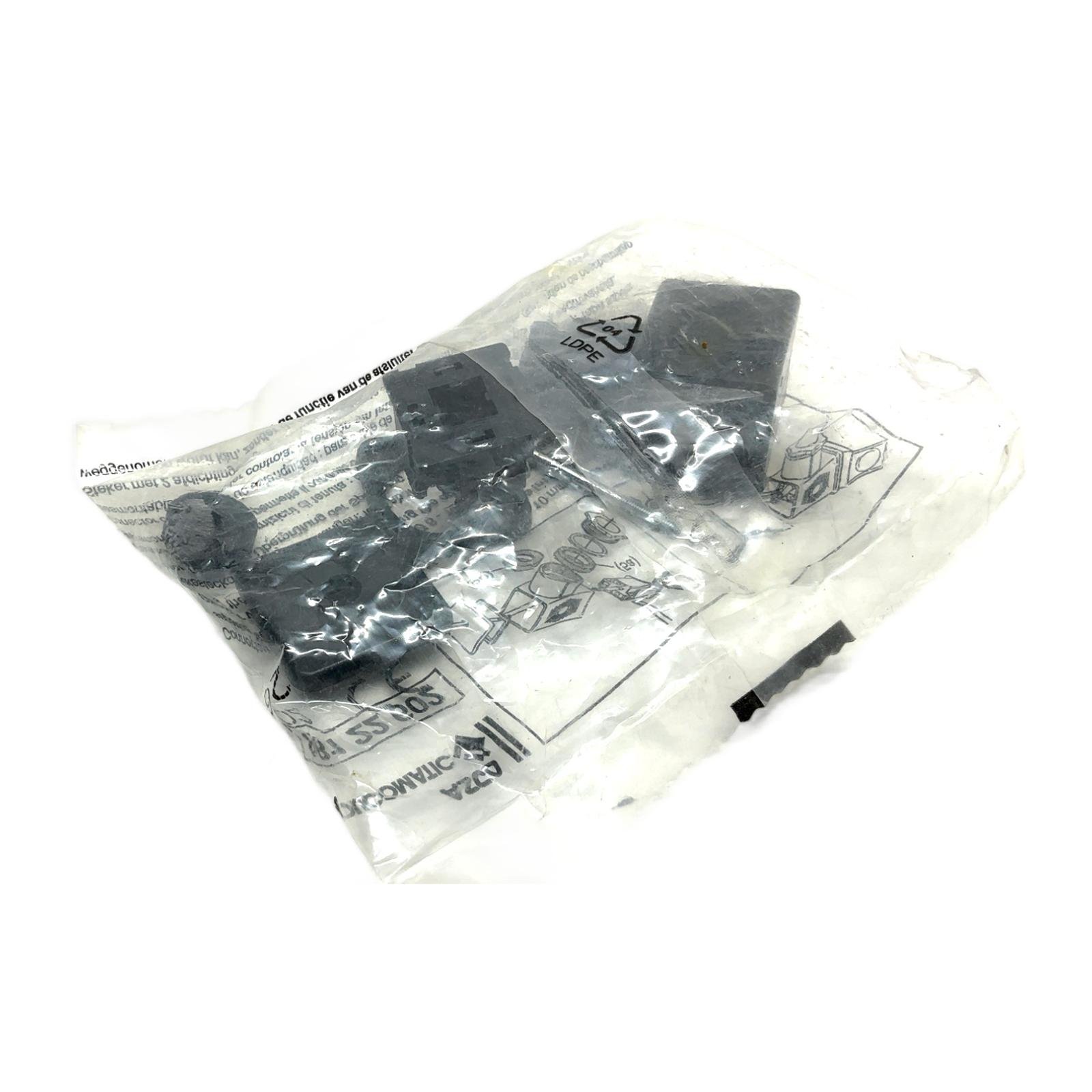

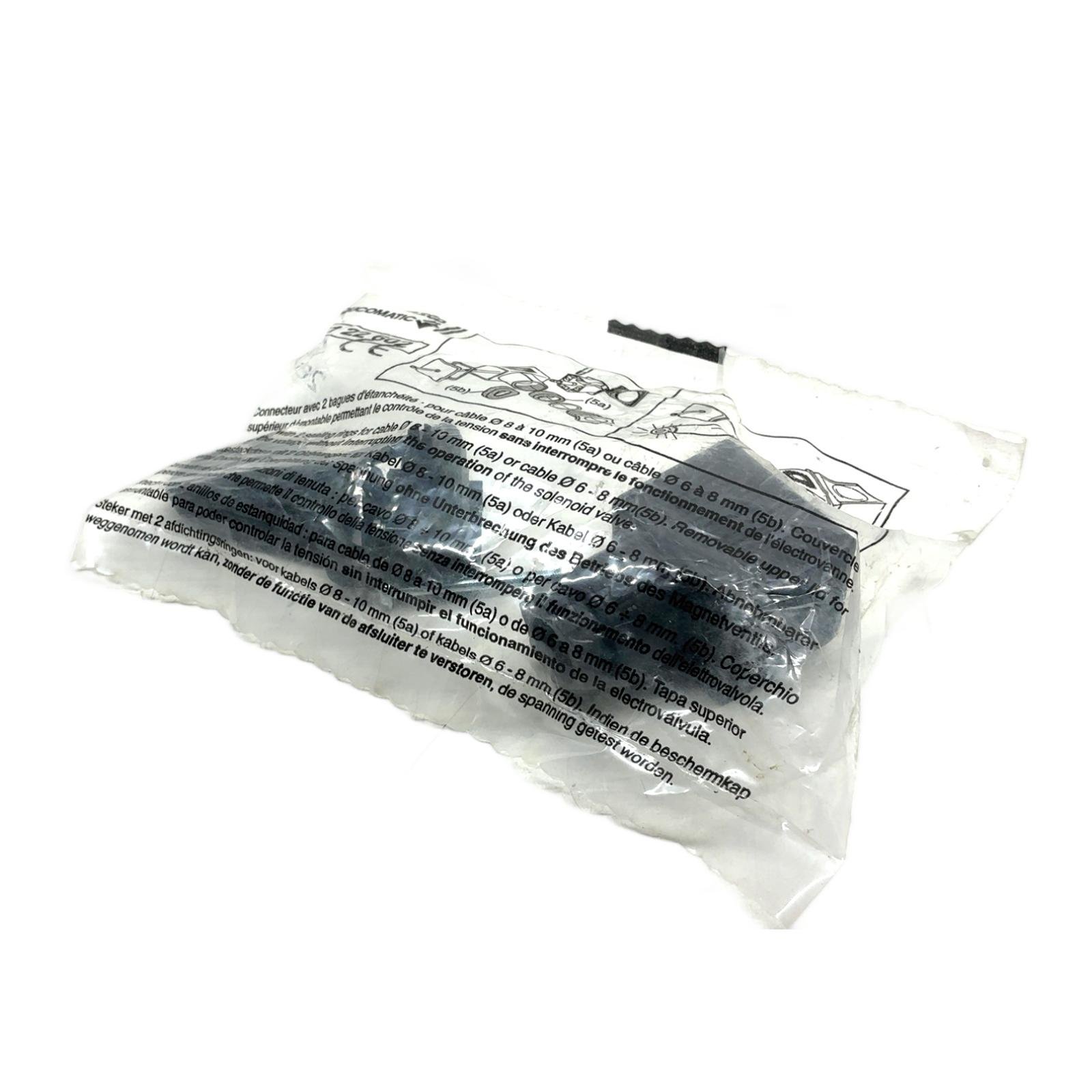

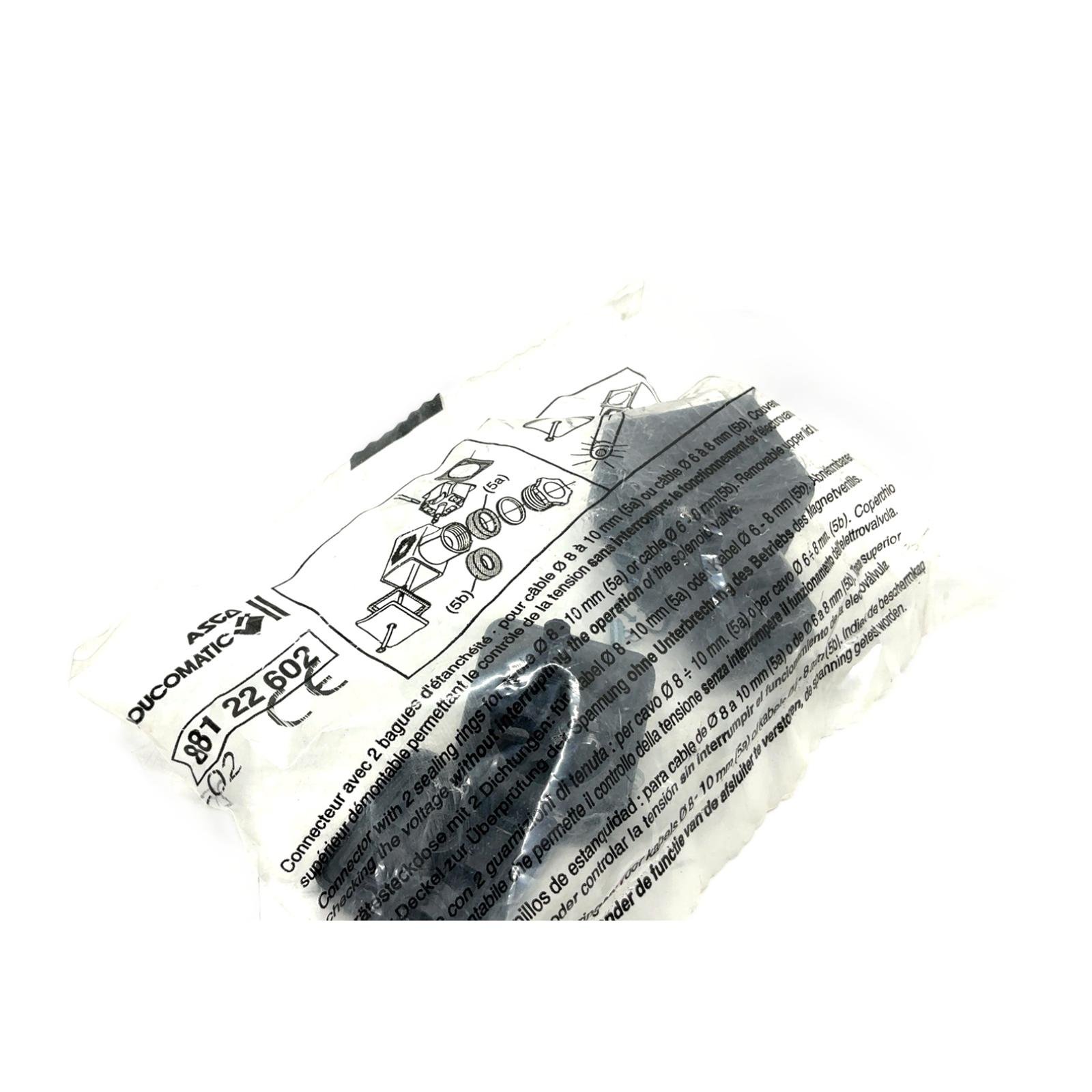

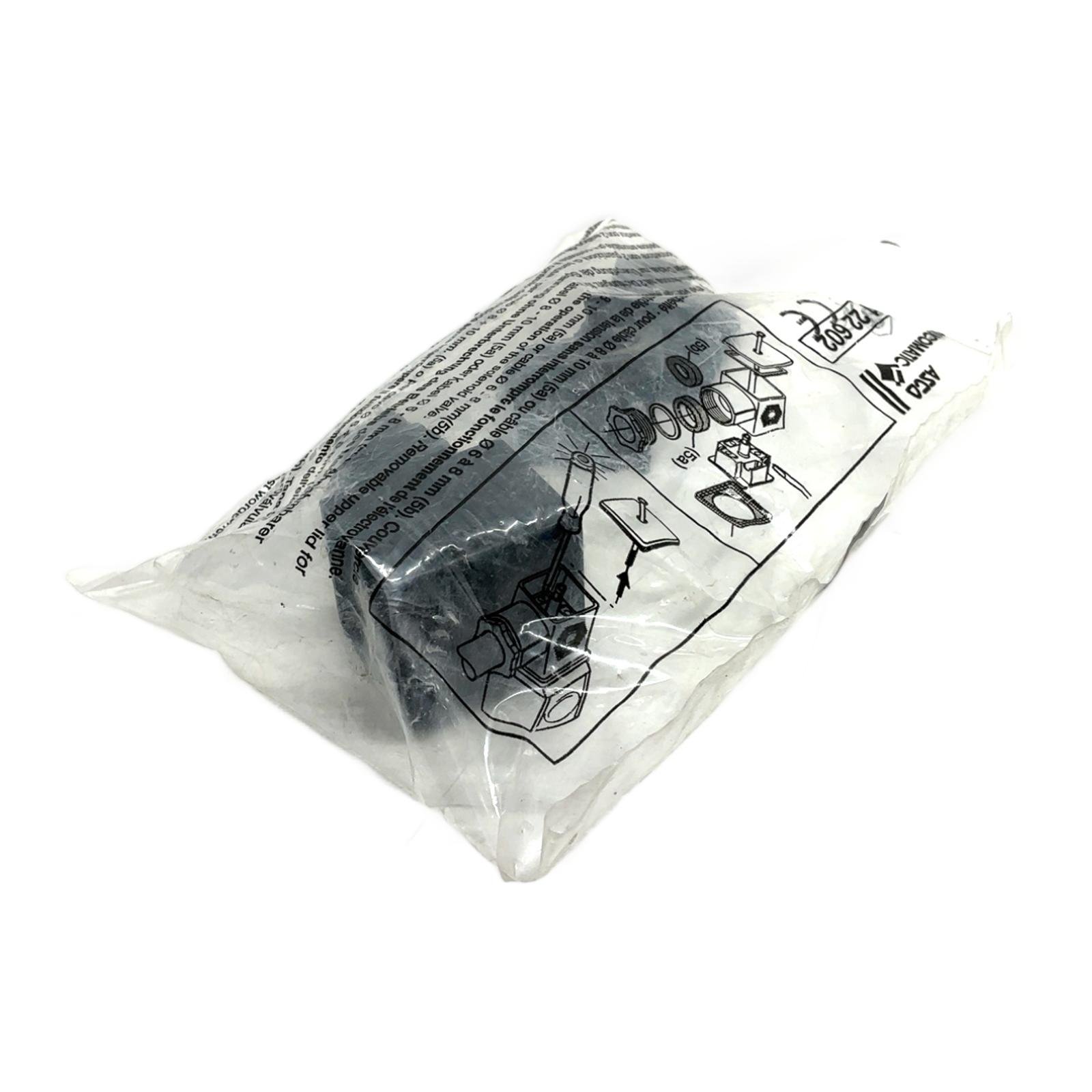

ASCO JOUCOMATIC Solenoid Valve Connector 88122602 Description The ASCO JOUCOMATIC 881 22 602 is a high-quality connector designed for solenoid valves. It conforms to the DIN 43650 Form A standard, ensuring broad compatibility with valves used in pneumatic, hydraulic, and other industrial automation systems. This connector provides a secure, reliable electrical connection and is built to withstand harsh industrial environments. Specifications Manufacturer: ASCO JOUCOMATIC Part Number: 881 22 602 Connector Standard: DIN 43650, Form A / ISO 4400 Cable Diameter: Accommodates 6-8 mm and 8-10 mm with included sealing rings Protection Rating: IP65 (when correctly assembled) Housing Material: Polyamide Contact Type: Screw terminals Label Info ASCO JOUCOMATIC 881 22 602 CE Marked Application This connector is ideal for providing power to solenoid valve coils in a variety of applications, including process control, factory automation, and fluid power systems. Its robust design makes it suitable for machinery, mobile equipment, and outdoor installations where protection against dust and water is required. Country of Origin Manufactured by ASCO, an Emerson brand, with primary manufacturing facilities in Europe, including France. CO2 Impact By choosing this reused component, you avoid the production of a new one, saving an estimated 1.0 kg of CO2. This saving is equivalent to the emissions from driving a standard car for 5 kilometers. Availability This item is in stock and ready for immediate dispatch. It is a new-old-stock (NOS) product in its original, sealed packaging. Order now from profideals for expert support and fast delivery. FAQ Question?What is the maximum voltage and current rating for this 88122602 connector? AnswerThis connector is typically rated for up to 250V AC and 300V DC. The maximum current is generally 10A, but it is always recommended to check the specifications of the connected solenoid coil to ensure compatibility. Question?Does this connector kit include the mounting screw? AnswerYes, the ASCO 88122602 kit is a complete assembly. As shown in the packaging diagram, it includes the connector housing, terminal block, sealing gasket, two cable sealing rings (for 6-8mm and 8-10mm cables), and the central mounting screw. Question?Is this connector compatible with solenoid valves from other brands? AnswerAbsolutely. The 88122602 is a standard DIN 43650 Form A (also known as ISO 4400) connector. This is an industry-wide standard, making it compatible with any solenoid valve from any manufacturer that uses the Form A interface. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
