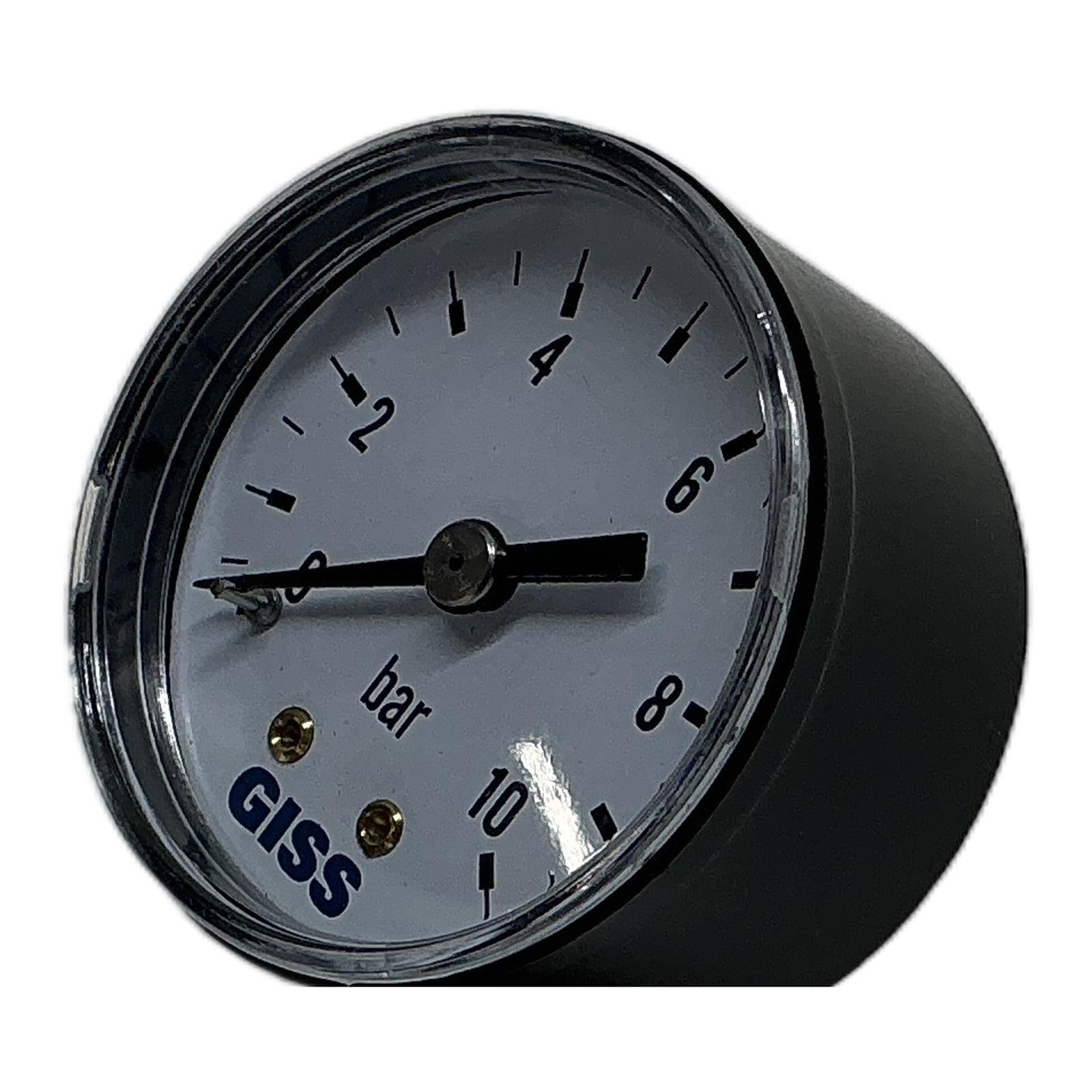

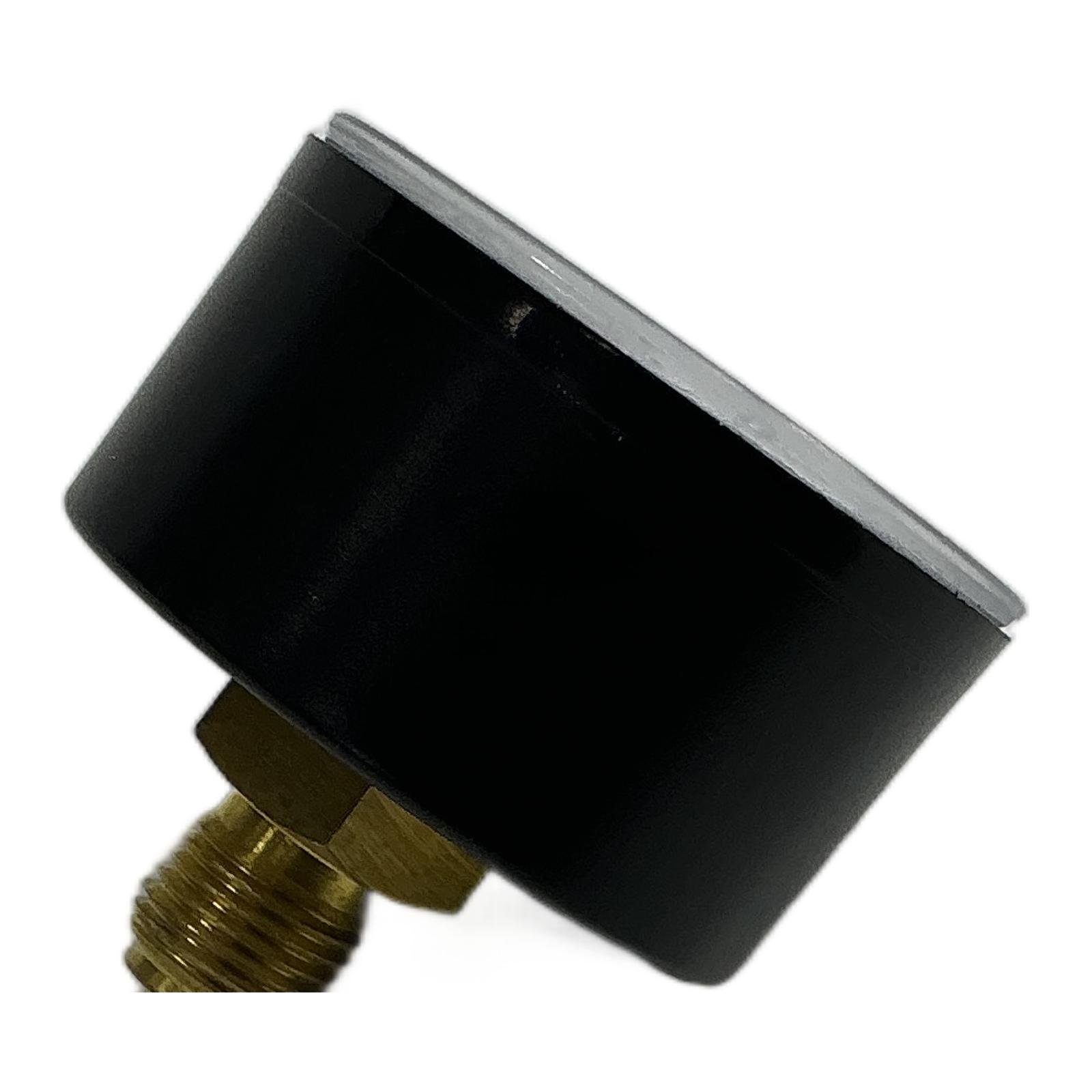

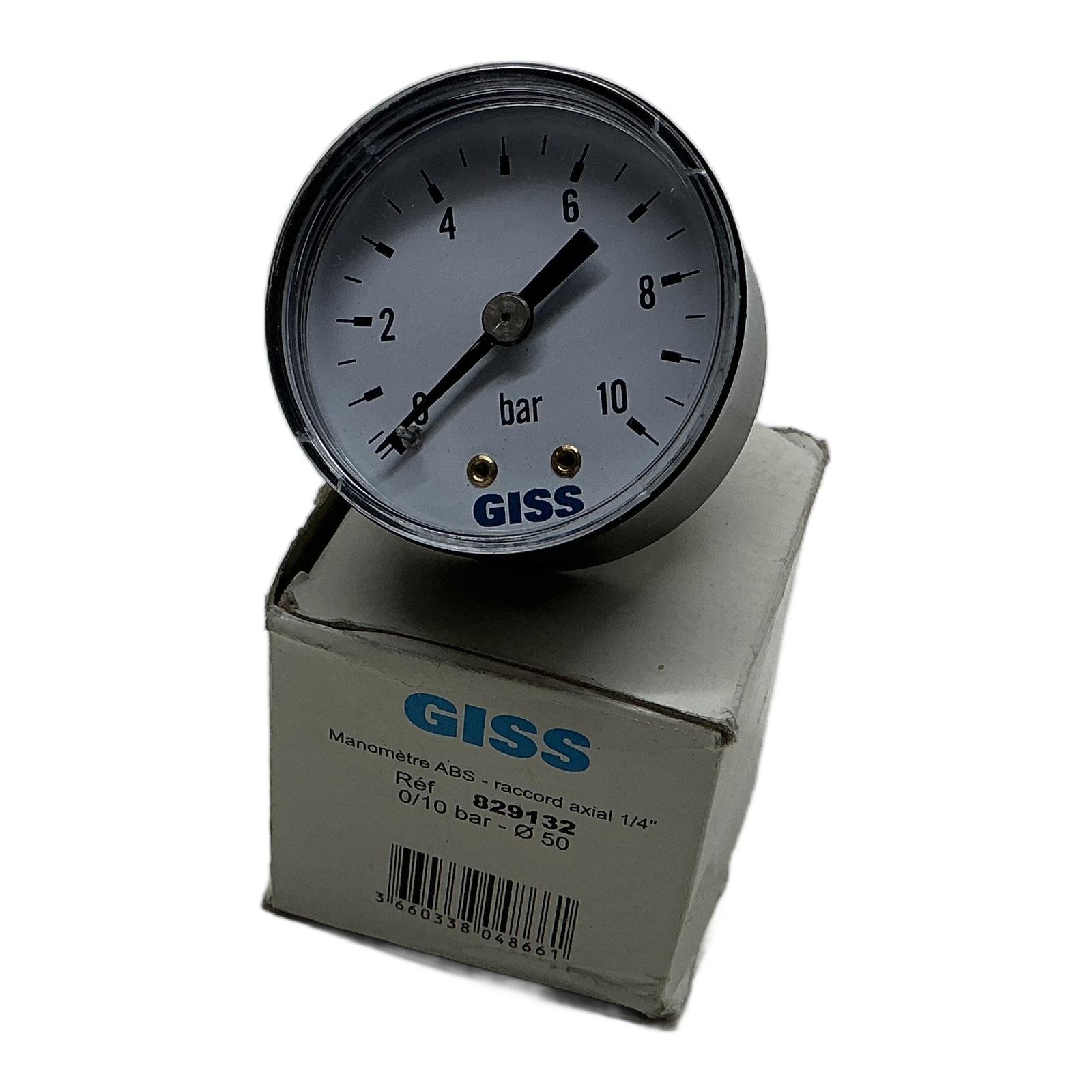

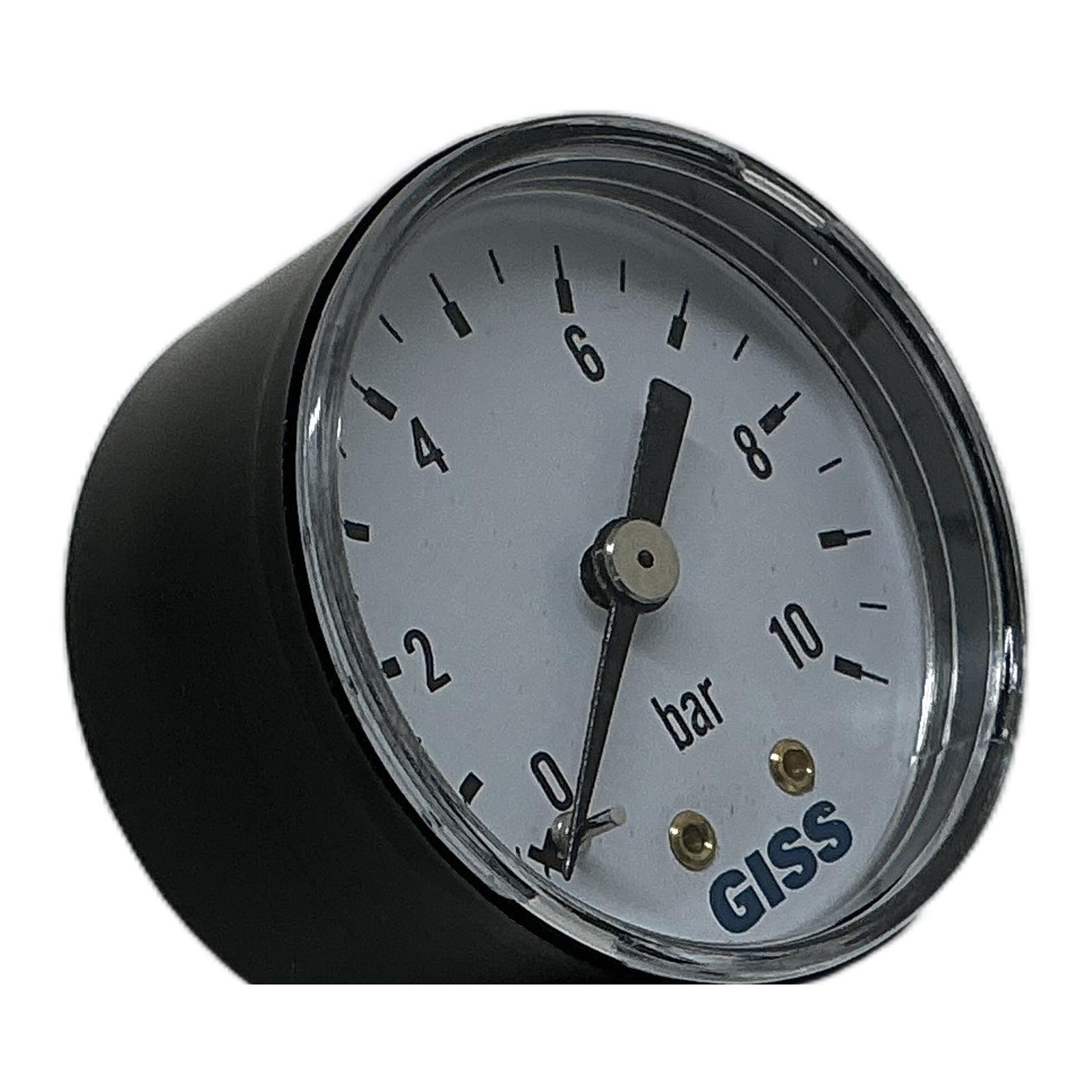

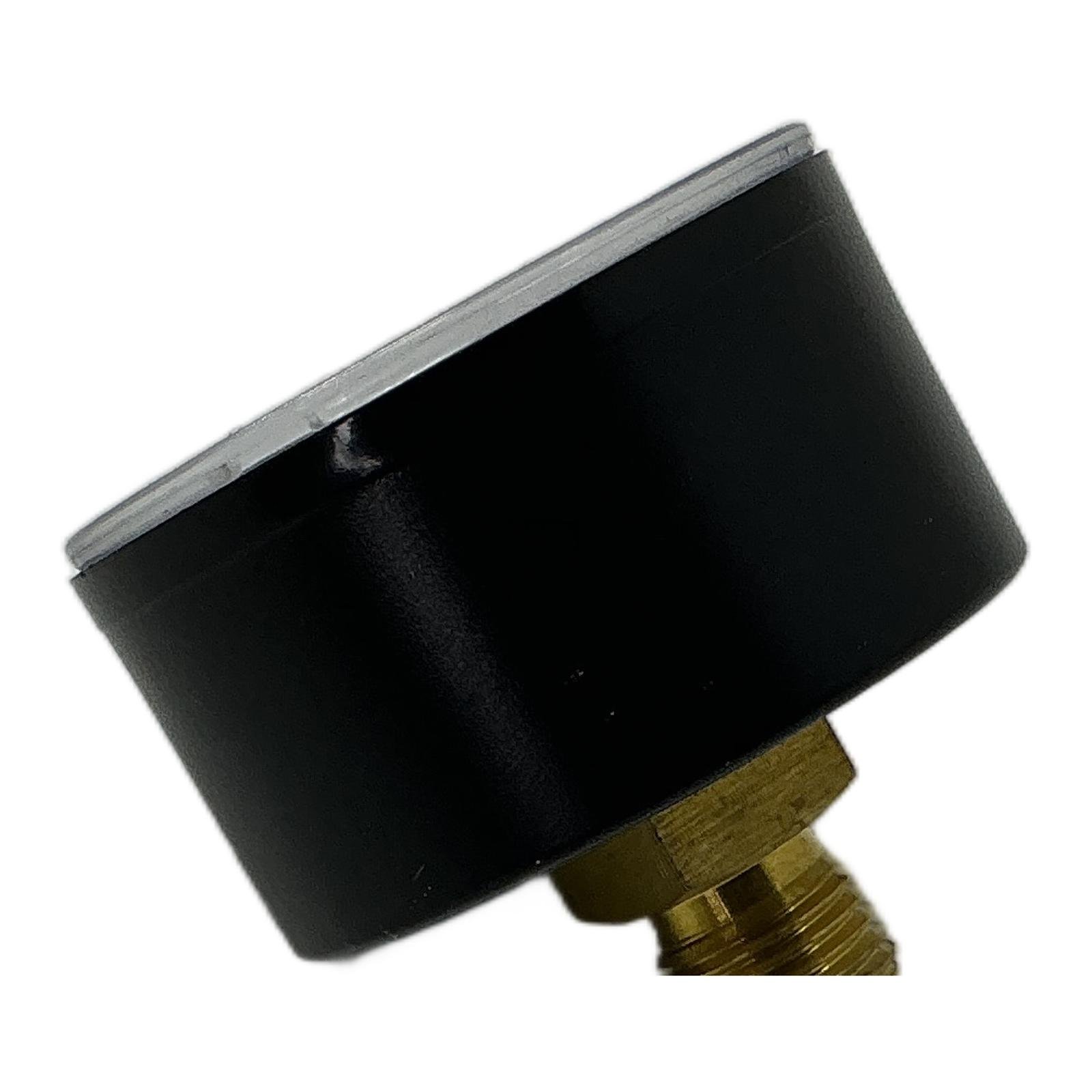

GISS 829132 Gauge 0-10bar 50dia

GISS 0-10 bar ABS Pressure Gauge, 50mm Diameter Description This is the GISS model 829132, a reliable and cost-effective dry pressure gauge designed for monitoring pressure in compressed air systems and other gaseous media applications. It features a clear, easy-to-read 50mm dial with a 0 to 10 bar scale. The durable black ABS housing provides protection in industrial environments, and the standard 1/4 inch axial brass connection ensures straightforward installation. This gauge is an essential component for system diagnostics, regulation, and safety. Specifications Manufacturer: GISS Part Number: 829132 Pressure Range: 0 – 10 bar Dial Diameter: 50 mm Connection Type: Axial (Back Mount) Connection Thread: G 1/4 inch Male Housing Material: ABS Plastic Window Material: Plastic Application Perfect for installation on filter-regulator-lubricator (FRL) units, air compressors, pneumatic actuators, and general compressed air lines to monitor operating pressure. Country of Origin France CO2 Impact By purchasing this reused component, you are helping to avoid 2.5 kg of CO2 emissions associated with the production of a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the accuracy class of this GISS 829132 pressure gauge? GISS specifies this as a standard industrial gauge, typically falling into Class 2.5 according to EN 837-1, which means the maximum error is 2.5% of the full scale value (0.25 bar). Is this gauge suitable for liquids, or is it for air/gas only? This is a standard Bourdon tube pressure gauge, often referred to as a dry gauge. It is primarily designed for use with neutral gaseous media like compressed air. While it can technically measure liquid pressure, it is not glycerin-filled, so it is not ideal for systems with high vibration or pressure pulsations. What does ‘raccord axial 1/4″‘ mean for installation? ‘Raccord axial’ means the 1/4 inch threaded connection is on the back of the gauge, in the center, parallel to the dial face. This is for panel mounting or direct installation where the connection comes straight out from the pipe or manifold. Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
