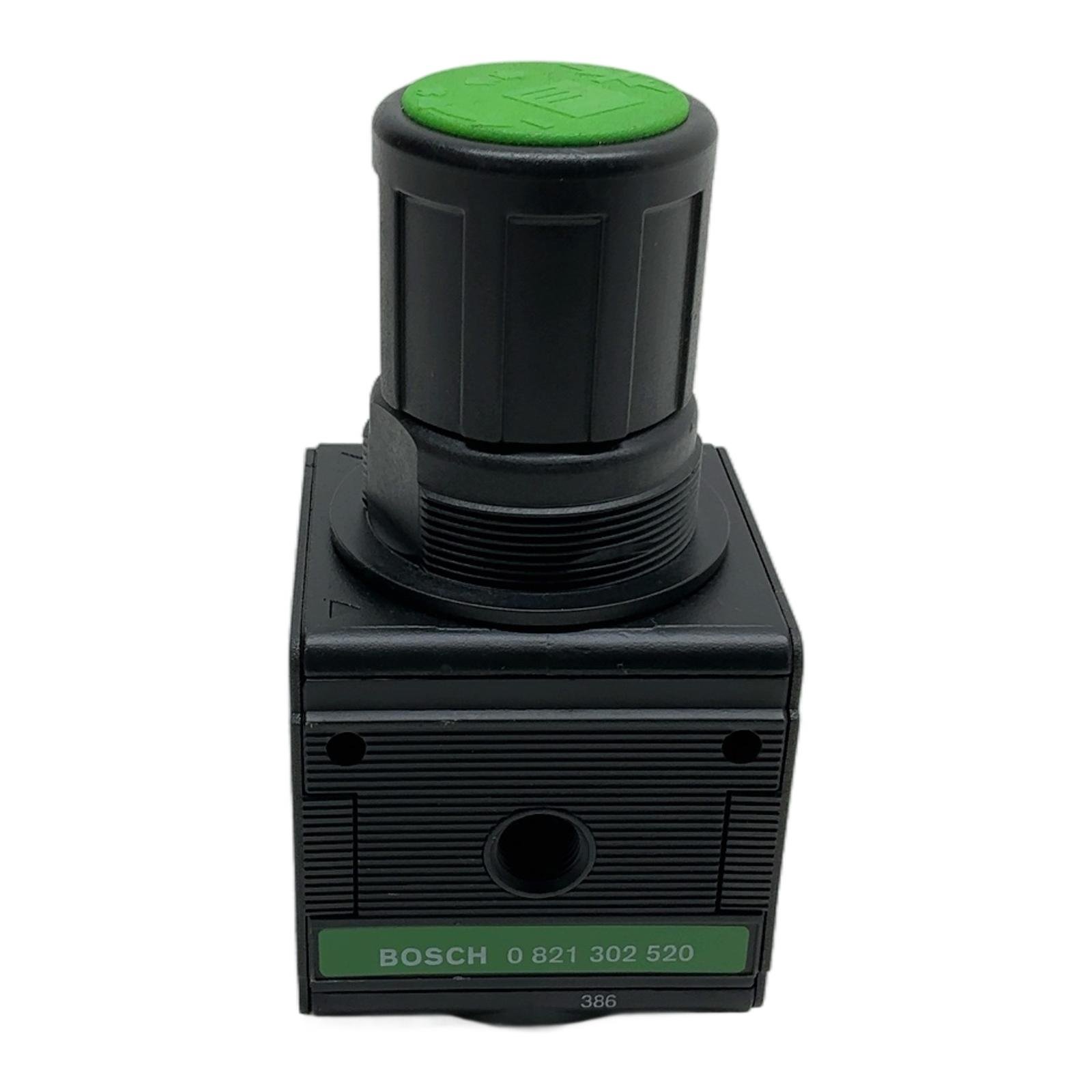

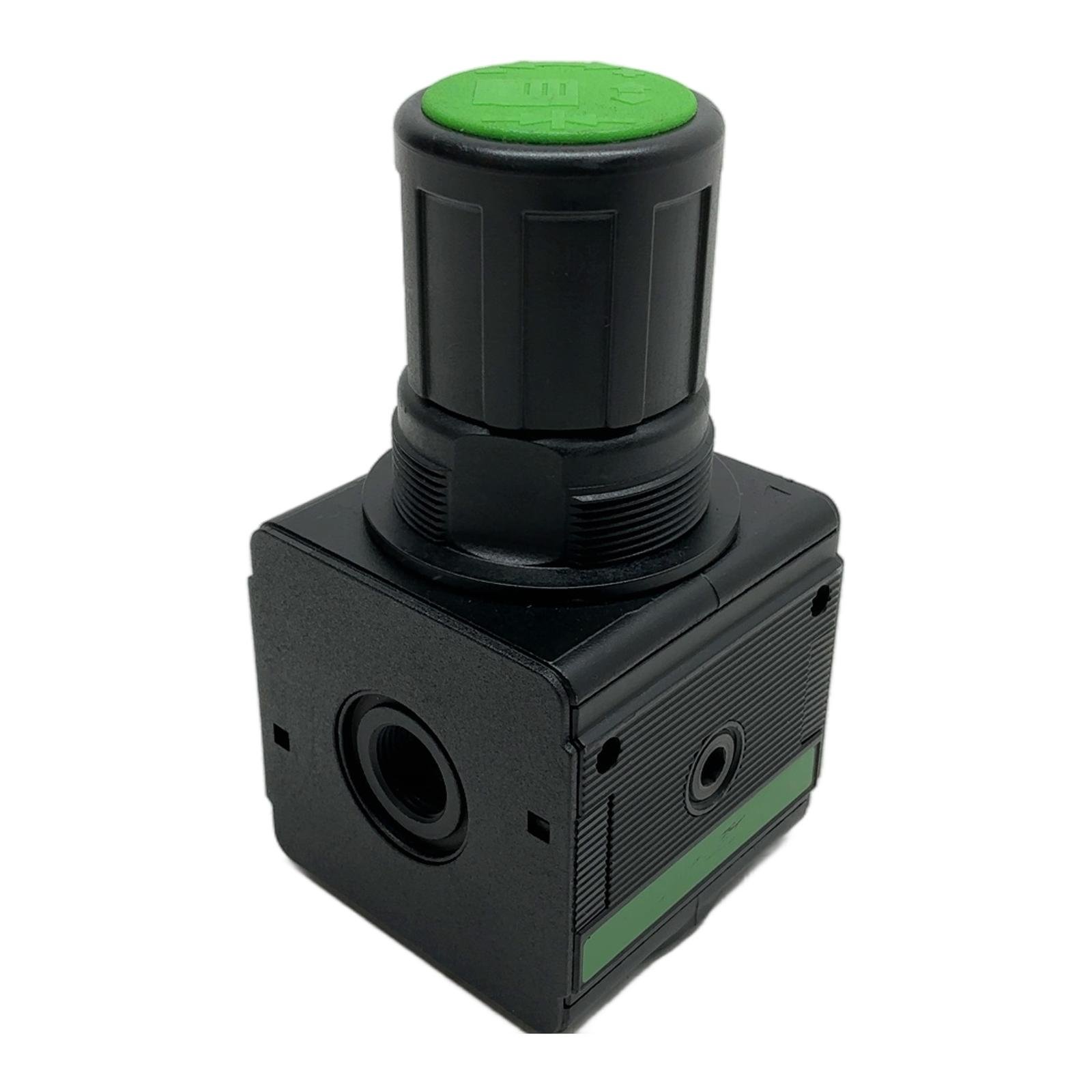

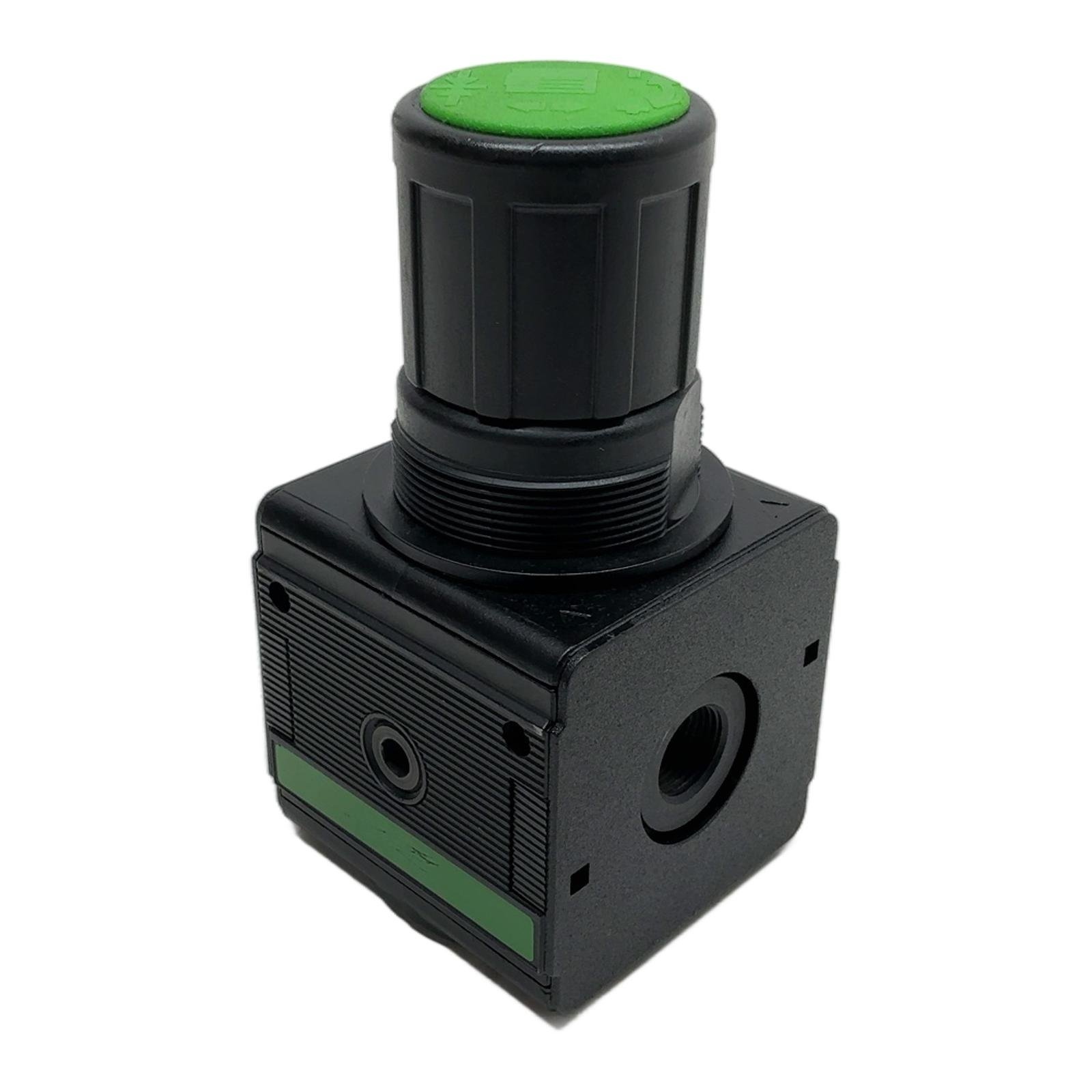

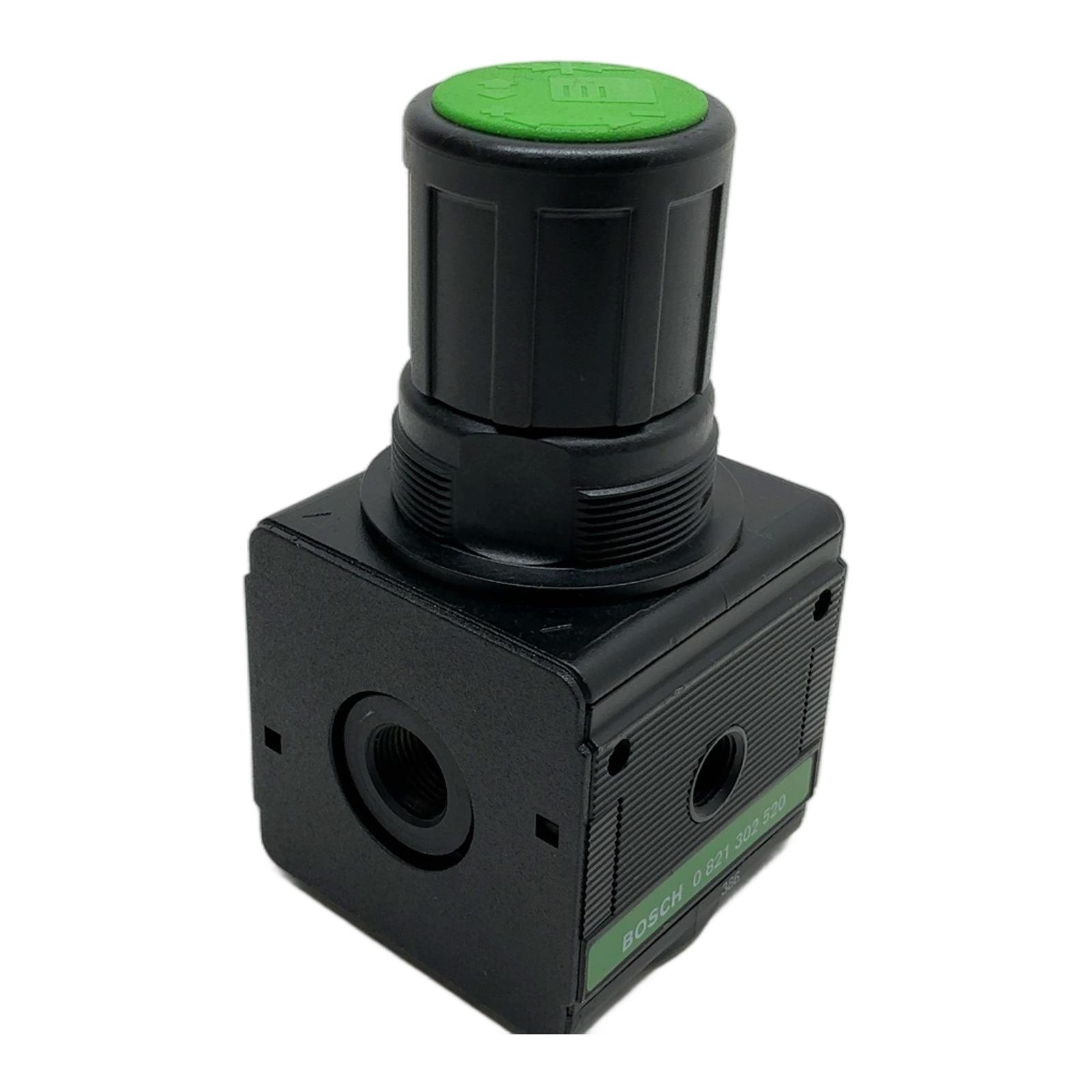

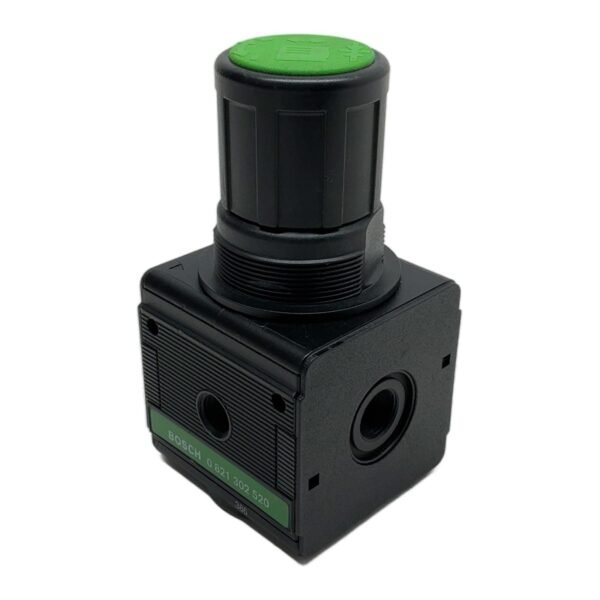

BOSCH 821302520

Bosch G 1/4 Pneumatic Pressure Regulator Description The Bosch 0821302520 is a high-quality pneumatic pressure regulator from the AS2-RGS series. Designed for precision and reliability, this component allows for accurate adjustment and maintenance of operating pressure in compressed air systems. Its compact design and robust polyamide body make it suitable for a wide range of industrial applications. The regulator features a lockable rotary knob to prevent accidental adjustments. Specifications Manufacturer: Bosch Part Number: 0821302520 Series: AS2-RGS Connection Port: G 1/4 Pressure Regulation Range: 0.5 bar to 12 bar Nominal Flow: 2300 l/min Operating Temperature: -10 deg C to +50 deg C Control: Lockable rotary knob Function: Relieving Label Info Brand: BOSCH Model: 0 821 302 520 Application The Bosch 0821302520 is a standard component for maintenance, repair, and operations (MRO) in automated systems where compressed air pressure needs to be reliably controlled. It is suitable for machine building and general automation tasks. Country of Origin This product is manufactured in Germany. CO2 Impact Reusing this part saves approximately 2.0 kg of CO2 compared to manufacturing a new one. This is equivalent to driving a standard car for 10 kilometers. Availability This product is a new-old-stock (NOS) item and is available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the lockable knob on the Bosch 0821302520? The knob is a safety and stability feature. It allows you to set the desired output pressure and then lock it in place by pushing the knob down. This prevents accidental pressure changes due to vibration or unintentional contact. Can I use this regulator for media other than compressed air, like nitrogen or water? This regulator is specifically designed and specified for use with filtered compressed air. Using it with other gases like nitrogen or liquids like water is not recommended by the manufacturer and can lead to improper function or damage to the internal seals and diaphragm. Does the 0821302520 regulator have a relieving function? Yes, this is a relieving type pressure regulator. This means that if the pressure on the downstream side increases above the set value (e.g., from a cylinder retracting), the regulator will automatically vent the excess pressure to the atmosphere to maintain the set point. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
