SIEMENS 6AV6647-0AB11-3AX0

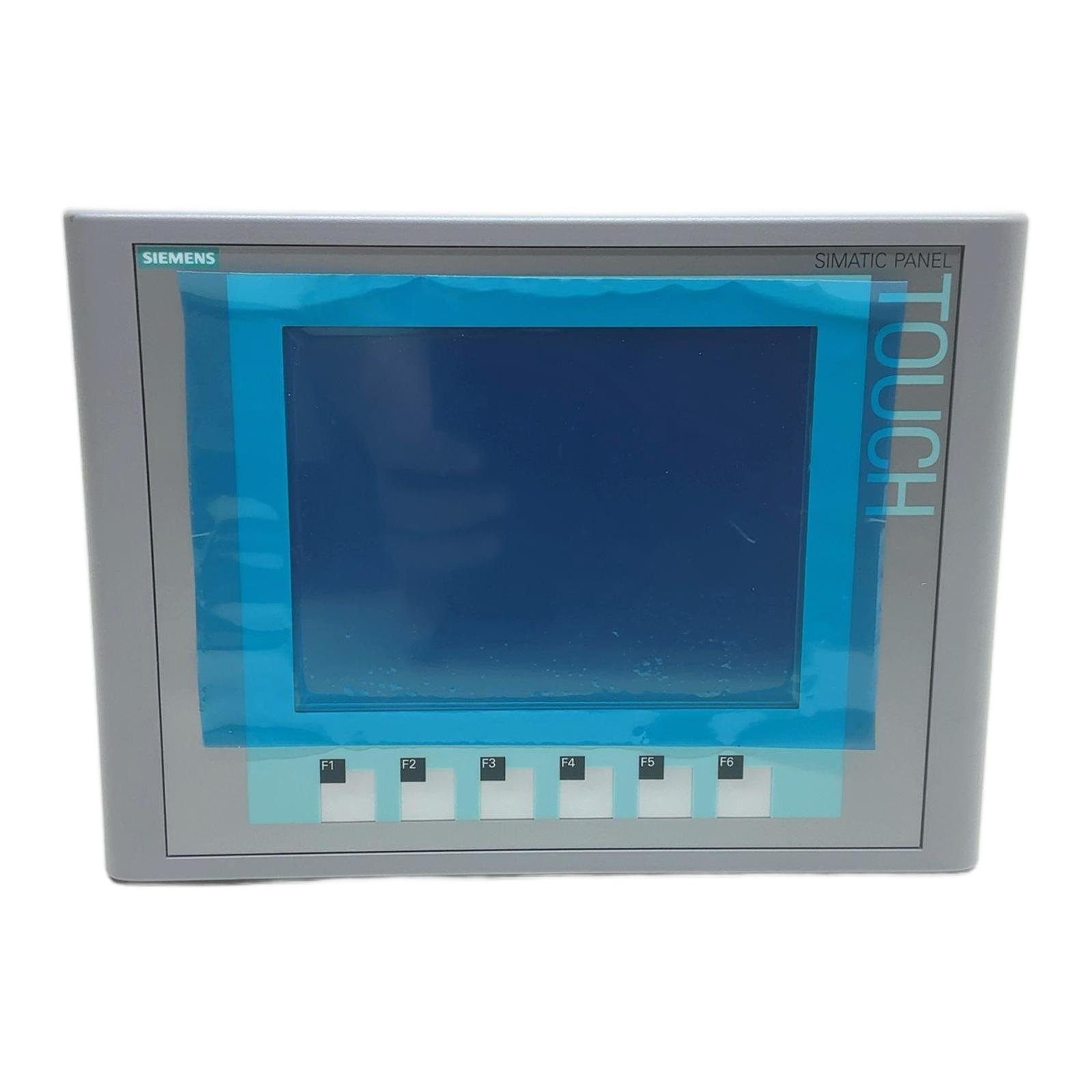

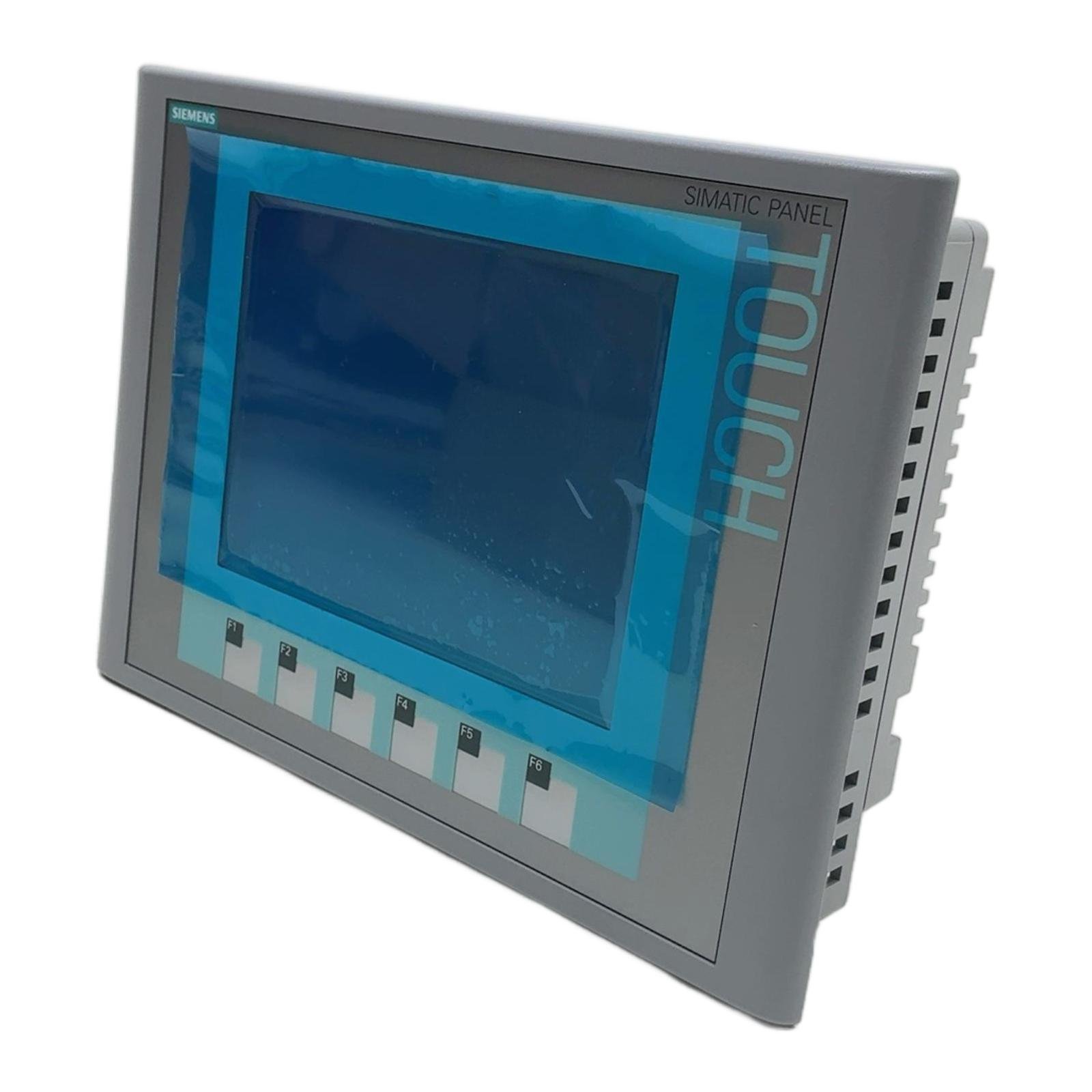

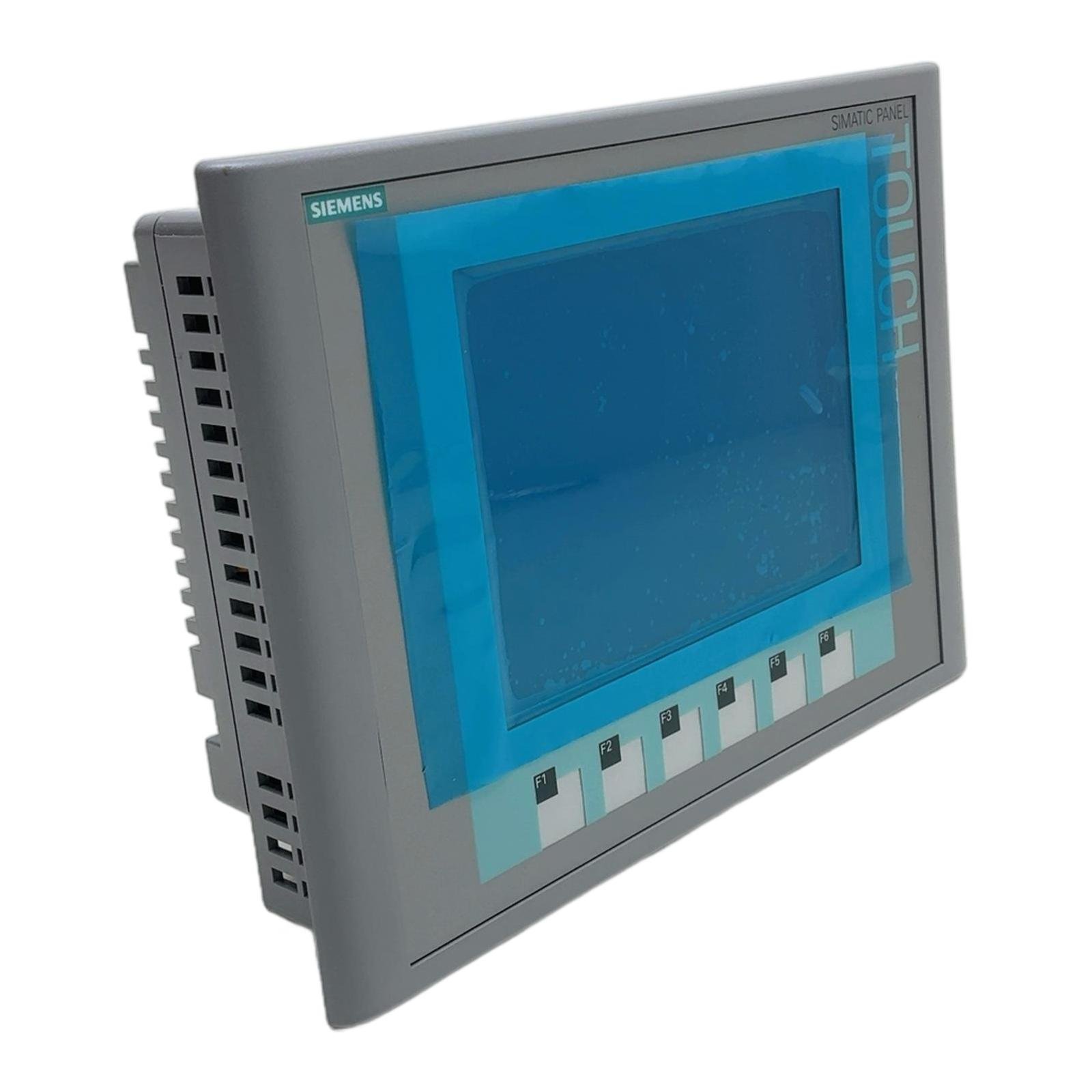

<h2>Siemens SIMATIC HMI KTP600 Basic mono PN</h2> <h3>Description</h3> <p>The 6AV6647-0AB11-3AX0 is a SIMATIC KTP600 Basic mono PN HMI panel from Siemens. It provides essential visualization and operation capabilities for a wide range of industrial applications. Featuring a 5.7-inch monochrome touchscreen display and six function keys, it offers flexible user interaction. This panel is designed for integration into PROFINET networks and is configured using the TIA Portal platform. As an obsolete but widely used component, it is a crucial spare part for maintaining the longevity of existing automation systems.</p> <h3>Specifications</h3> <ul> <li>Model: SIMATIC HMI KTP600 Basic mono PN</li> <li>Manufacturer Part Number: 6AV6647-0AB11-3AX0</li> <li>Display: 5.7-inch STN, 4 gray levels, monochrome</li> <li>Resolution: 320 x 240 pixels</li> <li>Input Type: Touchscreen and 6 membrane keys</li> <li>Communication: 1 x RJ45 PROFINET interface</li> <li>Power Supply: 24V DC</li> <li>Enclosure Rating: IP65 (front), IP20 (rear)</li> </ul> <h3>Label Info</h3> <ul> <li>Manufacturer: Siemens</li> <li>Type: KTP600 Basic mono PN</li> <li>Part No: 6AV6 647-0AB11-3AX0</li> <li>Serial No: ZVH9YUD110364</li> <li>Input: 24V DC / 0.35A max</li> </ul> <h3>Application</h3> <p>This HMI panel is suitable for small to medium-sized machines and plants where basic operator control and monitoring are required. Common applications include conveyor systems, packaging machines, and simple process control loops within a PROFINET architecture.</p> <h3>Country of Origin</h3> <p>Made in China.</p> <h3>CO2 Impact</h3> <p>Reusing this device saves approximately 32 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 160 kilometers.</p> <h3>Availability</h3> <p>This is an obsolete product but available as a spare part. Condition is new old stock, in original opened box. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <strong>What version of TIA Portal is required to program this KTP600 Basic Panel?</strong><br><p>This panel requires SIMATIC WinCC Basic V11 (part of TIA Portal) or a higher version. Ensure your software supports this first-generation Basic Panel before purchase.</p> <strong>Can this monochrome panel be a direct drop-in replacement for a color version of the KTP600?</strong><br><p>Mechanically, it will fit the same cutout. However, the project visualization must be adapted for a monochrome display. Color-dependent graphics and alerts will need to be re-designed for clarity in grayscale.</p> <strong>Is the PROFINET port on this HMI capable of acting as a switch for daisy-chaining to other devices?</strong><br><p>No, the KTP600 Basic panels have a single PROFINET port with one RJ45 connector. It does not have an integrated 2-port switch for linear topologies. An external Ethernet switch is required to connect multiple devices.</p> <p>Last Update: Friday, March 13, 2026</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.</em></p>
