DR. BREIT 403006.002 501050.001

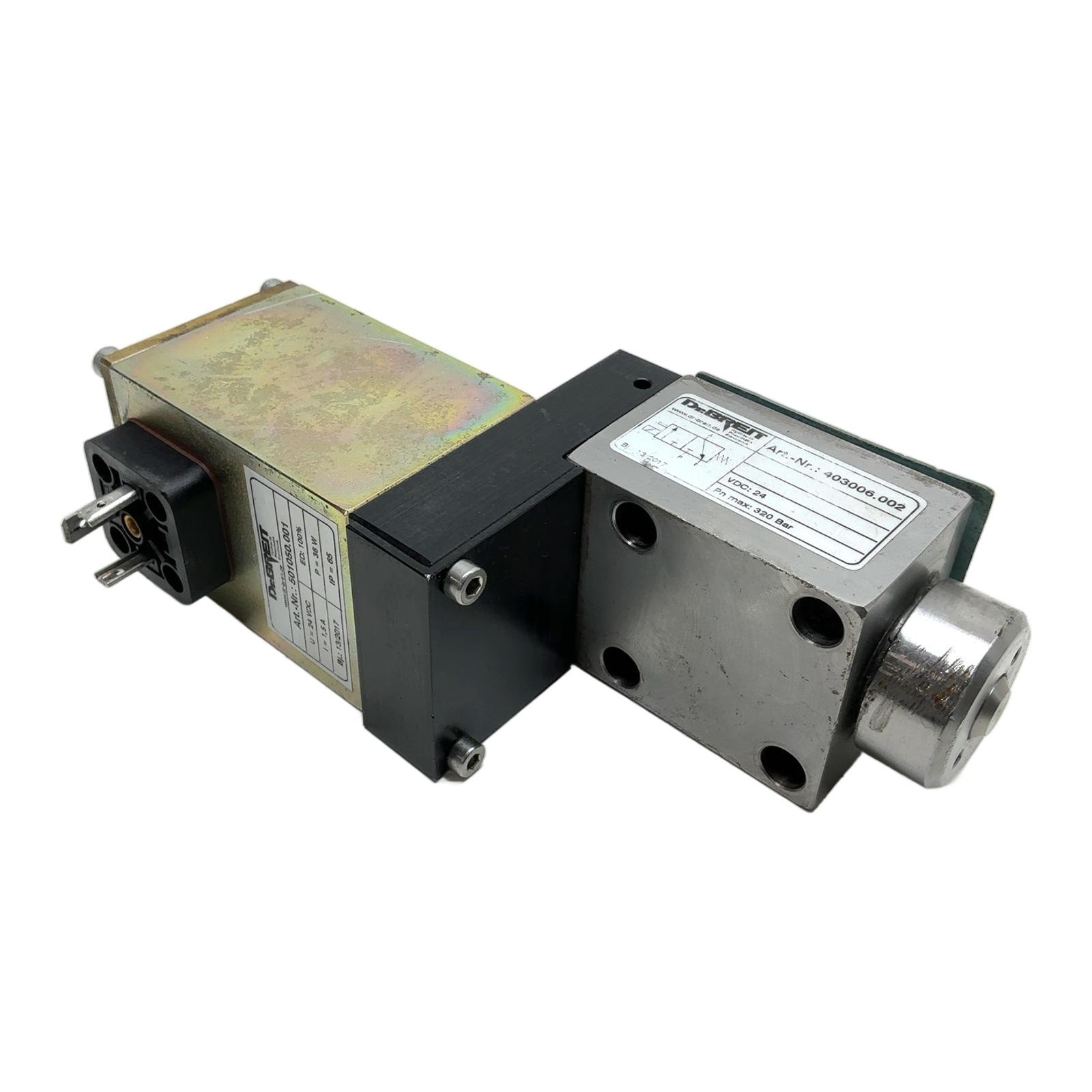

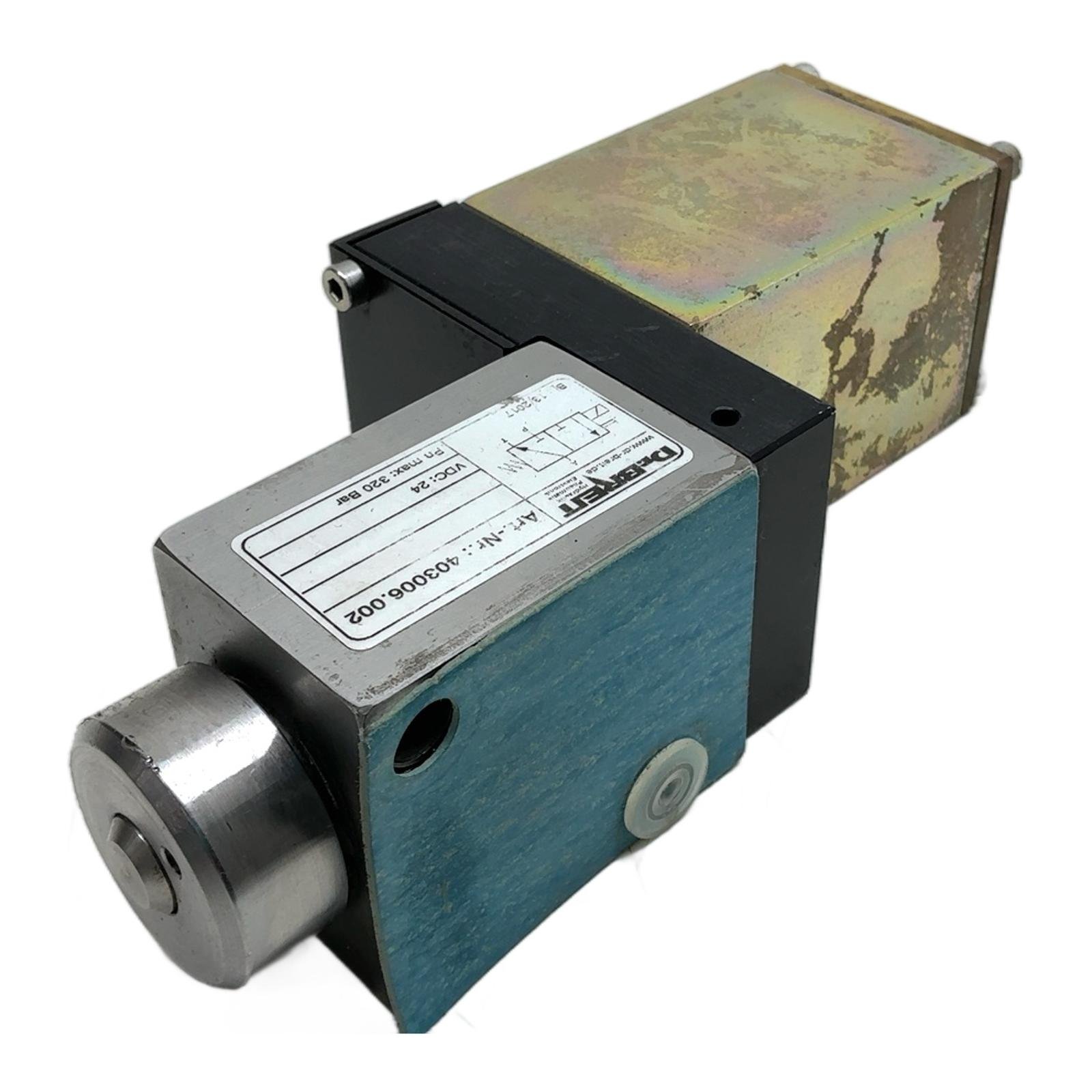

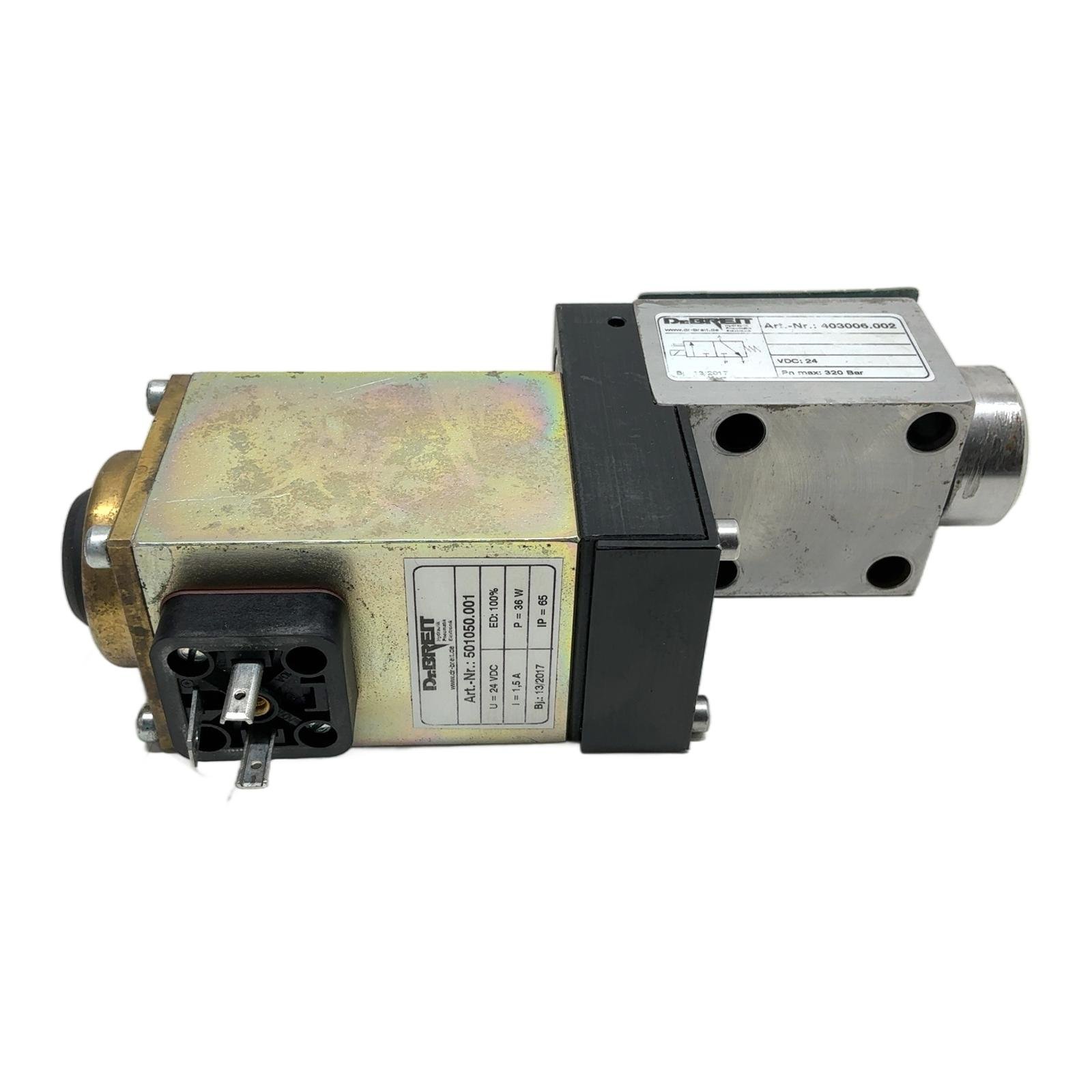

Dr. Breit 3/2-Way Hydraulic Solenoid Valve Description This is a complete hydraulic solenoid valve assembly from Dr. Breit, consisting of the valve body 403006.002 and the solenoid coil 501050.001. It is a direct-acting, 3-port, 2-position valve designed for high-pressure hydraulic applications. With a robust design and a 24 VDC coil, it provides reliable switching for machine tools, mobile hydraulics, and general industrial machinery. The 100% duty cycle rating ensures it is suitable for continuous operation. Specifications Manufacturer: Dr. Breit Type: 3/2-Way Hydraulic Solenoid Valve Operating Voltage: 24 VDC Maximum Operating Pressure (Pn): 320 Bar Power Consumption: 36 W Current Draw: 1.5 A Duty Cycle (ED): 100% Ingress Protection: IP65 (with proper connector) Label Info Valve Part Number: Art.-Nr. 403006.002 Solenoid Part Number: Art.-Nr. 501050.001 Year of Manufacture: 2017 Application This valve is ideal for controlling the flow direction in hydraulic circuits. Common applications include pilot control for larger valves, cylinder actuation, and hydraulic clamping systems where precise and reliable on/off control is required. Country of Origin Germany CO2 Impact By purchasing this pre-owned item, you are helping to avoid the emission of approximately 16.0 kg of CO2, which is the estimated amount produced during the manufacturing of a new unit. This is comparable to the emissions from driving a car for 80 kilometers. Availability In stock. Order now from profideals for expert support and fast delivery. FAQ Question?What type of connector is required for this solenoid?Answer:This valve uses a standard DIN 43650-A connector, which is common for industrial solenoid valves and pressure switches. Ensure you use a compatible plug with a gasket for a proper IP65 seal.Question?Is this a normally open or normally closed valve?Answer:Based on the standard hydraulic schematic shown on the label, this is a normally closed 3/2-way valve. In its de-energized state, the pressure port (P) is blocked, and the work port (A) is connected to the tank port (T).Question?Can the solenoid coil (Art.-Nr. 501050.001) be replaced separately from the valve body (Art.-Nr. 403006.002)?Answer:Yes, the solenoid coil is a separate component and can typically be replaced independently of the hydraulic valve body. You would need to remove the retaining nut, slide the old coil off the valve stem, and install the new one. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
