SIEMENS 3UF7000-1AU00-0

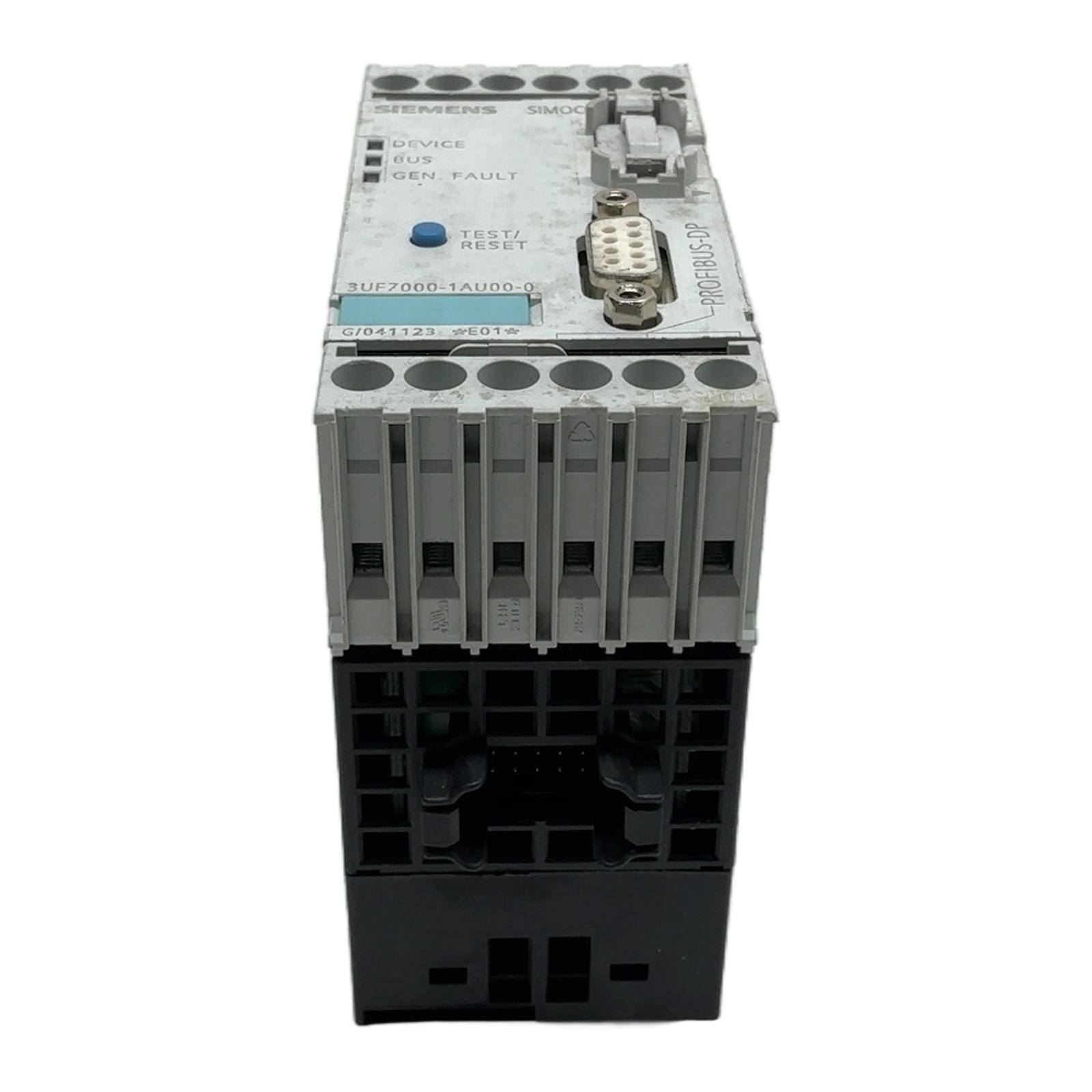

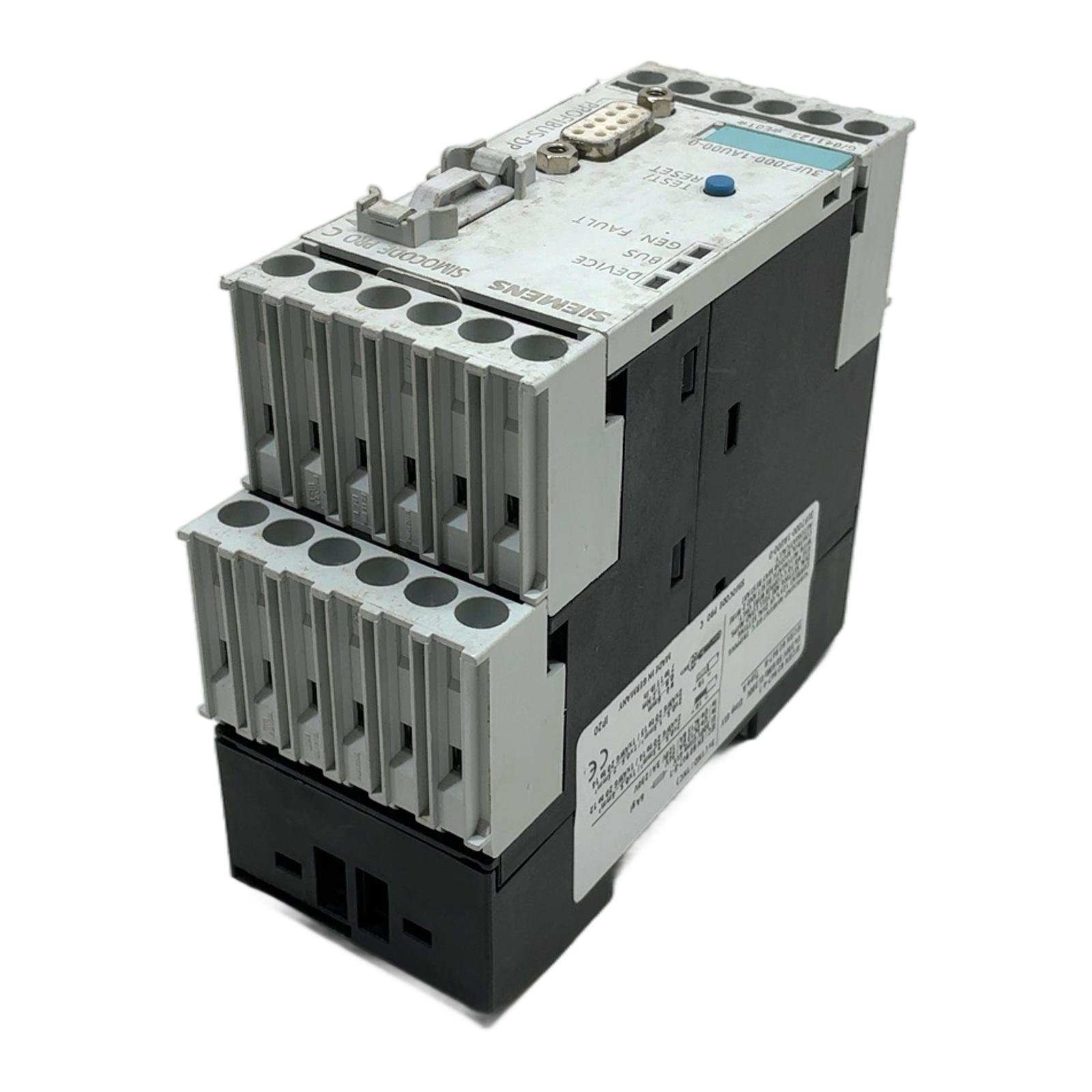

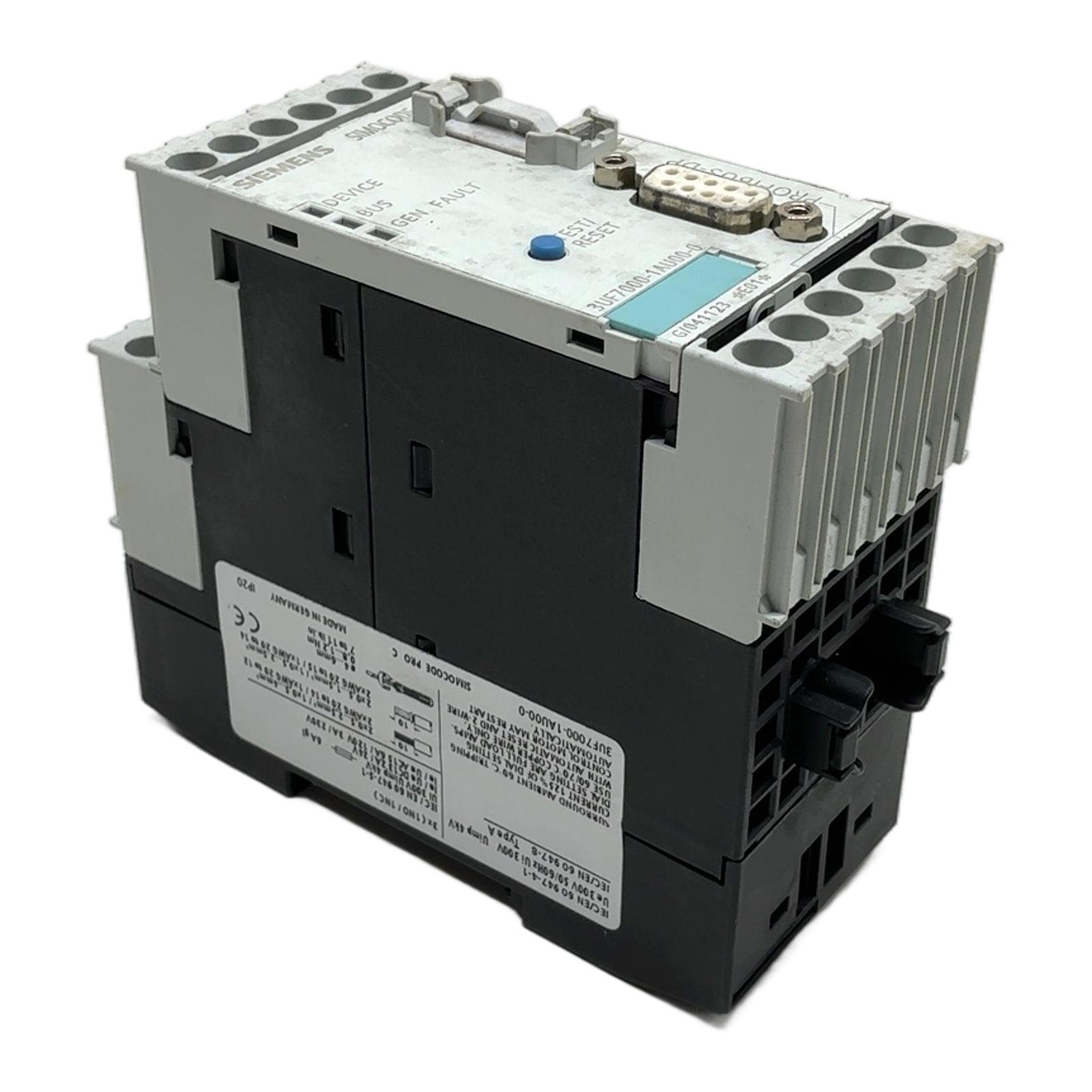

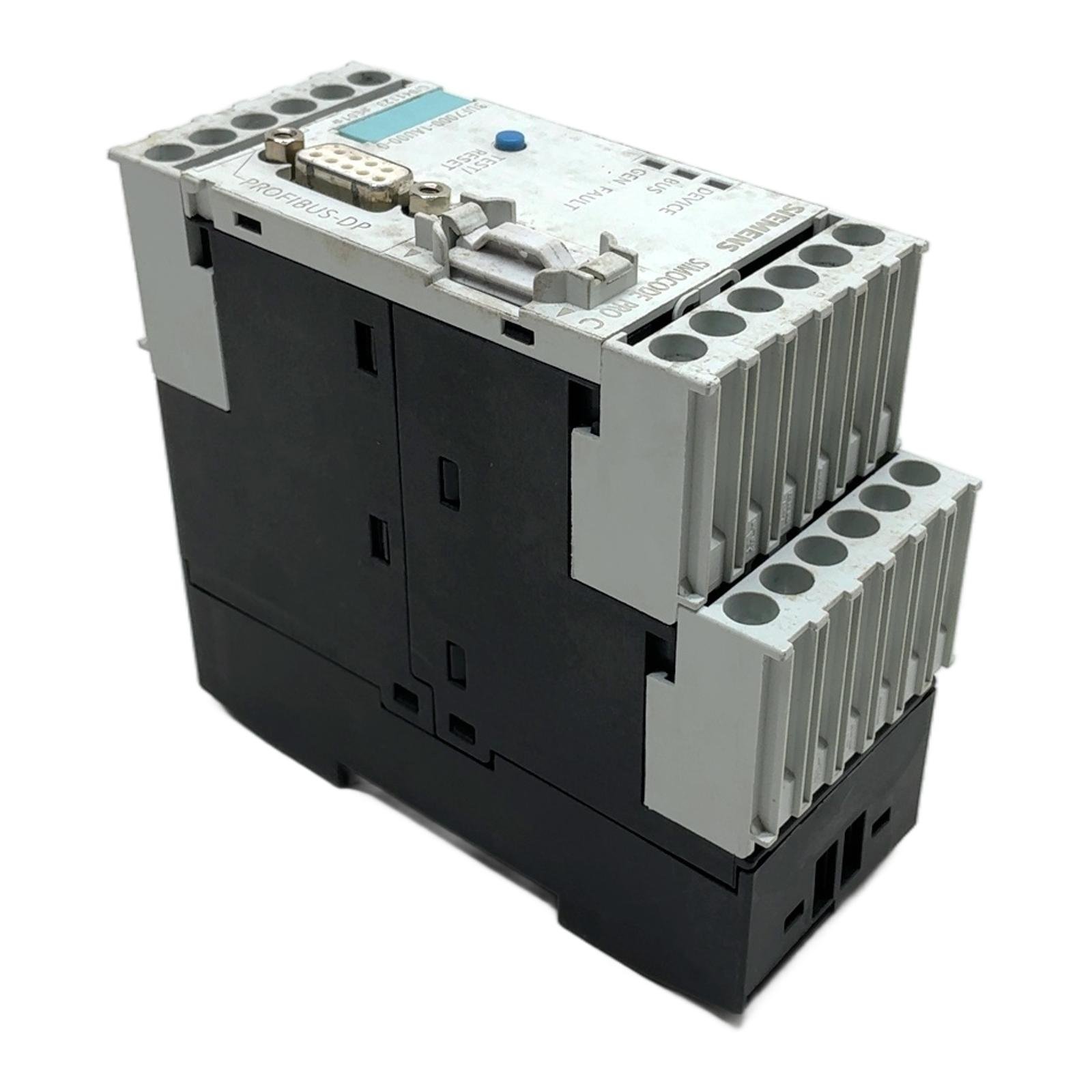

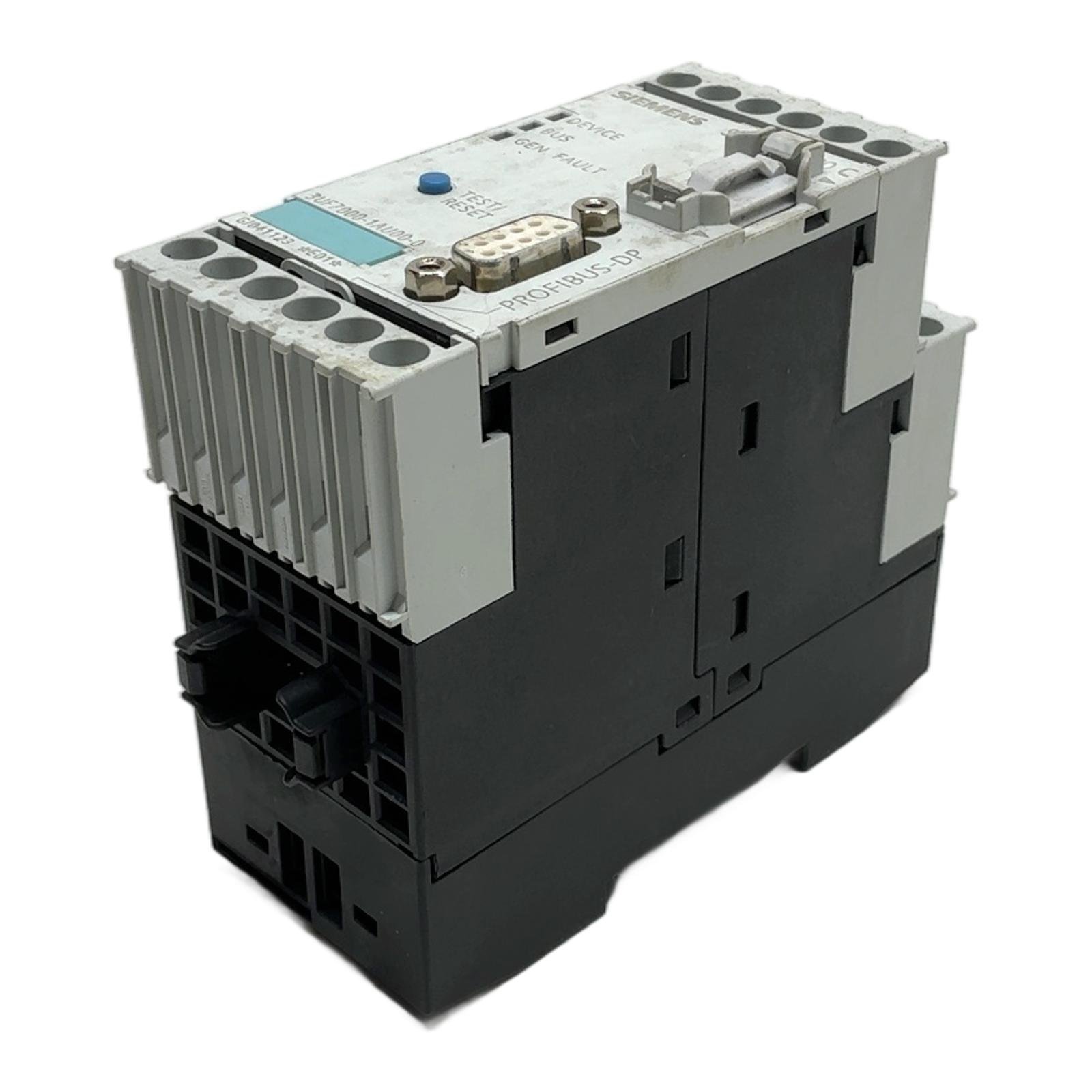

Siemens SIMOCODE pro C Motor Management System Description The Siemens 3UF7000-1AU00-0 is a basic unit from the robust SIMOCODE pro C series. This intelligent motor management system is designed to provide comprehensive protection, monitoring, and control for low-voltage motors. With its integrated PROFIBUS-DP interface, it allows for easy integration into higher-level automation systems like SIMATIC, enabling detailed operational, diagnostic, and statistical data transfer. It is an ideal solution for maintaining and extending the life of existing industrial control systems. Specifications Manufacturer: Siemens Product Line: SIMOCODE pro C Type Number: 3UF7000-1AU00-0 Communication: PROFIBUS-DP Operating Voltage (Ue): up to 300V, 50/60Hz Insulation Voltage (Ui): 300V Impulse Withstand Voltage (Uimp): 4kV Relay Outputs: 3 (1NO / 1NC) Relay Ratings (AC-15): 6A / 120V, 3A / 230V Relay Ratings (DC-13): 2A / 24V Protection Class: IP20 Label Info Standards: IEC/EN 60947-4-1, IEC/EN 60947-8 Type A, IEC/EN 60947-5-1 Order Number: 3UF7000-1AU00-0 Application This device is widely used for the protection and control of constant-speed motors in various industrial applications, including pumps, fans, conveyors, and compressors, especially within systems utilizing the PROFIBUS communication network. Country of Origin Made in Germany. CO2 Impact By choosing this refurbished component, you are saving approximately 10.0 kg of CO2 emissions compared to a new production. This is a significant contribution to sustainable industrial practices. Availability This is a tested, pre-owned item in excellent working condition. It is an obsolete product, making it a valuable spare part for existing installations. Order now from profideals for expert support and fast delivery. FAQ What is the main difference between SIMOCODE pro C and the newer pro V?The main difference is modularity and functionality. SIMOCODE pro V offers greater flexibility with expandable modules for functions like voltage/power measurement and ground fault detection, alongside more advanced communication protocols like PROFINET. Does this basic unit 3UF7000-1AU00-0 require a separate current measuring module?Yes, as a basic unit, the 3UF7000-1AU00-0 requires a corresponding current measuring module (e.g., 3UF710…) to monitor the motor current and provide overload protection. What software is used to parameterize the 3UF7000-1AU00-0?This device is typically parameterized using the SIMOCODE ES software, which can operate as a standalone tool or be integrated into Siemens’ TIA Portal or STEP 7 engineering environments. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
