SIEMENS 3RT1056-2AM36

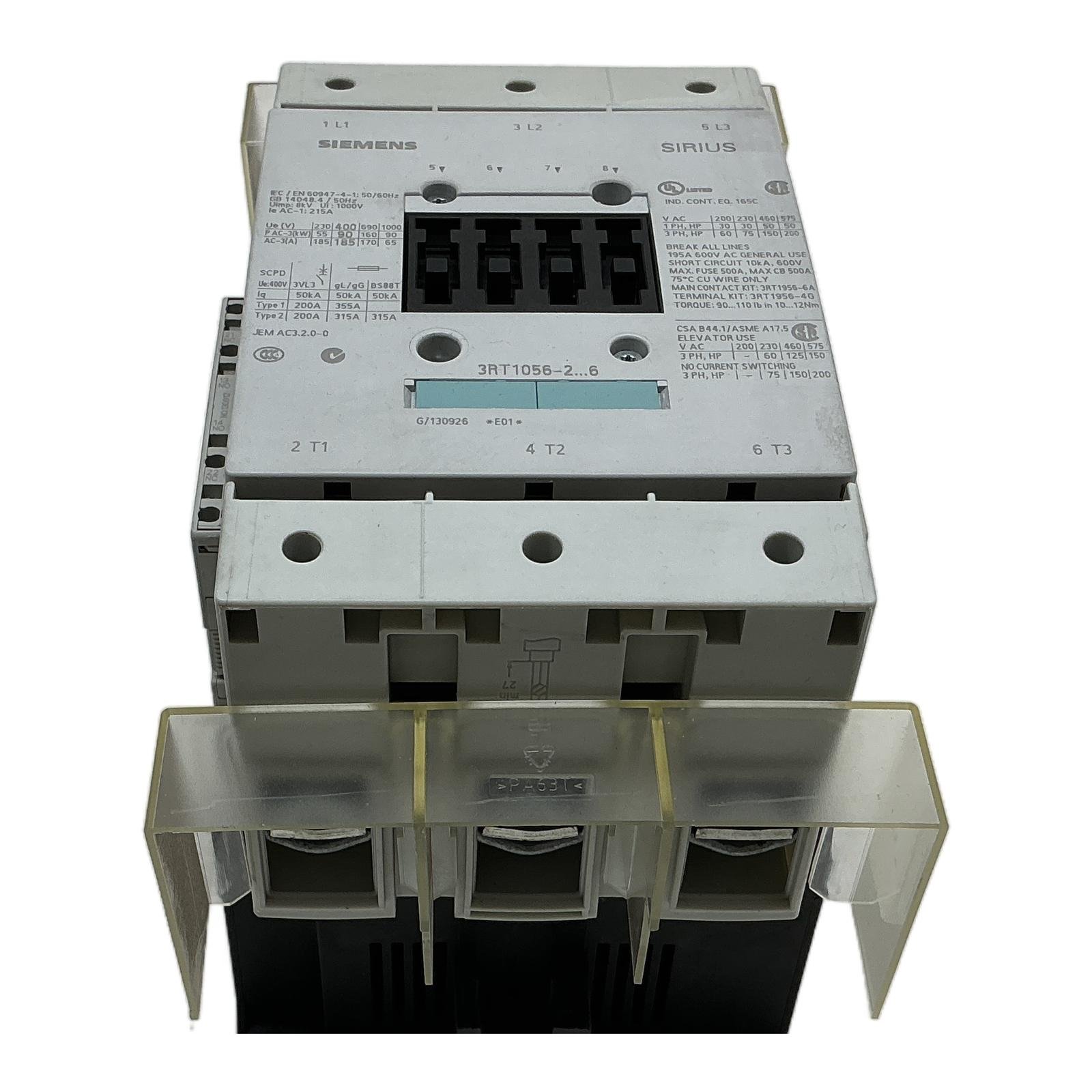

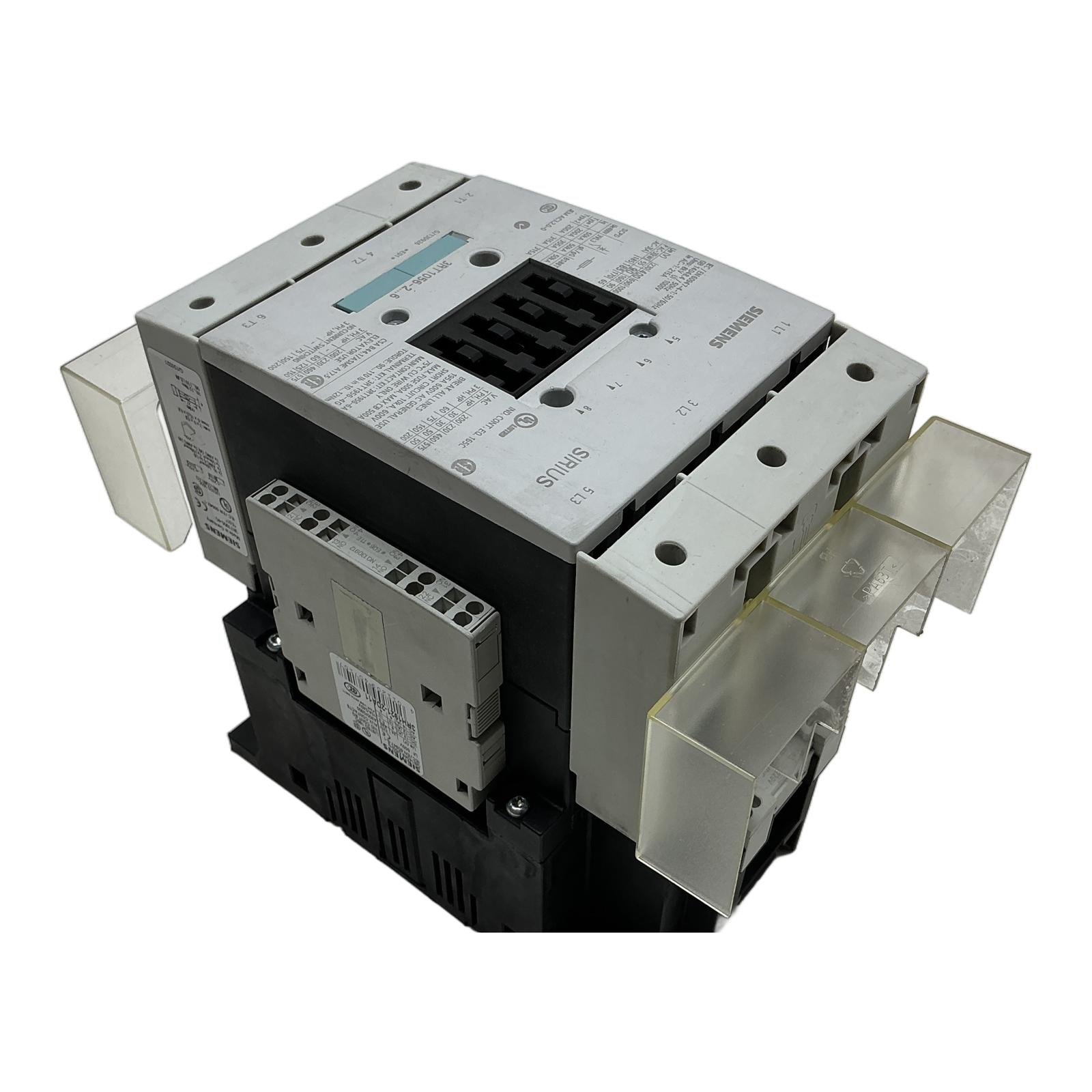

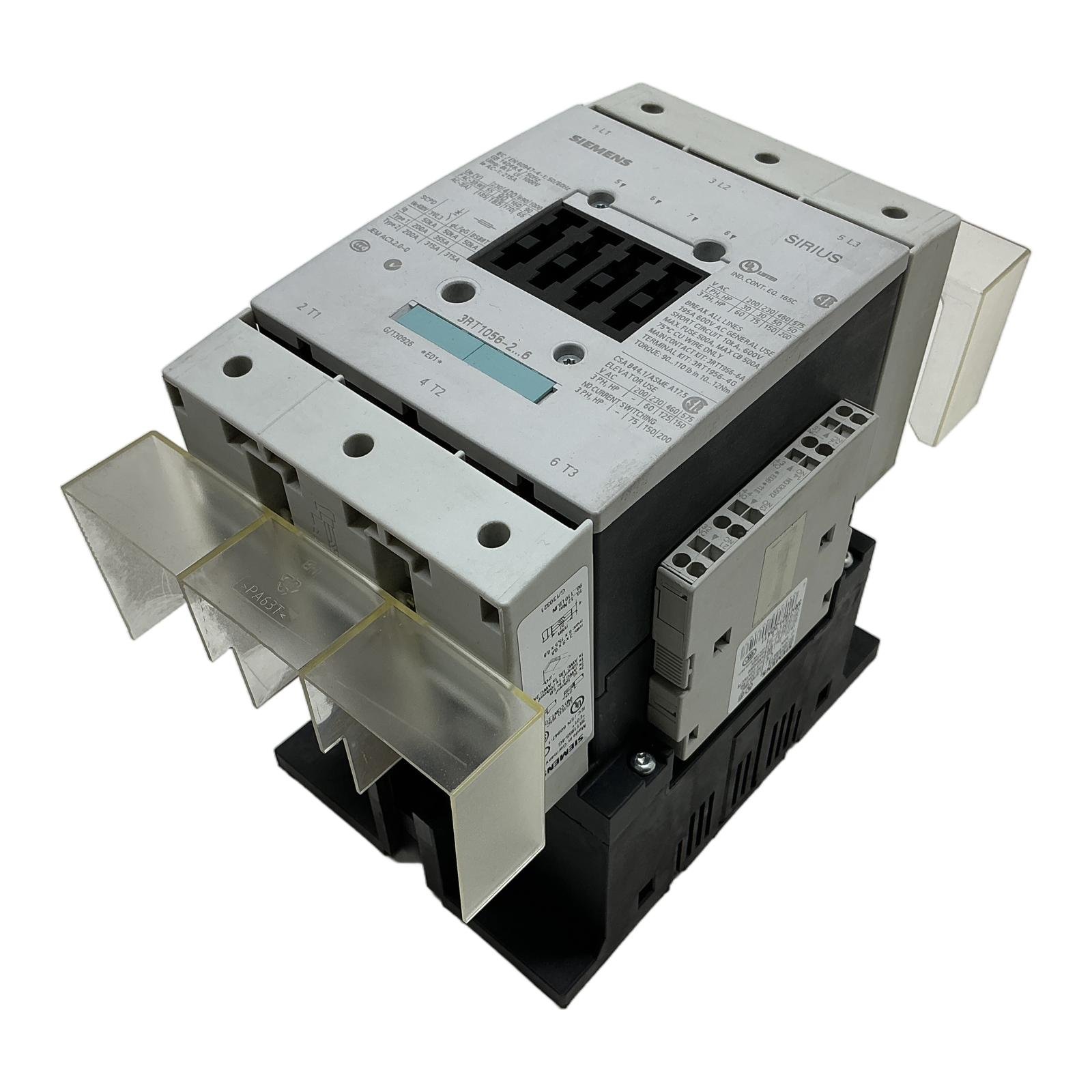

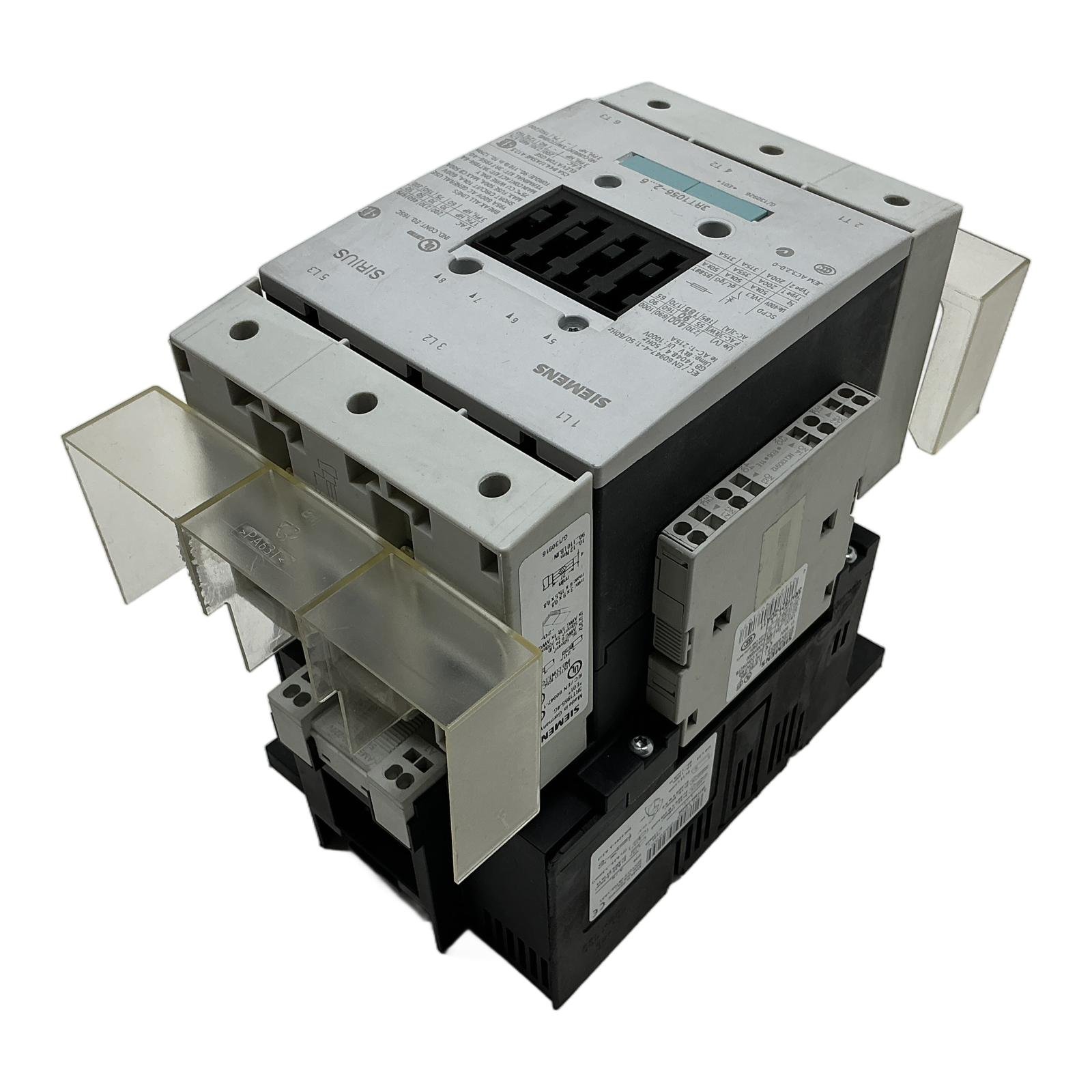

Siemens SIRIUS 3RT1056-2AM36 Power Contactor Description This is a Siemens SIRIUS 3RT1056-2AM36 power contactor, a robust 3-pole device designed for switching motors up to 90 kW at 400V. It belongs to the S6 size category and operates with a 110V AC (50Hz) / 120V AC (60Hz) control coil. This contactor is a reliable component for heavy-duty industrial applications and comes equipped with a 3RH1921-2DA11 auxiliary contact block. Specifications Manufacturer: Siemens Product Series: SIRIUS Type: Power Contactor Model: 3RT1056-2AM36 Poles: 3-Pole Size: S6 Rated Power (AC-3, 400V): 90 kW Rated Current (AC-3, 400V): 185 A Rated Current (AC-1): 215 A Coil Voltage: 110V AC at 50Hz / 120V AC at 60Hz Auxiliary Contacts (mounted): 3RH1921-2DA11 (2NO + 2NC) Label Info Standard: IEC/EN 60947-4-1 Rated Insulation Voltage (Ui): 1000V Rated Impulse Withstand Voltage (Uimp): 8kV Certifications: UL, CSA, CE Application Ideal for motor control in applications such as conveyors, pumps, fans, and other industrial machinery requiring high-power switching capabilities. Country of Origin Made in Germany. CO2 Impact By choosing this pre-owned contactor, you are helping to avoid 87.5 kg of CO2 emissions, which is comparable to the emissions from driving a car for 438 kilometers. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the correct coil voltage for this 3RT1056-2AM36 contactor?The suffix ‘-2AM36’ in the model number indicates the coil voltage. This unit is designed for a control voltage of 110V AC at 50 Hz or 120V AC at 60 Hz. Can I use modern 3RT2 accessories with this obsolete 3RT1 contactor?No, accessories like auxiliary contacts and overload relays are generally not cross-compatible between the 3RT1 and the successor 3RT2 series due to differences in physical design. You must use accessories specified for the 3RT1 S6 size. What are the recommended tightening torques for the main power terminals?The label specifies a torque of 10 to 14 Nm (89 to 124 lb.in) for the main screw terminals (size M8). It is crucial to use a calibrated torque wrench to ensure a secure and safe connection. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
